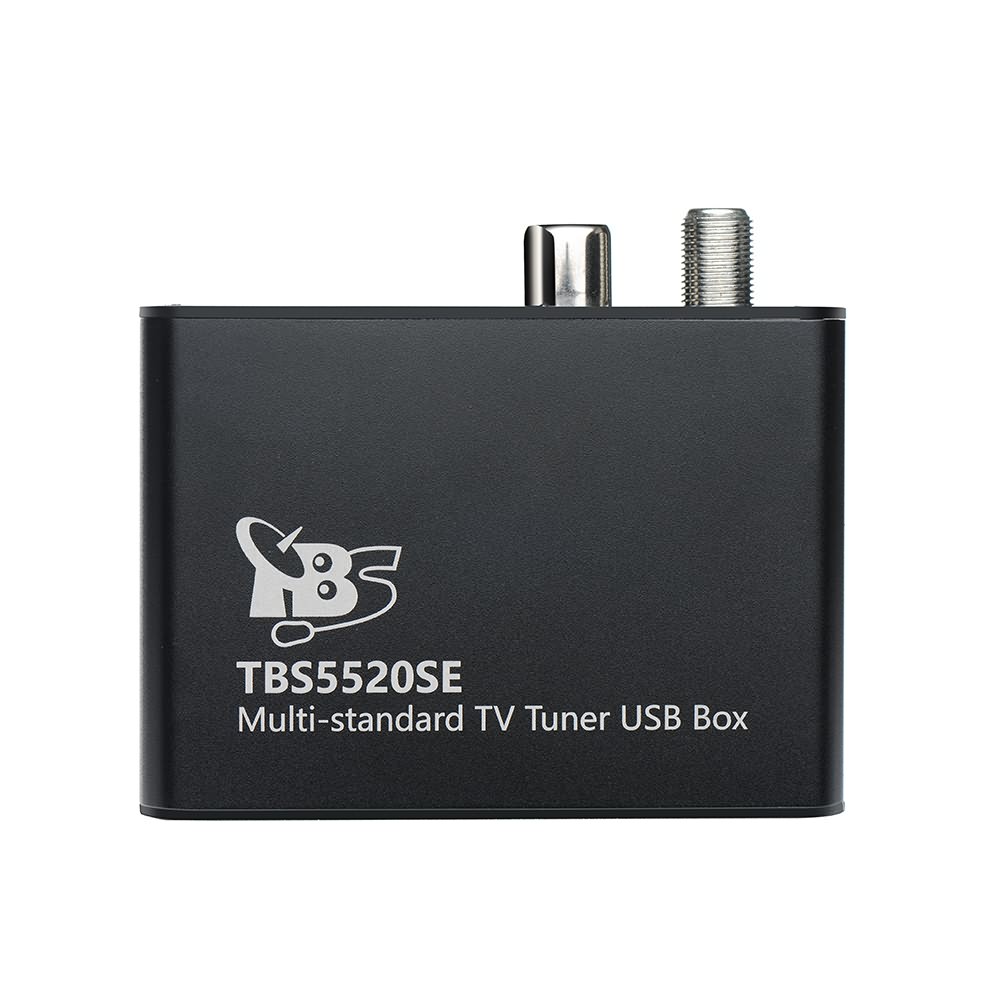

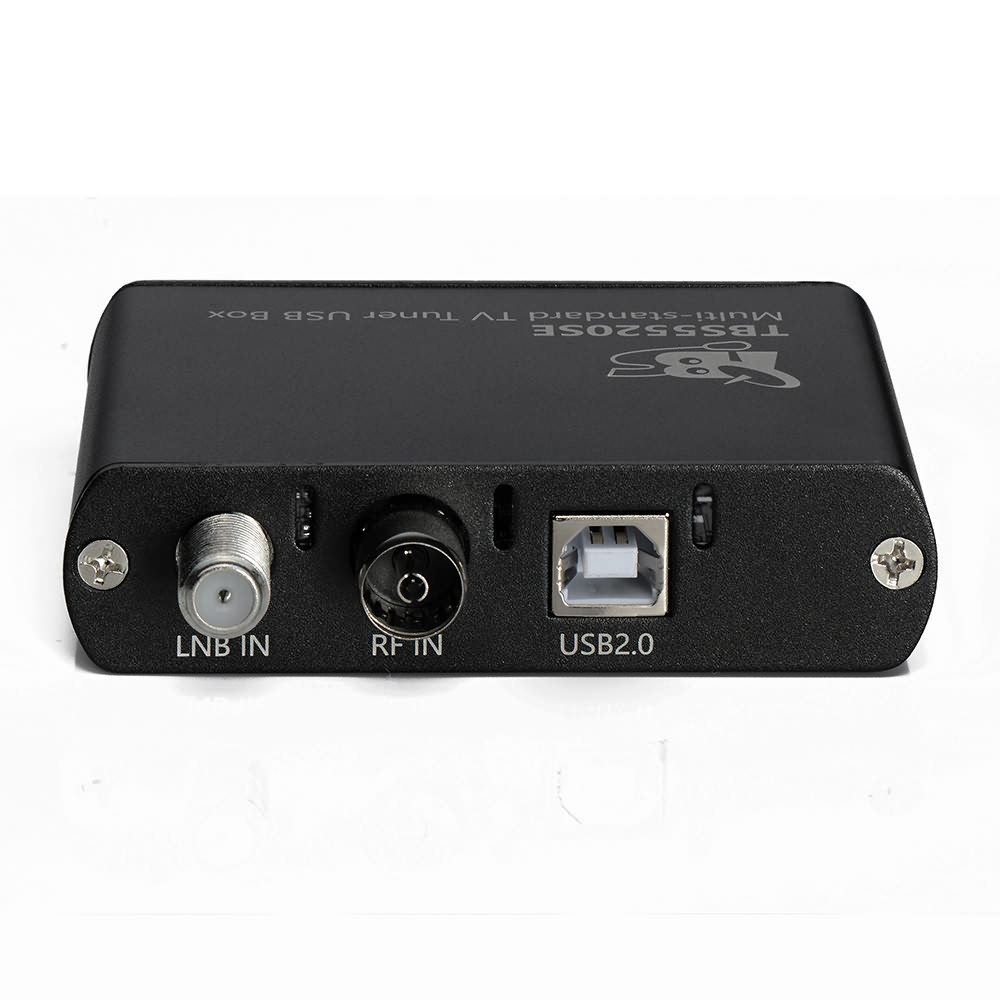

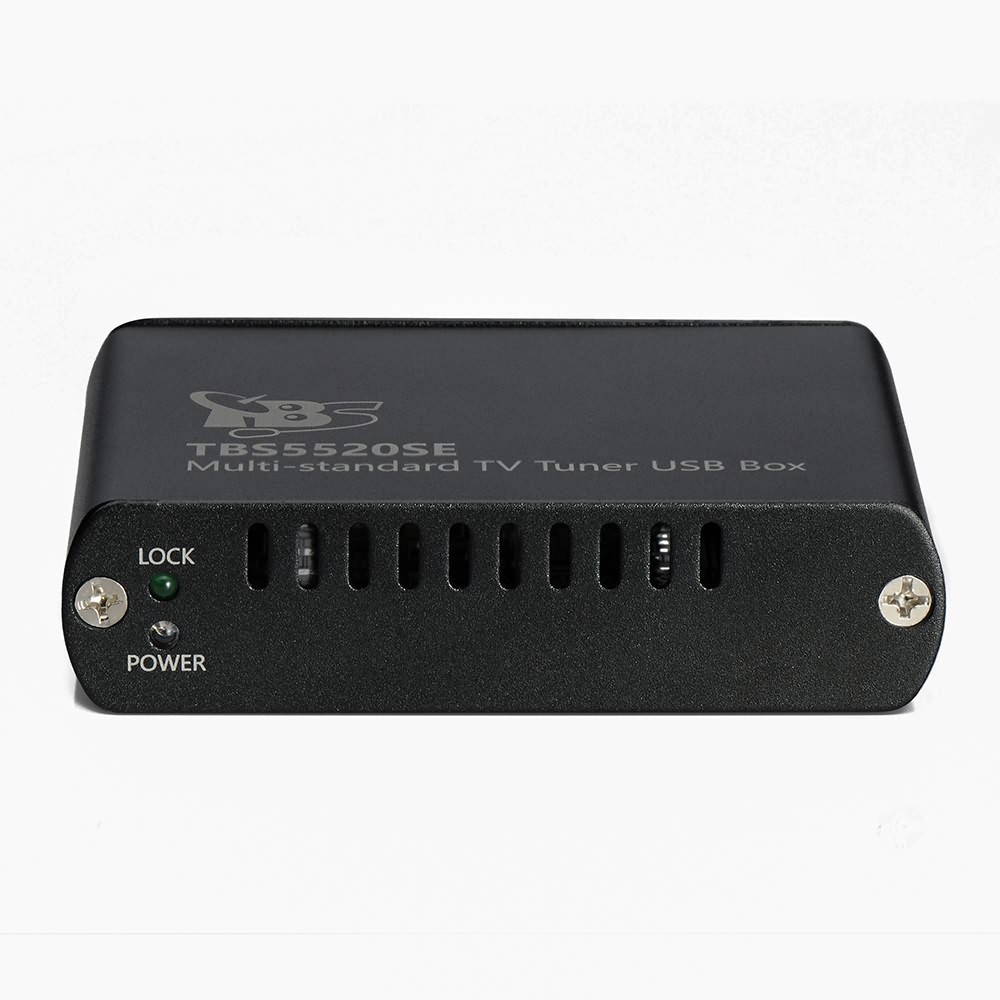

TBS5520SE Multi-standard TV Tuner USB Box

ISDB-T

COFDM demodulator and FEC decoding

Support 3 layers decoding

TMCC decoding

Support differential demodulation

AC1 and AC2 decoding

DVB-T2 and T2-Lite

Receiving channel:  VHF band, UHF band

Bandwidth:  1.7, 5, 6, 7, 8MHz

FEC:  QPSK, 16QAM, 64QAM,256QAM

FFT mode:  1K, 2K, 4K, 8K, 16K, 32K

Code rate:  1/2, 2/3, 3/4, 5/6, 7/8

DVB-C2

COFDM demodulator(16_QAM to 4096_QAM)

FEC(LDPC/BCH) decoder

Bandwidth: 6MHz, 7MHz, 8MHz

DVB-C and ITU-T J.83 Annex B

QAM demodulator

FEC decoder

1 to 7.2MSymbol/s

DVB-S/S2/S2X

symbol rates: 1-45Msps

FEC:

DVB-S/S2

          QPSK:  1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

          8PSK:  3/5, 2/3, 3/4, 5/6, 8/9, 9/10

        16APSK:  2/3, 3/4, 4/5, 5/6, 8/9, 9/10

        32APSK:  3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2X

          QPSK:   13/45, 9/20, 11/20

    2_4_2_APSK:   100/180, 104/180

          8PSK:   23/36, 25/36, 13/18

8_8_APSK:   90/180, 96/180, 100/180, 18/30, 20/30

16APSK:   26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180

4_12_16rb_APSK:   2/3

4_8_4_16_APSK:   128/180, 132/180, 140/180

Power consumption

Input/ Power:

5V/5W

temperature

0~60℃

System Requirements

Windows XP / Vista/ 7/8/10, Linux

AvailableUSB 2.0 slot

Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)

Dimension:

TV tuner box size

9*7.5*2.5(cm)

Net weight

110g

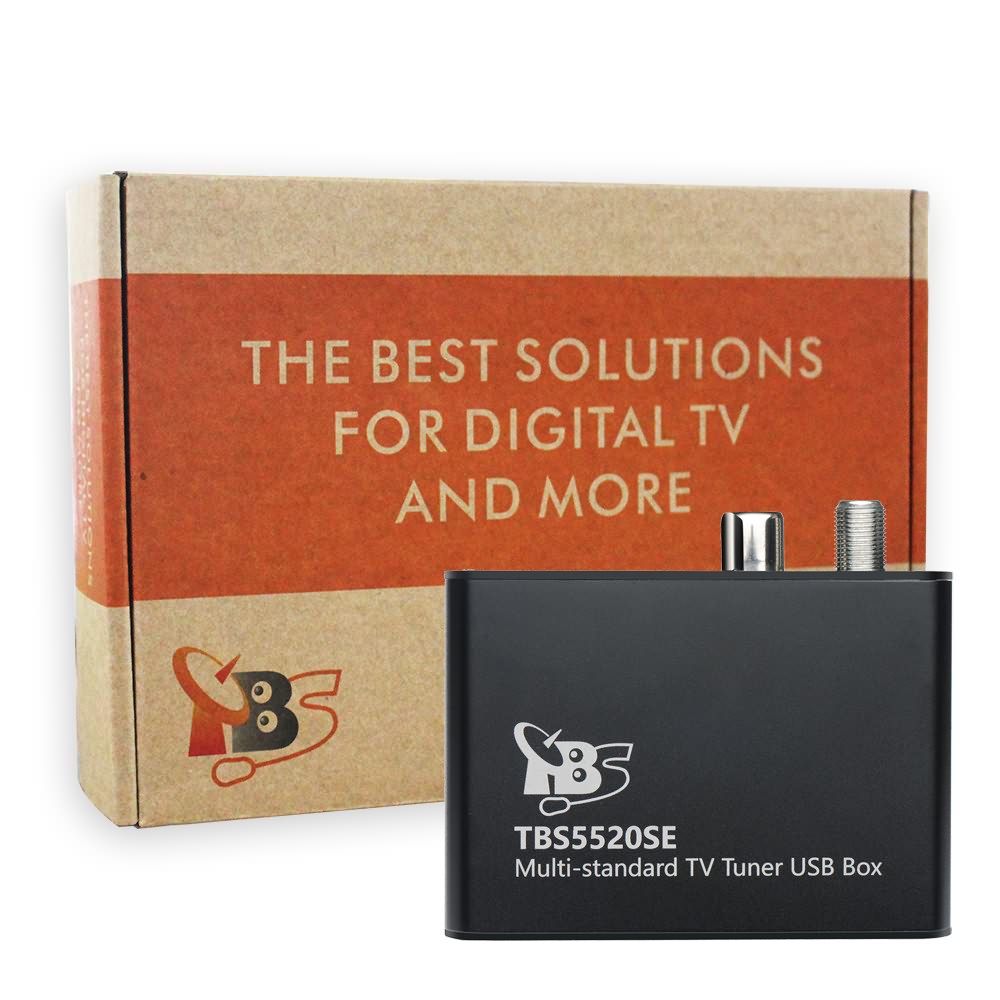

Gift Box Size

17*16.5*8.5(cm)

Weight

350g

Package Contents

1 x TBS5520SE

1 x USB cable

1 x F-IEC
