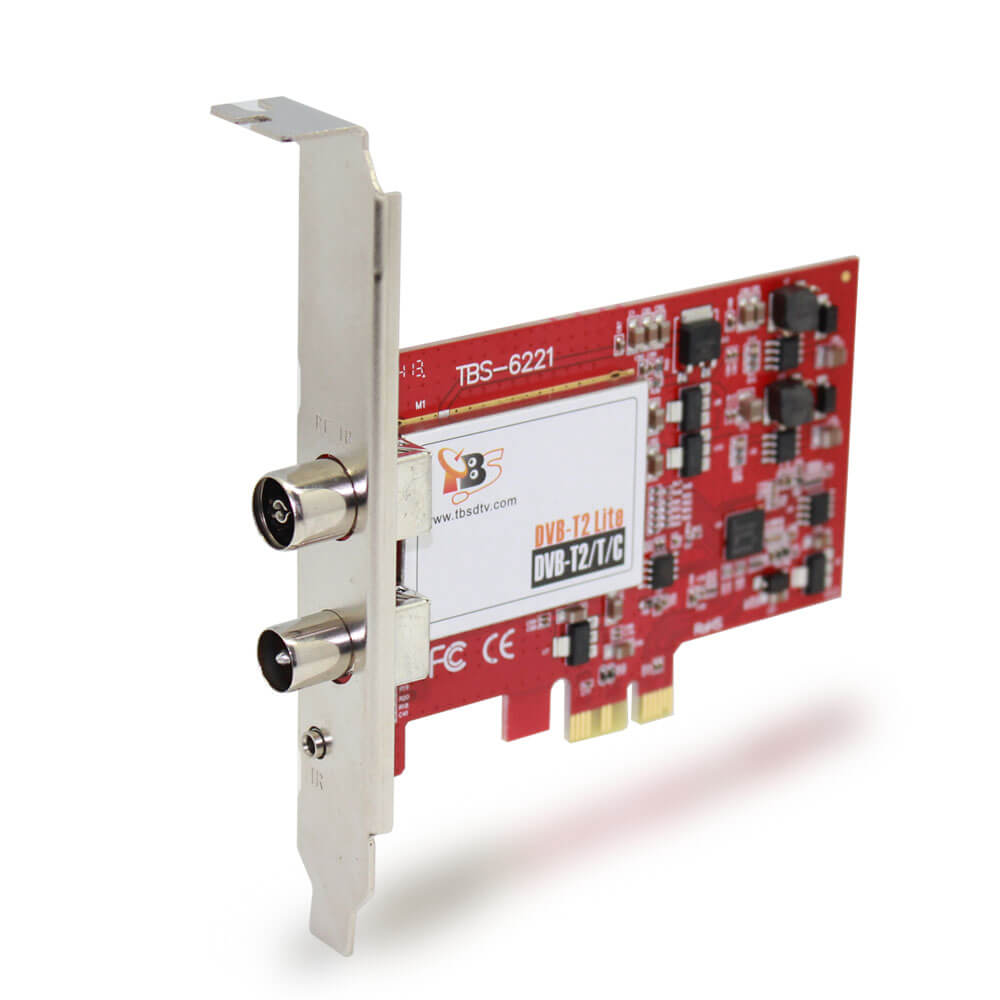

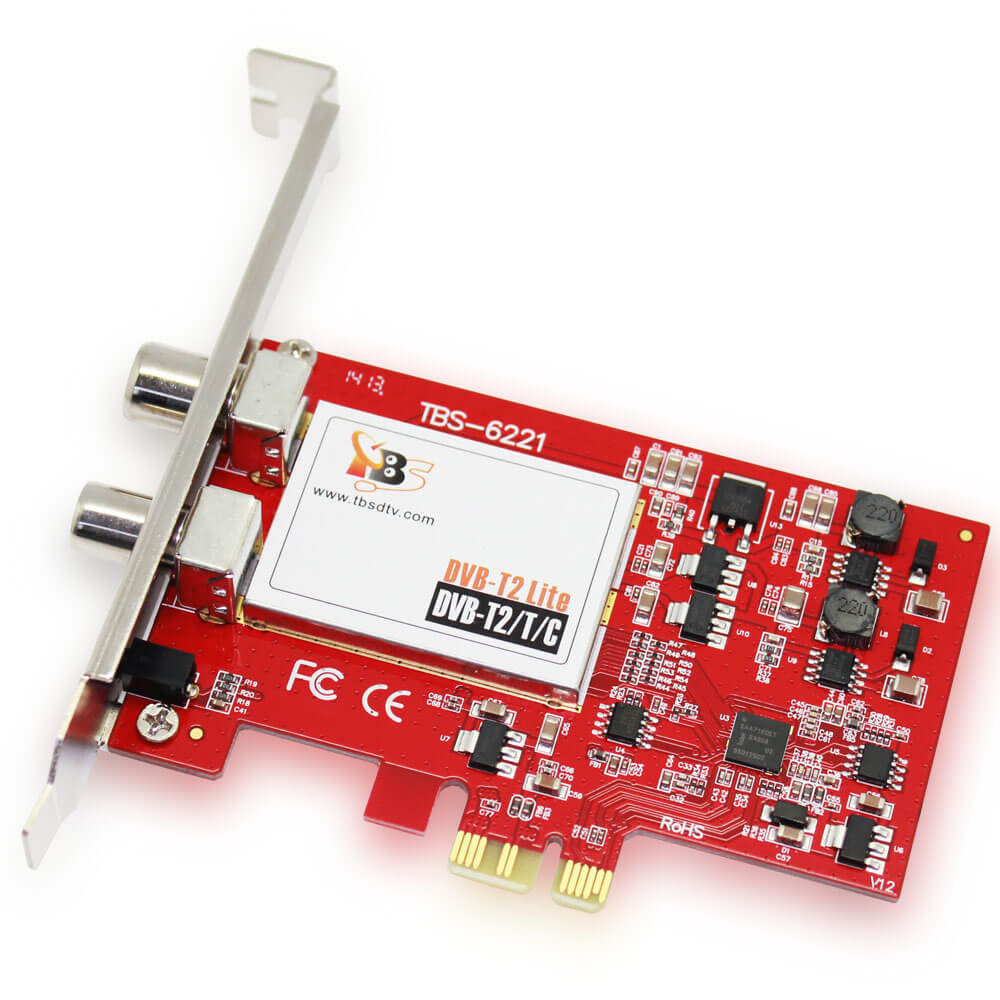

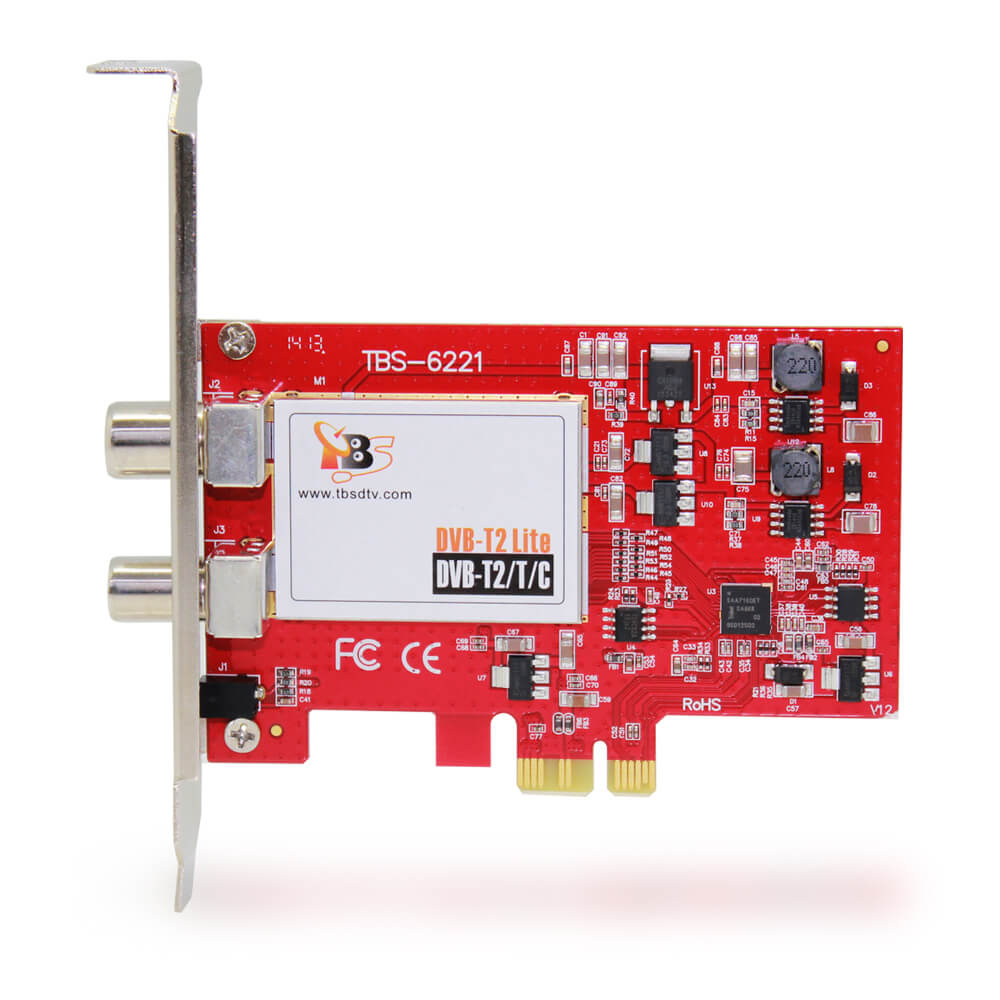

TBS6221 DVB-T2/T/C TV Tuner PCIe Card is a digital terrestrial tuner card with DVB-C function added, which allows you to enjoy free-to-air (FTA) digital terrestrial/ cable TV and digital stereo radio on PC.
TBS6221 DVB-T2/T/C TV Tuner can be used as a digital video recorder for recording digital terrestrial/cable TV programs with full HDTV support. It also enables you to pause a live broadcast and continue from where you left with the Time-shifting function. This DVB T2/T/C PC TV card is ready with windows BDA driver and Linux driver. It’s ideal for watching UK Freeview
Watch free-to-air digital terrestrial TV on PC
DVB-T2, DVB-T and DVB-C are supported Low profile size
High-definition video, real-time and scheduled video recording
High sensitivity tuner for the best digital TV reception
• DVB-T2/T2 Lite (V1.3.1)/T
DVB-T2/T Receiving Channel: VHF band and UHF band
Channel Bandwidth: 6, 7, 8 MHz
DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard interval: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
IF mode: Low IF
Center IF Frequency: 3 ~ 5 MHz
Note: default 4MHz
RF-Input Impedance 75Ω (IEC-DIN female)
RF-Output Impedance 75Ω (IEC-DIN male)
Fully compliant with DVB-C and ITU J83 A/B/C specifications
Receiving Frequency: 47~862 MHz tuning range
Input level: -65~-10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM support
Symbol Rate: 0.87 to 9Mbaud
Windows XP / Vista/ 7/8/10, Linux
Pentium 4 2.0 GHz, Pentium M 1.3 GHz
For HDTV: 2.6 GHz multi core processor
Hard disk with min. 1 GB free capacity
Sound and graphics card with support for DirectX 9 or higher
Available PCI Express x1, x4, x8 or x16 slot*
CD/DVD drive for software installation

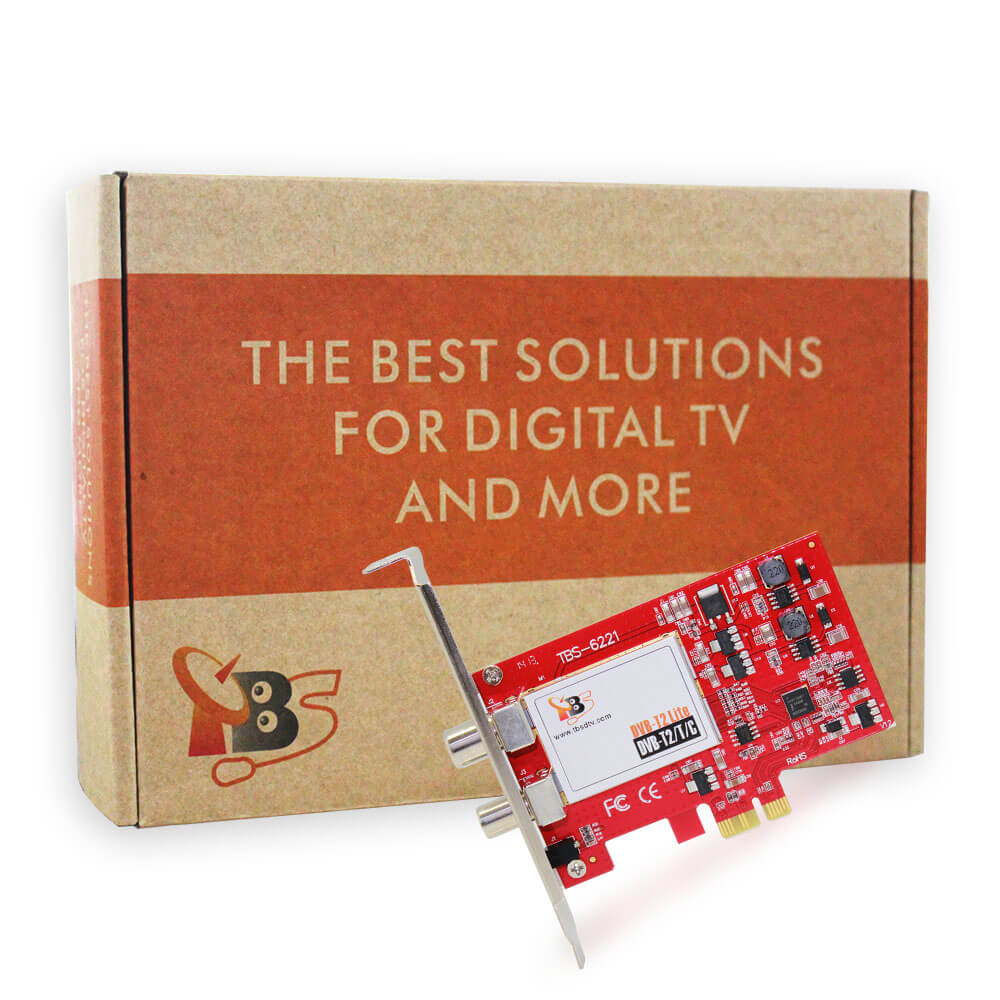

1 x TBS6221
1 x IR receiver
1 x remote control
1 x Low profile bracket
1 x Aerial
1 x Software CD
1. TBS6221 DVB-T2/T Windows Driver is upgraded to V220.127.116.11.
2. TBS6221 DVB-C Windows driver is upgraded to V18.104.22.168.
3. TBS6221 MCNS(QAMB/j83-b/atsc-c) Windows driver is upgraded to V22.214.171.124.
4. TBS6221 Linux Driver is updated to v161031., which has below updating:
* Support kernel 4.8
5. TBS6221 IR software V126.96.36.199 is released, which fixed can not remember device selection.
6. TBS6221 User Guide is updated.
TBS6221 PCIe TV Tuner Card (Click to download)
Windows DVB-T Driver TBS6221 DVB-T2/T Windows Driver V188.8.131.52.
Windows DVB-C Driver TBS6221 DVB-C Windows Driver V184.108.40.206.
Windows MCNS Driver TBS6221 MCNS Windows Driver V220.127.116.11.
