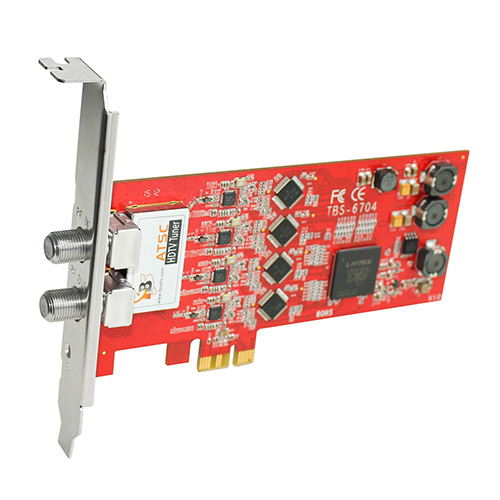

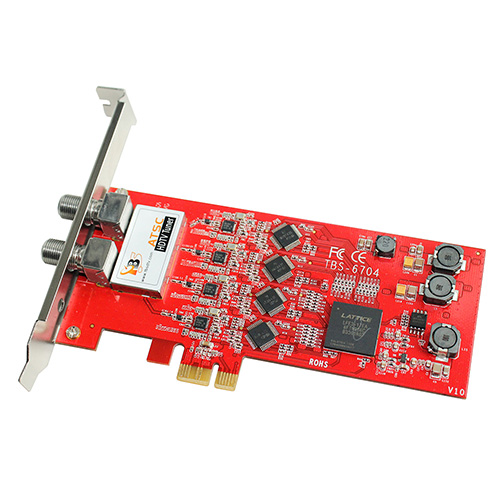

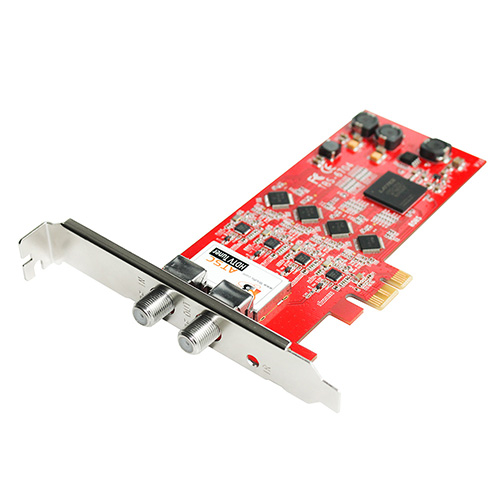

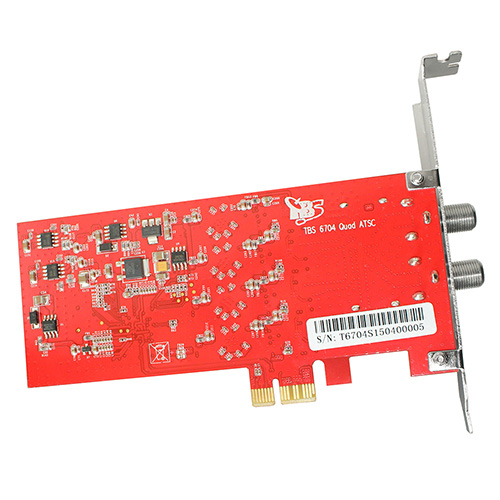

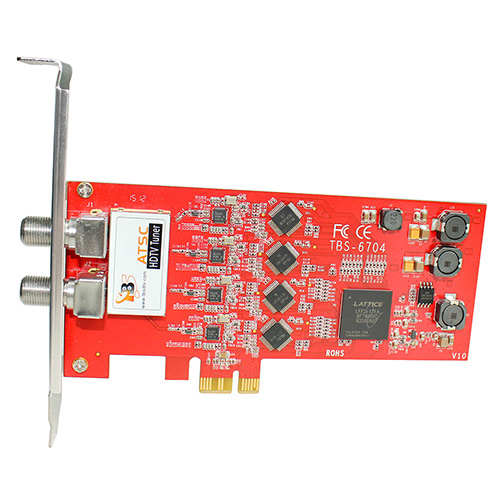

TBS6704 ATSC/Clear QAM (J.83 Annex B) Quad Tuner PCIe Card

* ATSC is mainly used in North America and South Korea.

Main Features:

• Receive digital ATSC(8VSB) and Clear QAM (J.83 Annex B) cable TV on PC
• Quad tuner card for watching/ recording 4 channels at the same time
• High sensitivity ATSC quad tuner for the best digital TV reception
• MPEG-2 & H.264 HDTV support
• Time shift & schedule recording support
• Windows & Linux driver support

Video Guides

• 1. Matrix Arm Mini PC - Unboxing and First Look ( originally shared on YouTube by SUPA CHARGEDiOS )

• 2. Matrix Arm Mini PC - How to Install Ubuntu, Android 4.2.2 - Step-by-Step Guide ( originally shared on YouTube by SUPA CHARGEDiOS )


Specifications:

• 8VSB demodulation, compliant with America ATSC, built-in forward error correction function
• 256/64QAM demodulation, compliant with OpenCable specifications
• ATSC / Digital Cable (QAM) Input: 75 Ohm
• Channel bandwidth: 6, 7, 8 MHz
• Tuning range: 44MHz ~ 1002MHz
• Interface: PCI Express (PCIe)
• Dimensions: 140*68.7 mm
• Power: ~10W

System Requirements:

• Windows 2000/XP/Vista/7/8/10 or Linux
• Pentium 4 2.0 GHz, Pentium M 1.3 GHz
• For HDTV: 2.6 GHz multi core processor
• Hard disk with min. 1 GB free capacity
• Sound and graphics card with support for DirectX 9 or higher
• Available PCI Express x1, x4, x8 or x16 slot
• CD/DVD drive for software installation

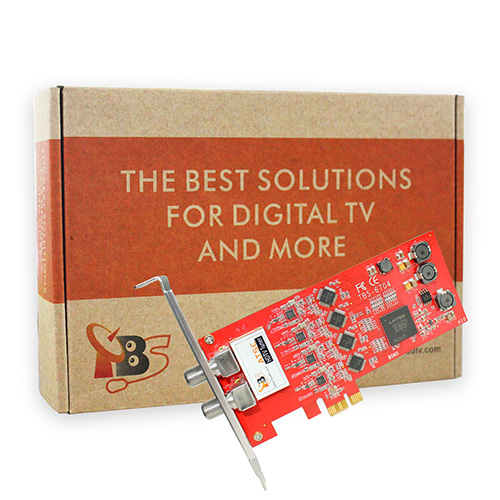

Package Contents:

• 1 x TBS6704
• 1 x Low profile bracket
• 1 x F connector
