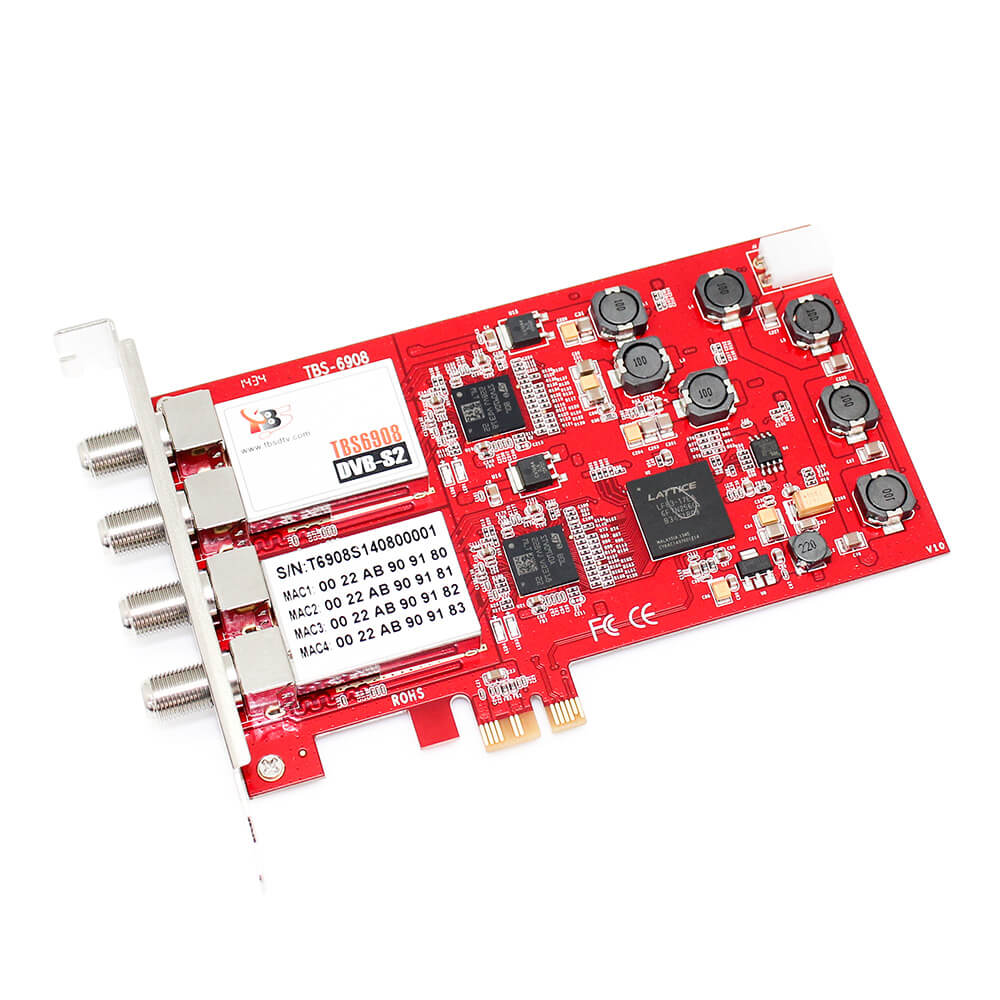

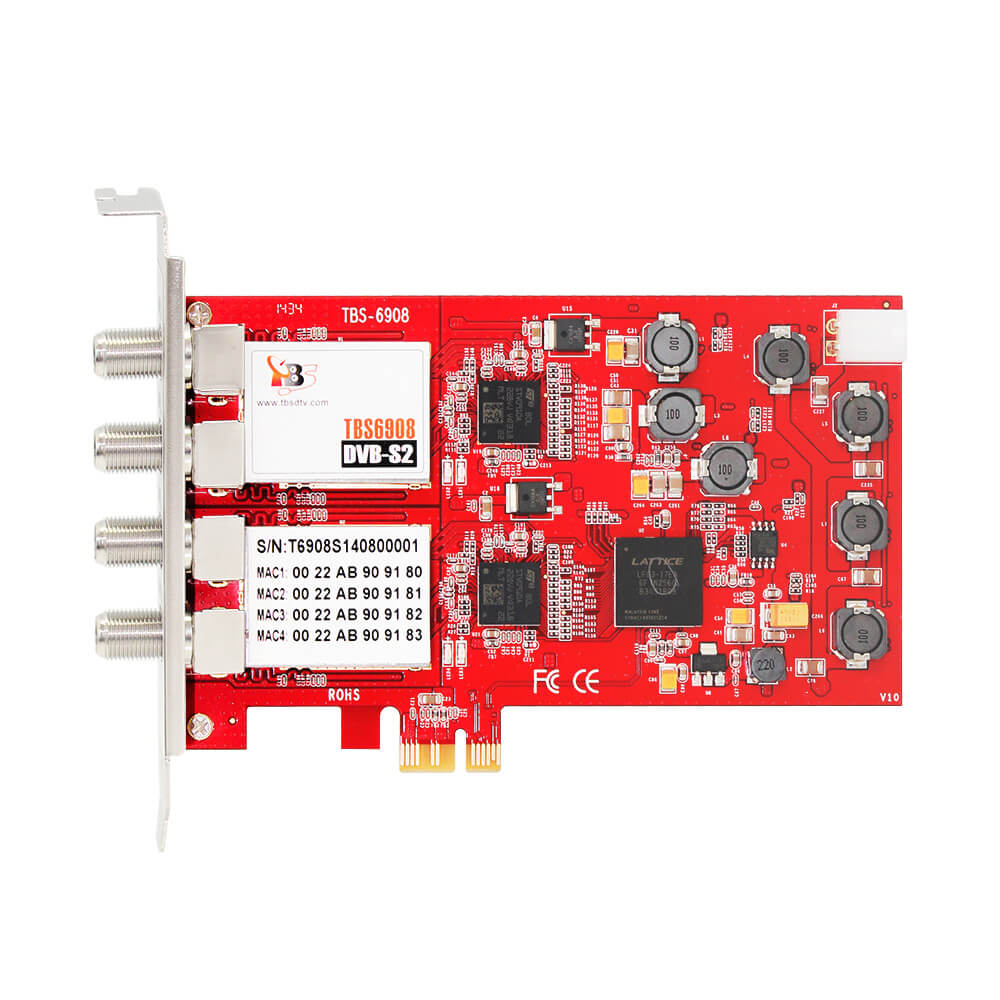

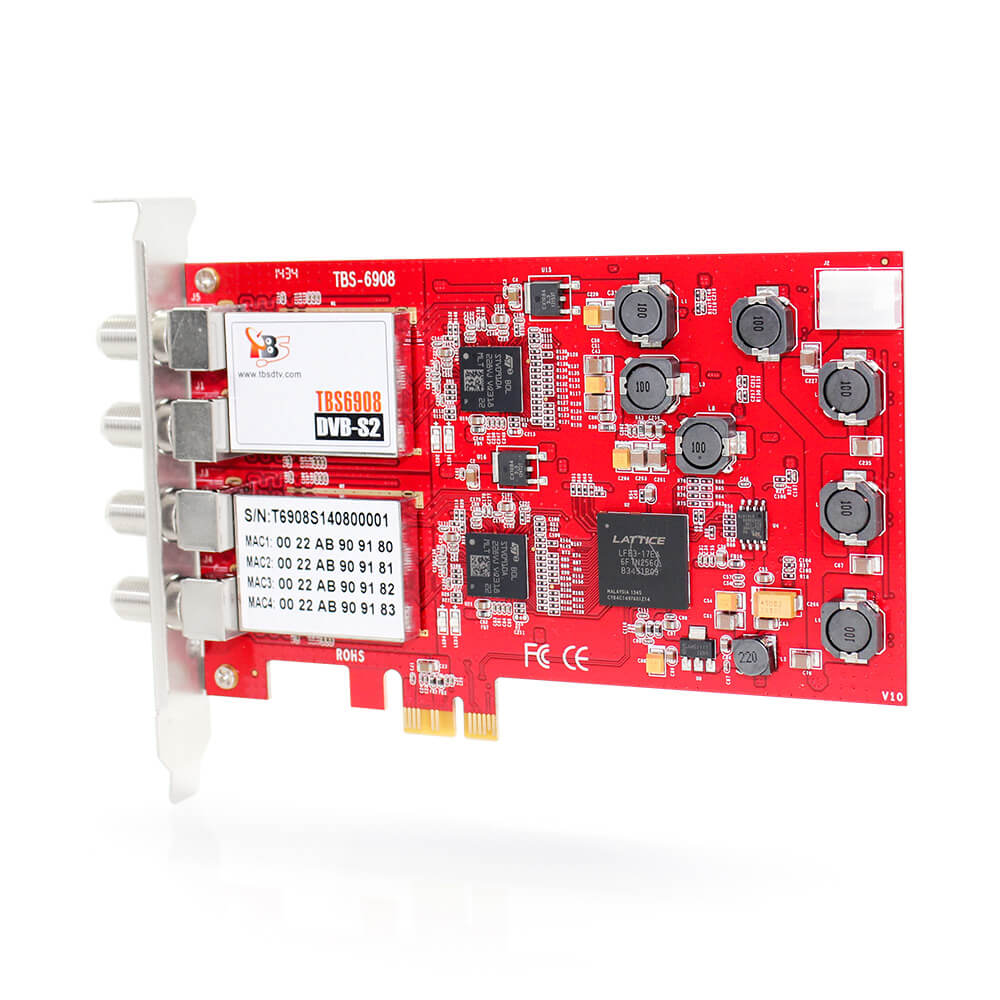

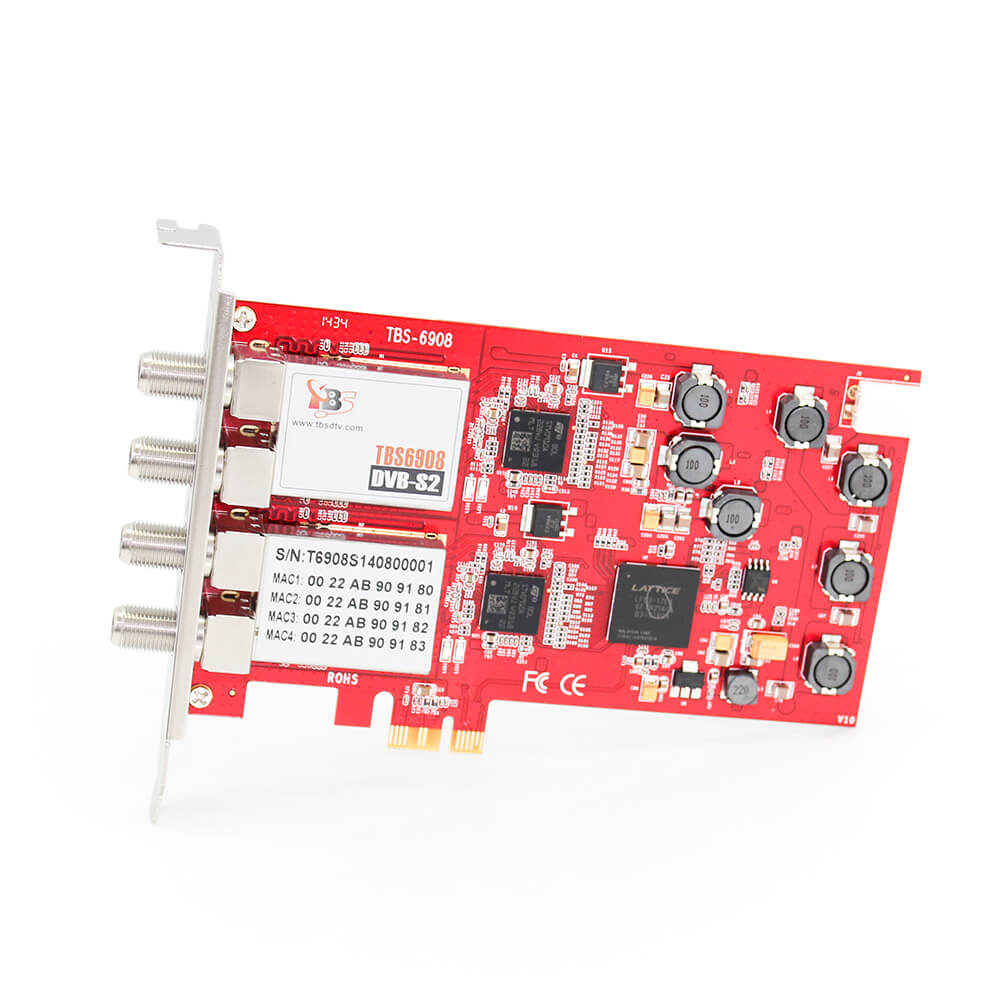

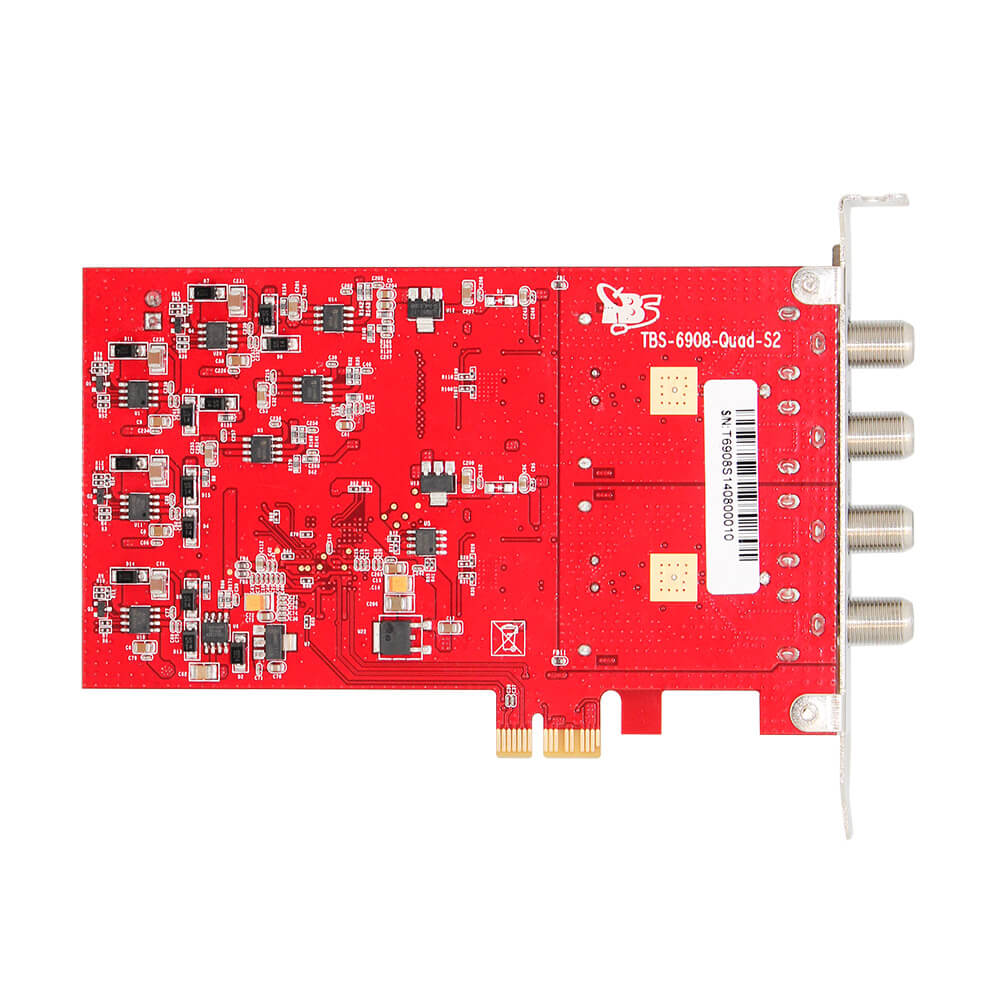

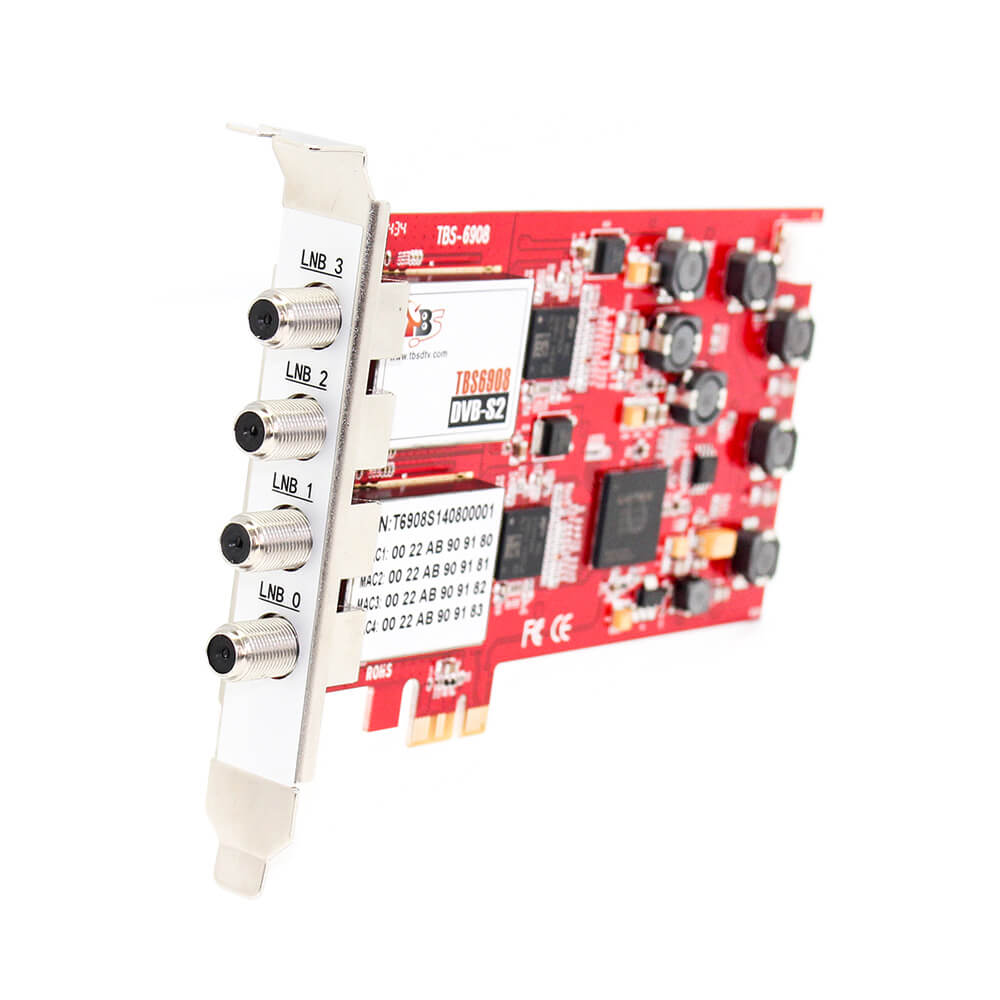

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card

TBS6908 Professional DVB-S2 Quad Tuner PCIe Card has the highest industry standard. Its outstanding reliability is what any personal enthusiast or engineer in the digital satellite TV industry wants. The applying of an unique DVB-S2 demodulator chipset makes it possible to receive special streams broadcasted with ACM, VCM, Multi Input Stream, 16APSK, 32APSK or Generic Stream Mode.

Main Features:

• EUMETCast Compatibility
• Quad tuner DVB-S2/S transponders receiving
• CCM, VCM, ACM and Multi Input Stream support
• Generic stream mode Support
• Up to 190 Mbit/s channel bit rate capture
• Wide range symbol rates support from 1Msps to 45Msps
• High-speed data download via satellite
• Unicable/one cable compatible
• Blindscan
• High reliability

Applications:

• Satellite feed hunt
• Satellite data download
• Lock of special transponders

Specifications:

• Receiving frequency: 950~2150 MHz tuning range
• Input level: -69~-23dBm
• Quad channels DVB-S2/DVB-S 8PSK QPSK 16APSK 32APSK ACM/VCM Demodulator
• Symbol rate:
• -Maximum symbol DVB-S2 rate limitations (Msymb/s)

  Msymb/s	Demod	LDPC	Single	Dual
  QPSK	67.5	135	67.5	67.5
  8PSK	67.5	90	67.5	45
  16APSK	67.5	67.5	67.5	33.7
  32APSK	67.5	54	54	27

• -DVB-S
• QPSK+1/2, 2/3, 3/4, 5/6, 7/8
• Support Data Burst & Tone Burst
• Support DiSEqC2.X and Motor
• Dimension: 145*92.3mm (length x height)
• Max Power consumption: 32W

System Requirements:

• Windows XP / Vista/ 7/8/10, Linux
• Pentium 4 2.0 GHz, Pentium M 1.3 GHz
• For HDTV: 2.6 GHz multi core processor
• Hard disk with min. 1 GB free capacity
• Sound and graphics card with support for DirectX 9 or higher
• Available PCI Express x1, x4, x8 or x16 slot
• CD/DVD drive for software installation

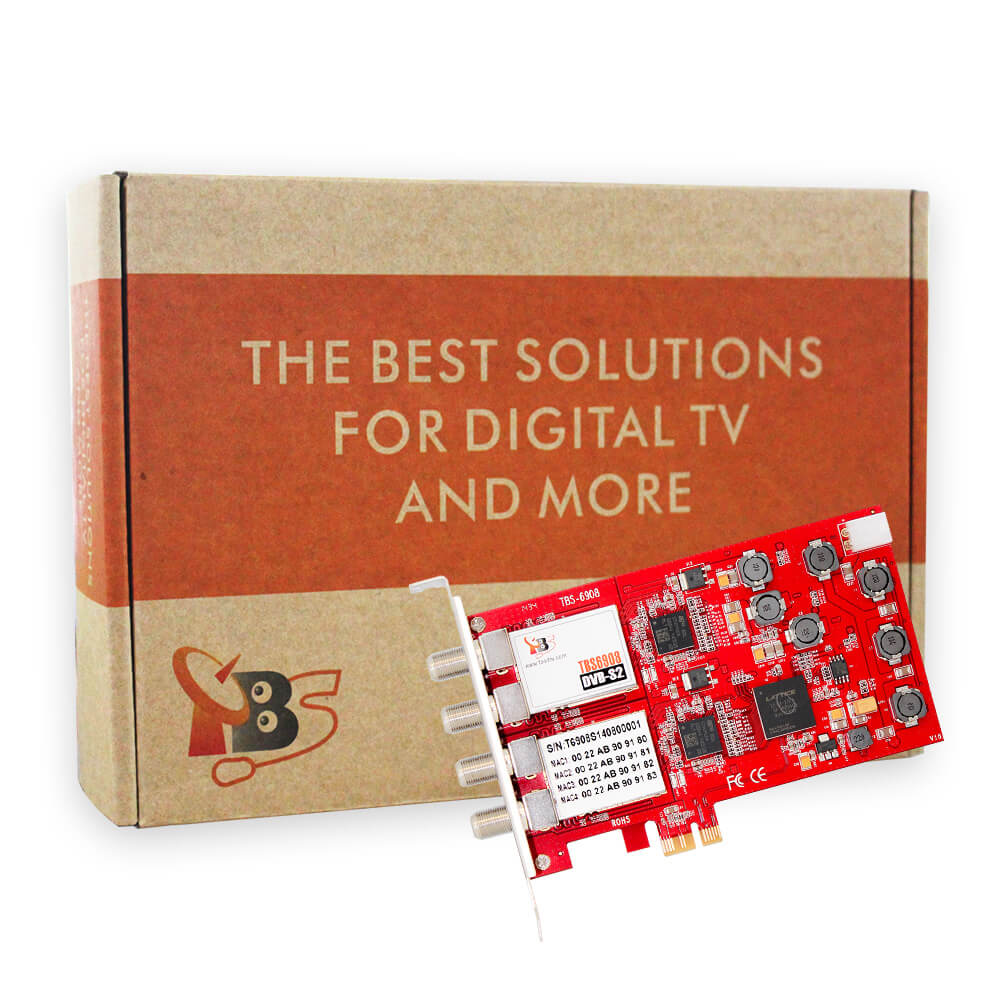

Package Contents:

• 1 x TBS6908
• 1 x DC line
