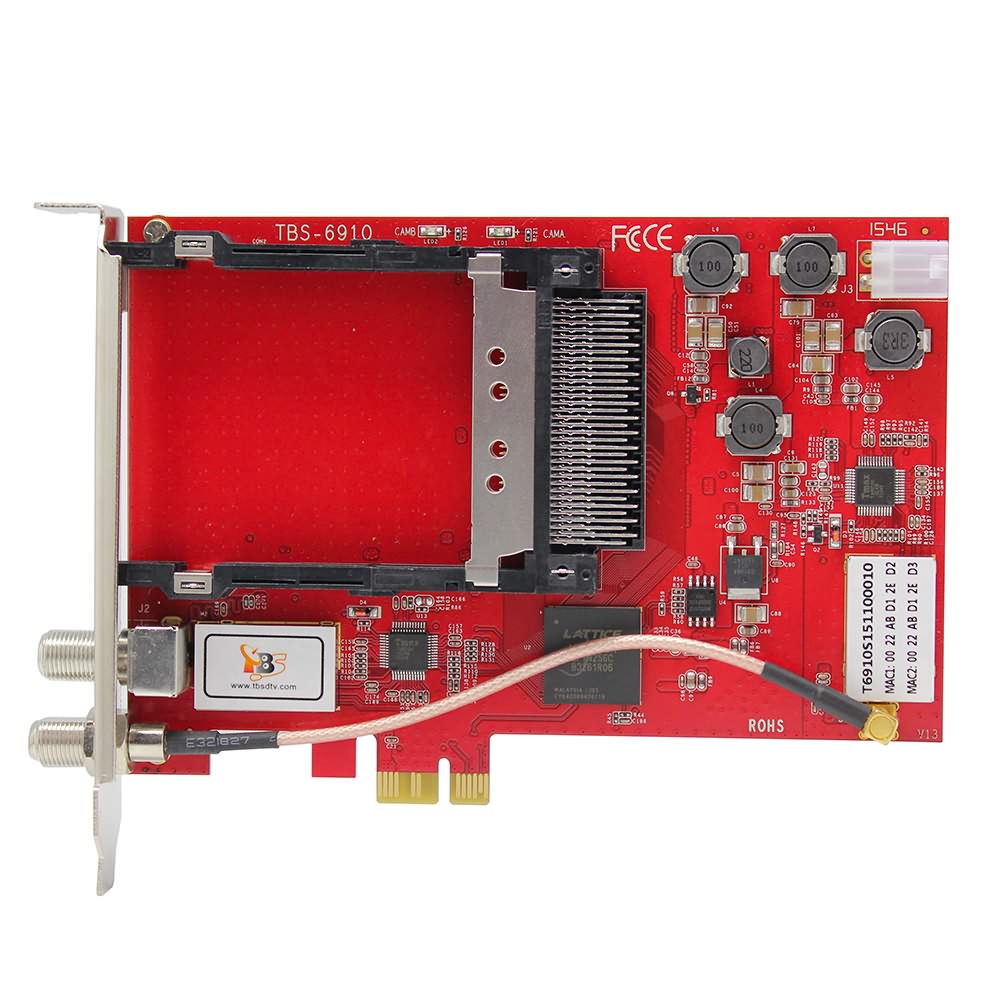

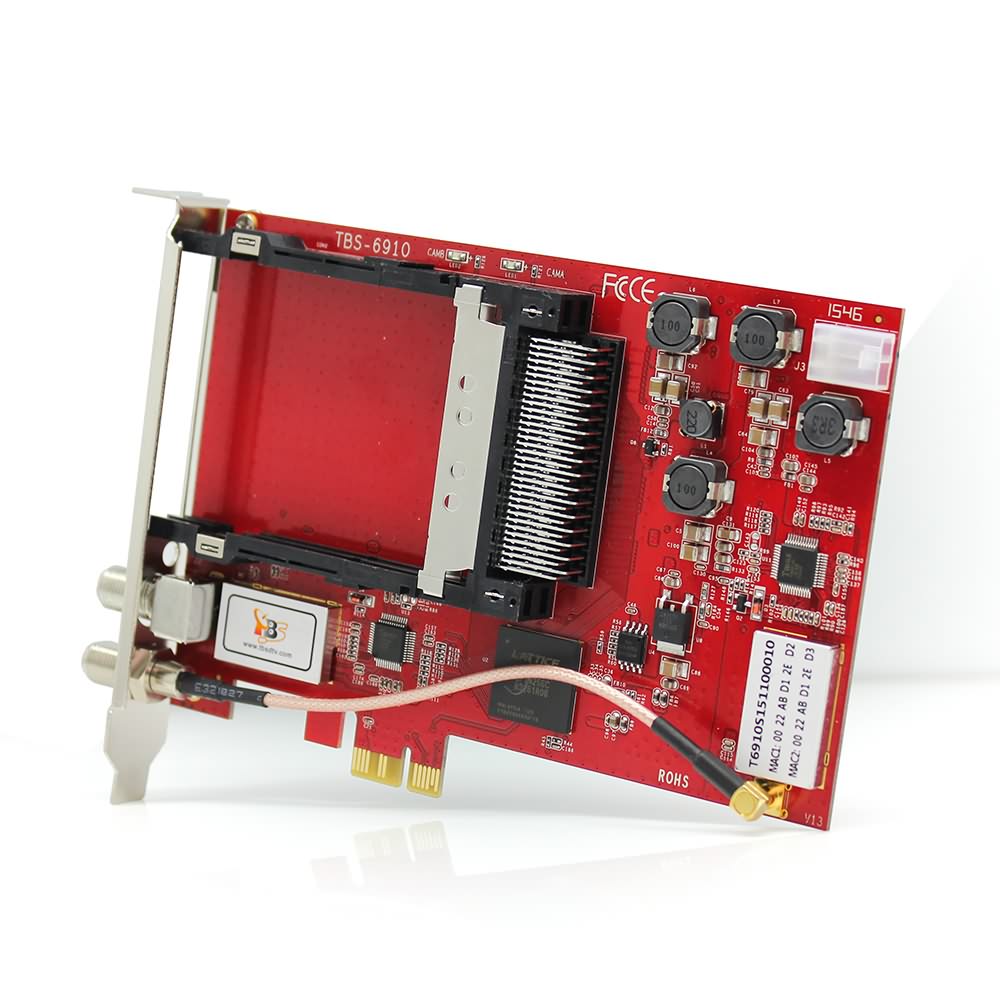

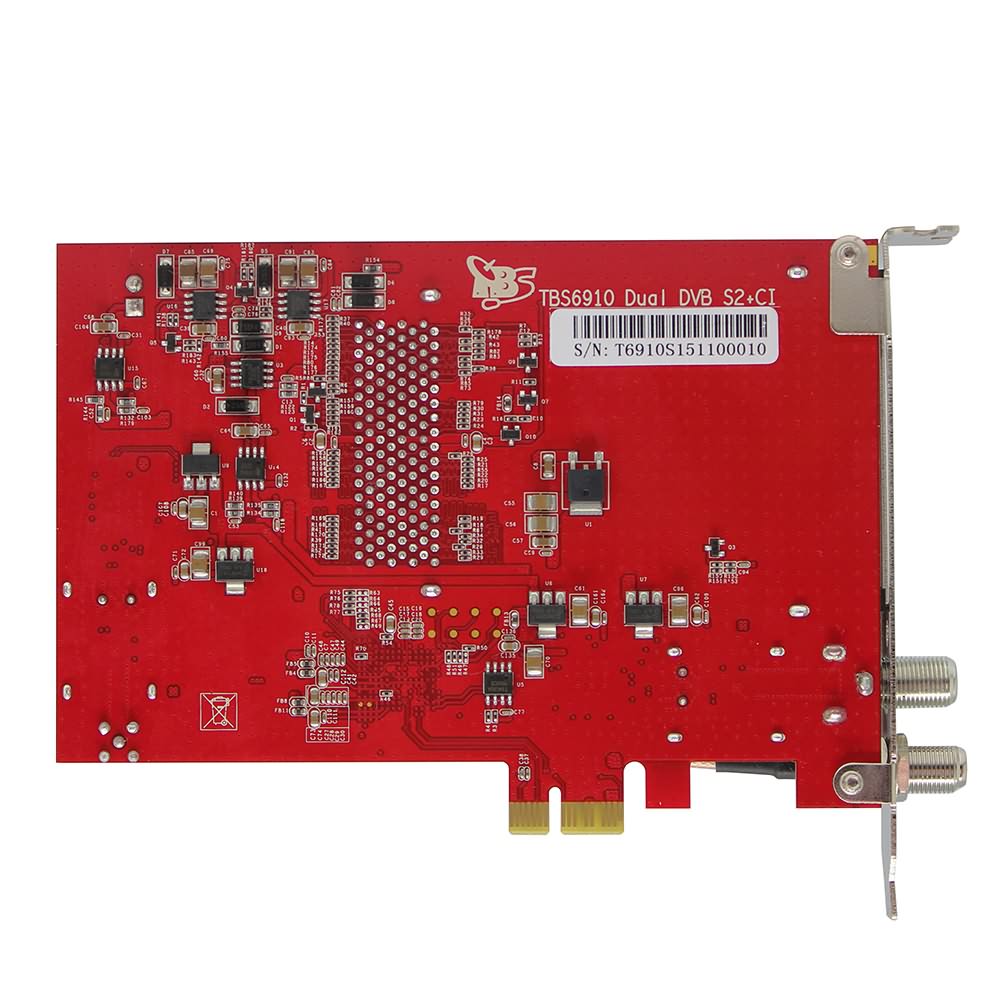

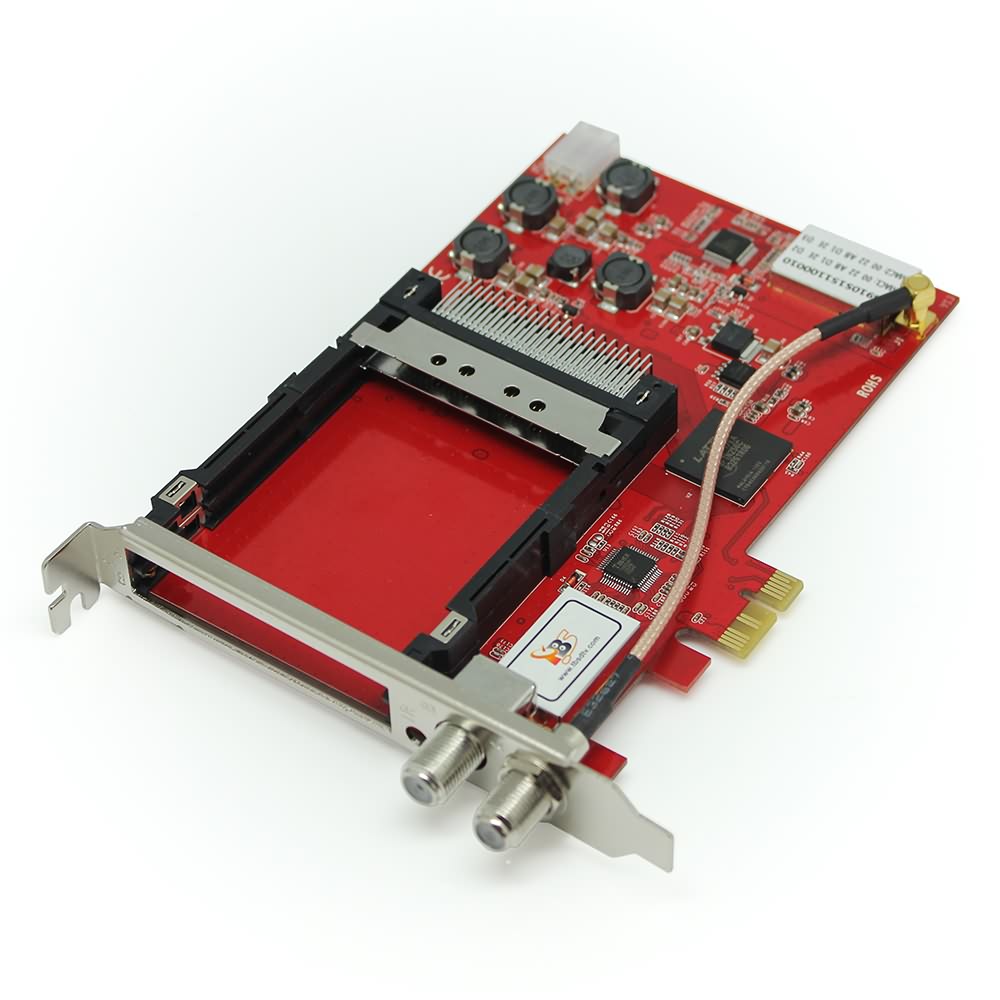

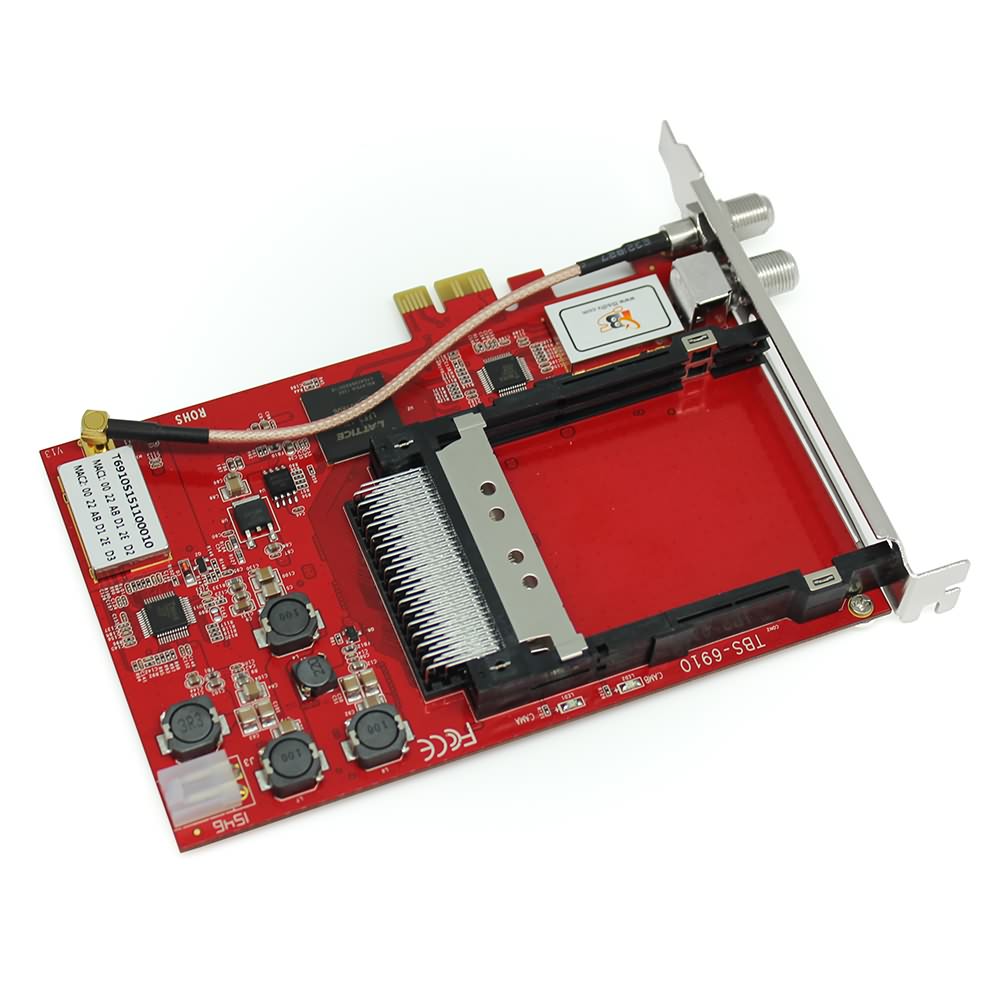

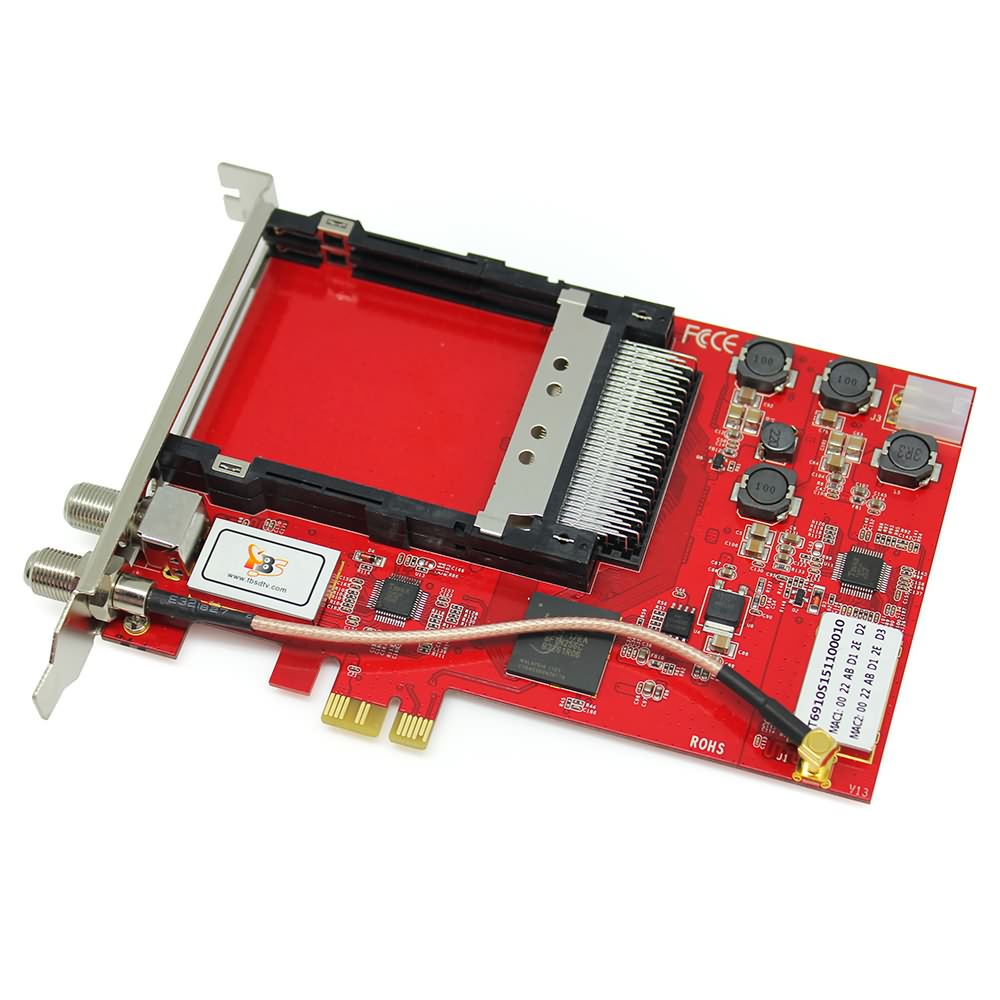

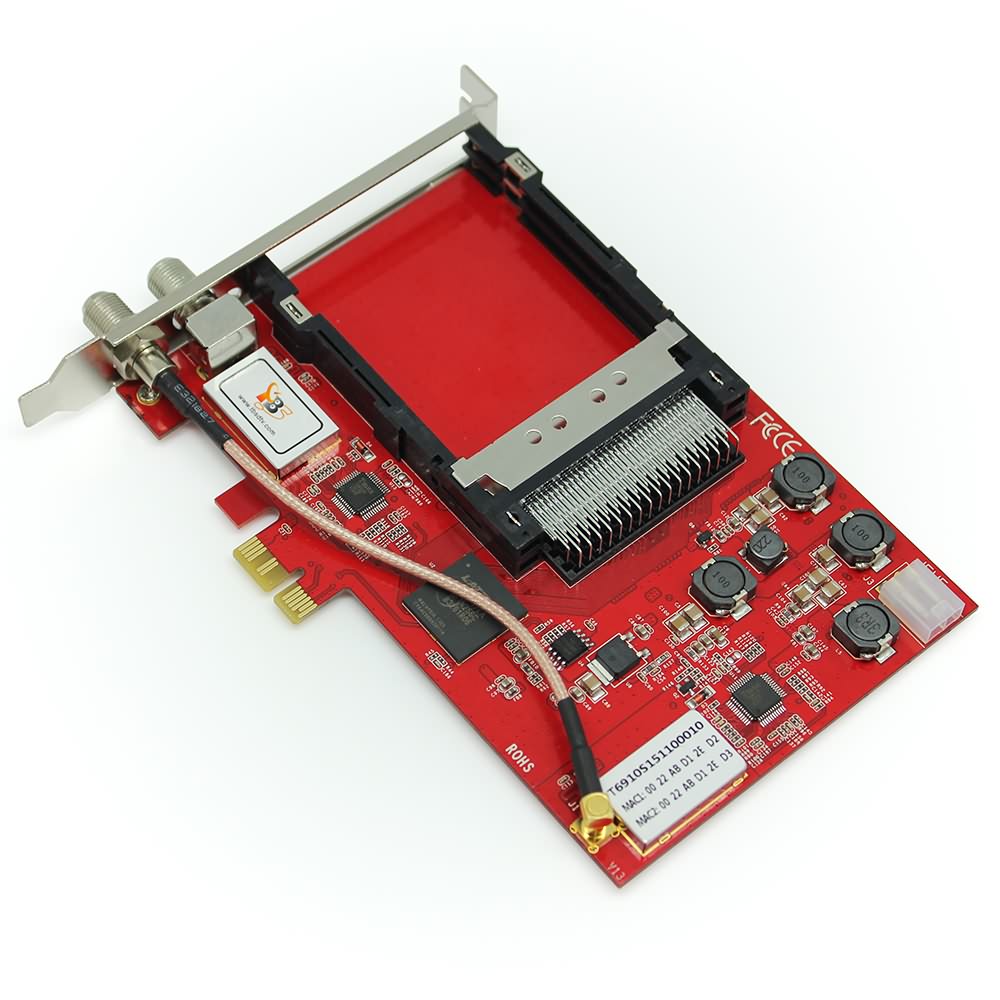

TBS6910 DVB-S2 Dual Tuner Dual CI PCIe Card

Main Features

• Watch satellite TV & listen to radio on PC
• DVB-S/S2 SD or HD TV receiving
• Dual tuner and dual CI slots for decrypt the encrypted TV
• Time shifting to pause live TV
• Blindscan support
• Unicable/one cable compatible
• High-speed data download via satellite

Application

• Data receiving
• IPTV streaming
• Media monitoring
• Digital content distribution

Specifications:

• Frequency range: 950~2150 MHz
• Input level: -69-23dBm
• 2x DVB-S2/S 8PSK QPSK demodulator
• Symbol rate:
  • DVB-S QPSK 1~45Msps
  • DVB-S2 QPSK/8PSK 1~45Msps
• Carrier capture range: ±10MHz
  • DVB-S2 CCM:
    • QPSK +1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    • 8PSK +3/5. 2/3. 3/4. 5/6. 8/9. 9/10
  • DVB-S
    • QPSK +1/2, 2/3, 3/4, 5/6, 7/8
• Support data burst & tone burst
• Support DiSEqC2.X and motor
• Dual CI slot
• Dimension: 145*104.5mm (length x height)
• Max Power consumption: 15W

System Requirements

• Windows 2000/XP/Vista/7/8/10 or Linux OS
• Available PCI Express x1, x4, x8 or x16 slot
• Satellite dish and LNB

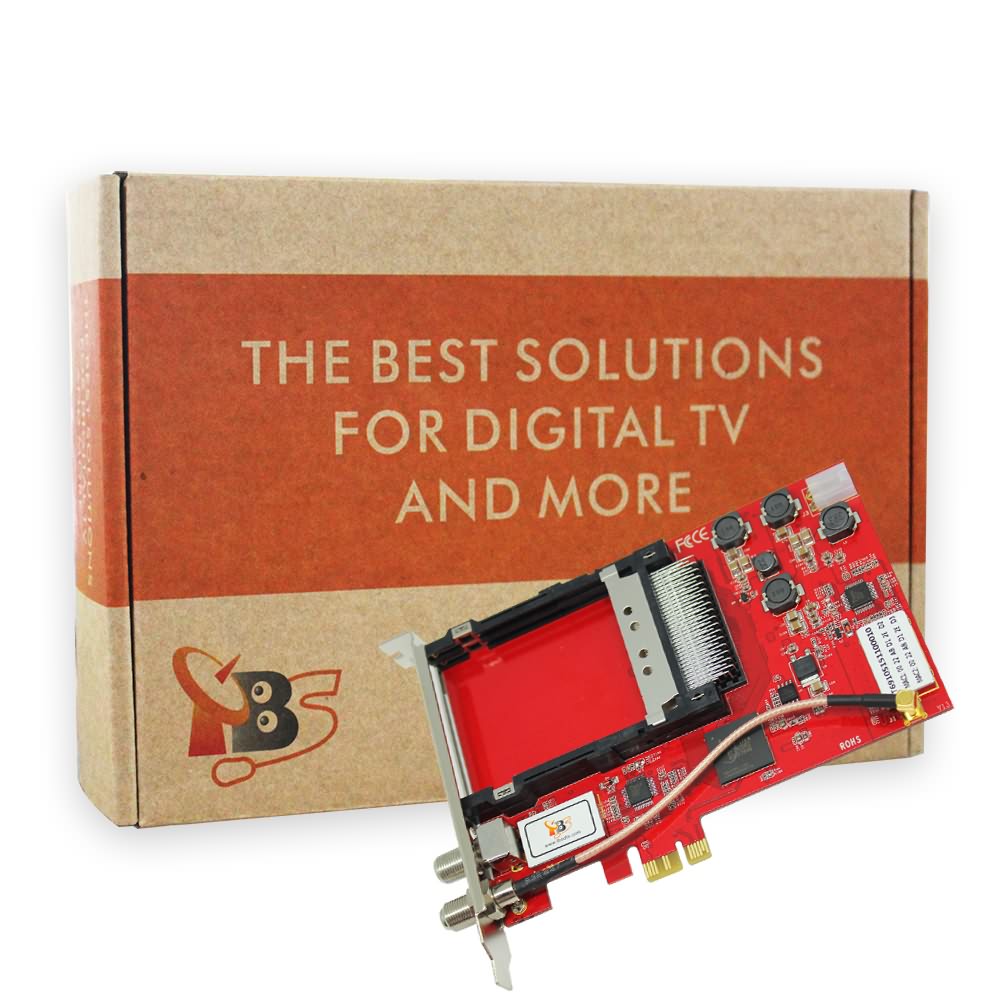

Package Contents

• 1 x TBS6910
• 1 x DC line
