MOI DVB-S2 Streaming Box

Device
  • •  Processor: Cortex TM-A8 1GHz.
    •  RAM : 512MB DDR2.
    •  Storage: 256MB SLC NAND Flash, 1 SD Card slot.
    •  Ethernet : 10/100M Ethernet.
    •  USB Ports: High Speed 2.0 USB Host.
    •  Operating System : Linux.


  •                                                        Click to enlarge this image.
DVB-S/S2 Tuner
  • •  Supported digital TV standards: DVB-S, DVB-S2
    •  Demodulator : DVB-S2/DVB-S QPSK 8/16/32 APSK CCM
    •  Symbol Rate:
           DVB-S QPSK 1~45Msps
           DVB-S2 QPSK/8PSK 1~45Msps
    •  Receiving Frequency: 950~2150 MHz Tuning Range

  • •  Input level: -69~-23dBm
    •  Carrier Capture Range: ±10MHz
    • 8PSK Puncture codes: 3/5,2/3,3/4,5/6,8/9,9/10
    • QPSK Puncture codes: 1/2,3/5,2/3,3/4,4/5,5/6,7/8,8/9,9/10.
    • 16PSK Puncture codes: 2/3,3/4,4/5,5/6,8/9,9/10
    • 32PSK Puncture codes: 3/4,4/5,5/6,8/9,9/10

Soft Support
  • •  MOI: TVHeadend, DVBLast, mumuDVB, szap, scan
    •  Client: XBMC, VLC…

System Requirements
  • •  Satellite TV signals.
    •  Router with at least 100Mbps data transfer speed.
    •  One of the following client end devices for receiving streamed TV channels.
    •  DLNA certificated TV, PC with Windows, Linux or Mac system, Android tablet PC, Android smartphones, iPhone, iPad, iPod    and Sony Playstation 3.

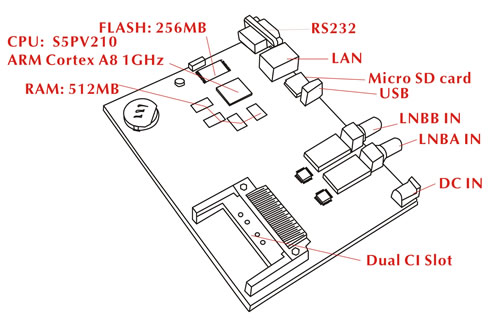

Internal Structure

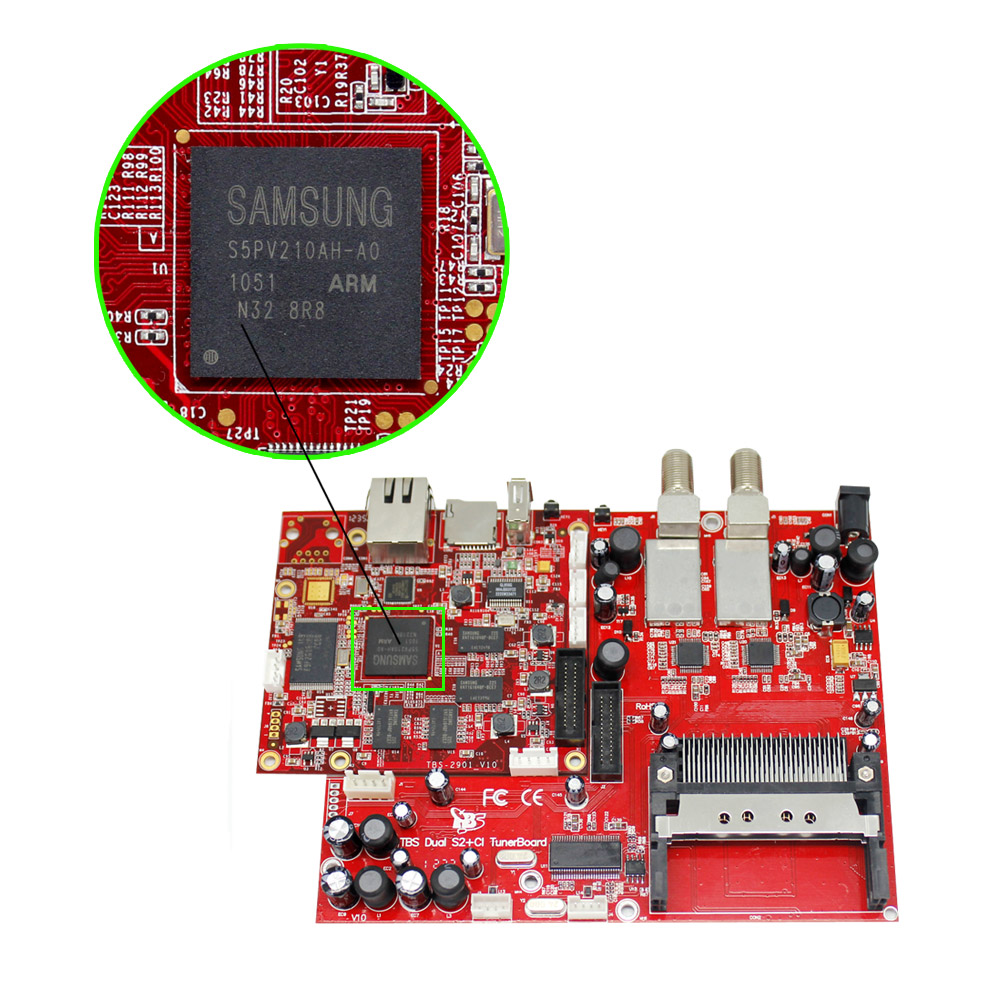

  • •  CPU: S5PV210, ARM Cortex A8 1GHz.
    •  FLASH: 256MB SLC NAND
    •  RAM: 512MB DDR2
    •  Dual CI Slot
    •  Micro SD card slot
    •  USB 2.0
    •  LNBB IN
    •  LNBA IN
    •  DC IN

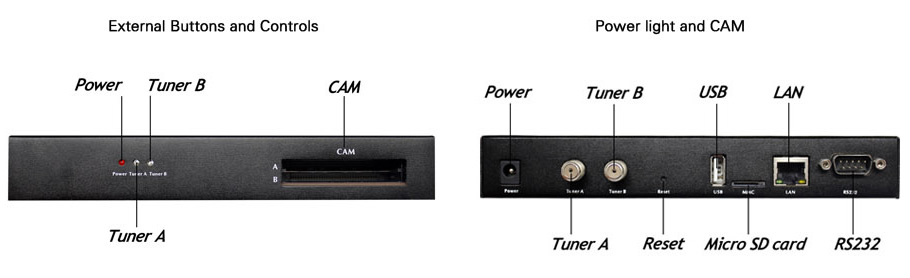

External Controls
