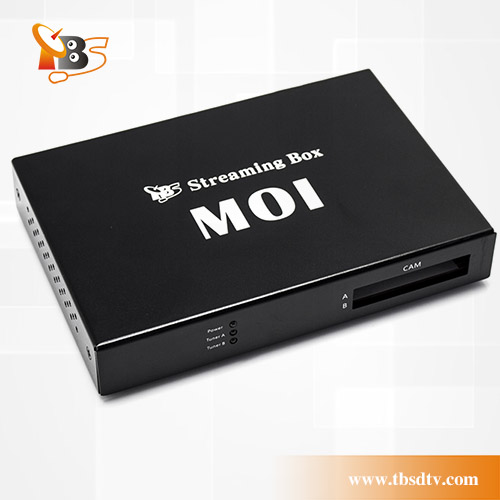

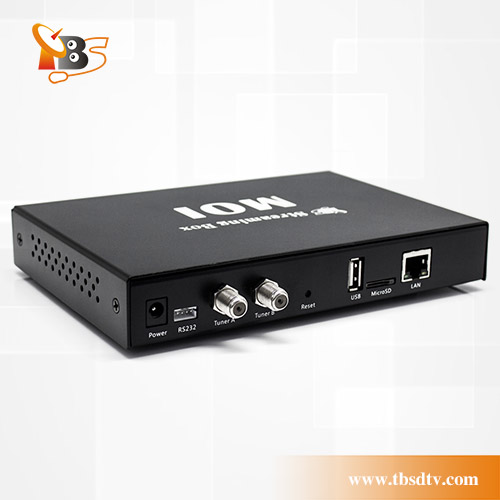

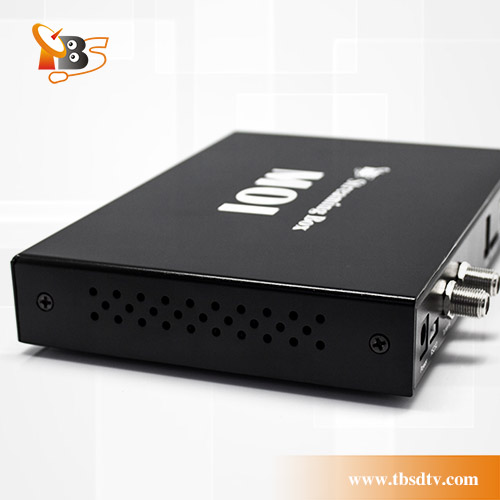

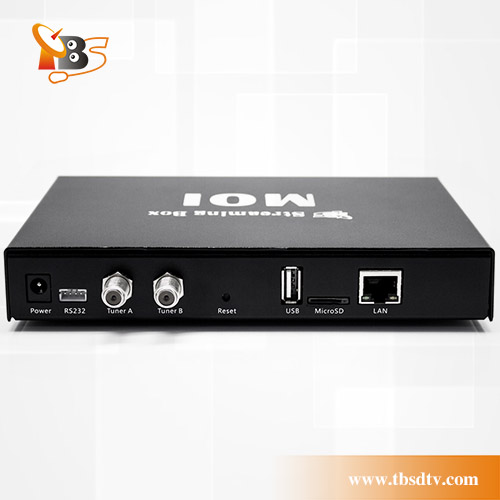

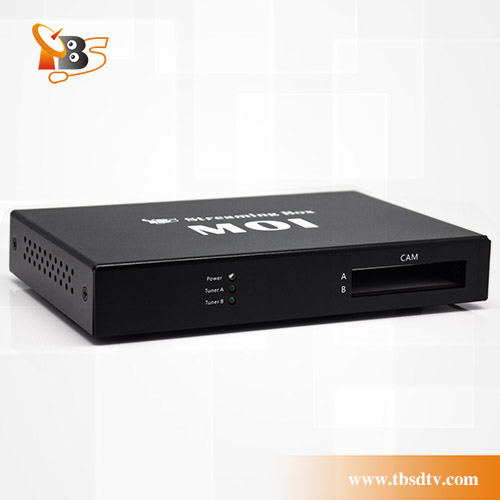

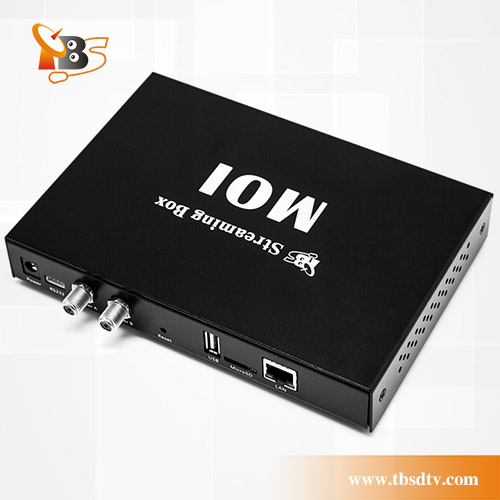

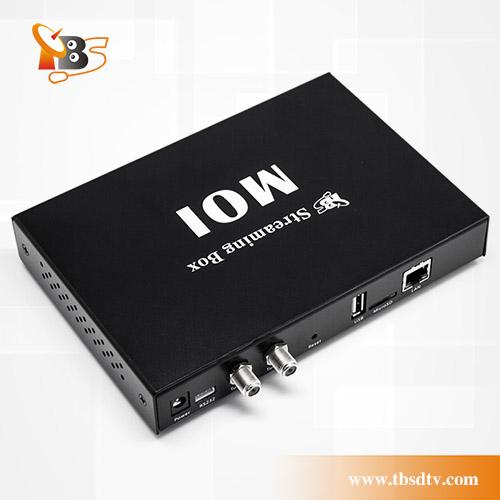

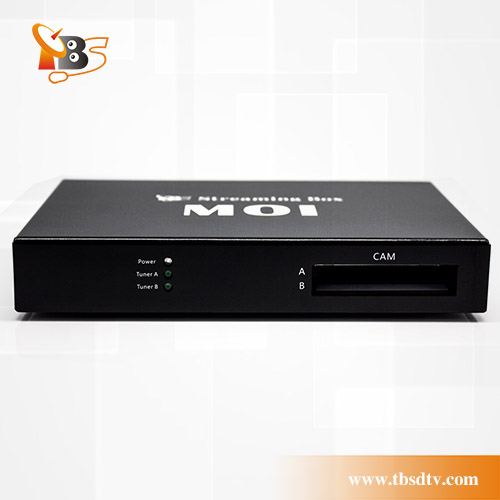

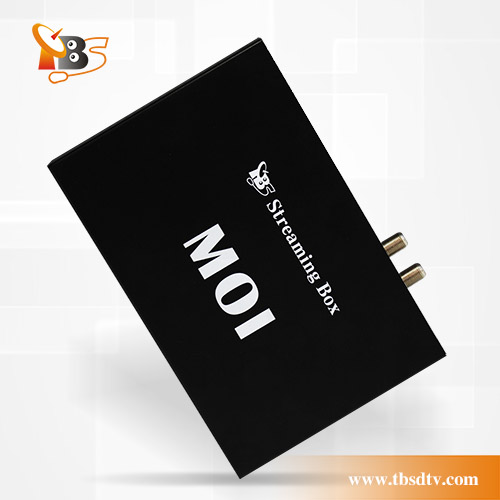

TBS MOI DVB-S2 Streaming TV box is a DVB-S2 dual tuner and dual CI slot Linux server for streaming satellite TV channels to the following client end devices within your wired or wireless network: HDTV, PC, tablet PC, smartphone, iPhone, iPad, iPod,Sony Playstation 3 and more.
Description
Specification
User Guide
Download
Features:
More TV source – provided by Dual DVB-S2 tuner & dual CI
More devices - HDTV, PC, tablet PC, smartphone, iPhone, iPad, iPod and Sony Playstation 3
More powerful – Linux system with TVHeadend,DVBlast,mumuDVB,szap,scan pre-installed.
More flexible –watch TV with XBMC, VLC,TVHGuide and many other media player softwares.
Specifications:
Device
Processor: Cortex TM-A8 1GHz
RAM : 512MB DDR2
Storage: 256MB SLC NAND Flash, 1 SD Card slot
Ethernet : 10/100M Ethernet
USB Ports: High Speed 2.0 USB Host
Operating System : Linux
Software Support
MOI: TVHeadend, DVBLast, mumuDVB, szap, scan and many more Linux software.
Client: XBMC, VLC,TVHGuide…
System Requirements:
Satellite TV signals.
Router with at least 100Mbps data transfer speed.
One of the following client end devices for receiving streamed TV channels.
PC with Windows, Linux or Mac system, Android tablet PC, Android smartphones, iPhone, iPad, iPod and Sony Playstation 3.
What’s in the box:
1x MOI Box
1x Power Adapter
1x Ethernet Cable
1x User Guide
TBS MOI DVB-S2 streaming box firmware V2.0.3
What's new in V2.0.3
1. VNSI(vdr-plgin-vinsiserver) Protocol is updated from V4 to V5 .
2. MuMuDVB is updated to the latest version 1.7.3 .
How to update:
1. from V2.x to V2.0.3
Copy the files in the firmware V2.0.3 folder to your micro SD card, power on MOI to start the update.
2. from V1.x to V2.0.3
1) Connect RS232 serial cable & install software.
Connect one end of the RS232 cable to MOI, the other end to your PC, install the software:
- for Windows users: TTERMPRO
- for Linux users: minicom
2) Update through micro SD card*
Prepare a formatted micro SD card, copy the file "MOI290-fs.bin" into it, insert it into the SD card slot on MOI, power on MOI, "Enter" uboot quickly (within about 3 seconds after MOI is powered on) and input the command lines:
setenv loadmmcfs 'fatload mmc 0:1 40000000 MOI2900_fs.bin'
setenv updatekfs 'nand erase 50c0000;nand write.yaffs 40000000 50c0000 ${filesize}'
save
then input "re", MOI will start to update.
User Manual and Apps for MOI DVB-S2 Streaming Box (Click to download)
TBS MOI DVB-S2 Streaming Box 2900 - Kernel Source Code Source code for building custom kernel for TBS MOI, please check README file in tbs-moi-linux-kernel-patches.tar.bz2 for more details.
TBS MOI DVB-S2 Streaming Box 2900 - Firmware_V2.0.3 Files and instructions for MOI system upgrade.
TBS MOI DVB-S2 Streaming Box-Quick Start Guide _V1.1 Introduction & quick start guide for MOI.
TBS MOI DVB-S2 Streaming Box-Android Mini TV stick_V1.1 Manual for how to use HDTV to stream/watch Satellite TV programs from MOI.
TBS MOI DVB-S2 Streaming Box-Tvheandend_V1.1 Manual for how to use Tvheadend to configure MOI on Windows PC.
How to configure Tvheadend for TBS MOI streaming box Youtube Video guide for Tvheadend configuration.
TBS MOI DVB-S2 Streaming Box-TVHguide_V1.1 Manual for how to use TVHguide to configure MOI on Android phone.
TBS MOI DVB-S2 Streaming Box-XBMC_V1.1 Manual for how to use XMBC to stream/watch TV programs from MOI on Windows PC, Android device and iOS device.
How to watch satellte TV programs from MOI via XBMC Youtube Video guide for XMBC settings.
TBS MOI DVB-S2 Streaming Box-VLC _Windows_V1.0 Manual for how to use VLC to stream/watch TV programs from MOI on Windows PC.
How to watch satellte TV programs from MOI via VLC Youtube Video guide for VLC settings.
