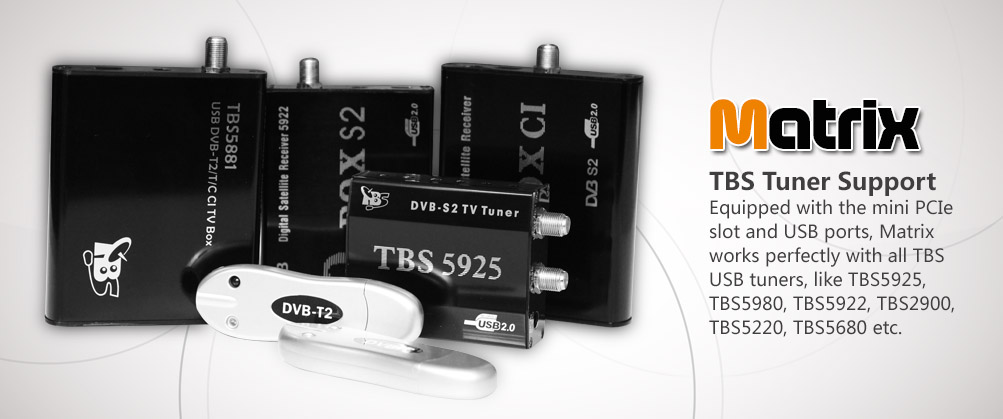

TBS Tuner Support

Equipped with the mini PCIe
slot and USB ports, Matrix
works perfectly with TBS USB tuners.

Click here for more information about
supported USB tuners.

Freescale Quad Core

Based on Freescale i.MX6,
Matrix provides a much
more powerful ready-to-run platform.

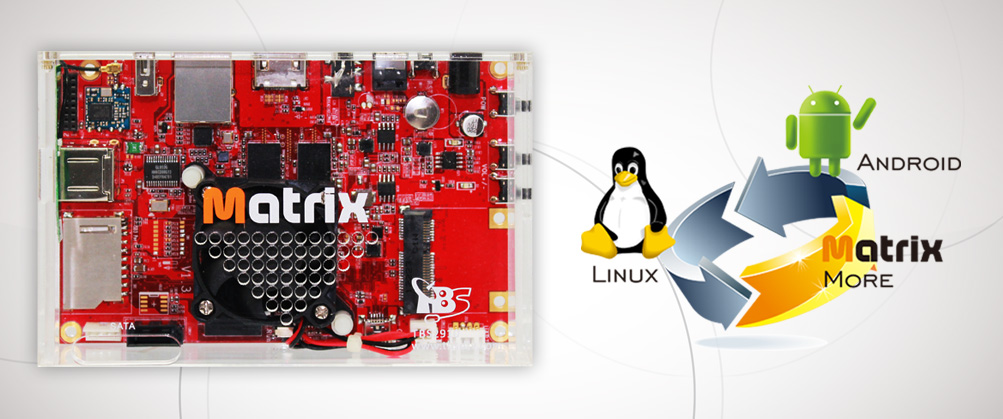

Open Source

It's 100% open source, Matrix
runs Linux, Android, Ubuntu, and
any other OS you like.
To switch from one OS to another,
you simply need to burn the
new OS into the eMMC on the
Matrix board, and then reboot it.

XBMC, VDR, Tvheadend Support

Popular software like XBMC,
VDR, Tvheadend are ready for
Matrix.

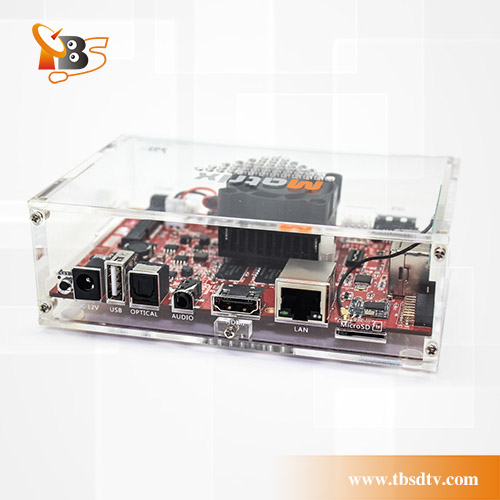

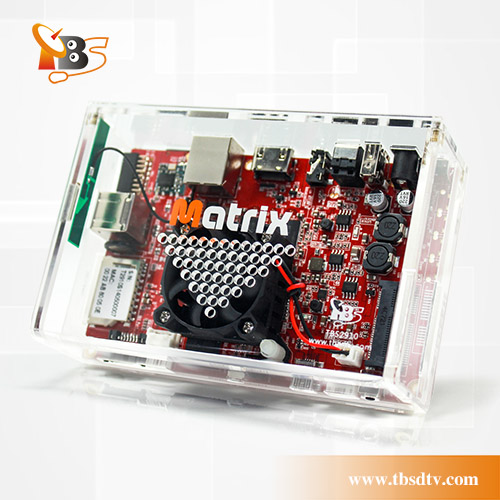

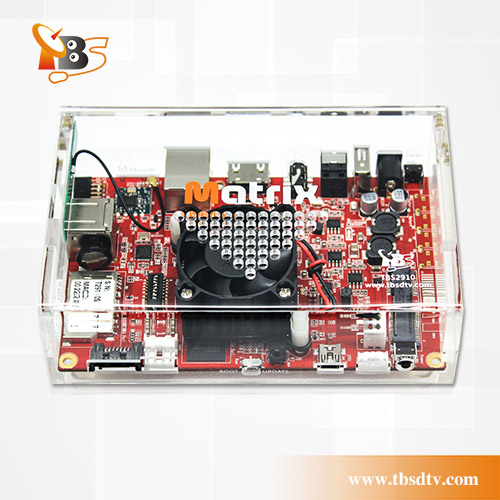

Matrix is a single board mini computer
based on ARM with a wide range
of interface, equipped with a
powerful i.MX6 Freescale processor,
it can run Android, Linux and other
operating systems, a switch between
different operating systems can be
done within just a few minutes!
Matrix also has great support for TBS
USB tuners and popular software
such as XBMC, VDR, Tvhead
end, DVBLast and so on.

Specification

System-on-a-chip (SoC) Freescale MCIMX6Q5EYM10AC
CPU Quad ARM Cortex-A9 at 1.0GHz
GPU Vivante GC2000, Quad core GPU, Quad IPU
RAM 2GB DDR
USB 2.0 ports 3x USB 2.0
Other interface HDMI port
3.5 mm jack
Optical port
SPDIF
SATA3.0
Remote Support HDMI-CEC, MCE
Storage eMMC 16GB
1x SD card slot
1x TF card slot
Network 10/100/1000 wired Ethernet
WIFI IEEE 802.11n/b/g
Power input 5V, 3A
Size board:130*83 mm
case: 135*90*45 mm
Package contents 1x Matrix ARM mini PC
1x power adapter
1x SATA power cable
1x RS232 adapter board (optional)

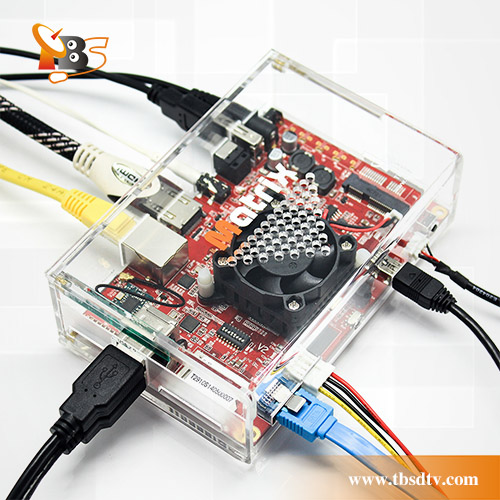

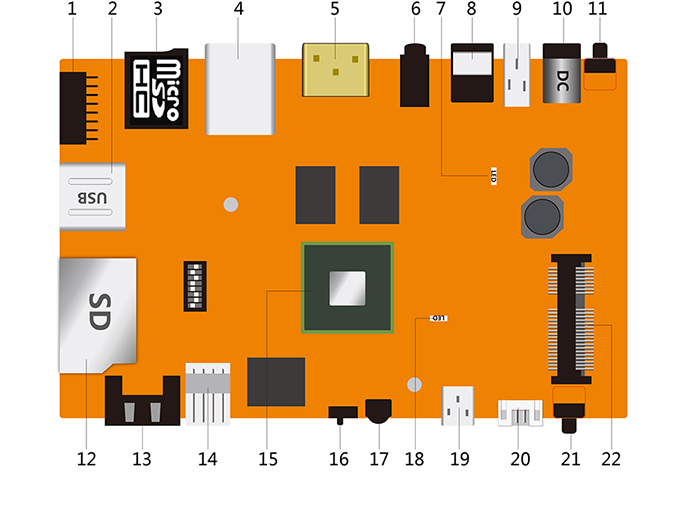

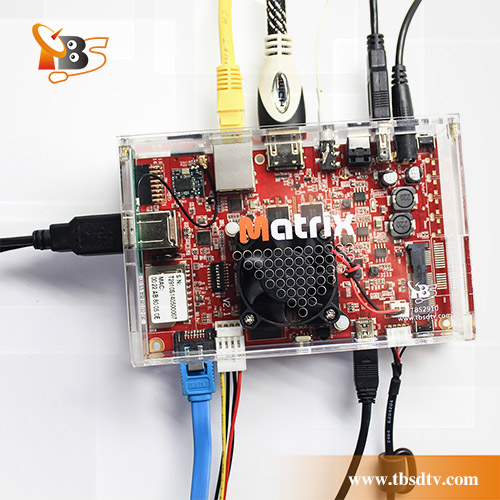

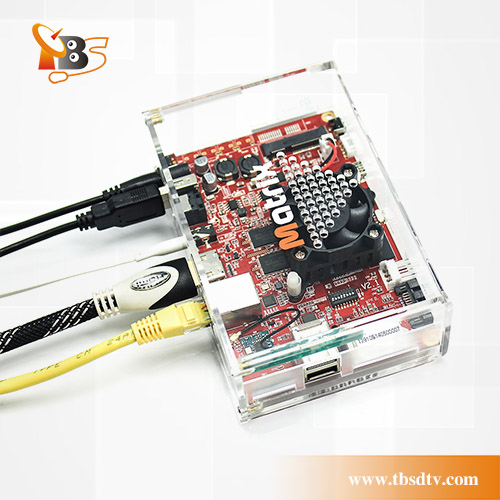

Interface

HDMI SLOT:
For connection to a digital TV or display with HDMI input.
LAN:
For connection with network cable.
USB 2.0 SLOT:
For connection with keyboard, mouse or other USB device.
WIFI ANTENNA:
For WIFI signal reception.
GPIO/UART/I2C:
For connection with peripheral device.
SD CARD SLOT:
For SD card insertion.
SATA:
For connection with hard disk.

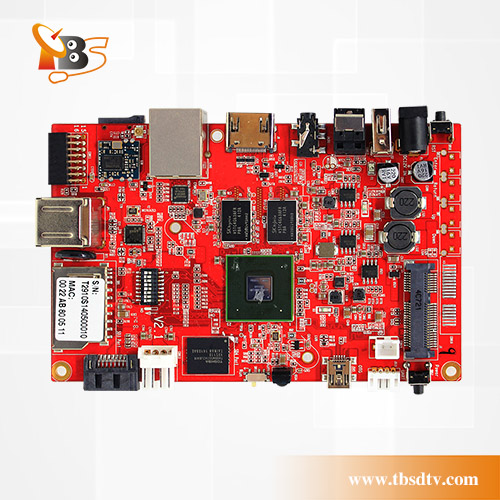

Main Chip:
Freescal MCIMX6Q5EYM10AC
BURN/ BOOT MODE:

A switcher for the two modes:

a- BURN: move the switcher to this side, you can burn the OS into the eMMC.

b- RUN: move the switcher to this side, you can run Matrix with the OS in eMMC.

LED INDICATOR FOR WORKING STATUS:
The Blue LED light is flashing when Matrix is working.
AUDIO:
For connection with standard stereo 3.5 mm audio cable.
RESET:
For bringing Matrix back to the initial state.
DC 5V:
For connection with a power supply of 5V, 3A.
POWER:
LED INDICATOR FOR POWER.
VOLUME +/-:
Buttons for volume control.

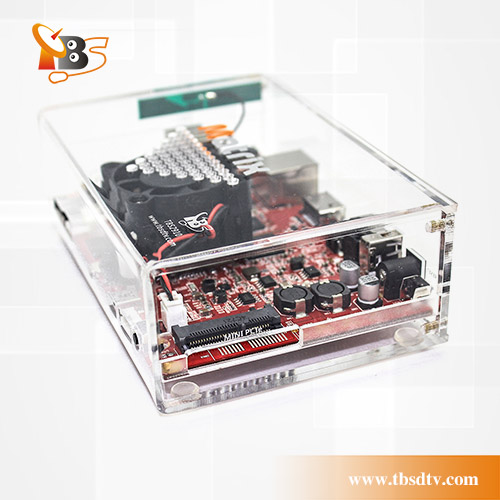

MINI PCIe:
Mini PCIe slot for connection with mini PCIe device.
RS232 SERIAL PORT:
For connection with RS232 serial cable.
OTG:
An OTG cable should be connected to the OTG port, when you want to burn a new OS into the eMMC.
