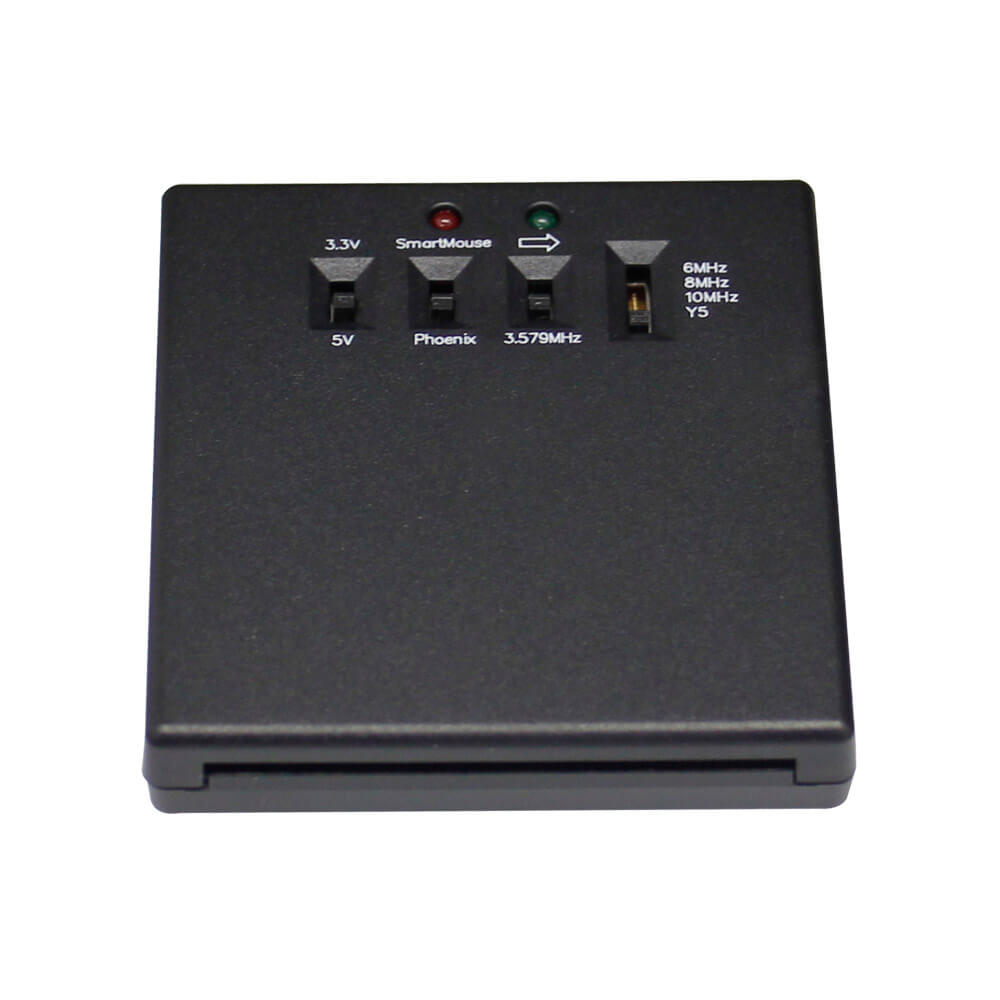

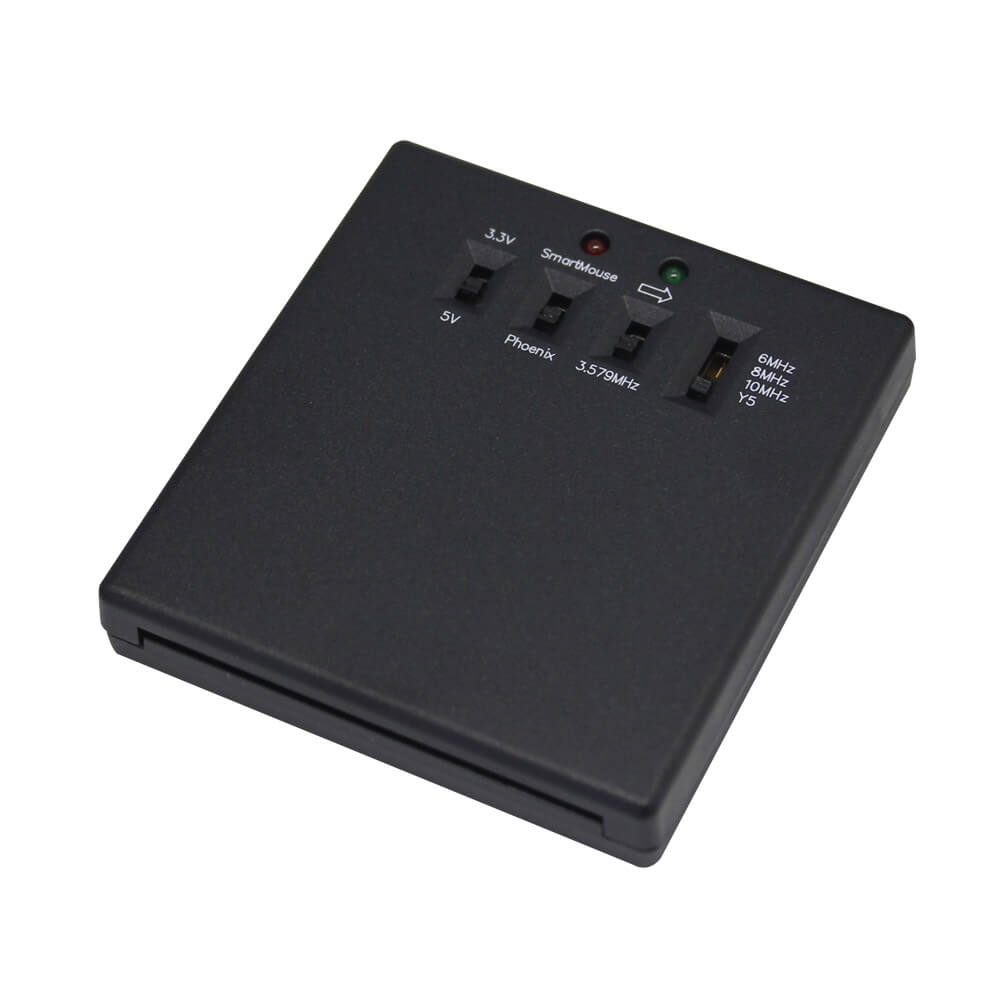

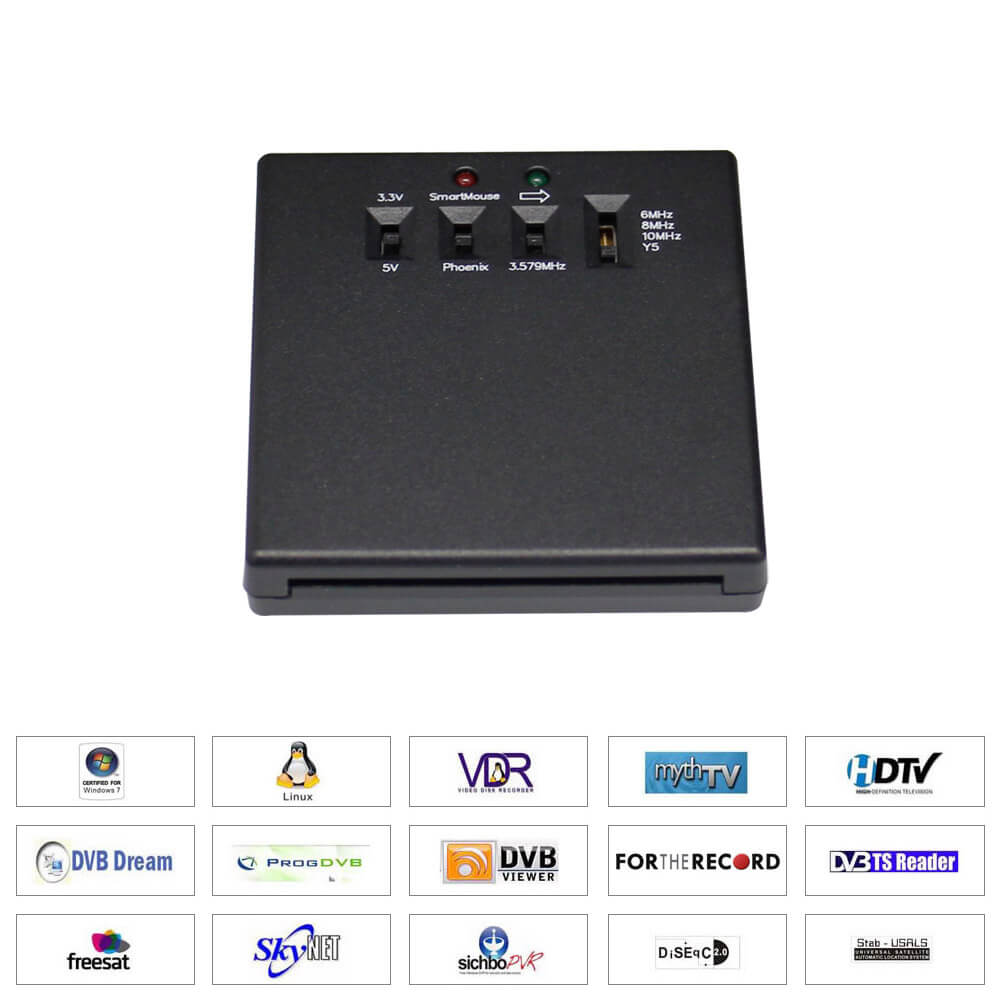

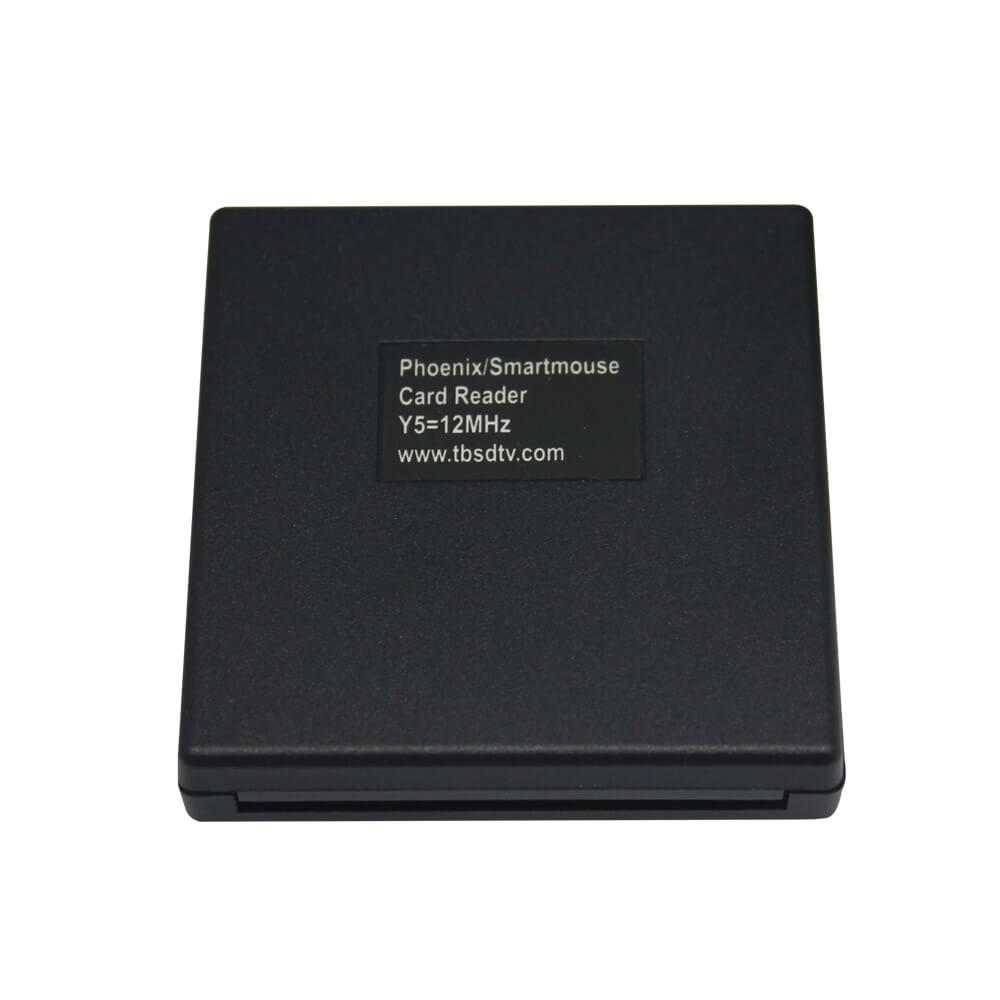

TBS3102 5 Crystal Phoenix Card Reader

TBS3102 is a simple but powerful smartcard reader in the world. The card reader supports both Phoenix and Smartmouse mode and it has only one USB port for both power supply from PC’s USB connection and data communication. The computer will look this card reader as COM interface device after installing the driver. TBS3102 supports up to five crystal frequencies, 3.3V and 5V card voltage and Phoenix/Smartmouse working mode. It’s ideal for reading most ISO7816 smartcard

  • Description
  • Specification
  • Picture
  • User Guide
  • Download
TBS3102 Five Crystal Phoenix Card Reader is a powerful tool for reading most ISO7816 smartcard. Both Windows driver and Linux driver is ready.

Specifications:

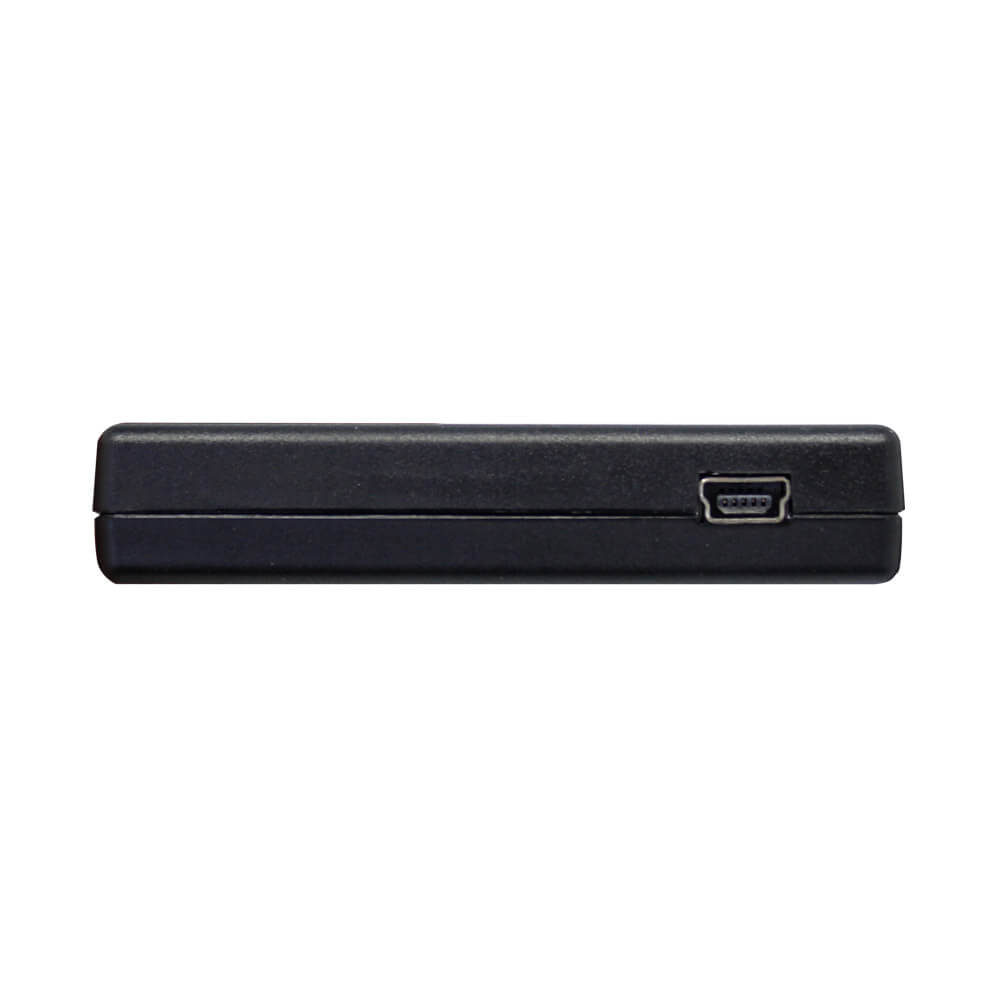

Cable connection: USB for power supply and data communication
Prog. Mode: Phoenix and Smartmouse
Power Mode: DC 3.3V/5V shiftable
Frequency:
Model A: 3.579MHz / 6MHz / 8MHz / 10MHz /12MHz shiftable
Model B: 3.579MHz / 3.686MHz / 6MHz / 8MHz / 10MHz shiftable
Model C: 3.579MHz / 3.686MHz / 4.8MHz / 6MHz / 8MHz shiftable
Led light indicating data communication
Size: 75x60x15mm (Length x Width x Height)

Package Content:
1 x TBS3102 Phoenix/Smartmouse Card Reader

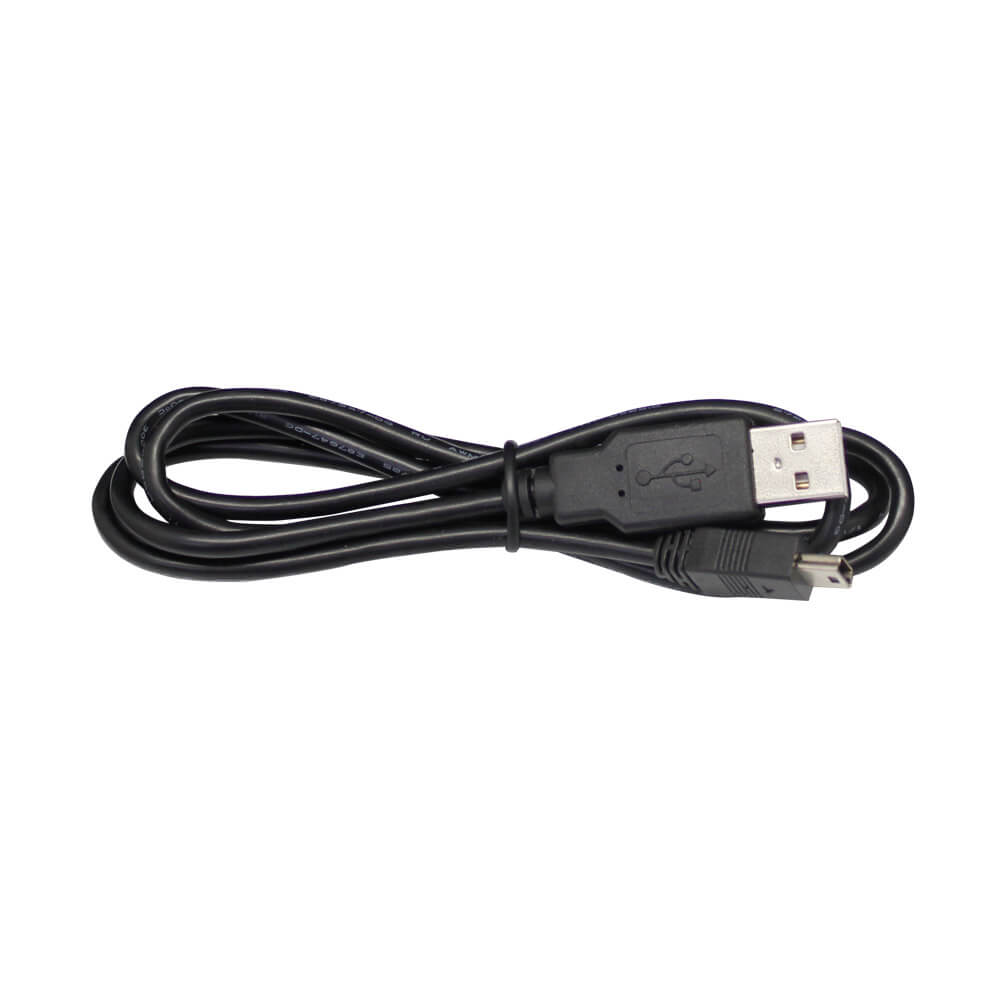

1 x USB Cable

Note: No Software CD provided and all drivers are available in website’s download section. if any other frequency requirements, you may contact us
