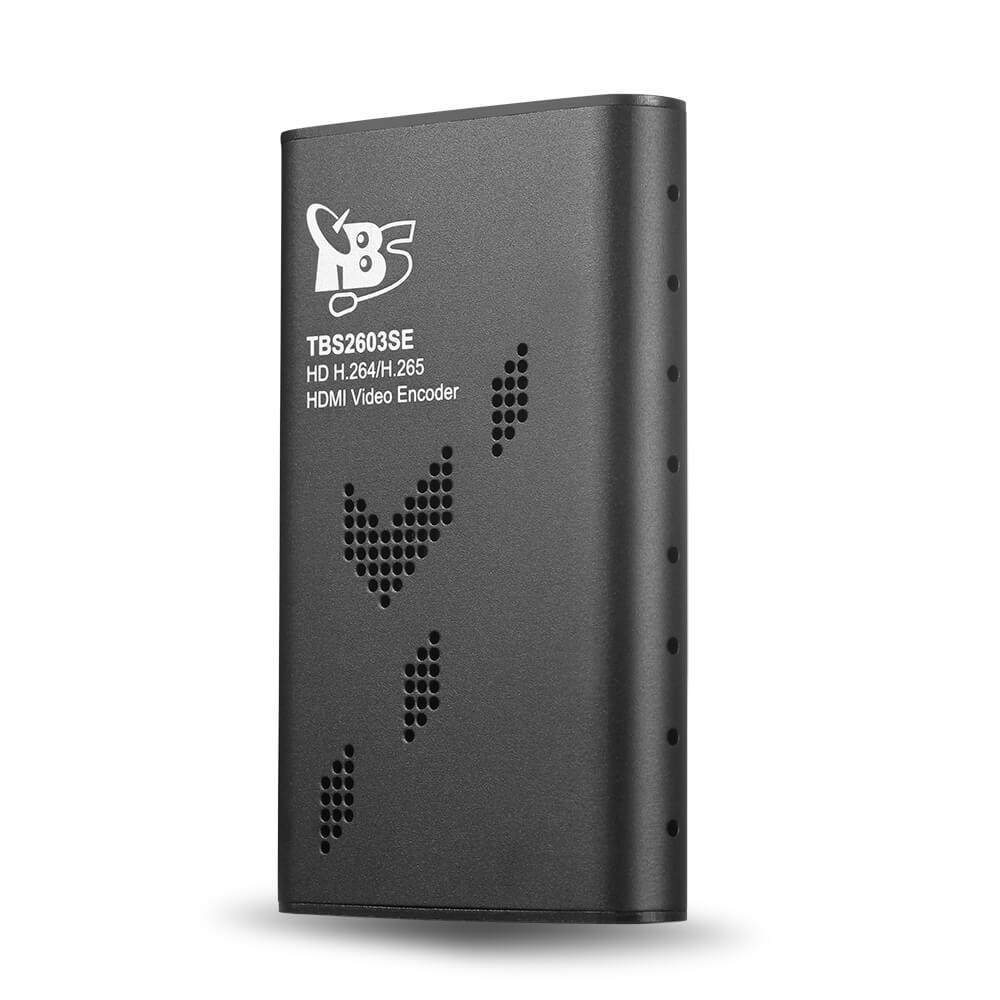

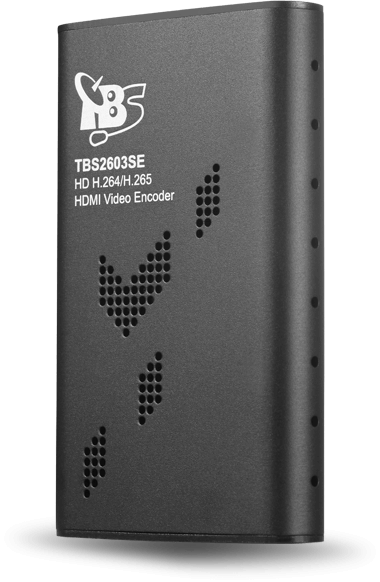

    TBS2603se NDI®|HX2 supported H.265/H.264 HDMI Video Encoder

    TBS2603se
    Professional HD H.265/H.264
    HDMI Video Encoder

    TBS2603se is a professional HDMI video encoder, which supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format.TBS2603se can encode video streams from any HDMI video source to various media streaming servers (Wowza, Read 5, Xtream Codes, Flussonic, FMS etc) or online live broadcast platforms (Youtube, Facebook, Twitch, Vimeo, etc. ) over IP in real time.

    TBS2603se video encoder is widely applied education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

    NDI®|HX2

    TBS2603se H.265/H.264 HDMI Video Encoder has been integrated native NDI®|HX2 support, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI®|HX2 compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.

    Features:

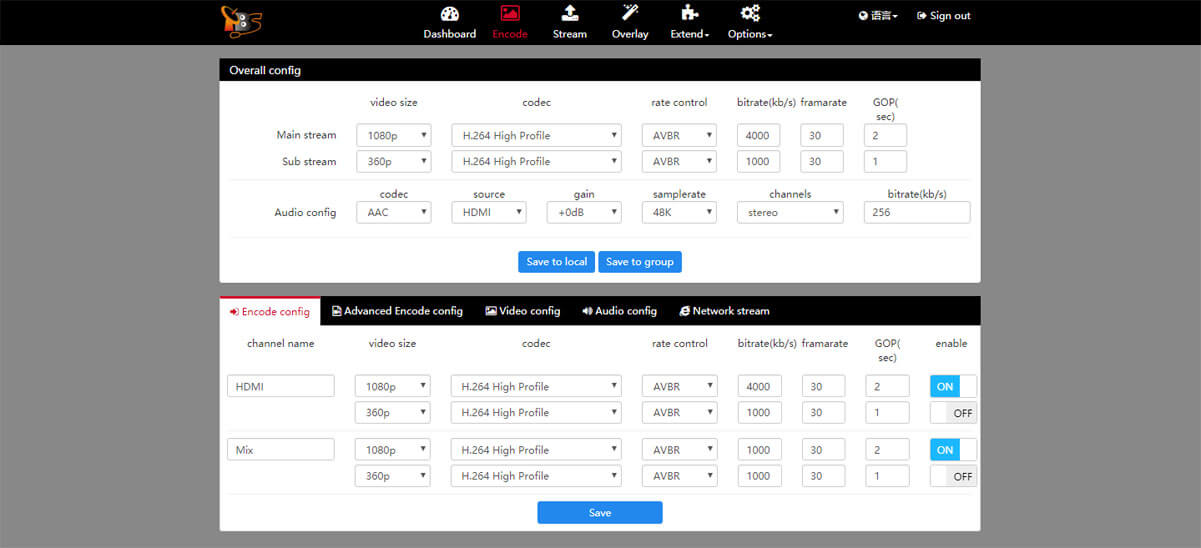

    • Flexible and friendly webpage control
    • Visual input (Preview)
    • H.264/H.265 Encode
    • AAC,MP3, MP2, PCMA audio encoding
    • Bitrate of output video stream is adjustable from 500kbit/s to 20Mbit/s

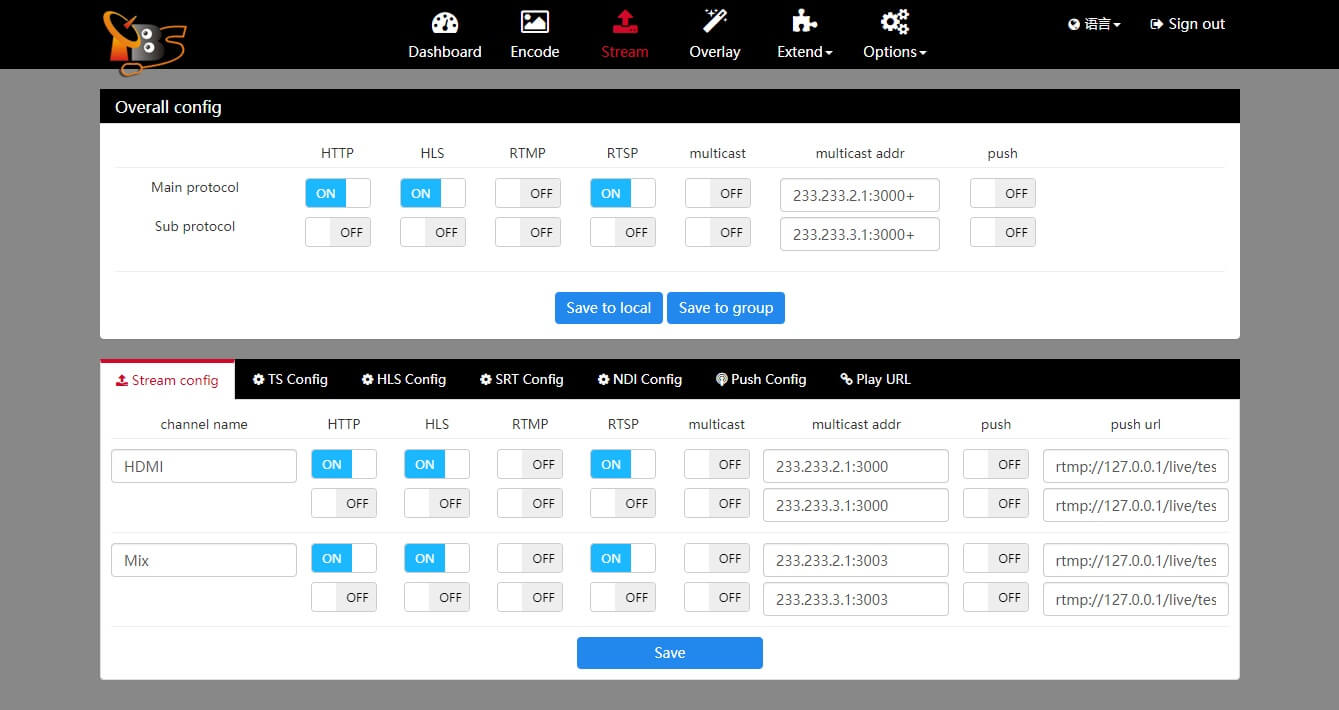

    • Support HTTP, HLS(m3u8),RTP/UDP Unicast, Multicast, RTSP, RTMP/RTMPS, ONVIF, SRT
    • Native official Newtek SDK-based development ensuring TBS2603se access to last generation NDI®|HX2 SDK and updates.

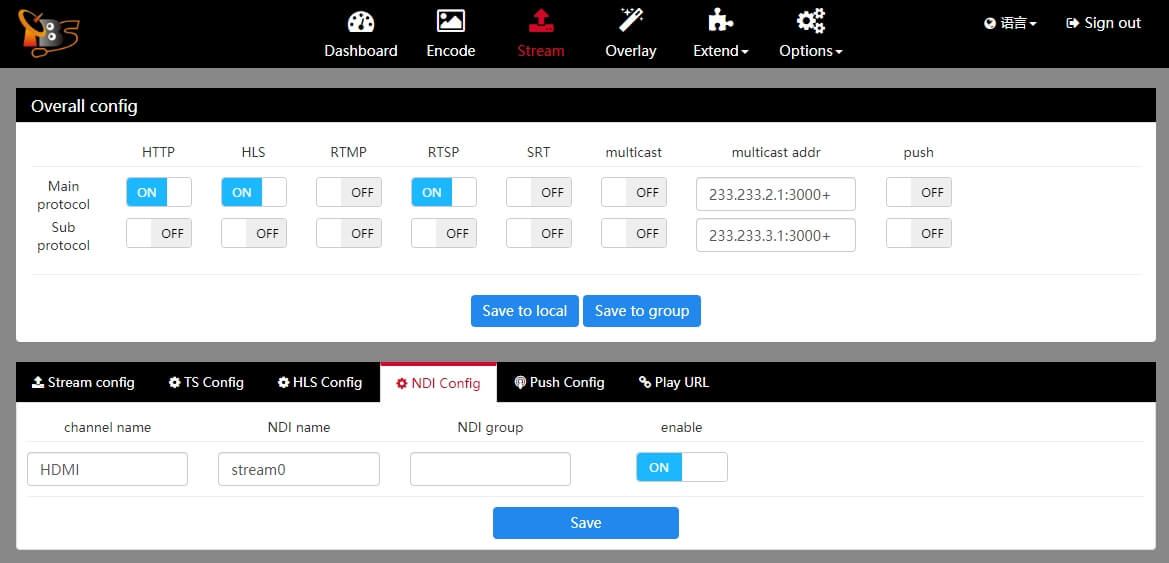

    • NDI stream output thru local switch and web user interface
    • The output NDI®|HX2 stream can be automatically detected by any NDI-enabled media networks, devices and applications
    • Support insert Logo, Text, Mosaics Or Time to the video
    • Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)
    • Support HDCP and HD blue-ray
    • Support Video & Audio Encoding simultaneously, and Video or Audio separate Encoding
    • Support ROI (Region of Interest)
    • H5 Player
    • Video Rotator: 0 degree/90 degrees/180 degrees/270 degrees
    • Stable and effective, support 7 x 24h working time

    Application:

    Digital signage
    Hotel TV systems
    IPTV/SmartTV
    Video conference
    Classrooms - teaching online
    IP video surveillance
    Live broadcast
    (Youtube, Facebook, Twitch, Vimeo, etc. )
    Live streaming to social media

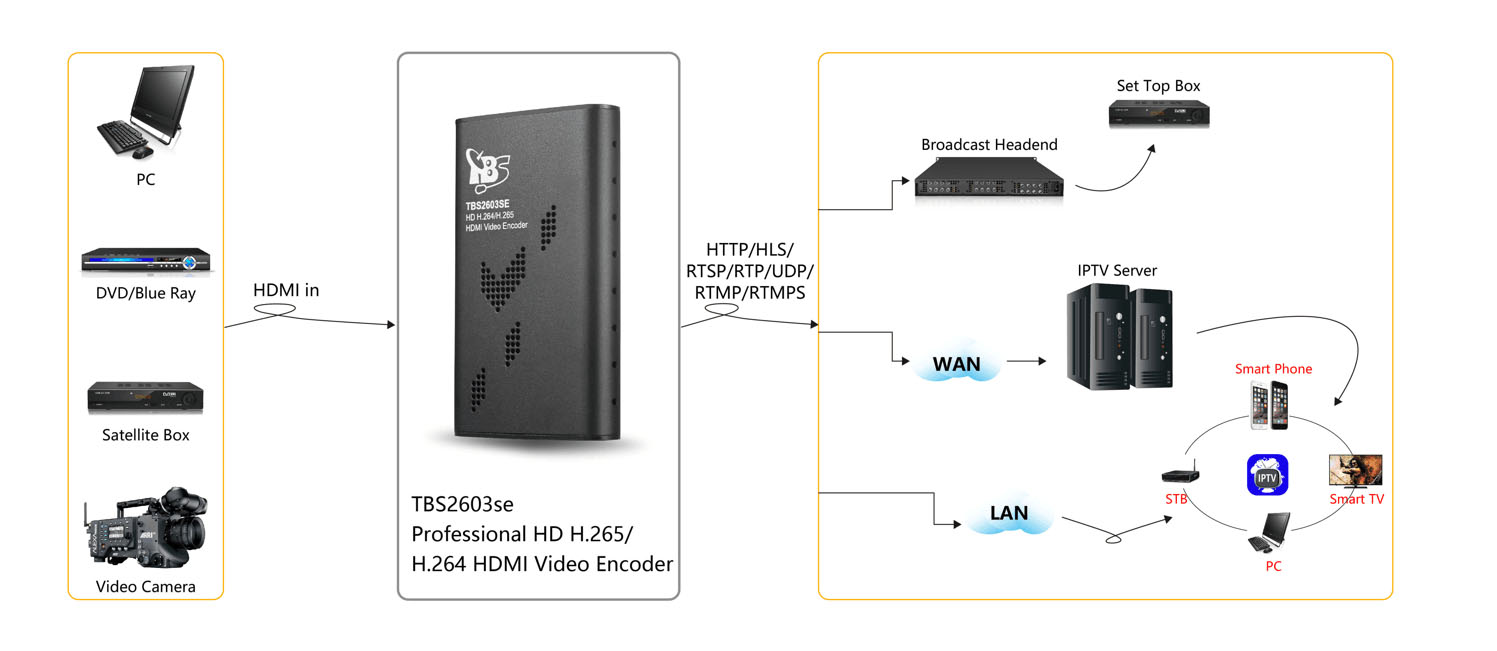

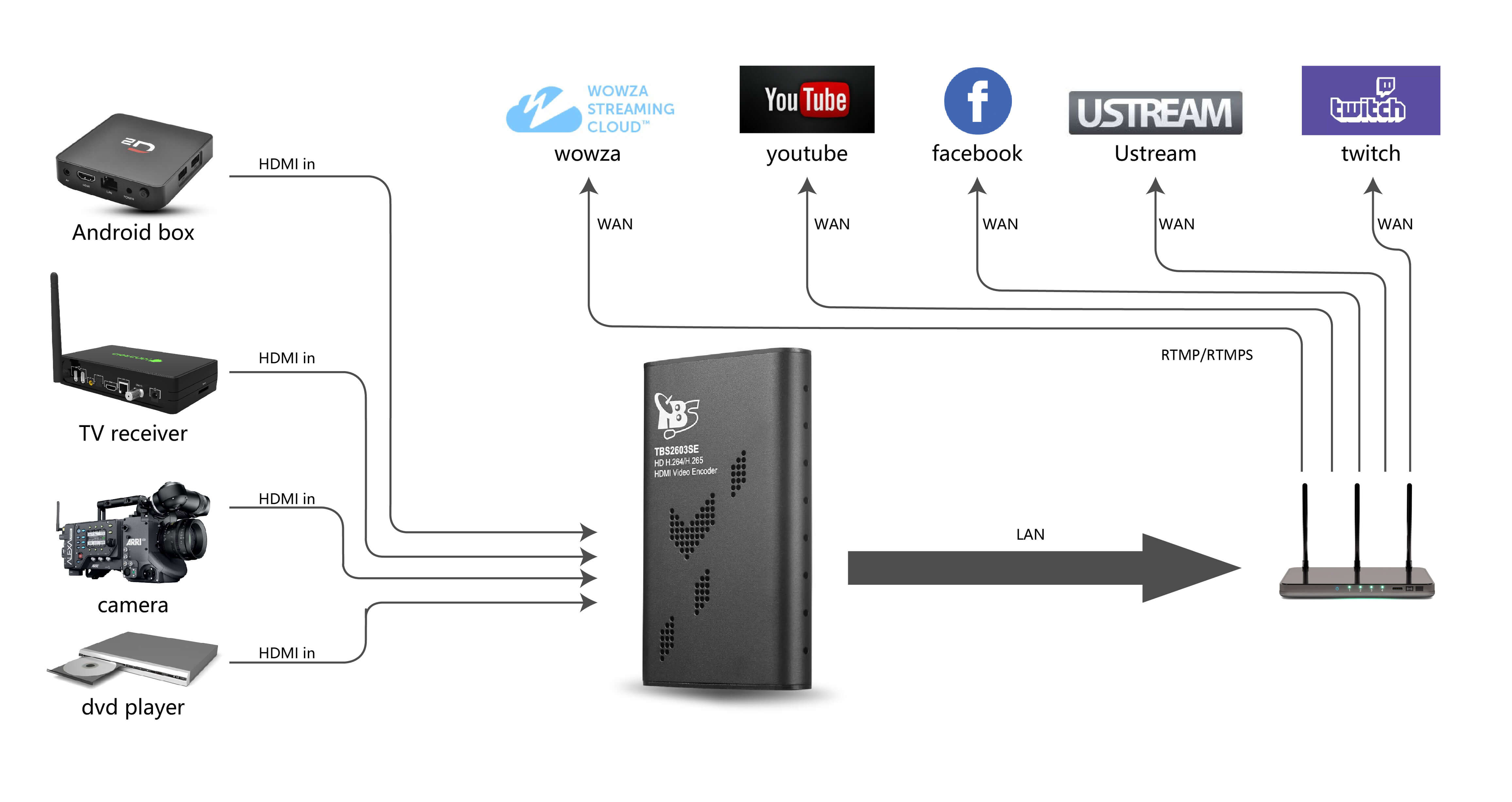

    How it works:

    Advantages:

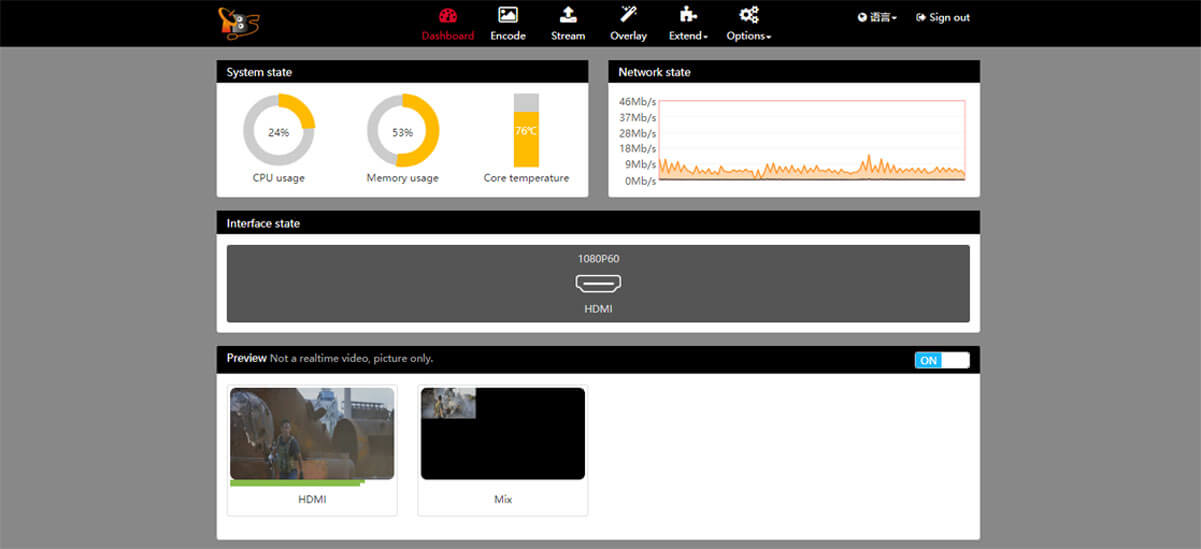

    • Flexible and friendly webpage control, easy to check and control the status of the device.

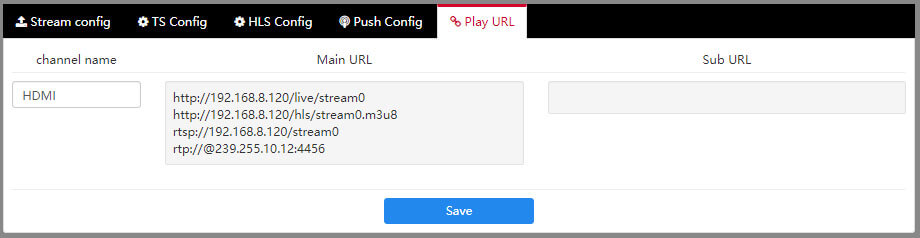

    • HTTP/HLS/RTSP/RTP/UDP/RTMP(RTMPS)/SRT, compatible with different terminals, for example, social media platform like Facebook, YouTube, Ustream, Twitch etc., media server like Wowza or security platform/ NVR system, IPTV
    • Supports dual channel encode, main steam and secondary stream(max 1920x1080@60fps). For example, main stream 1920x1080@30fps, and secondary stream 1280x720@30fps for defferent requirements.
    • Multiprotocol output
      Compliant with HTTP/HLS/RTMP(RTMPS)/RTSP/ UDP protocols
      Each channel has multiple protocols for outputting

    NDI® is a registered trademark of Newtek
