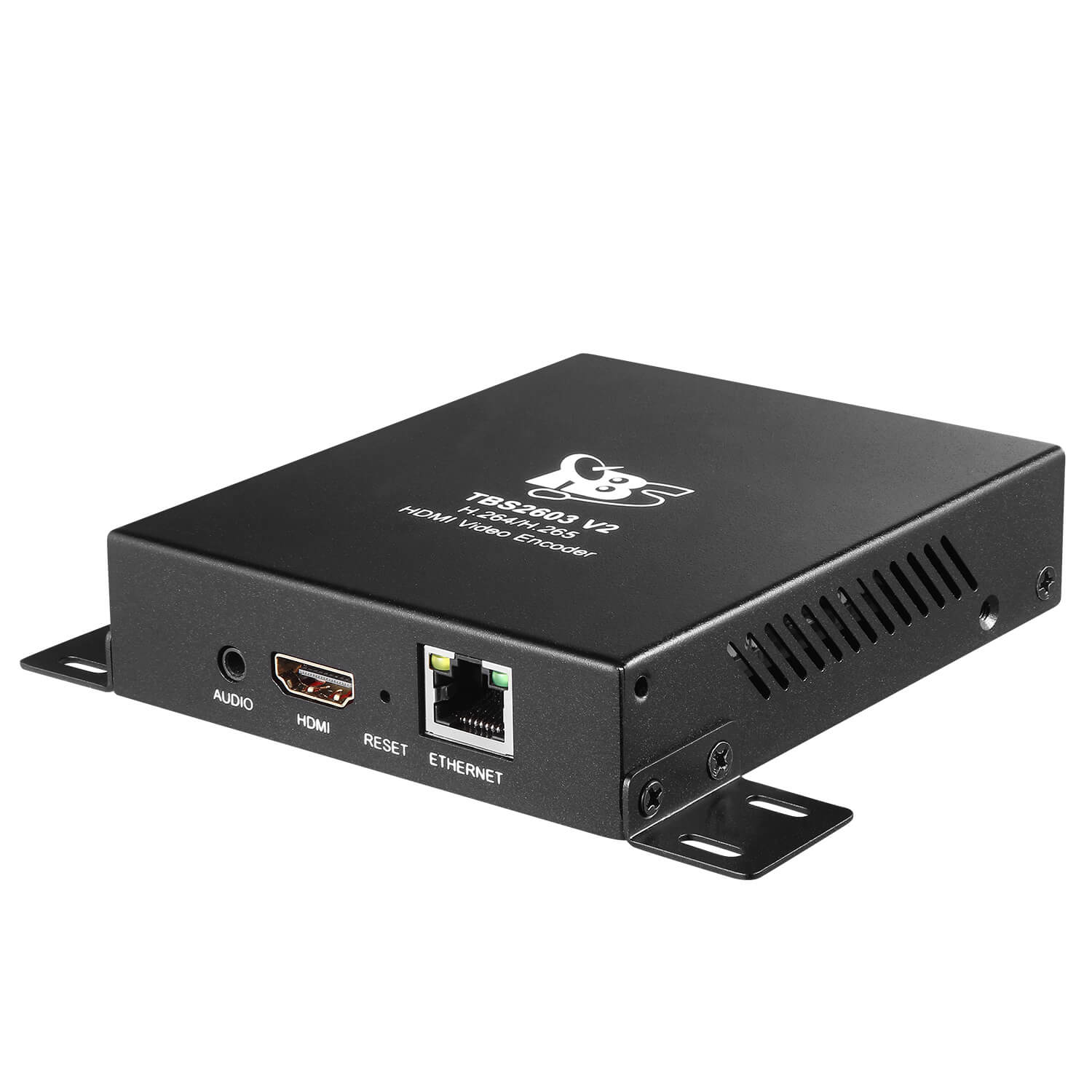

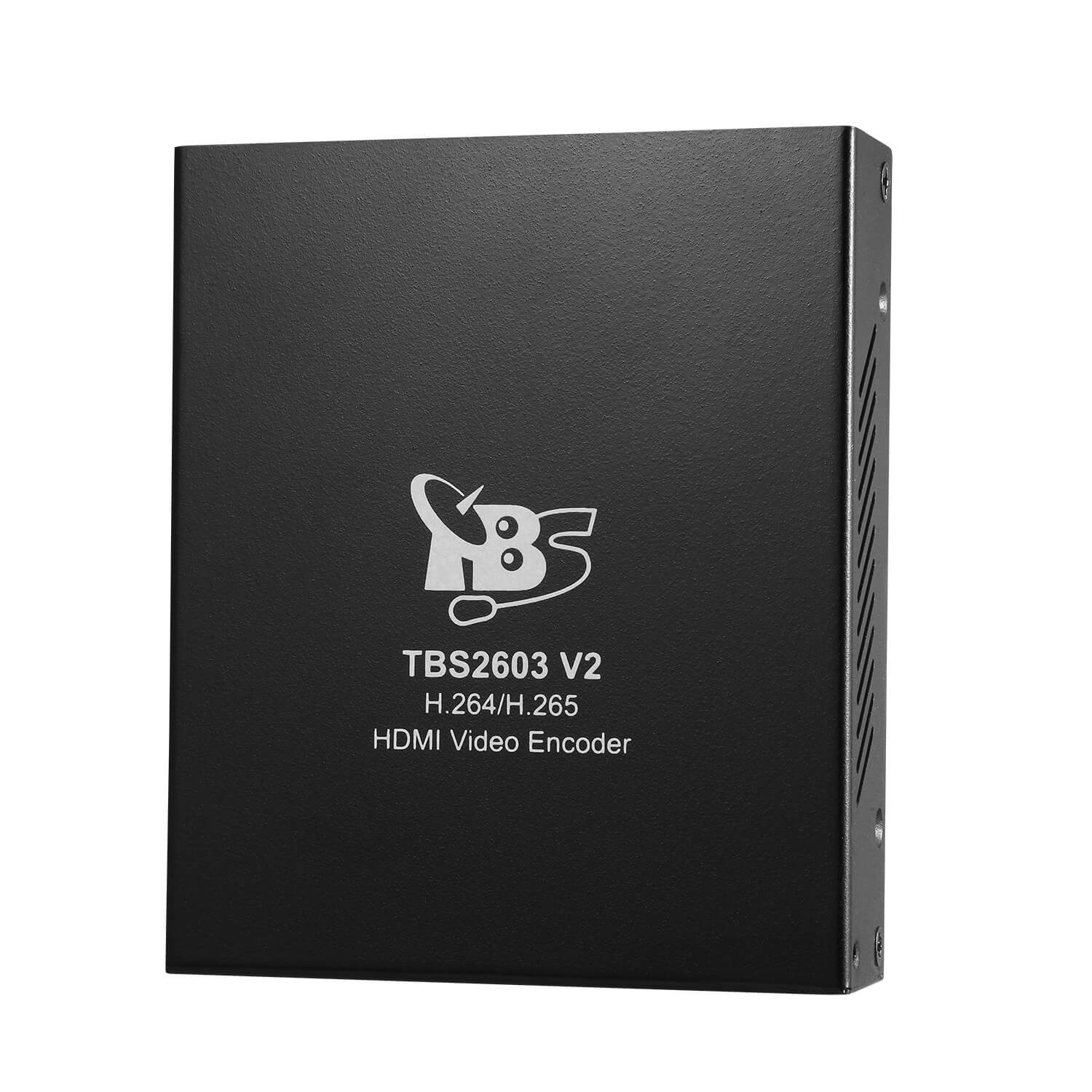

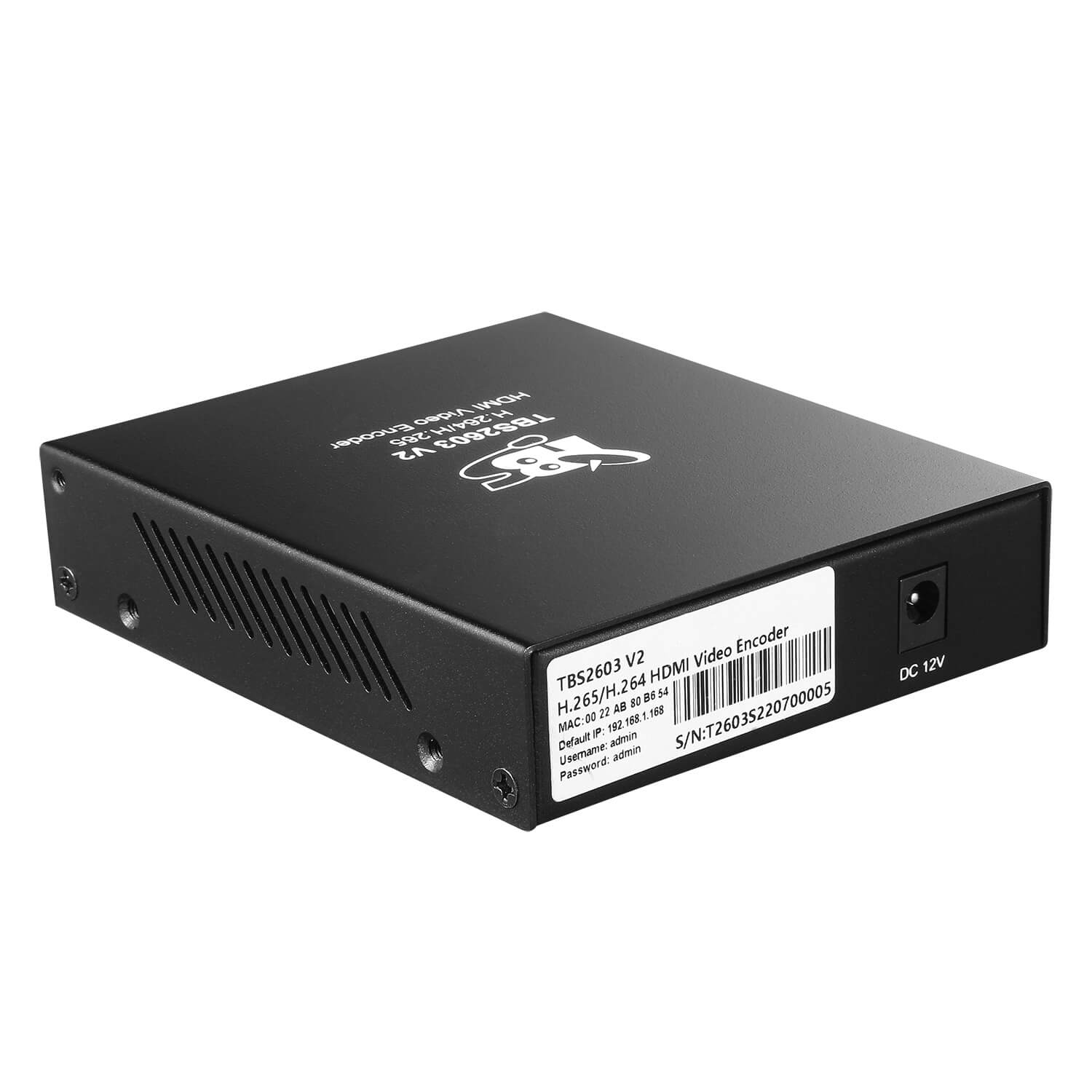

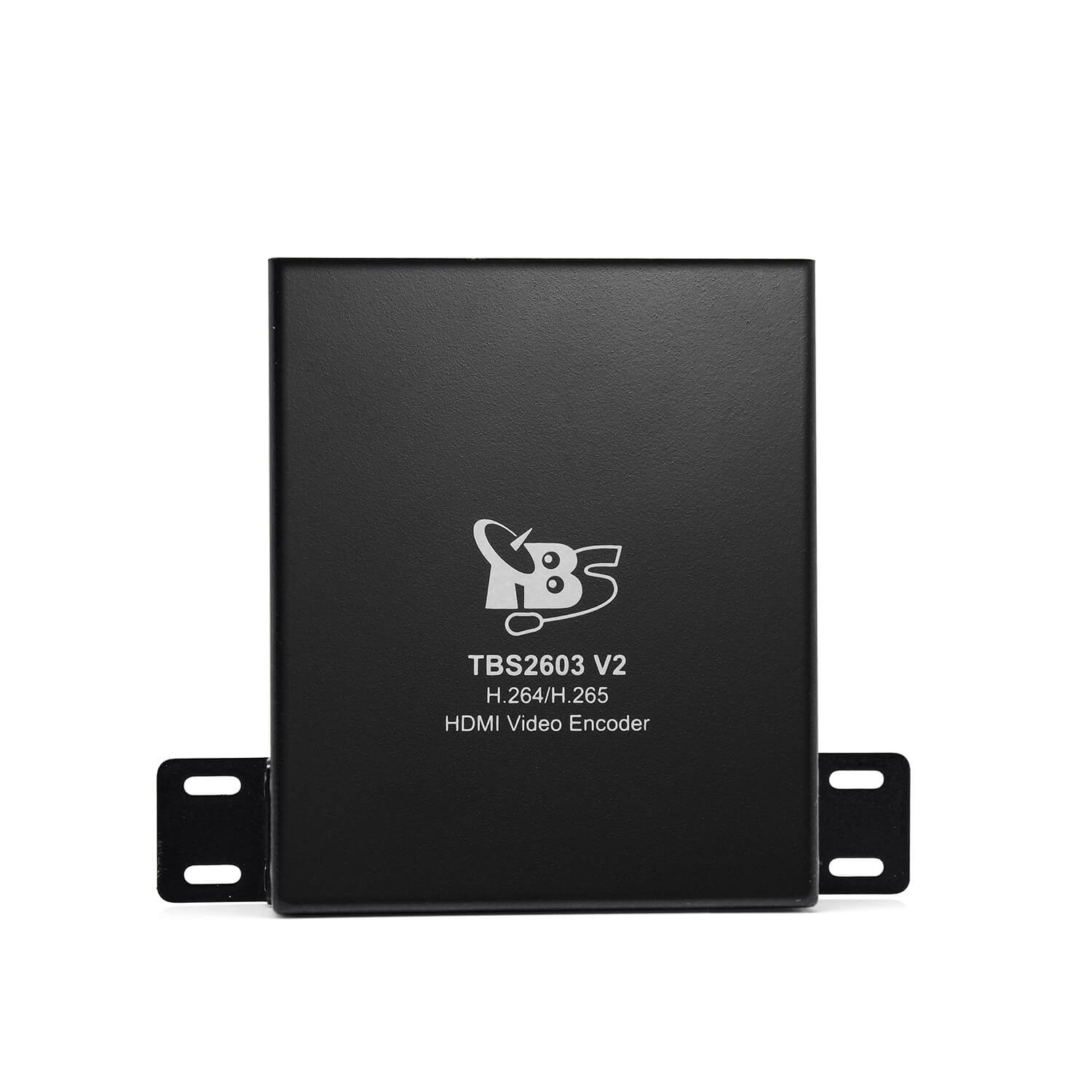

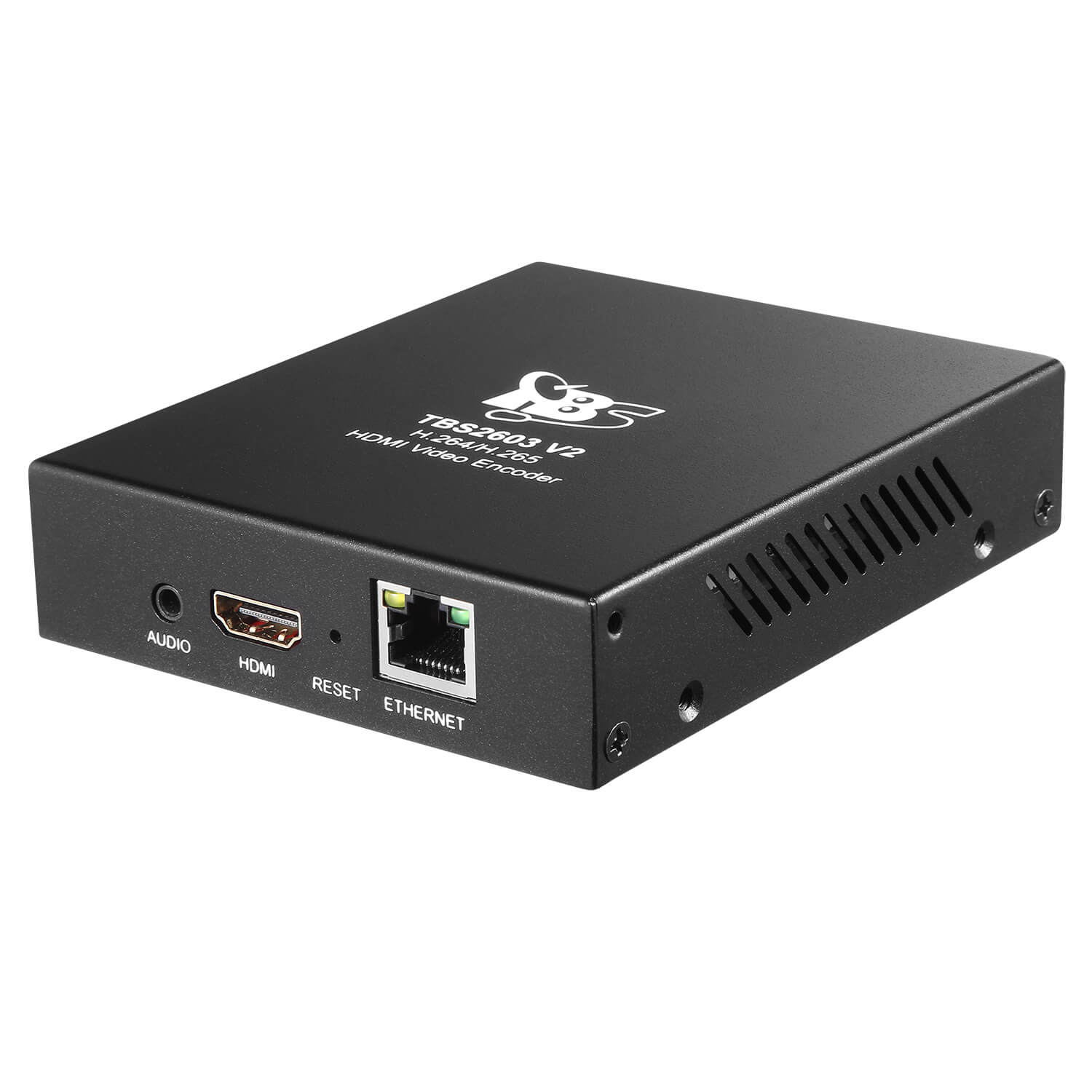

TBS2603V2 is an NDI®|HX supported H.264/H.265 video Encoder, It supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation, and other industries.

TBS2603V2 NDI®|HX use a high efficiency, low bandwidth form of NDI®, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI®|HX compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.

Features:

• Visual input (Preview)
• HDMI video input，H.264/H.265 Encode
• Supports video or audio encode separately: video out only or audio out only (the default is "video + audio" out).
• NDI®|HX streams output
• HDMI-embedded & Line-in Audio input
• AAC-HE, AAC-LC, MP3, g.711 audio encoding
• Bitrate of output video stream is adjustable from 500kbps to 20Mbps
• Support HTTP, HLS(m3u8), RTSP, RTP/UDP Unicast & Multicast, RTMP/RTMPS, SRT, NDI | HX,
• Support NDI | HX2
• ROI (Regin of Interest)
• Support Video Rotate, Video Crop
• Support inserting Logo, Text/Scrolling and Time Code Display to the video
• Support Input Preview
• Support HDCP and HD blue-ray
• Flexible and friendly webpage control
• Stable and effective, support 7 x 24h working time

Live streaming to social media

HDMI encoder

Flexible and friendly webpage control, easy to check and control the status of the device

HTTP, HLS(m3u8), RTSP, RTP/UDP Unicast & Multicast, RTMP/RTMPS, SRT, NDI | HX, compatible with different terminals

Specification:
