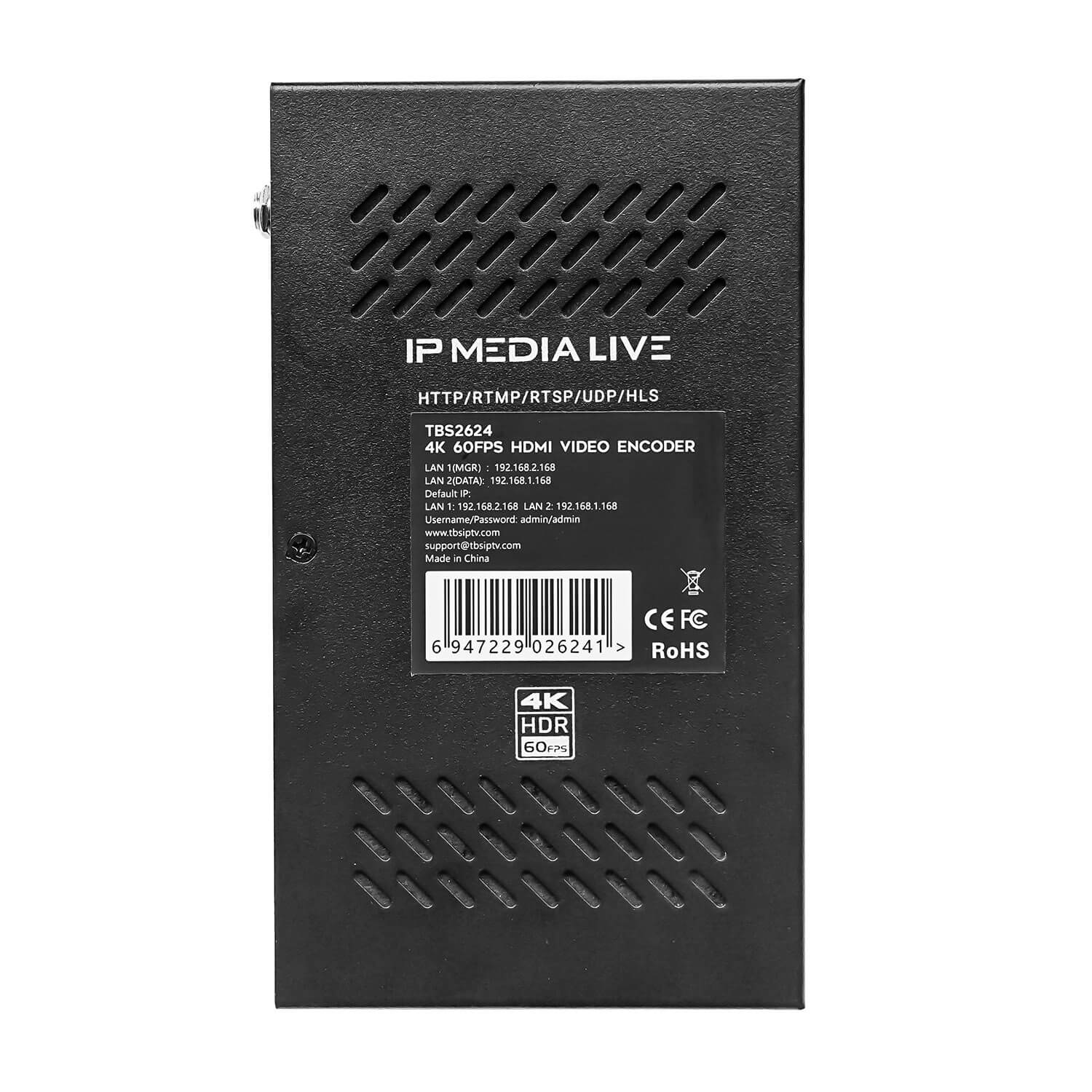

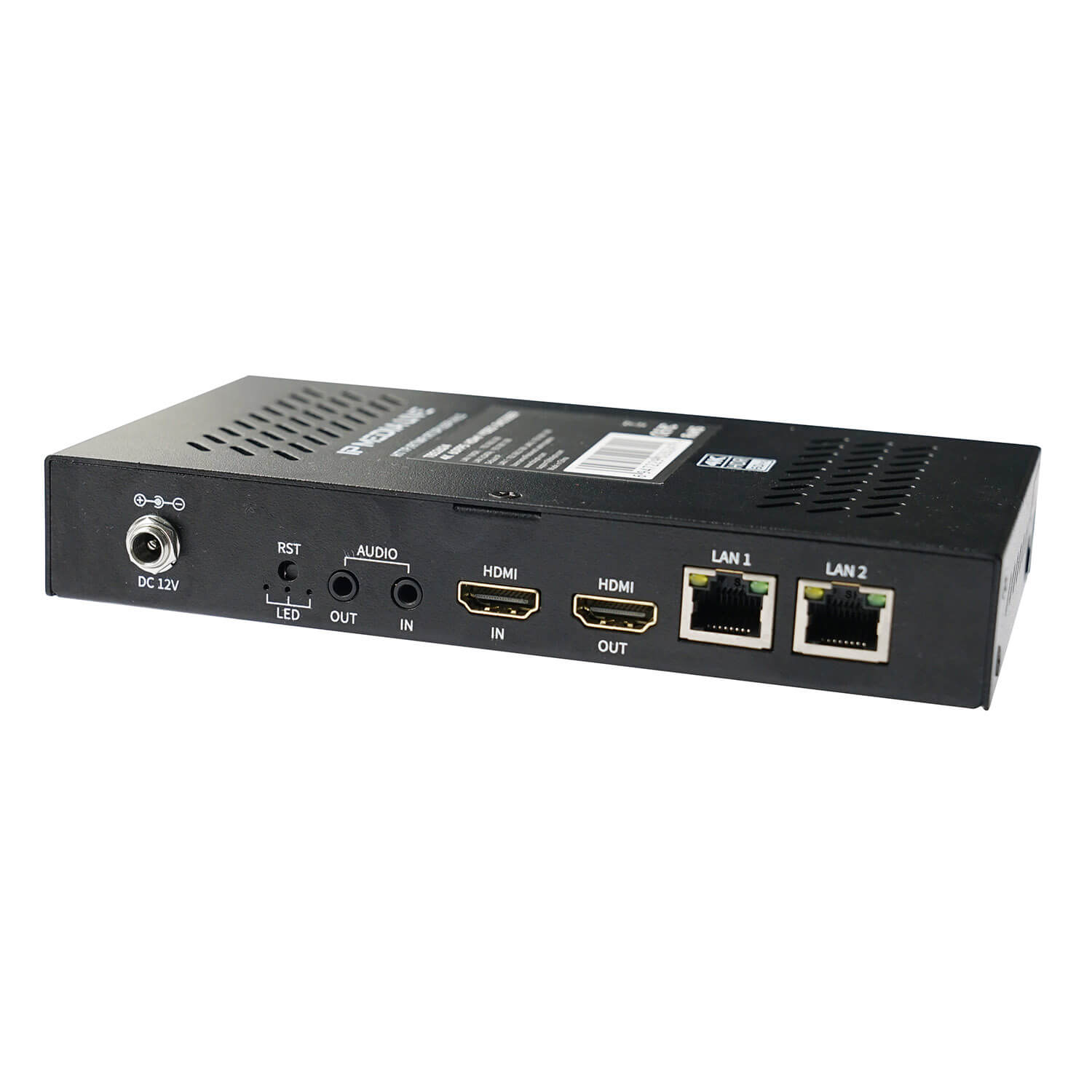

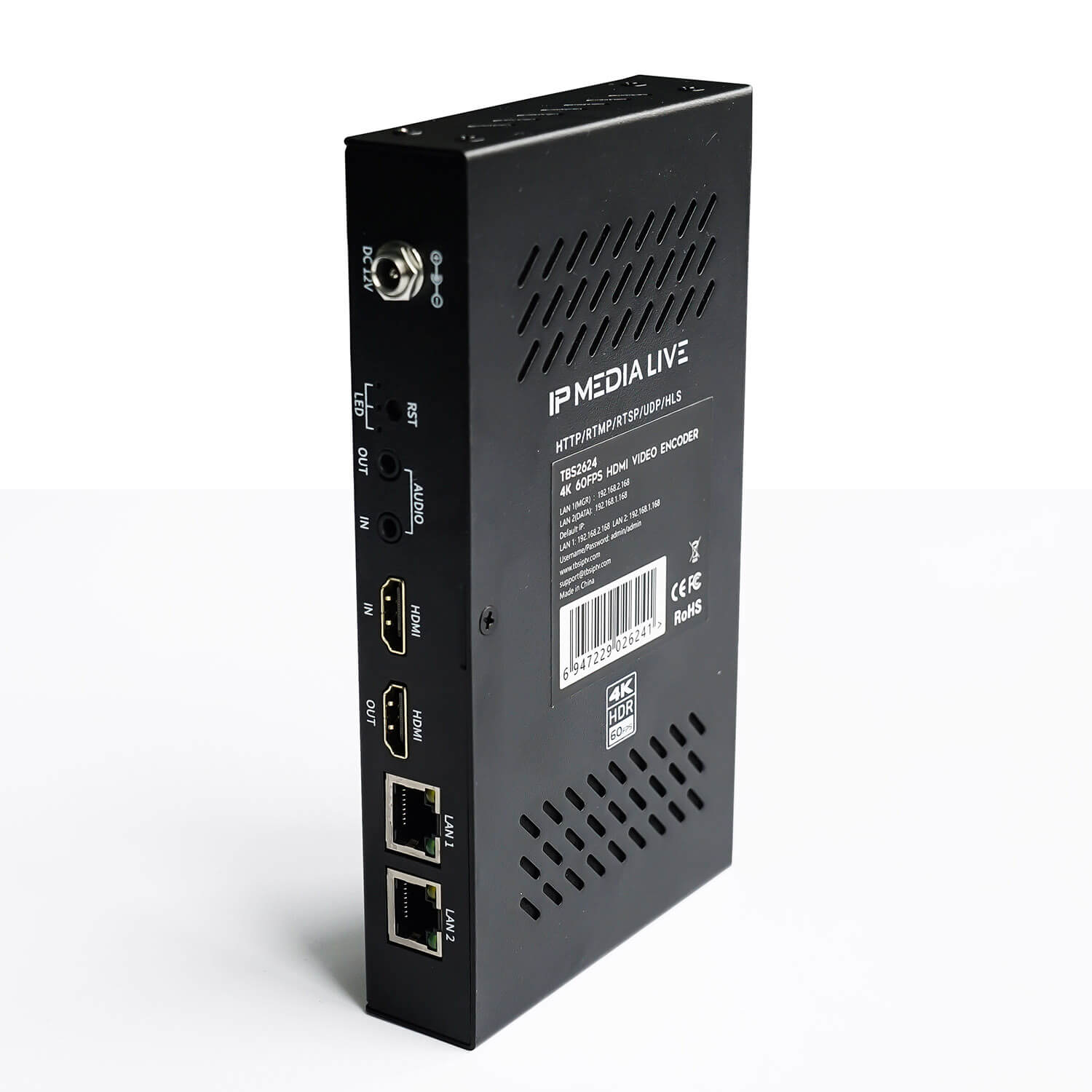

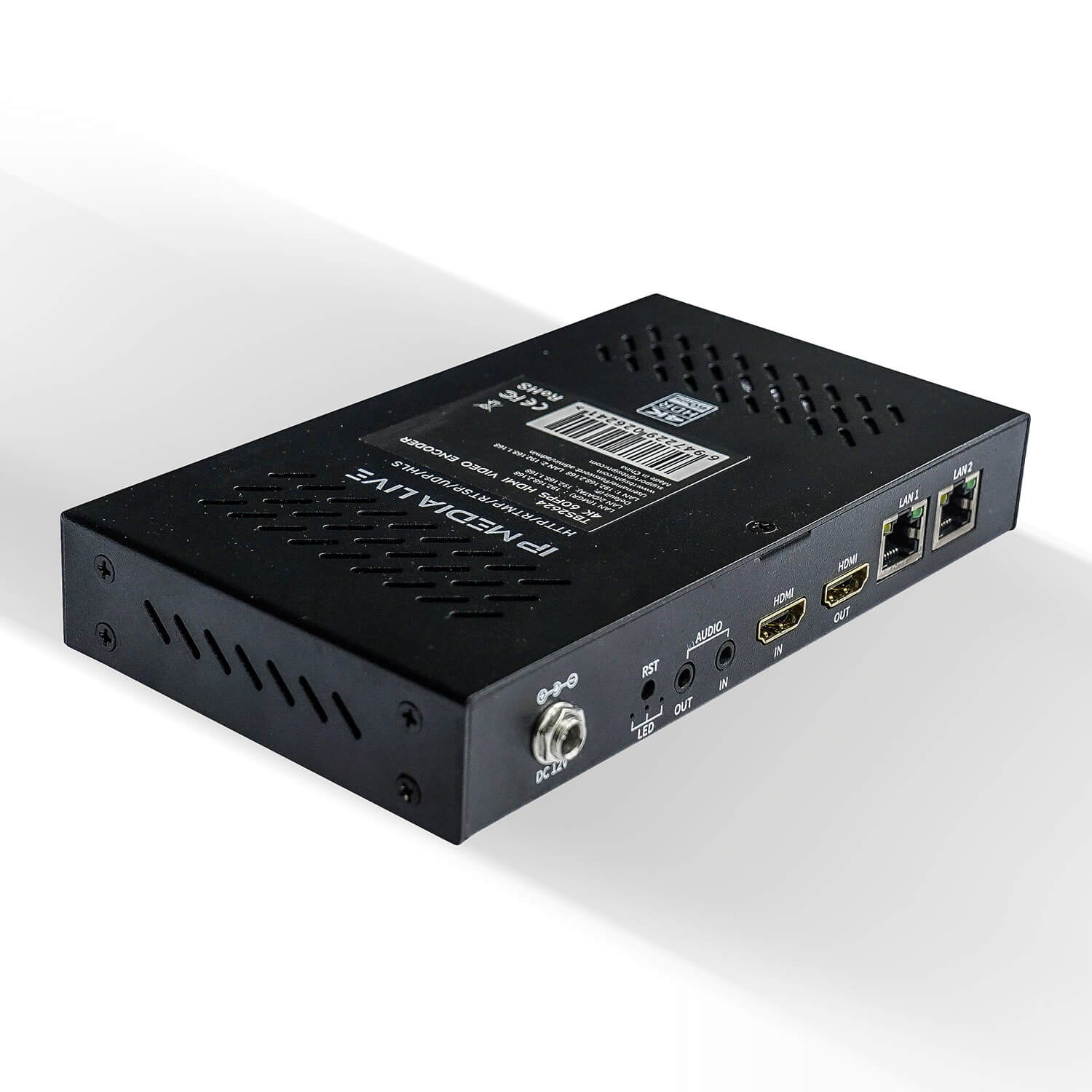

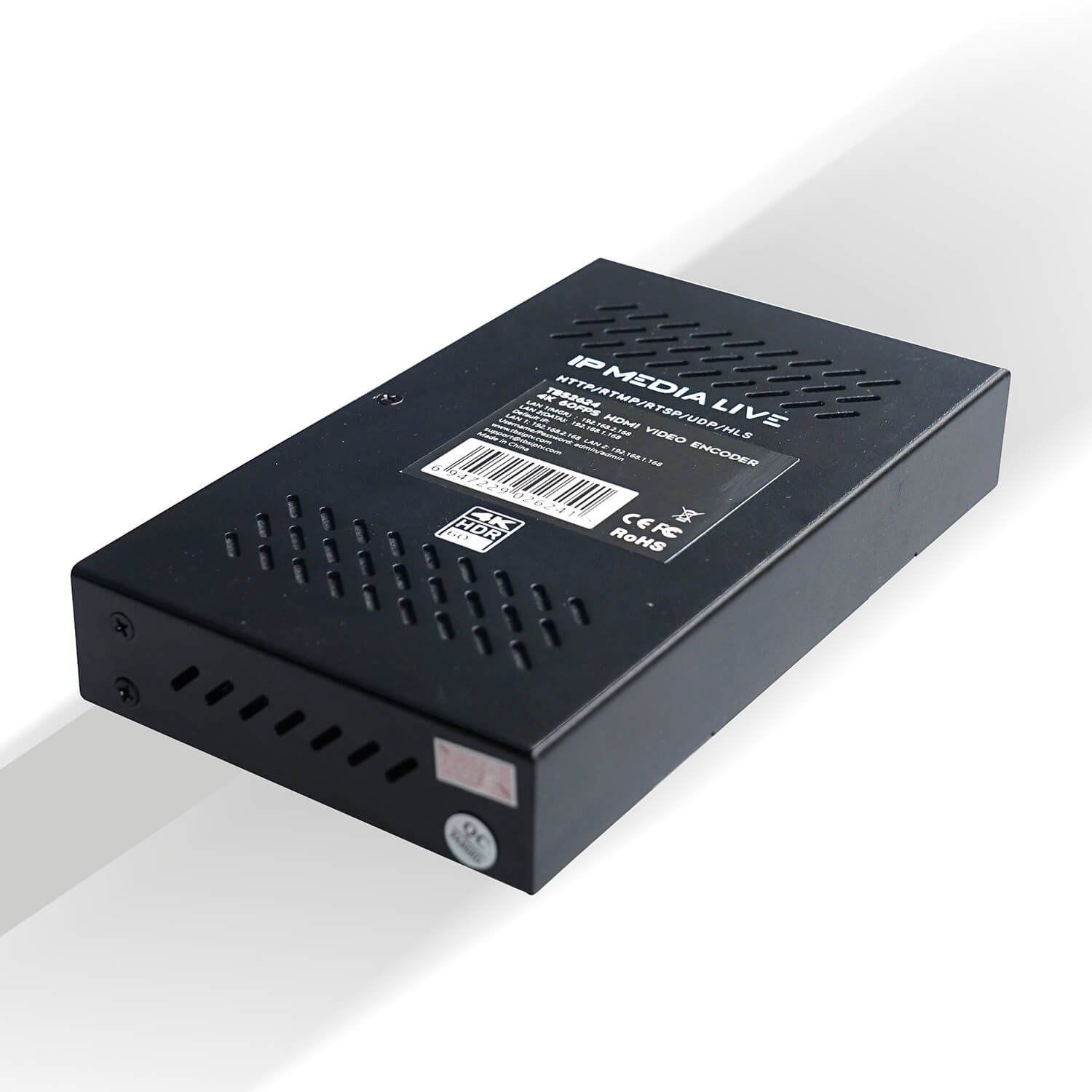

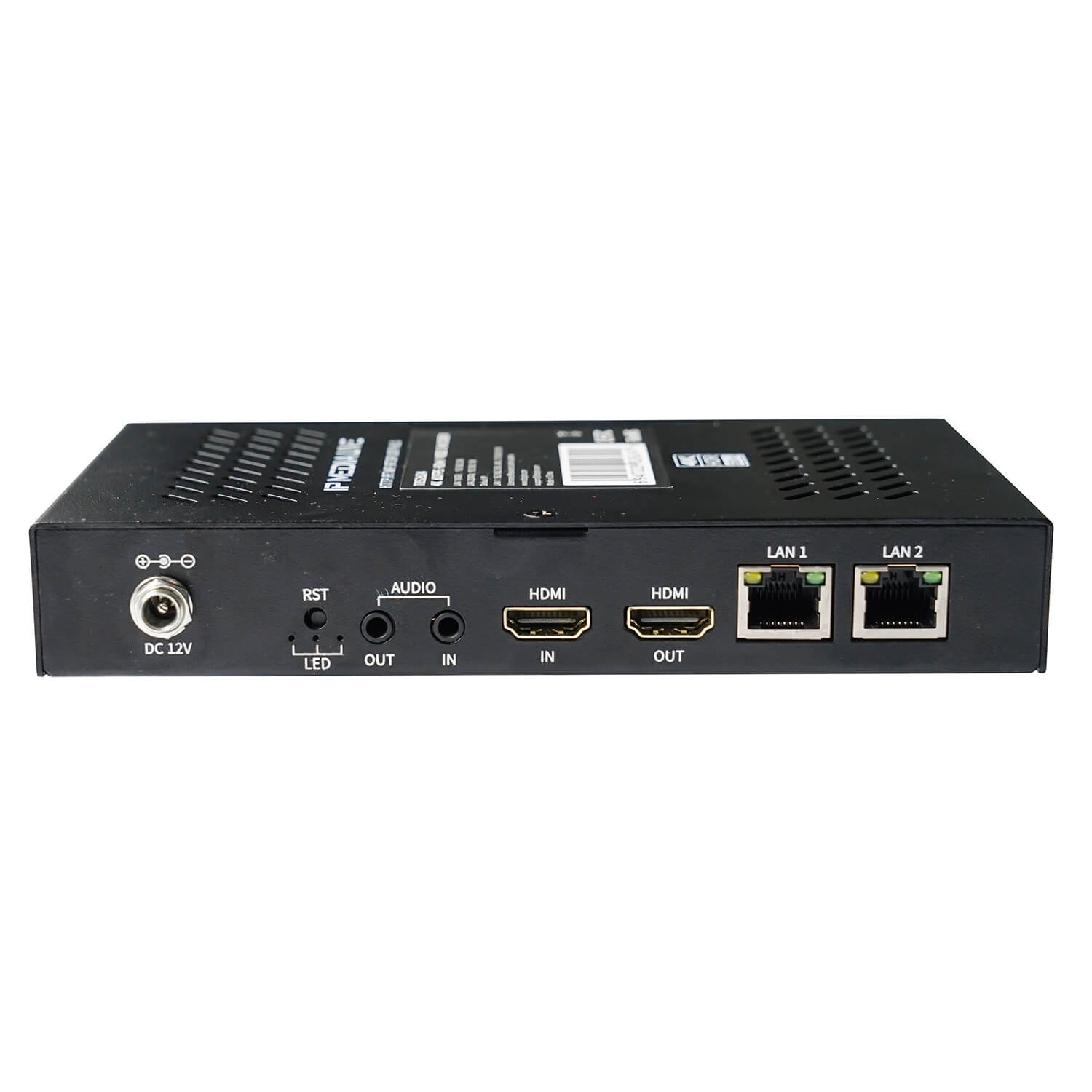

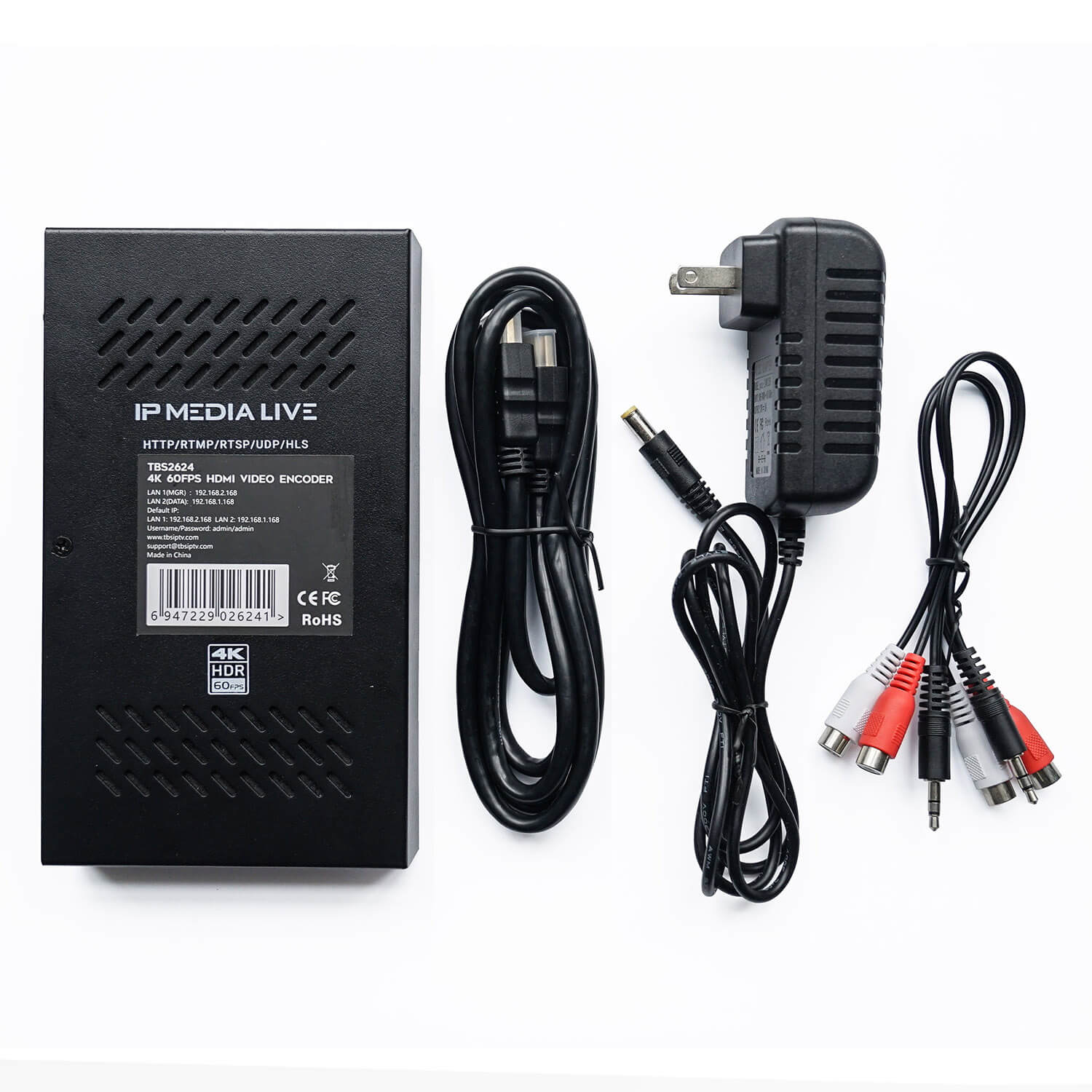

    TBS2624 4K 60FPS HDMI Video Encoder

    TBS2624 HDMI video encoder is a professional high-definition video encoder, which not only supports 4K 60fps encoding, but also supports dual streams output in H.265/H.264 format, main stream supports 4096*2160P 60fps, sub-stream support 1920*1080P 60fps output simultaneously. It also supports output of HTTP/HLS/RTMP(RTMPS)/RTSP/UDP/SRT protocols, which is ideal for customers who need to use different protocols output.

    The product can be applied to Education, Health care, IPTV, Conference, Distance education, News interview, Banking, transportation, and other Industries.


    • Digital TV Broadcasting System
    • IPTV & OTT system
    • Digital Signage Project
    • Remote Video Conference
    • Live Streaming
    • Head-end system of Digital TV branch network
    • Monitoring for NVR/DVR

    Key Features

    • 4096*2160/ 3840x2160/ 1680*1056/ 1920*1080/ 1280*720/ 1024*576/ 720*576/ 640*360 resolution
    • Support mainstream 4096 * 2160P 60fps, sub-stream 1920*1080P 60fps output simultaneously
    • Support multiple devices display on a computer at the same time
    • Supports dual ethernet ports 1000M/100M
    • Support HTTP, HLS (M3U8), RTSP, RTMP/RTMPS, RTP/UDP unicast & multicast, SRT: Listener, Caller
    • Support DHCP/, ONVIF protocol, support HD Blue-ray
    • Support Main TS stream and the sub-TS stream use in different network protocols for transmission (multi-rate multi-protocol support)
    • Rate Control CBR / VBR, Bitrate 16Kbps ~ 50Mbps
    • Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
    • Support streaming add watermark (OSD), XY axis, the font can be set;
    • Image settings: contrast ratio, brightness, tones, saturation, noise detection,
