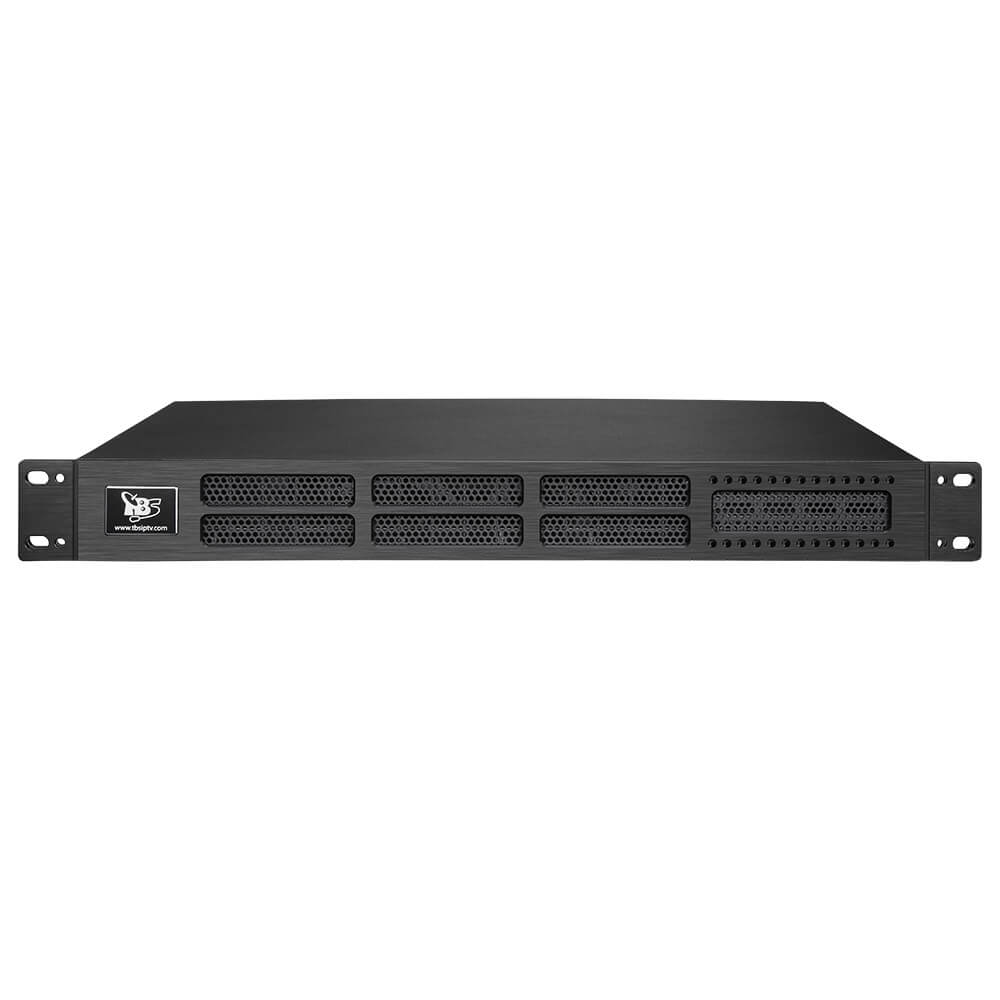

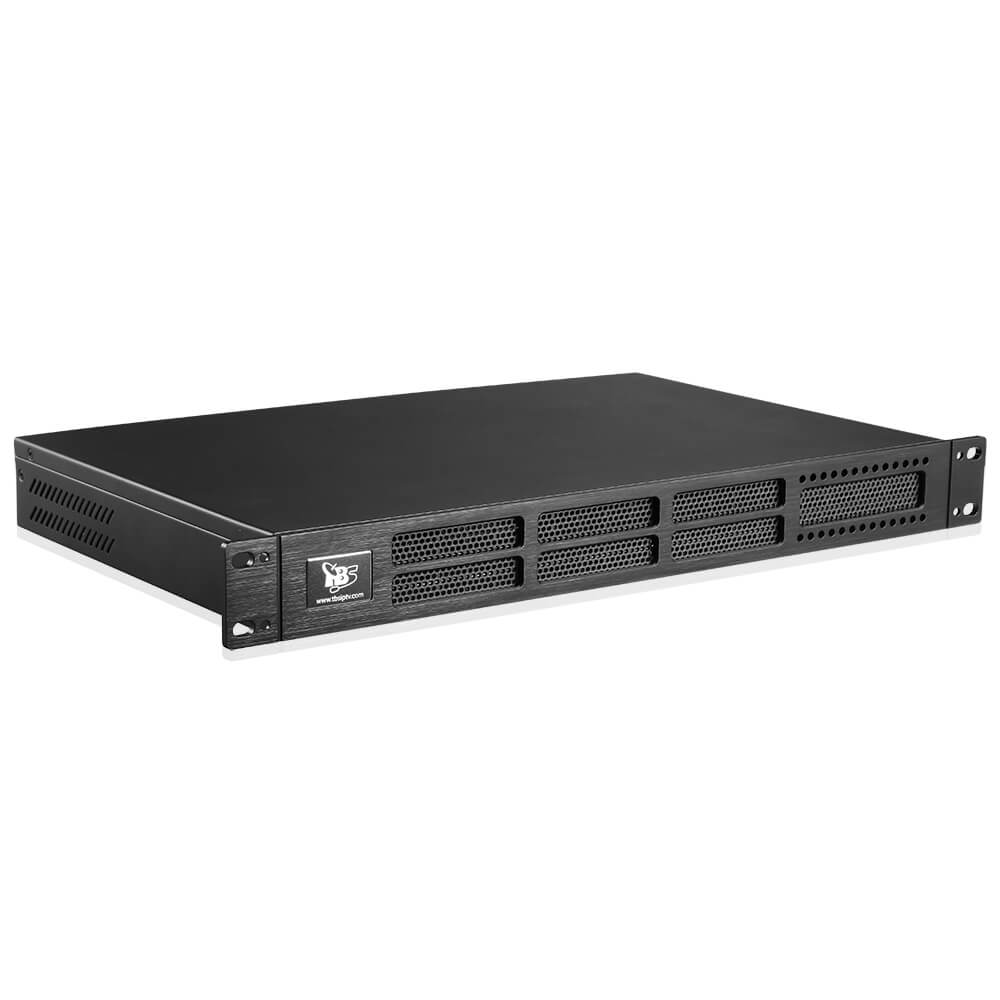

    TBS2650 8 channels 4K / 20 channels 1090p HD HDMI Video Encoder

    TBS2650 is a professional 4K/H.265 HDMI encoder, which is our newest HD audio & video encoding device with powerful functionality. It supports real 4K, up to max 3840 x 2160P@30fps.

    TBS2650 is a professional 4K/H.265 HDMI encoder, which is our newest HD audio & video encoding device with powerful functionality. It supports real 4K, up to max 3840 x 2160P@30fps.

    TBS2650 HDMI Video encoder not only supports 8 channels 4K or 20 channels H.265 encoding, but also supports multiprotocol output, each channel supports HTTP/HLS/RTMP/RTSP/UDP protocols simultaneously for outputting. Which is ideal for the customers who need to output with different protocols.

    TBS2650 is coupled with Web UI managing system and telnet remote access, and with video mix and split screen display function, which provide users flexible choices to control the encoder at anytime and anywhere.

    The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

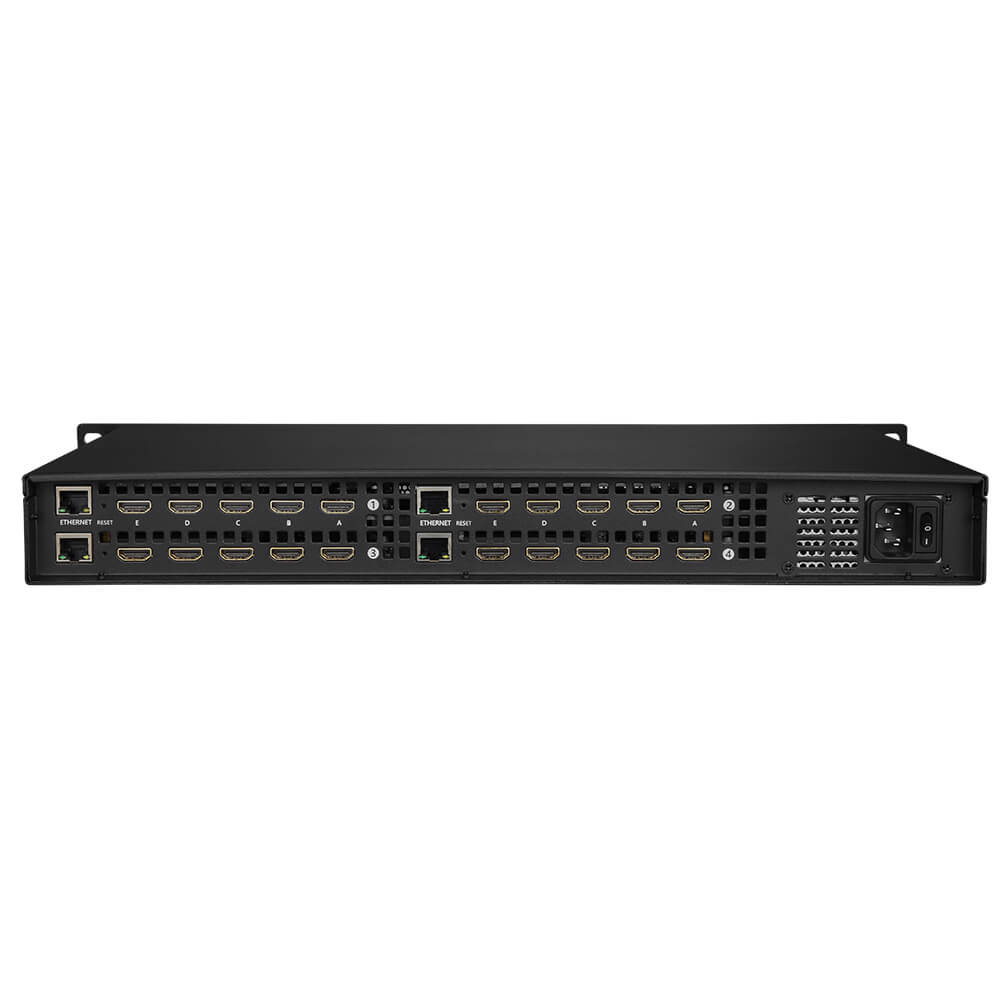

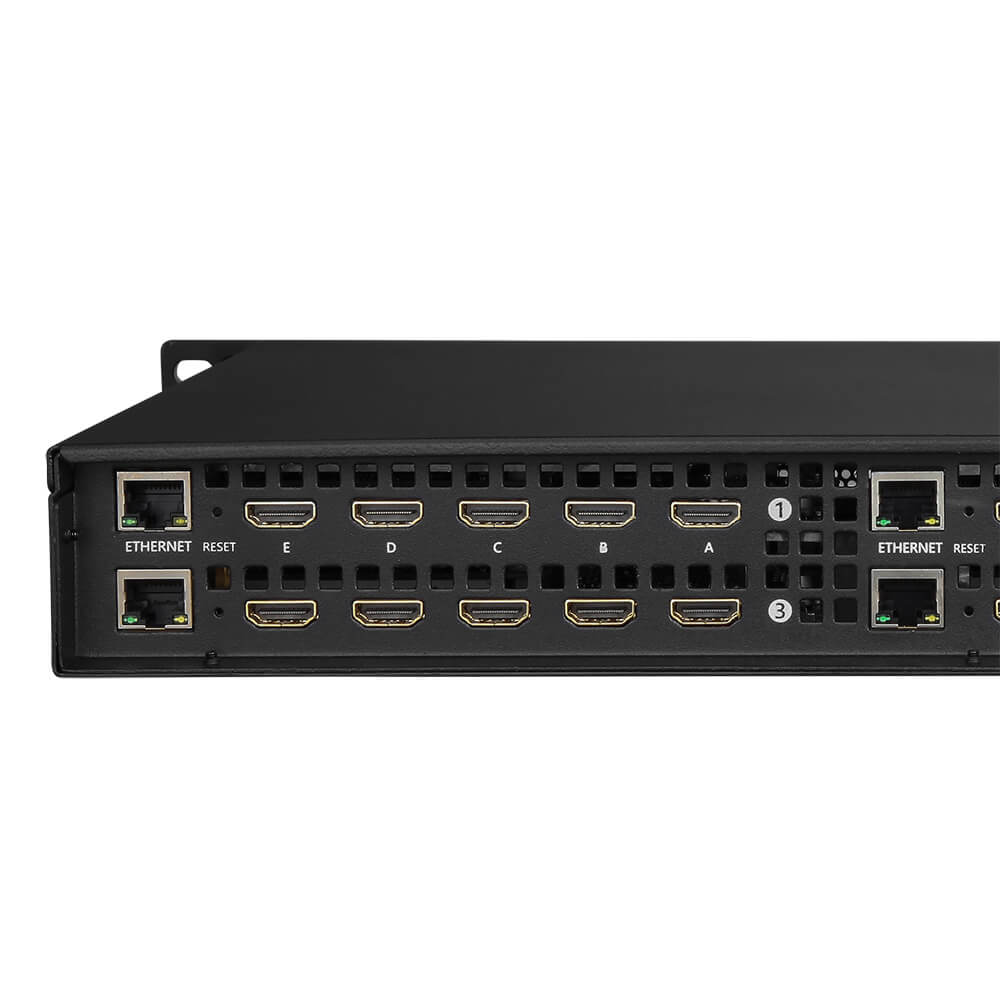

    • 20 x HDMI 1.4 inputs
    • Support Network streams in for video mix or protocol converting
    • H.265/H.264 Encode
    • Multiple protocol outputs: HTTP/HLS/RTMP(RTMPS)/RTSP/UDP (Multicast, Unicast)
    • Support video mix and split screen function ( 1, 3, 4, 9 screens for your choices )
    • Support OSD logo, text, mosaic
    • Single LAN port output and management

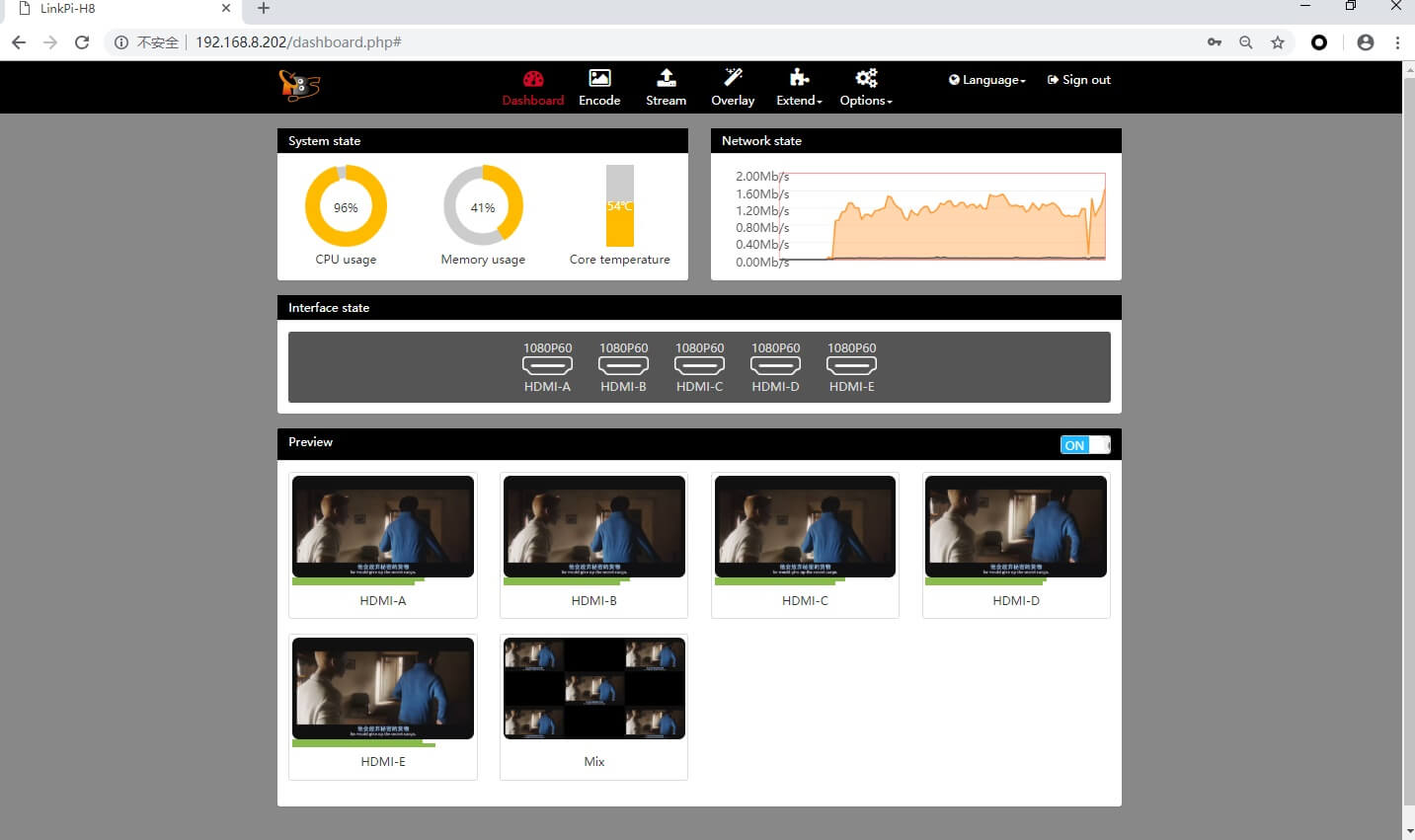

    • WebUI control
    • LCD display for IP, encode status and bitrate info

    Application:

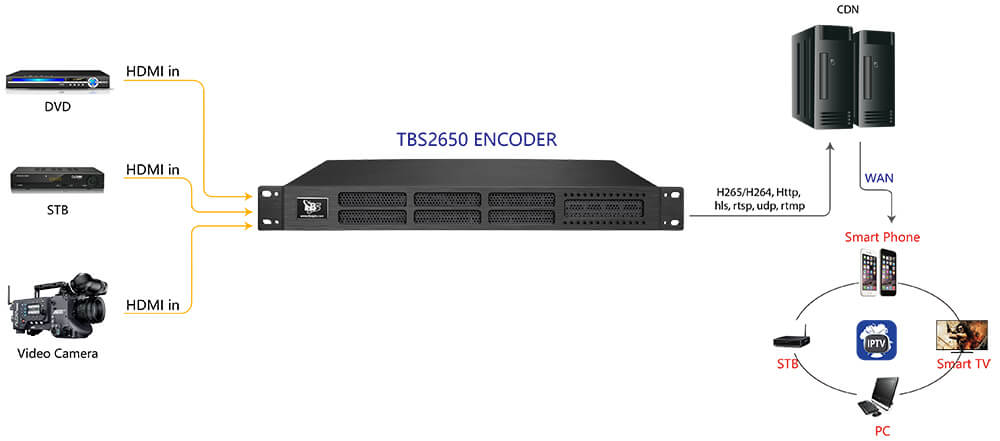

    IPTV - Topology

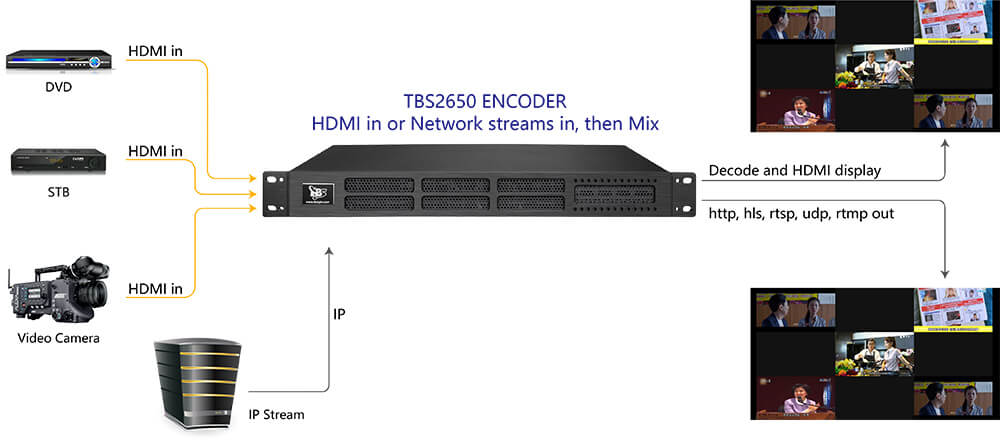

    Video Mix and monitoring - Topology

    Advantages:

    Supports 20 channels H.265/h.264 encode or 8 channels 4K encode

    • 3840 x 2160P@30fps. Max Resolution (4K/UHD)
    • Real-time encoder supporting resolutions up to 4K with HEVC and H.264 encoding.
    • Efficient encoding leads to bandwidth savings, even at high resolutions.
    • Ideal for future-proofing workflows that need to move to 4K UHD and for those that require the highest video quality.

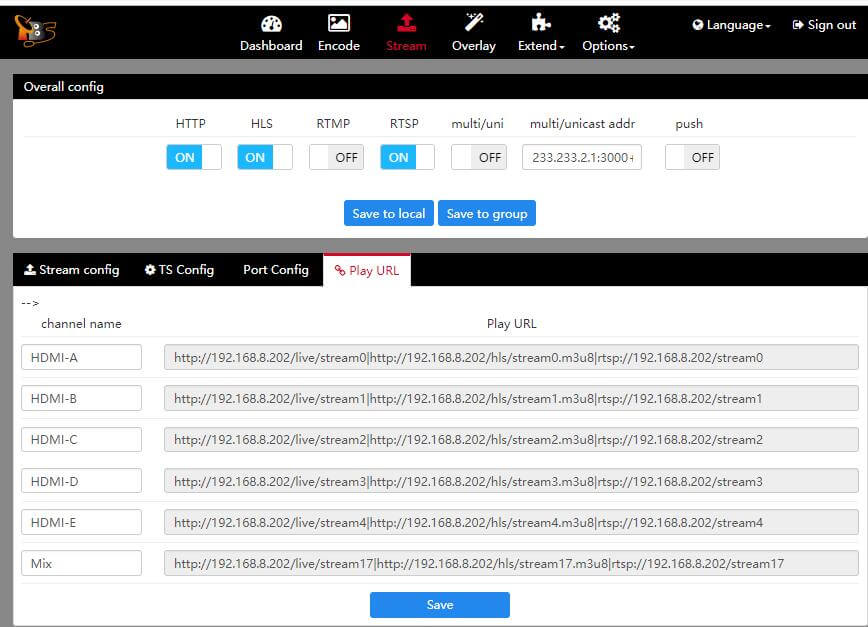

    Multiprotocol output

    • Compliant with HTTP/HLS/RTMP/RTSP/ UDP protocols
    • Each channels have multiple protocols for outputting

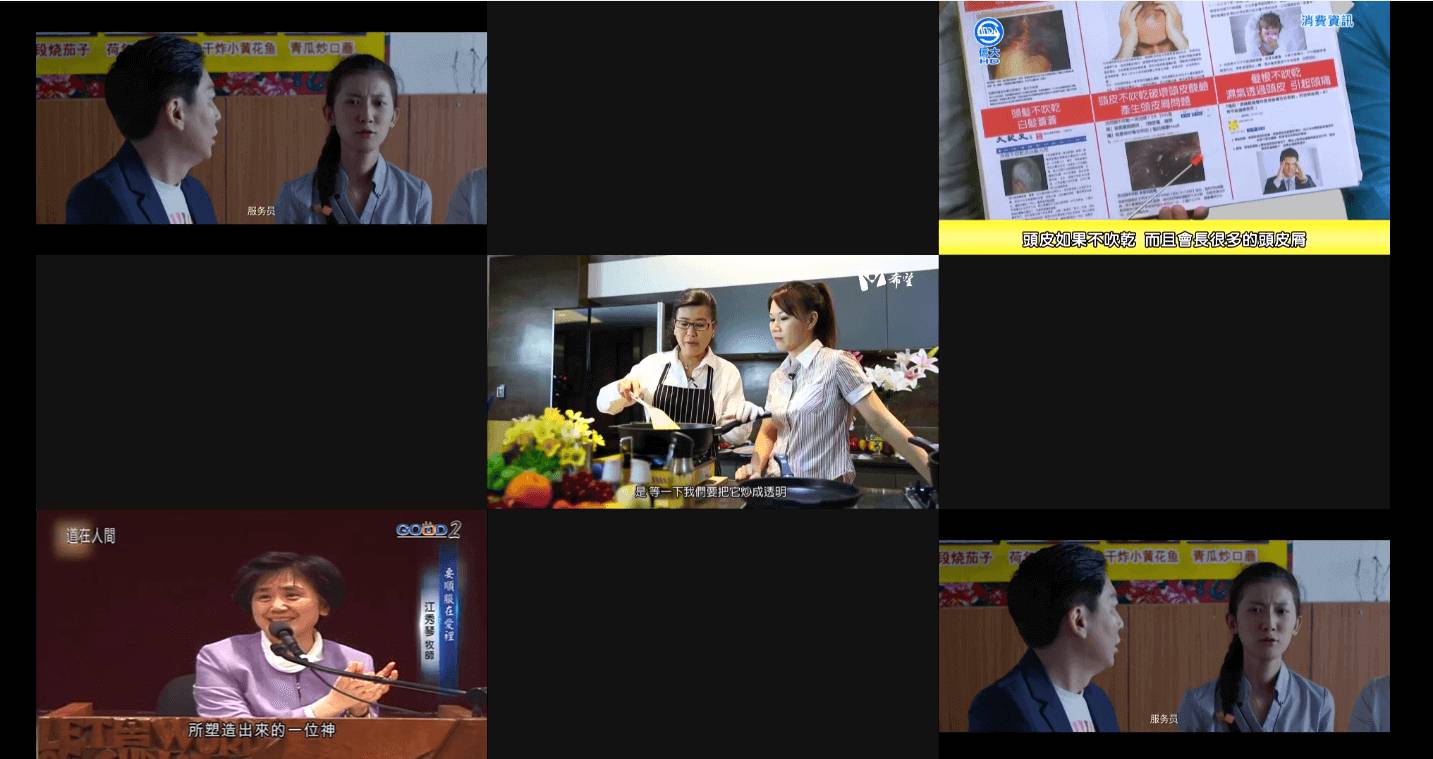

    Video mix function, multiplex and split screen display

    Video mix and split screen display function, which provide users flexible choices to control the encoder at anytime and anywhere.

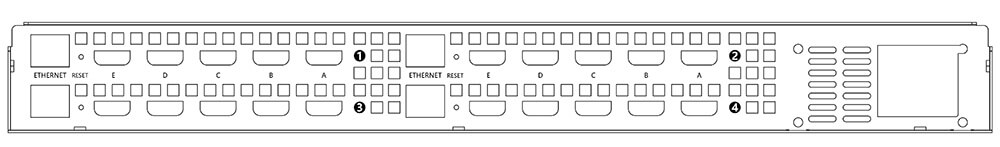

    Multiple HDMI input , four LAN ports for output and management , save source , space for you. Reliable WebUI let you easy to setup and manage
