    TBS2816 Comix Pro 8 / 16 Channels 4K H.265 / H.264 HDMI Video Encoder

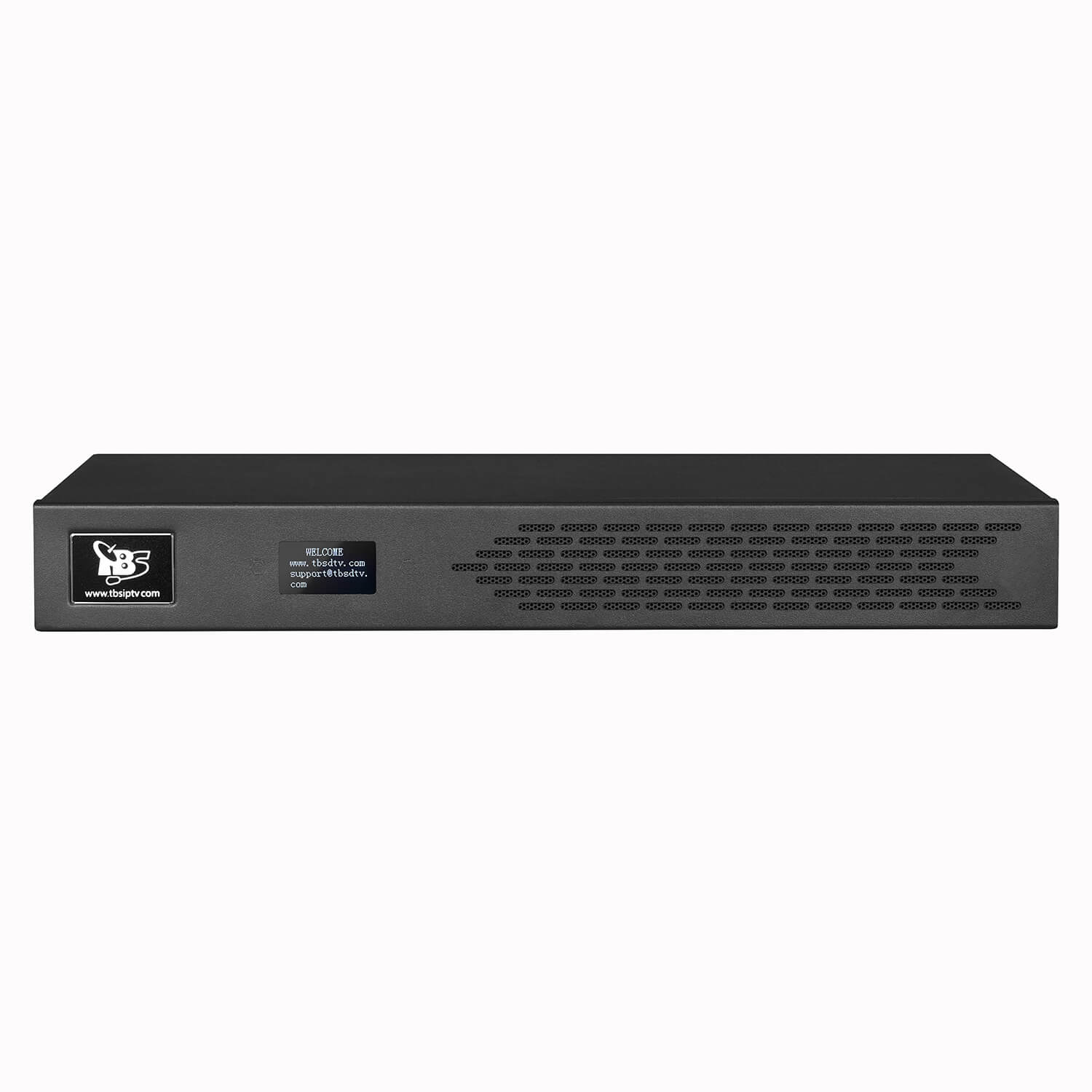

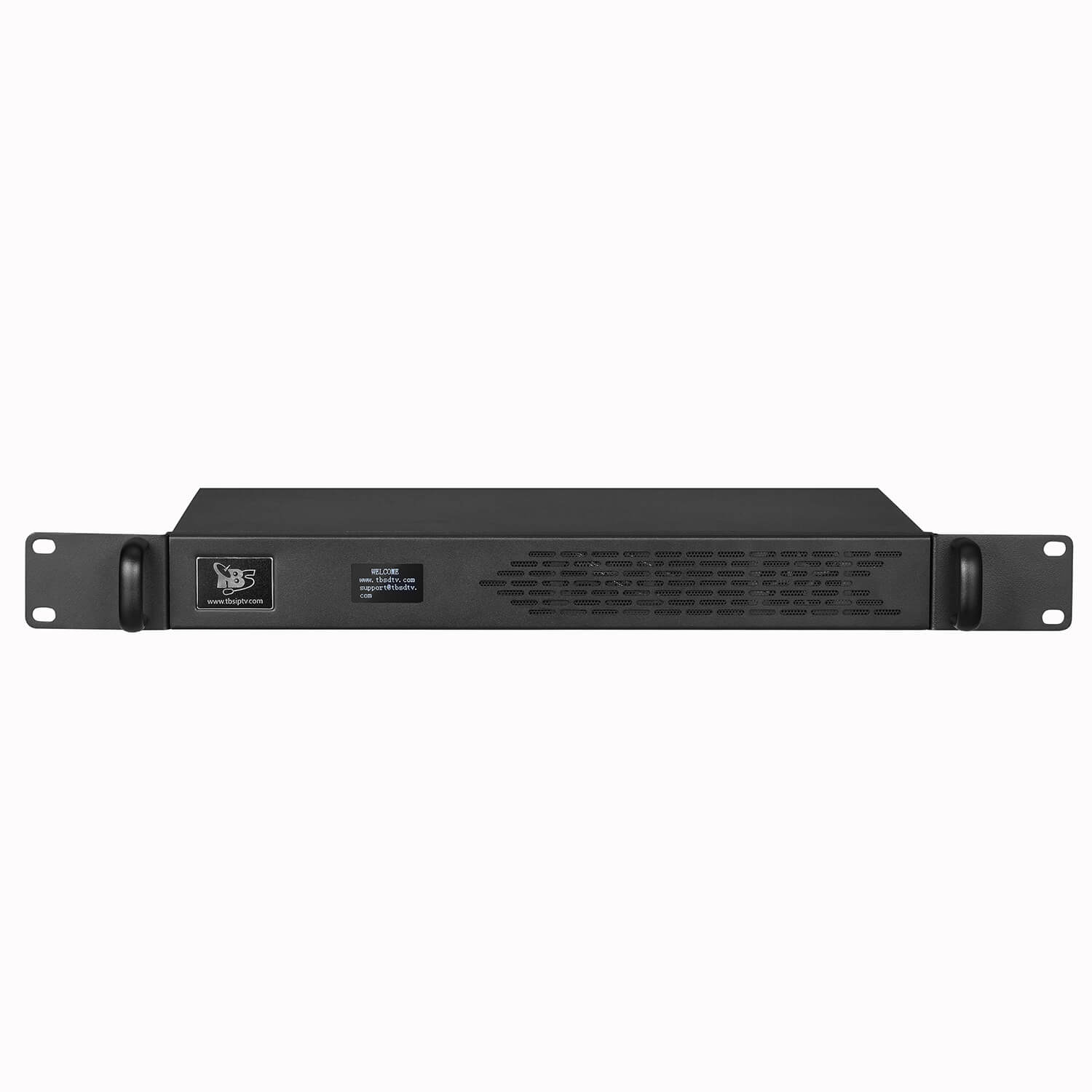

    TBS2816 Comix Pro is a professional 1U 16 channels 4K HDMI Video Encoder that enables high-quality content streaming and display. It is capable of handling up to 4K@30Hz HDMI input and can stream content to various popular online platforms like YouTube Live, Facebook Live, Twitch, or custom specified RTMP/RTMPS servers. What's more, it supports output in various protocols including HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS, up to 6 protocols at the same time.

    Comix Pro supports to capture and record HD content in H.265/H.264 format from PlayStation and digital video cameras. Moreover, it provides a flexible web UI for seamless channel switching and configuration adjustments, which greatly enhancing the television viewing experience.

    Features:

    • Supports H.265/HEVC and H.264/AVC compression
    • Supports up to 16-CH 4K@30fps HDMI input and 16-CH 4k@30fps encode
    • Multiple protocol outputs simultaneously
    • Supports HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS output
    • Single LAN port output and efficient management
    • Supports HDCP 1.4
    • Flexible and friendly webpage control

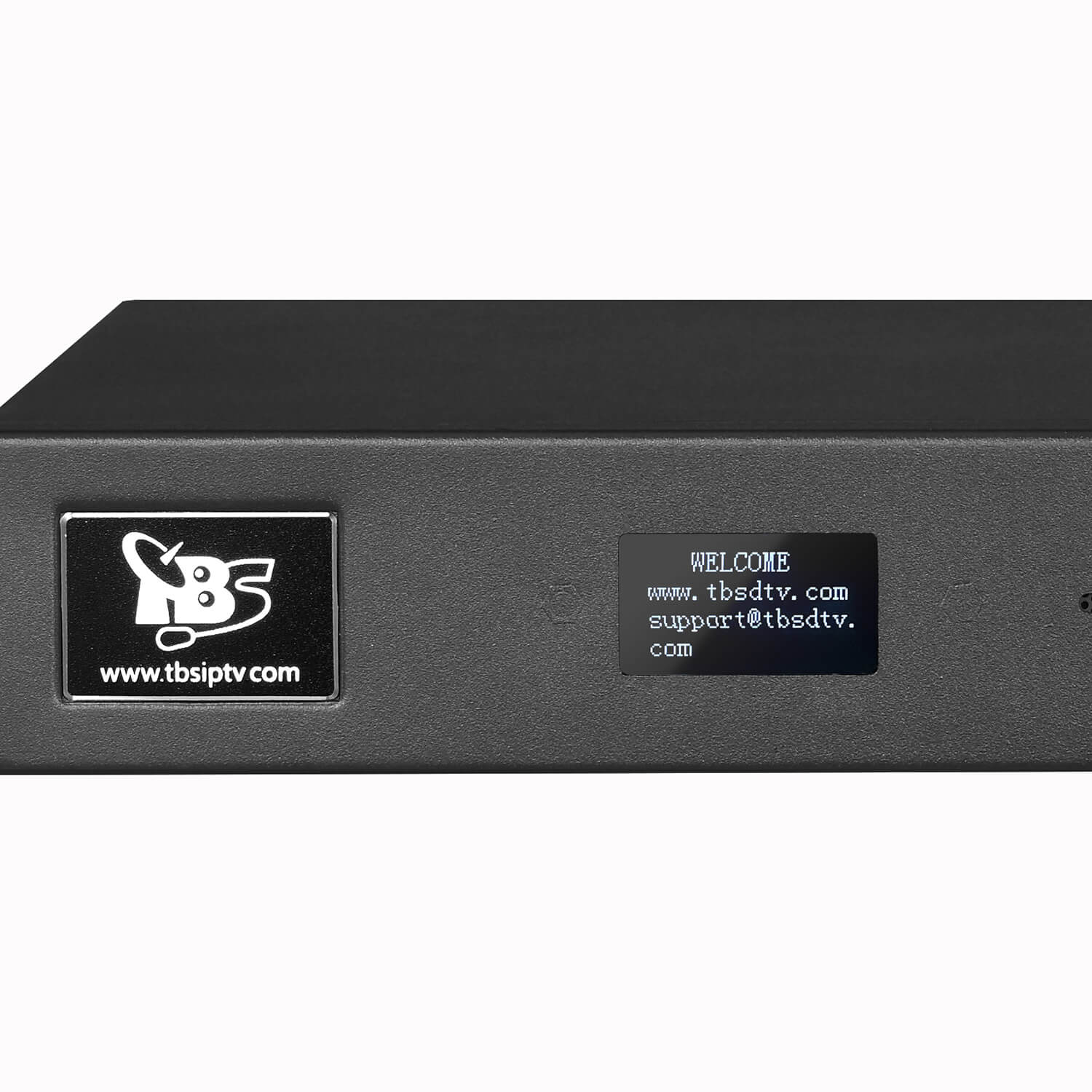

    • OLED display for IP information, encode status etc.

    Applications

    • Digital TV broadcasting system
    • IPTV & OTT system
    • Datacasting and monitoring
    • Live TV encoding and streaming
    • Digital signage project
    • Remote video conference
    IPTV
    Live streaming to social media

    Why choose Comix Pro?

    Supports 16 channels real 4K@30Hz encode
    • 3840x2160p@30fps(H.265), real 4K encode
    • Capture & Deliver Live Video in 4K Ultra HD over Public Internet
    • Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
    • Efficient encoding leads to bandwidth savings, even at high resolutions.
    Multiple protocol outputs simultaneously
    • Compliant with HTTP/HLS(M3U8)/RTSP/SRT, RTP/UDP /Unicast &Multicast, RTMP/RTMPS
    • Each channel has multiple protocols for outputting
    Single LAN port output and efficient management

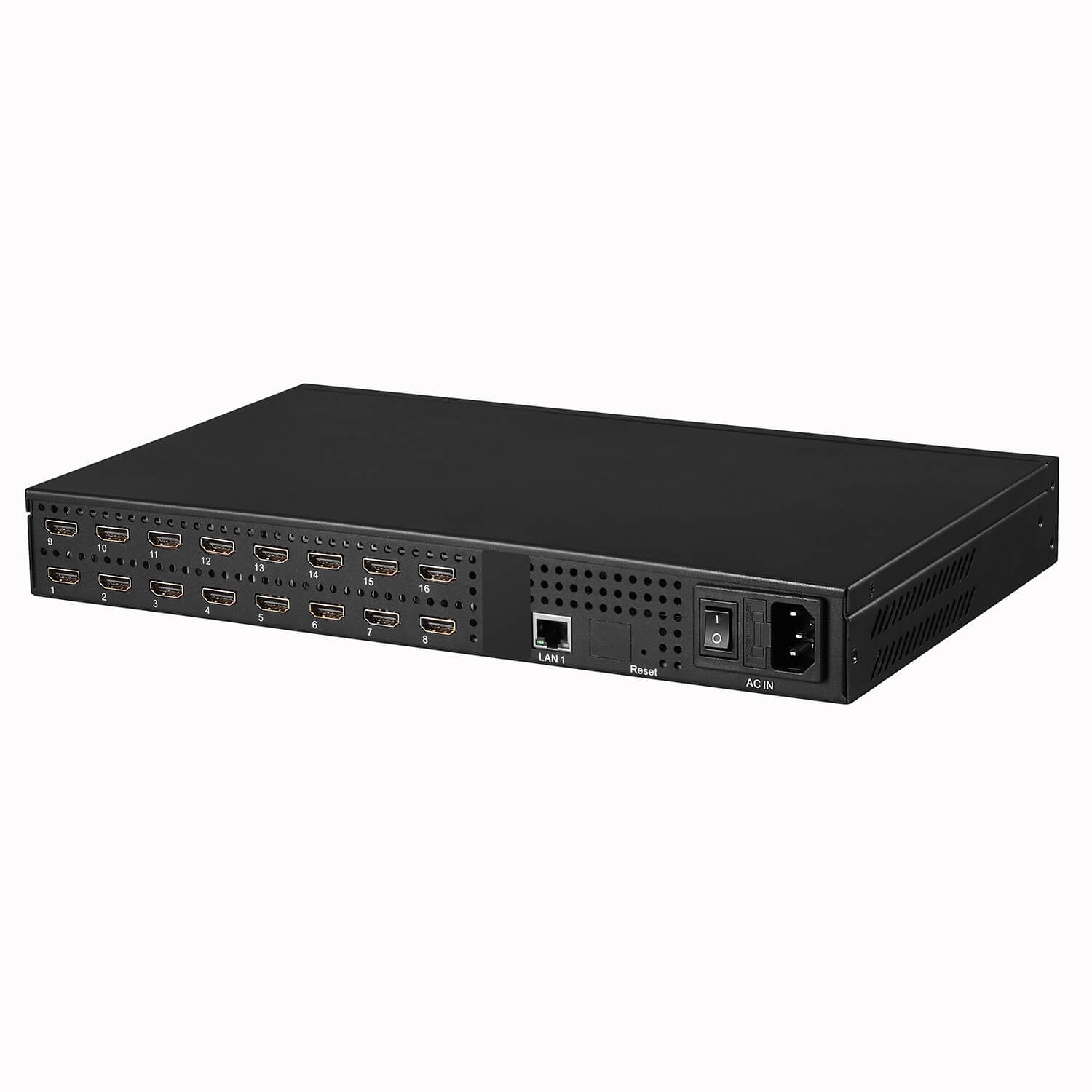

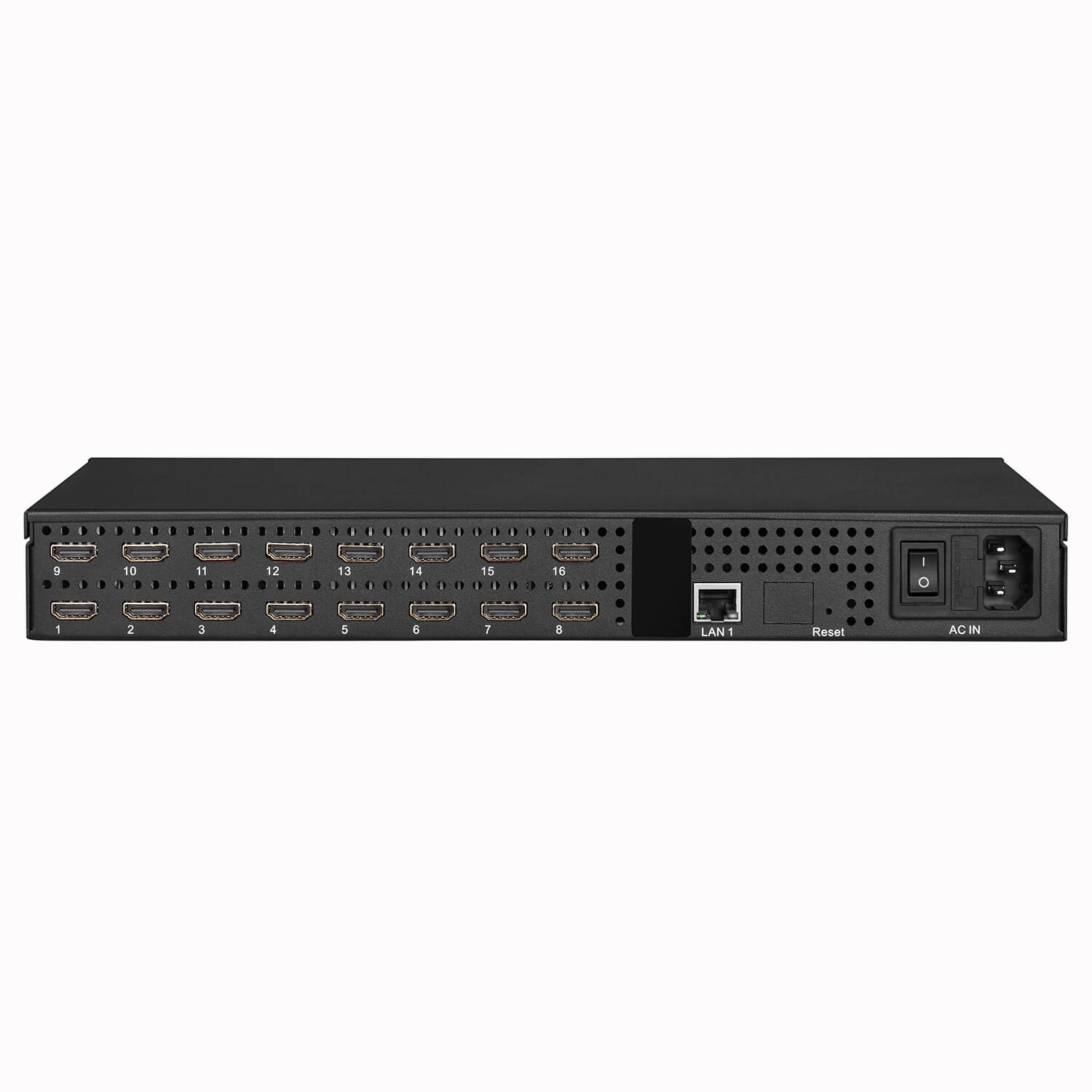

    • Comix Pro supports multiple HDMI inputs with only one LAN port for output and management, which greatly save source and space for you.
    • Reliable Web UI let you easy to setup and manage Comix Pro encoder at anytime.

    Specification:

    Model Comix Pro
    HDCP HDCP 1.4 supported
    Input

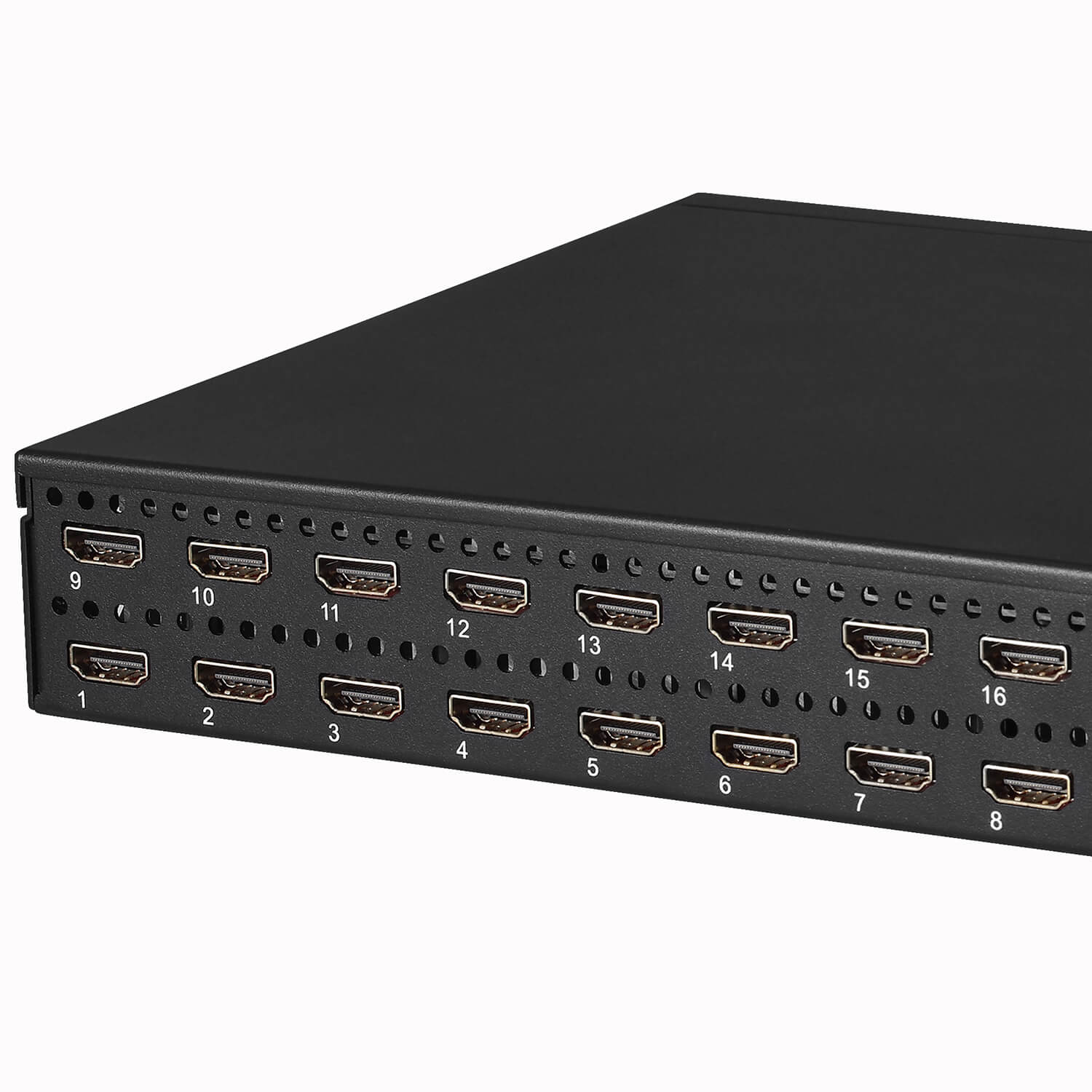

    Video Input 16x HDMI 1.4a
    Audio Input HDMI embedded audio
    Video
    Video Input 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz,
    1280x720p_60/50hz, 720x576p/i, 720x480p/i, and etc.
    Encode Size 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto
    Video Codec H.264/H.265
    Profile H.264: Baseline, Main, High
    H.265: Main
    Level H.264: Level 4.2; H.265: Level 4.1
    Bitrate Control CBR/VBR/EVBR
    Frame rate 5 ~ 60fps
    Key Interval (gop) 5 ~ 180fps
    GOP Structure IPPP
    Bitrate 300 ~ 20000Kbps
    Color depth 8 bit
    Chroma subsampling 4:2:0
    De-interlace Supported: force to do de-interlace when i (interlace) input
    Output Protocol HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS (Remark: When output HLS(M3U8), RTSP or RTMP/RTMPS streams, only 12 channels are supported)
    Audio
    Audio Codec AAC-LC, AAC-HE
    Audio Bitrate 24000/ 32000/ 44100/ 48000/ 64000/ 96000/ 128000/ 160000/ 192000/ 256000bps
    Audio Resample 48kHz, 44.1kHz, 32kHz
    System
    Ethernet / RJ45 1000 Base-T Ethernet interface
    OS Linux
    Control web GUI
    General Spec.
    Working Environment Operating temperature: 0 to 40 °C
    Storage temperature: –20 to 70 °C
    Relative Humidity: 5% to 90% (non-condensing)
    Power Consumption Less than 82 Watt
    Dimension 410mm x 270mm x 125mm
    Net Weight 2.83 KG

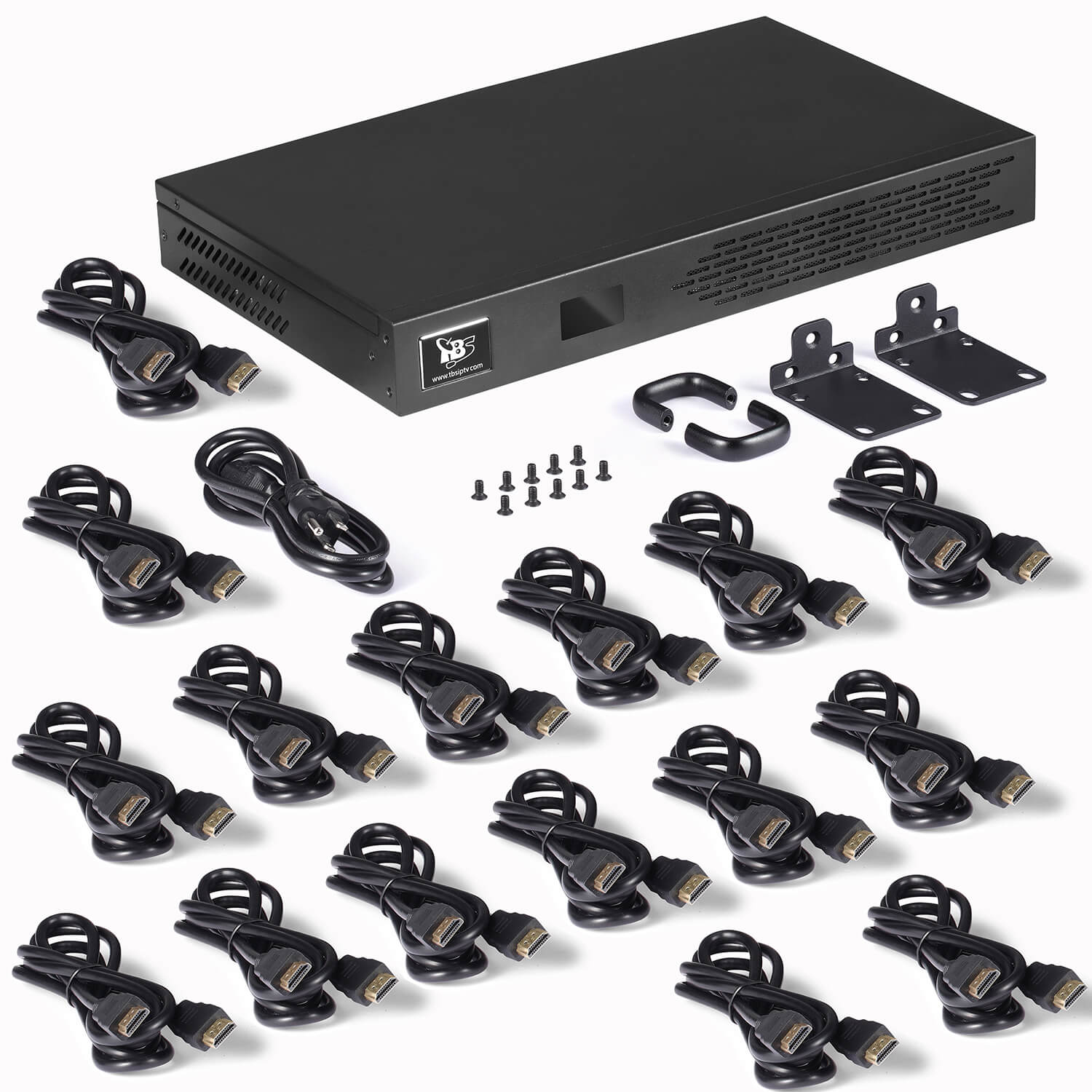

    Package Contents 1x Comix Pro 4K@30fps HDMI Video Encoder
    1x AC Power Cable
    8x / 16x HDMI Cable
