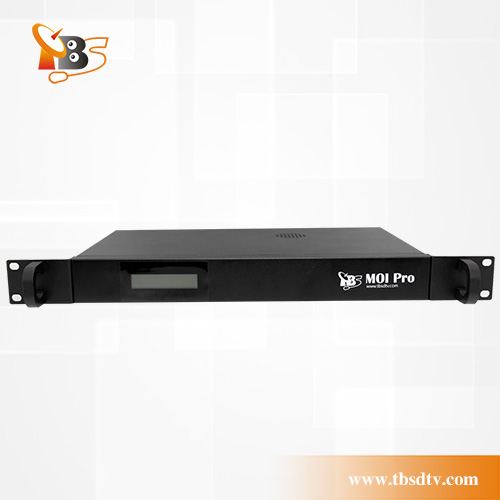

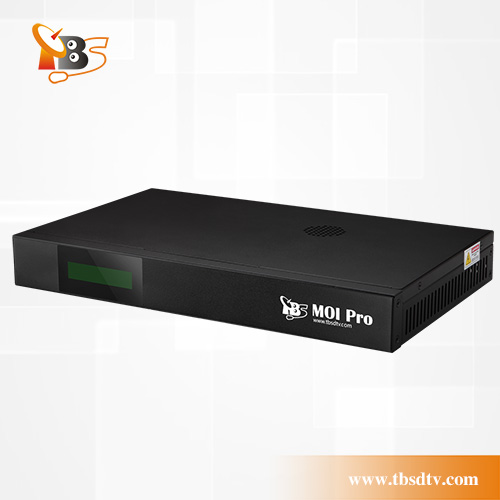

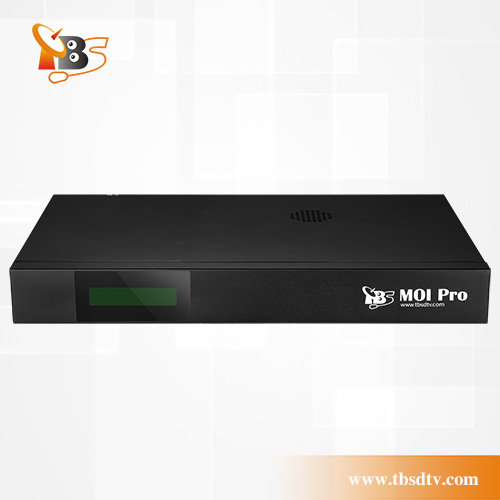

MOI Pro is a Linux based IP streamer powered by Freescale, with DVB tuners integrated, it can receive
Live digital TV or radio contents- both FTA (Free to Air) channels and Pay TV (encrypted) channels,
and further stream them to the following client devices: PC, Tablet, Smartphone , iDevices (iPhone,
iPad, iPod) or Sony Playstation 3.

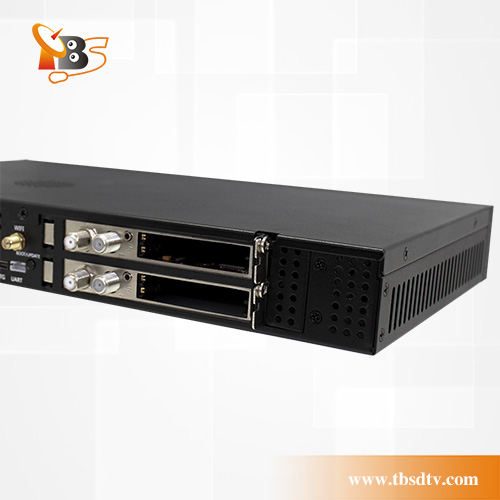

As a professional streaming server, MOI Pro supports connection with up to 2 DVB PCI Express tuner cards
through the tuner bridge board, which allows it to receive a lot more live TV/ radio channels, for example,
connected with 2 quad tuner cards, it can receive a large number of live TV channels from 8 transponders,
it's ideal for industrial use, especially for IPTV projects based on high performance backend. With the
preinstalled DVB software, such as MuMudvb, Tvheadend, DVBlast, szap, tzap ,czap etc., you are ready
to build a professional streaming server.
MOI Pro provides an open solution with flexibility and variety as well, DVB-S2 tuner, DVB-T2/T tuner, or
DVB-C tuner are available for you to choose to build your IPTV streaming server, with or without CI
function is entirely up to you.
For more details about compatible PCIe tuner cards, click here.
- System
-
SoC: Freescale MCIMX6Q5EYM10AC
CPU: Quad ARM Cortex-A9 at 1.0GHz
RAM: 2GB DDR3
GPU: Vivante GC2000, Quad core GPU, Quad IPU

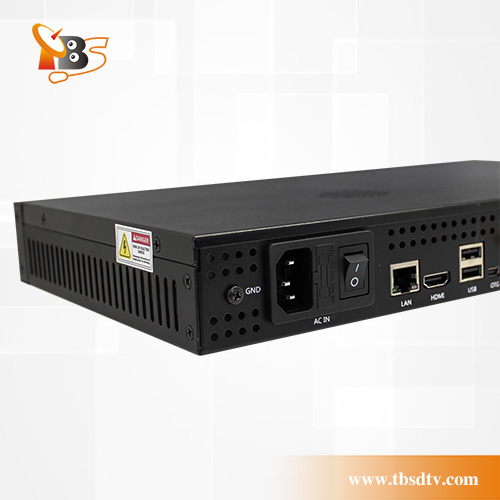

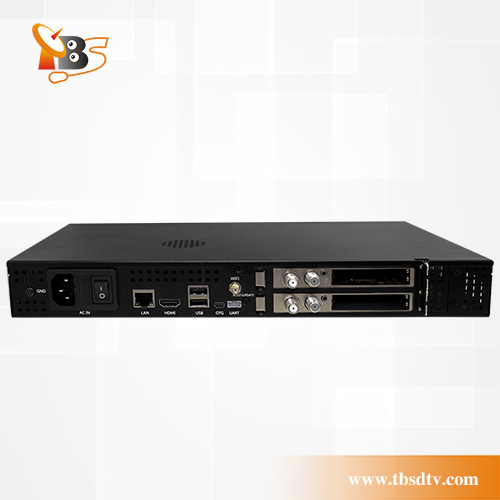

Flash: 16G EMMC - Interface
-
2x USB 2.0
1x SATA port
1x HDMI port
Ethernet: 100/1000M Gigabit Ethernet
Protocol: HTTP, UDP, RTP, TCP
OS: Linux
2x PCI-E 2.0 (internal) - General
-
Power supply: 12V 4A
Dimensions: 350*210*44.5mm - Preinstalled software
-
Tvheadend,VDR, Mumudvb,DVBlast,szap-s2,
dvbdate,dvbscan,dvbdstream,dvbsnoop,
scan-s2,szap-s2,tzap-t2,LIRC,
telnet,ssh,ftp, samba,oscam - Client end support
- PC: Windows, Linux, Mac
Tablet: Android, iOS
Smartphone: Android, iOS - DVB tuner support
-
DVB-S2/S: up to 8 tuners
DVB-T2/T: up to 8 tuners
DVB-C: up to 8 tuners
- Which DVB tuner card to use
-
-step 1. Choose DVB standard:
You need to know what DVB standard(s) can be used in your region, for example, if you are located in Germany, you can use DVB-S2 for satellite TV, if you live in the UK, you probably want to use DVB-T2/T for terrestrial TV (Freeview).
-step 2. Choose tuner cards:
After you decide for a DVB standard, for example DVB-S2, there are a few cards to choose from single, dual or quad tuner card, tuner card with or without CI slot. If you are going to build a streaming server system and need encrypted TV channels, it’s recommended to use the dual tuner dual CI card TBS6991SE. If you need only FTA (free to air) channels, you can use the TBS6991SE, TBS6982 or TBS6985. As MOI Pro supports connection with up to 2 DVB PCI Express tuner cards through the tuner bridge board, you could even choose two cards with different standard.
Products works with MOI Pro :
DVB-S2:
TBS6922, TBS6982, TBS6983, TBS6985, TBS6928, TBS6928SE , TBS6991, TBS6991SE, TBS6904, 2x TBS6991SE, 2x TBS6985, 2x TBS6983, 2x TBS6904
DVB-T2 :
TBS6221, TBS6281, TBS6284, TBS6285, TBS6205, TBS6290, 2x TBS6285, 2xTBS6290, 2xTBS6281, 2xTBS6205
DVB-C
TBS6618, TBS6680 , 2x TBS6618, 2x TBS6680
Hybrid:
TBS6991SE + TBS6285, TBS6991SE + TBS6290, TBS6991SE + TBS6680, TBS6985 + TBS6285, TBS6985 + TBS6680, TBS6985 + TBS6290, TBS6904 + TBS6205
More information or support needed? Click here
