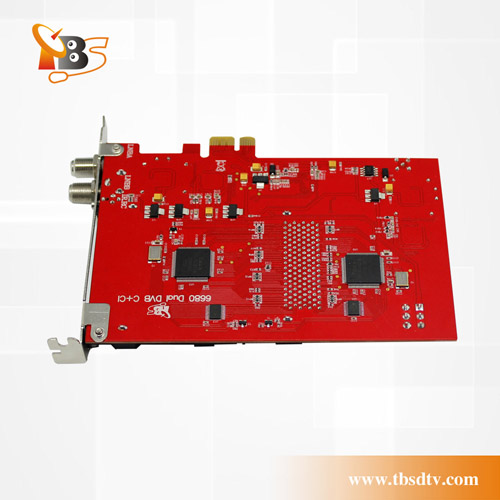

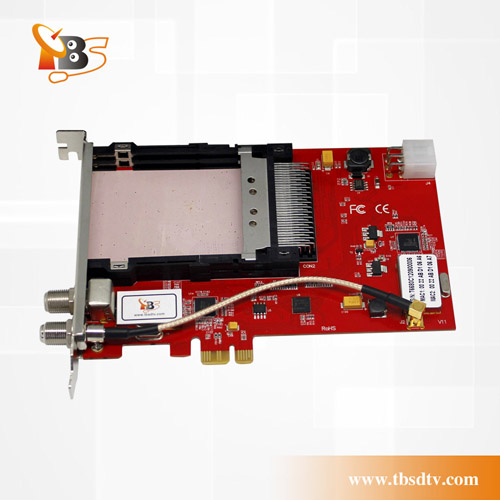

TBS6680 PCIe DVB-C Dual Tuner Dual CI Card- Digital Cable TV on PC
TBS6680 is a Dual tuner digital cable TV internal card with Dual common interface. It can be used for watching clear QAM or encrypted Pay TV (By inserting the correct CAM and subscription smartcard into the CI slot, encrypted pay TV will be available). Windows BDA driver is provided and Linux driver is also available. TBS6680 is compatible with MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC,MythTV, VDR and many other popular softwares.
Description
Specification
User Guide
Download
TBS6680 DVB-C Dual Tuner Dual CI PCIe Card, built with two Common Interfaces which allows insertion of CAM and smartcard for pay TV, is a good choice for watching/recording digital cable HD TV on PC.
Main Features:
Watch Cable TV & listen to Radio on PC
2 x DVB-C SD or HD TV Receiving simultaneously
Real Time and Scheduled Program Recording(PVR)
Time Shifting to Pause Live TV 2 x Common Interface Support
Specifications:
Fully compliant with DVB-C and ITU J83 A/C Specifications
Receiving Frequency: 47~862 MHz Tuning Range
Input level: -65~-10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
Symbol Rate: 0.87 to 9Mbaud
Dual CI Slot
Standard Profile TV Card Size: 145x104mm (Length x Height)
TV Card Weight: 122 Gram
Package Gift Box Size: 205x140x50mm (Length x Width x Height)
Package Gift Box Weight: 0.75KG
System Requirements:
Windows 2000/XP/Vista/7/8/10 or Linux
DirectX9.0 or later Version
Available PCI Express x1,x4, x8 or x16 slot
Cable TV connection
For HDTV:
Dualcore CPU
1GB RAM or Above
Graphic Card with at Least 64MB RAM

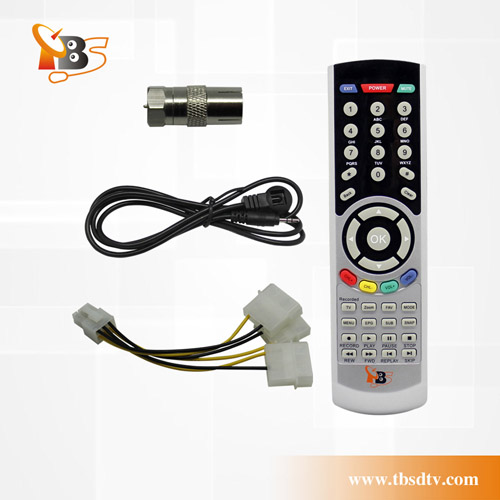

Package Content:
1 x TBS6680 DVB-C Dual Tuner Dual CI PCIe Card
1 x remote control
1 x IR receiver
1 x Software CD
1. TBS6680 Windows driver is upgraded to V1.0.0.1, which fixed the BSOD problem when using remote control.
2. TBS6680 Linux Driver is updated to v170330., which has below updating:
* Support kernel 4.10
3. tbs6680 IR software V1.0.1.0 is released, which fixed can not remember device selection.
TBS6680 DVB-C TV Tuner CI PCIe Card (Click to download)
Windows Driver TBS6680 Windows Driver V1.0.0.1.
Linux Driver TBS6680 Linux Driver v170330.
(Virtual DVBT) Driver TBS6680 DVBC(Virtual DVBT) driver for Windows Media Center
(Virtual DVB-S) Driver TBS6680 Virtual DVB-S Driver for Windows Media Center V1.0.0.0
