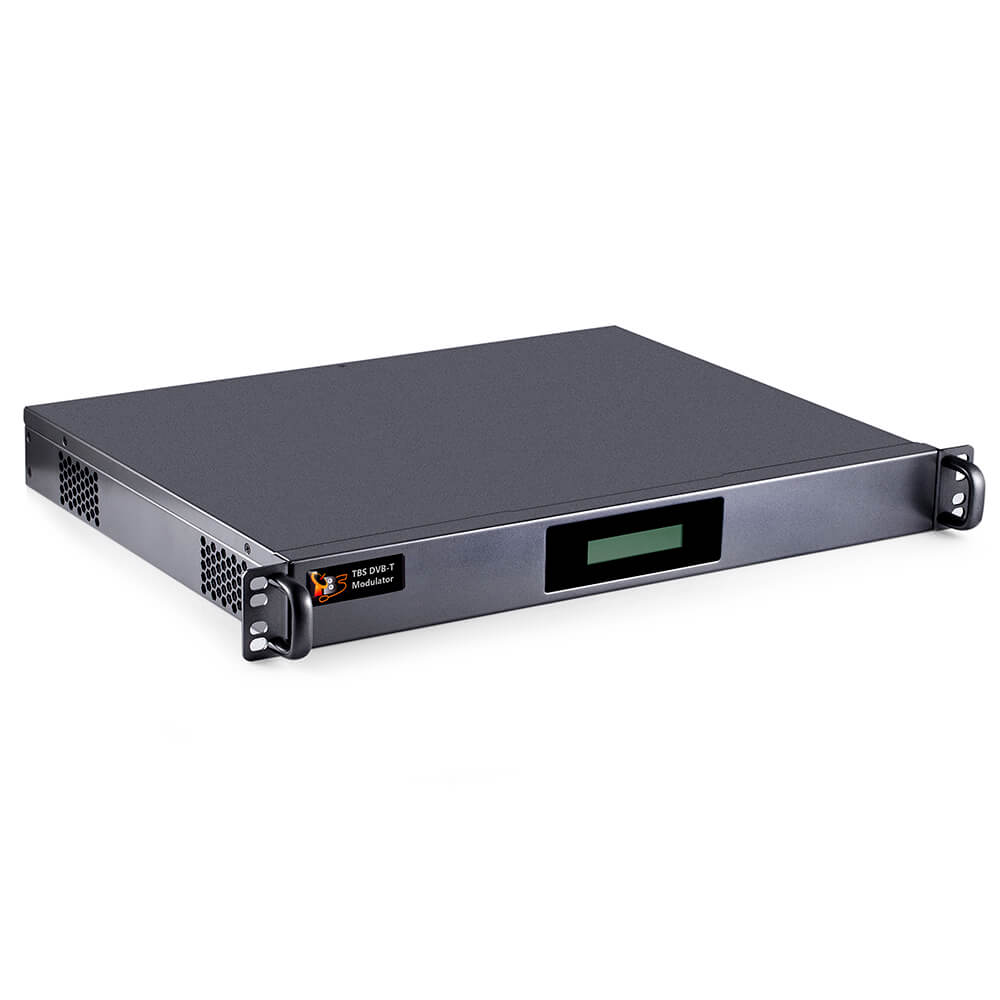

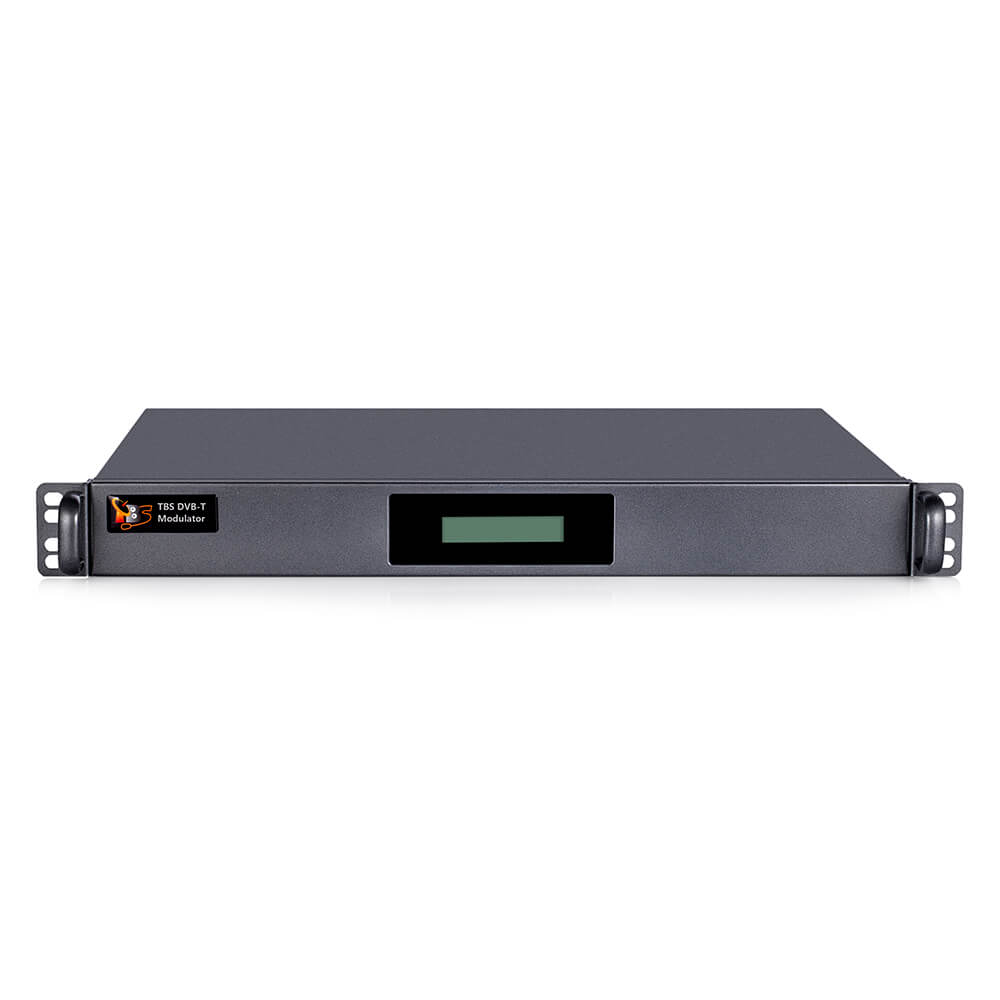

    TBS8120 12 Channel HDMI to DVB-T Modulator

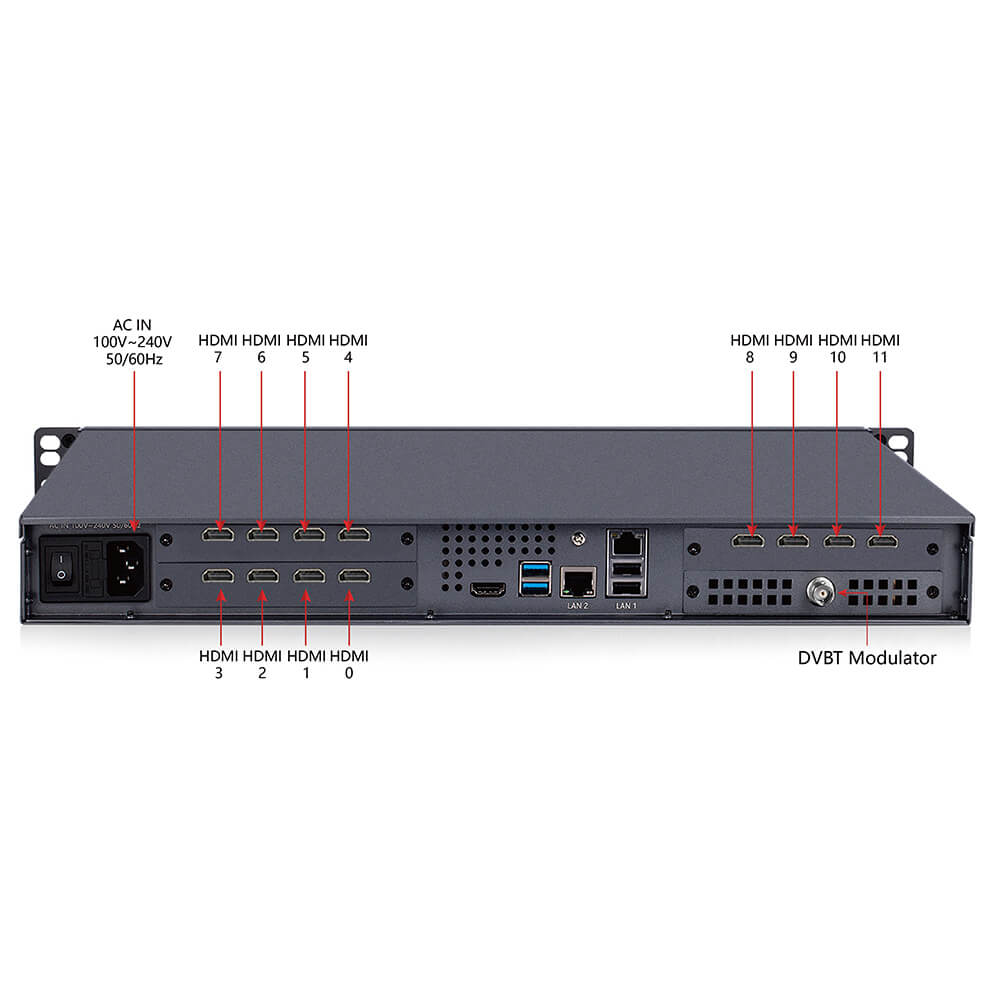

    TBS8120 is an all-in-one device integrated encoding (MPEG-4/AVC H.264), multiplexing and modulation functions in one standard 1U case. It can convert 12 HDMI signals into 4 DVB-T RF outputs. The signal sources could be from satellite receivers, closed-circuit television cameras and etc. its output signal is to be received by DVB-T standard TVs or DVB-T STBs.

    In order to meet the various requirements of customers, this device is also equipped with IP input and 4 MPTS output via UDP and RTP. With "Remux" technology, you can easily select popular channels from input streams, then multiplexed to a new TS stream to 4 RF output.

    TBS DVB-T modulator server is the perfect solution for Digital Signage, Private Circuit, STB Testing, and Laboratory Applications. It also provides a very costs-effective solution to transmodulation system and IPTV systems.


    • RF modulation (terrestrial digital) output option
    • 4 DVB-T RF transmission
    • Managed through web UI
    • Integrated modulating and multiplexing functions
    • Support 12 HDMI channels input
    • Support H.264/AVC video encoding
    • Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding;
    • Support PSI/SI editing and inserting
    • PID remapping and passthrough
    • Support VBR (video bitrate mode)
    • Support 720P, 1080I, 1080P HD video format
    • Support IP (1000M) Output over UDP, RTP/RTSP
    • Real-time output bit-rate monitoring


    • DVB-T signal generator
    • Video broadcast/distribution
    • IPTV system
