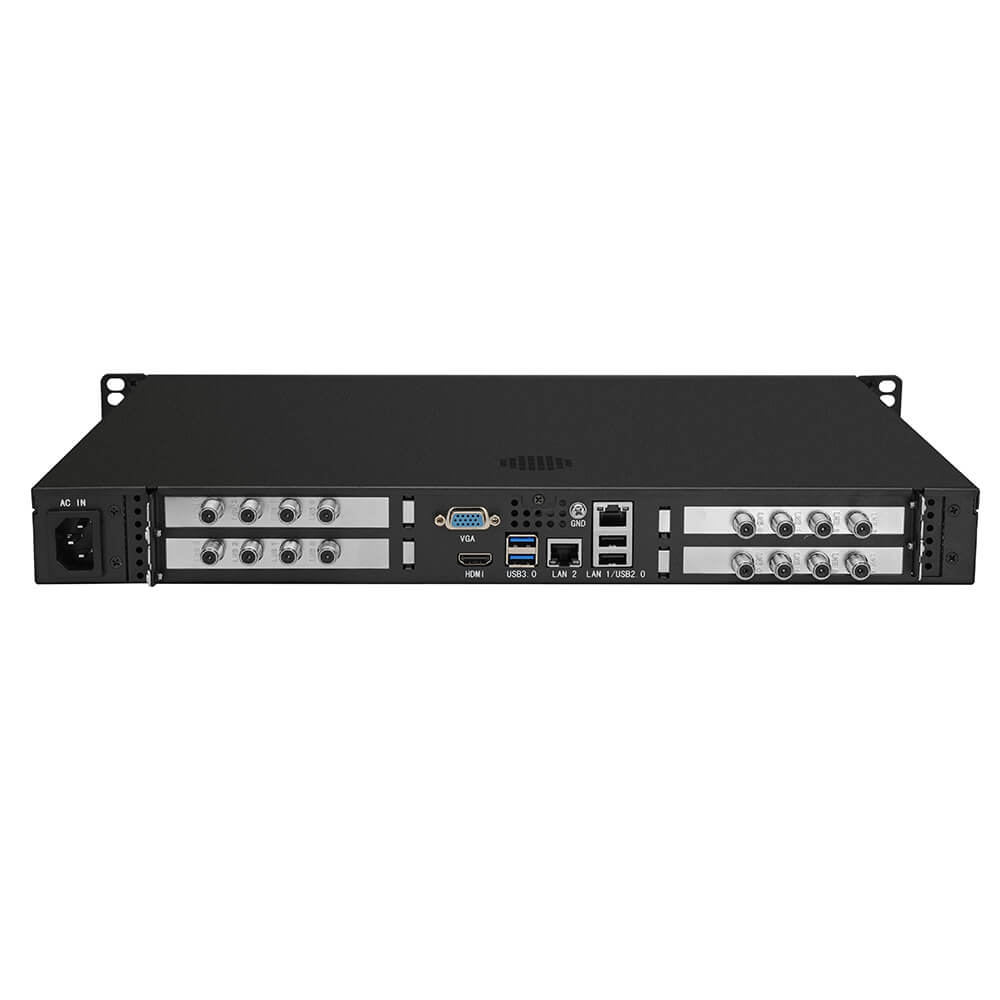

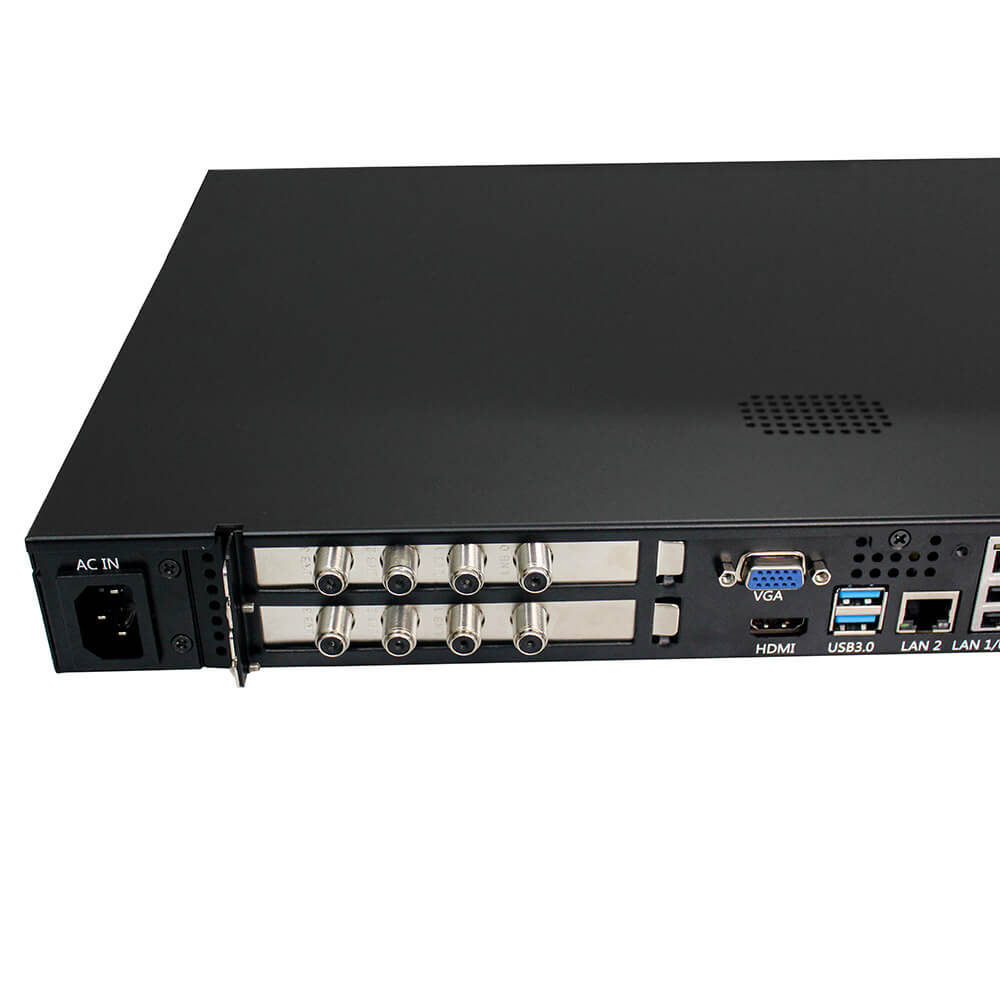

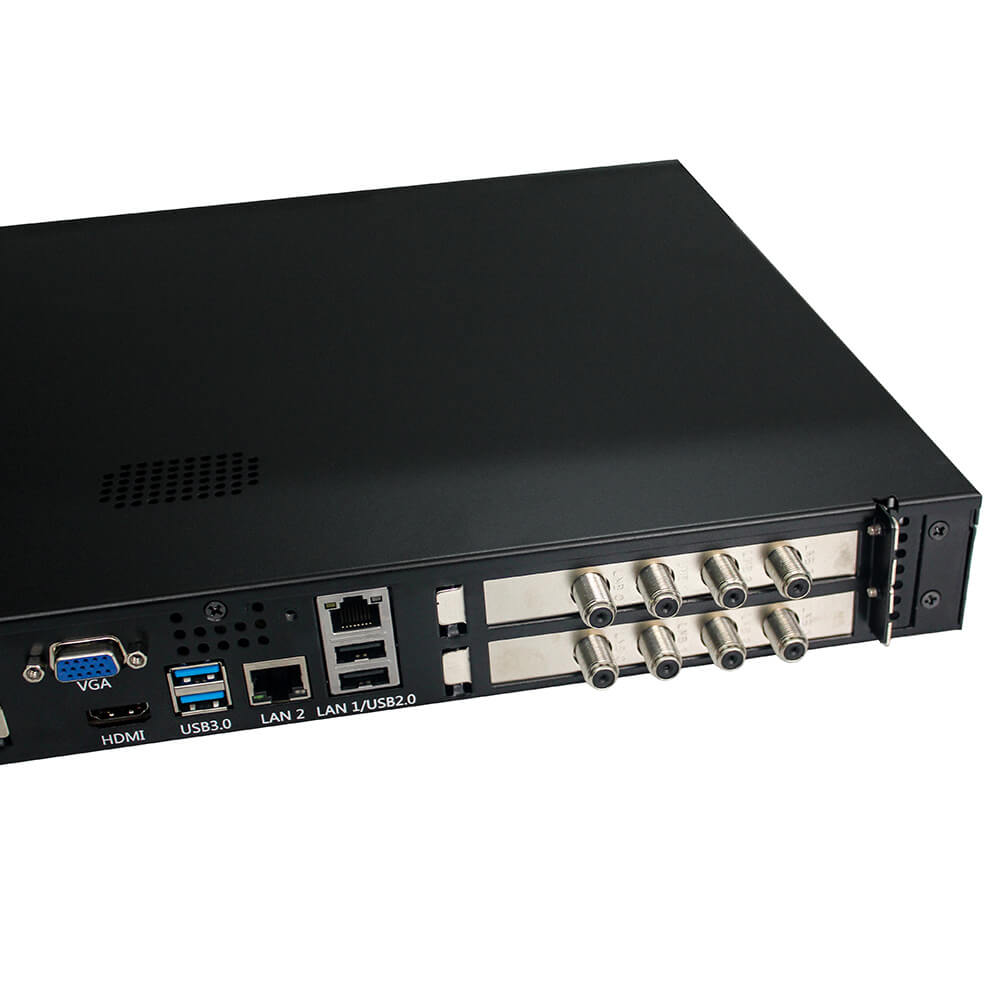

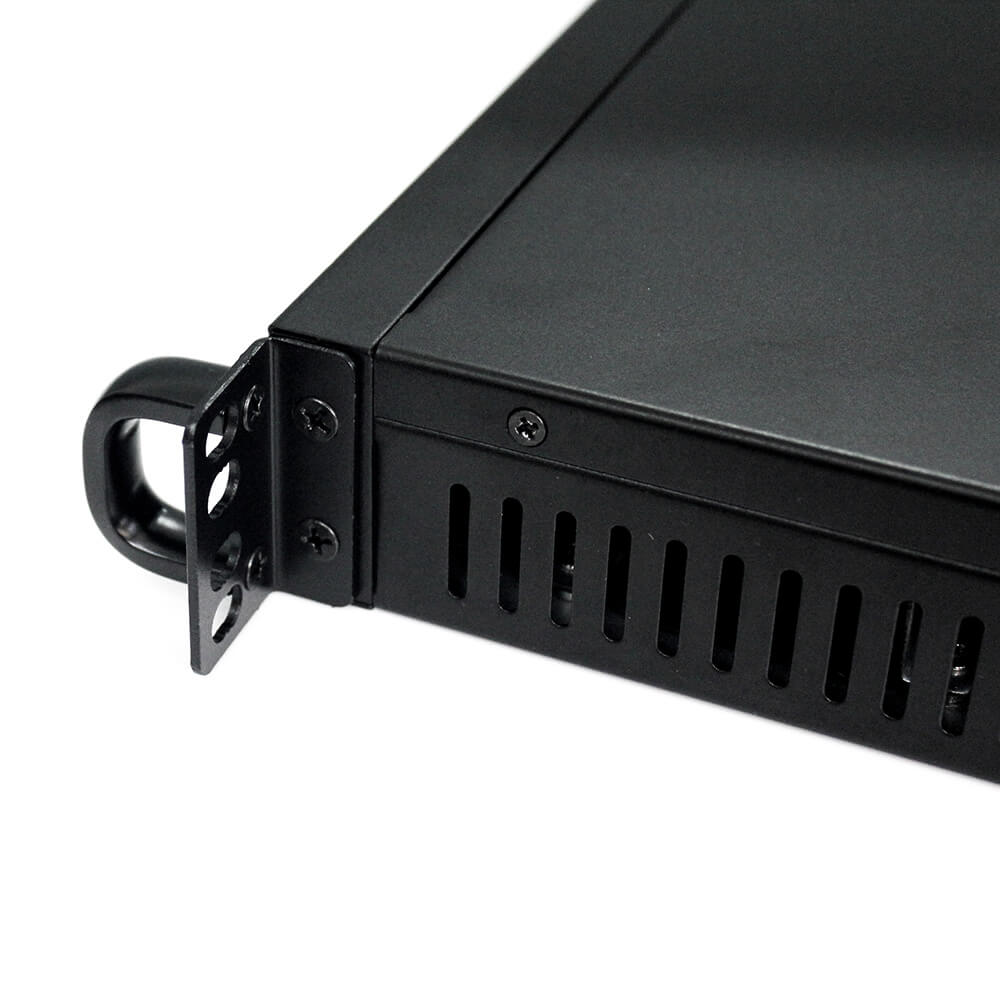

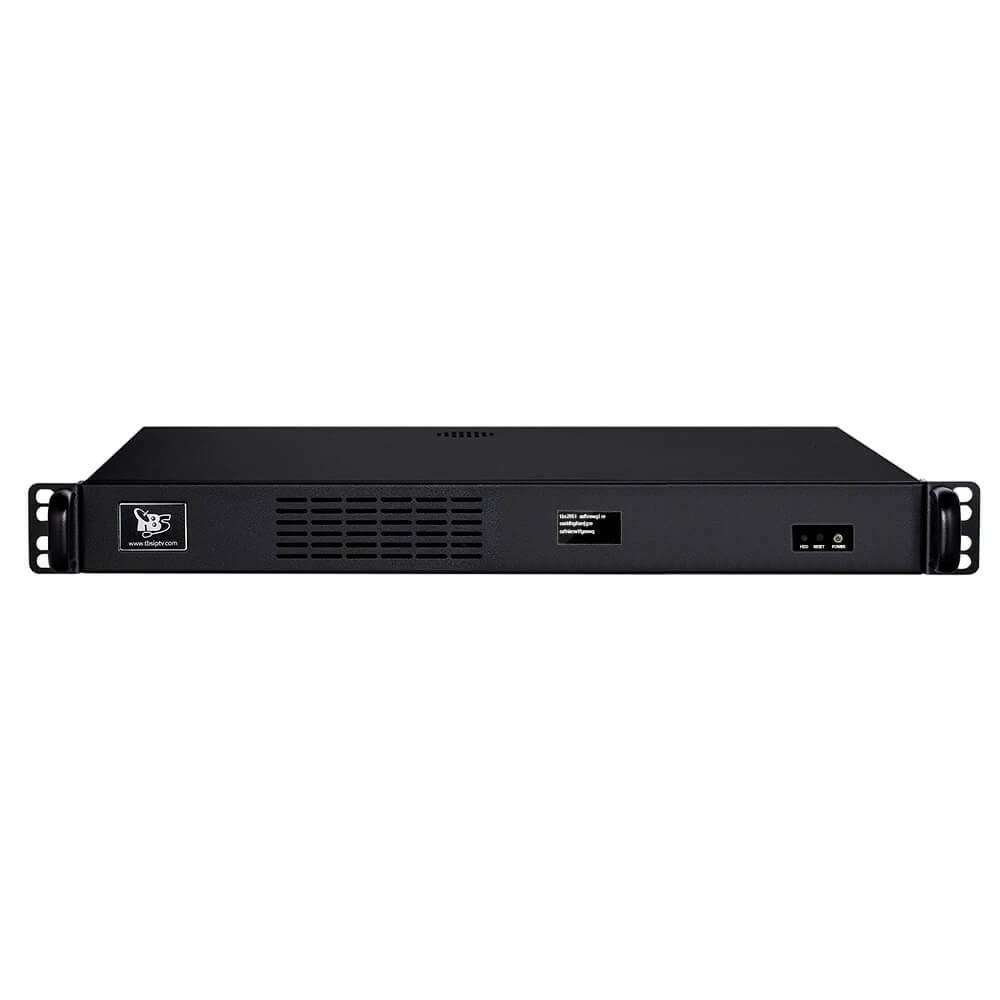

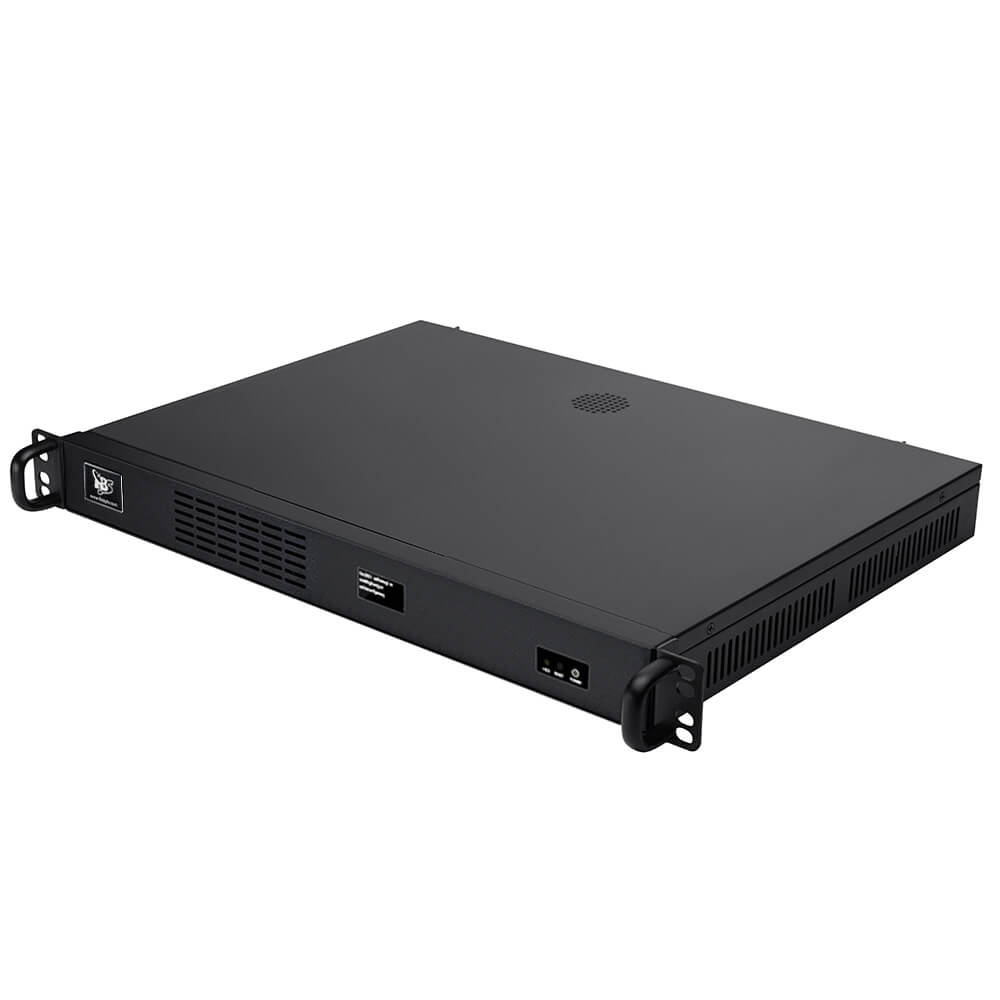

MOI Pro – AMD

MOI Pro – AMD is a new professional IPTV streaming server powered by AMD Embedded G-Series SoC, it can receive live TV signal using built-in TV tuners and stream the channels further through Ethernet to various client devices, such as PC, tablet PC, smartphone, and smartTV.


With AMD Embedded G-Series SoC inside, MOI Pro – AMD provides more possibilities to IPTV system integrators and TV service operators, it allows you to use not only Linux and Ubuntu, but also Windows. Open source software such as Kodi(XBMC), OpenPCTV and VDR are pre-installed to create a read-to-run platform.

Key Features

  • Live SD/HD TV streaming
  • Based on AMD Embedded G-Series SoC
  • High-performance graphics processing
  • Low power consumption
  • Linux Open Source software support: Kodi( XBMC), OpenPCTV, VDR
  • Supports up to 16 TV tuners (4 TV tuner PCIe cards) of different DVB standard
  • Supports DASH (Desktop and Mobile Architecture for System Hardware) remote management

Specifications

1U Chassis (430*320*46mm)
Processor AMD® Embedded G-Series SoC (Quad Core, 2GHz)
Memory 4GB DDR3 1333
Graphics Integrated AMD Radeon™ HD
APU AMD® Embedded G-Series SoC
Ethernet 2x LAN Gbit / 100 Mbit / 10 Mbit,
Storage 1 x SATA 6.0 Gb/s
SSD 30G mSATA SSD
LPC 1 x LPC support TPM module
2 x COM HEADER
FRONT PANEL POWER SW
RESET SW
POWER LED
HDD LED
Display Interface 1 x HDMI
1 x VGA (The reserved connection)
USB 2 x USB 2.0
2 x USB 3.0
Expansion Interface 1 x Full-Size Mini-PCIe
(w/USB, PCle x 1 Single)
SBC dimension 128 *104 mm
Operating Systems Microsoft® Windows 8, Microsoft® Windows 7,
Microsoft® Windows® 7/8 embedded Standard, Microsoft® Windows® 7 Embedded Compact
Linux, Ubuntu,
DVB tuner card support Up to 32 TV tuners (4 TV tuner PCIe cards)
Pre-installed software Tvheadend, VDR, MuMuDVB, DVBlast, szap-s2, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba

Which DVB tuner card to use

MOI Pro AMD is compatible with most of TBS tuner cards, and supports connection with up to 4 DVB PCI Express tuner cards through the tuner bridge board, you could even choose four cards in different standard.

Products works with MOI Pro AMD:
2xTBS6904, 4x TBS6904, 2xTBS6991SE , 4x TBS6991SE , 2xTBS6909, 4xTBS6909, 2x TBS6205, 4xTBS6205, 2xTBS6290, 4xTBS6290, 2xTBS6904+2x TBS6205, 2xTBS6904+2xTBS6991SE, 2xTBS6909+2xTBS6904, 2xTBS6909+2xTBS6991SE, 2xTBS6909+2xTBS6205, 2xTBS6909+2xTBS6290, TBS6904+TBS6205, TBS6904+TBS6991SE, TBS6909+TBS6904, TBS6909+TBS6205, TBS6909+TBS6290, TBS6909+TBS6991SE
