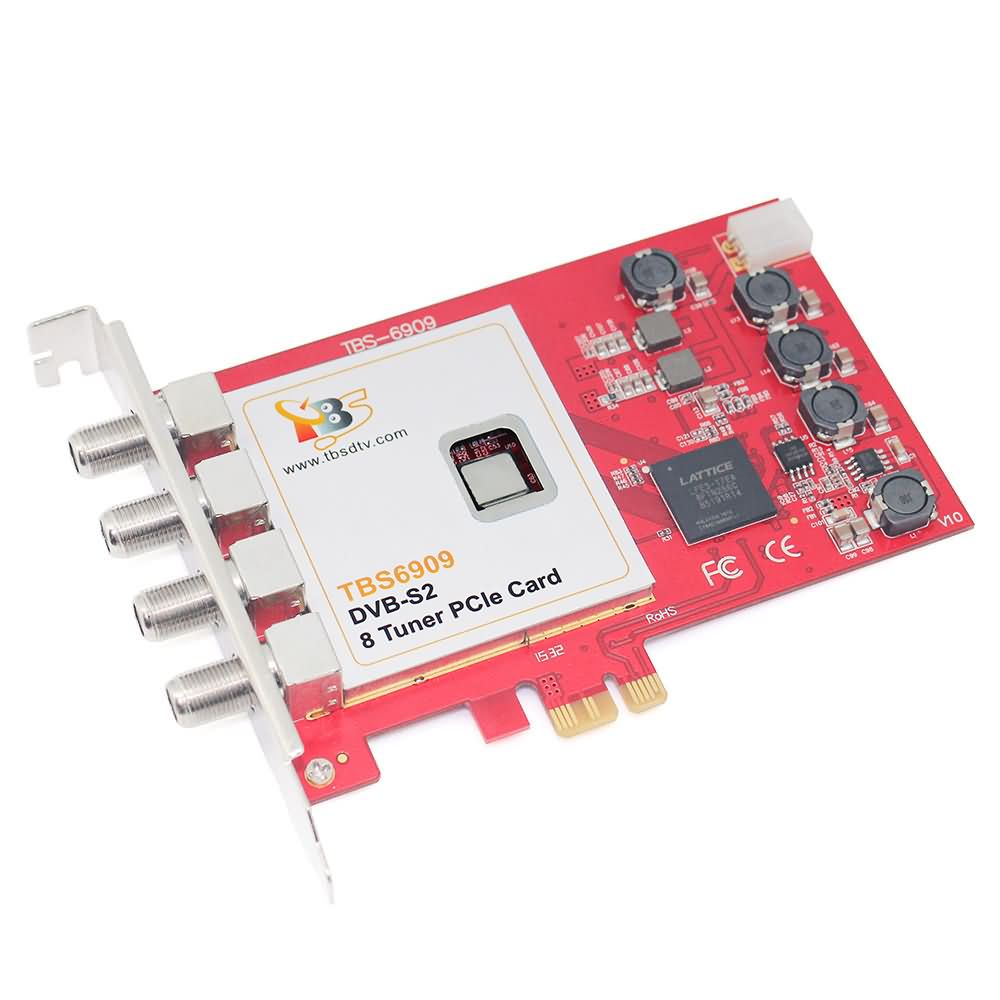

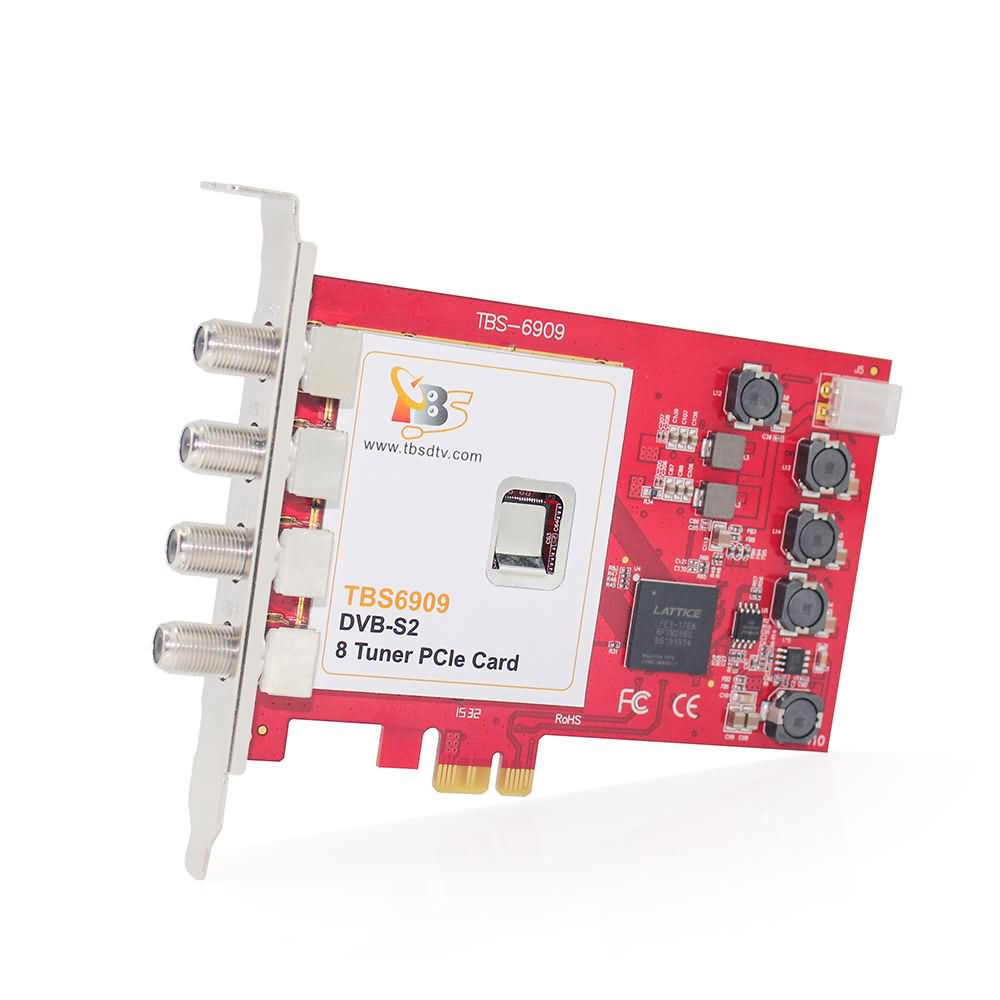

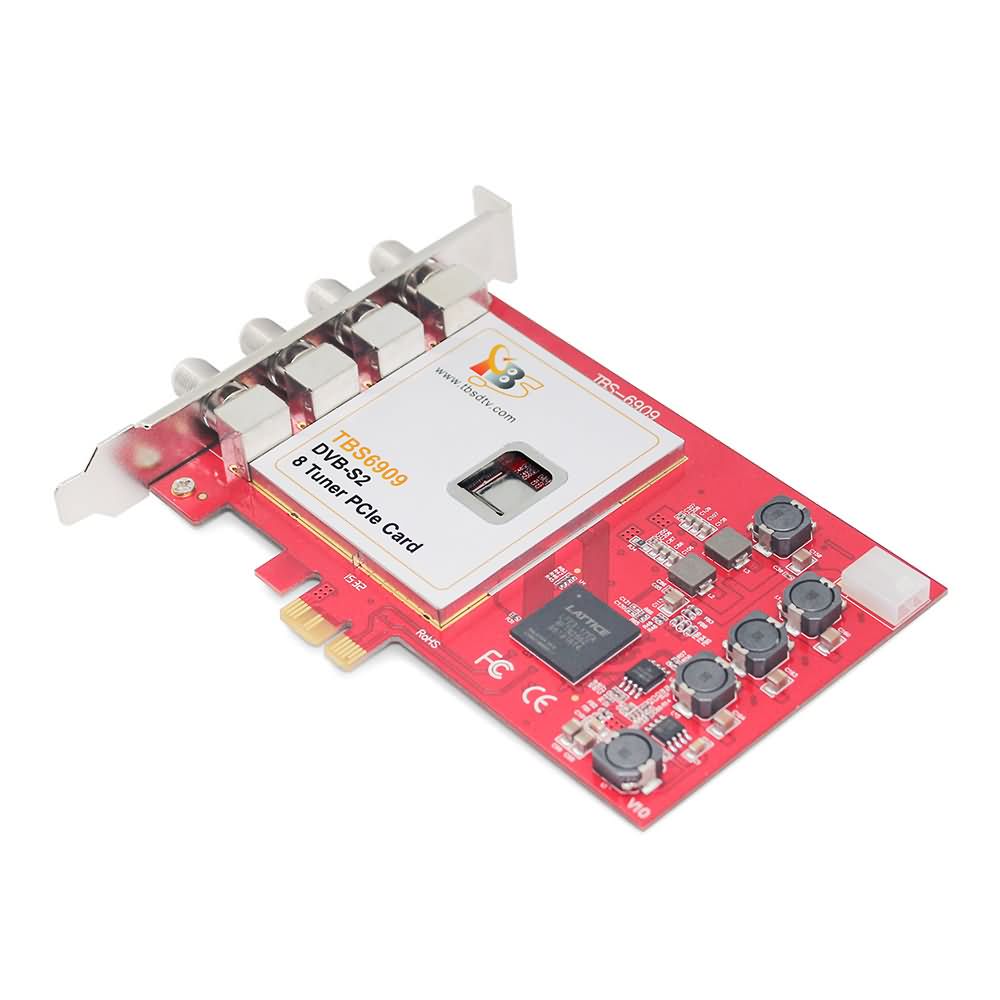

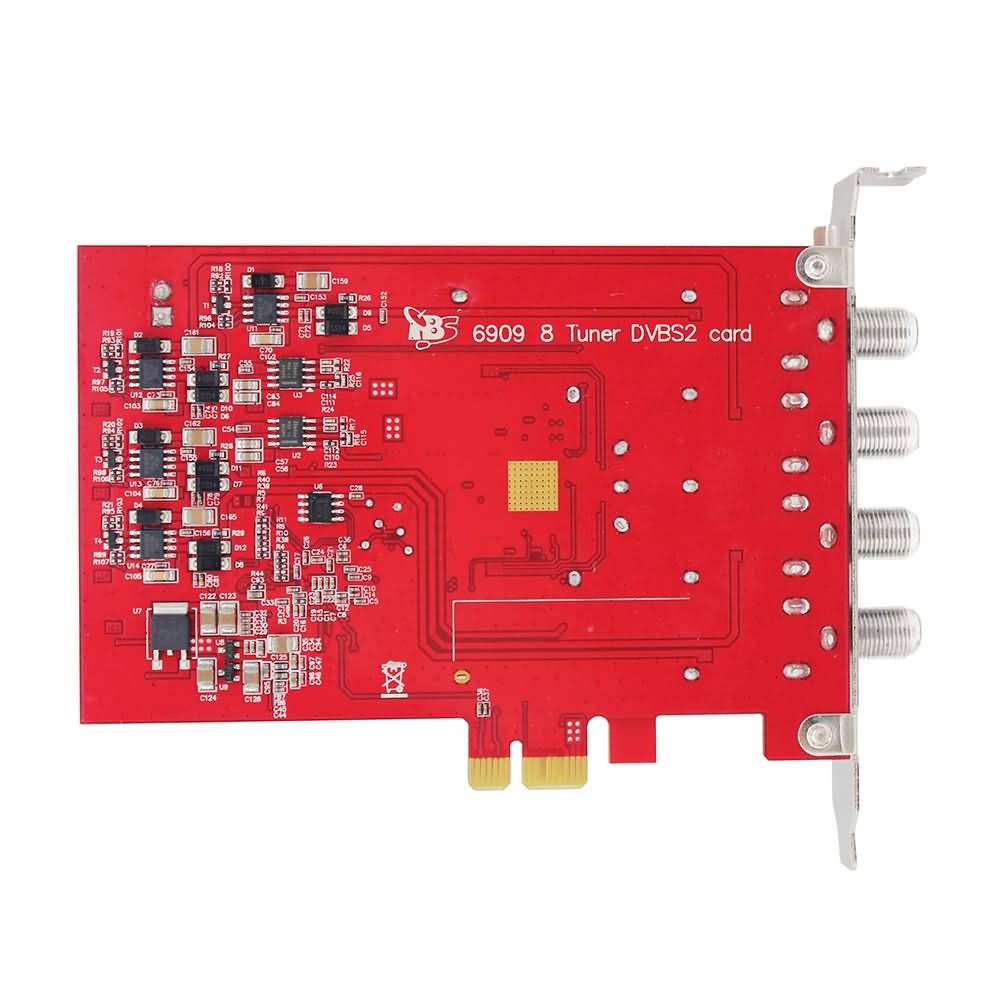

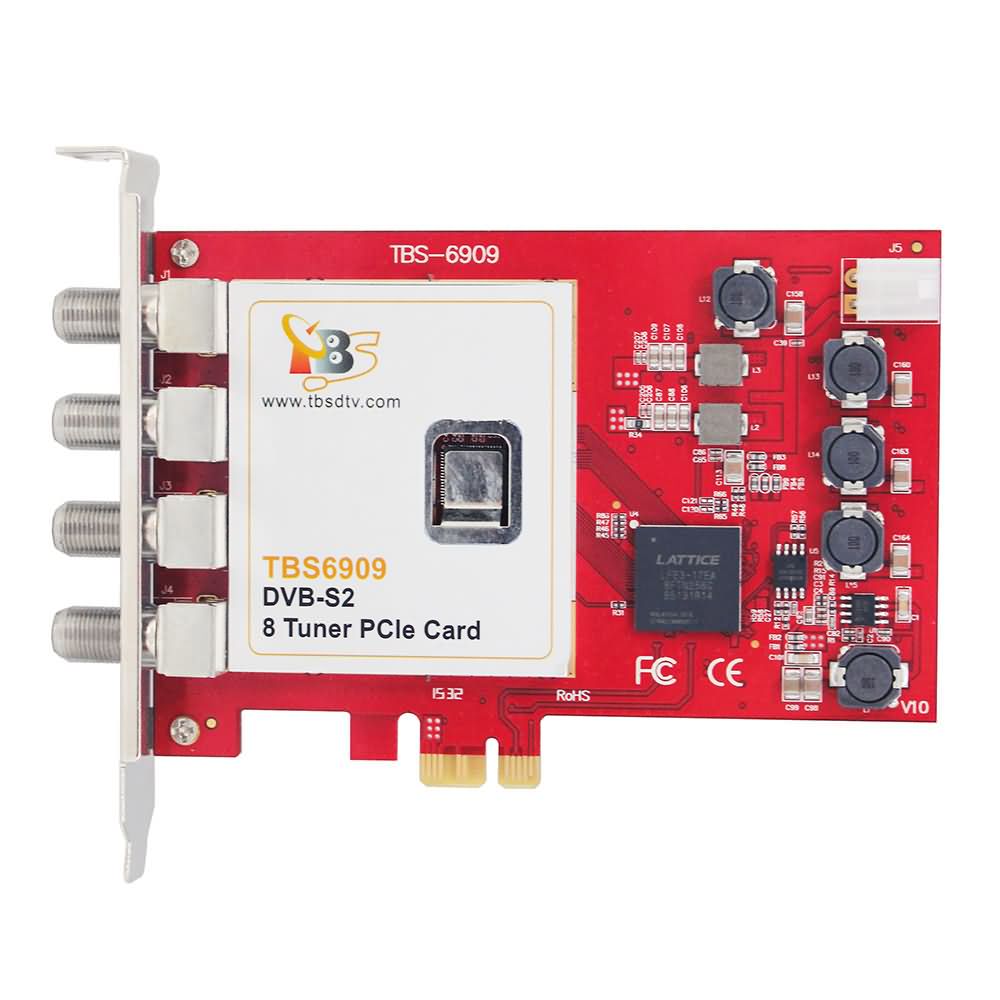

TBS6909 DVB-S2 8 Tuner PCIe Card

Benefits:

• DVB-S2/S 8 tuner
• Watch & record satellite TV/ radio programs on PC
• EPG (Electronic Program Guide) support
• Unicable/one cable compatible
• High-speed data download via satellite
• High reliability

Applications:

• Data receiving
• Media monitoring
• Digital content distribution

Specifications:

• Frequency range: 950~2150 MHz
• Signal Level: -85~-10dB
• Symbol rate: 1~45Msps
• Demodulation:
• DVB-S QPSK, DVB-S2 8PSK
• FEC:
• DVB-S2
  • 8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
• DVB-S
  • QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
• DiSEqC support: 1.0, 1.2, 2.x
• Dimension: 130*92mm (length x height)
• Max Power consumption: 24W

Connections:

• PCI Express
• 4x RF IN

TBS6909 has 8 Tuners & Demodulators, but it only has 4 inputs, because it has a multiswitch inside, defining 4 inputs to receive 4 single polarity signals( Input0=VL; Input 1=VH; Input 2=HL; Input3=HH)

System Requirements:

• Windows 2000/XP/Vista/7/8/10 or Linux OS
• Available PCI Express x1, x4, x8 or x16 slot
• Satellite dish and LNB

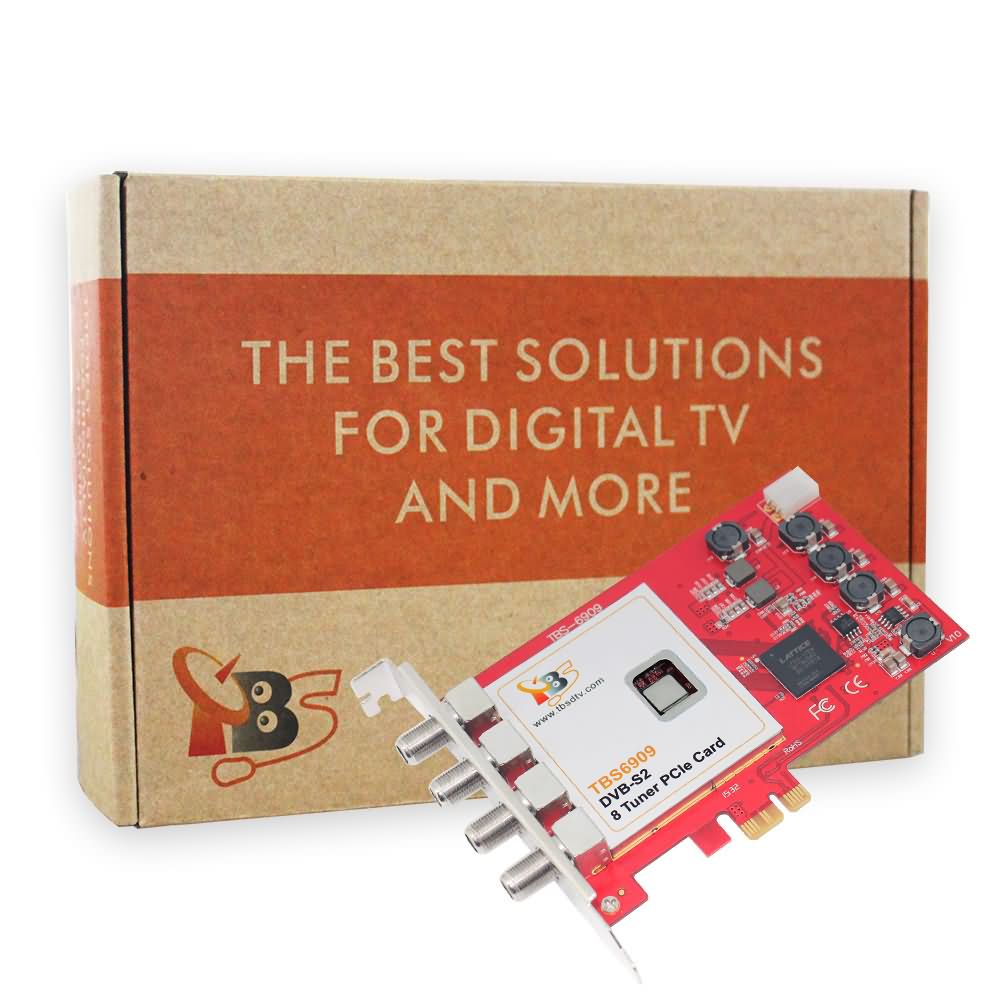

Package Contents:

• 1 x TBS6909
• 1 x DC line

• TBS6909 user guide
