MOI-V IPTV Streaming Sever

MOI-V is TBS latest professional IPTV streaming server, with flexible x86 CPU (Upto Intel E5 Xeon) and Memory, it support up to 48 TV tuners of different DVB standard in 1U chassis. It can receive live TV signal using built-in TV tuners and stream the channels to your IPTV panel.

Description
Specification
User Guide
Download

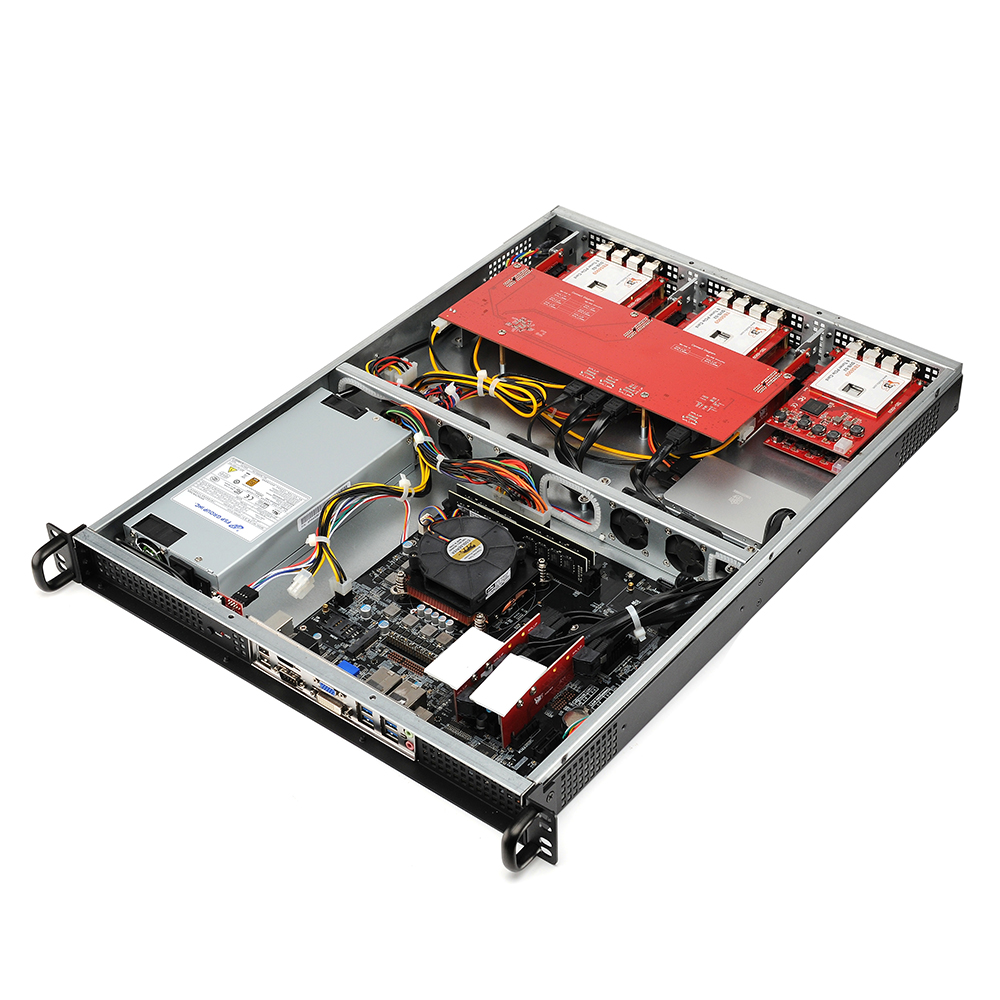

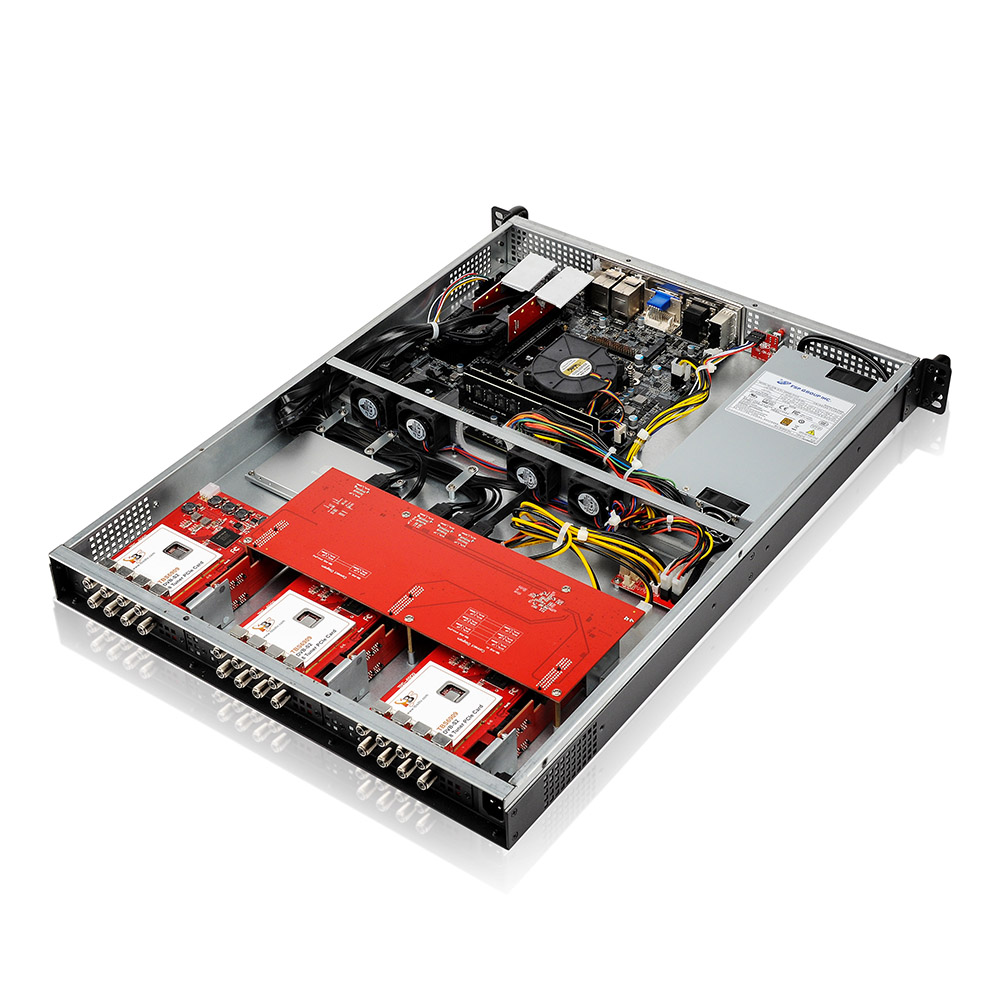

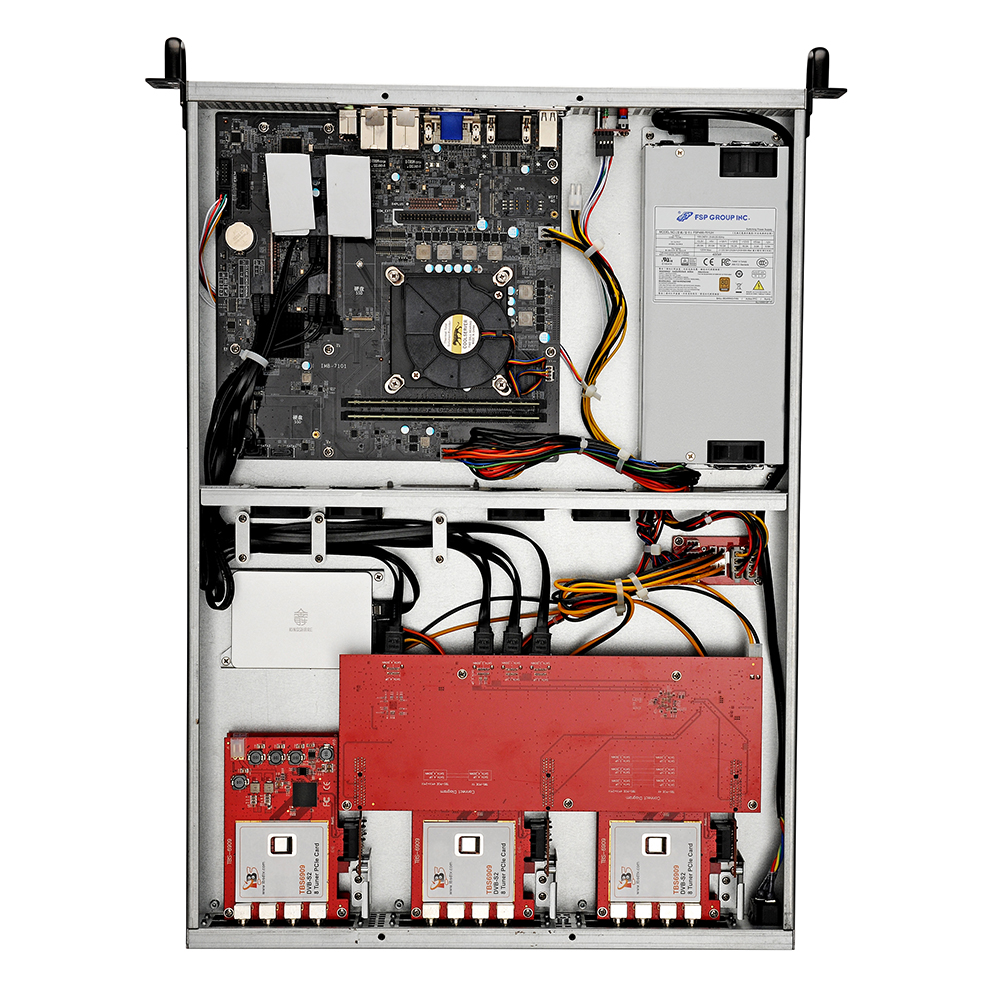

MOI-V is a customizable product, you could change CPU, RMA and SSD, and support to install 6 TBS TV tuner card inside, it's a ideal product for IPTV system integrators and TV service operators, allows you to use not only Linux and Ubuntu, but also Windows. Open source software such as TVheadend, XBMC, and VDR are pre-installed to create a read-to-run platform.

Key Features:

Live SD/HD TV streaming
Customizable configuration
Low power consumption
Linux Open Source software support: XBMC, OpenPCTV, VDR, TVheadend,DVBLast
Supports up to 48 TV tuners (6 TV tuner PCIe cards) of different DVB standard

Size	1U Chassis
Processor	Xeon E3-1231 V3(default)
Memory	4x 240-pin DDR3 DIMM sockets Default Memory is 1x8G DDR3
Ethernet	2x Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
Serial ATA	2x SATA 3.0 (6Gb/s), 4x SATA 2.0(3Gb/s)
SSD	60G SSD
Serial Port/Header	2x COM ports (1 rear, 1 header)
FRONT PANEL	Power on
	Reset
	Power LED
	HDD LED
Display Interface	1x VGA D-Sub Connector
USB	2x USB 3.0 ports
USB	6x USB 2.0 ports
PCI-E slot	6x PCIE1X/4x PCIE1X &1x PCIE4X
SBC dimension	9.6" x 9.6", (24.4cm x 24.4 cm)
Operating Systems	Microsoft® Windows 8, Microsoft® Windows 7,
	Microsoft® Windows® 7/8 embedded Standard, Microsoft® Windows® 7 Embedded Compact
	Linux, Ubuntu,
DVB tuner card support	Up to48 TV tuners (6 TV tuner PCIe cards)
Pre-installed software	Tvheadend, VDR, MuMuDVB, DVBlast, szap-s2, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba
