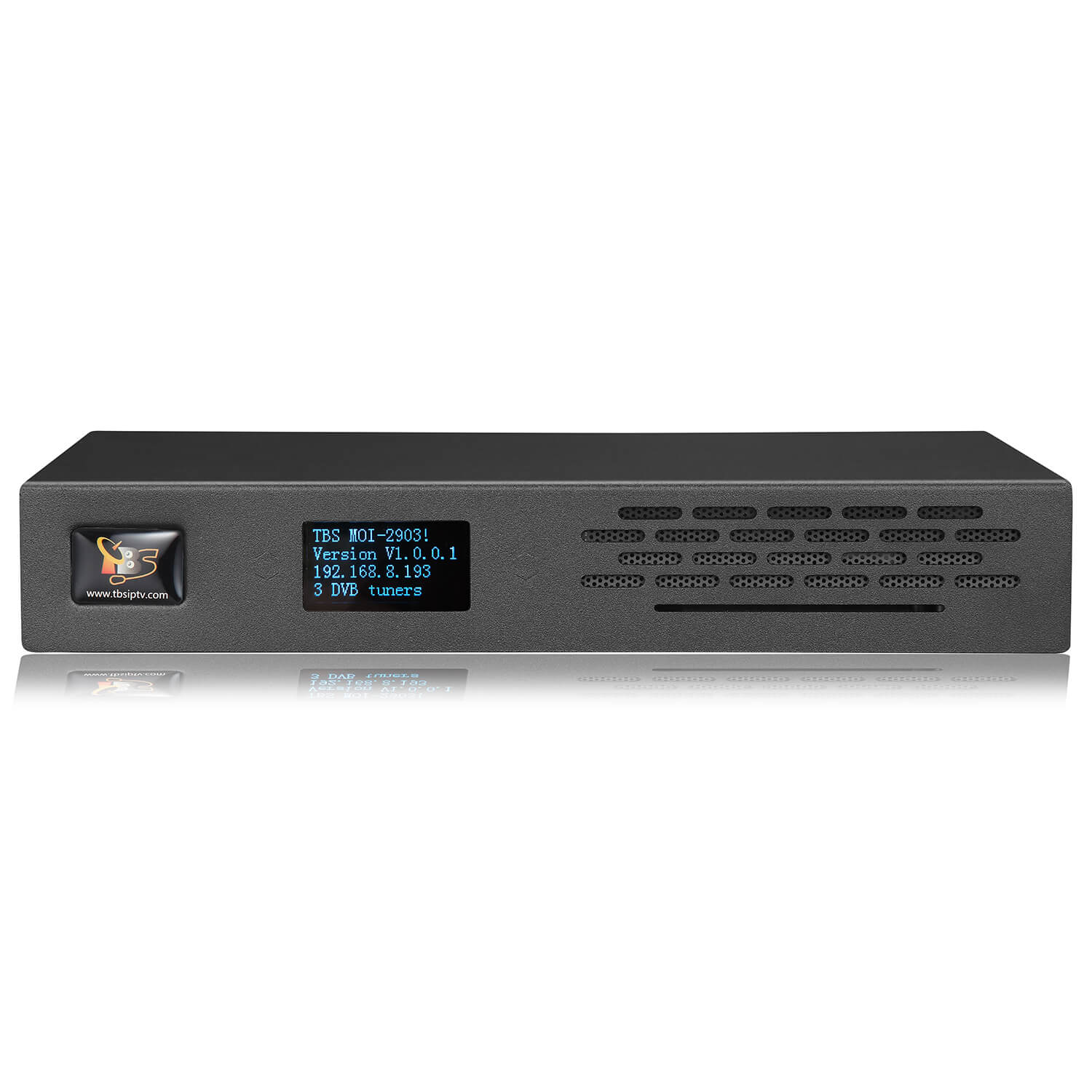

    TBS2903 MOI Plus DVB to IP Gateway Box

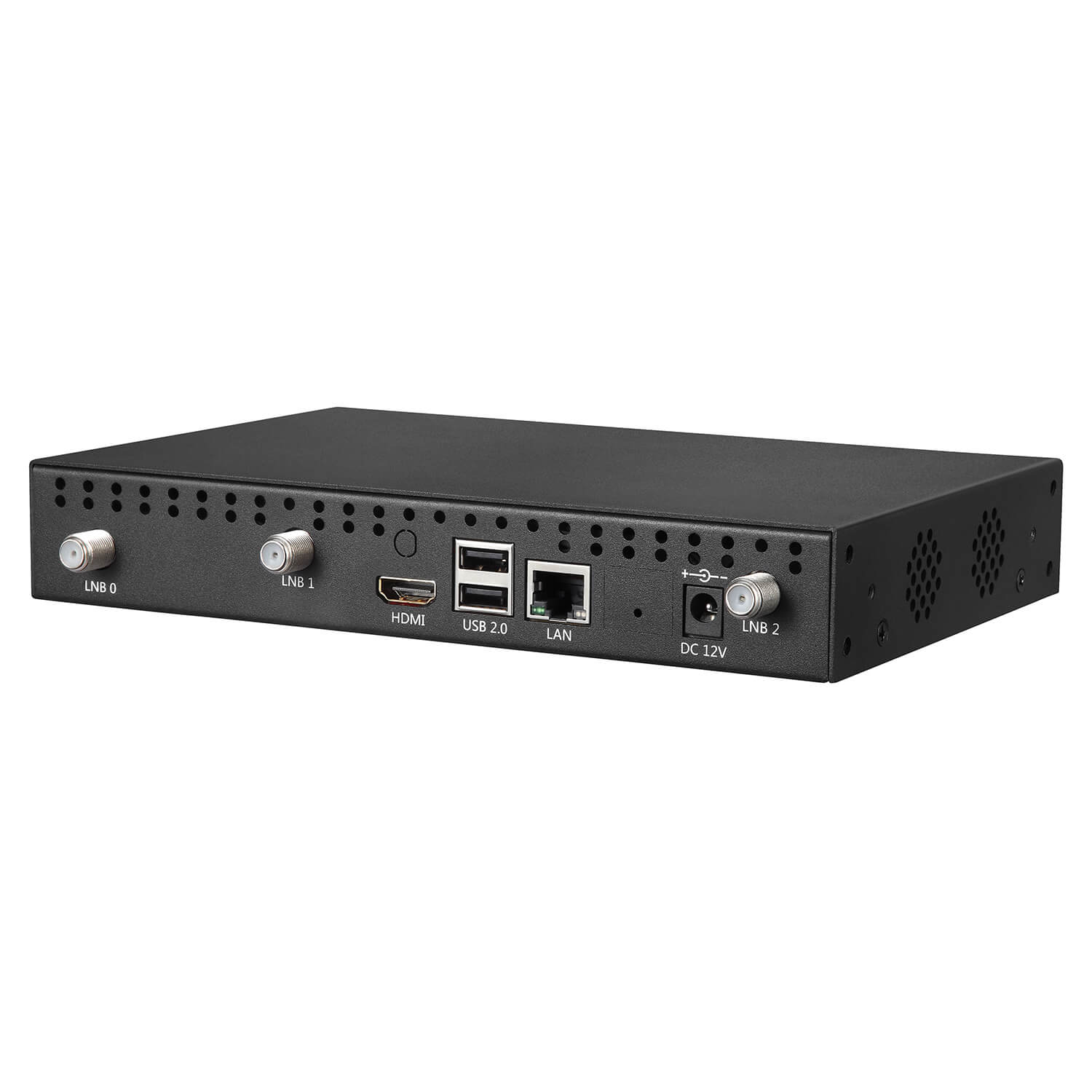

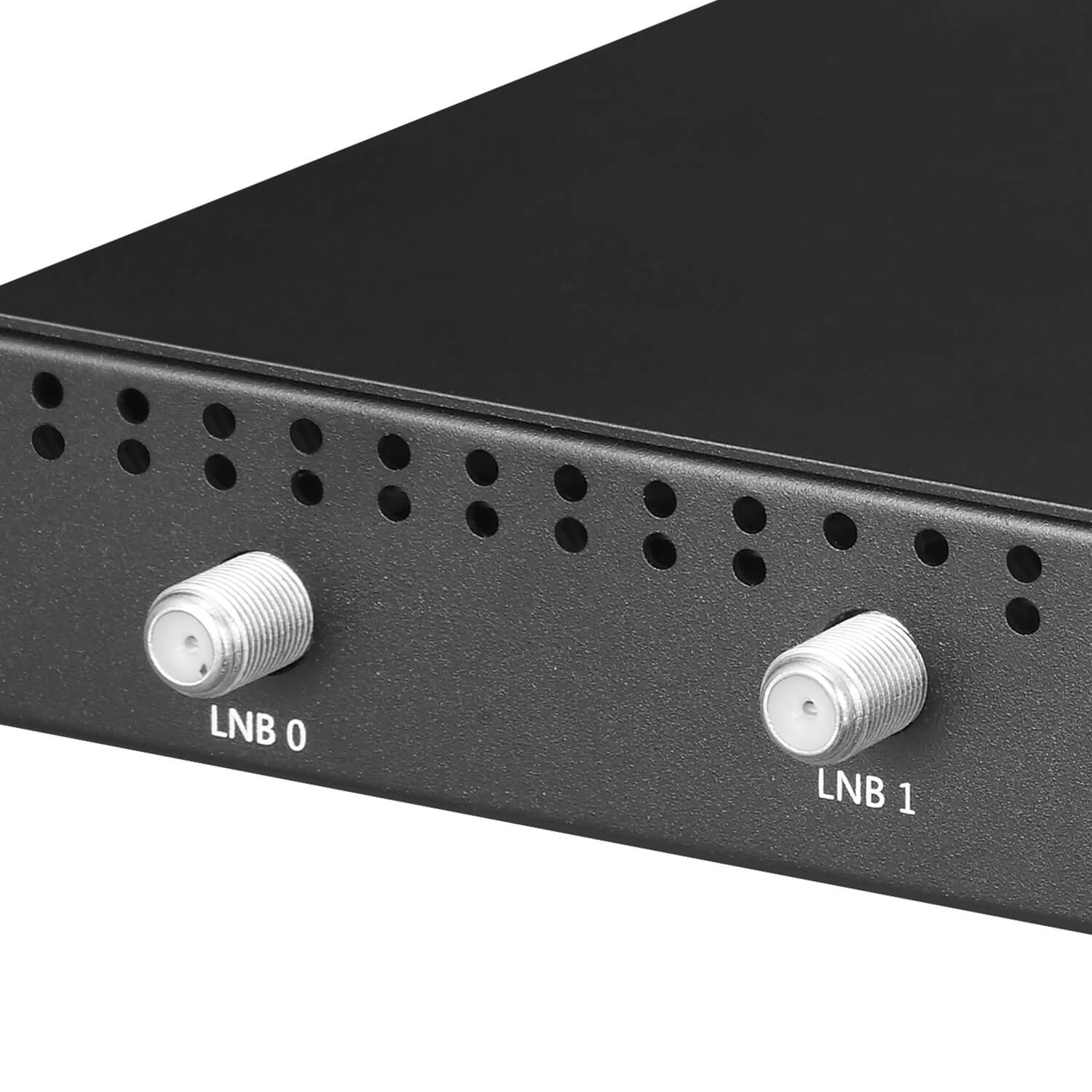

    TBS2903 MOI Plus is a DVB-S/S2 to IP gateway for IPTV headend stations. It provides 1/2 satellite RF inputs. Each satellite RF input supports to capture all free channels from on satellite transponder. Next to its own streaming system, MOI Plus is also embedded many open-source applications to output different protocol IP streams, like UDP, RTP, HLS, HTTP, etc., which provides many possibilities to IPTV system integrators or TV service operators.

    The DVB Conditional Access Systems (CAS) slot is an optional hardware configuration in TBS2903 MOI Plus. If you require this interface, please contact us before placing order.

    For standard sample testing, TBS2903 MOI Plus is equipped with 2G DDR4, 8G flash and a 1Gb network port. But if customers have other hardware requirements, we accept customization producing order.

    Please email to support@tbsdtv.com to talk about the customization details.

    Specifications:

    Basic server spec:
    Processor Quad Core A55(2.0GHz)
    RAM 2GB LPDDR4
    Flash 8GB eMMC

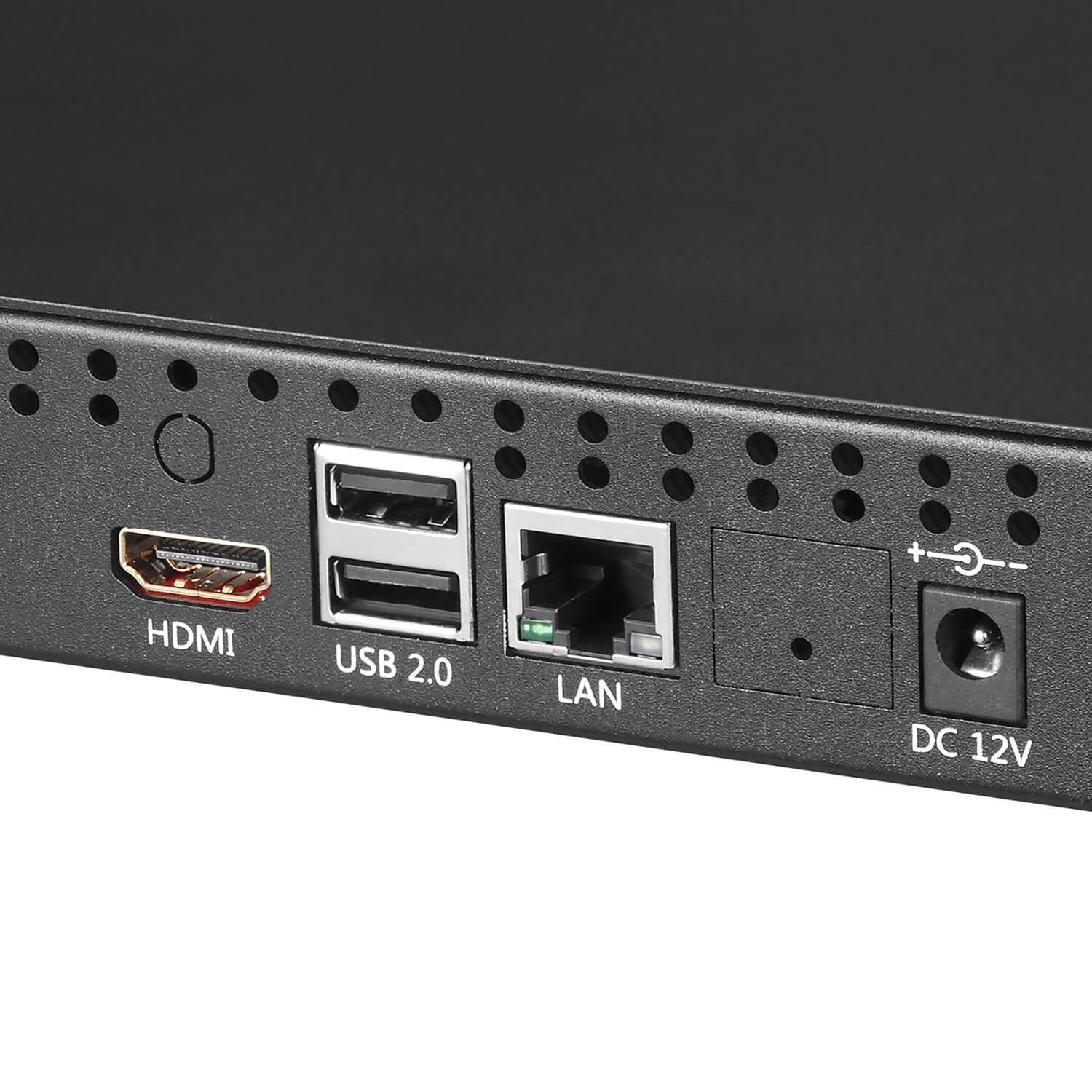

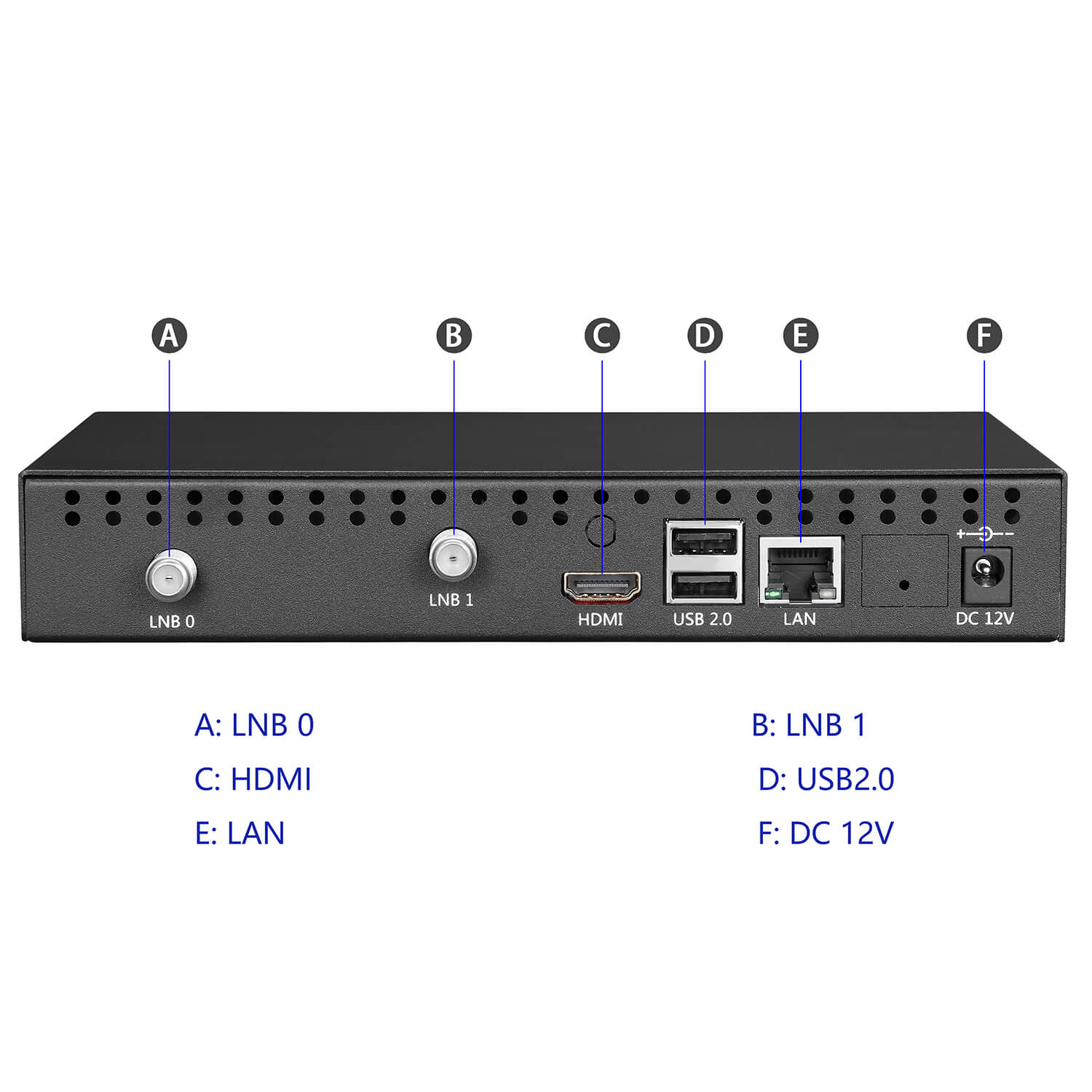

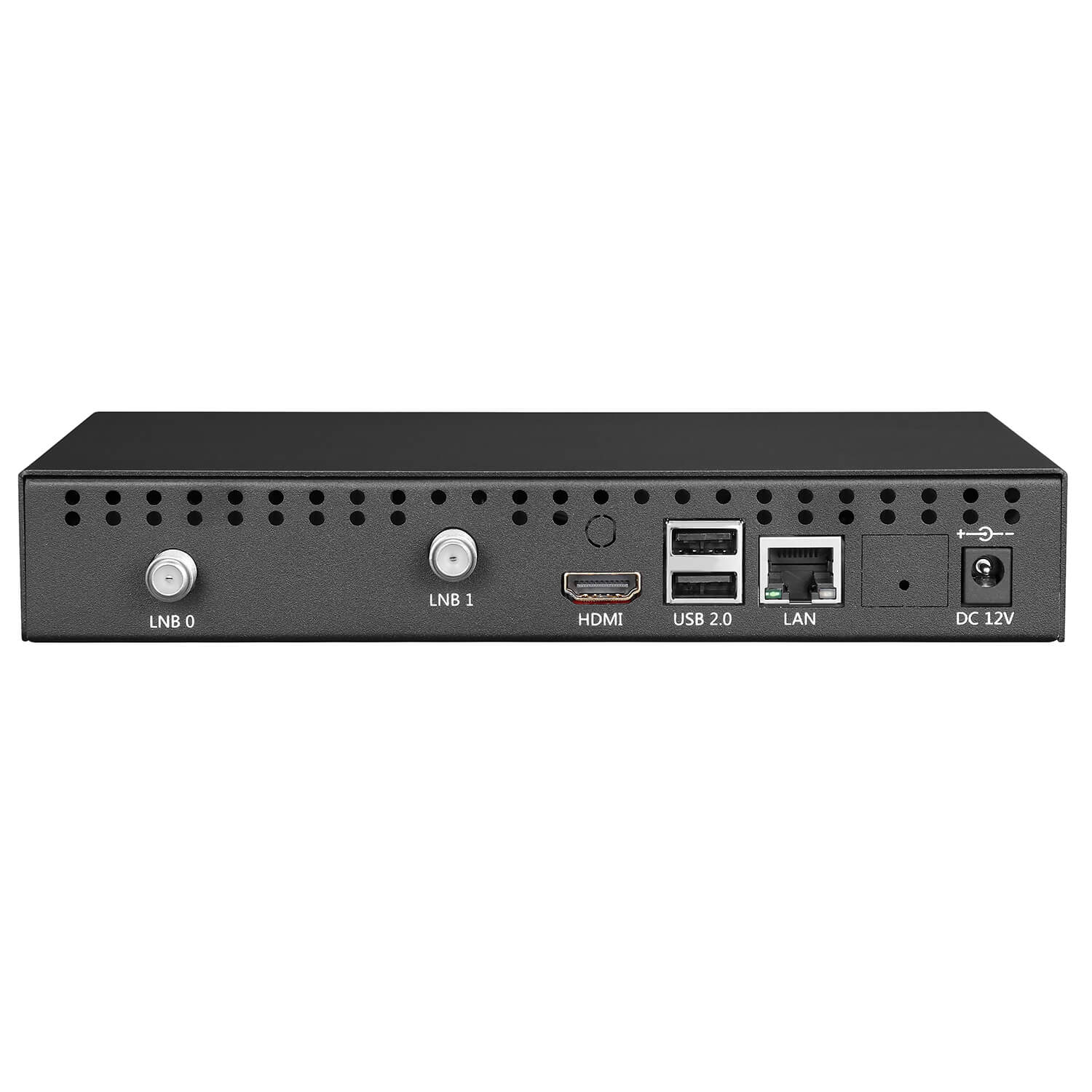

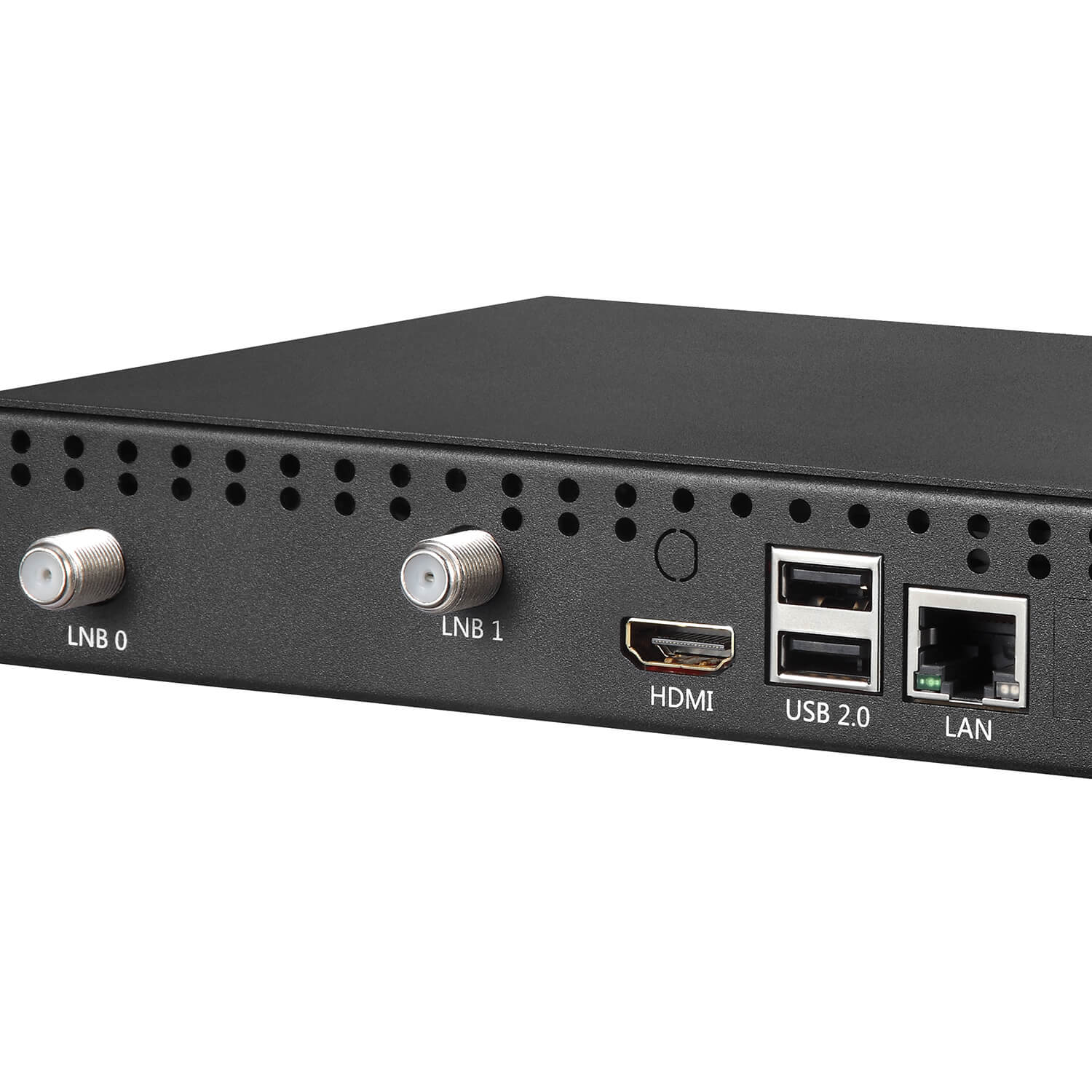

    LAN 1Gb onboard Ethernet
    USB2.0 2 * USB2.0 port
    HDMI 1 * HDMI2.0 Out

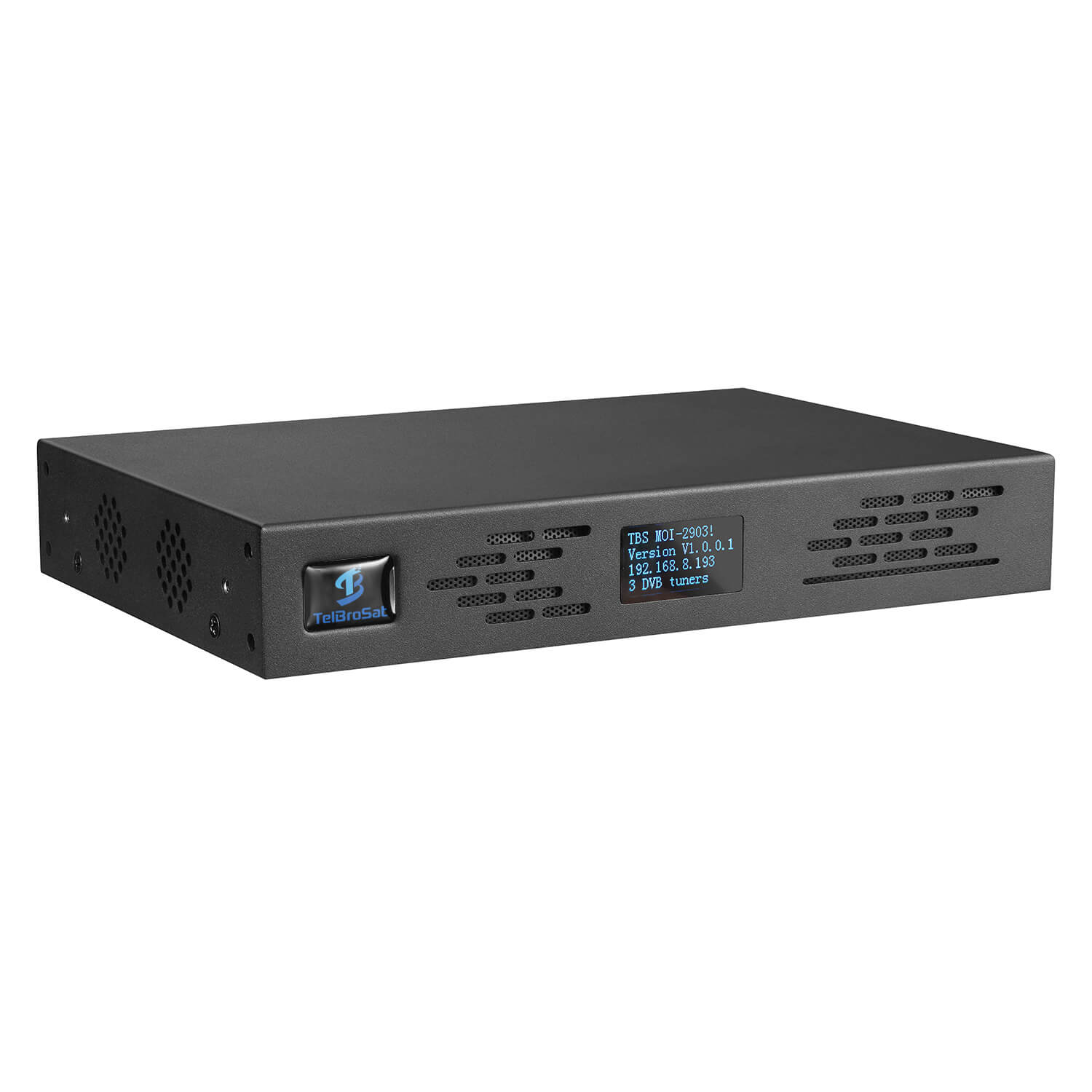

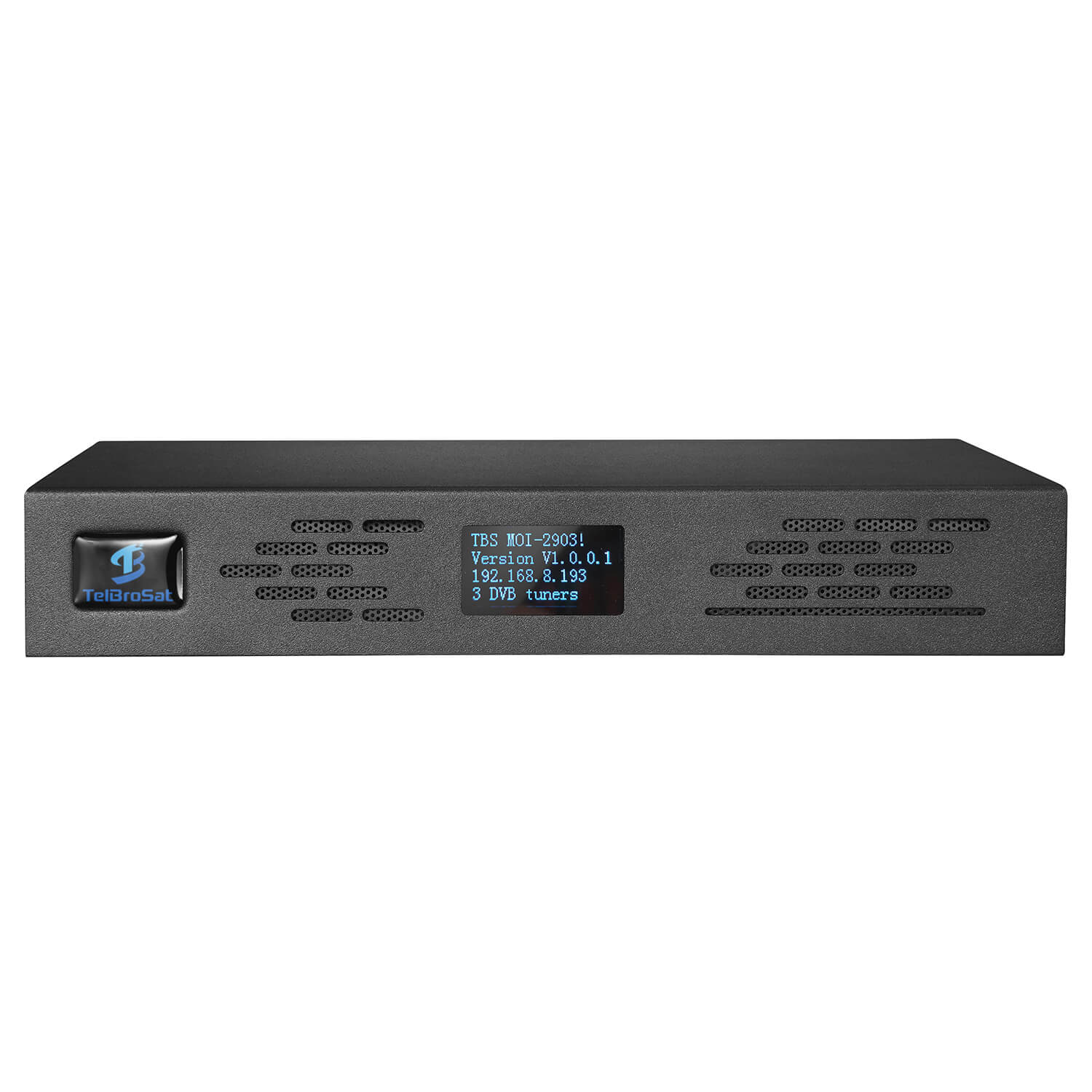

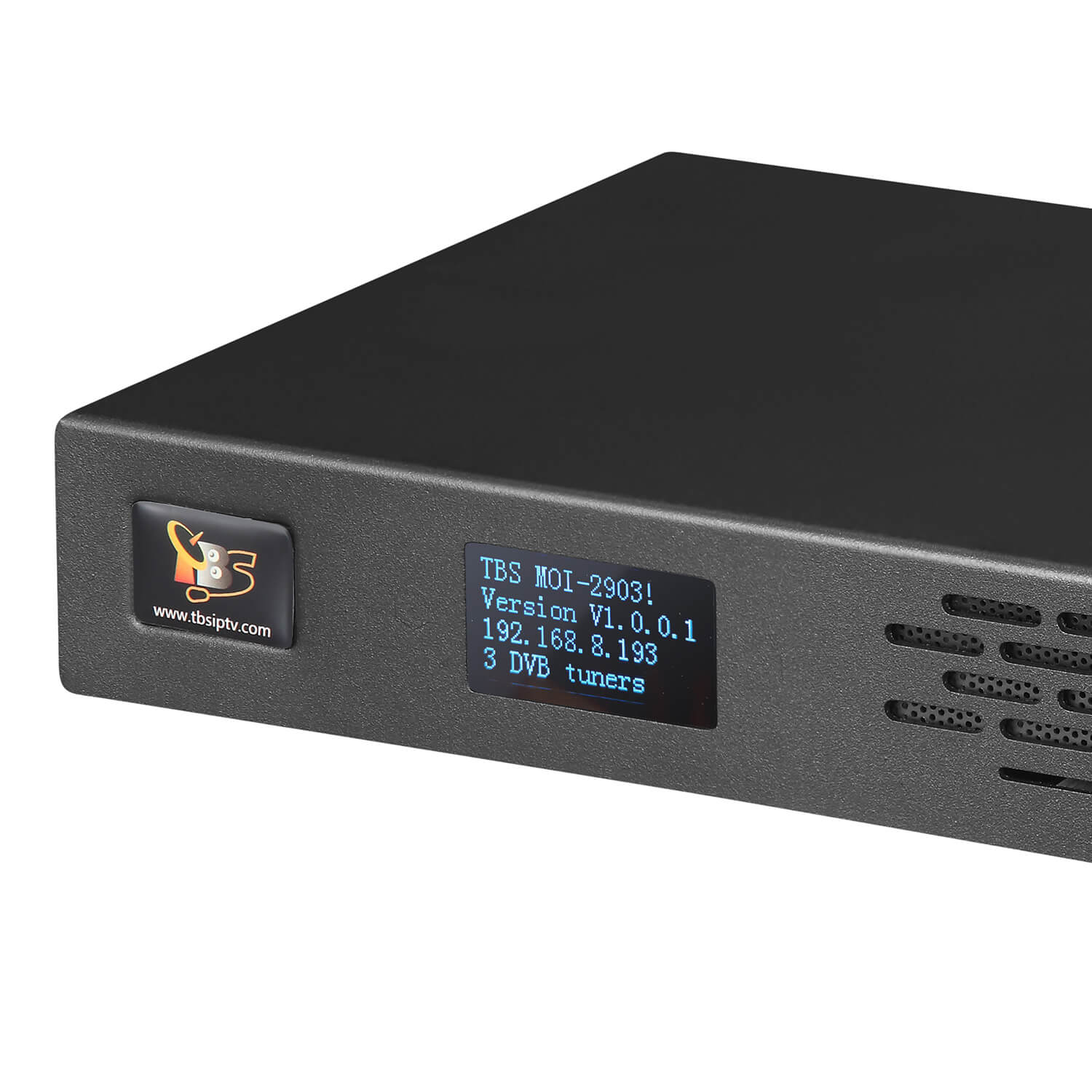

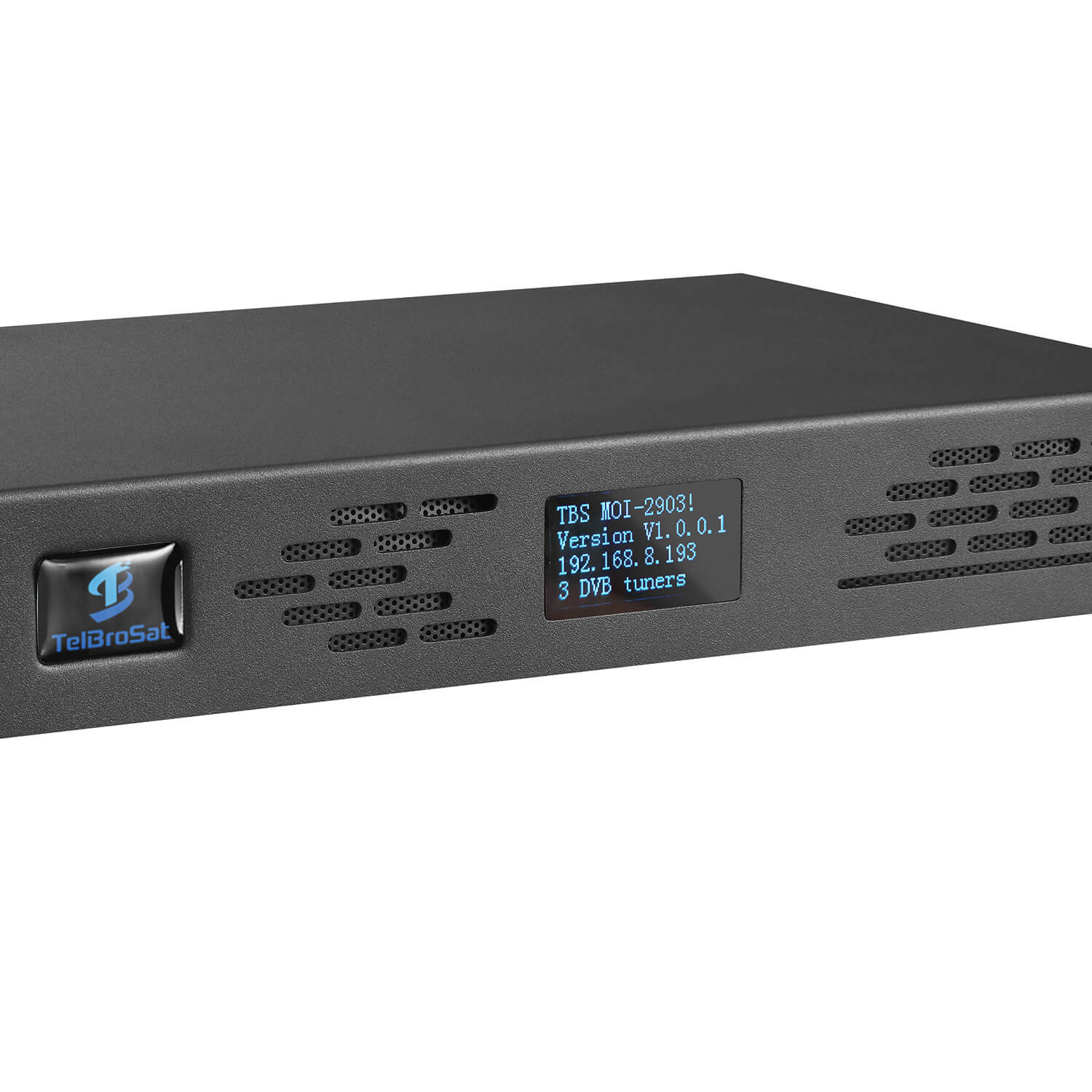

    UART 1 x LCD Display
    PSU 12V/3A external PSU
    CA slot Optional slot
    DVB-S/S2 inputs:
    Frequency range 950 ~ 2150 MHz
    Tuners 1/2 tuners for DVB-S/S2 input
    Frequency Bandwidth QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
    16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
    Symbol rate 1 ~ 45Msymb/s
    Signal Level: -75 ~ -10dB
    Video streaming:
    Free software Tvheadend, MuMuDVB, DVBlast, dvbdate, dvbscan, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba
    Protocol UDP, HTTP, SRT, HLS, etc.
    Common information:
    Working Environment
    • Operating temperature: 0 to 40 deg C
    • Storage temperature: –20 to 70 deg C
    • Relative Humidity: 5% to 90% non-condensing
    Dimensions(chassis) 220 * 140 * 34mm

    Basic streaming system and applications:
