: TBS3101 2 Crystal Phoenix/Smartmouse Card Reader

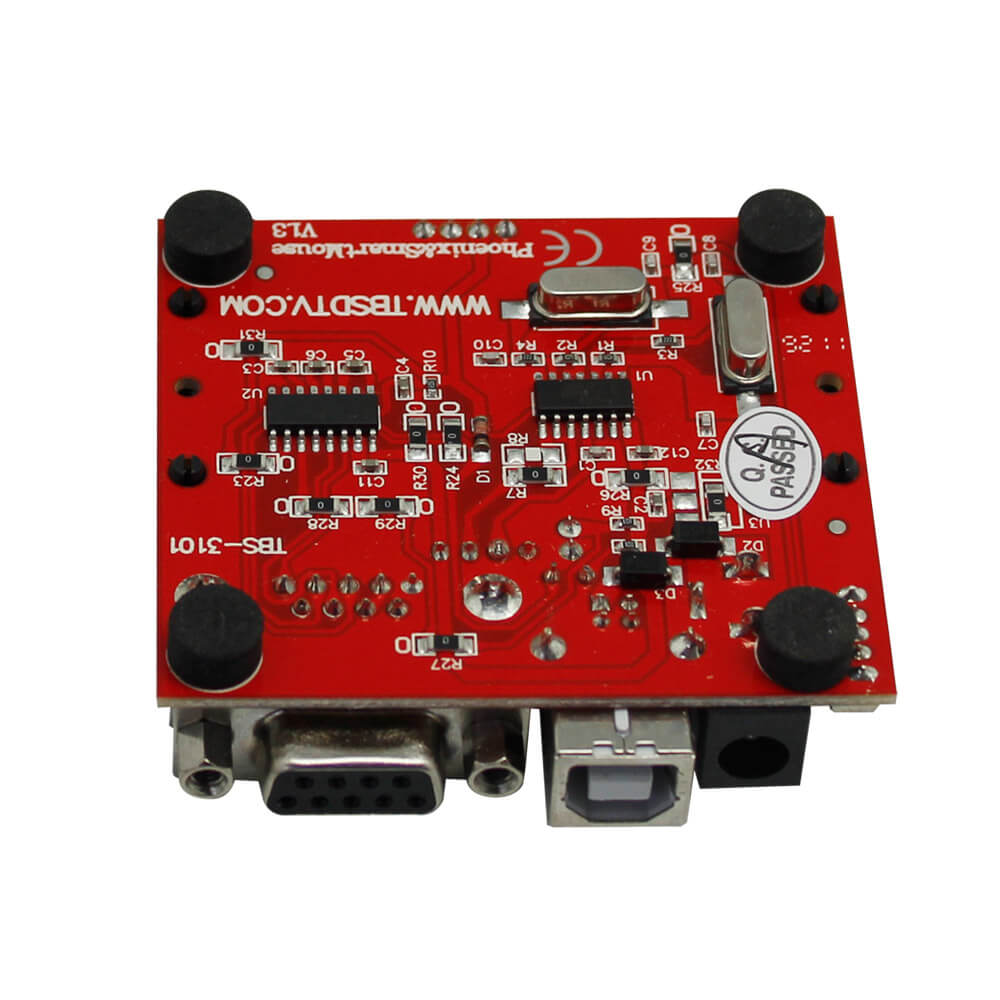

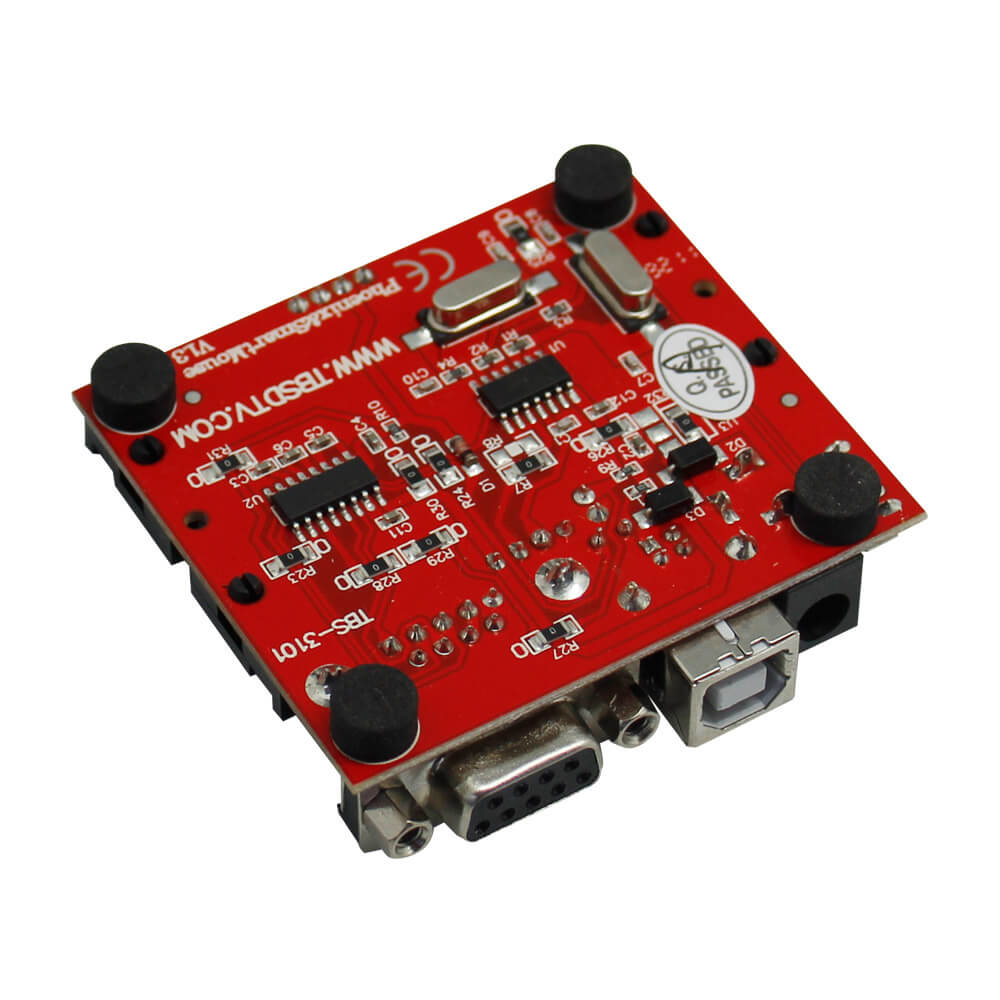

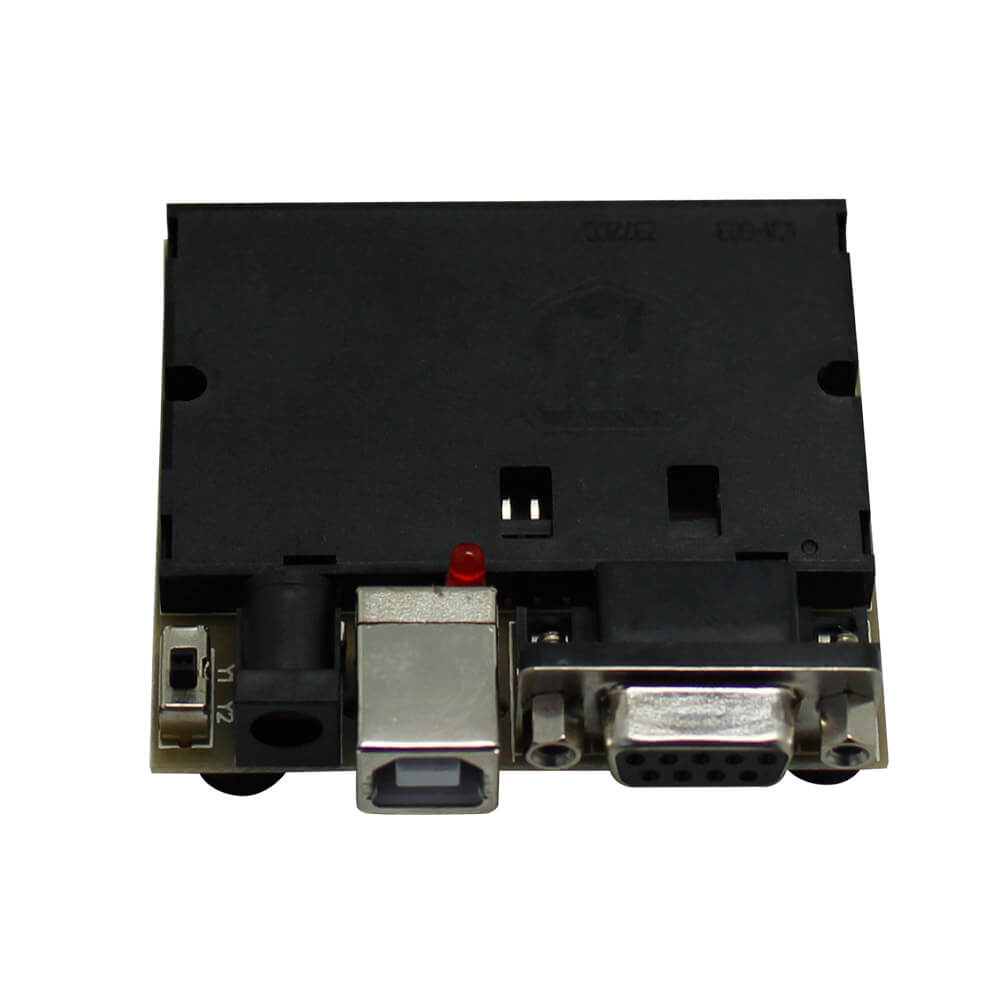

The TBS3101 smartcard reader supports both Phoenix and Smartmouse mode and it uses COM port for data communication. The power can be supplied from either USB connection or external DC 5V power adapter. The computer will look this card reader as COM interface device and no driver installation is necessary. TBS3101 supports two crystal frequencies.

Description
Specification
User Guide
Download

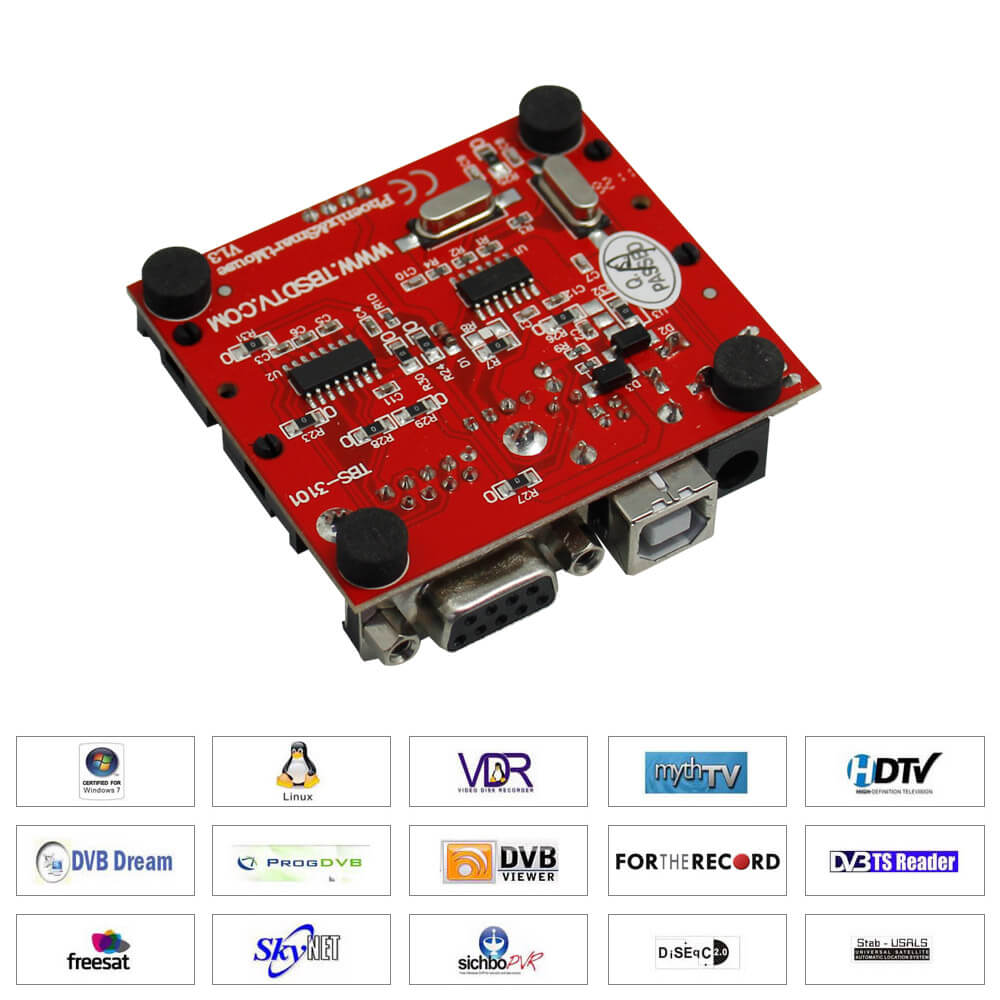

TBS3101 Two Crystal Phoenix Card Reader is a small device for reading most ISO7816 smartcard. It’s compatible with both Windows and Linux.

Specifications:
able connection: USB for power supply and RS232 for data communication
Prog. Mode: Phoenix and Smartmouse
Power Mode: DC 5V
Frequency:
Model A: 3.579MHz / 6MHz shiftable
Model B: 3.686MHz / 6MHz shiftable
Led light indicating data communication
Size: 60x60x15mm (Length x Width x Height

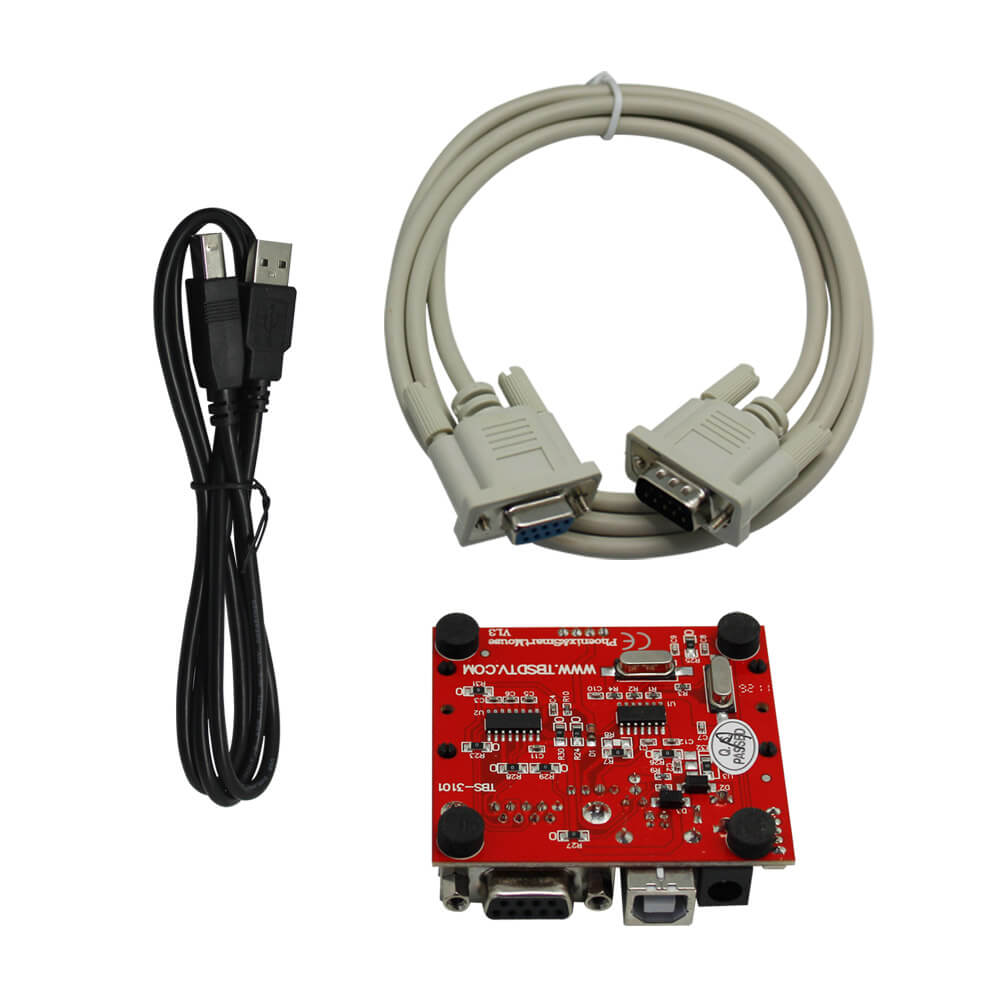

Package Content:
1 x TBS3101 Phoenix/Smartmouse Card Reader

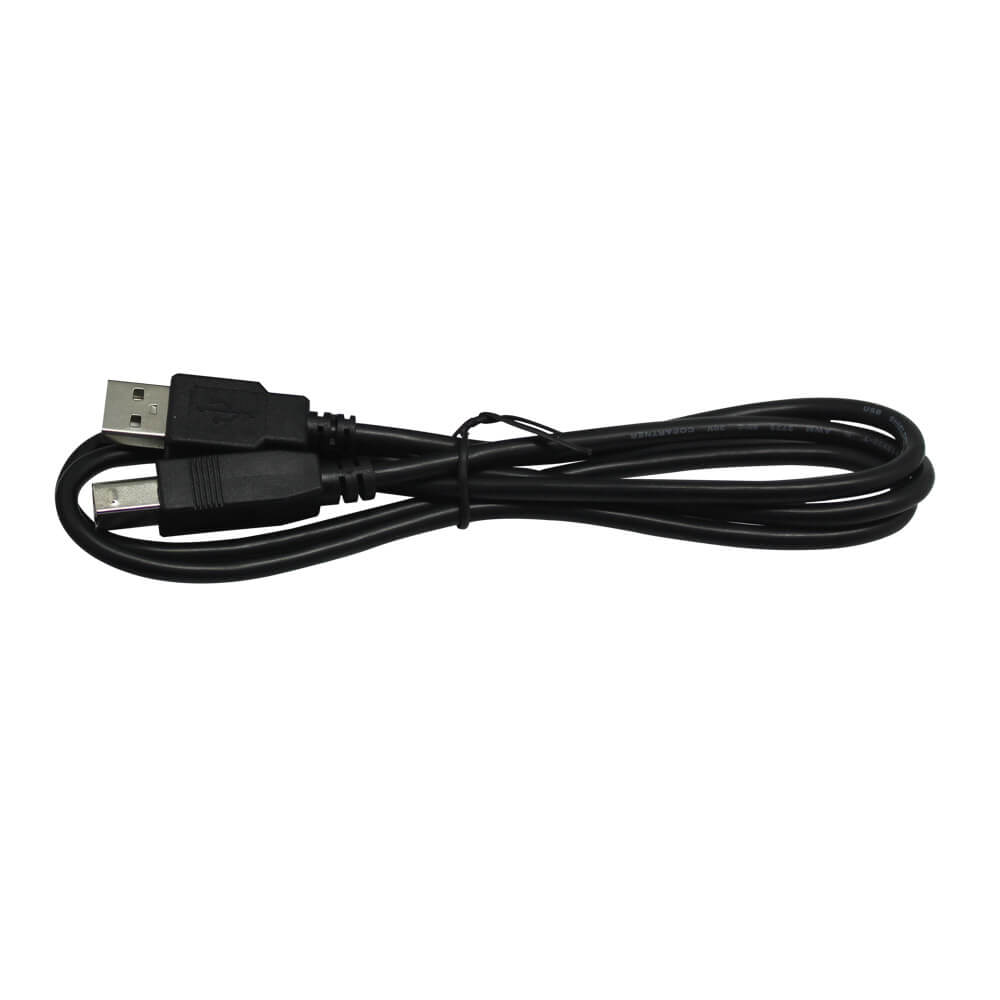

1 x USB Cable

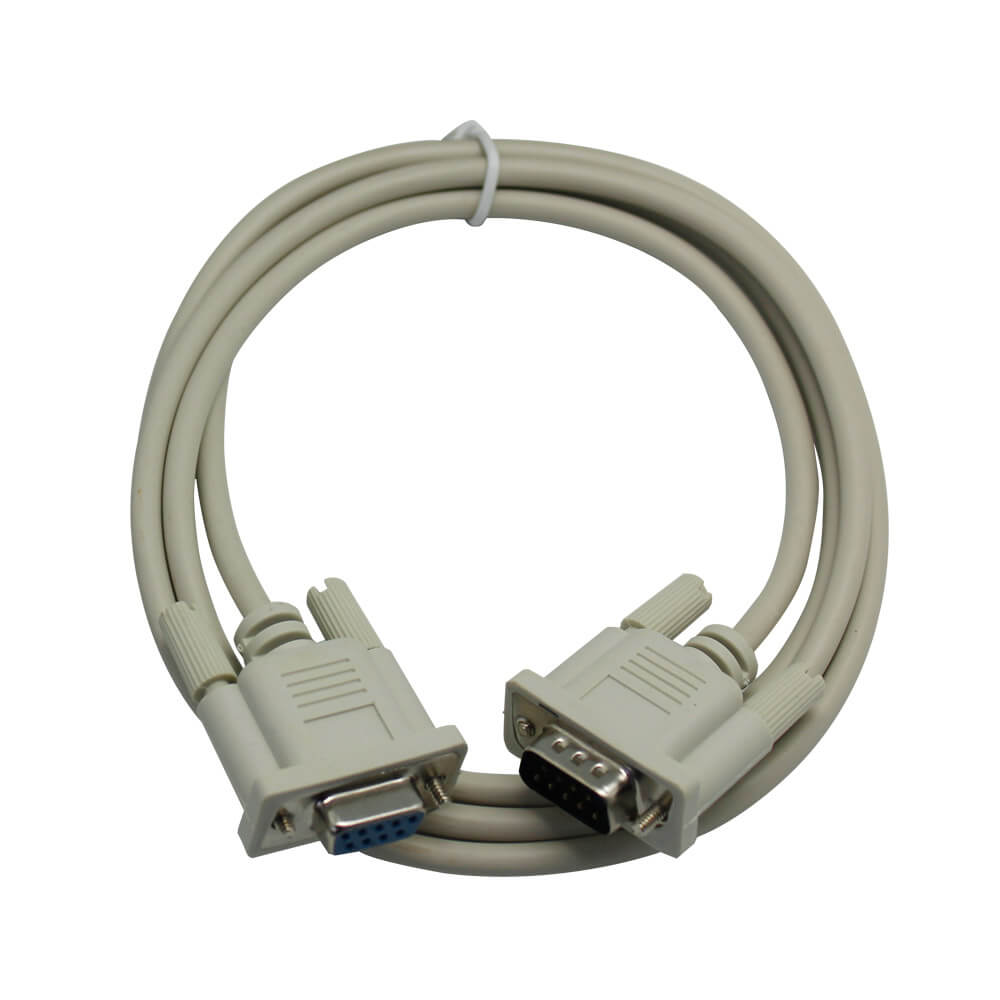

1 x RS232 Cable
Note: No Software CD provided since no driver installation is necessary. If any other frequency requirements,please contact us
