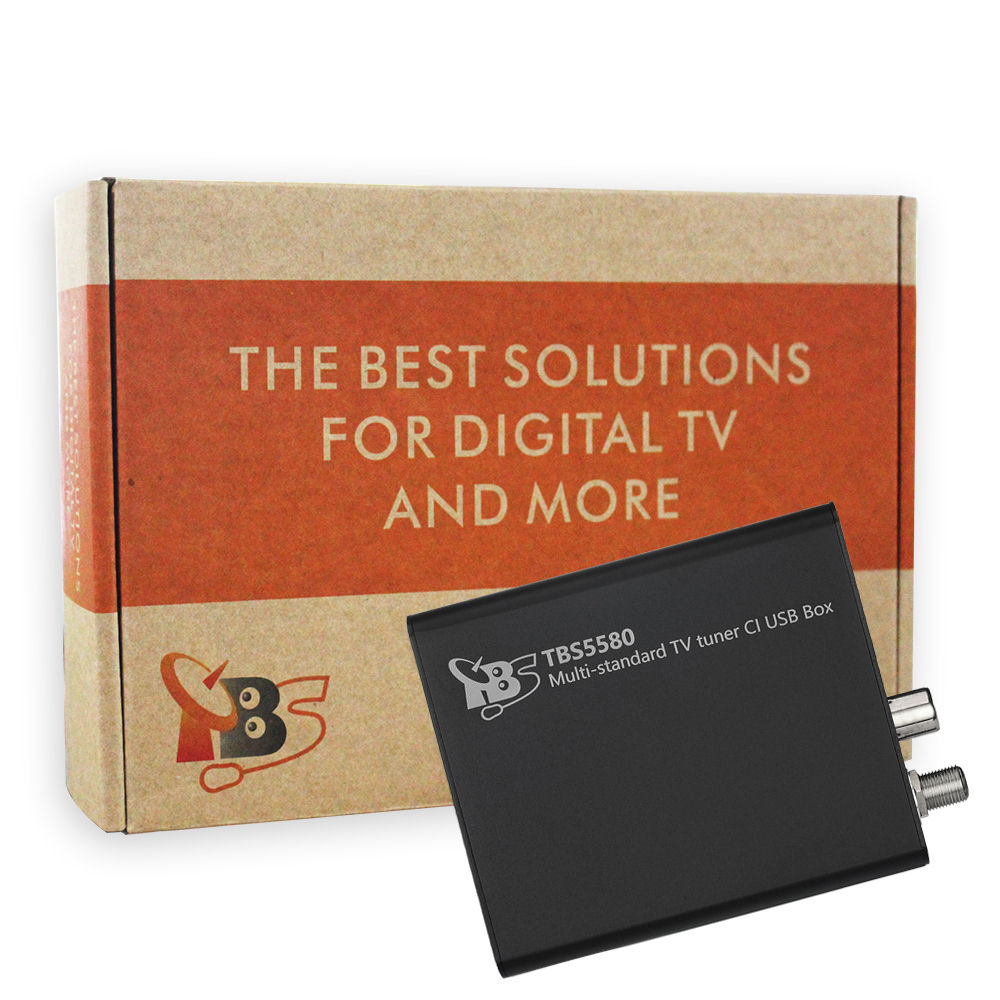

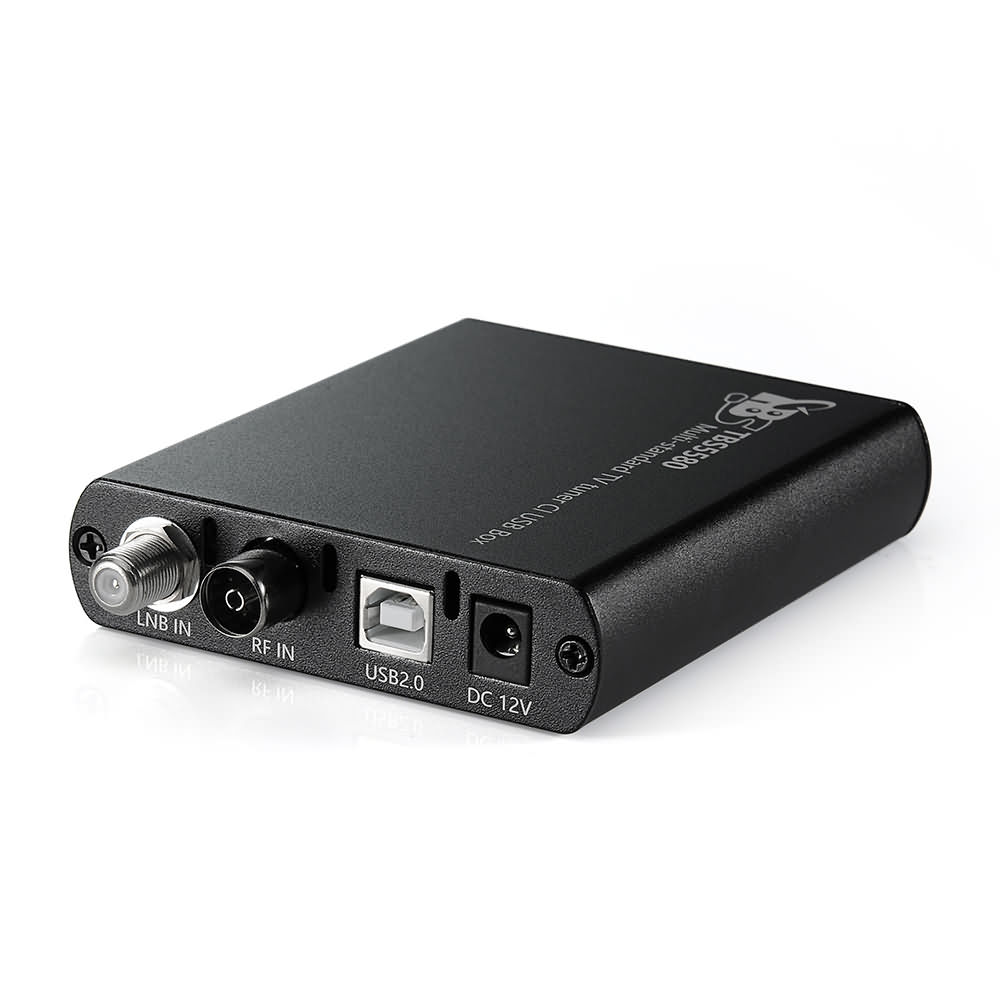

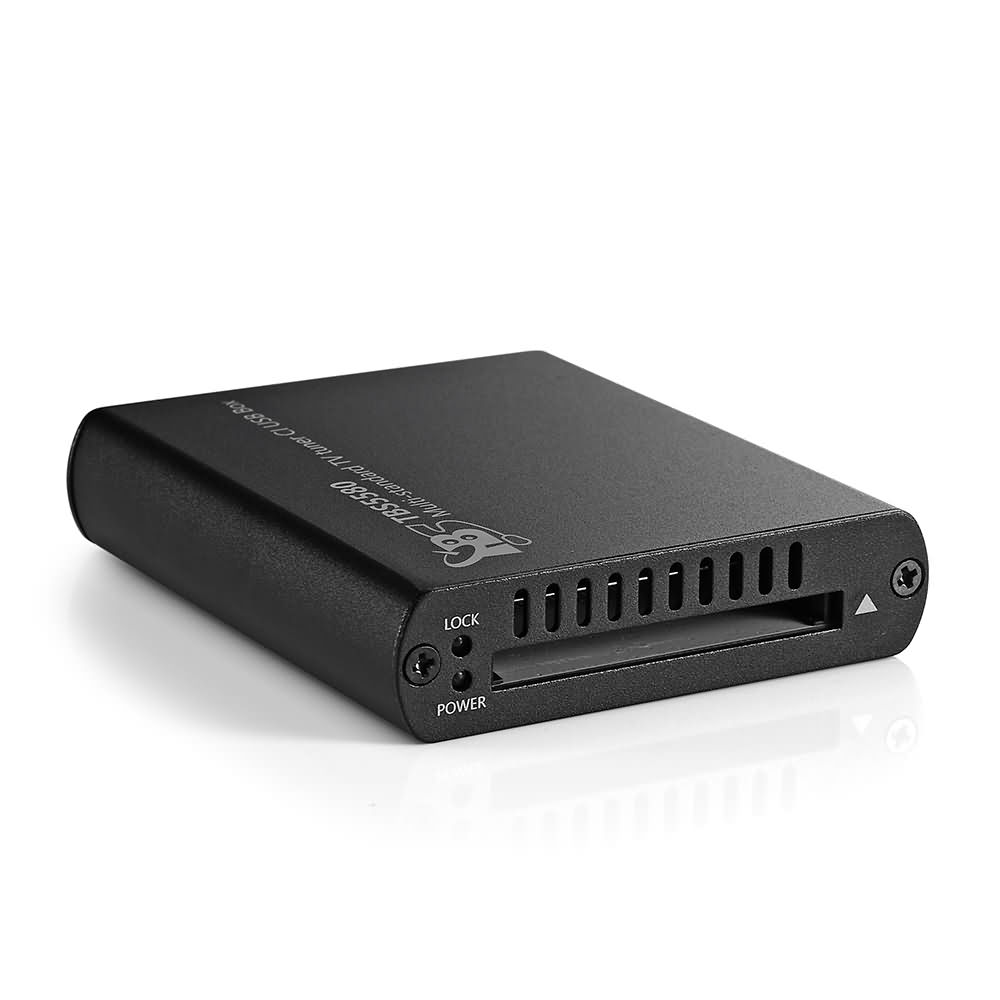

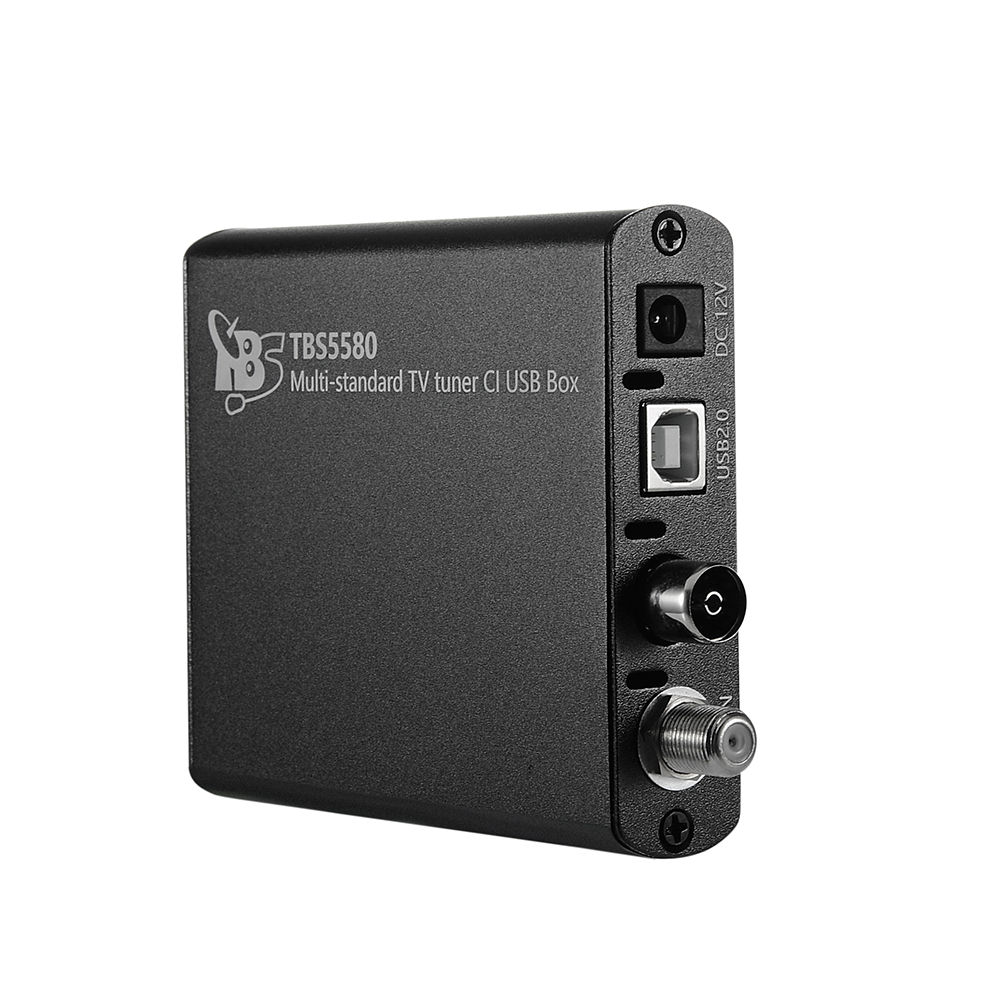

: TBS5580 Multi-standard Universal TV Tuner CI USB Box

TBS5580 is a multi-standard external TV tuner USB box with CI interface, it is supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T, DVB-C2/C, DVB-S2X and ISDB-T. It is built with Common Interface which allows insertion of CAM and smartcard for pay TV, so it is a good choice for watching/recording digital cable HD TV on PC. What's more, through the USB interface, you can easily plug the Universal TV Tuner to your desktop or laptop PC. With this multi-standard TV tuner card, a switchover between different digital TV signals is much easier, you just need to plug another signal cable instead of taking out the card from your server.

Description
Specification
User Guide
Download

TBS5580 is a multi-standard external TV tuner USB box with CI interface, it is supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T, DVB-C2/C, DVB-S2X and ISDB-T. It is built with Common Interface which allows insertion of CAM and smartcard for pay TV, so it is a good choice for watching/recording digital cable HD TV on PC. What's more, through the USB interface, you can easily plug the Universal TV Tuner to your desktop or laptop PC. With this multi-standard TV tuner card, a switchover between different digital TV signals is much easier, you just need to plug another signal cable instead of taking out the card from your server.

Main Features:

Multi-standard TV tuner box
Watch & record satellite TV/ radio programs on PC
Common Interface (Single CI) Support
SD or HD TV receiving
Unicable/one cable compatible

Applications:

Data receiving
IPTV streaming
Media monitoring
Digital content distribution

Specifications:

Ready to Buy?

Buy it now !

ISDB-T	COFDM demodulator and FEC decoding
	Support 3 layers decoding
	TMCC decoding
	Support differential demodulation
	AC1 and AC2 decoding
DVB-T2 and T2-Lite	Receiving channel: VHF band, UHF band
	Bandwidth: 1.7, 5, 6, 7, 8MHz
	FEC: QPSK, 16QAM, 64QAM,256QAM
	FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
	Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C2	COFDM demodulator(16_QAM to 4096_QAM)
	FEC(LDPC/BCH) decoder
	Bandwidth: 6MHz, 7MHz, 8MHz
DVB-C and ITU-T J.83 Annex B	QAM demodulator
	FEC decoder
	1 to 7.2MSymbol/s
DVB-S/S2/S2X	symbol rates: 1-45Msps
DVB-S/S2/S2X	FEC: DVB-S/S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2X QPSK: 13/45, 9/20, 11/20 2_4_2_APSK: 100/180, 104/180 8PSK: 23/36, 25/36, 13/18 8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30 16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180 4_12_16rb_APSK: 2/3 4_8_4_16_APSK: 128/180, 132/180, 140/180
Power consumption
Input/ Power:	12V/12W
temperature	0~60℃

System Requirements	Windows XP / Vista/ 7/8/10, Linux
	Available USB 2.0 slot
	Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)
Dimension:
TV tuner box size	1716.59cm
Net weight	540g
Gift Box Size	181810cm
Weight	580g
Package Contents	1 x TBS5580
	1 x USB cable
	1 x F-IEC
