TBS5590 Multi-standard Real-time Analysis & Monitoring Probe

All Categories

: TBS5590 Multi-standard Real-time Analysis & Monitoring Probe

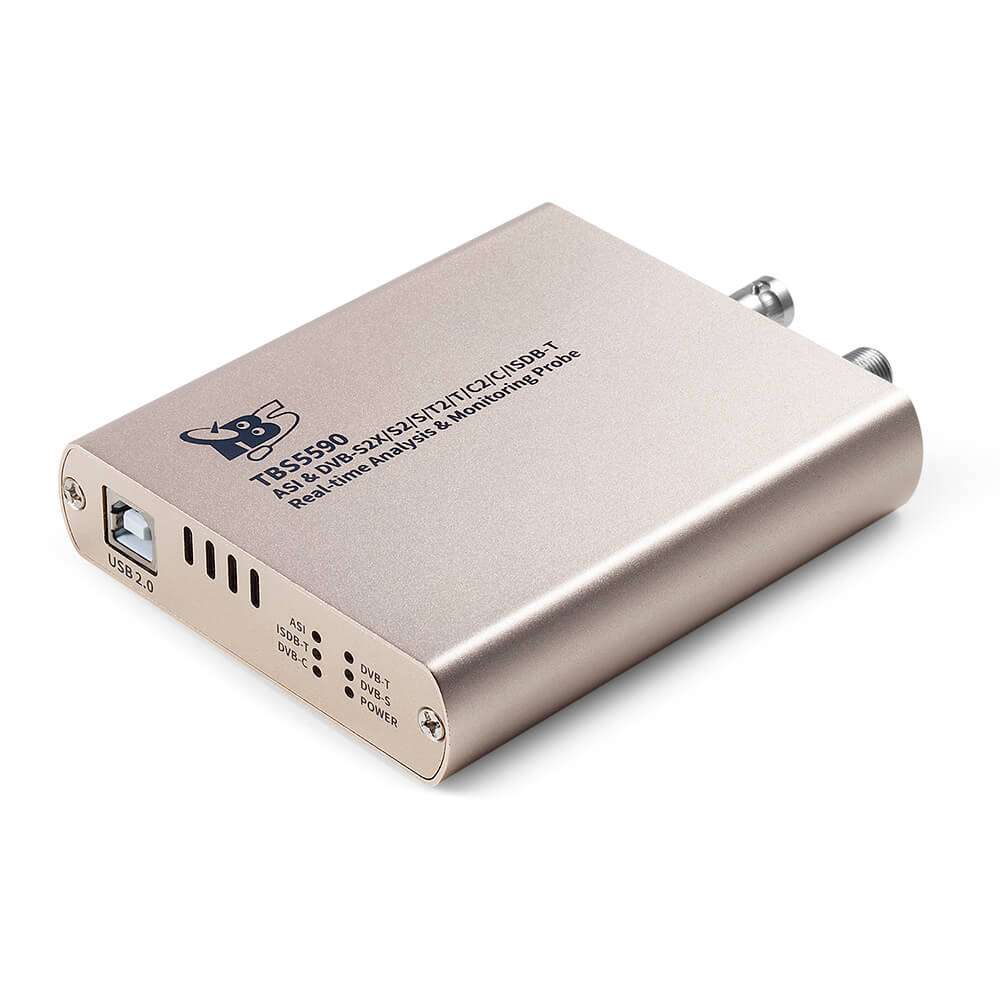

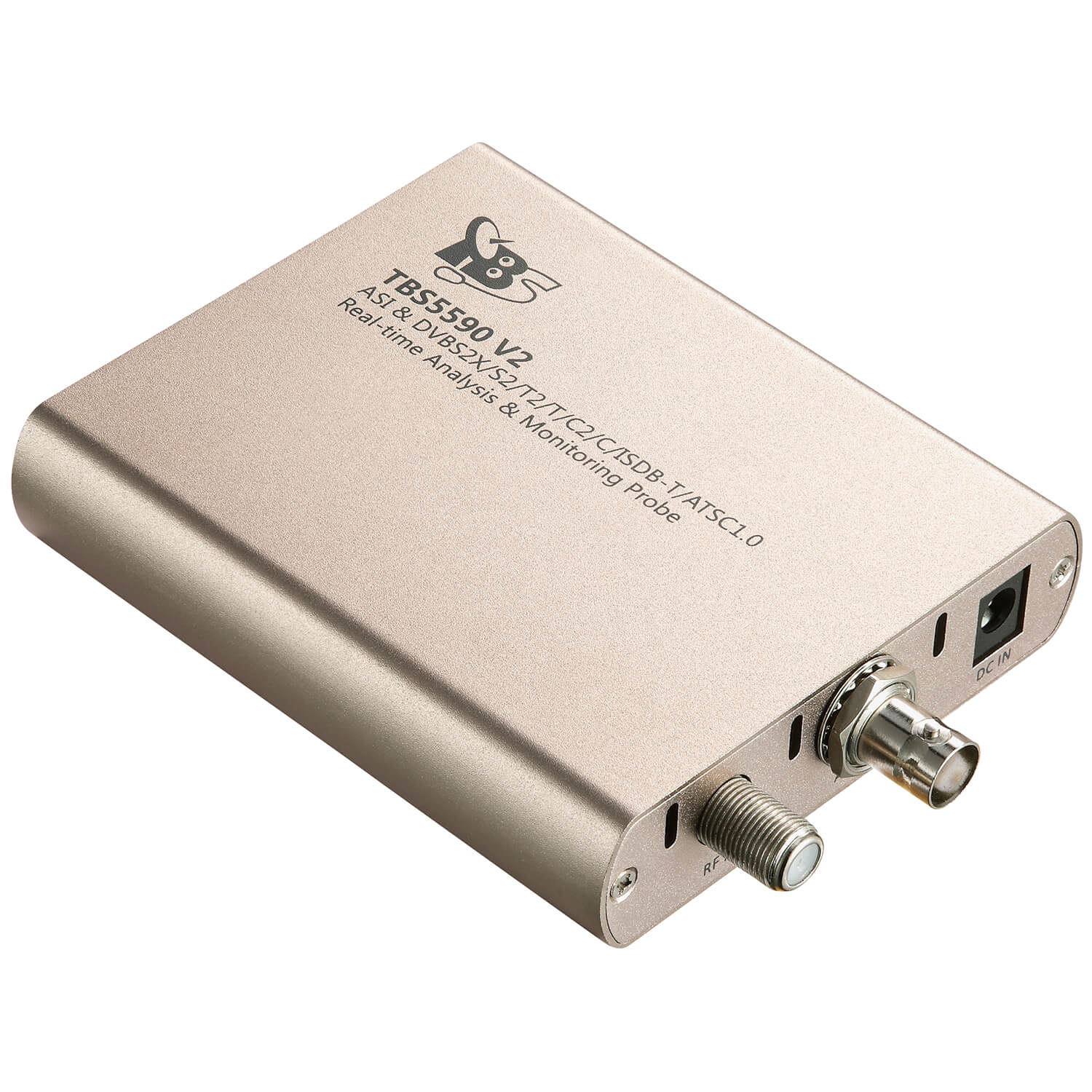

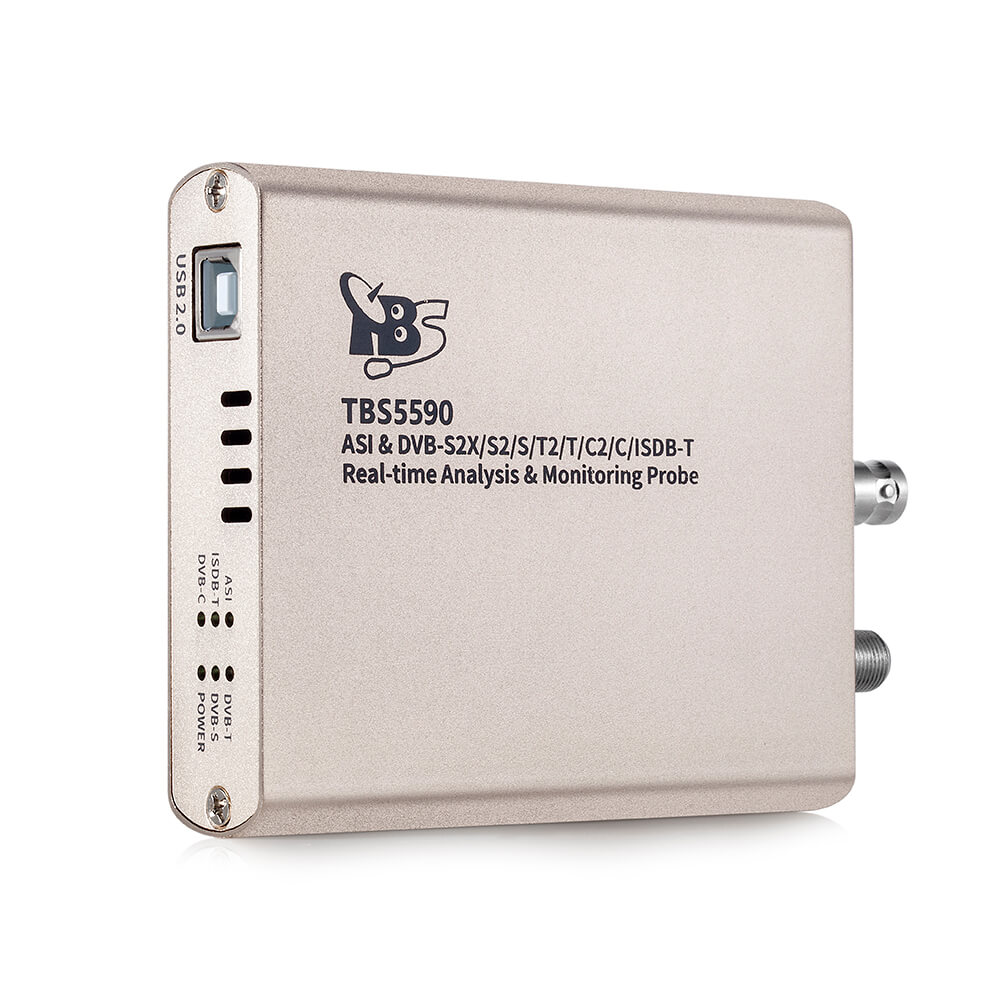

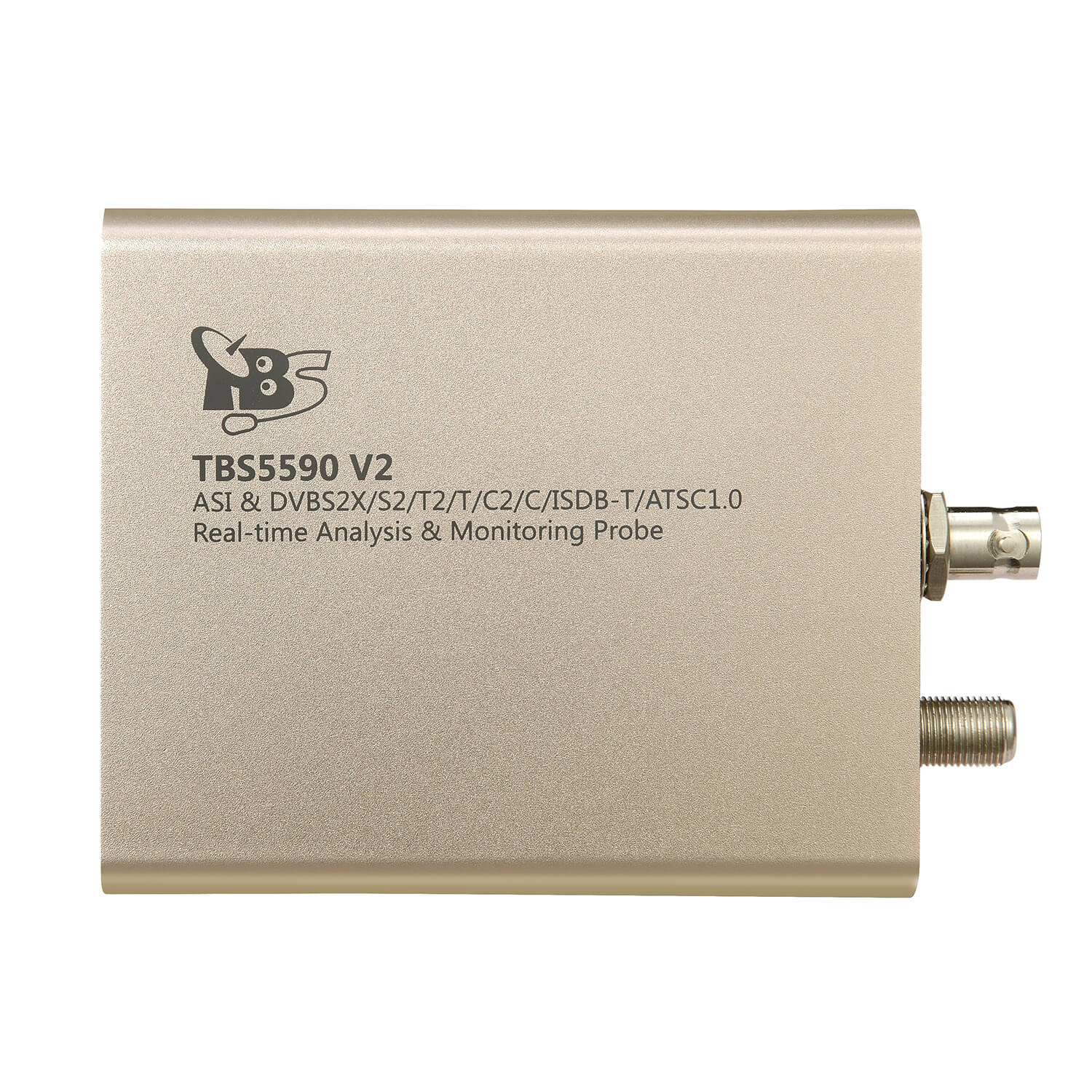

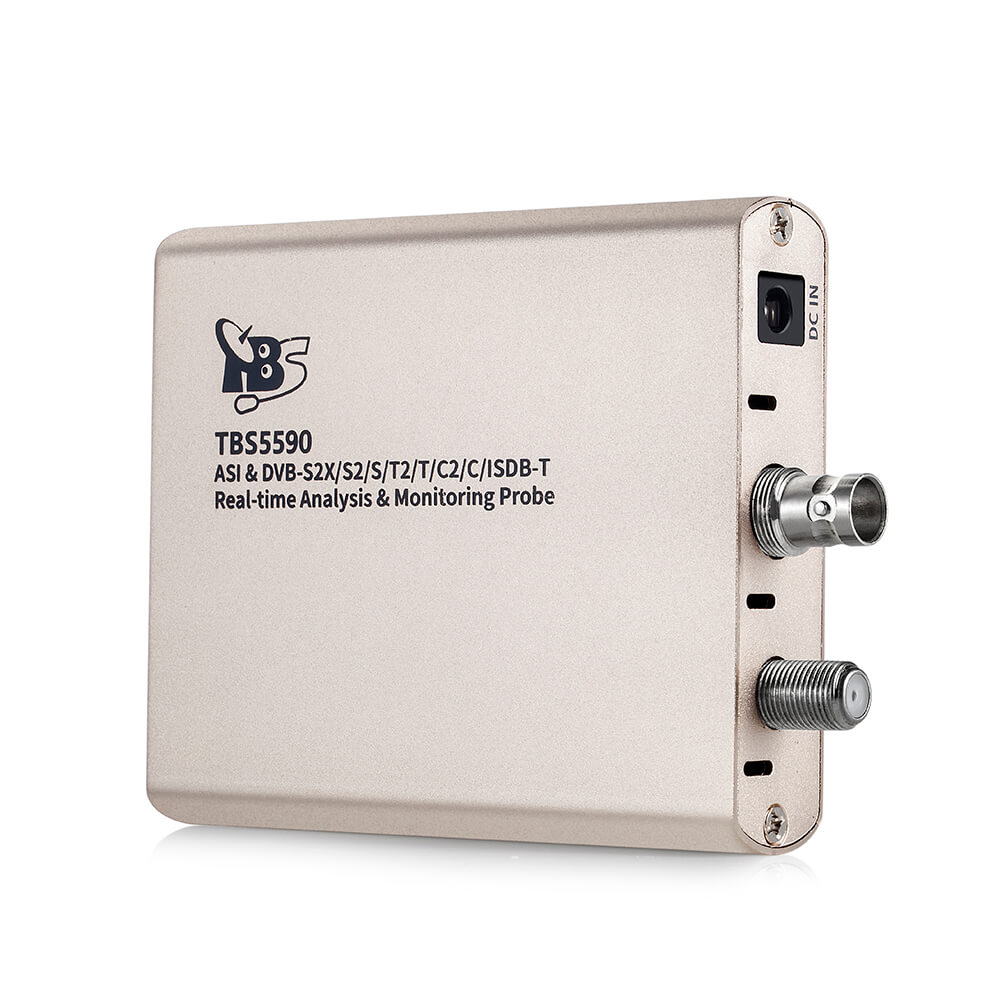

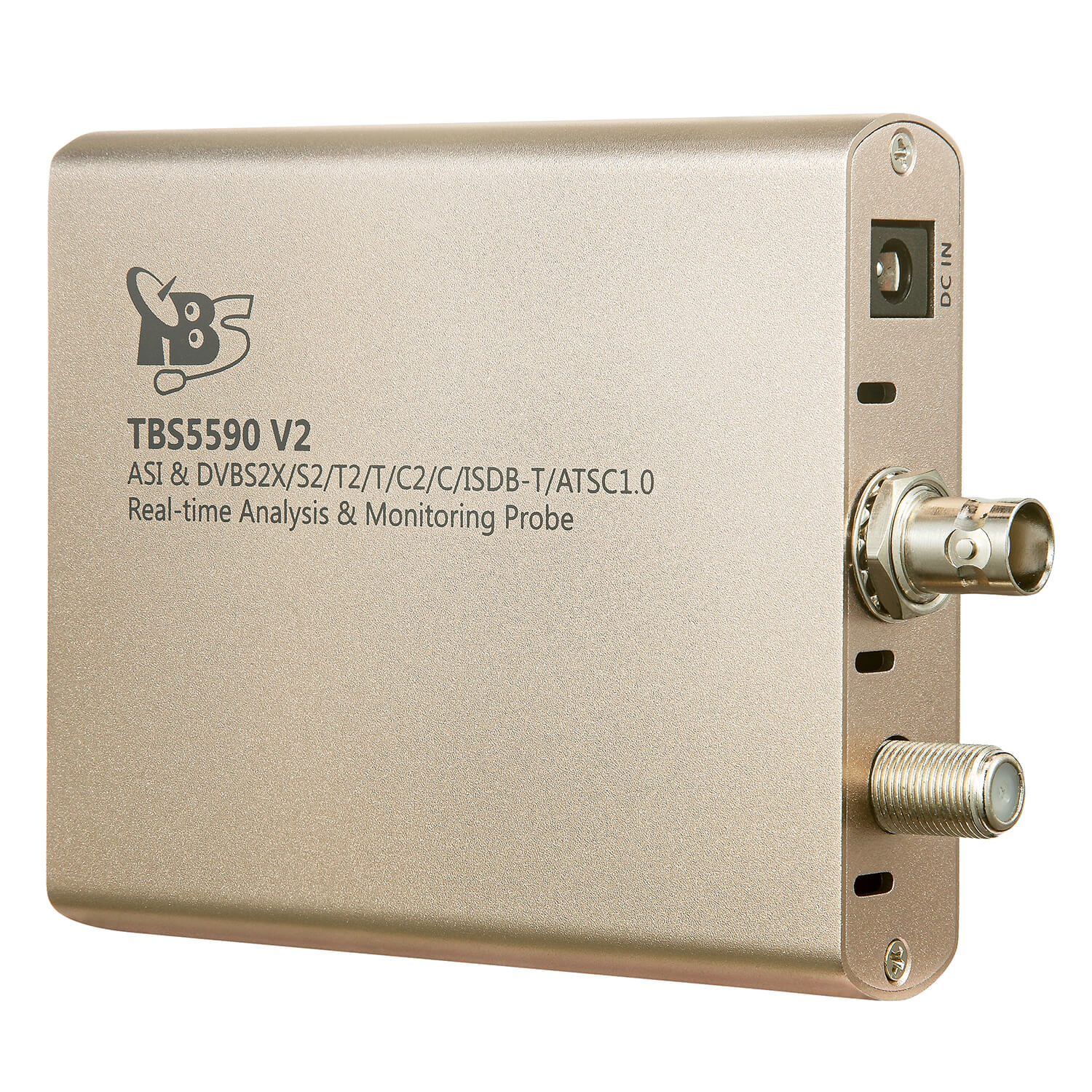

TBS5590 is a DVB multi-standard external TV tuner box with USB2.0 interface. It is capable of receiving digital TV channels of multiple standards: DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T. Through the USB interface, you can easily plug the TBS5590 Universal TV Tuner box to your desktop or laptop PC for watching or recording different standards digital TV channels.

Description
Specification
User Guide

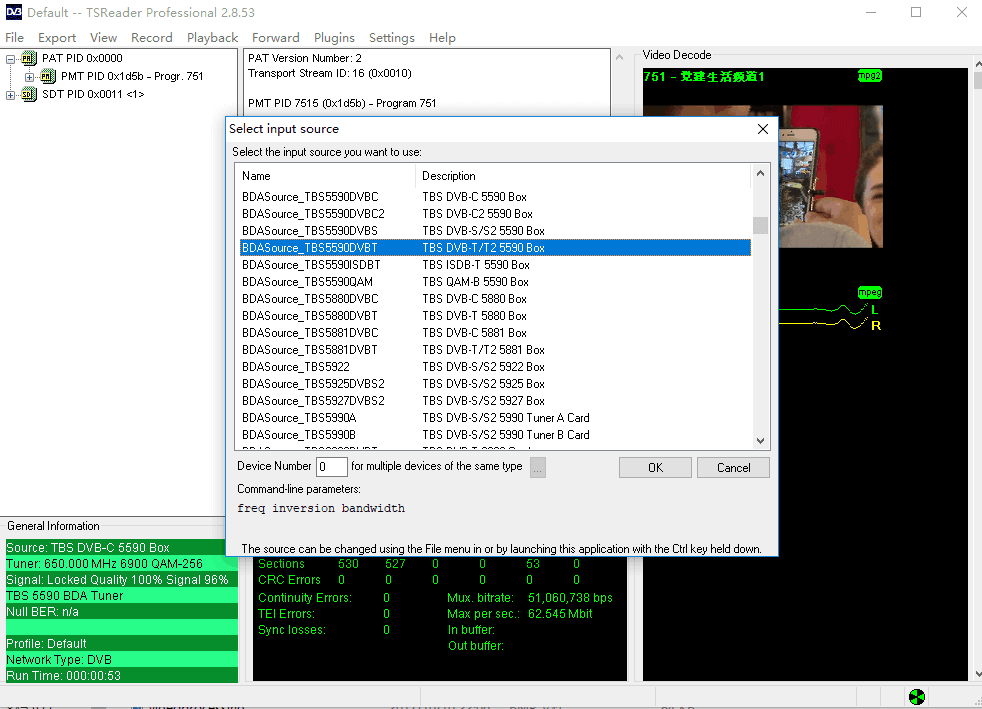

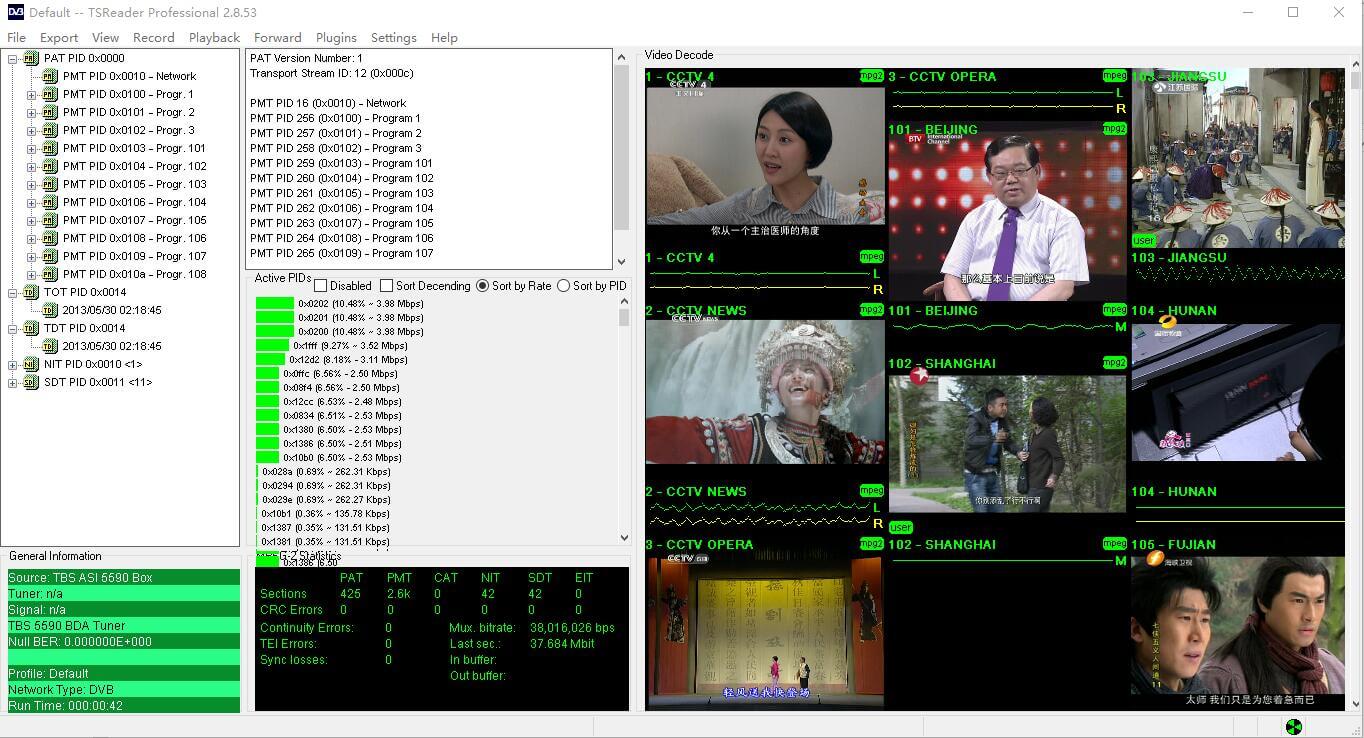

Coupled with TSReader software, TBS5590 is an ideal tool to do Real-time analysis, monitoring and recording of MPEG Transport Streams. TBS5590 is supported in TSReader 2.8.53 and later version, which includes source modules for each mode and will automatically reprogram the demodulator when changing modes.

Features:

DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T, Multi-standard digital TV supported.
Universal USB TV tuner Box for watching or recording live TV channels.
Support Real-time TV stream Analysis & Monitoring
Support Bitrate measurement
Support elementary stream information analyzing.

Specification:

Digital TV Standards:

ISDBT

COFDM demodulator and FEC decoding

Support 3 layers decoding

TMCC decoding

Support differential demodulation

AC1 and AC2 decoding

DVBT2 and T2-Lite

Receiving channel: VHF band, UHF band

Bandwidth: 1.7, 5, 6, 7, 8MHz

FEC: QPSK, 16QAM, 64QAM.256QAM

FFT mode: 1K, 2K, 4K, 8K, 16K, 32K

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

DVBC2

COFDM Demodulator(16_QAM to 4096_QAM)

FEC(LDPC/BCH) decoder

Bandwidth: 6MHz, 7MHz, 8MHz

DVBC and ITU-T j.83ANNEX B

QAM demodulator

FEC decoder

1 to 7.2MSymbol/s

DVB-S/DVBS2/DVBS2X

Symbol rates: 1-45Msps

FEC:

DVB-S/S2

QPSK:	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK:	3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK:	2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK:	3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2x

QPSK:	13/45, 9/20, 11/20
2_4_2_APSK:	100/180, 104/180
8PSK:	23/36, 25/36, 13/188_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK:	26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK:	2/3
4_8_4_16_APSK:	128/180, 132/180, 140/180
