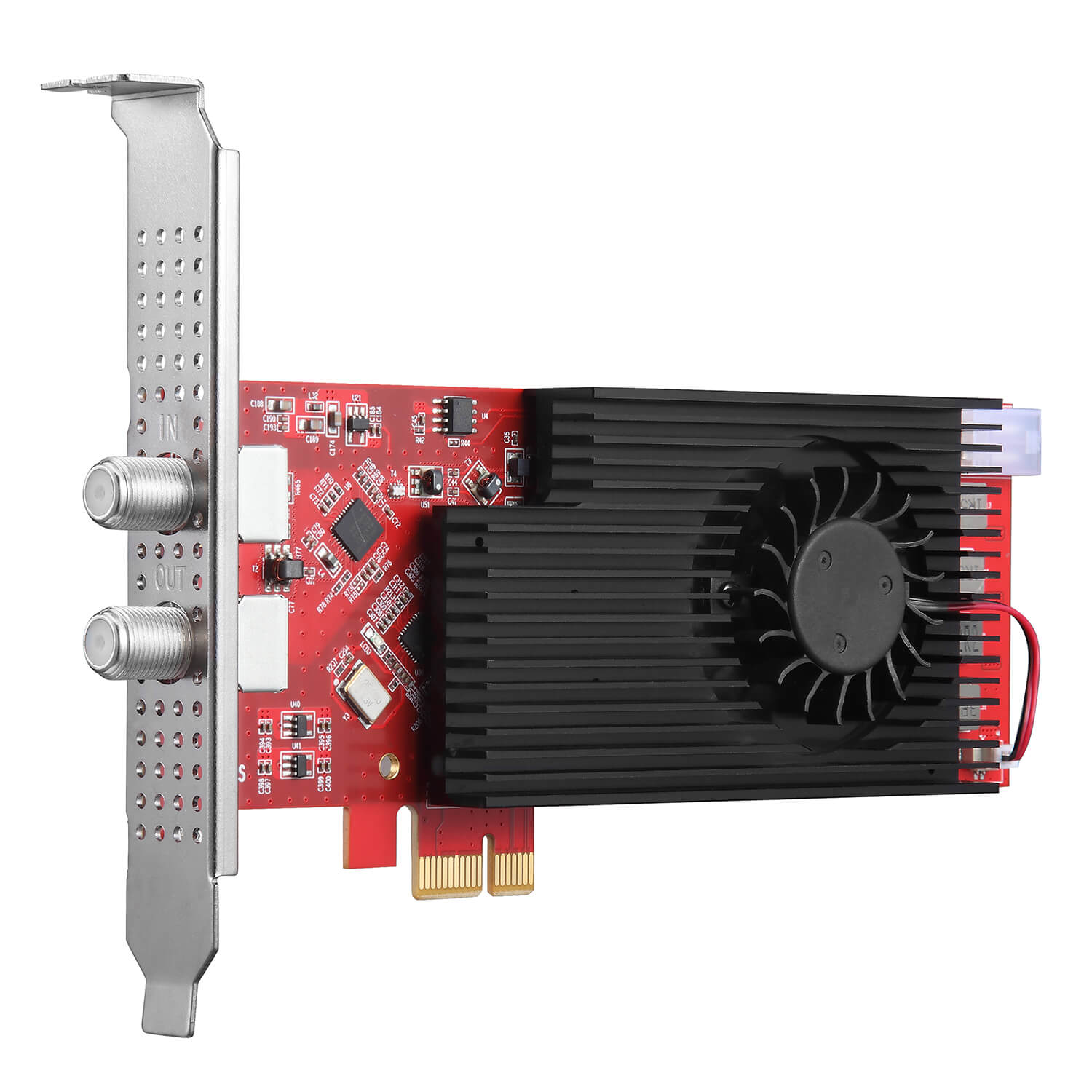

TBS6032 16 QAM DVB-C modulator card adopts advanced modulation technology and works as a DVB-C signal generator. It supports to be fed with any DVB resources, network IP streams or other digital resources, and then output DVB-C channels in 16 frequencies. For example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and then use TBS6032 modulator card to convert these channels into DVB-C coaxial system.

TBS6032 supports 16 frequencies DVB-C transmission, which enabling efficient use of the available bandwidth. It provides a very cost-effective solution to transfer digital resources such as DVB-S2/S, DVB-T2/T, ISDB-T, ATSC or even IPTV resources into an existing cable TV system in hotels, hospitals or dormitories etc.

Key Features

• DVB-C signal generator
• 16x DVB-C QAM RF output
• PCIe interface for easily integrated into PC/ server system
• Compatible with Kylone software

Benefits

• Compatible with various DVB signal sources: TBS6032 supports to transfer DVB-S/S2/S2X, DVB-T2/T, ISDB-T, ATSC, network IP streams etc. digital resources to DVB-C signal.
• High-quality signal Output: TBS6032 generates a stable and high-quality DVB-C modulated signal，ensuring clear and distortion-free reception of digital TV channels.
• Wide Frequency Range: It can operate over a wide frequency range, allowing for flexibility in channel allocation and customization.
• Easy to install and use: With a simple design, it is easy to install. Users can easily integrate it into the existing cable TV system.
• WEB UI Configuration and Management: Intuitive Kylone Web UI let you easy to configure and manage TBS6032 for efficient digital TV broadcasting service.

Applications

TBS6032 modulator card is ideal for various applications such as:

• Cable Television Operators: Used by cable TV providers to transmit digital TV channels to subscribers.
• Hotels and Hospitality Industry: Enables the provision of digital TV services in hotels, resorts and other hospitality establishments.
• Educational Institutions: Can be used in schools and universities to distribute educational programming.
• Corporate and Industrial Settings: For internal communication and training purposes in corporate and industrial environments .
• Home HDTV broadcasting system: Provides seamless integration into cable TV systems.

How does TBS6032 work with Kylone software?

1. Configure input source

Navigate to "Live Streams" =>"Modulators" page and setup TBS6032 modulator parameters.

2. Remux and generate the channels into DVB-C streams

Navigate to "Live Streams" => TS Submission "Multiplexers" page. Click "Multiplexers" and "New Record" to create a new MPTS stream and then configure remux DVB-C outputs.

3. Click "Commit" to activate DVB-C outputs. After a while it will display modulator status
