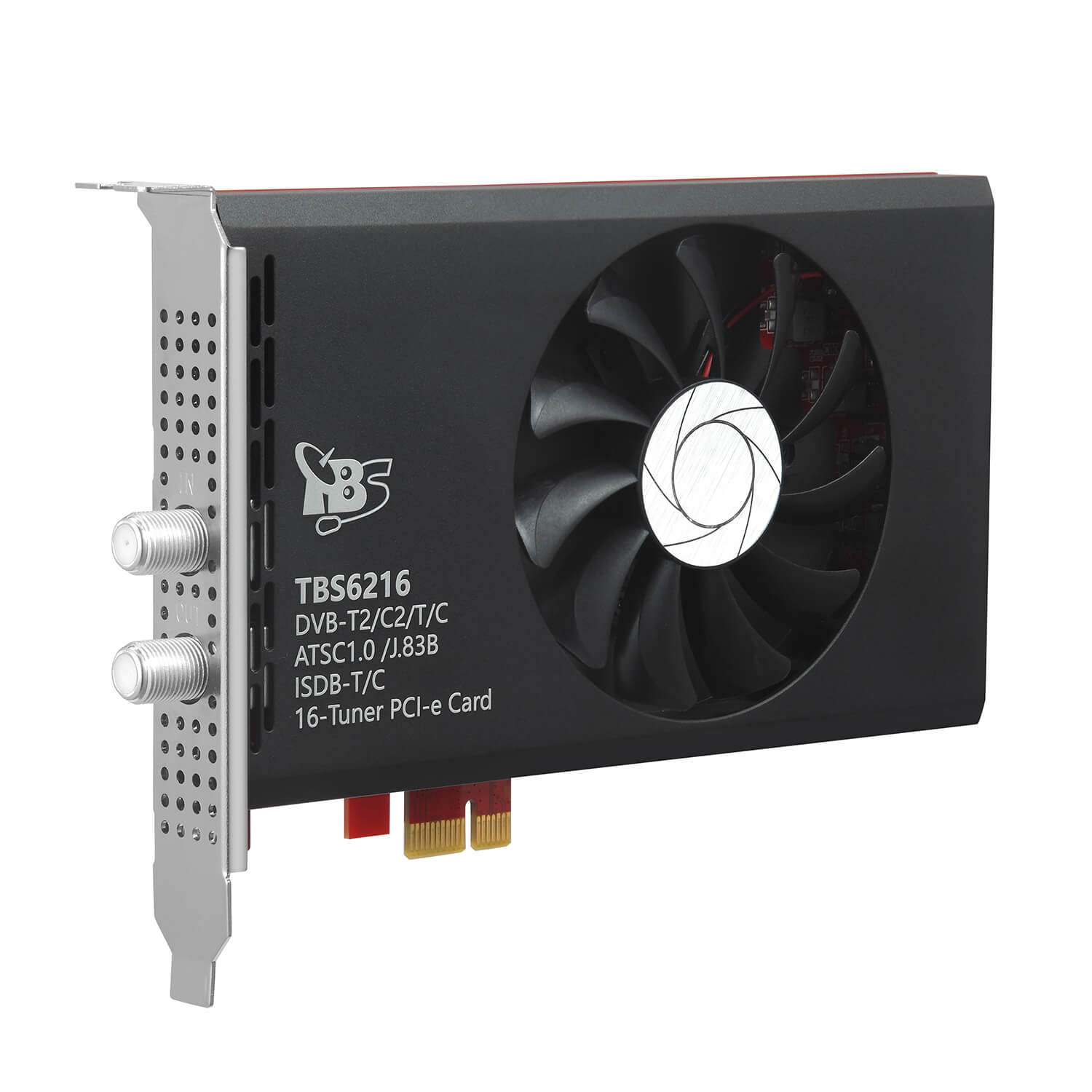

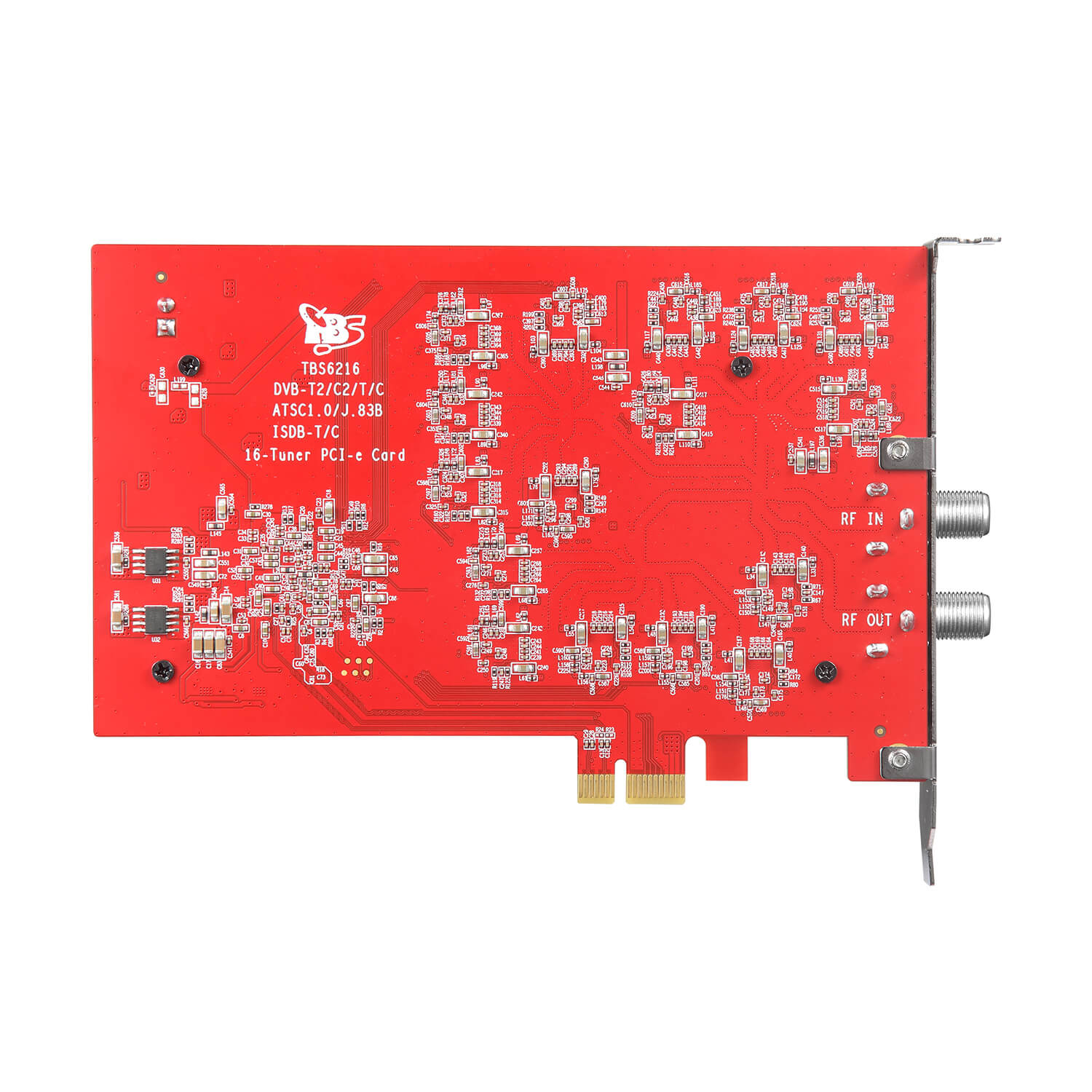

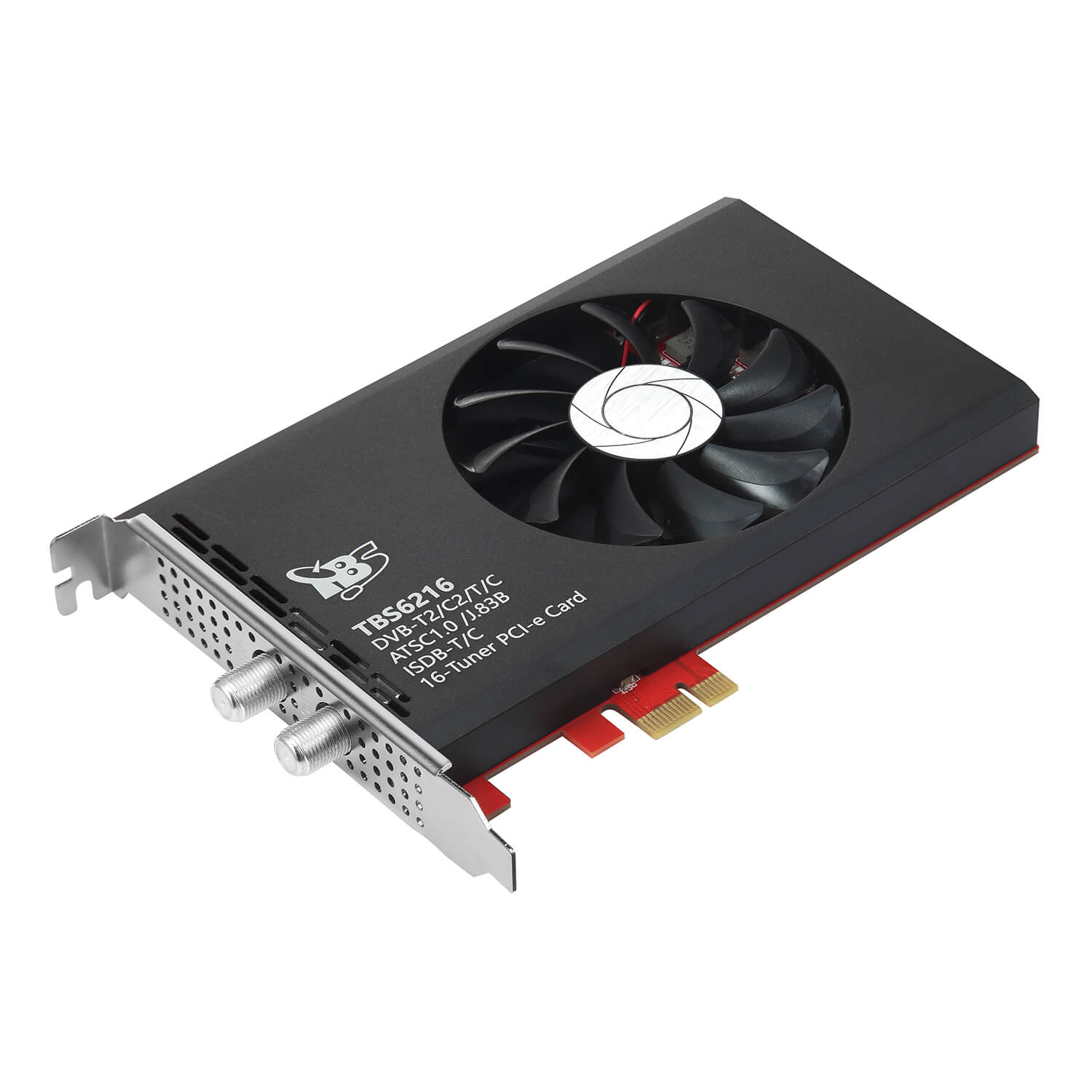

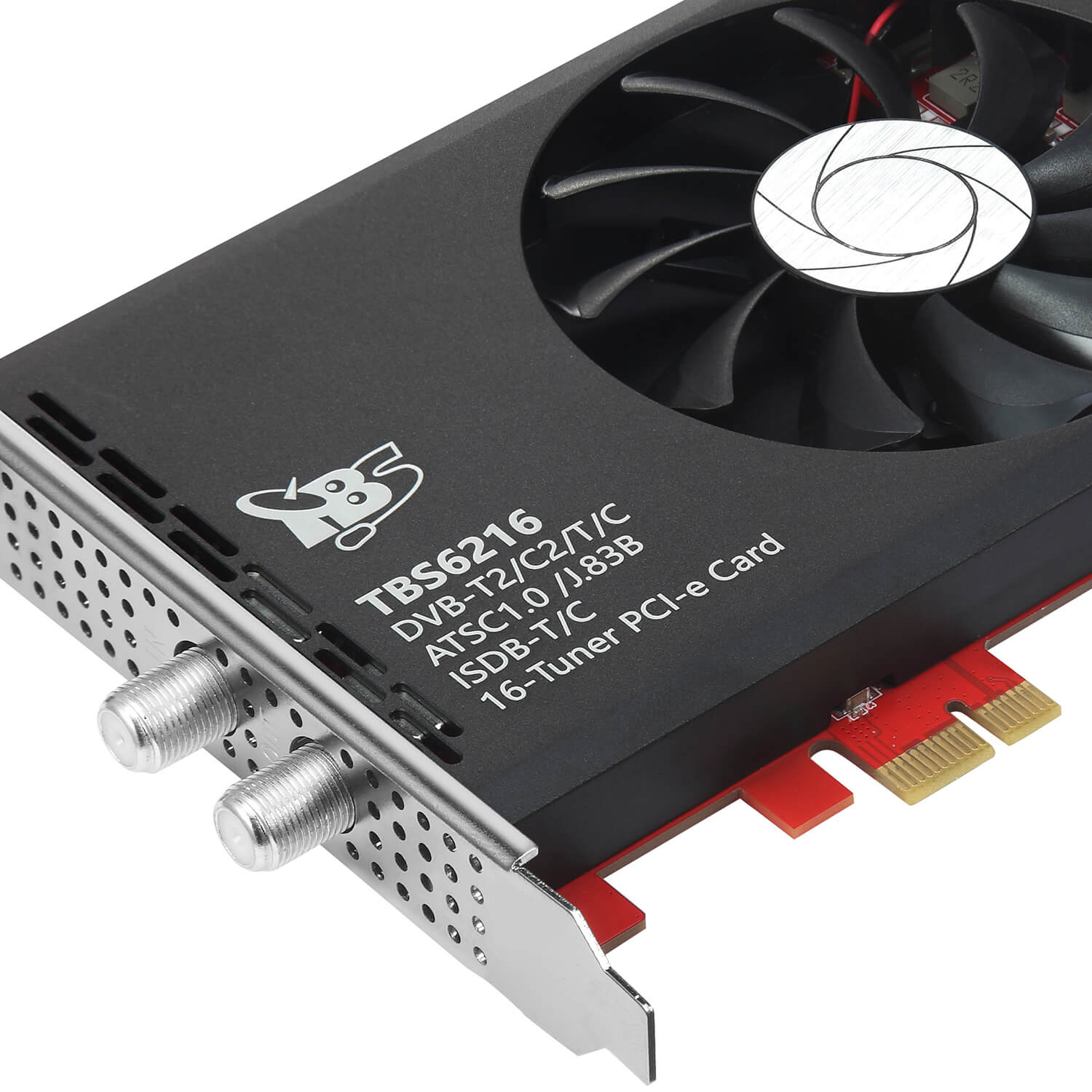

TBS6216 is a 16-tuner TV card with a PCI-Express interface that supports a comprehensive range of broadcast standards, including DVB-T2/T, DVB-C2/C (J.83A/B/C), ISDB-T/C, and ATSC 1.0. It can lock up to 16 frequencies simultaneously, allowing you to watch all the programs on these frequencies or record them using the digital video recorder(DVR) function.
Designed specifically for industrial-level users, the TBS6216 16-tuner card delivers significantly higher channel reception capacity compared to typical dual or quad tuner cards when server PCIe slots are limited, making it an ideal choice for broadcasting systems.
Features:
Applications
Specification
| Model NO. | TBS6216 |
| Product Name | TBS6216 DVB-T2/C2/T/C(J.83A/B/C)/ATSC 1.0/ISDB-T/C 16-Tuner PCIe Card |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | |
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | |
| 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals | |
| 16, 32, 64, 128 and 256QAM modulations | |
| Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 | |
| DVB-T | 6, 7 and 8MHz channel bandwidths |
| 2 and 8K FFT | |
| QPSK, 16 and 64QAM | |
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | |
| DVB-C2 | 6 and 8MHz channel bandwidths |
| 1/64 and 1/128 guard intervals | |
| 16, 64, 256, 1024, 4096 QAM | |
| 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates | |
| DVB-C | 1.7 to 7.2 Msym/s |
| 16, 32, 64, 128 and 256QAM | |
| 0.15 roll-off factor | |
| ISDB-T | 6, 7 and 8MHz bandwidth |
| 2, 4 and 8K FFT | |
| 1/32, 1/16, 1/8 and 1/4 guard intervals | |
| QPSK, 16QAM and 64QAM | |
| ISDB-C | 5.274 Msym/s |
| <0.13 roll-off factor | |
| 64 and 256QAM | |
| TSMF (Transport Streams Multiplexing Frame) | |
| J.83B (ITU-T J.83 v3.0 Annex B) | 5.056941, 5.360537, 5.6 Msym/s |
| 0.18 and 0.12 roll-off factor | |
| 64 and 256QAM | |
| ATSC1.0 | 6MHz channel bandwidths |
| 8VSB modulation | |
| 2/3 code rate | |
| Power Consumption | |
| Input/Power: | 12V/14W |
| Temperature | 0~60℃ |
| System Requirements | Linux OS |
| Available PCI Express x1, x4, x8 or x16 slot | |
| Digital TV signal DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0. | |
| Dimension: | |
| TV Tuner Card Size | 55mm*104.5mm |
| Net Weight | 250g |
| Gift Box Size | 17.7cm x16cm x3cm |
| Gross Weight | 370g |
| Package Contents | 1 x TBS6216 16-tuner PCIe Card |
| 1x F Connector | |
| 1x Power Cable | |
