    TBS6301T H.265/H.264 4K 60Hz HDMI Encoding Card

    TBS6301T is a HDMI 4K UHD Video Encoding Card, being capable of max 3840 x 2160P@60fps input and H.265 & H.264 encoding. It is an ideal device for whom need to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

    A special encoding pattern:

    After capturing UHD/HD video from HDMI port, TBS6301T will generate a H.264/H.265-encoded stream by TS packet and output via PCIe connection. In short, TBS6301T can be used as a normal DVB Tuner PCIe card. This allows it to be used with a wide range of DVB streaming software applications, such as Astra Cesbo, Kylone, DVBlast and Tvheadend on Linux or DVBDream on Windows.

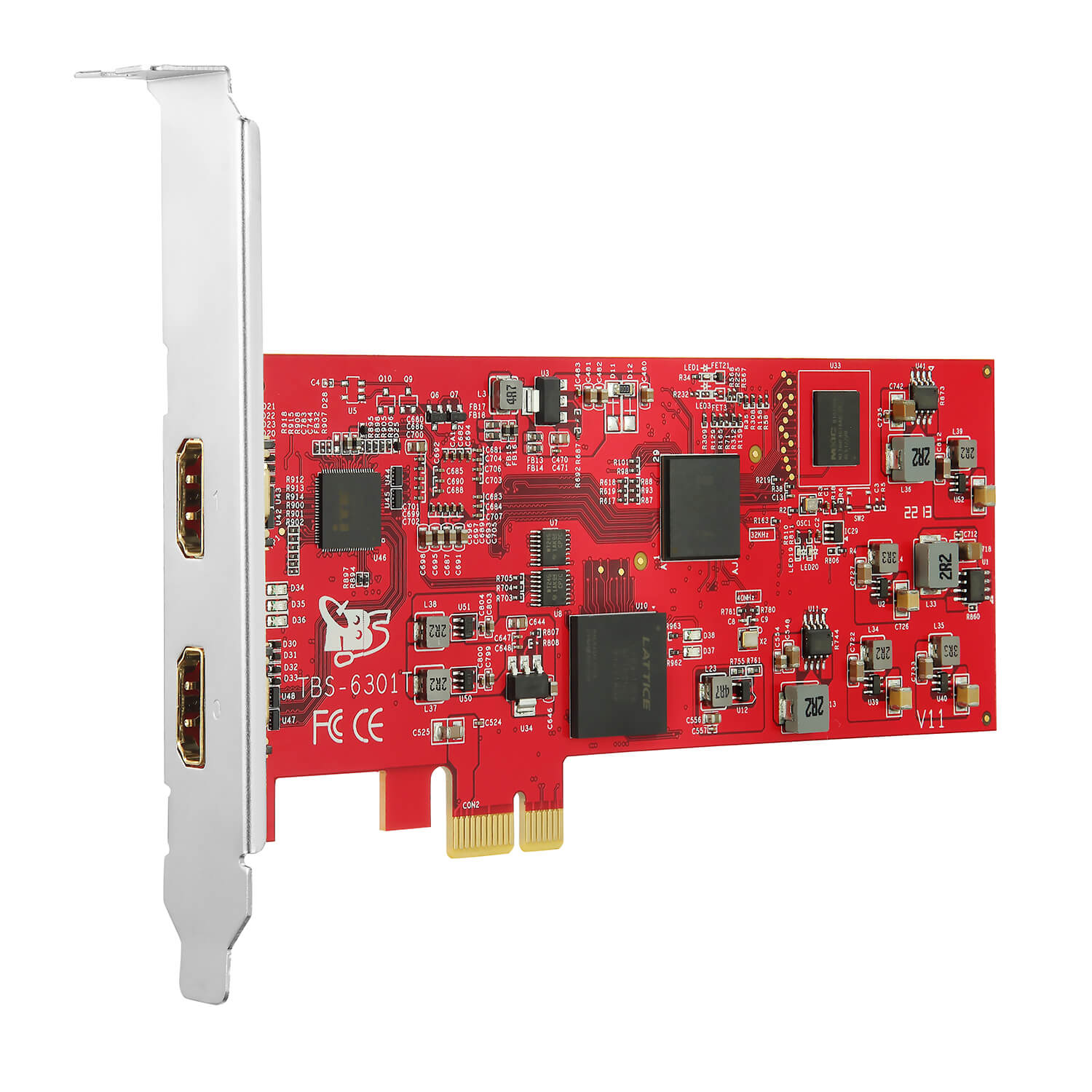

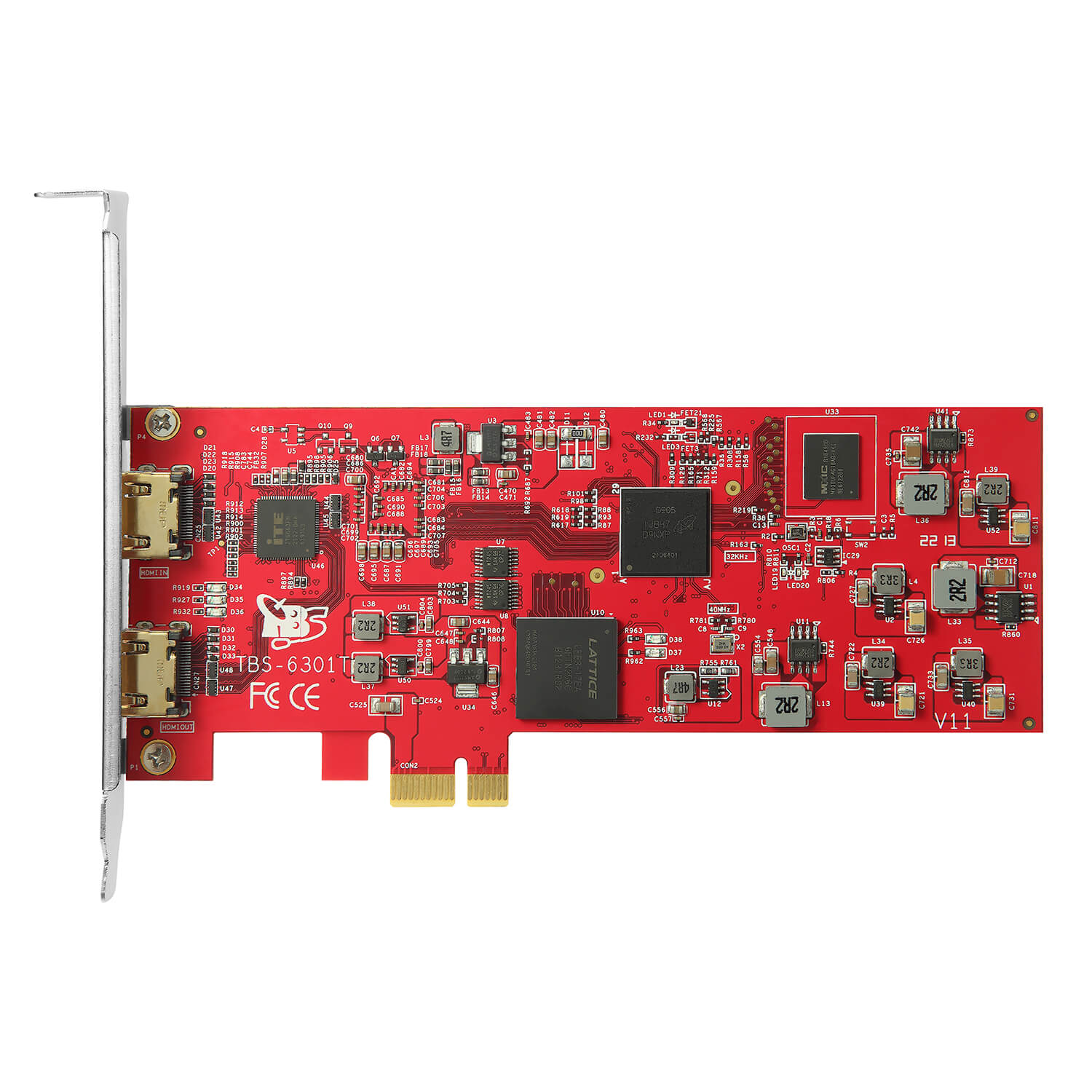

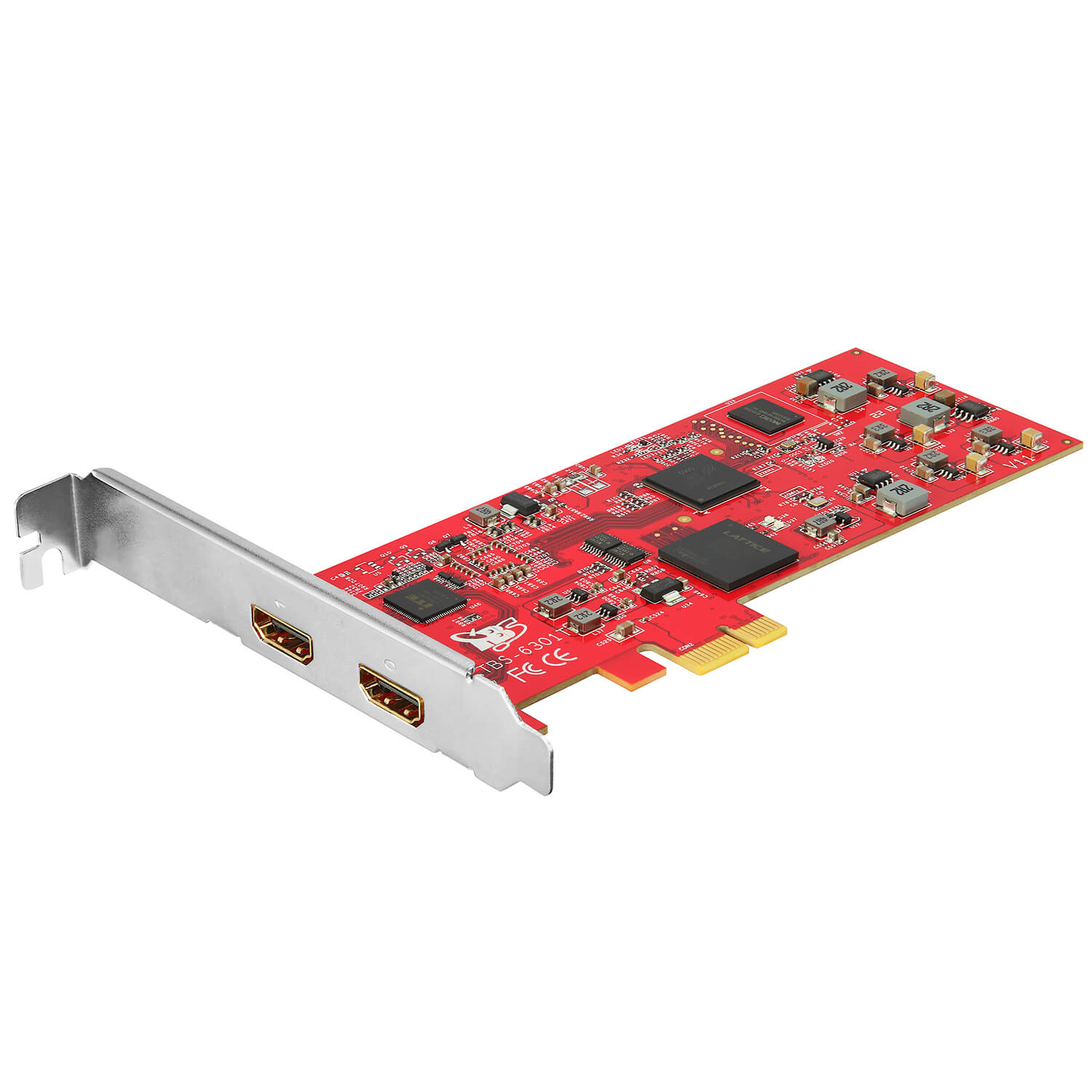

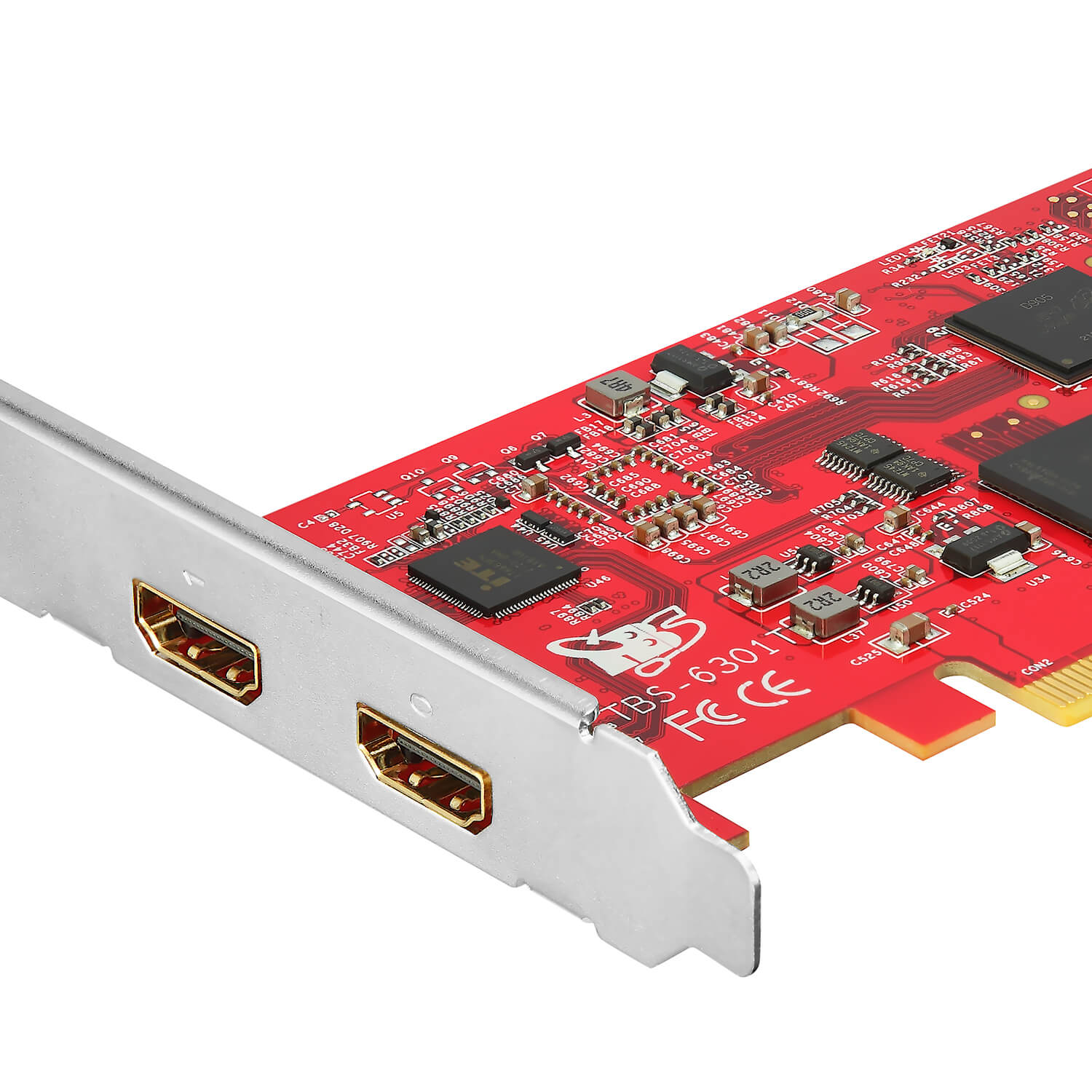

    TBS6301T is equipped with a HDMI 2.0 input and a HDMI loop-out port. Its PCIe interface allow users to install the TBS6301T HDMI encoding card into any low-profile or full-profile PCIe slot. This makes it compatible with a wide range of fixed workstations, such as 2U or 4U rack-mounted servers and media centers.

    Main Features

    • 1 x HDMI 2.0 input
    • Supports up to 3840 x 2160P@60fps input
    • Supports H.265/HEVC and H.264/AVC hardware encoding
    • Compatible with common DVB software (e.g. Astra, Kylone, DVBlast and Tvheadend) supporting HLS, HTTP, UDP, RTP, RTSP, RTMP, and SRT output protocols.
    • Supports simultaneous video streaming in multiple protocols
    • Well-suited for various IPTV applications, including education, healthcare, conferencing, and news broadcasting.

    Specifications

    Input Interface 1x HDMI 2.0 (HDCP2.2)
    Video Input
    • Max 3840 x 2160P@60fps
    • 3840x2160/ 1920x1080p/ 1280x720/ 720x480/ 720x576 etc.
    Sampling Format YUV4:4:4, YUV4:2:2, YUV4:2:0
    Video Encoding H.265 & H.264
    HEVC Profile Main / Main 10
    HEVC Level 1.0 / 2.0 / 2.1 /3.0 / 3.1 / 4.0 / 4.1 / 5.0 / 5.1
    Bit Rate Control CBR / VBR
    Frame Rate 20 fps , 24 fps, 25 fps, 30 fps, 50 fps, 60 fps
    GOP Structure IPPP, IBBP (Note: IBPP is only supported in H.265 encoding and becomes active when the frame rate is set to 24, 30, or 60 fps.)
    Video Bitrate 1Mbps ~ 70Mbps
    Color depth 8bit
    Chroma Subsampling 4:2:0
    Audio
    Audio Input HDMI Embedded audio
    Audio Codec AAC (LC)
    Audio Bitrate Fixed 192Kbps
    Connection PCIe x 1
    OS and Driver
    • Windows: Windows XP / Vista / Windows 7 Windows 8 / Windows 8.1 / Windows 10
    • Linux: Centos 7.2/7.4;
    • Ubuntu 14.04/16.04/18.04, or other Linux OS with kernel version 4.4.0 and above
    Application Astra Cesbo, Kylone, Tvheadend, VDR, MuMuDVB, DVBlast, dvbdate, dvbscan, dvbdstream, etc.
    Working Environment
    • Operating temperature: 0°C to 60°C
    • Storage temperature: –20°C to 70°C
    • Relative Humidity: 5% to 90% non-condensing

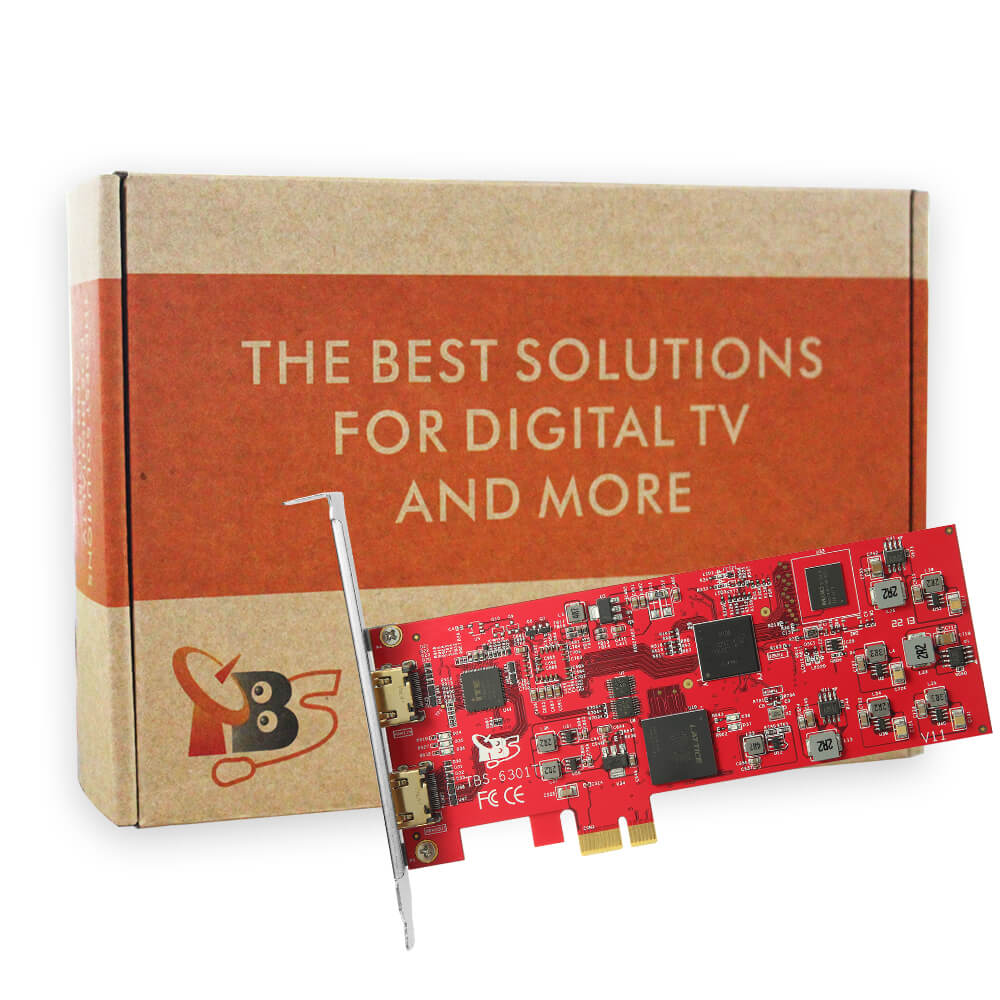

    Package Contents 1x TBS6301T 4K 60Hz HDMI encoding card
    1x Low profile bracket
