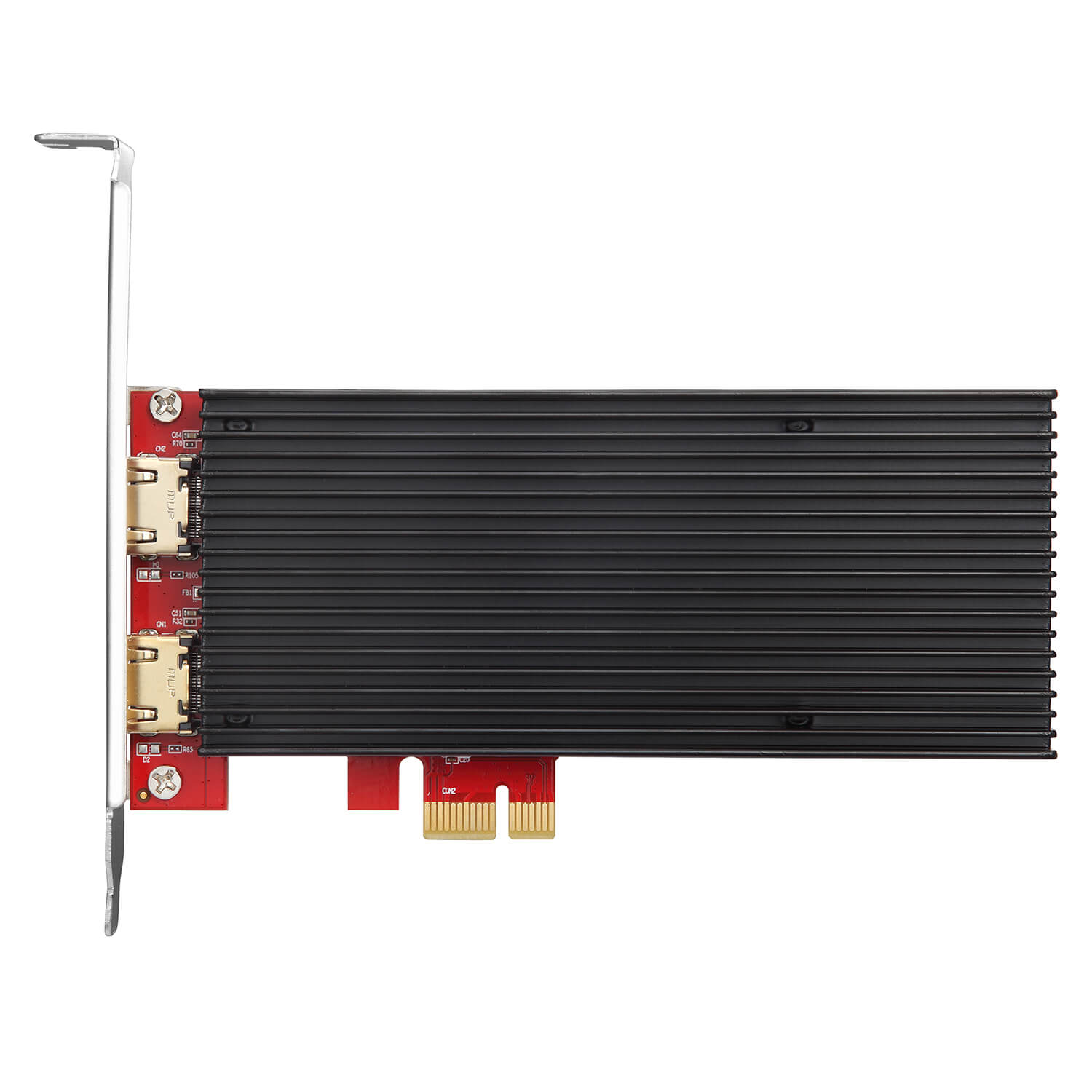

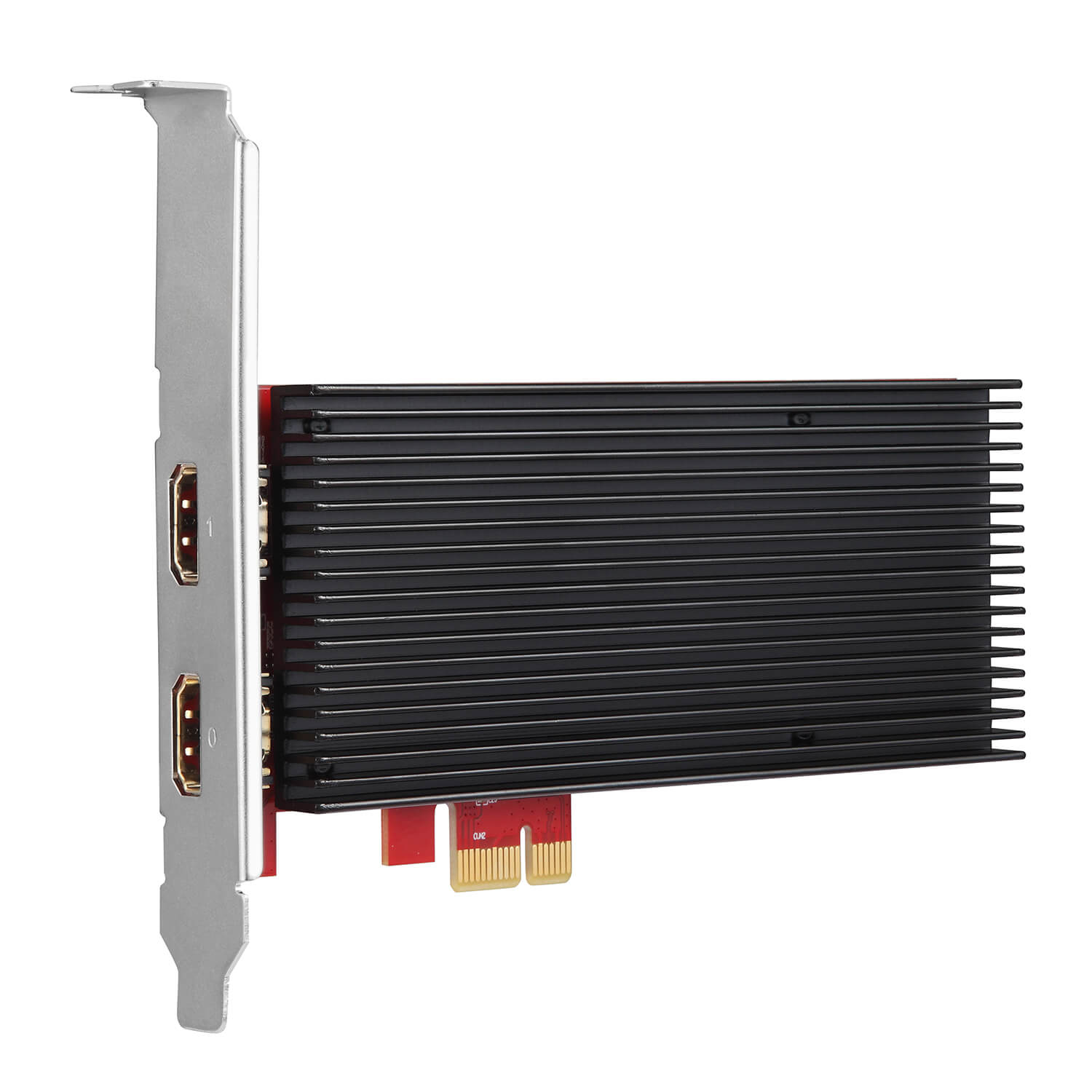

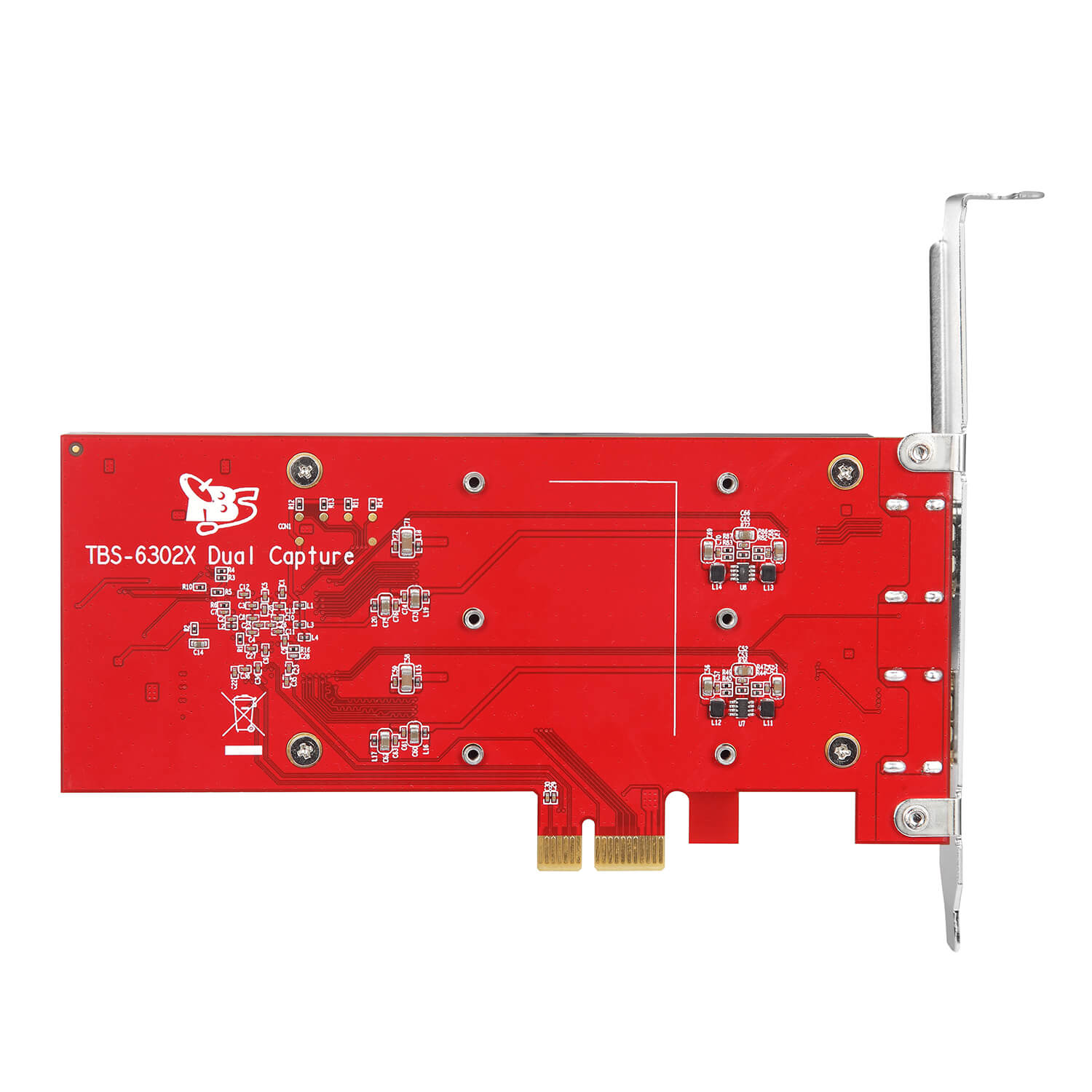

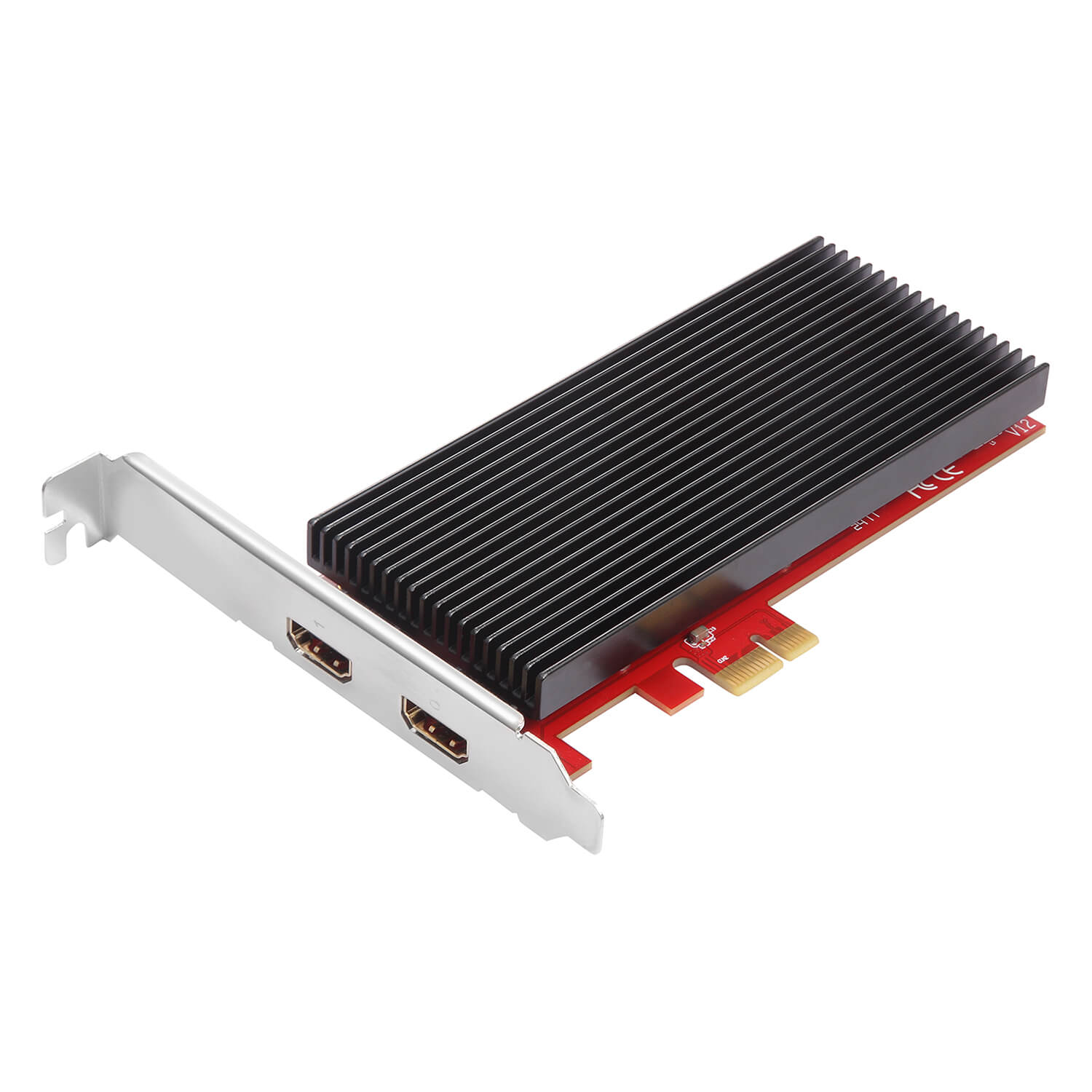

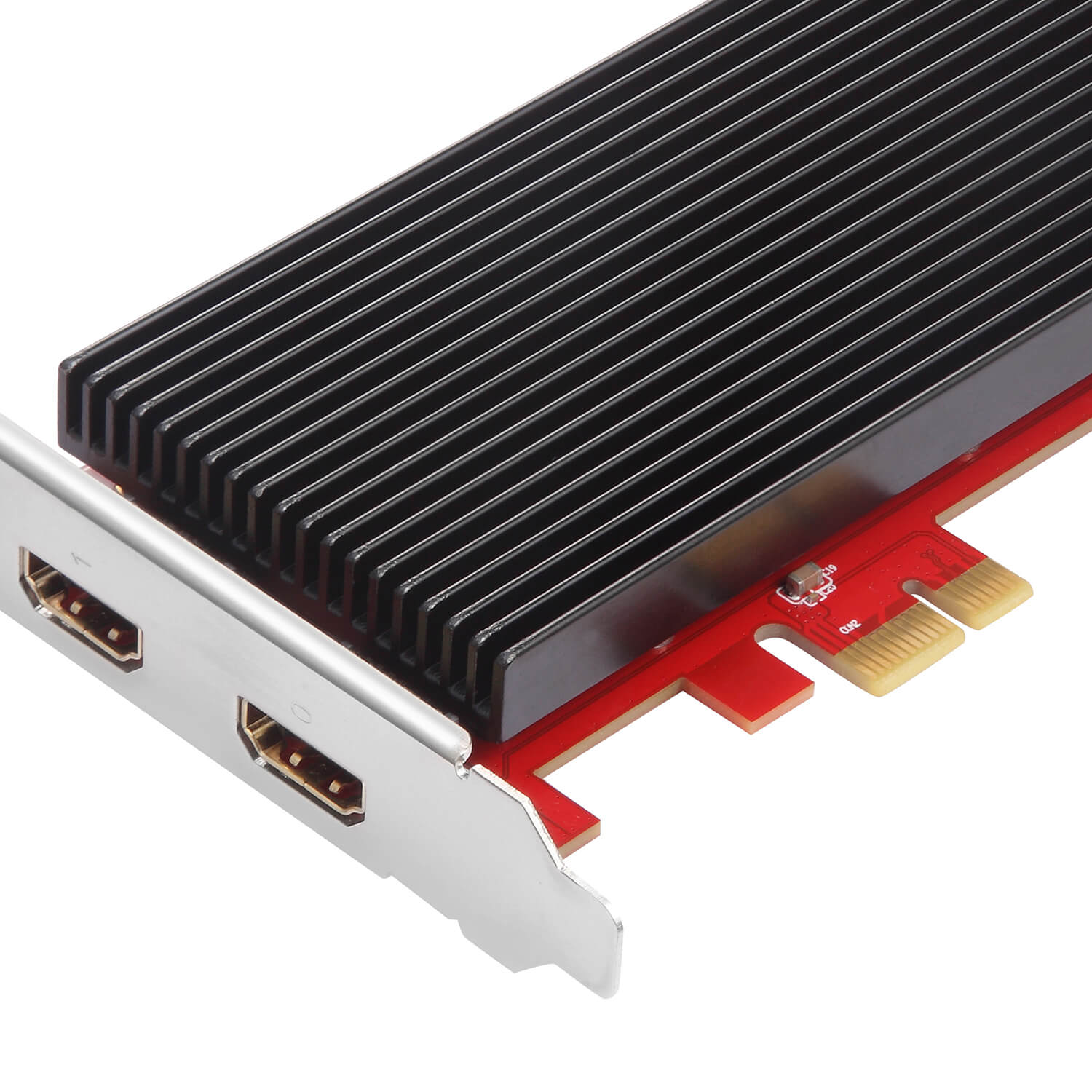

    TBS6302X 4K Dual HD HDMI Capture Card

    TBS6302X is a high and standard definition capture & 4K encoding card with dual HDMI 1.4 inputs, it being capable of max 3840 x 2160P@30fps input and H.265 & H.264 encoding. It is an ideal device for whom need to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video

    After capturing UHD/HD video from HDMI ports, TBS6302X will generate H.264/H.265-encoded stream in TS packet and output via PCIe connection. TBS6302X can be used as a normal DVB Tuner PCIe card, so it will stream the video to network by many DVB streaming software, like "DVBLast", "TVheadend", "Astra Cesbo" in Linux. TBS6302X is equipped with 2 HDMI 1.4 inputs. The PCIe interface allows users to install TBS6302X into any full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.

    Applications:

    • IPTV Servers
    • Datacasting and monitoring
    • Live TV Capture and streaming
    • Broadcast TV

    Main Features:

    • Dual HDMI 1.4a input, HDCP 1.4 is supported
    • Capable of max 3840 x 2160p@30fps input and 3840x2160p@30fps encode
    • Supports H.265/HEVC and H.264/AVC Video hardware encoding, AAC-LC/AAC-HE Audio encoding
    • With the support of DVB streaming software , support to stream the video in several different protocols simultaneously
    • Support to be applied to various IPTV system in the industries of education, health care, conference, news interview, and so on
    • Supports OSD overlay: insert logo, text
    • DVB Architecture, compatible with DVB software

    With TBS encoded setting tool, it can easily switch between channels and adjust configurations.

    Linux Platform: command line control

    Windows Platform: GUI setting tool
