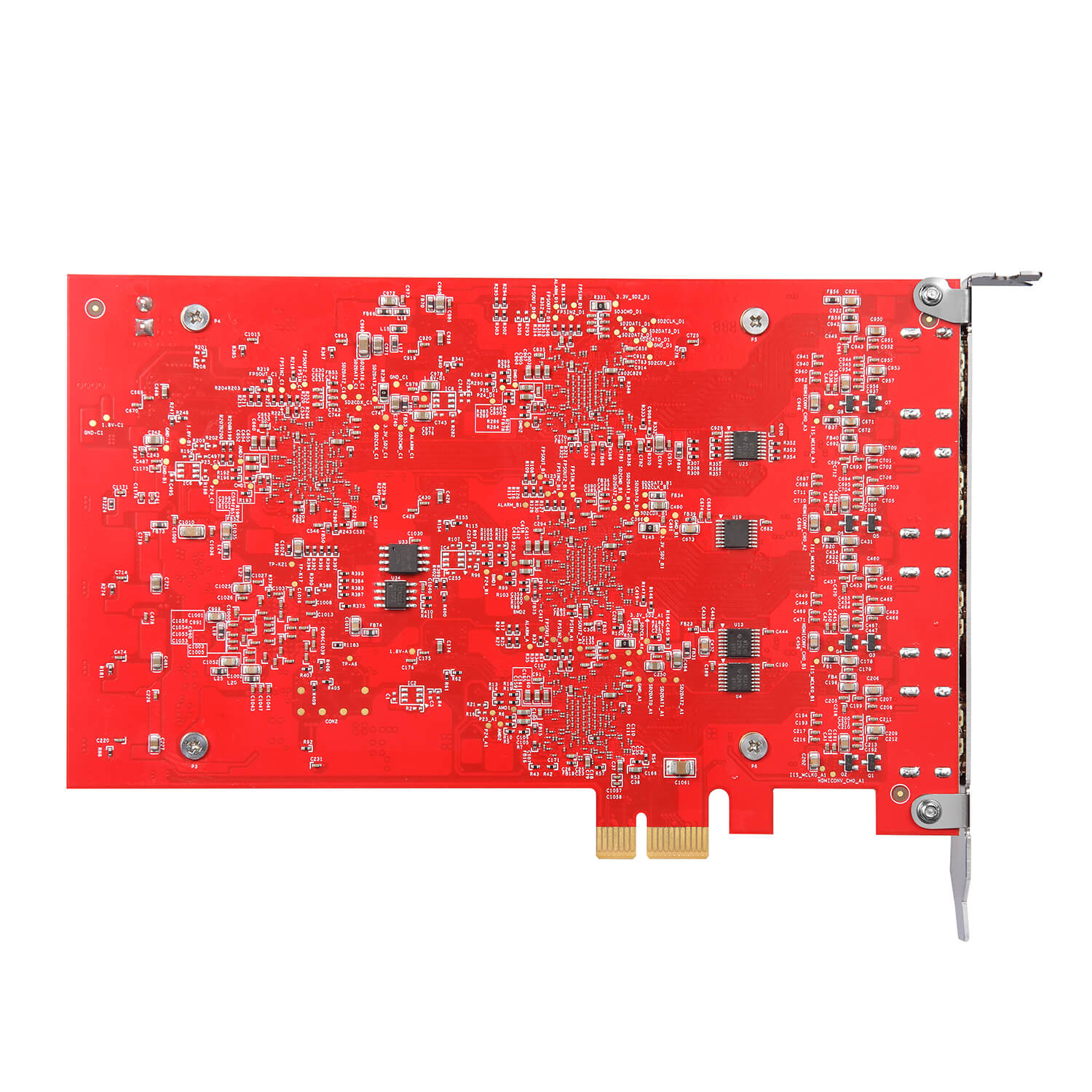

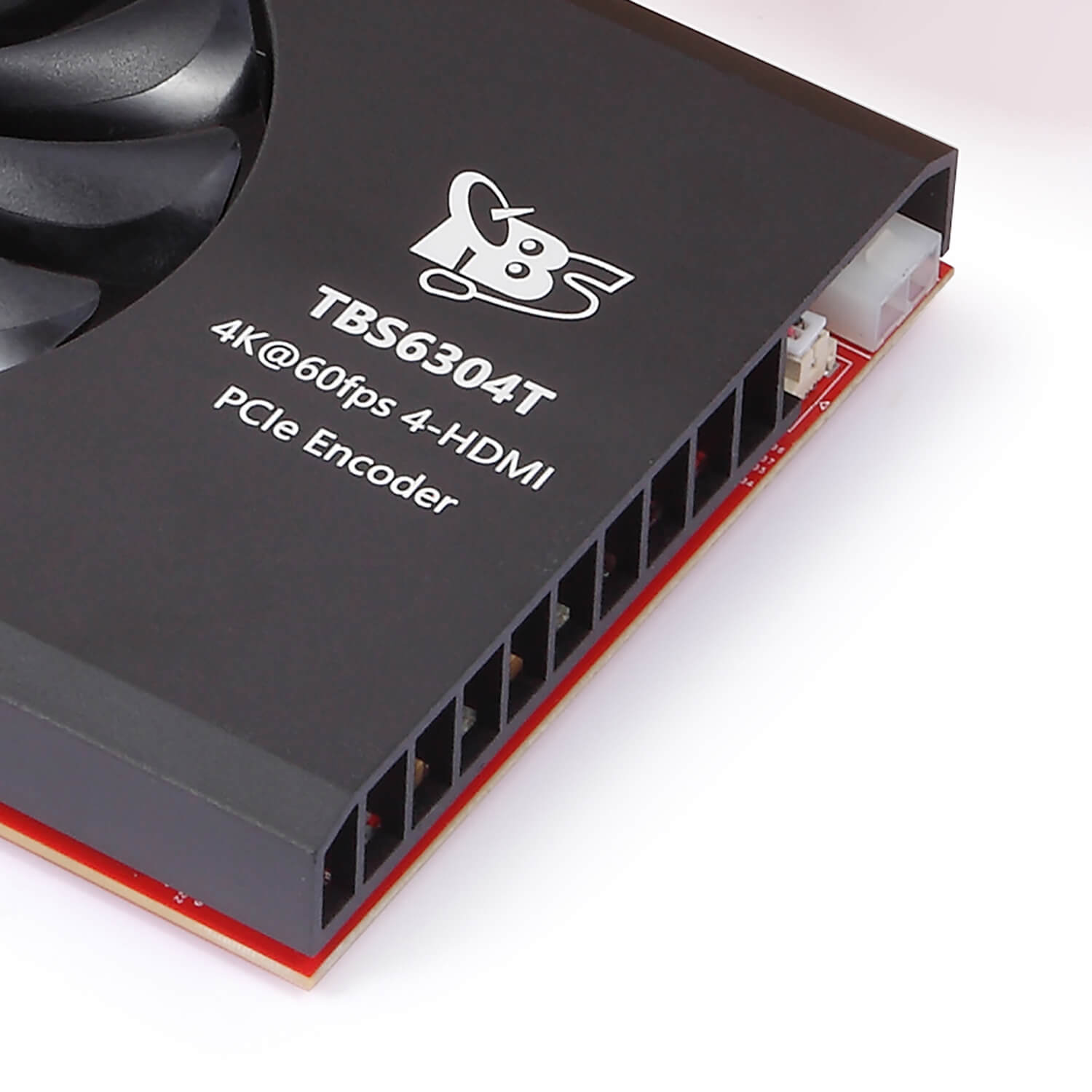

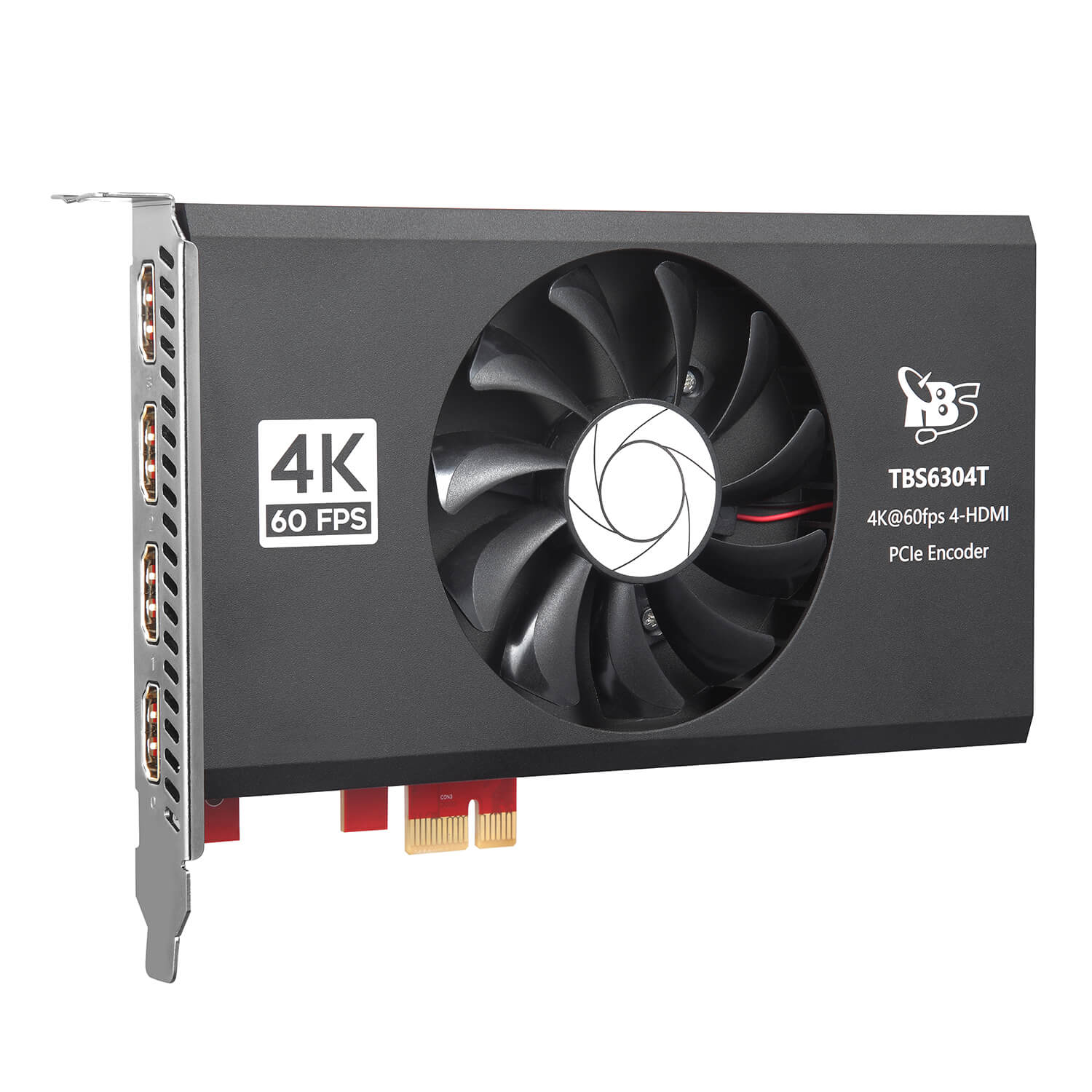

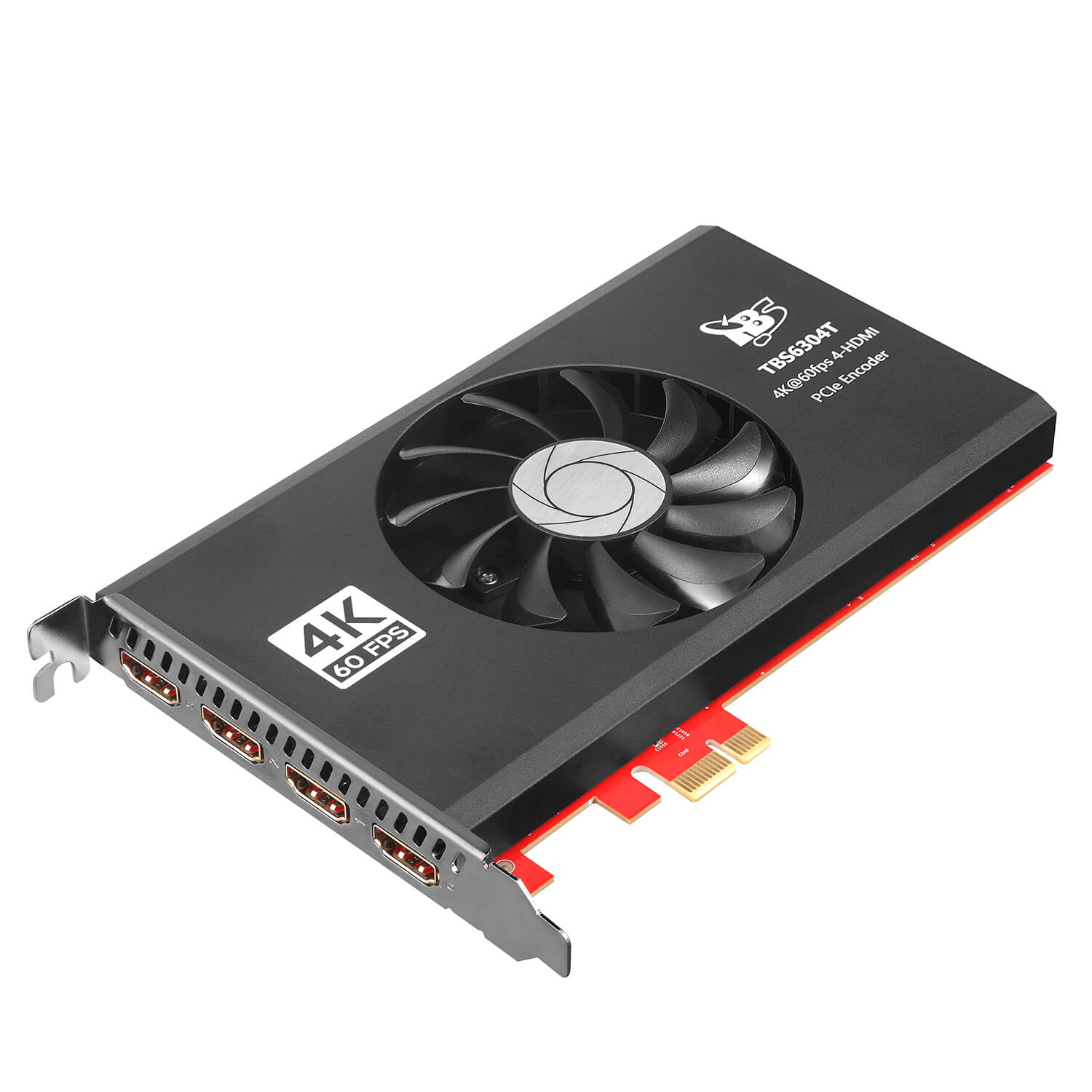

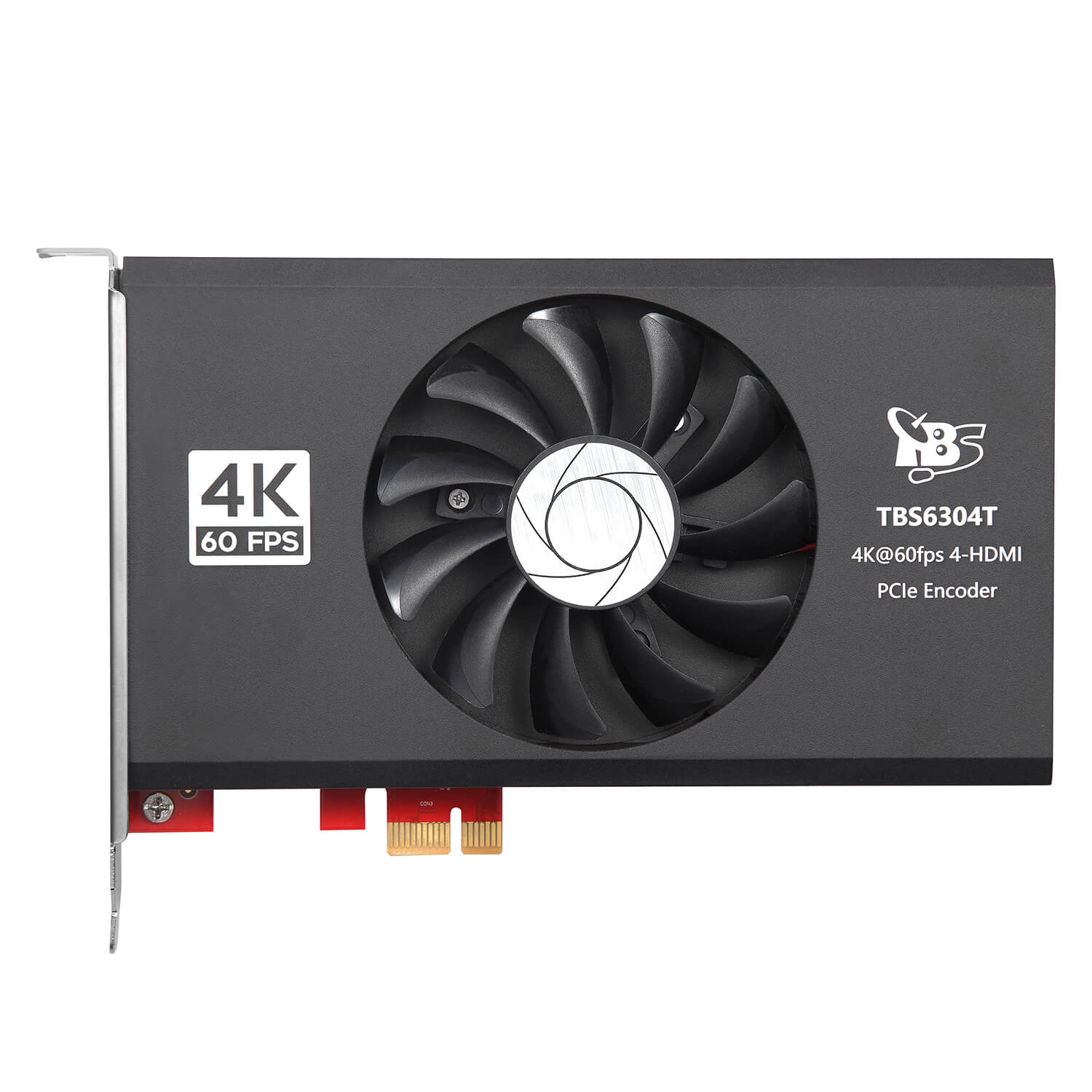

    TBS6304-T 4k@60fps 4-HDMI input Encoding PCIe Card

    TBS6304T is a HDMI 4K UHD Video Encoding Card, with 4 HDMI 2.0 inputs. Each HDMI port supports max 3840 x 2160P@60hz input and H.265 & H.264 encoding. It is an ideal device for whom needs to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

    A special encoding pattern:

    After capturing UHD/HD video from 4 HDMI ports, TBS6304T 4K@60fps 4 HDMI input encoding card will generate four H.264/H.265-encoded streams by TS packet and output via PCIe Interface. In short, TBS6304T can be used as a normal DVB Tuner PCIe card, so it can work with many DVB streaming software, such as Kylone, Astra Cesbo, DVBlast and Tvheadend on Linux or "DVB Dream" on Windows.

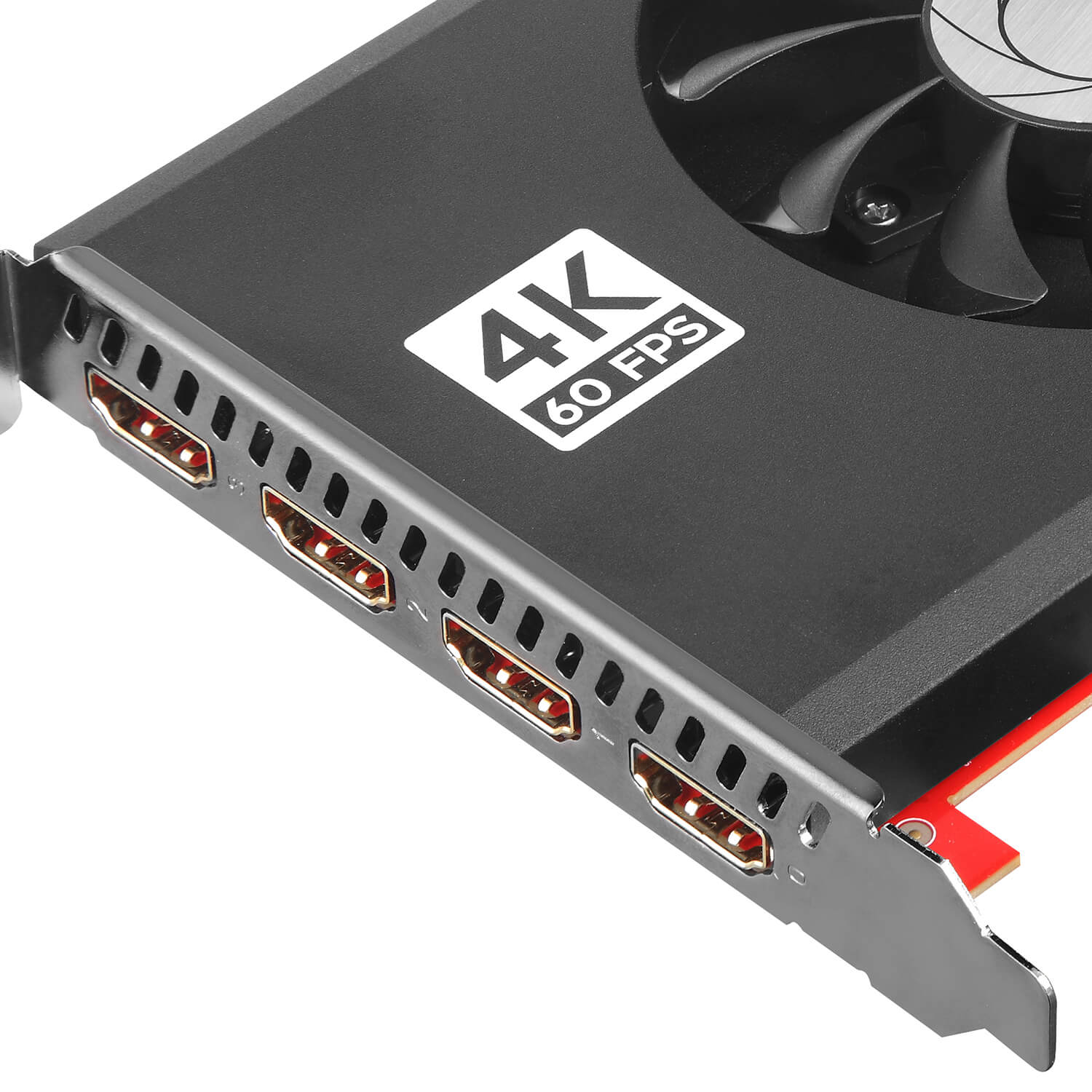

    TBS6304T is equipped with 4 HDMI2.0 inputs. The PCIe interface allows users to install TBS6304T into any full-profile PCIe slot, including fixed workstations such as 2U or 4U Rack-mounted servers or media centers.

    Main Features

    • 4x HDMI 2.0 inputs, each supporting up to 3840x2160@60Hz.
    • High efficient hardware encode, small CPU consumption
    • H.265/HEVC and H.264/AVC encode
    • Real 4K@60fps encode
    • Compatible with DVB software such as DVB Dream, DVBViewer, DVBlast, Tvheadend, Astra Cesbo and Kylone.
    • Widely used in the industries of education, health care, conference, IPTV, news interview, and more.

    Specifications

    Product Name TBS6304T 4K@60fps 4 HDMI Input Encoding Card
    Model NO. TBS6304T
    Input Interface 4x HDMI 2.0 (HDCP2.2 supported)
    Video
    Video Input 3840 x 2160p_60/50/30hz, 1920x1080p_60/50/30hz, 1280x720p_60/50hz, 720x576, 720x480, etc.
    Sampling Format YUV4:4:4, YUV4:2:2, YUV4:2:0
    Video Encoding H.265 & H.264
    Profile H.264, Main, High; H.265 Main
    Level 1.0 / 2.0 / 2.1 /3.0 / 3.1 / 4.0 / 4.1 / 5.0 / 5.1
    Bit Rate Control CBR / VBR
    Frame Rate 20 fps , 24 fps, 25 fps, 30 fps, 50 fps, 60 fps
    GOP Structure IPPP, IBBP (Note: IBPP is only supported in H.265 encoding and becomes active when the frame rate is set to 24, 30, or 60 fps.)
    Video Bitrate 1Mbps~70Mbps
    Color Depth 8bit
    Chroma Subsampling 4:2:0
    Audio
    Audio Input HDMI embedded audio, 44.1k/48k
    Audio Codec AAC (LC)
    Audio Bitrate Fixed 192Kbps
    System & Software
    Connection PCIe x 1
    OS and Driver Windows: Windows XP / Vista / Windows 7 Windows 8 / Windows 8.1 / Windows 10.
    Linux: Centos 7.2/7.4. Ubuntu 14.04/16.04/18.04 or other Linux OS with kernel version 4.4.0 and above.
    Applications Compatible with major DVB software.
    Linux platform: Astra Cesbo, Kylone, DVBlast, Tvheadend, MuMuDVB, etc.
    Windows platform: DVB Dream, DVBviewer, etc.
    General Spec.
    Working Environment
    • Operating Temperature: 0°C to 60°C
    • Storage Temperature: –20°C to 70°C
    • Relative Humidity: 5% to 90% non-condensing.

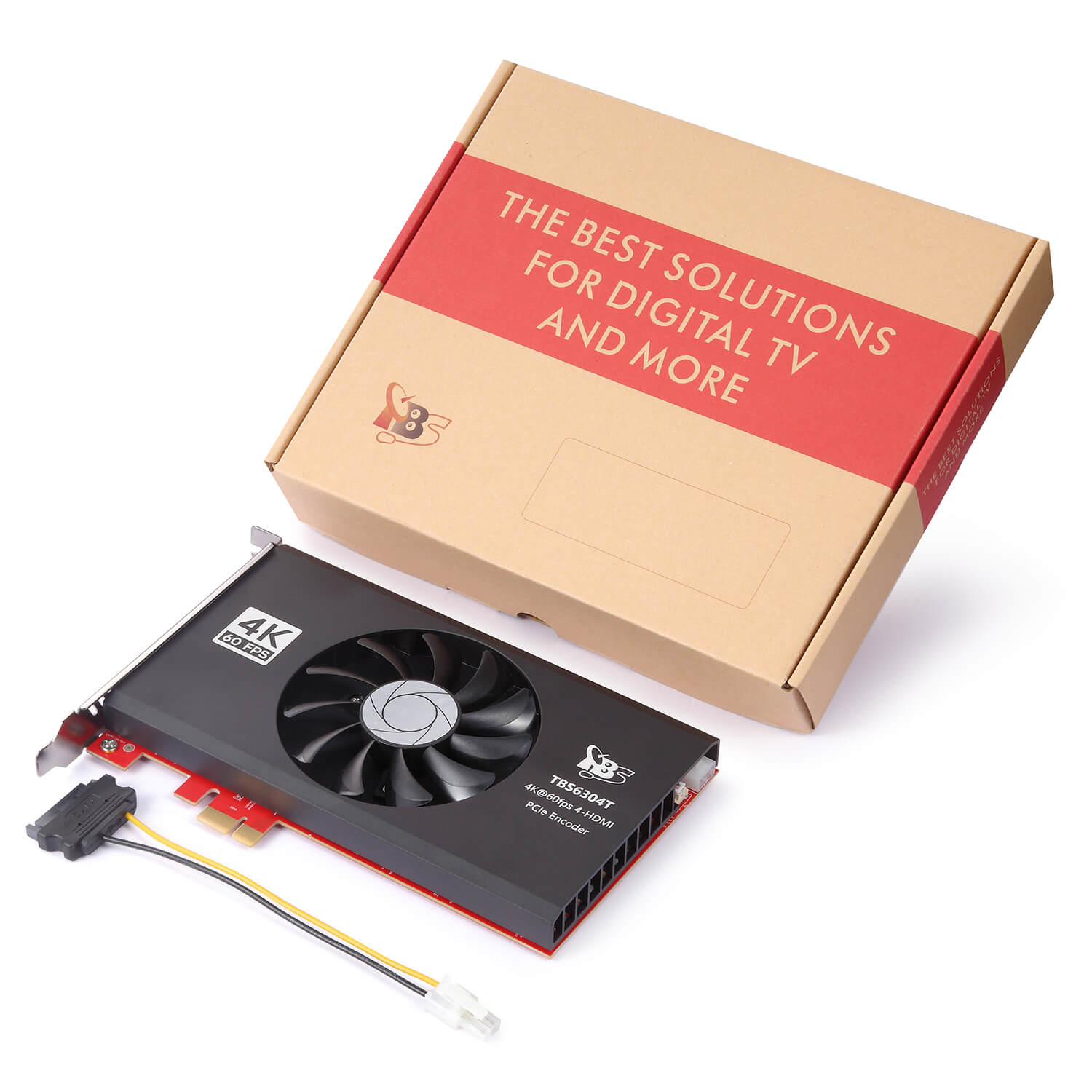

    Package Contents 1x TBS6304T 4K@60fps 4 HDMI input encoding card
    1x DC cable
