    TBS6304X 4K Quad HDMI Capture Card

    TBS6304X is a high and standard definition capture & 4K encoding card with quad HDMI 1.4 inputs, it being capable of max 3840 x 2160P@30fps input and H.265 & H.264 encoding. It is an ideal device for whom need to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

    After capturing UHD/HD video from HDMI ports, TBS6304X will generate H.264/H.265-encoded stream in TS packet and output via PCIe connection. TBS6304X can be used as a normal DVB Tuner PCIe card, so it will stream the video to network by many DVB streaming software, like "DVBLast", "TVheadend" ,"Astra Cesbo" in Linux.

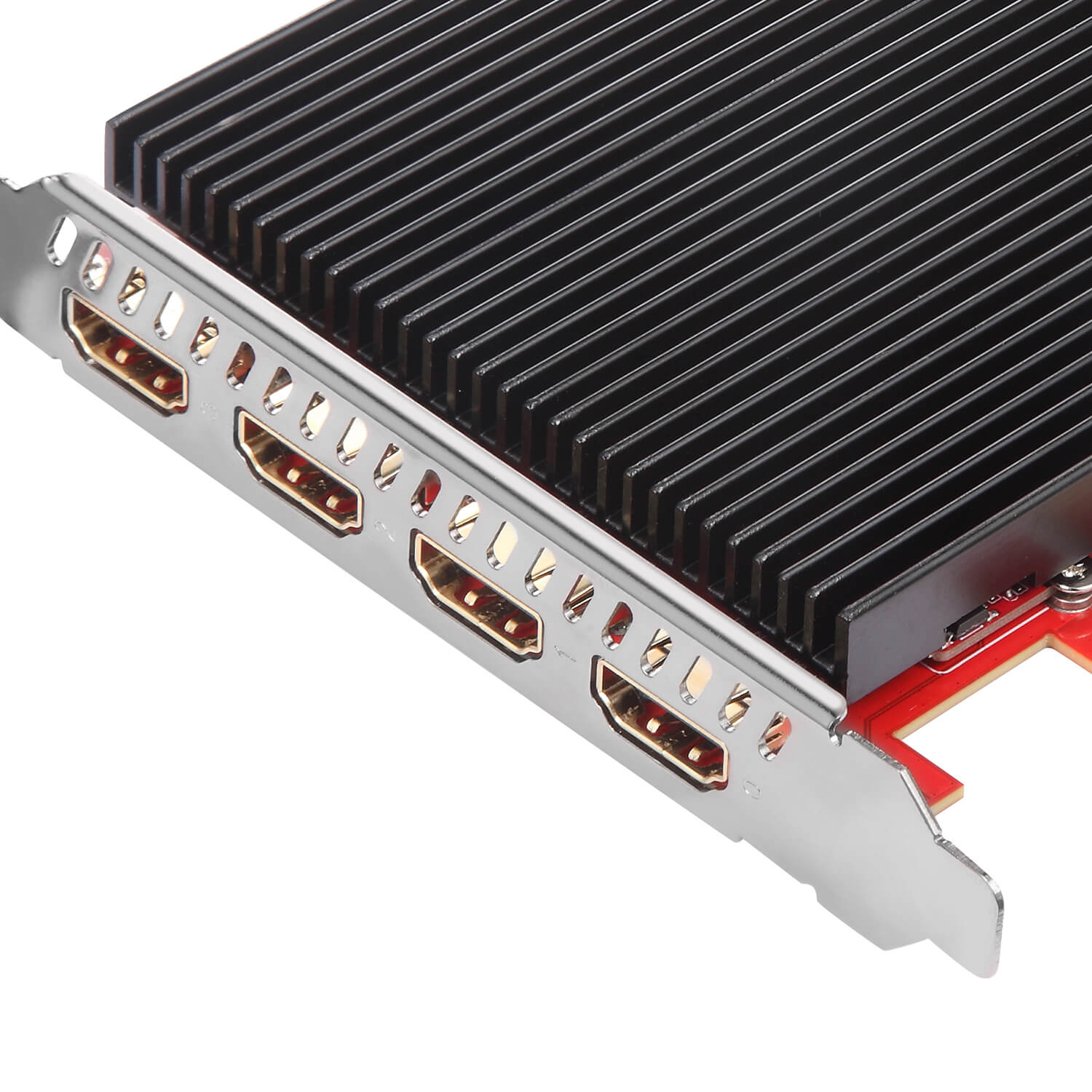

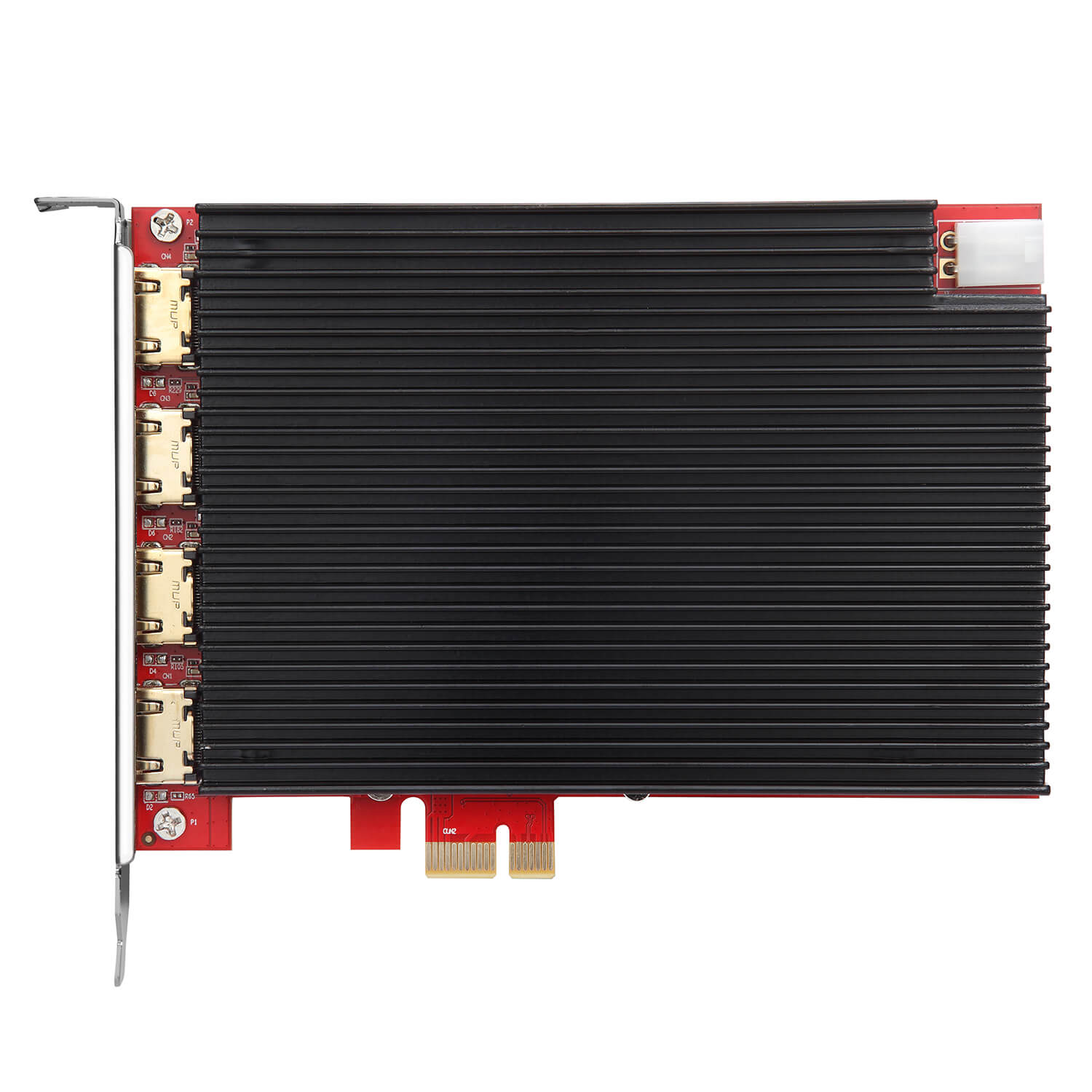

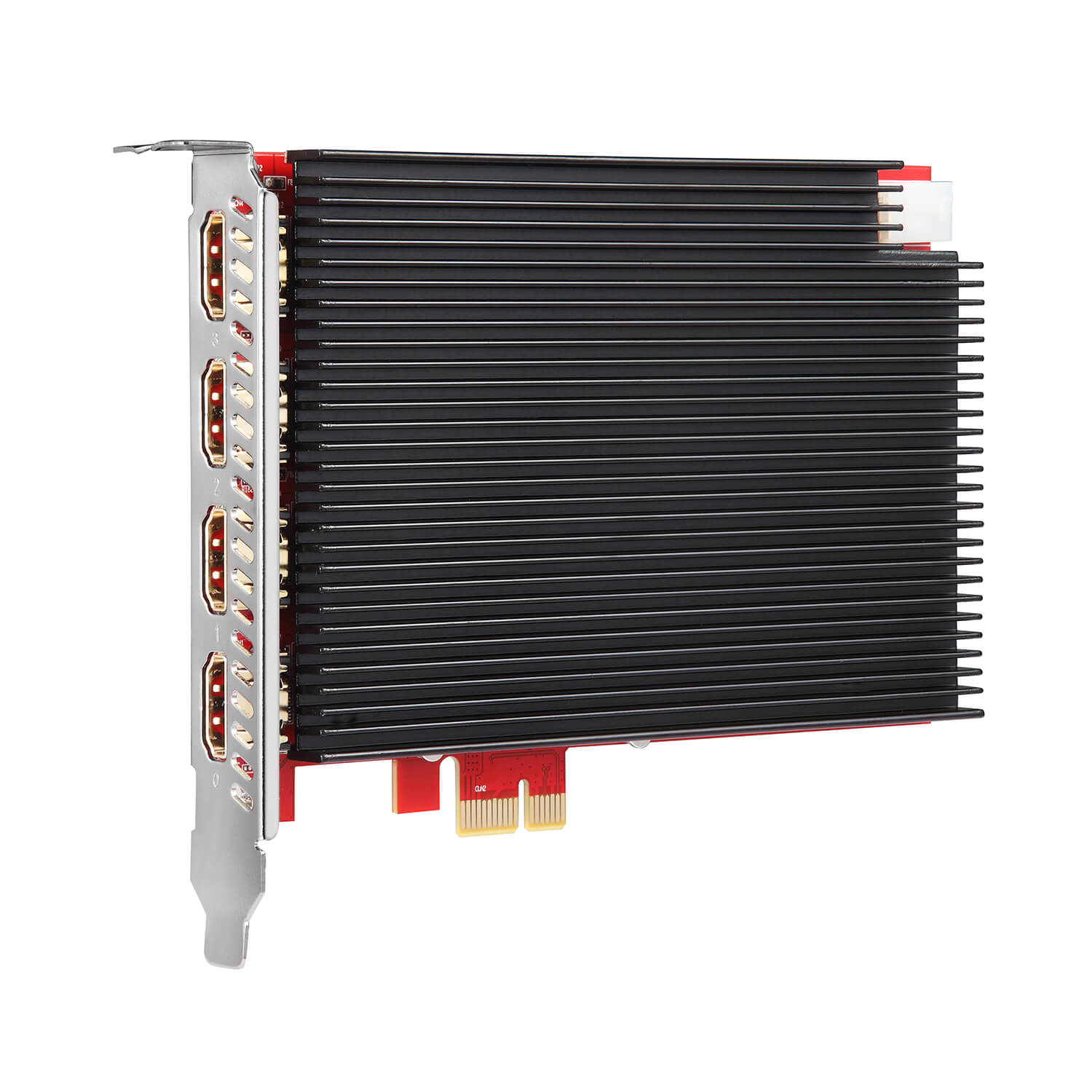

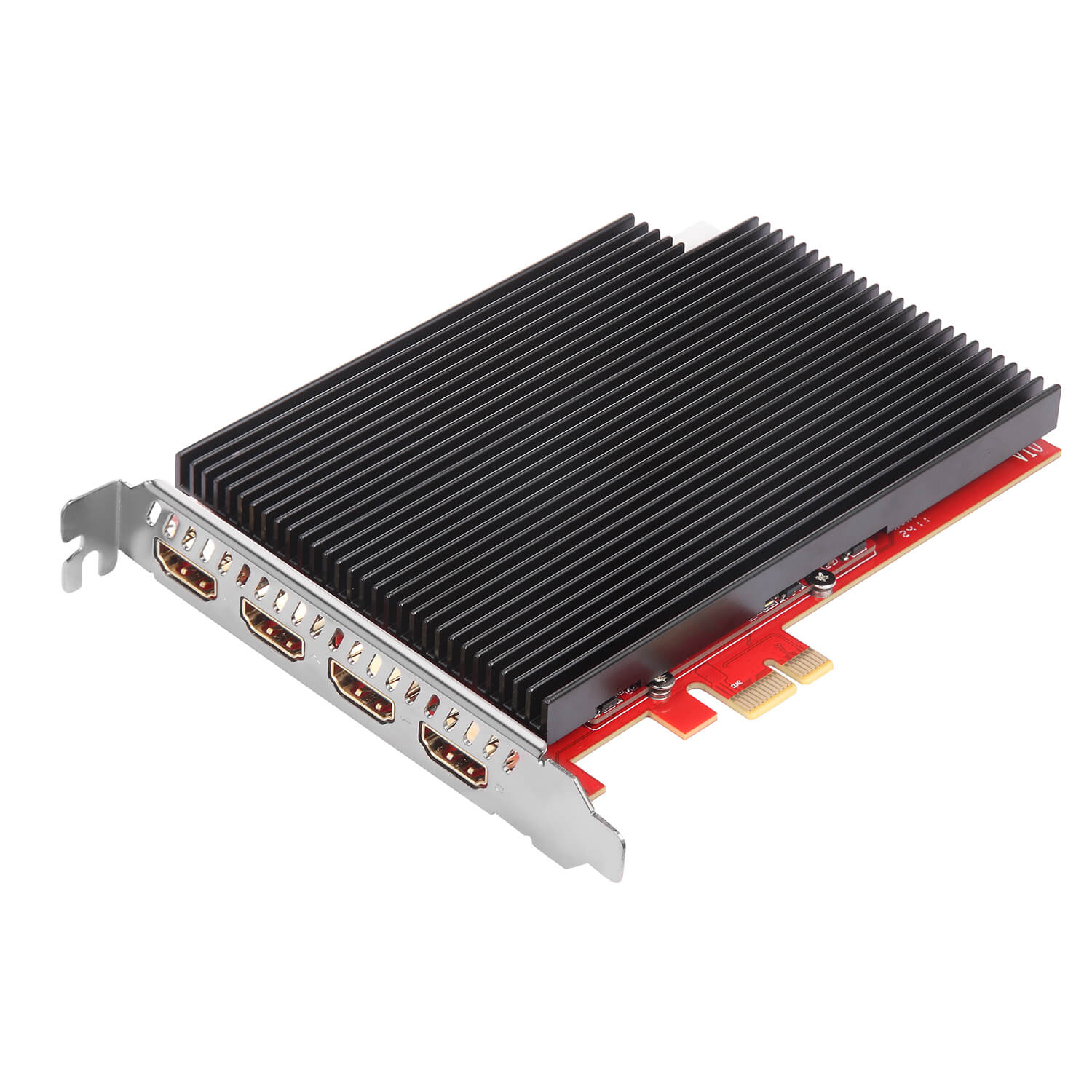

    TBS6304X is equipped with 4 HDMI 1.4 inputs. The PCIe interface allows users to install TBS6304X into any full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.

    Main Features:

    • Quad HDMI 1.4 input, HDCP 1.4 is supported
    • Capable of max 3840 x 2160P@30fps input and 3840x2160p@30fps encode
    • Supports H.265/HEVC and H.264/AVC video hardware encoding, AAC-LC/AAC-HE Audio encoding
    • With the support of DVB streaming software, supports to stream the video in several different protocols simultaneously.
    • Support to be applied to various IPTV system in the industries of education, health care, conference, news interview, and so on.

    Applications:

    • IPTV Servers
    • Datacasting and monitoring
    • Live TV Capture and streaming
    • Broadcast TV
    Works like a DVB Tuner PCIe card, Compatible with DVB software: Windows platform: DVBream, DVBviewer, and etc. Linux platform: DVBlast, Tvheadend, Astra Cesbo and ect.

    With TBS encoded setting tool, it can easily switch between channels and adjust configurations.

    Linux Platform: command line control

    Windows Platform: GUI setting tool
