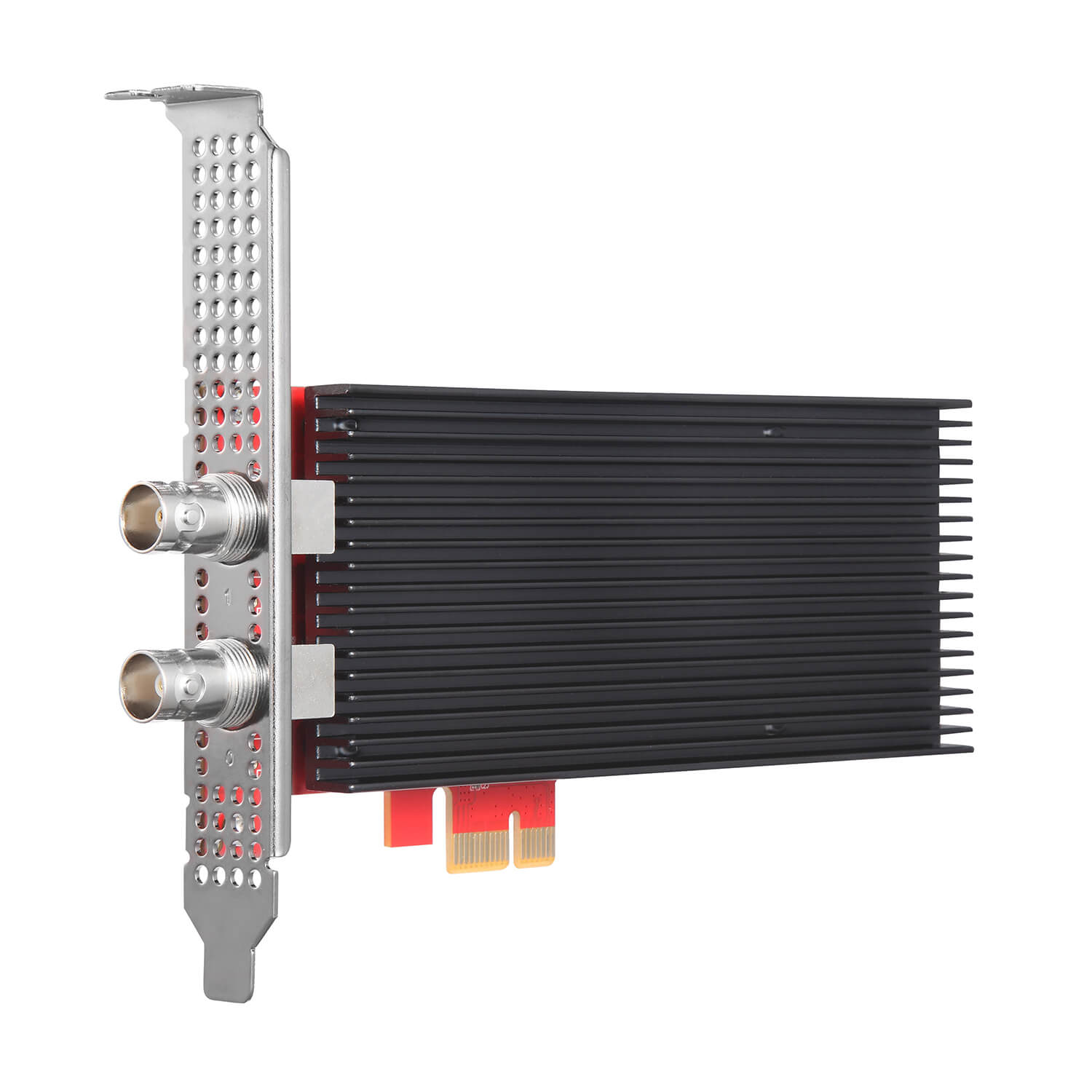

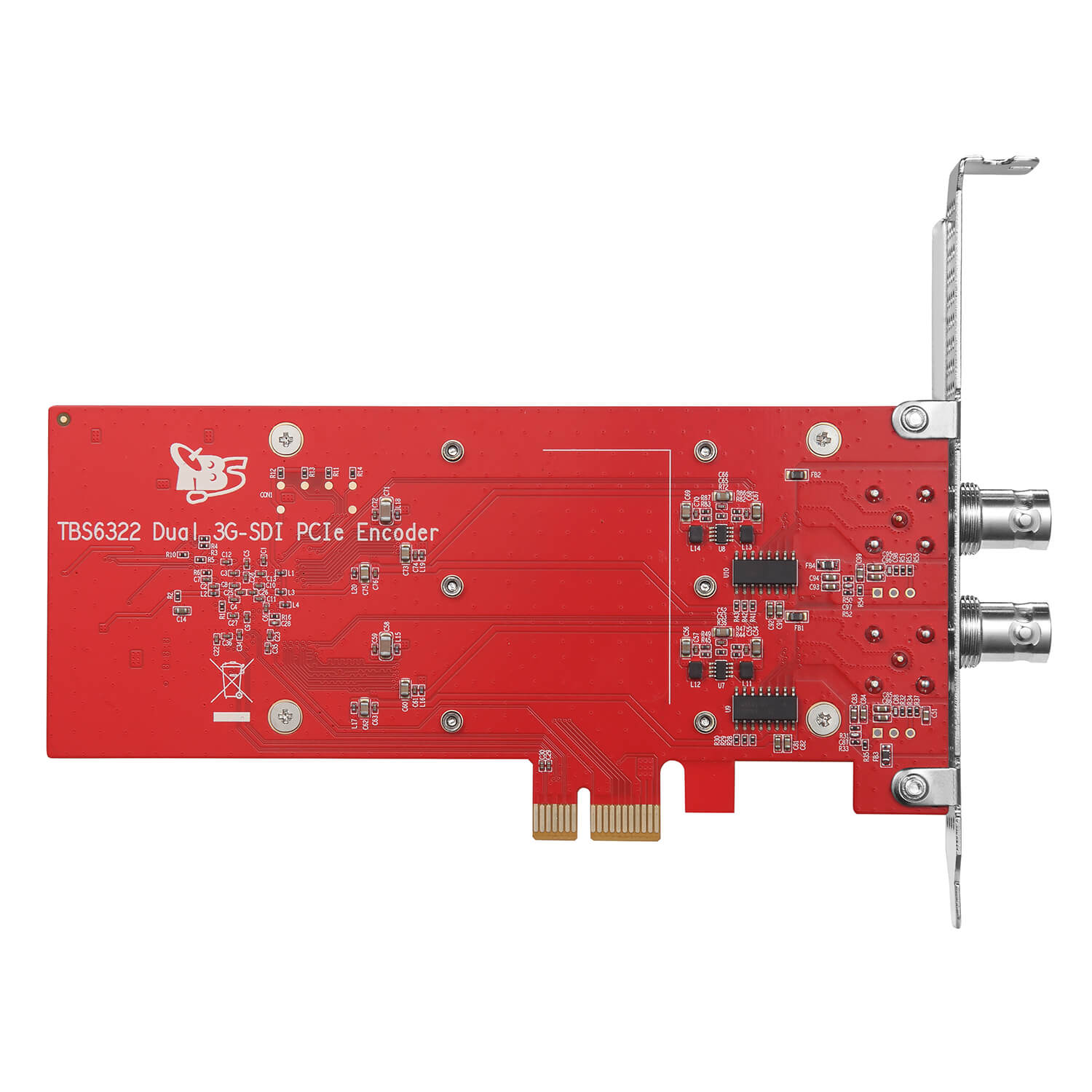

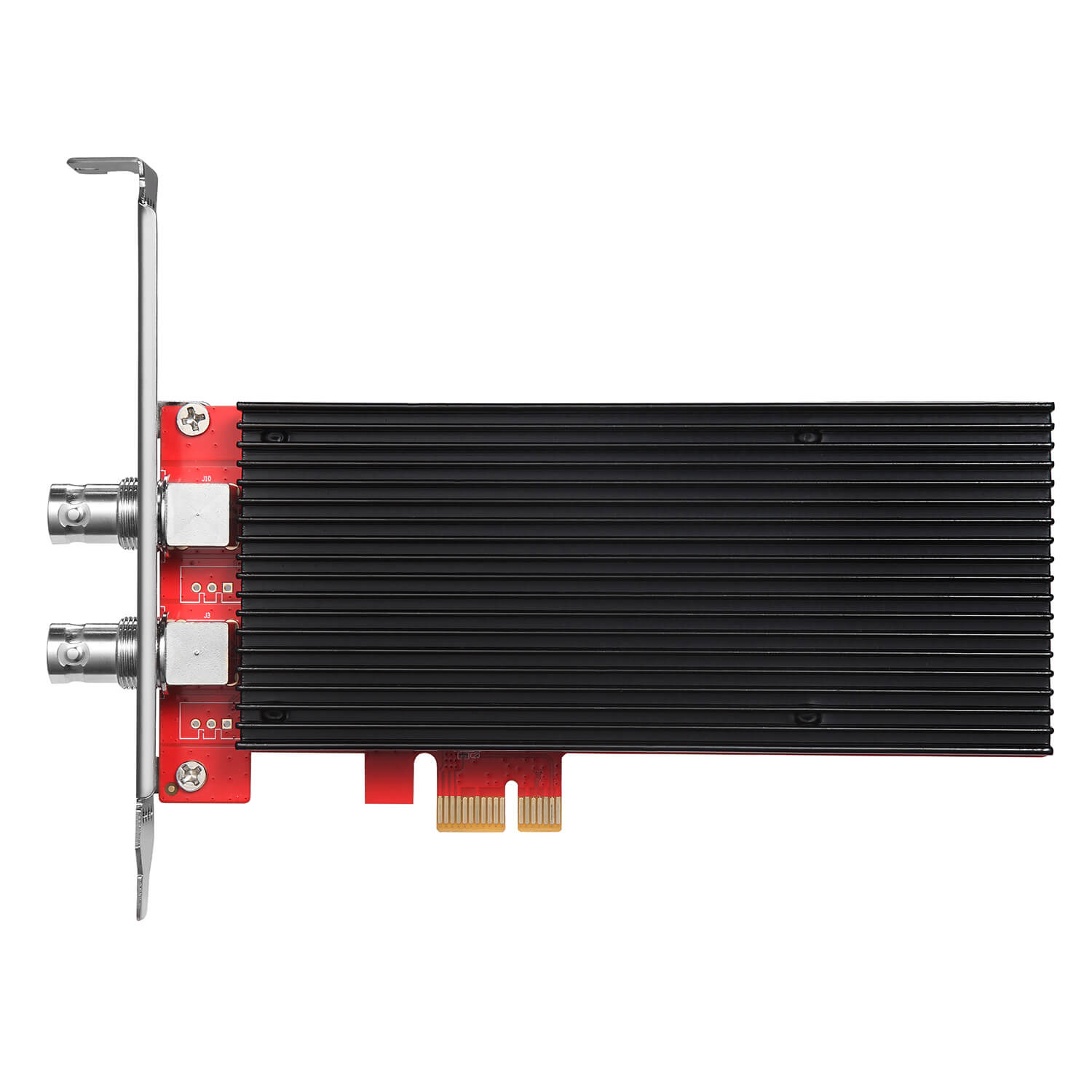

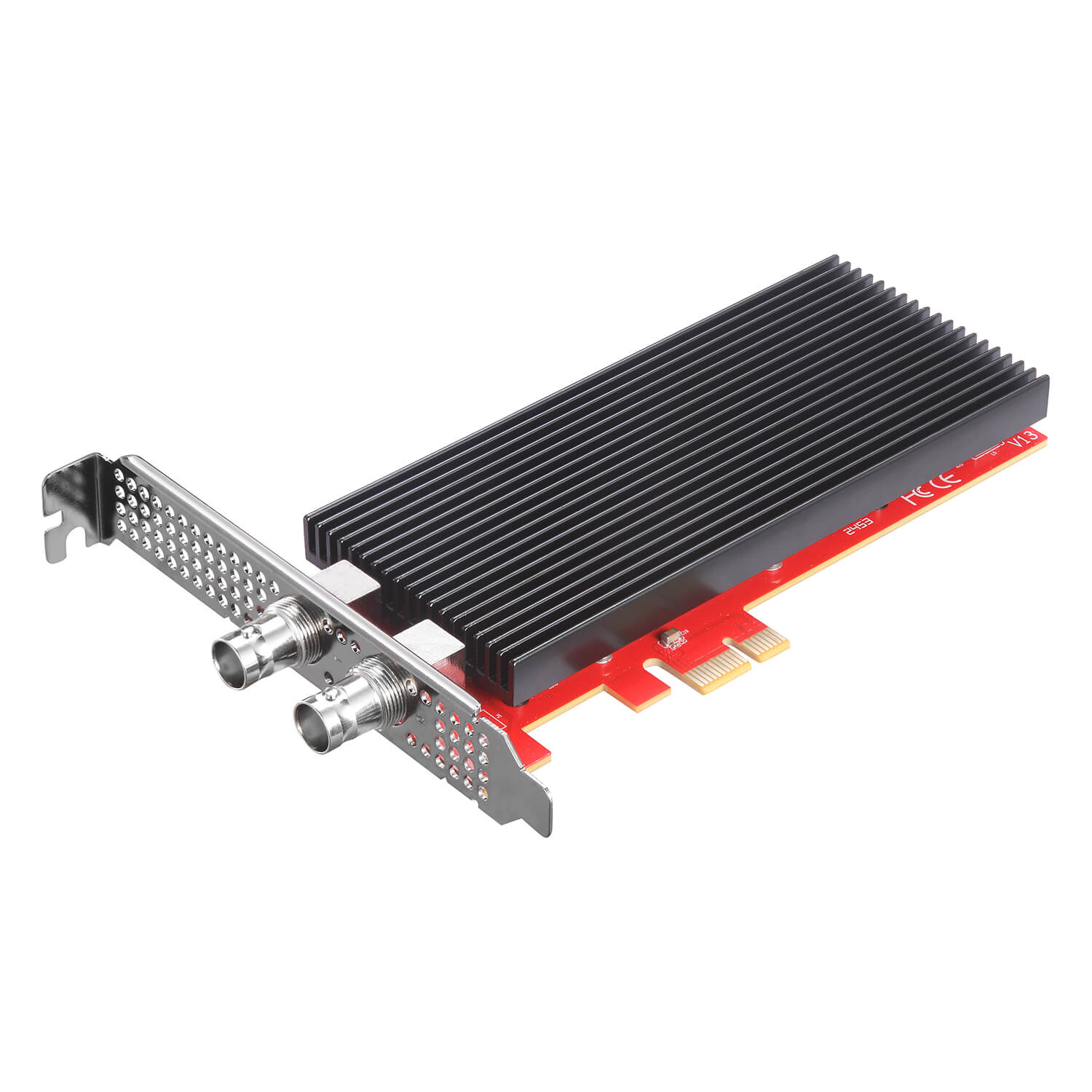

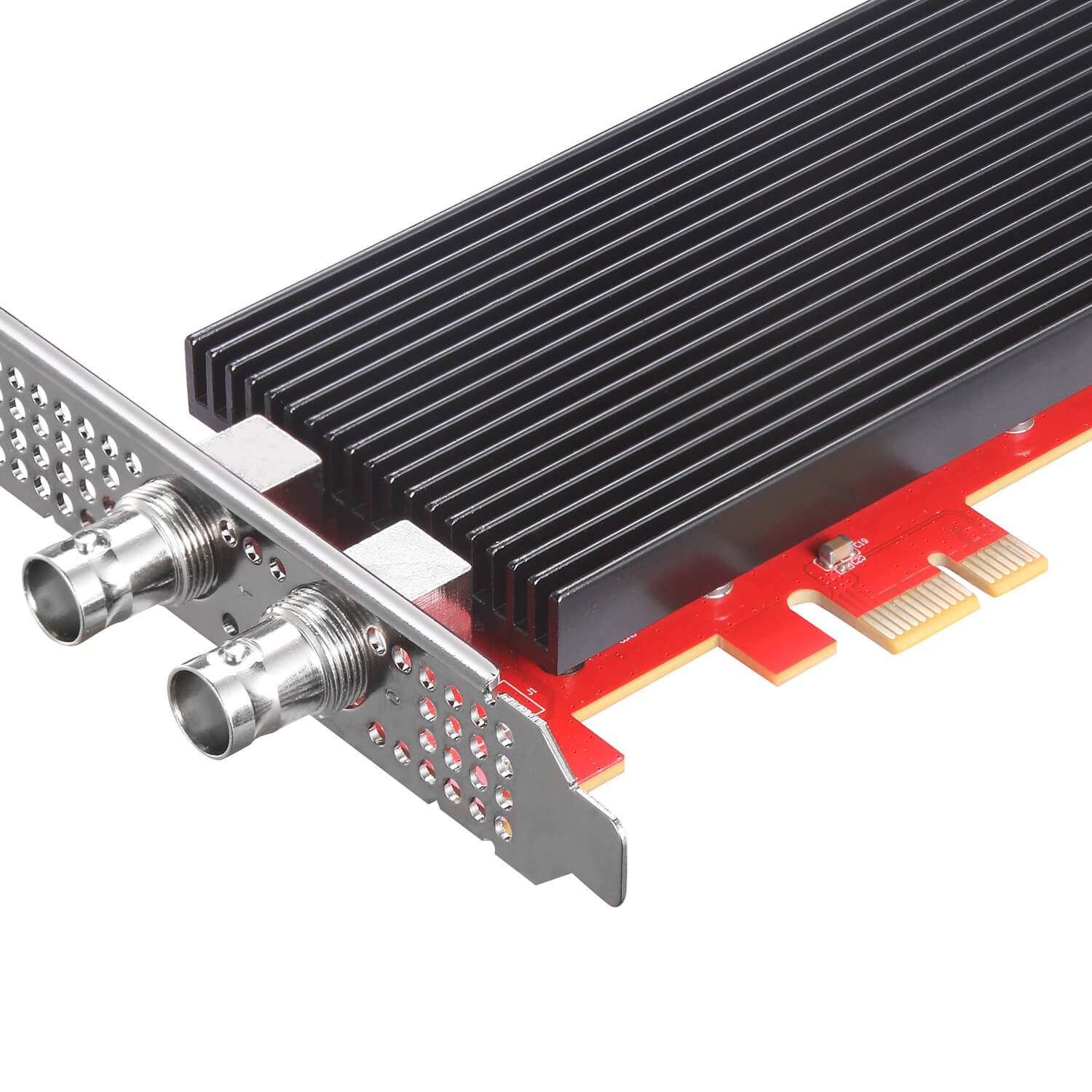

    TBS6322 Dual 3G-SDI PCIe Encoder

    TBS6322, a dual 3G-SDI PCIe encoder, allows capturing and encoding two separate 3G/HD/SD-SDI sources simultaneously. It supports up to 1080P@60HZ input and H.265/H.264 1080P@60fps video encoding. It is an ideal device for those who need to stream lower bit rate video over LAN or WAN networks, often due to internal network constraints, while still maintaining high-quality video.

    After capturing 3G/HD/SD video from SDI ports, the TBS6322 will generate an H.264/H.265-encoded stream in TS packet and output it via PCIe interface. The TBS6322 is based on DVB architecture, so it is compatible with various DVB software such as Kylone, TVheadend, Astra Cesbo, DVB Dream, DVBViewer and TSReader.

    TBS6322 provides a versatile and cost-efficient video encoding solution in various industries. It can be used for live production, live streaming, broadcast TV, remote transmission, post-production etc.

    Features

    • 2x 3G/HD/SD-SDI input and supports encoding 2x 1080p@60fps at maximum
    • Support up to 4 stereo audio tracks (8 channels mono audio) embedded input
    • Support audio line in (optional)
    • Support H.265/HEVC & H.264/AVC video encoding
    • Support AAC-LC/AAC-HE, MP2 audio encoding
    • DVB architecture,compatible with DVB software
    • Support OSD overlay, including inserting logo/text into video
    • Hardware encoding without consuming CPU resources
    • Applicable to IPTV systems in multiple industries (e.g. education, healthcare, conference and news interview).
    • Compatible with Windows and Linux OS
    • High-speed PCIe interface, works with PCI-E x1 / x4 / x8 / x16 slot

    Applications

    TBS6322 dual HD/SD/3G-SDI PCIe encoding solution can be applied to many industries such as broadcast TV, video surveillance, business and education,healthcare industries etc.

    With easy-to-use TBS encoded setting tool,TBS6322 can easily switch between channels and adjust configurations.

    Linux Platform: command line control

    Windows Platform: GUI setting tool

    Specification

    Model NO. TBS6322
    Model Name Dual 3G-SDI PCIe Encoder

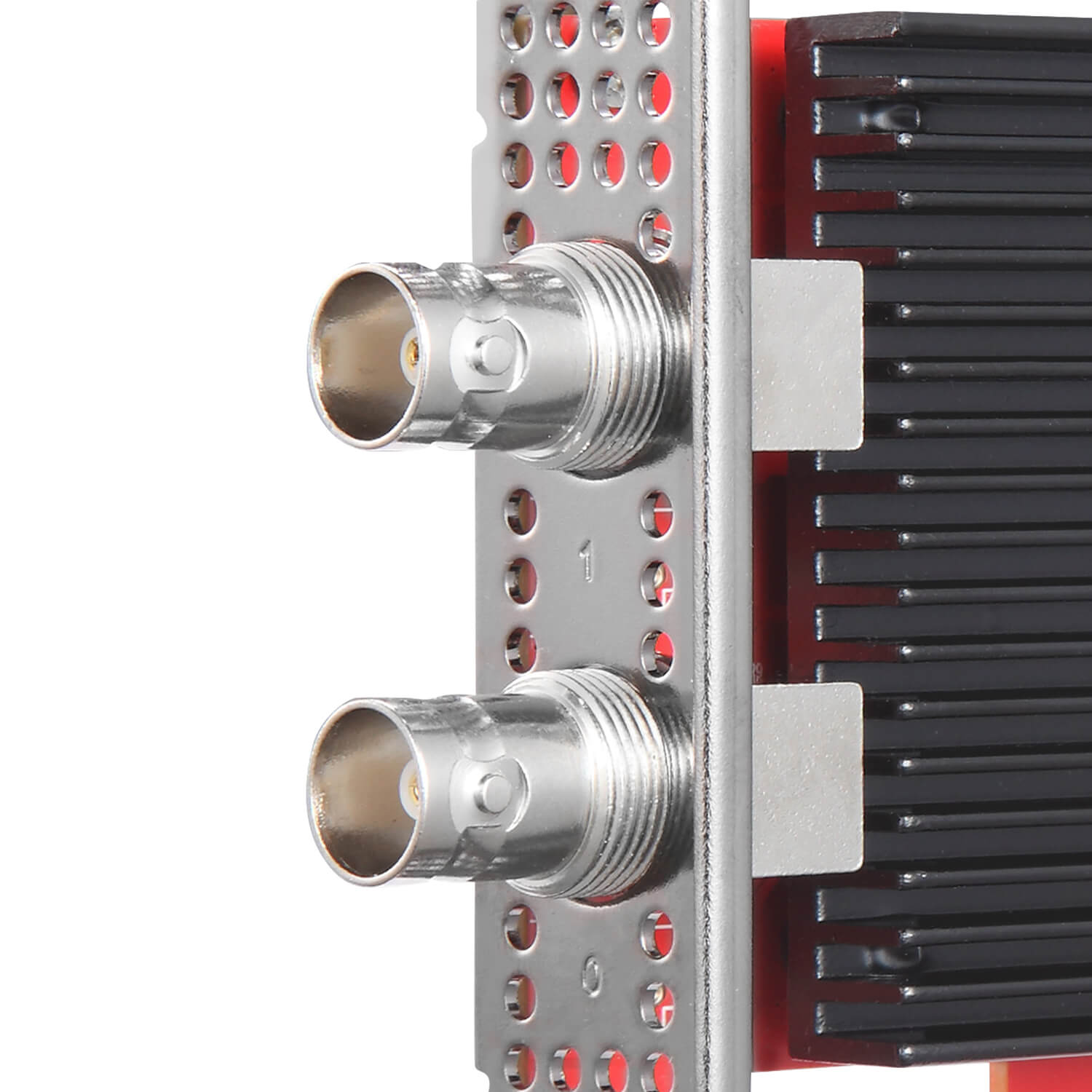

    Input 2x SDI (BNC Female)
    Interface PCIe x1
    Output TS (Transport stream)
    Audio
    Video Input SD-SDI (SMPTE 259): 480i, 576i
    HD-SDI (SMPTE 292):
    1920x1080i_60/50hz, 1920x1080p_30/25/24hz, 720p_60/50hz
    3G-SDI (SMPTE 242): 1920x1080p_60/50hz Level A & Level B
    Video Encode Size 1920x1080,1680x1056,1280x720,1024x576,
    720x576,720x480,704x576,640x480,640x360, auto.
    Video Output 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps,
    720x576p@30fps, 640x480p@30fps etc.
    Video Codec H.264, H.265
    Profile H.264: Baseline, Main, High
    H.265: Main
    Level H264: Level 4.2; H265: Level 4.1
    Bitrate Control CBR, VBR, EVBR
    Frame Rate 5 ~ 60fps
    Key Interval (GOP) 5 ~ 180fps
    GOP Structure IPPP
    Bitrate 0.3 ~ 20Mbps
    Color Depth 8 bit
    Chroma Subsampling 4:2:0
    De-interlace Supported, force to do de-interlace when i (interlace) input
    Audio
    Audio Input SDI embedded
    Line in (Optional)
    Supports up to 4 stereo audio tracks (8 mono audio channels): channel 1-2, 3-4, 5-6, 7-8
    Audio Codec AAC-LC, AAC-HE, MP2
    Audio Bitrate 24/32/44.1/48/64/96/128/160/192/256(Kbps)
    Audio Resample 48, 44.1, 32(Khz)
    System & Software
    System Requirements Linux 64 bit & 32 bit driver, Windows 64 bit & 32 bit driver
    Available PCI Express x1, x4, x8 or x16 slot
    Control Linux command line setting tool
    Windows GUI setting tool
    Software Copatible with DVB software
    Linux platform: DVBlast, Astra Cesbo, Tvheadend etc.
    Windows: DVBdream, DVBviewer, TSReader, TransEdit etc.
    General Spec.
    Power Consumption 6 Watt
    Net Weight 200 g
    Dimension 142.5 mm x 68.9 mm
    Working Environment Operating Temperature: 0 to 60 °C
    Storage Temperature: –20 to 70°C
    Relative Humidity: 5% to 90% (non-condensing)

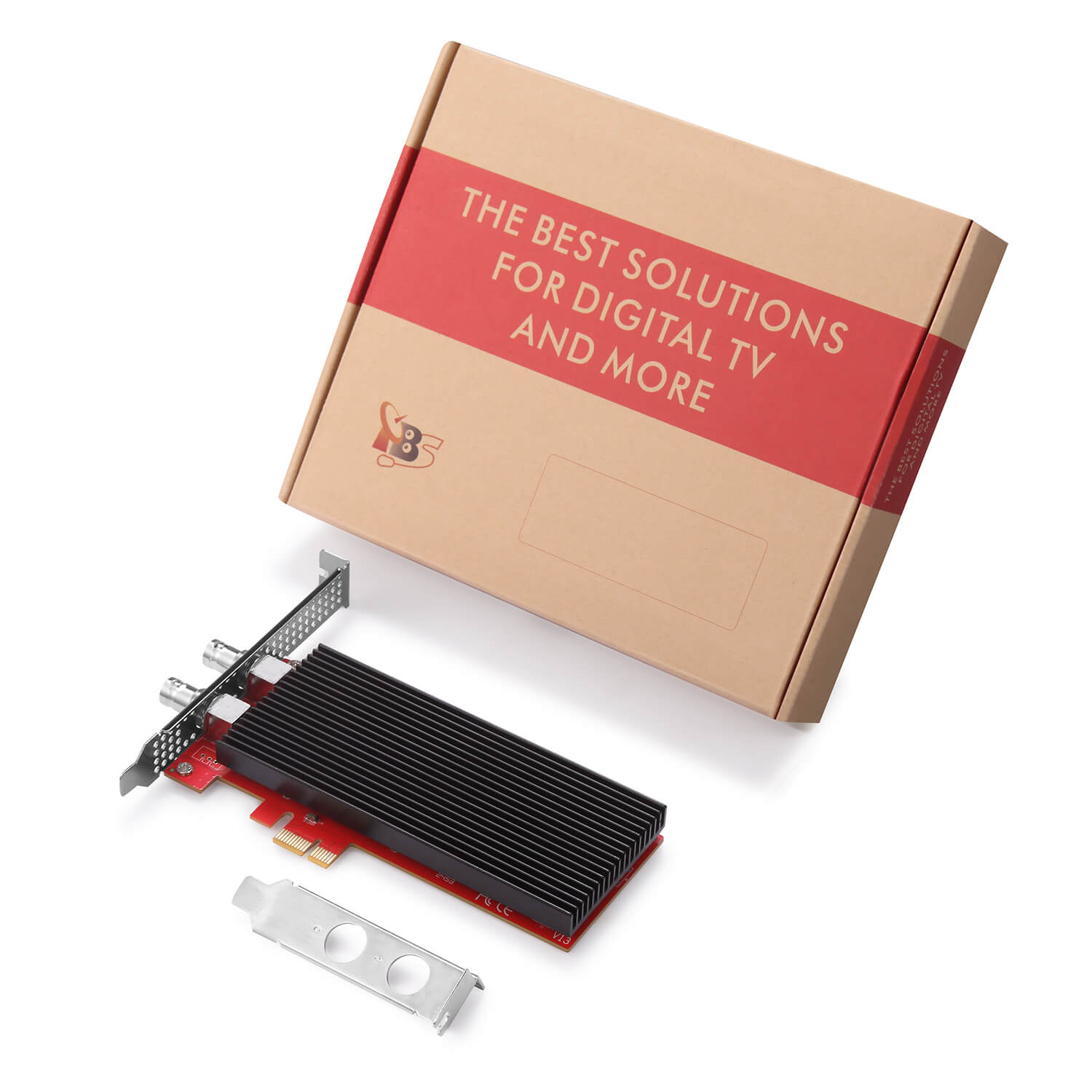

    Package Content 1x TBS6322
    1x Low Profile Bracket
