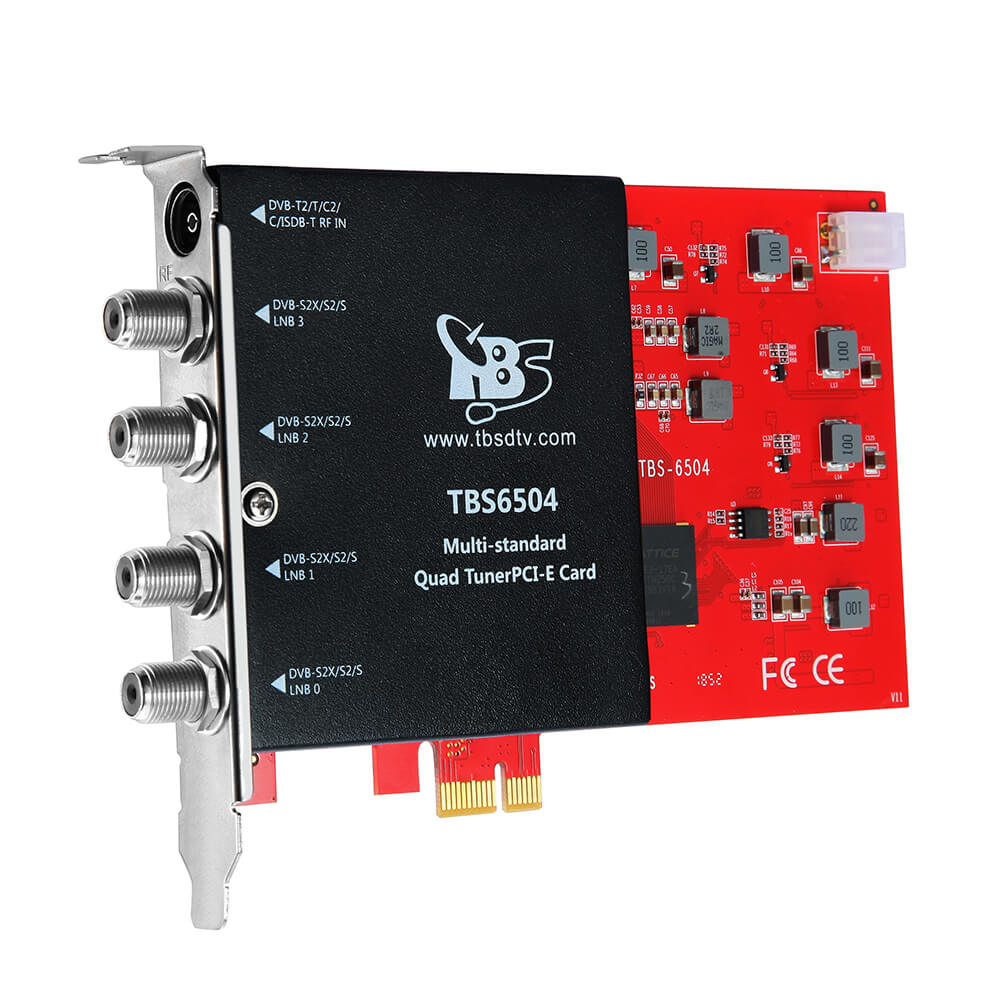

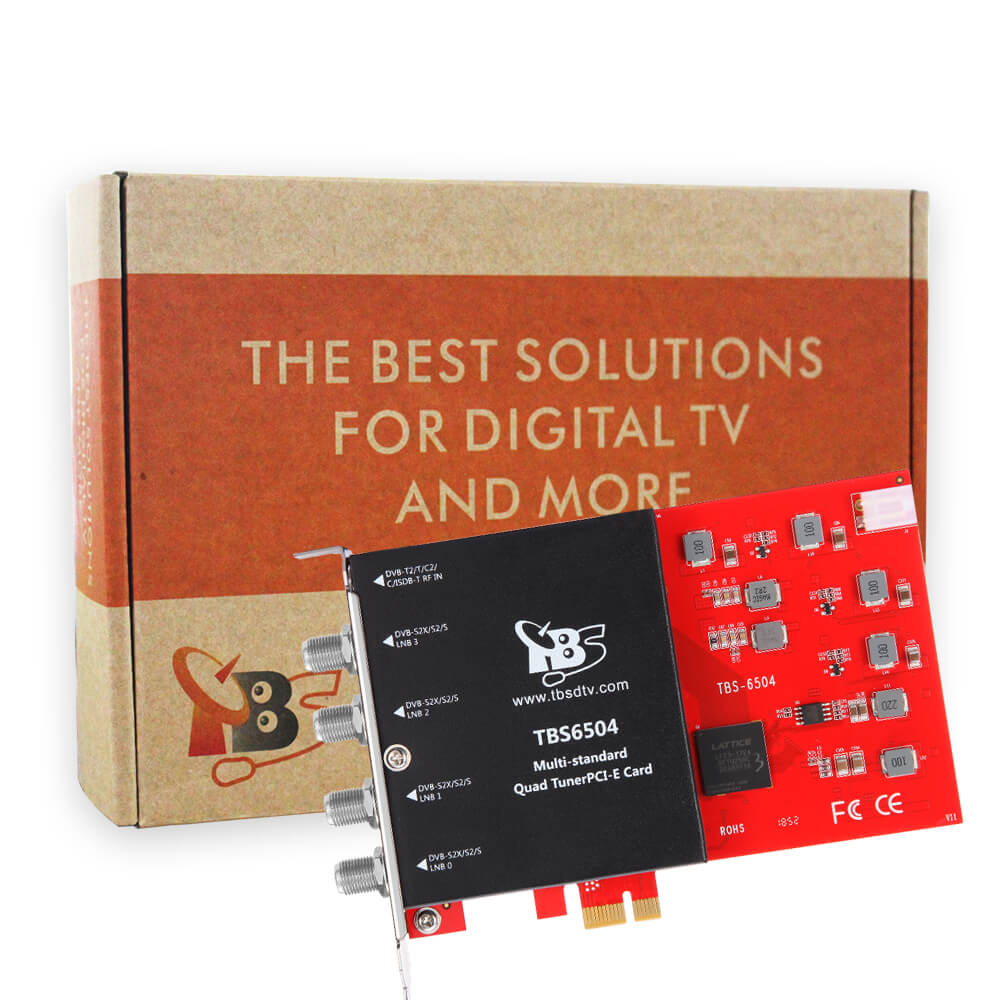

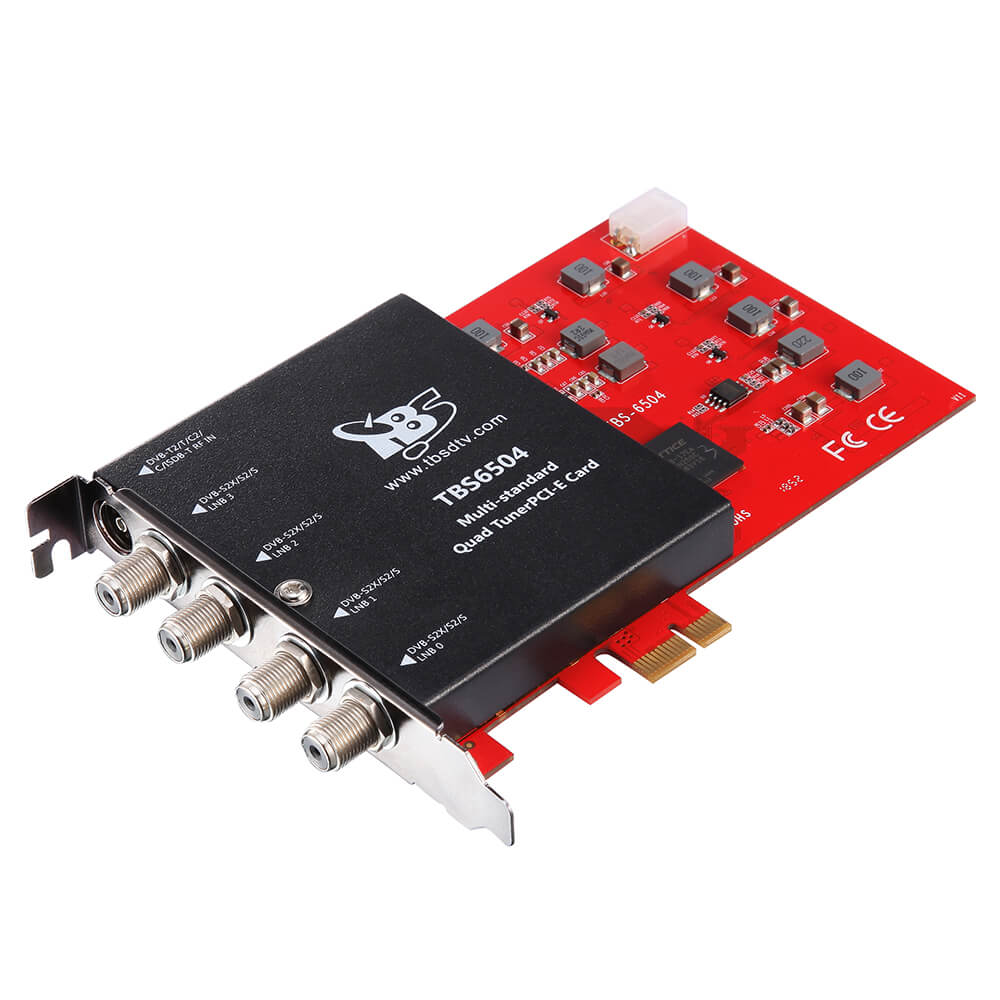

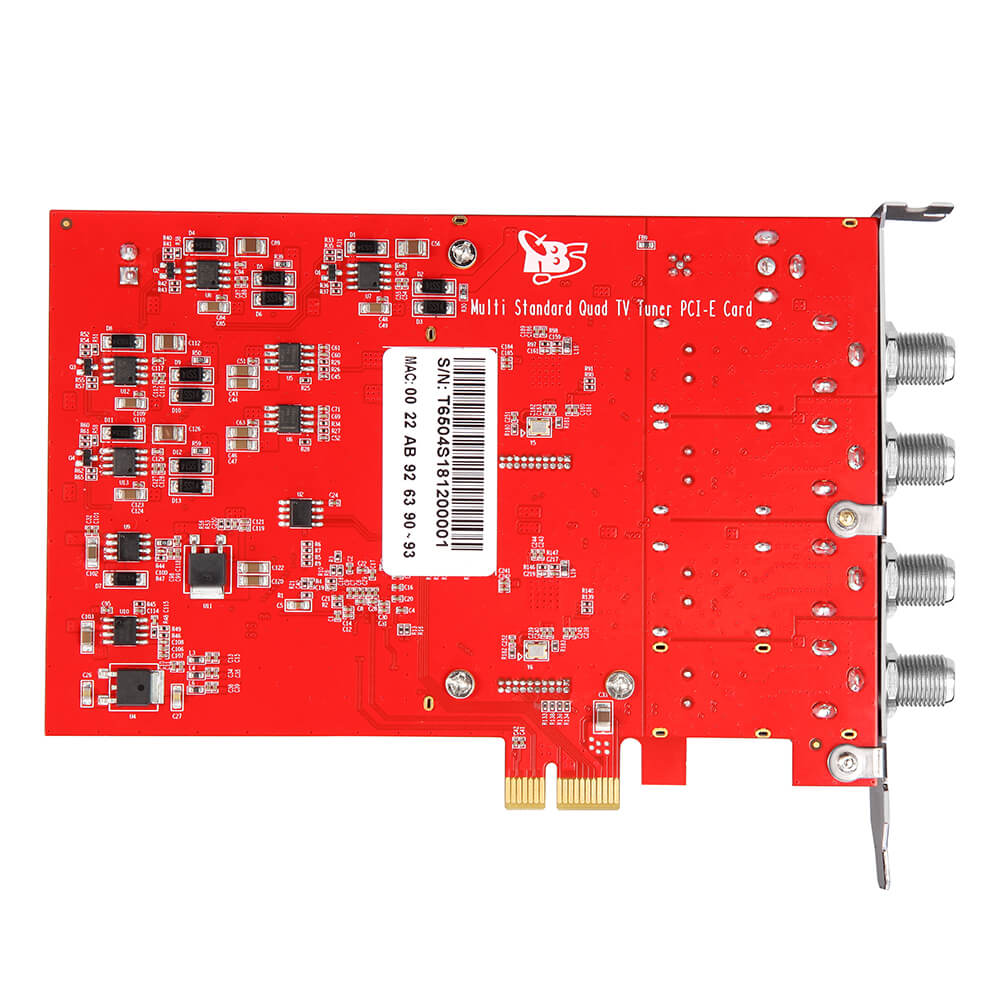

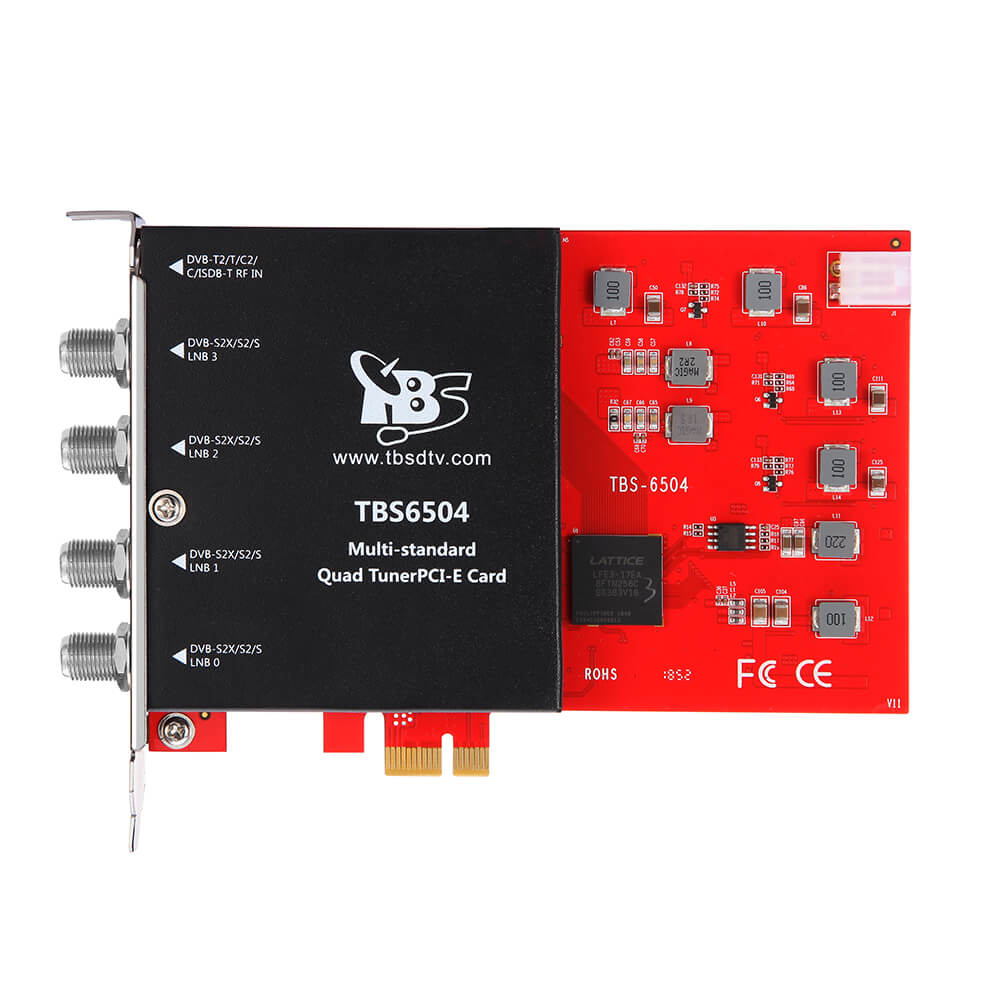

    TBS6504 Multi Standard Quad Tuner PCI-e Card

    TBS6504 is a Quad PCI express TV tuner card that supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C/ISDB-T, four RF IN is independent with each other, with this multi-standard TV tuner card, it is much easier to switch between different digital TV signals, you just need to plug another signal cable instead of taking out the card from your server. With four tuners, the TBS6504 enables you to watch TV channel from one transponder/satellite while recording other channels from other transponder/ satellite at the same time.

    Main Features:

    • Support DVB-S/S2/S2X , DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T
    • Fast scanning functionality for all media
    • Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
    • Up to 173M/bps(TS Data Rate)
    • Quad flexible TS interfaces


    • Data receiving
    • Media monitoring
    • Digital content distribution
