    TBS6504H Multi-Standard Quad (4SAT+ 4Ter/Cable) Tuner PCI-E Card

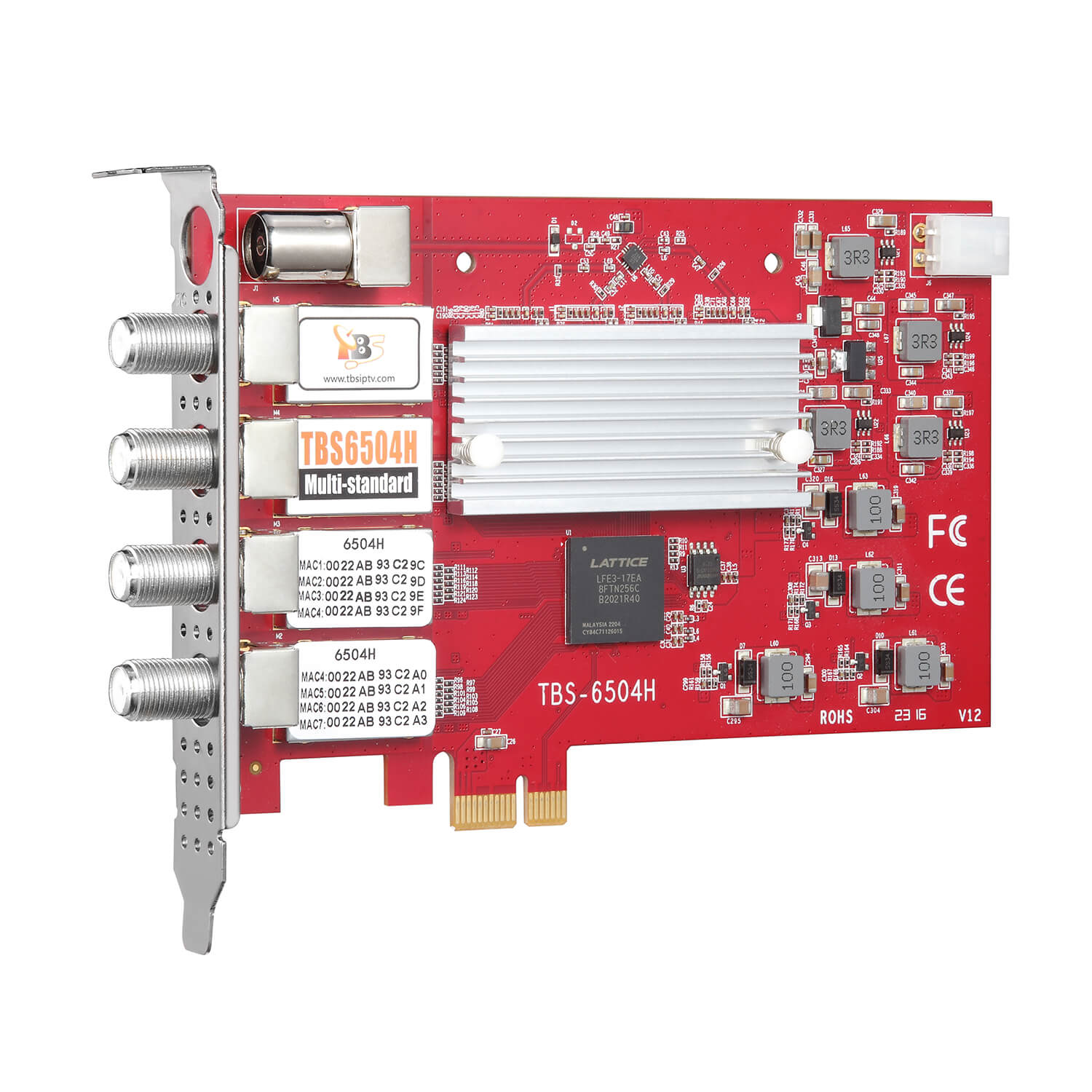

    TBS6504H is a Octa(4SAT+ 4Ter/Cable)PCI express TV tuner card that supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C (J.83A/B/C)/ISDB-T/C /ATSC1.0, four RF IN is independent with each other, it supports both quad DVB-S2X/S2 and quad DVB-T2/T/C2/C standard at the same time, which allows to receive/record channels from satellite and terrestrial/cable at the same time . With this multi-standard TV tuner card, it is much easier to switch between different digital TV signals.

    TBS6504H not only supports normal DVB-S2X/DVB-S2/S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, VCM, 16APSK, 32APSK Stream Mode, which most satellite receiving devices can't support. With use of dedicated TBS tools, those special streams can be captured.

    Main Features

    • DVB-S/S2/S2X, DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T, ISDB-C, ATSC1.0
    • Fast scanning functionality for all media
    • Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
    • Up to 173M/bps(TS Data Rate)
    • High-definition video, real-Time and scheduled video recording
    • High sensitivity Tuner for the best digital TV reception
    • Windows BDA driver and Linux Driver ready
