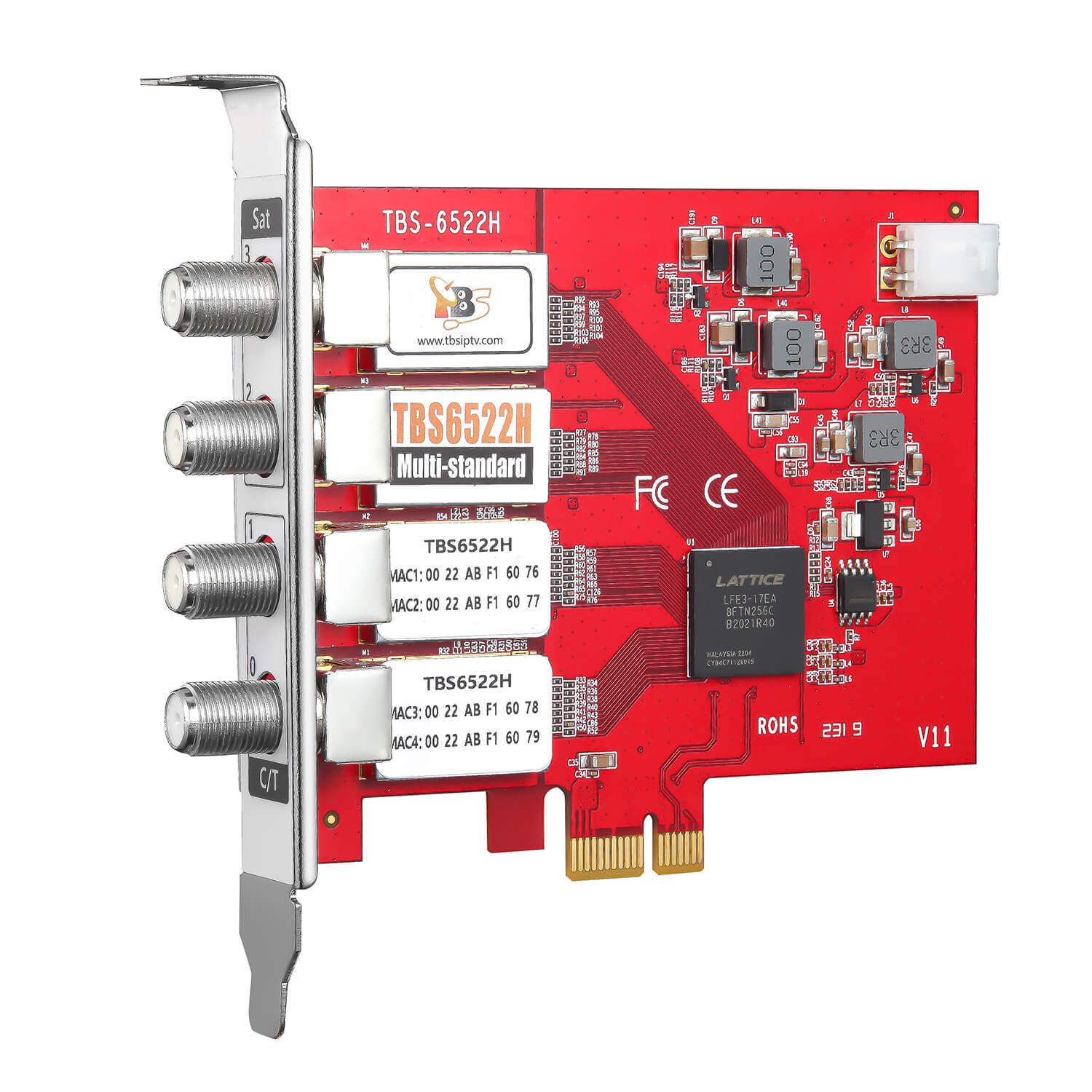

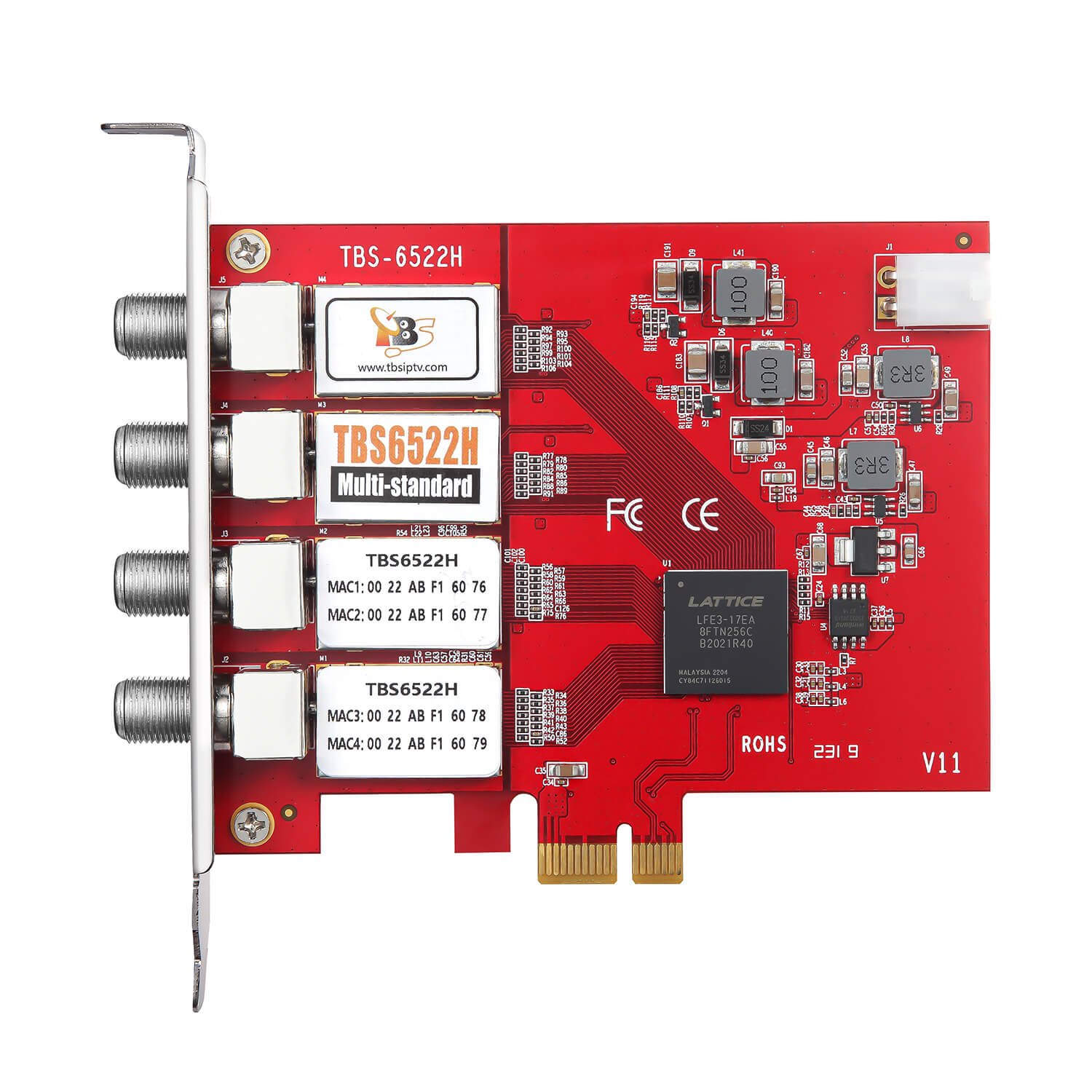

    TBS6522H Multi-Standard Quad (2SAT+ 2Ter/Cable) Tuner PCI-E Card

    TBS6522H is a Quad tuner PCI express TV tuner card that supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C (J.83A/B/C)/ISDB-T/C /ATSC1.0, four RF IN is independent with each other, it supports both dual DVB-S2X/S2 and dual DVB-T2/T/C2/C standard at the same time. With this multi-standard TV tuner card, it is much easier to switch between different digital TV signals.

    TBS6522H not only supports normal DVB-S2X/DVB-S2/S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, VCM, 16APSK, 32APSK Stream Mode, which most satellite receiving devices can't support. With use of dedicated TBS tools, those special streams can be captured.

    Both Windows BDA driver and the latest kernel 5.X Linux driver are ready. With quad tuners, TBS6522H enables you to watch TV channel from one transponder/satellite while recording other channels from other transponder/ satellite at the same time.

    Main Features

    • DVB-S/S2/S2X, DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T, ISDB-C, ATSC1.0
    • Fast scanning functionality for all media
    • Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
    • Up to 173M/bps(TS Data Rate)
    • High-definition video, real-Time and scheduled video recording
    • High sensitivity Tuner for the best digital TV reception
    • Windows BDA driver and Linux Driver ready
