ISDB-T |
COFDM demodulator and FEC decoding |
Support 3 layers decoding |
TMCC decoding |
Support differential demodulation |
AC1 and AC2 decoding |
DVB-T2 and T2-Lite |
Receiving channel: VHF band, UHF band |
Bandwidth: 1.7, 5, 6, 7, 8MHz |
FEC: QPSK, 16QAM, 64QAM,256QAM |
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K |
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 |
DVB-C2 |
COFDM demodulator(16_QAM to 4096_QAM) |
FEC(LDPC/BCH) decoder |
Bandwidth: 6MHz, 7MHz, 8MHz |
DVB-C and ITU-T J.83 Annex B |
QAM demodulator |
FEC decoder |
1 to 7.2MSymbol/s |
DVB-S/S2/S2X |
symbol rates: 1-45Msps |
FEC:
DVB-S/S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
QPSK: 13/45, 9/20, 11/20
2_4_2_APSK: 100/180, 104/180
8PSK: 23/36, 25/36, 13/18
8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30 16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180 4_12_16rb_APSK: 2/3 4_8_4_16_APSK: 128/180, 132/180, 140/180 |
Power consumption |
Input/ Power: |
12V/10~18W |
temperature |
0-60℃ |
Other information: |
System Requirements |
Windows XP / Vista/ 7/8/10, Linux |
Available PCI Express x1, x4, x8 or x16 slot |
Digital TV signal (DVB-S2/S/S2X /DVB-T2/T/DVB-C2/C/ISDB-T) |
Dimension: |
TV tuner card size |
104.5mm*150mm |
Net weight |
137G |

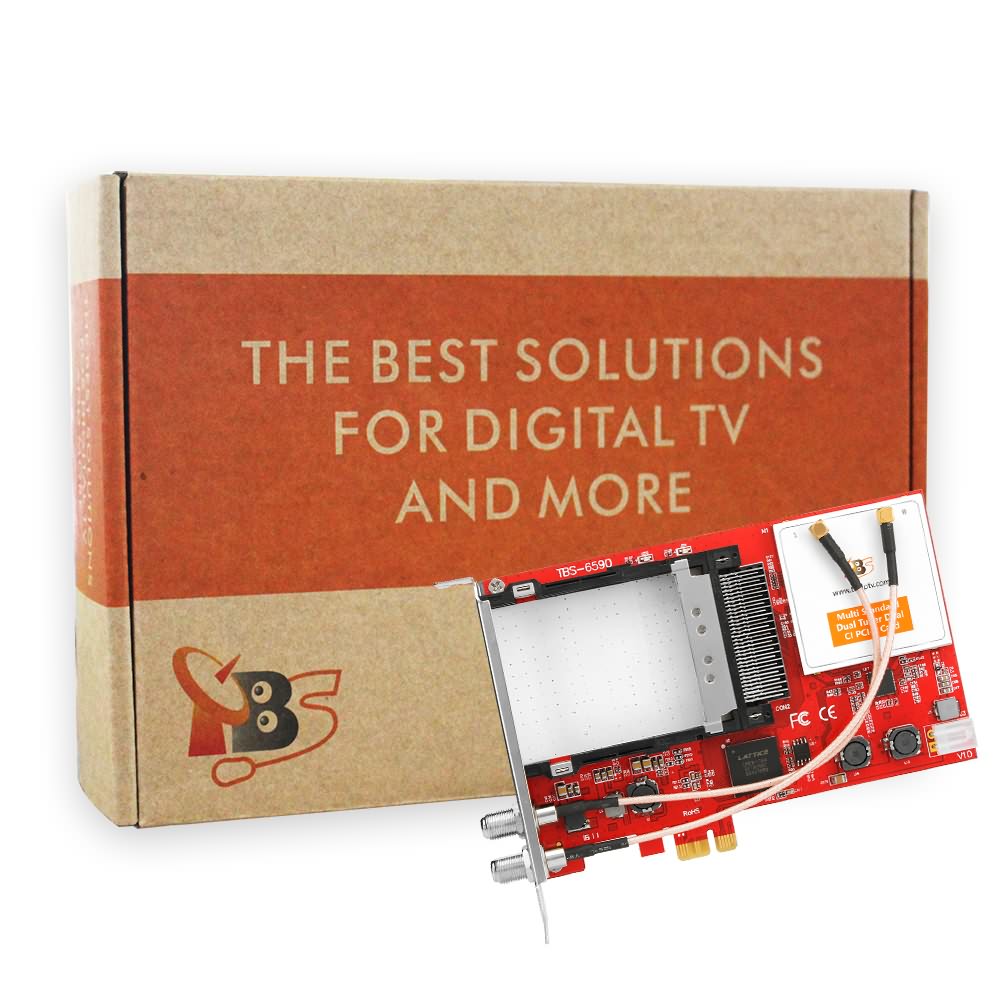

Gift Box Size |
17.7*16*3CM |
Weight |
245G |
Package Contents |

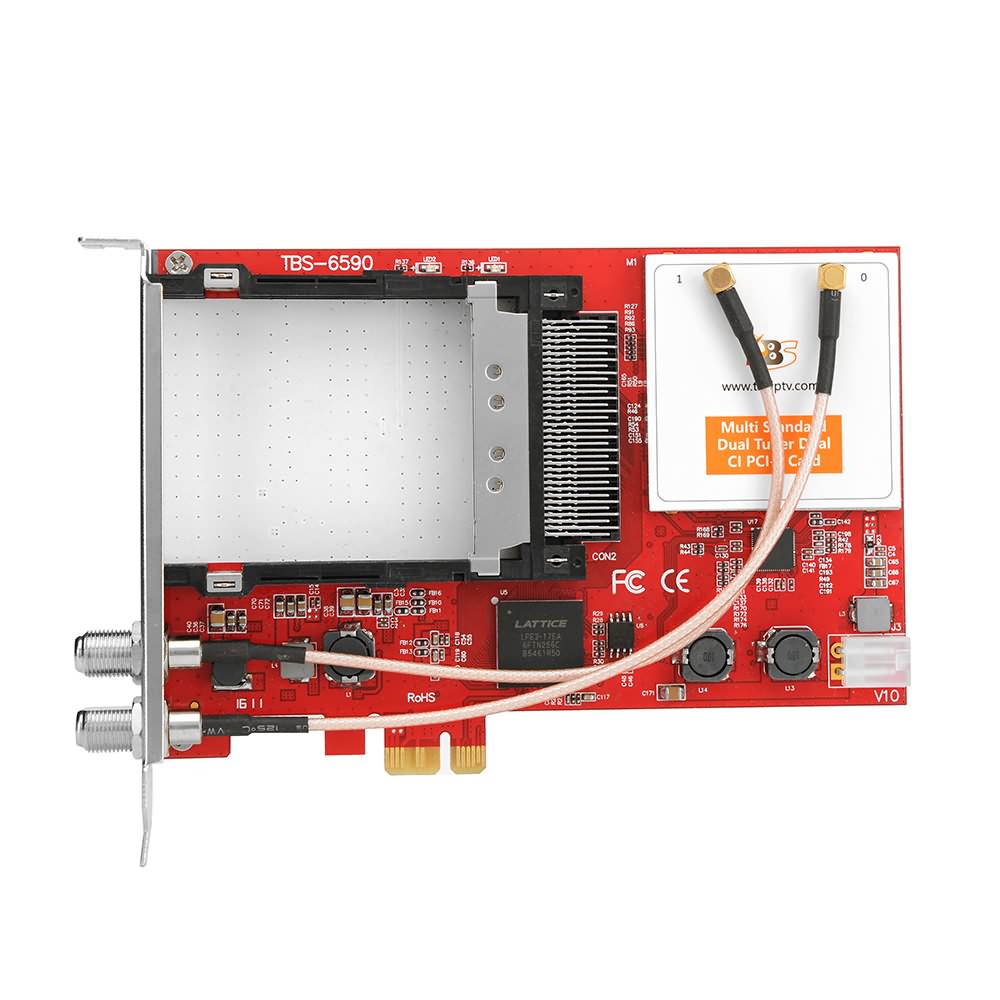

1 x TBS6590 |
1x DC line |
2x IEC Connector |
