    TBS6900 DVB Dual CI PCI-E Card

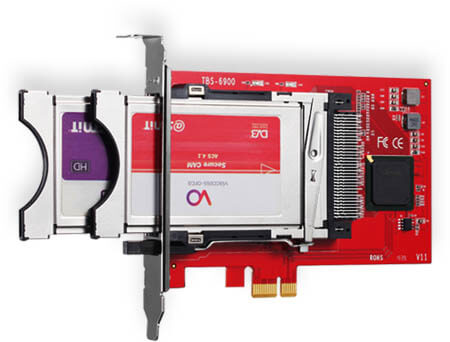

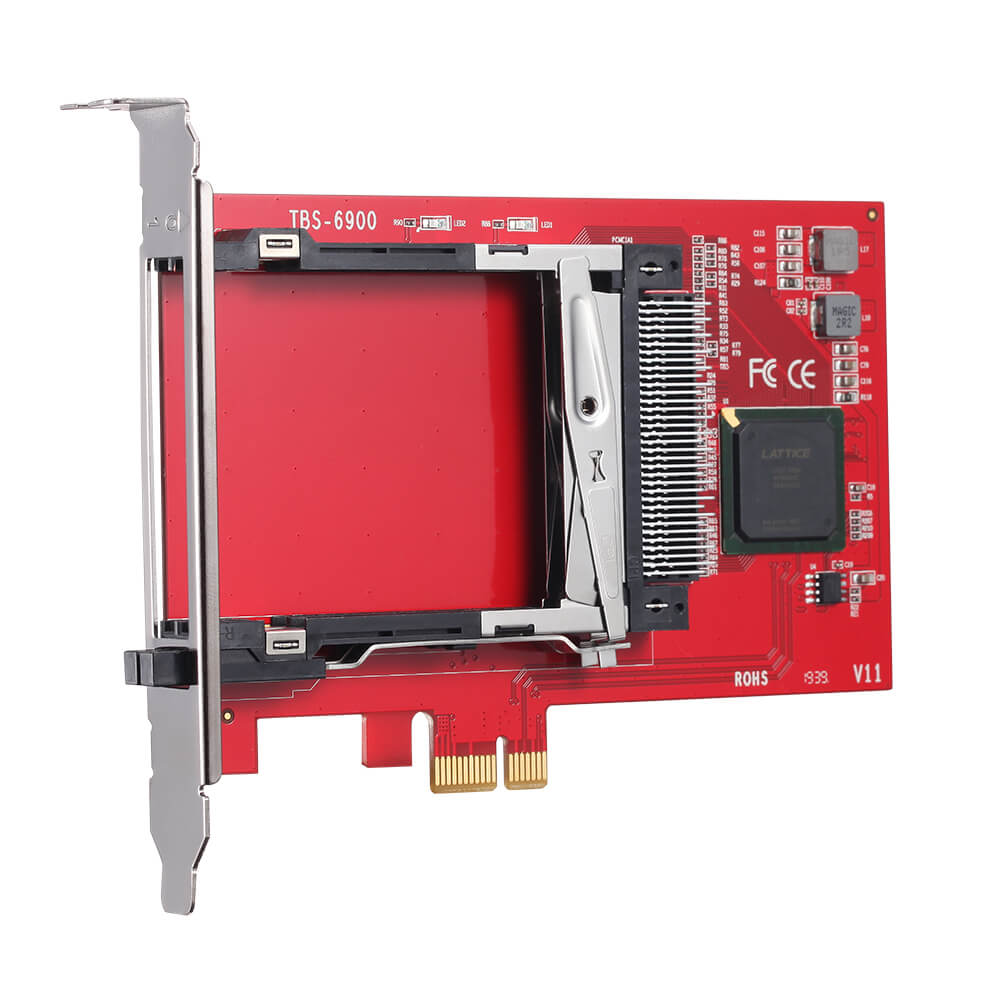

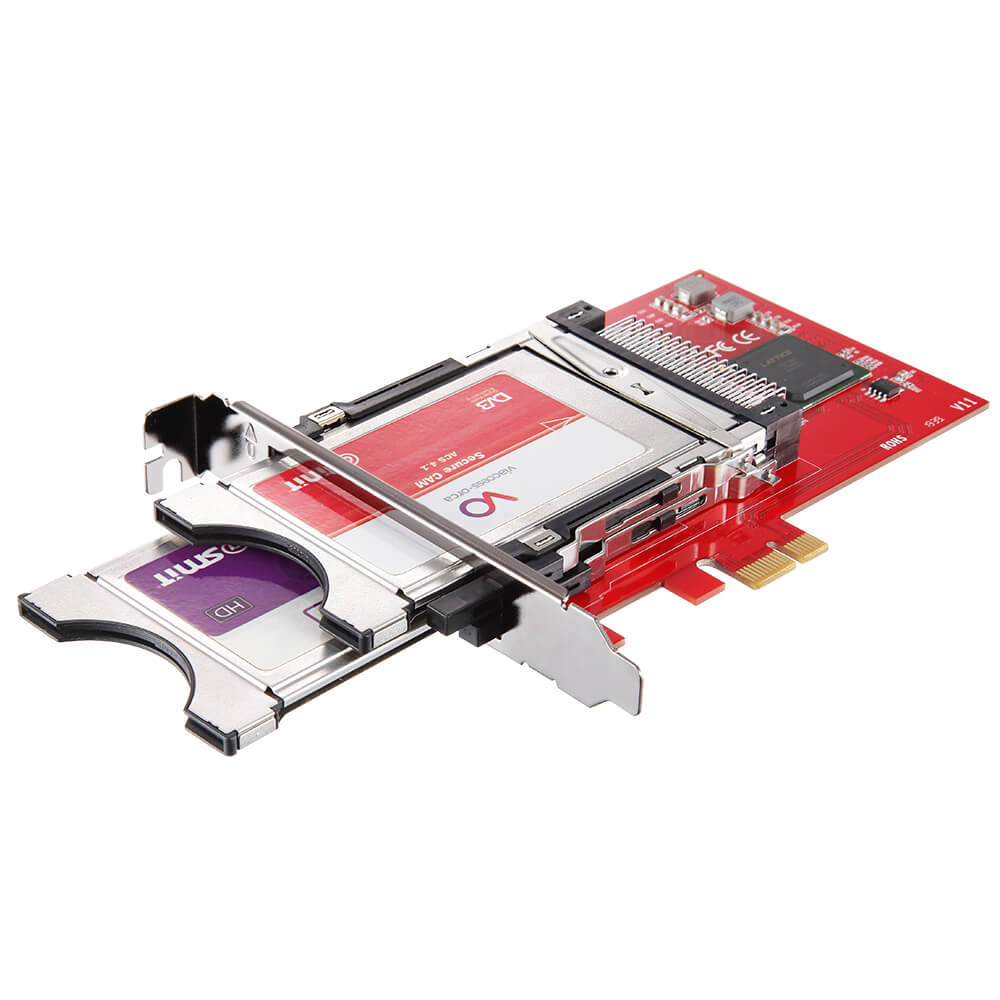

    TBS6900 is a DVB network PCI-E card with two common interface slots, where you can insert 2 CAM inside to decrypt the pay channels. With a PCI-e slot, it can be used with any PC or server(based on linux)with PCI-e slots, receive signals from IP (udp/rtp/http), after decryption and remux, will output FTA channels to IP (udp/rtp/http).

    TBS6900
    DVB network Dual CI PCI-E Card
    TBS6900 is a DVB network PCI-E card with two common interface slots, where you can insert 2 CAM inside to decrypt the pay channels. With a PCI-e slot, it can be used with any PC or server(based on linux)with PCI-e slots, receive signals from IP (udp/rtp/http) , after decryption and remux , will output FTA channels to IP (udp/rtp/http).
    TBS6900 is fully compatible with TBS tuner cards and servers, which means you can use it with our tuner cards with all DVB standard or streaming server together , it can be used for DVB-IP gateways, satellite Internet systems, home theaters and other solutions.

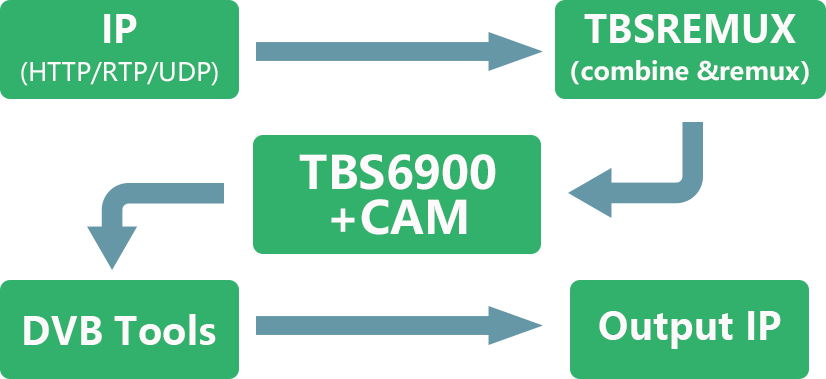

    How it works ?

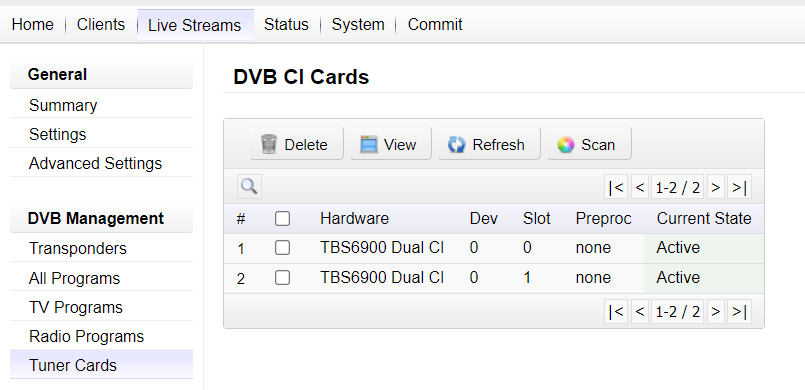

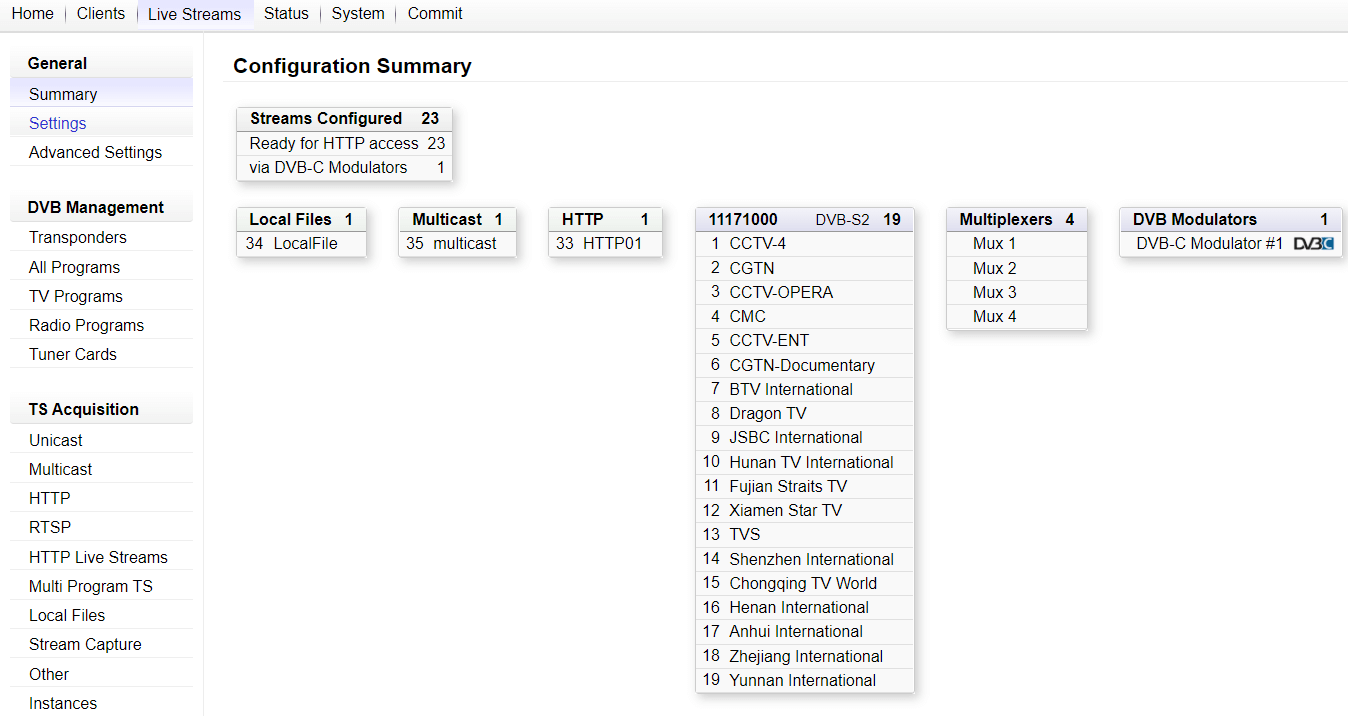

    Based on our software TBSREMUX, which can receive MPEG TS streams from multicast (udp/rtp) or http and combine them into one multiple program stream. That is suitable for outputing as /dev/dvb/adapterx/secy (x=0-16, y=0,1), then use DVB tools like DVBLAST, TVHEADEND,ASTRA to scan the transponder, then output to network via udp/rtp/http protocol.






    How to use it with other TBS products ?

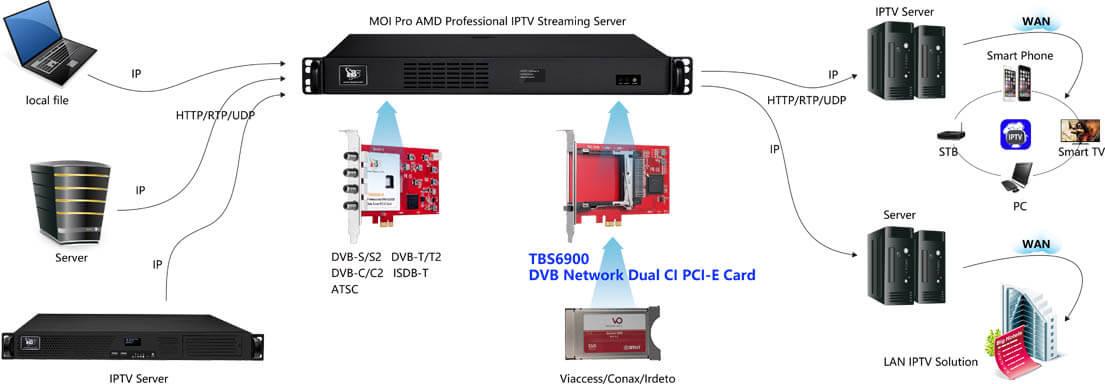

    TBS6900 is compatible with all TBS tuner cards and server products , supports to install in MOI pro AMD or MOI-V .This is is particularly useful in systems where there are a limited number of free slots and need to decrypt many channels. For example, you can use 2 TBS6909 (which can be received from 16 transponders) to receiving the signals in MOI Pro AMD, and then use 2 TBS6900 for decryption.
