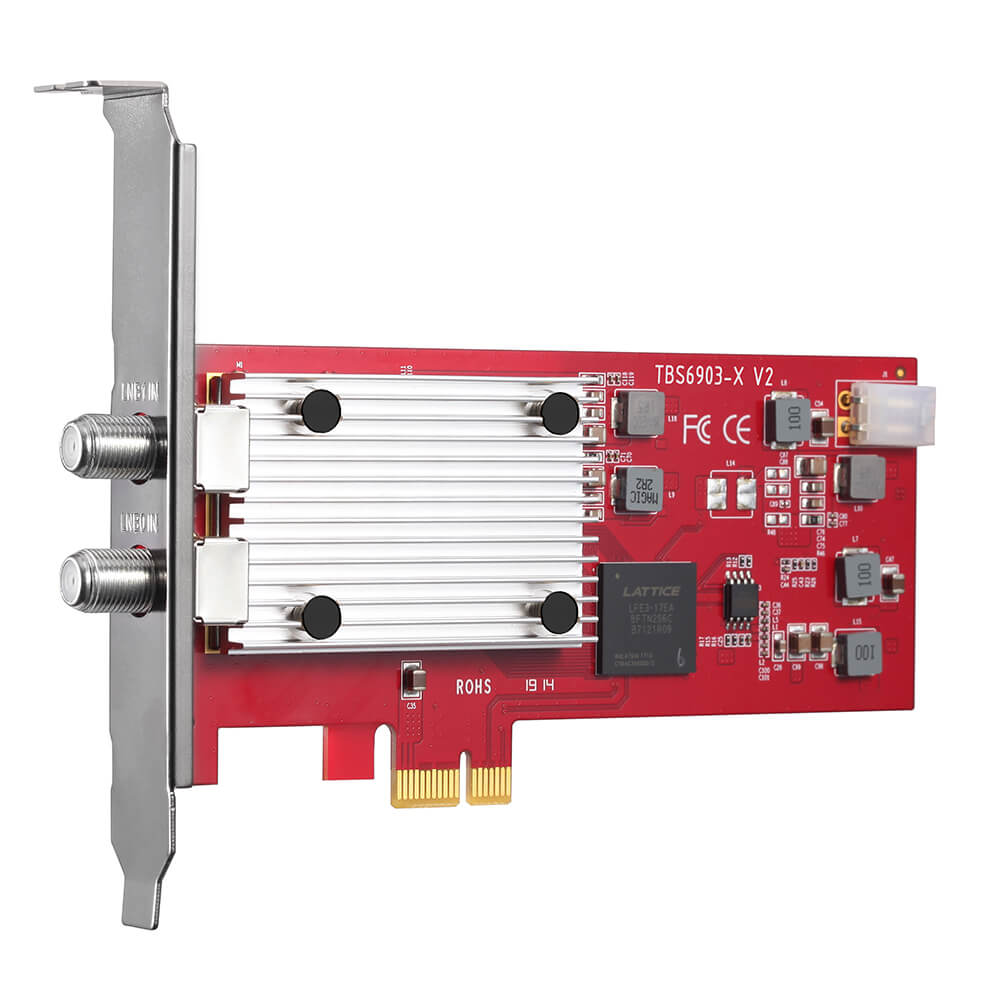

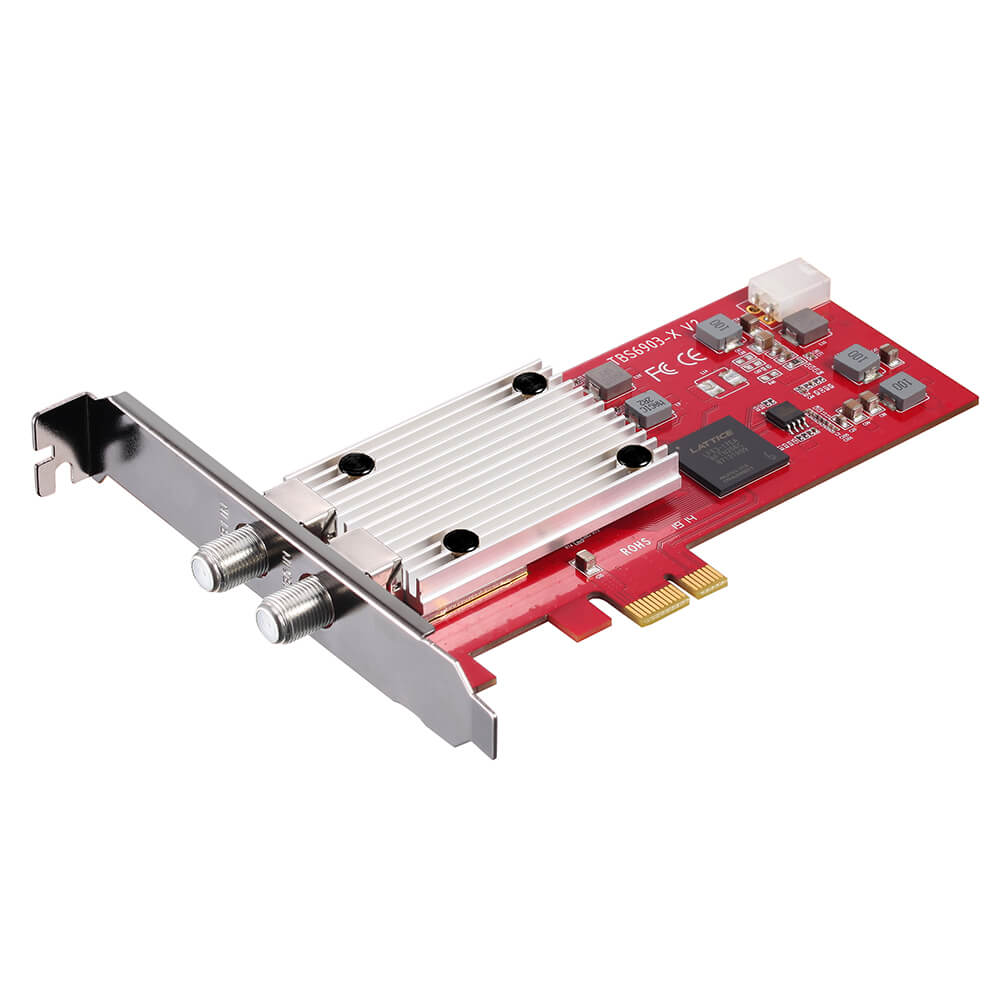

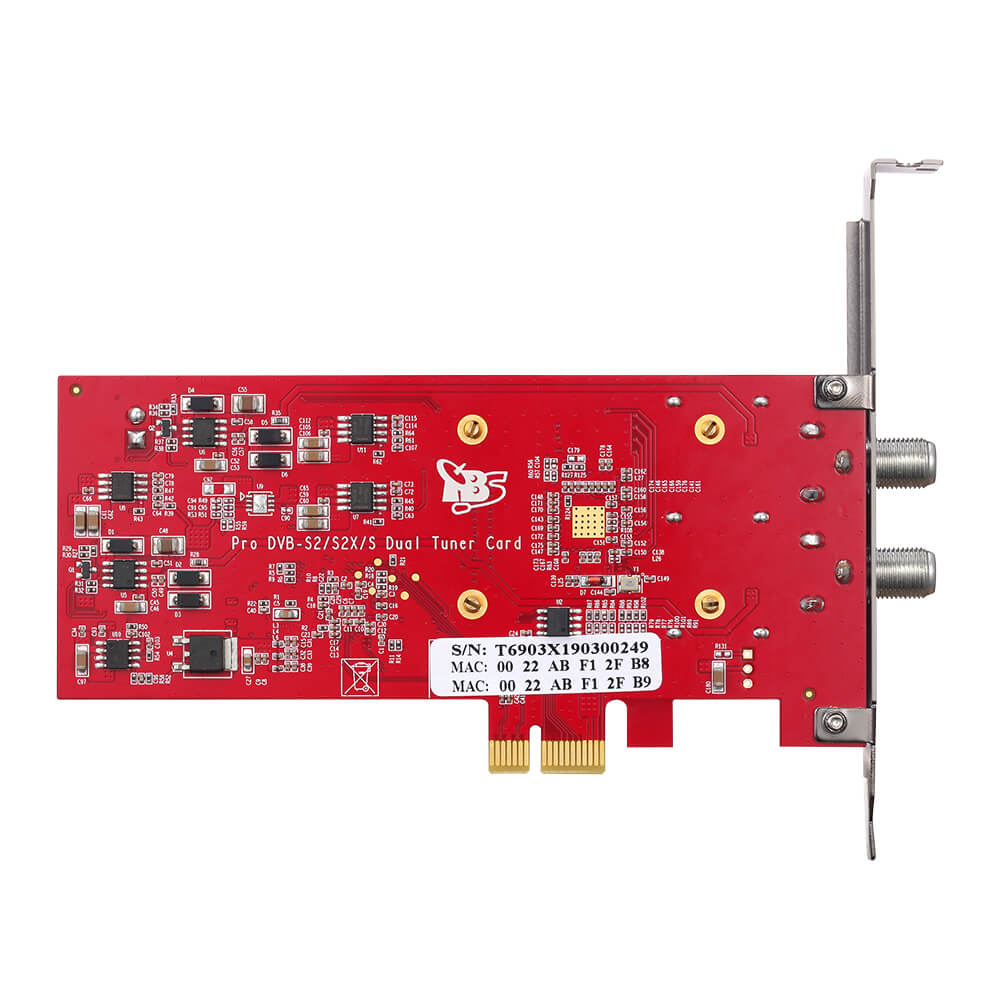

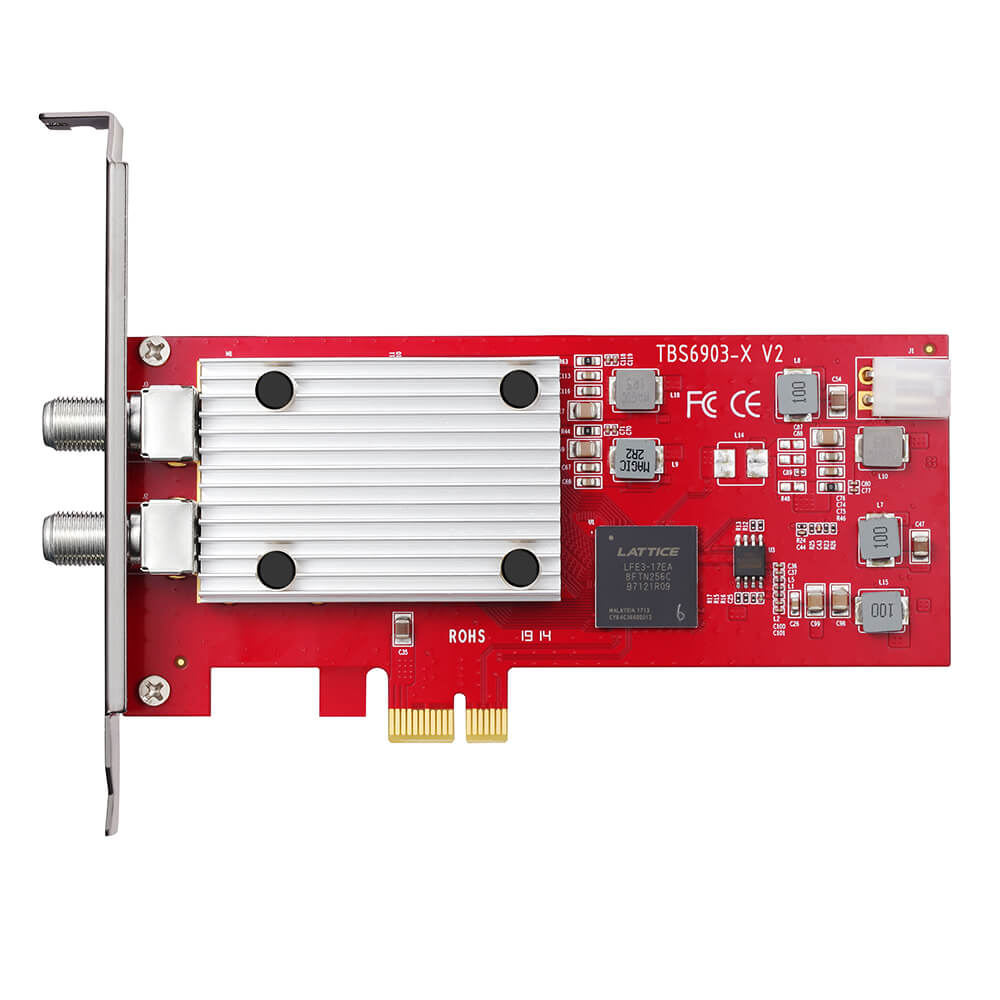

    TBS6903-X Professional DVB-S2X Dual Tuner PCIe Card

    TBS6903-X is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6903-X not only supports normal DVB-S2X/S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic & Single TS, which most satellite receiving devices can't support. With use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording channels from different satellite transponders from another tuner at the same time.

    Main Features:

    • DVB-S2X/S2 dual tuner
    • Watch & record satellite TV/ radio programs on PC
    • CCM, VCM, ACM and Multi Input Stream support
    • Generic stream mode Support
    • Blind scan support
    • EPG (Electronic Program Guide) support
    • Unicable/one cable compatible
    • High-speed data download via satellite

    Applications:

    • Data receiving
    • Media monitoring

    Specification:

    Model TBS6903-X
    Connection PCI-express
    2x RF in
    DVB-S/S2/S2X
    DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
    16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    32APSK 3/4, 4/5, 5/6, 8/9, 9/10
    DVB-S2X(NORMAL) FECFRAME 64800 (bits)
    QPSK 1/4,1/3, 2/5 (S2-MODCODs)
    1/2, 3/5, 2/3, 3/4, 4/5, 5/6
    8/9, 9/10 (S2-MODCODs)
    13/45
    9/20, 11/20
    8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
    23/36, 25/36, 13/18
    8PSK-L 5/9, 26/45
    16APSK 2/3, 3/4, 4/5, 5/6, 8/9 , 9/10(S2-MODCODs)
    26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 7/9, 77/90
    16APSK-L 5/9, 8/15, 1/2, 3/5, 2/3
    32APSK 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs)
    32/45, 11/15, 7/9
    32APSK-L 2/3
    64APSK 11/15, 7/9,4/5, 5/6.
    64APSK-L 32/45
    DVB-S2X(SHORT) FECFRAME 16200 (bits)
    QPSK 1/4, 1/3, 2/5 (S2-MODCODs)
    1/2, 3/5, 2/3, 3/4, 4/5, 5/6
    8/9, 9/10 (S2-MODCODs)
    11/45, 4/15, 14/45, 7/15, 8/15, 32/45
    8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
    7/15, 8/15, 26/45,32/45
    16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
    7/15, 8/15, 26/45, 3/5, 32/45
    32APSK 2/3, 32/45
    VCM, VCM ,CCM Yes
    Signal sensitivity: 8PSK 3/4 -75dBm
    Power consumption
    Input/ Power: 12V/7~15W
    temperature 0° ~ 60°
    System Requirements Windows XP / Vista/ 7/8/10, Linux
    Available PCI Express x1, x4, x8 or x16 slot

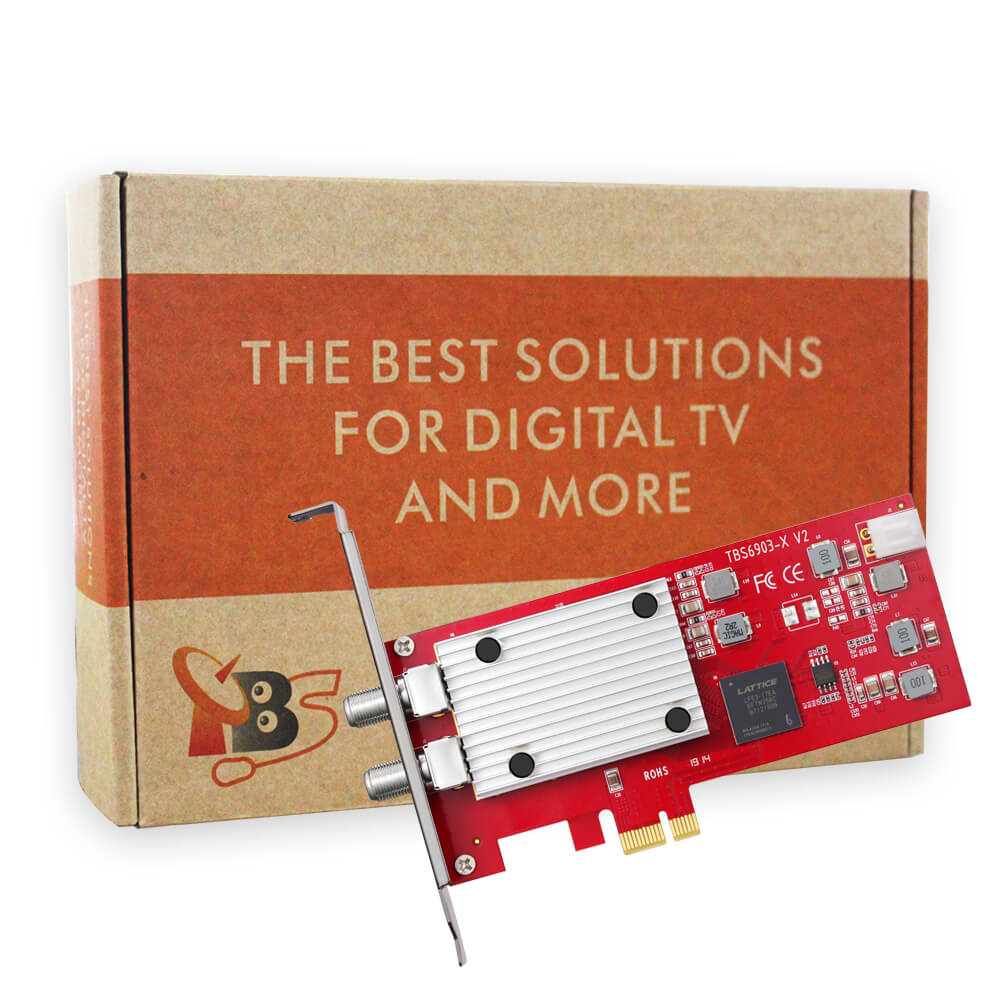

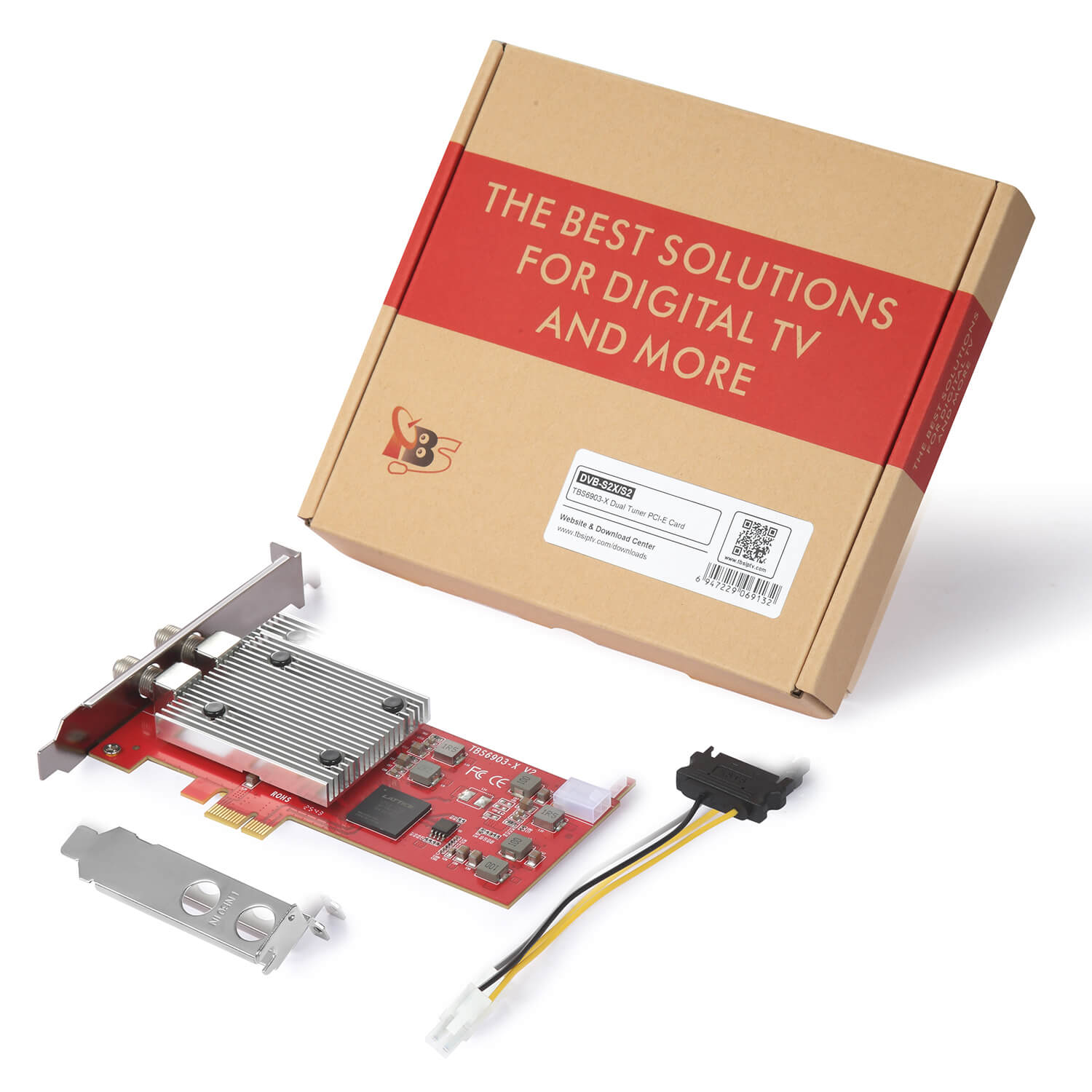

    Package Contents 1 * TBS6903-X
    1 * Power cable

    Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)

    Msymb/s Demod
    QPSK 180
    8PSK 120
    16APSK 90
    32APSK 72
    64APSK 60
    128APSK 51,42
    256APSK 45
