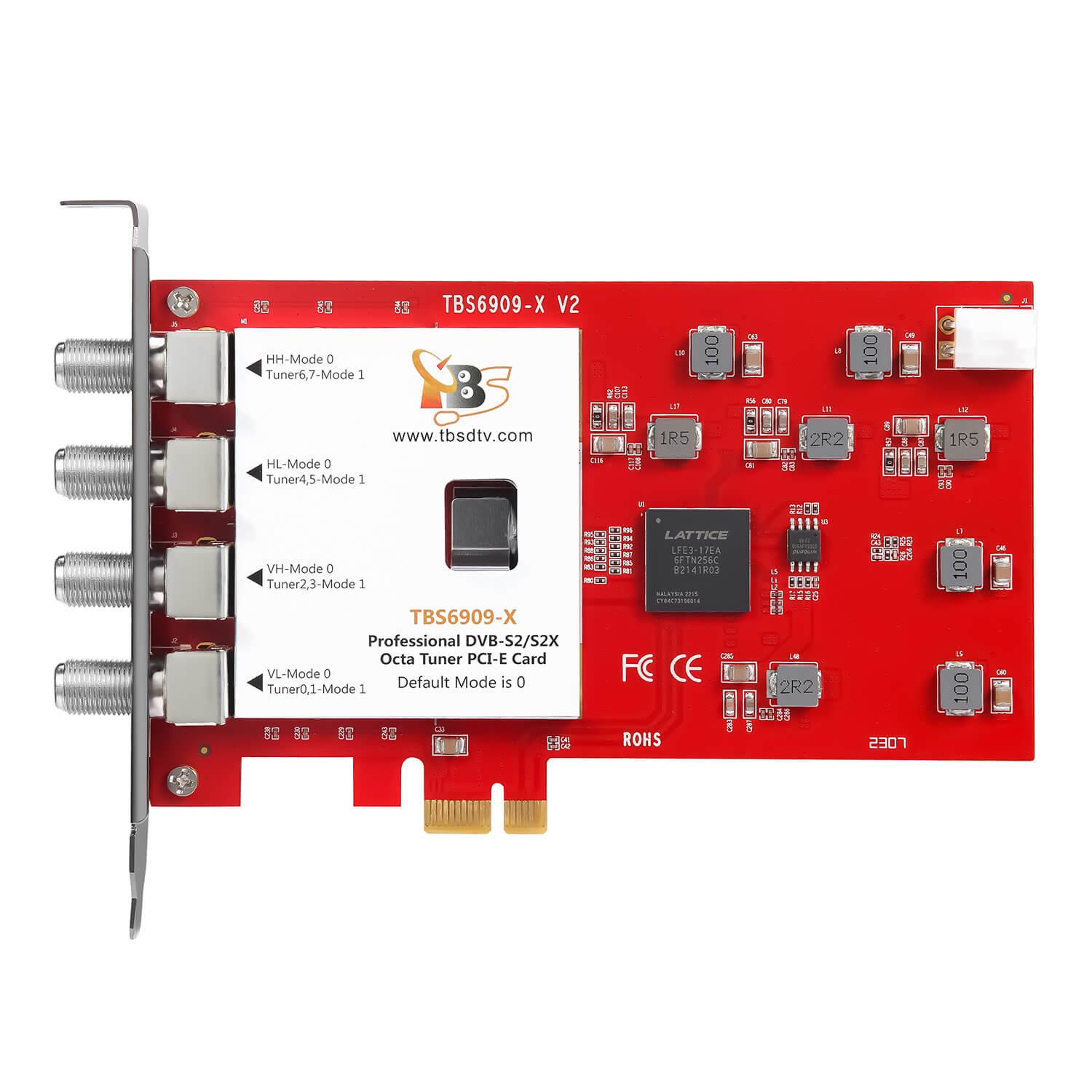

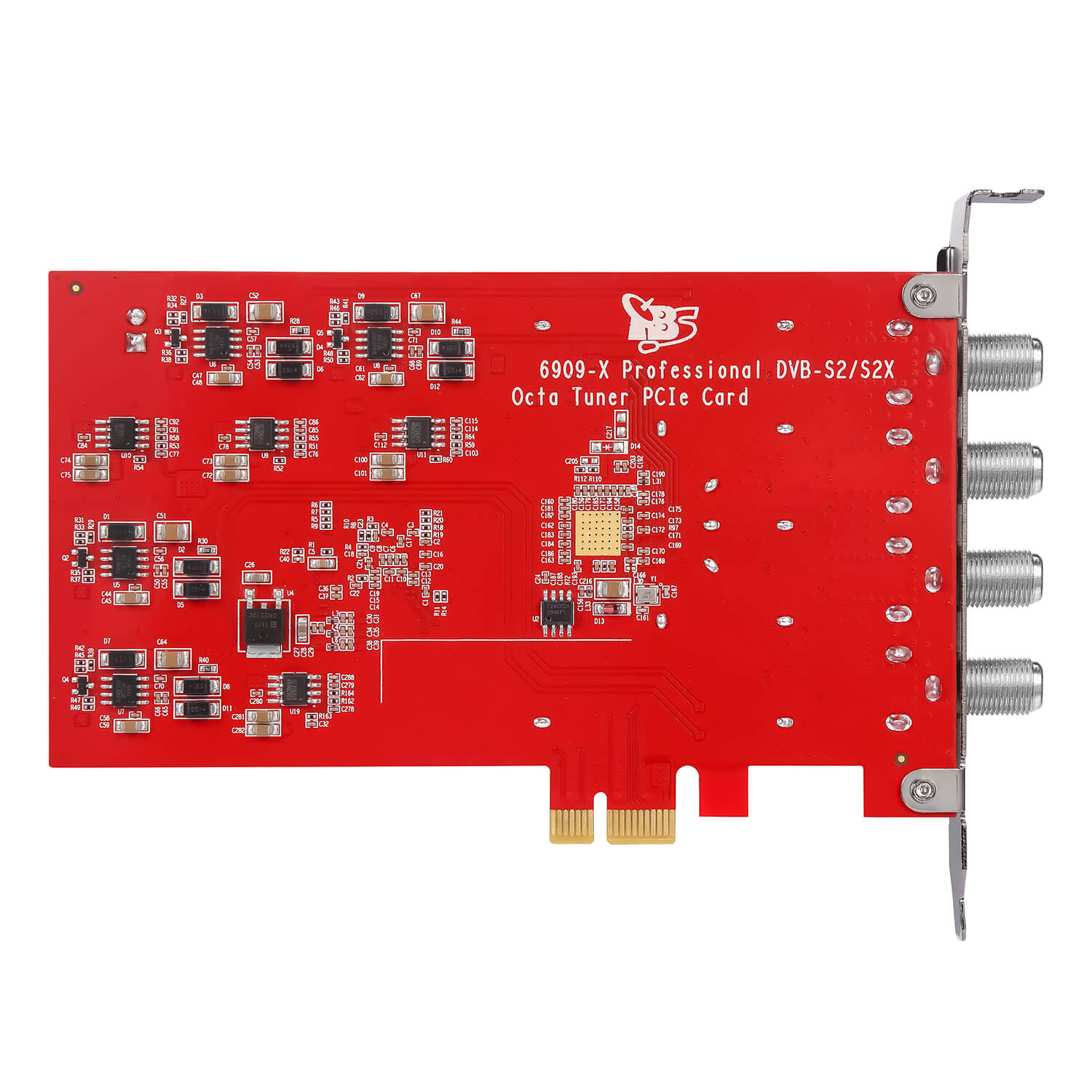

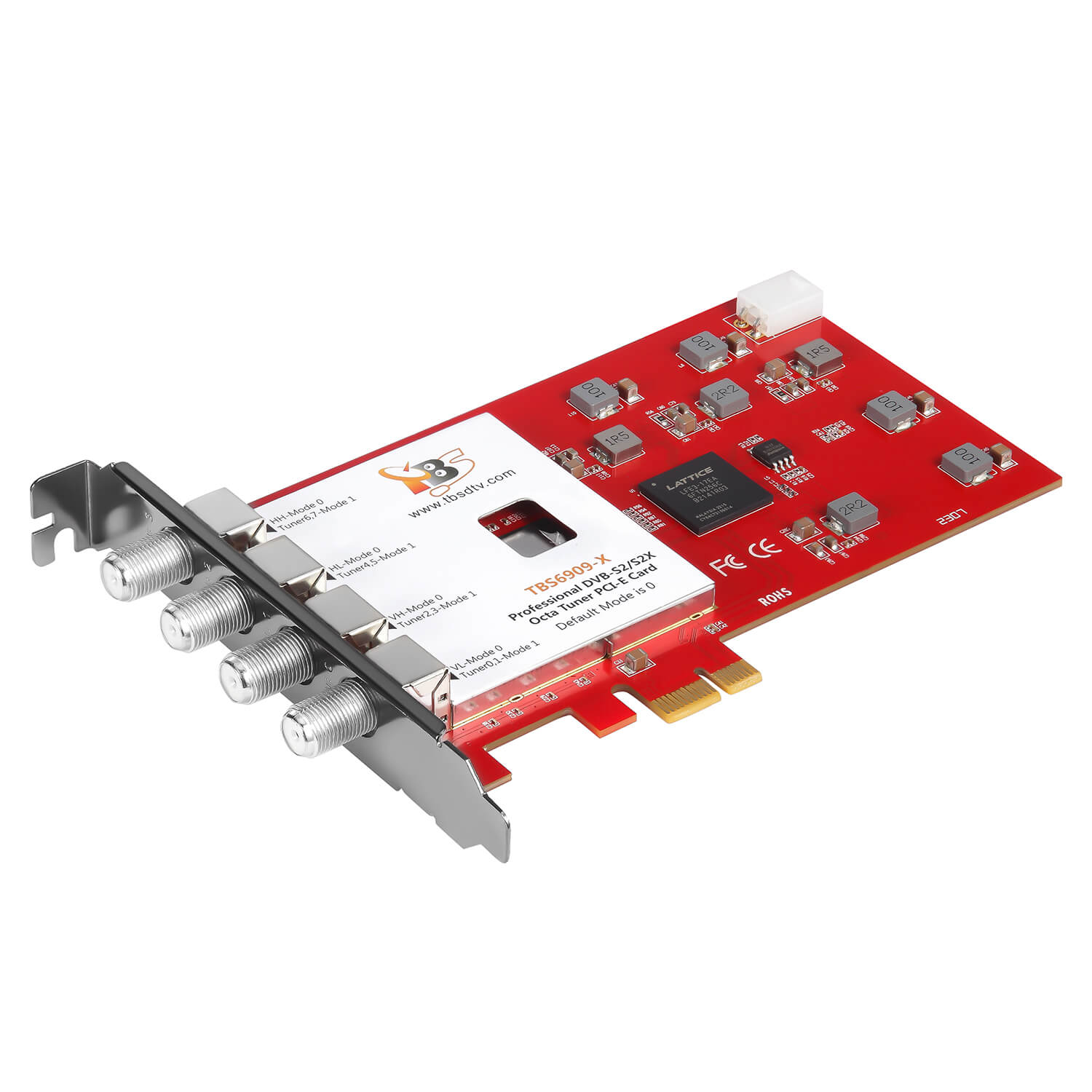

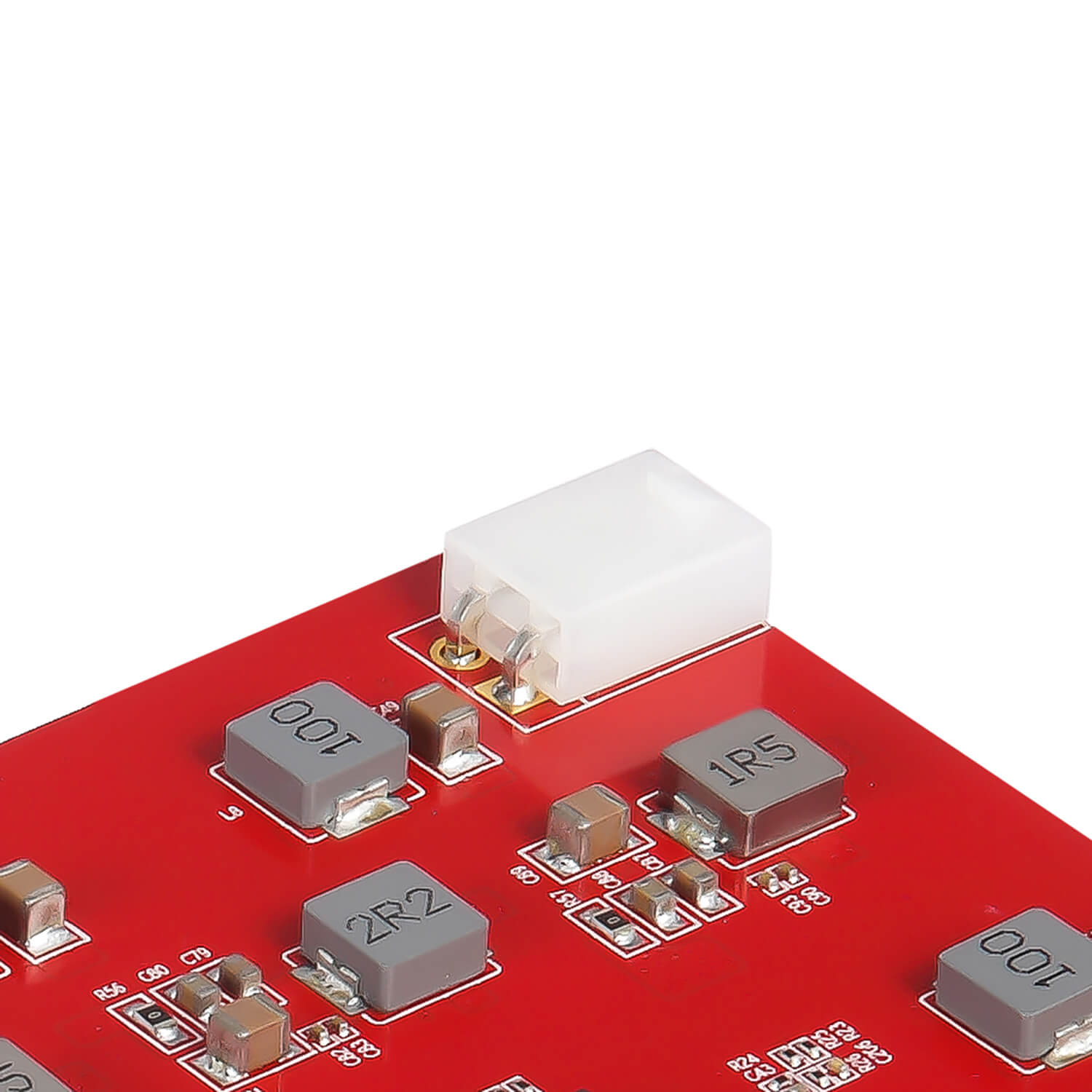

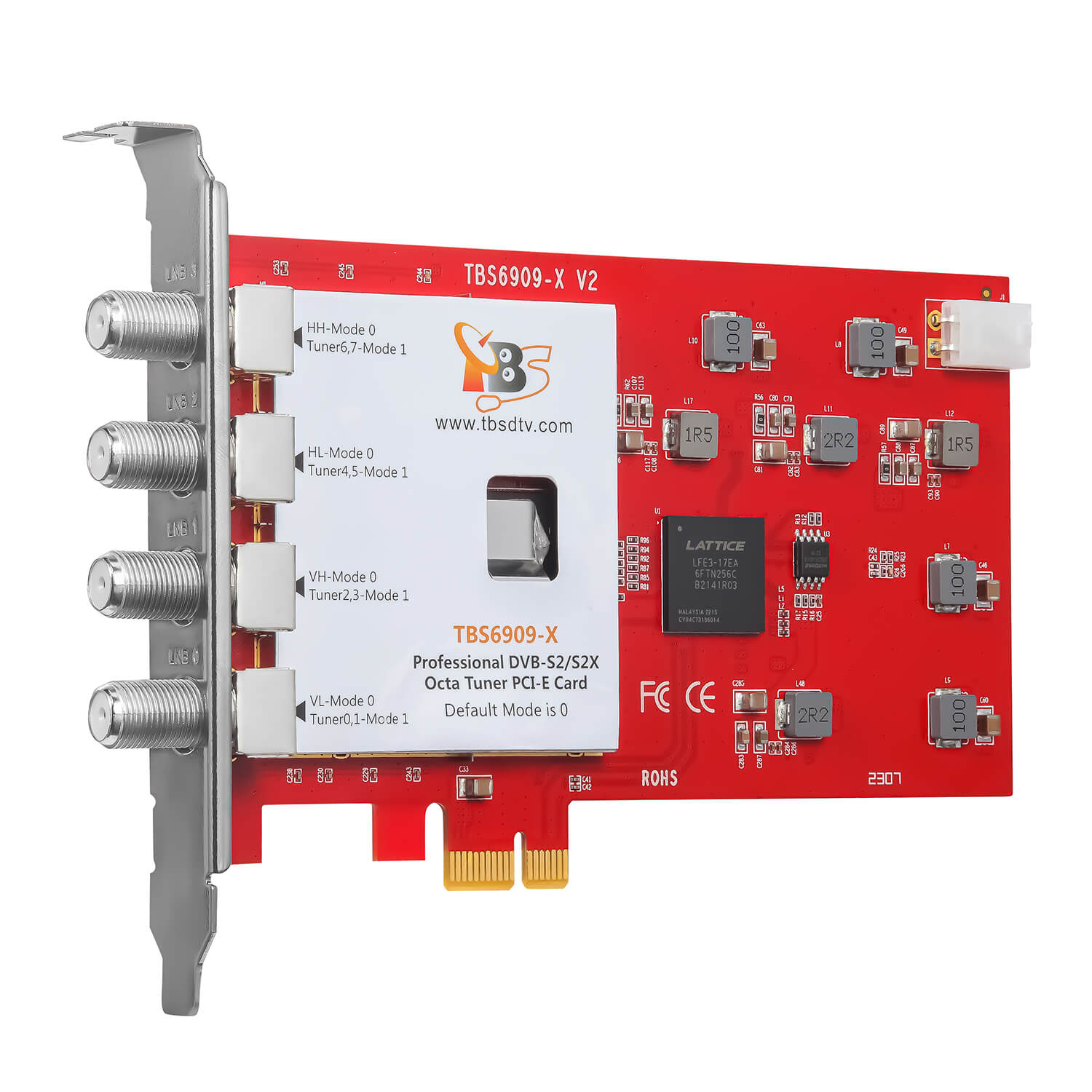

    TBS6909-X V2 DVB-S2X/S2/S Octa Tuner PCIe Card Compatible with Tvheadend

    TBS6909-X V2 is a powerful DVB-S2X/S2 and annex M octa tuner card with PCI Express interface, it not only supports to receive SD/HD digital TV channels from 8 different satellite transponders simultaneously, but also supports CCM, ACM, VCM and Multi Input Stream, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6909-X V2 enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for IPTV streaming and broadcasting system.

    Main Features:

    • Support Octa DVB-S/S2/S2X
    • Fast scanning functionality for all media
    • Supports CCM, ACM, VCM and Multi Input Stream
    • Support wide band

    Applications:

    • Data receiving
    • IPTV streaming
    • Media monitoring
    • Digital content distribution

    TBS6909-X DVB-S2X Octa Tuner Card PCIe

    DVB-S2X/S2; Octa tuner; Linux OS; PCI Express; IPTV Streaming

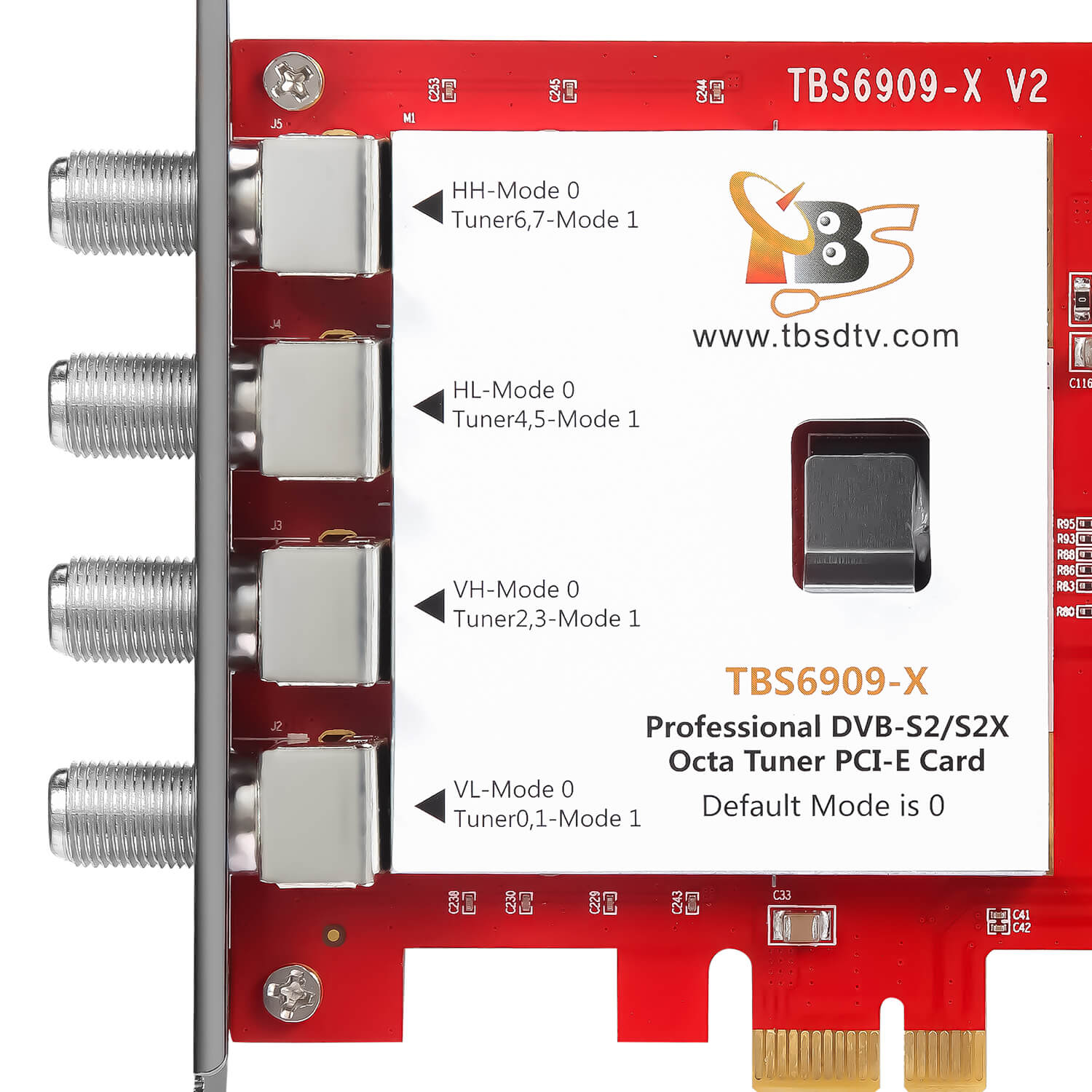

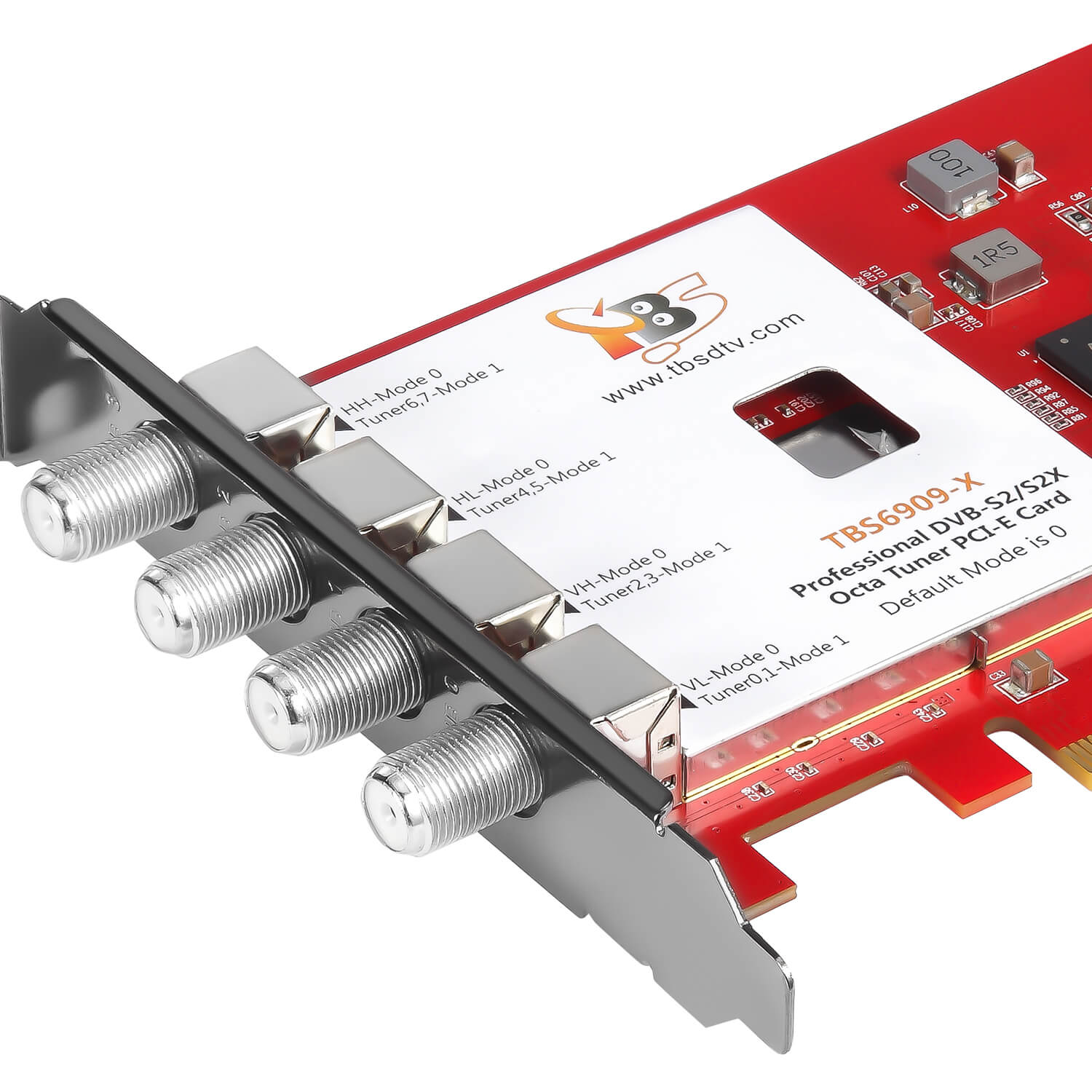

    TBS6909-X Three Signal Input Way

    Mode 0

    Default mode is multiswitch mode. The signal input can be like this:

    Master output
    Quattro-LNB/Multiswitch

    If you are using quattro LNB, you have 4 cables (V/L,V/H,H/L,H/H), connect the right one to TBS6909-X like the above picture ( input 0- input 3 should be connected to V/L,V/H,H/L,H/H respectively).

    Quad-LNB

    If you are using quad LNB, you can directly connect the 4 cablesto the 4 ports of TBS6909-X.

    Single C or Ku Band

    If you are using single C or Ku band, then two inputs are enough, you just need to connect the cables to input 0 and input 2 to provide V and H signal.
    In some case multiswitch have more than one satellite input, need to choose the satellite first.
    Mode 1

    LNB

    If you want to use DiSEqC with TBS6909-X, you could use this mode.
    Mode 2

    Unicable LNB

    When using with unicable you can connect the signal cable like this.
