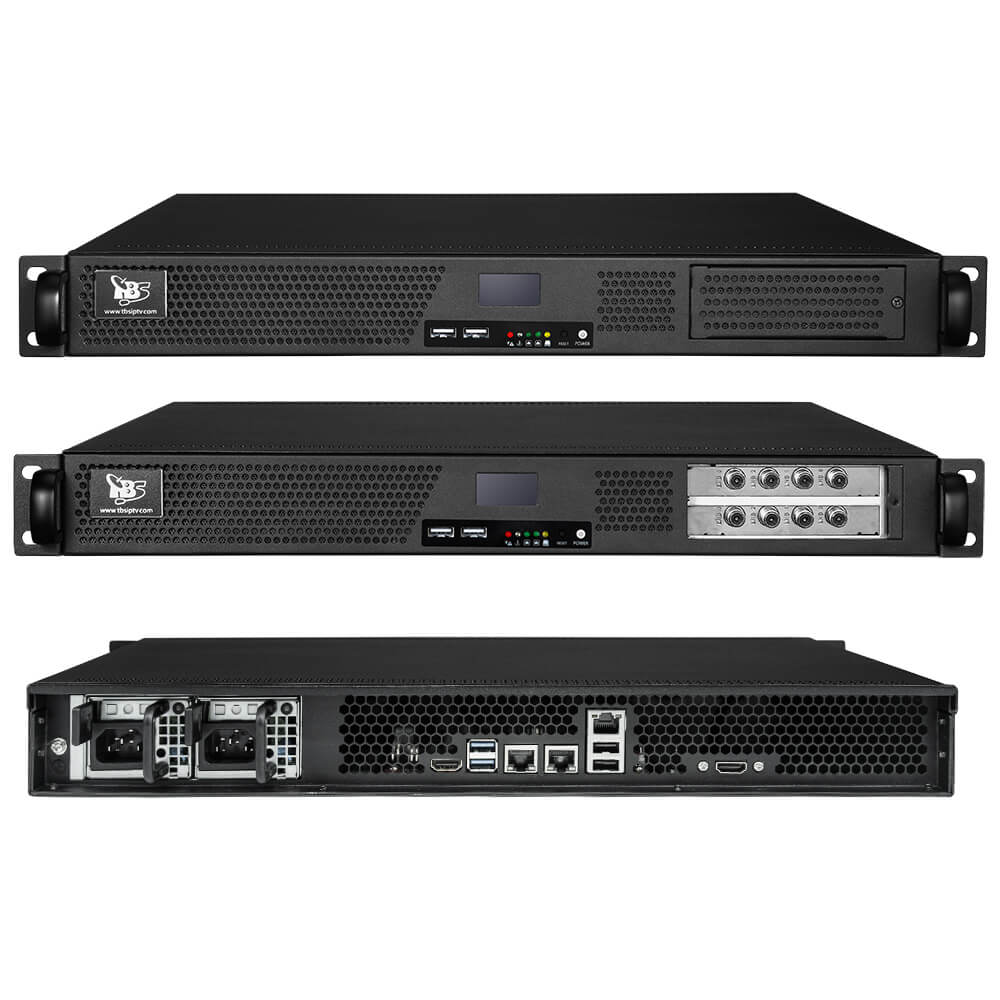

    TBS8510 Pro Multiple inputs H.264/H.265 IPTV HD Video Transcoder/ Multi purpose headend

    The TBS8510 HD Video IPTV Transcoder has been upgraded to the TBS8510 Pro, offering enhanced hardware for superior performance. This upgrade significantly boosts versatility, reliability, and stability, making the transcoding capacity has increased from 40 HD channels to an impressive 50 HD channels, allowing for more simultaneous streams without sacrificing quality or speed.

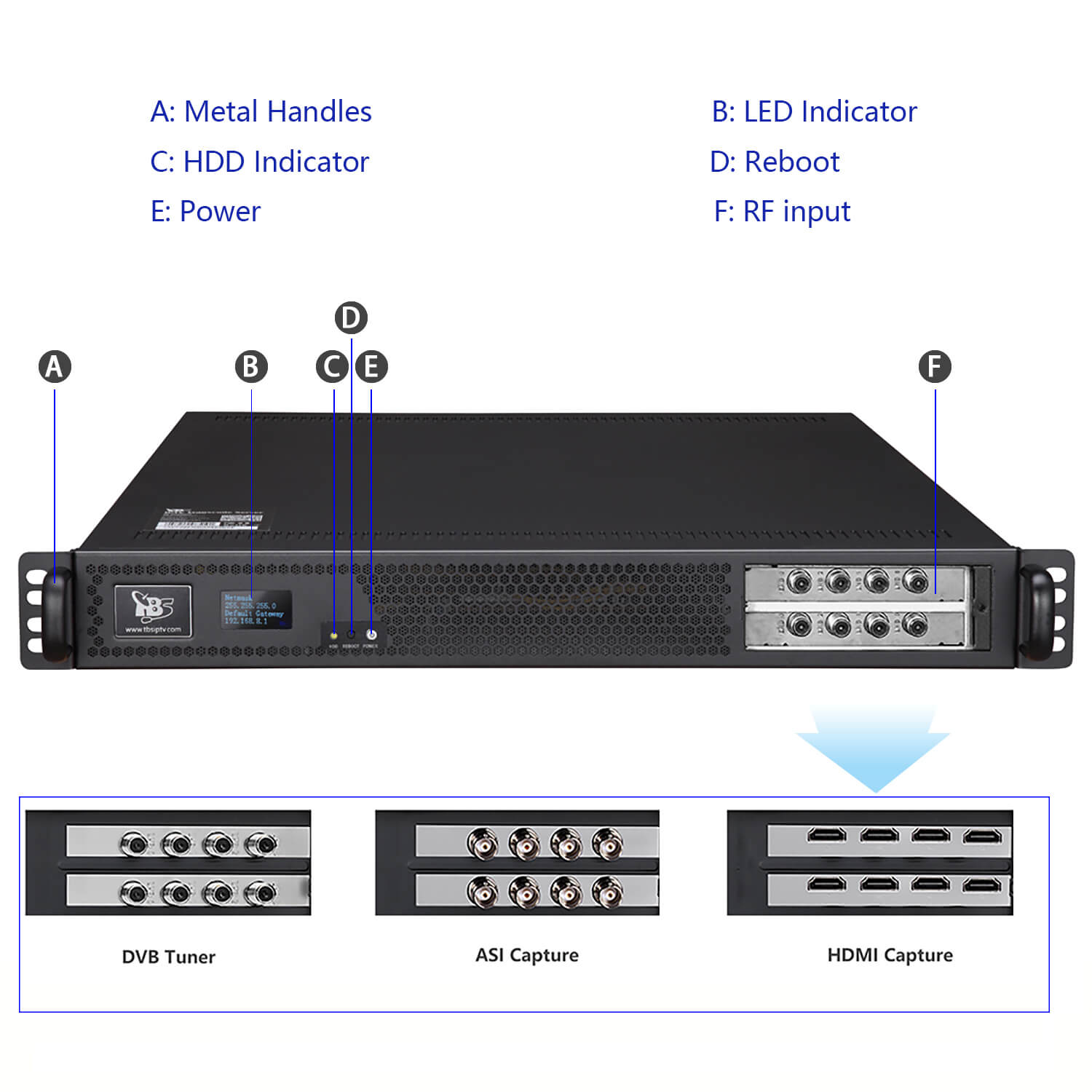

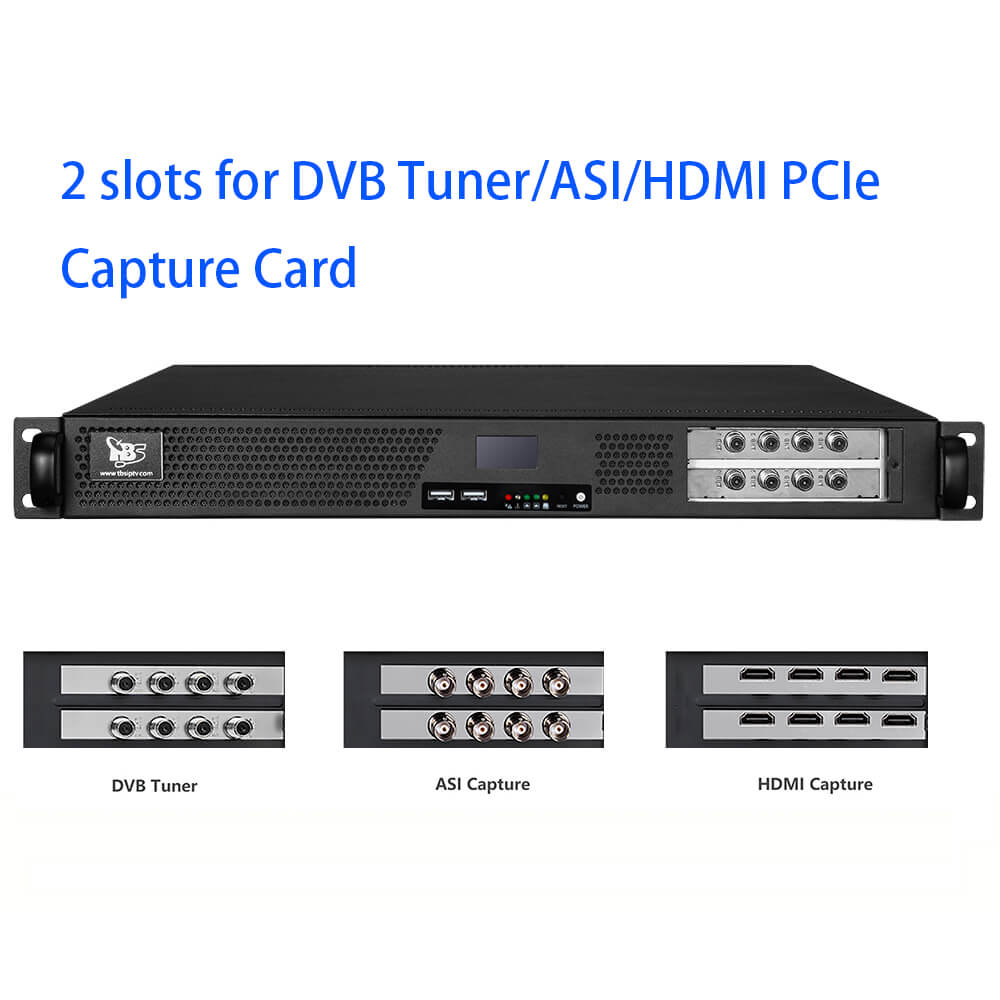

    Version 1: Supports up to 2 TBS DVB / ATSC / ISDB - T capturing cards or HDMI encoding PCIe cards for receiving video signals.It can transcode up to 35 HD channels or 70 - 90 SD channels.

    Version 2: Designed exclusively for IP stream input, without support for TBS cards.It can transcode up to 45 HD channels or 90 - 110 SD channels.

    The previous AMD® CPU has been upgraded to a more powerful Intel® CPU, alongside a transition from the AMD custom mainboard to an Intel industrial-grade mainboard. These upgrades deliver an 80% increase in processing power, ensuring faster, more efficient transcoding and the ability to handle heavier workloads with ease.

    LAN ports upgrading

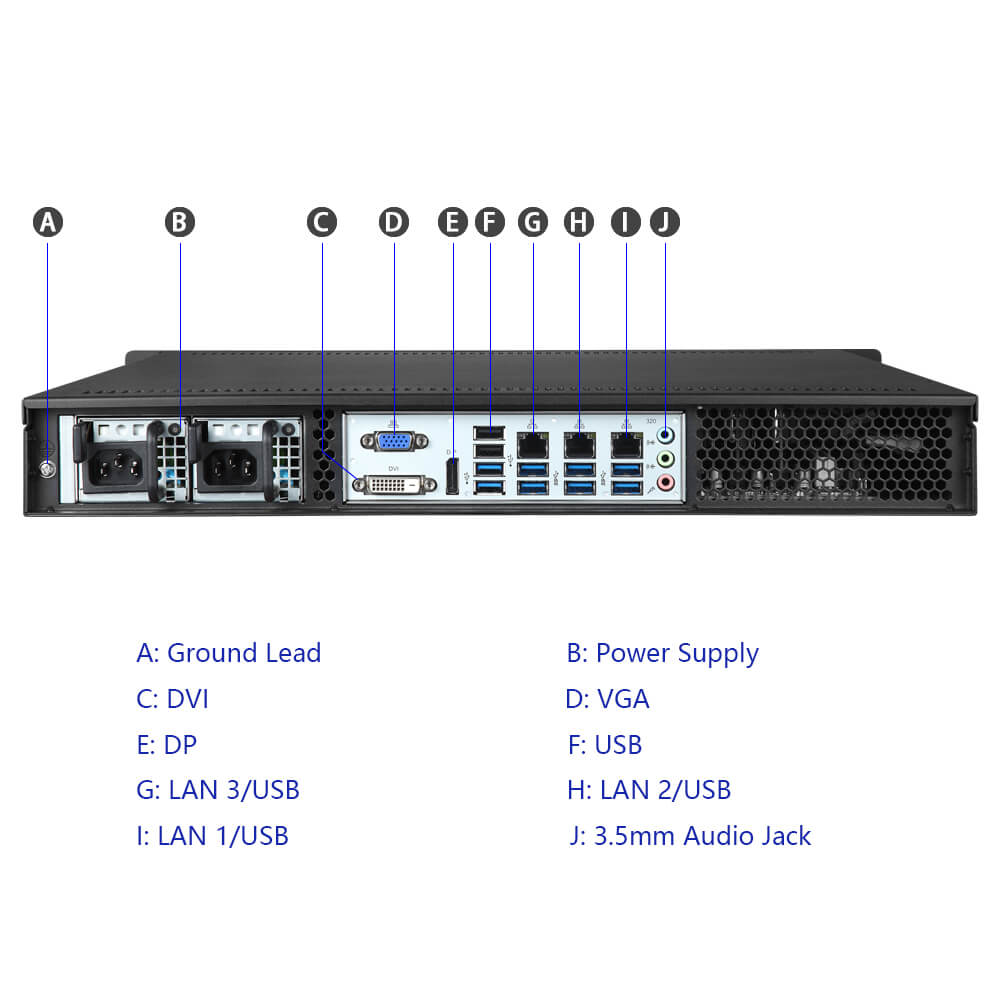

    Compared with old generation, TBS8510 Pro is upgraded from 2x1Gbps LAN ports to 4x1Gbps ports, doubling the network bandwidth and providing 100% more throughput for handling high-volume data transfers and enhancing overall network performance.

    Seamless Video Transcoding & Remuxing

    Supports to convert video and audio codecs, allowing for seamless changes in resolution, bitrate, and frame rates to optimize content for various platforms and devices.

    Enables the overlay of IPTV logos, text, or graphics onto live content, burn subtitles into the stream directly.

    Allows for repackaging the existing video streams without altering the original codec.

    Comprehensive Input & Output Support

    Supports a wide range of inputs and outputs, including multiple protocol IP streams, DVB/ATSC/ISDB-T live TV signals, and HDMI video input. It also offers multiple protocol IP stream outputs. When equipped with a DVB Modulator PCIe card, it can output DVB signals as well.

    Supported IP stream protocols for input and output include UDP, RTP, HTTP, HLS, RTSP, media files, RTMP, and SRT, ensuring flexibility and compatibility with various streaming environments.

    CAM Module & SoftCAM

    When receiving and transcoding the popular channels from Satellite (DVB-S/S2), Cable (DVB-T/T2) or Terrestrial (DVB-C, ATSC-C, ATSC, ISDBT), TBS8510 Pro transcoder supports to decrypt the scrambled channels via CAM modules or SoftCAM.

    System Monitoring

    Our intuitive monitoring design provides real-time insights into server CPU, memory, network, and GPU usage. You can easily check your server status, ensuring everything stays under your control.

    Database Backup & Restore

    Provides a manual database backup feature that ensures your important data is protected. While backups must be initiated manually, this feature allows you to securely store your database, reducing the risk of data loss. In the event of hardware failure or disruptions, the backup can be restored easily, enabling quick recovery with minimal downtime.

    Specifications

    Size 1U

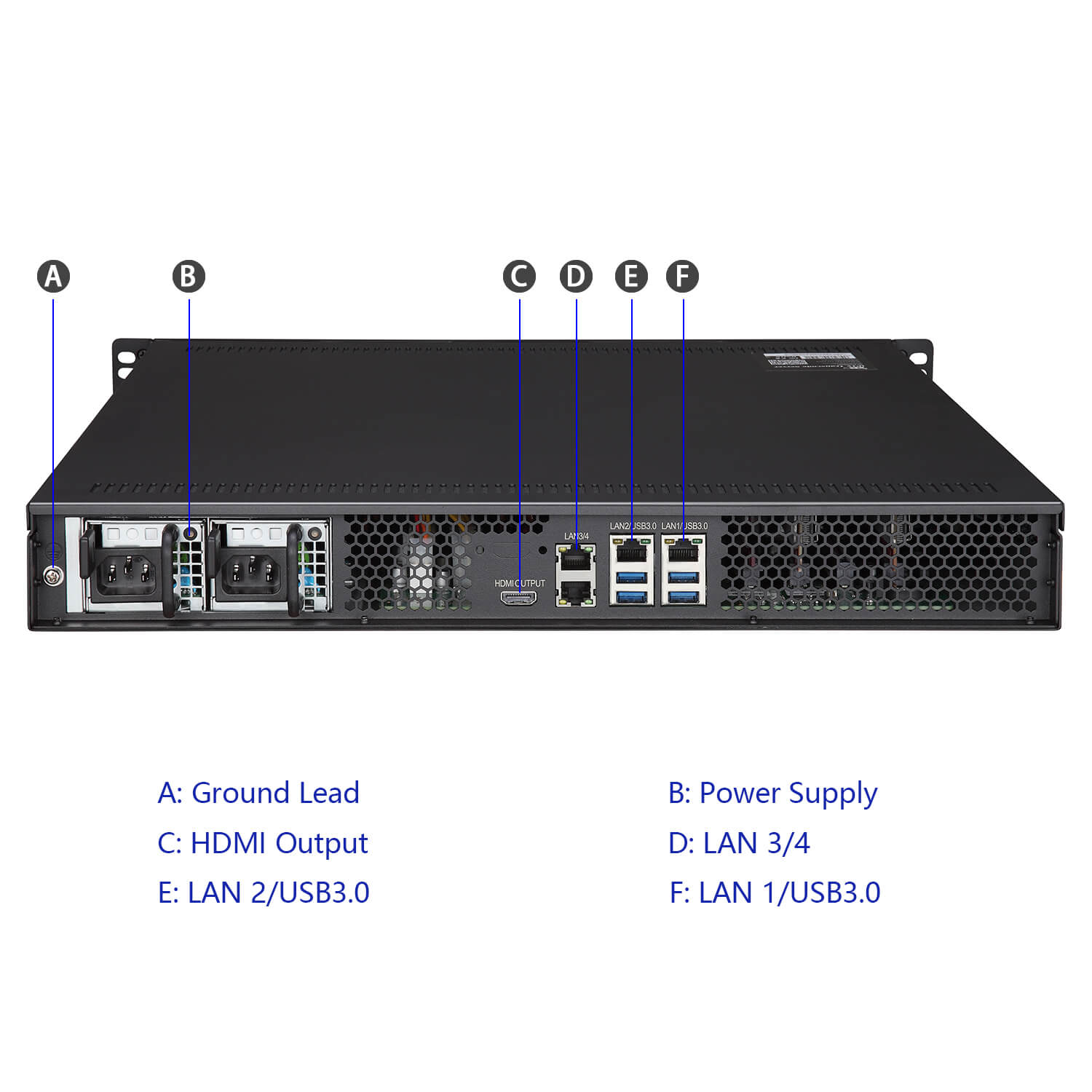

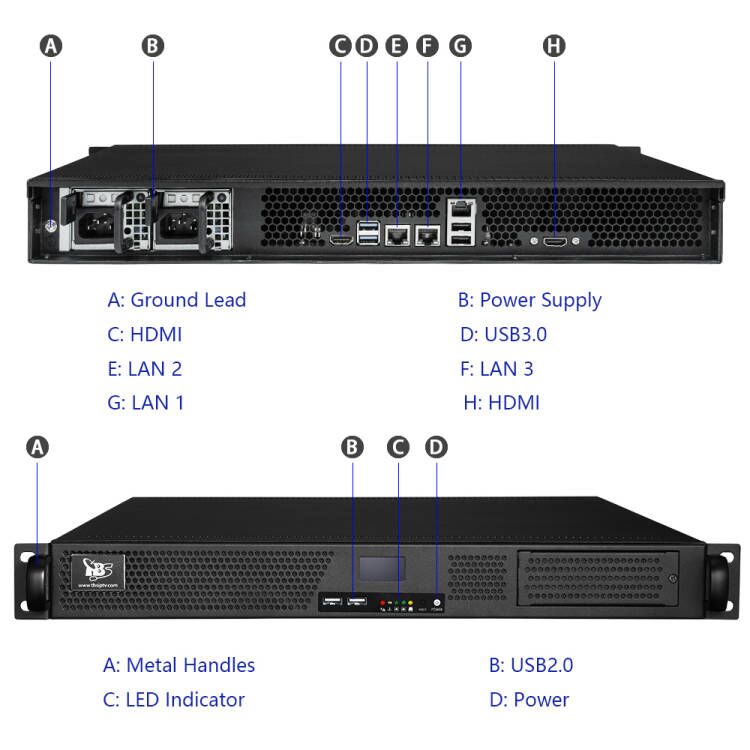

    Interface 4xRJ45, 1Gb LAN2xPCI-E slot for TV Tuner cards (Version 1 only)
    Input
    Input Signal DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI
    Input Net Stream UDP, RTP, HTTP, HLS, Media Files, SRT
    Video codecs AVC / H.264, HEVC / H.265
    Resolution 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576,704x576
    Audio codecs AAC, MP2, MP3, AC-3
    Output
    Output types UDP, RTMP, HTTP, HLS(ABR), SRT
    Video codecs AVC / H.264, HEVC / H.265
    Resolution 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576
    Audio codecs AAC, MP3
    Rate Control CBR/VBR
    Transcoder Version 1:
    up to 70 - 90 SD/35 HD 1080 AVC (h.264) streams
    up to 60-80 SD/33 HD 1080 HEVC (h.265) streams

    Version 2:
    up to 90 - 110 SD/45 HD 1080 AVC (h.264) streams
    up to 70-90 SD/41 HD 1080 HEVC (h.265) streams
    Power Consumption Less than 200W
