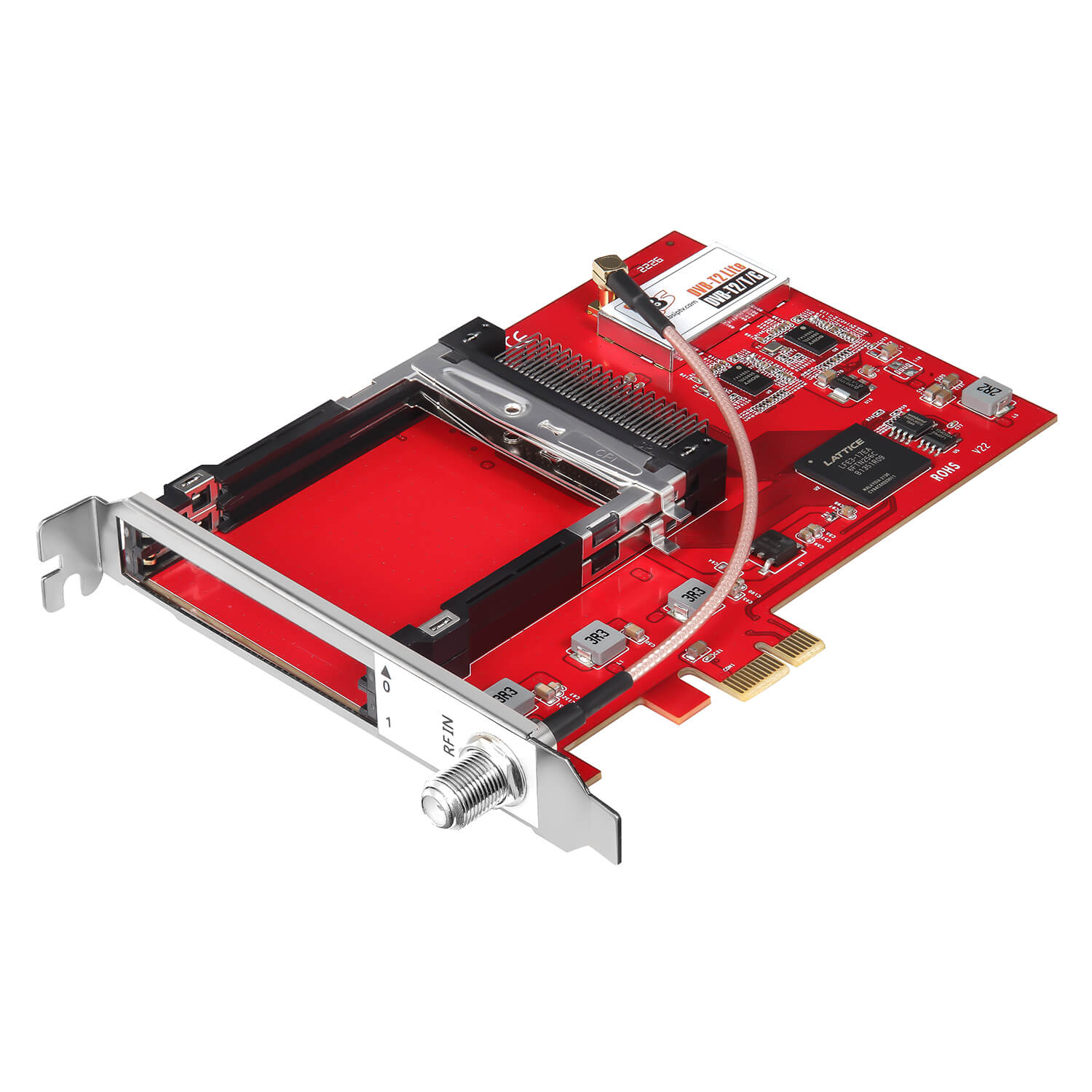

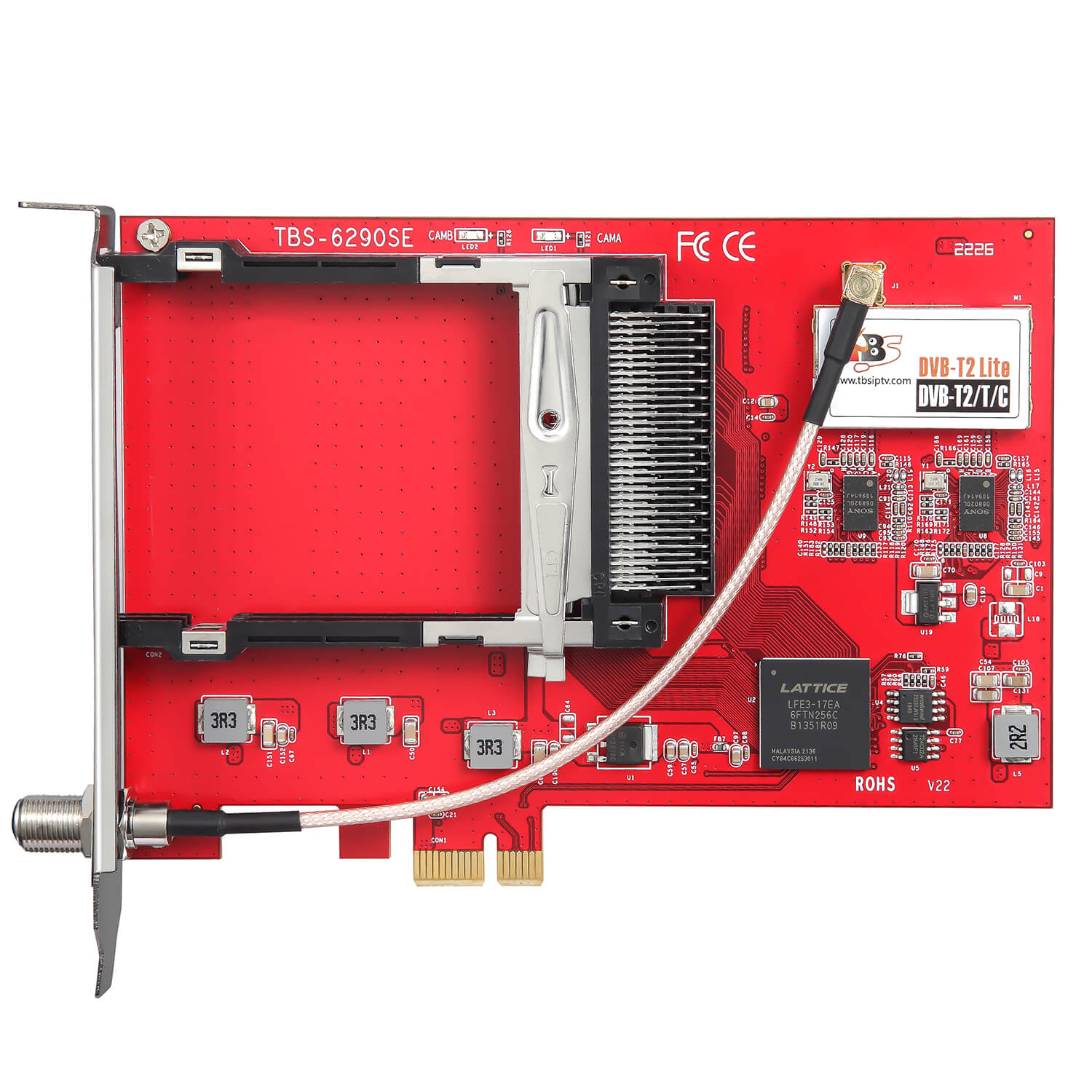

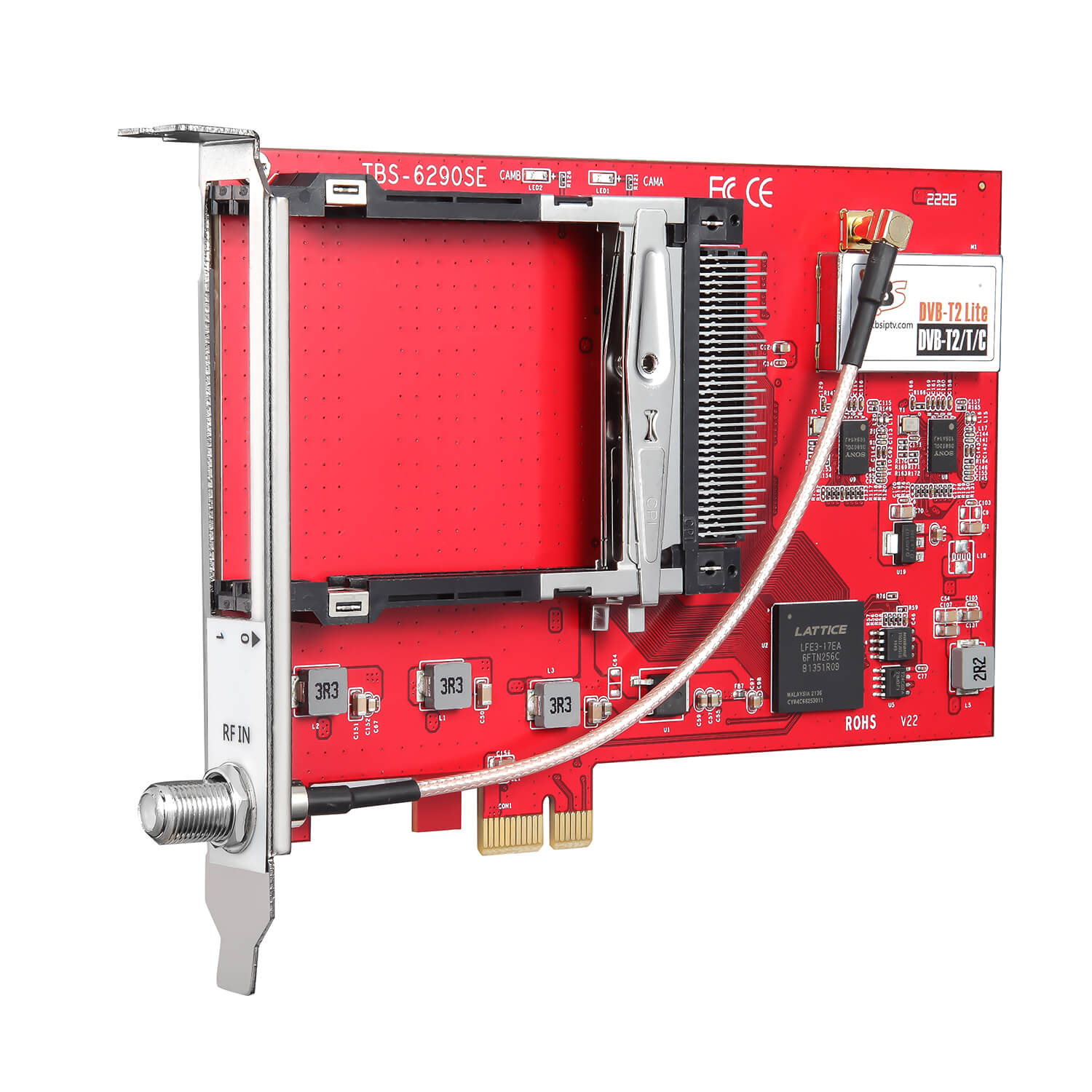

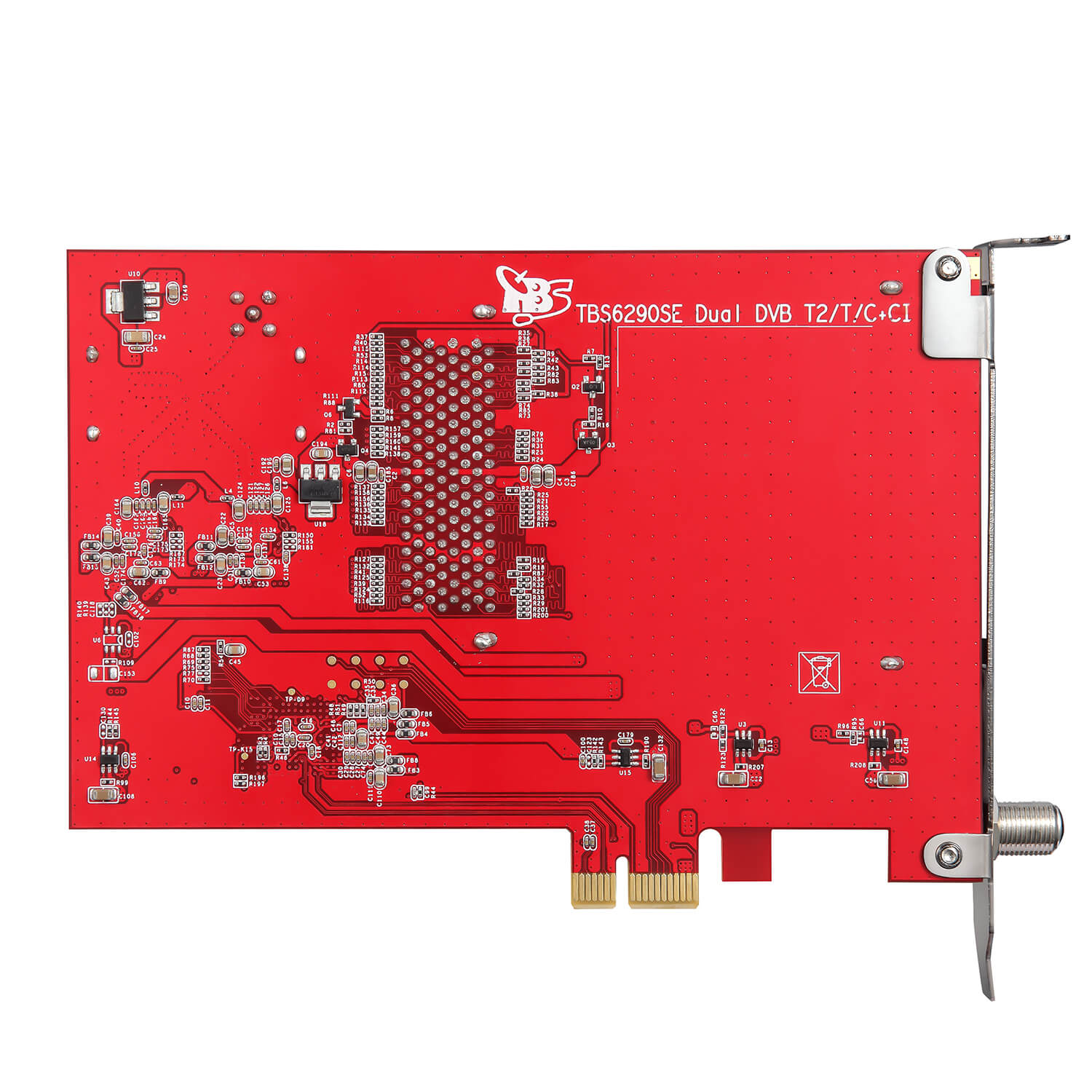

TBS6290SE DVB-T2/T/C Dual Tuner Dual CI PCIe Card

Main Features:

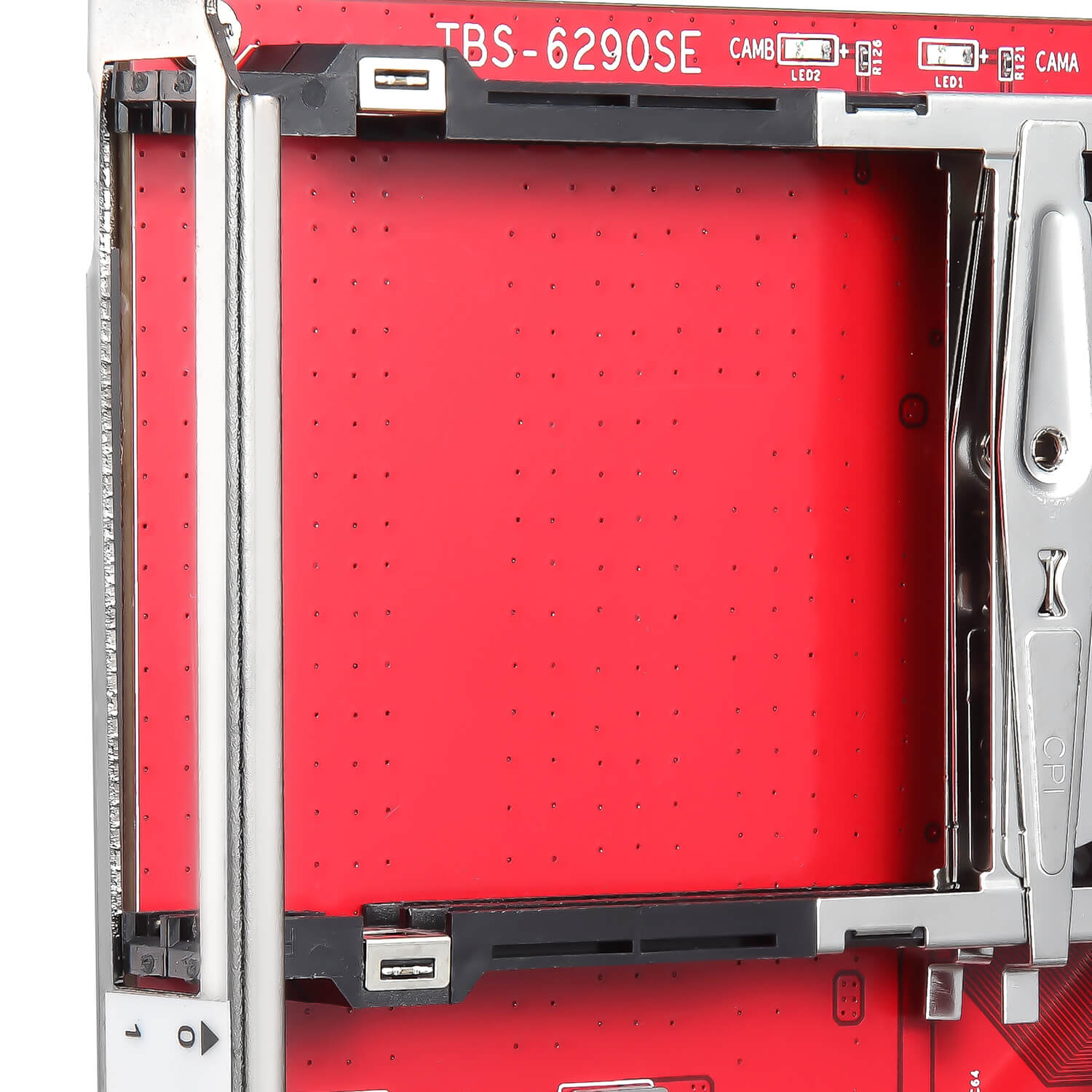

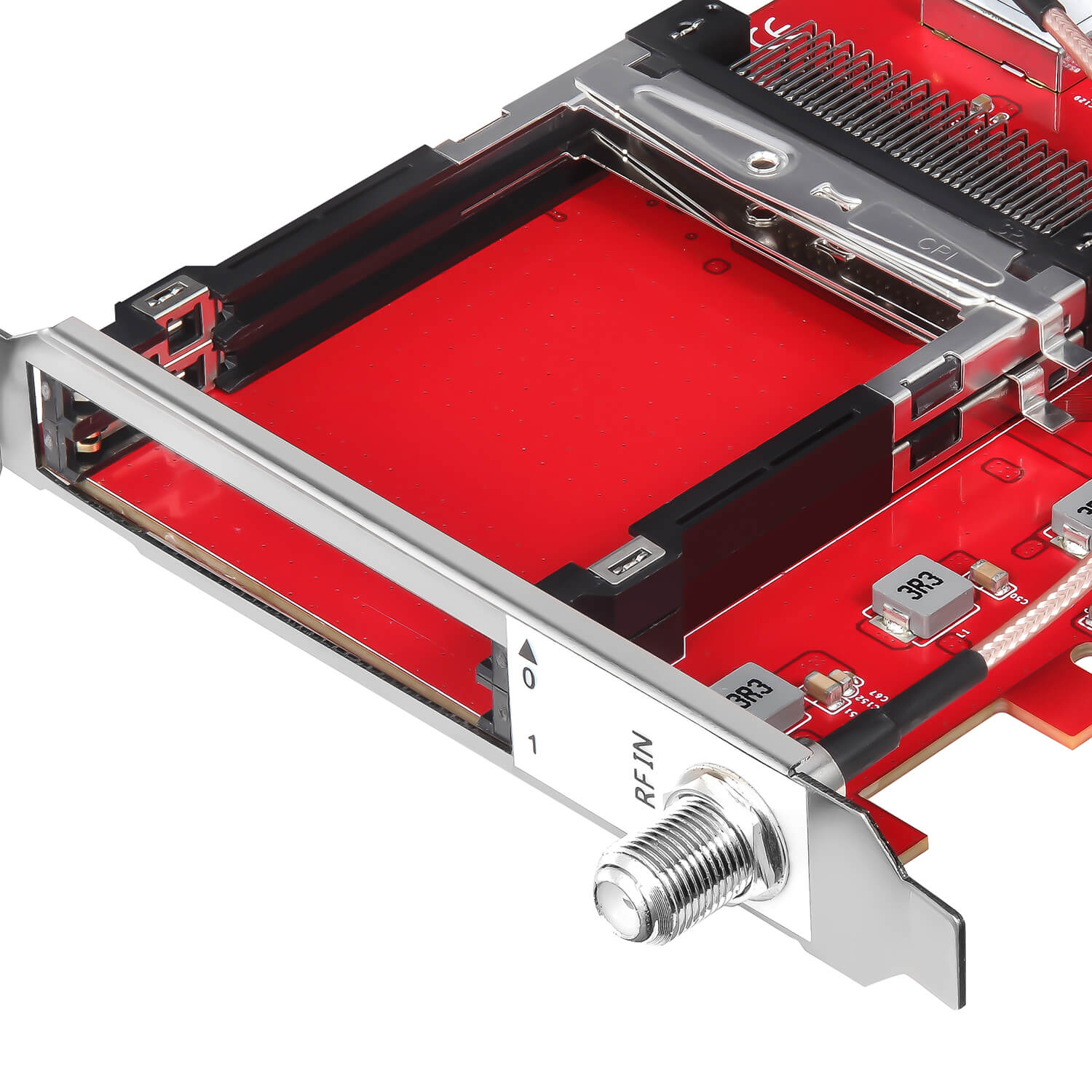

• Dual CI slot
• Dual channel receiving simultaneously
• DVB-T2/T/C SD or HD TV receiving
• High-definition video, real-time and scheduled video recording

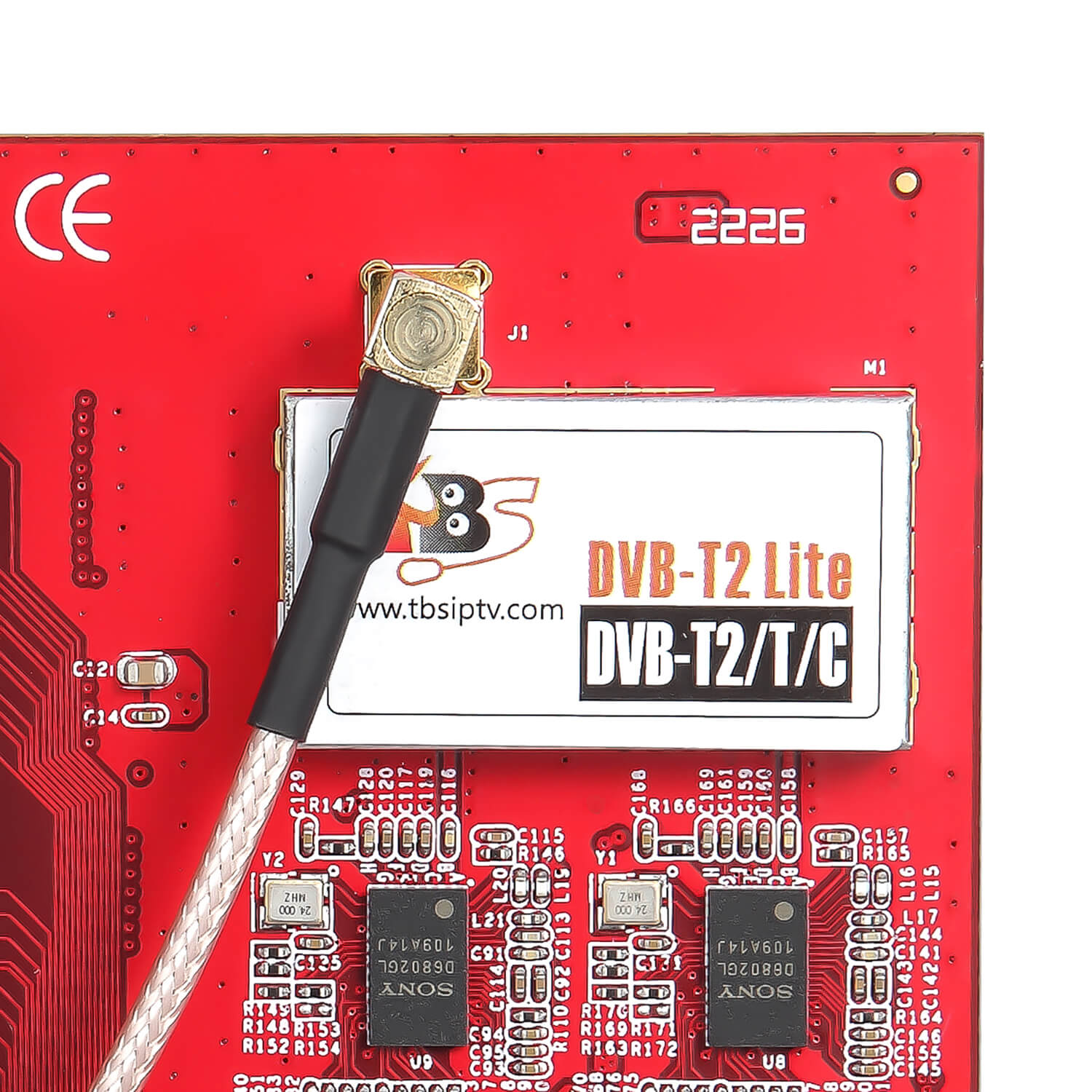

• High sensitivity DVB-T2 Dual Tuner for the best digital TV reception
• Windows BDA driver and Linux Driver ready

Specifications:

• Support PLP (Physical Layer Pipe)
• DVB-T2/T2 Lite/T
  • Receiving channel: VHF band and UHF band
  • Channel bandwidth: 6, 7, 8 MHz
  • DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
  • FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
  • Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
  • Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
  • Intermediate frequency
  • IF mode: low IF
  • Center IF Frequency: 3 ~ 5 MHz
  • Note: default 4MHz

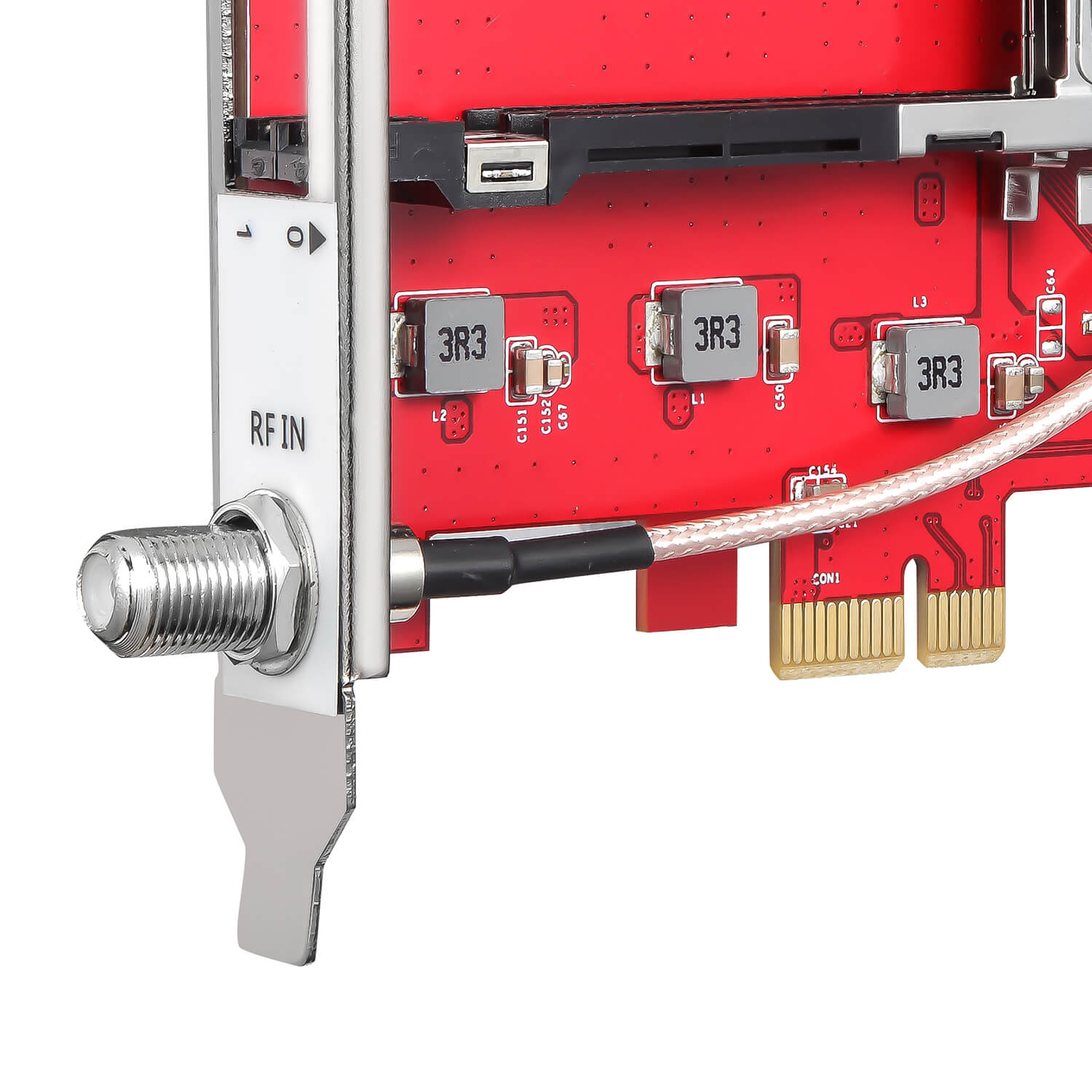

  • RF-Input impedance 75Ω (IEC-DIN female)
  • RF-Output impedance 75Ω (IEC-DIN male)
• DVB-C
  • Fully compliant with DVB-C and ITU J83 A/B/C specifications
  • Receiving Frequency: 47~862 MHz Tuning Range
  • Input level: -65~-10dBm
  • 16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
  • Symbol Rate: 0.87 to 9Mbaud
  • Dimension: 145*104.5mm (length x height)
  • Max Power consumption: 7W

System Requirements:

• Windows XP / Vista/ 7/8/10, Linux
• Available PCI Express x1, x4, x8 or x16 slot
• CD/DVD drive for software installation

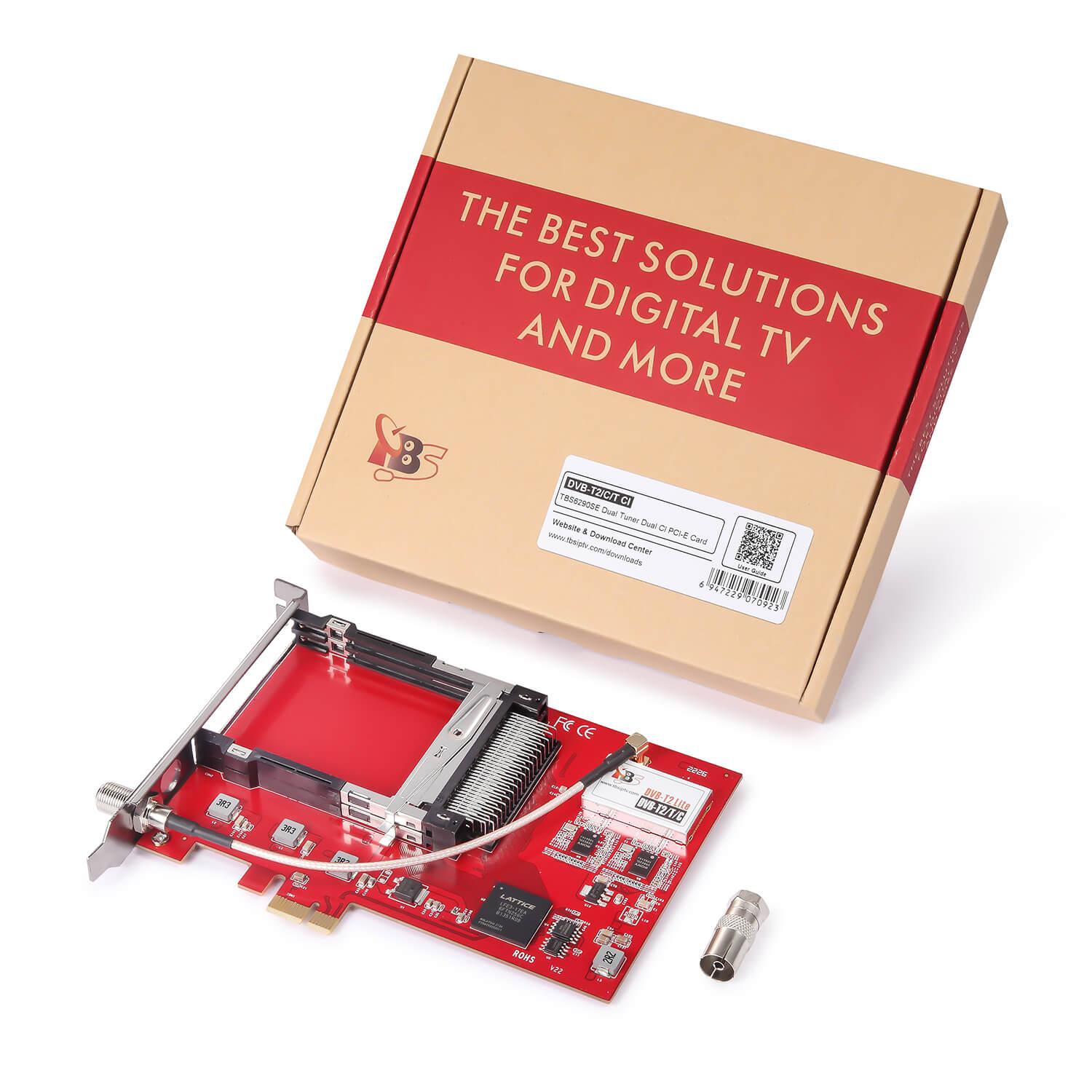

Package Contents:

• 1 x TBS6290SE
• 1 x F connector
• 1 x Low profile bracket

• TBS6290SE DVB-T2/T/C Dual Tuner Dual CI PCIe Card data sheet PDF
