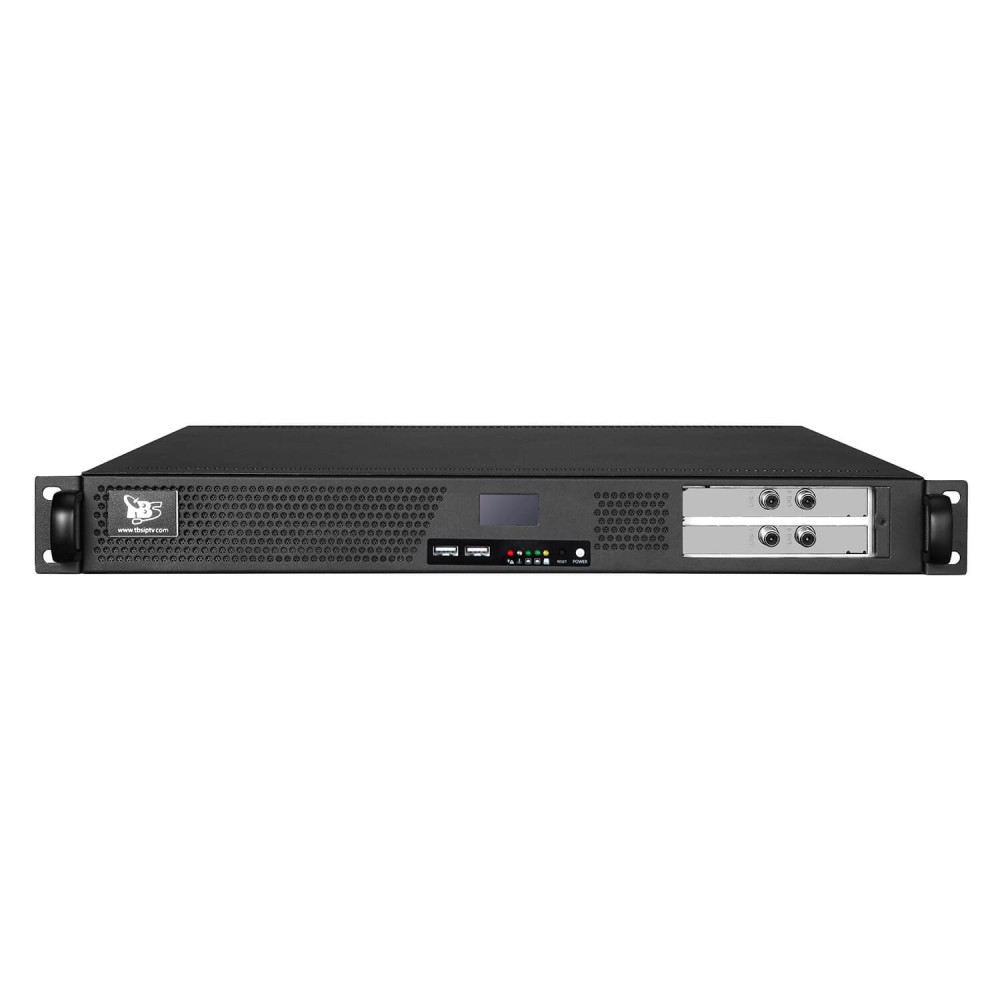

    TBS8510-6104 IP to DVB-T modulator converting up to 30 H.264 channels in 8 frequencies

    The TBS8510-6104 IP to DVB-T modulator is based on TBS8510 Transcoder, which supports to compress the bit rate and change video from H.265 to H.264 before generating DVB-T signal for output. The modulator supports to generate about 30 HD DVB-T channels and output through RF port.

    There is a MOST EXCITING function of The TBS8510-6104 IP to DVB-T modulator:

    Compress the bit rate of the IP channels and transfer the format from H.265 to H.264 before generating to DVB-T signal.

    Why we need to do this job?

    If we want to broadcast the channels in old DVB-T system in remote area, the original H.265 IP channels are too big and occupy too much bandwidth of the old DVB-T system, which means we can broadcast very few channels. Also, some old TV set is only support H.264 channels. In the case, if you can transcode the channels to standard DVB-T MPEG-2 signal in advanced, you will be able to broadcast as many channels as the original plan in your DVB-T system. Furthermore, you can make the channels being more compatible to users’ old TV sets.

    Key Features

    • Supports symbol-rate up to 45 Msymb/s
    • Output frequency range of 70 - 865 mhz
    • Supports constellations up to QAM256
    • Has high modulation error rate (MER)
    • Has output level of 80-107 dbµV
    • Can be produced from 1 to 32 independent modulation channels
    • Optionally has 10 mhz reference and DC injection
