    TBS8510-6904se-6104 DVB-S2 to DVB-T modulator H.265 AC3 to H.264 AAC/up to 30HD channels available

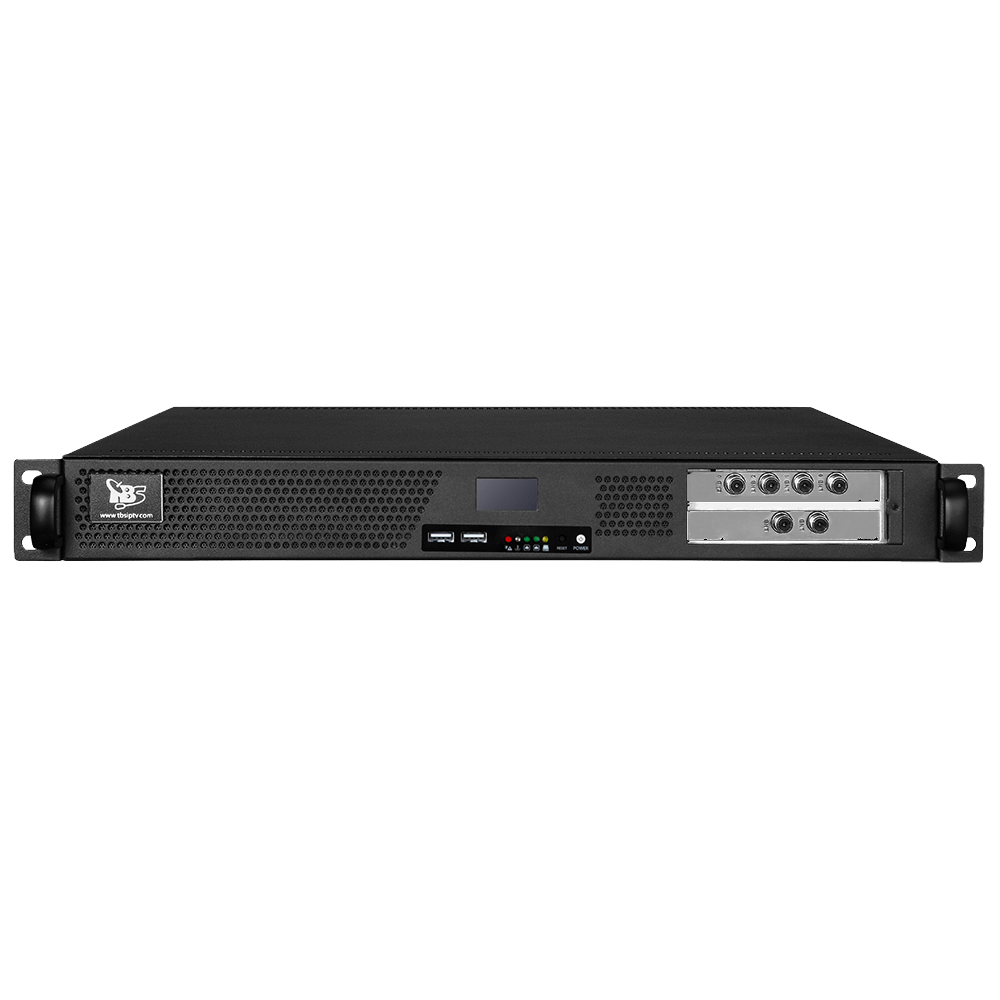

    The DVB-S2 to DVB-T modulator is combined by a TBS8510 Video transcoder, a TBS6904se DVB-S/S2/S2X Quad Tuner PCIe Card and a TBS6104 DVB-T Quad Mods modulator PCIe card. It supports to generate around 30 HD DVB-T channels.

    Key Features

    • Change DVB-S/S2 H.265 AC3 channels to DVB-T H.264 AAC channels.

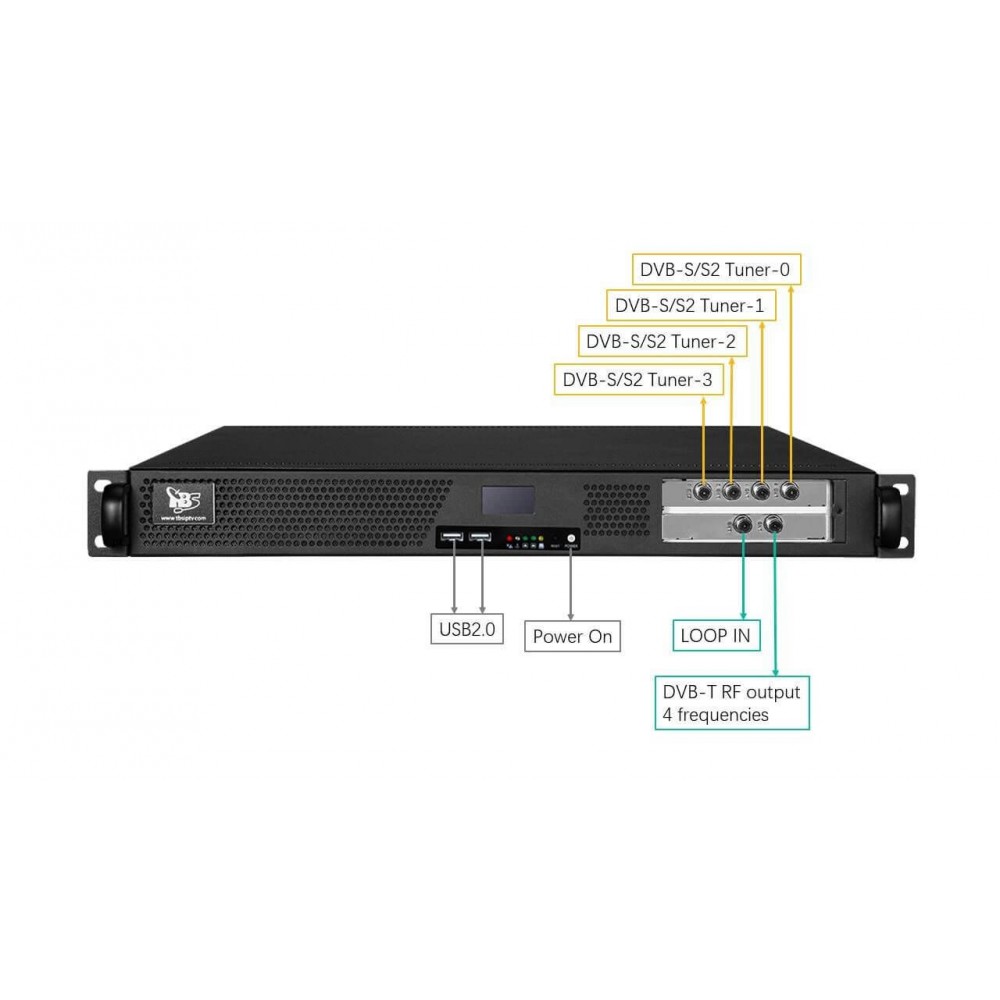

    • DVB-S/S2 input: RF input in 4 frequencies. (950~2150 MHz)
    • DVB-T output: RF output in 4 frequencies. (50 ~ 950 MHz)
    • Transcoding capacity: Around 30 channels.
