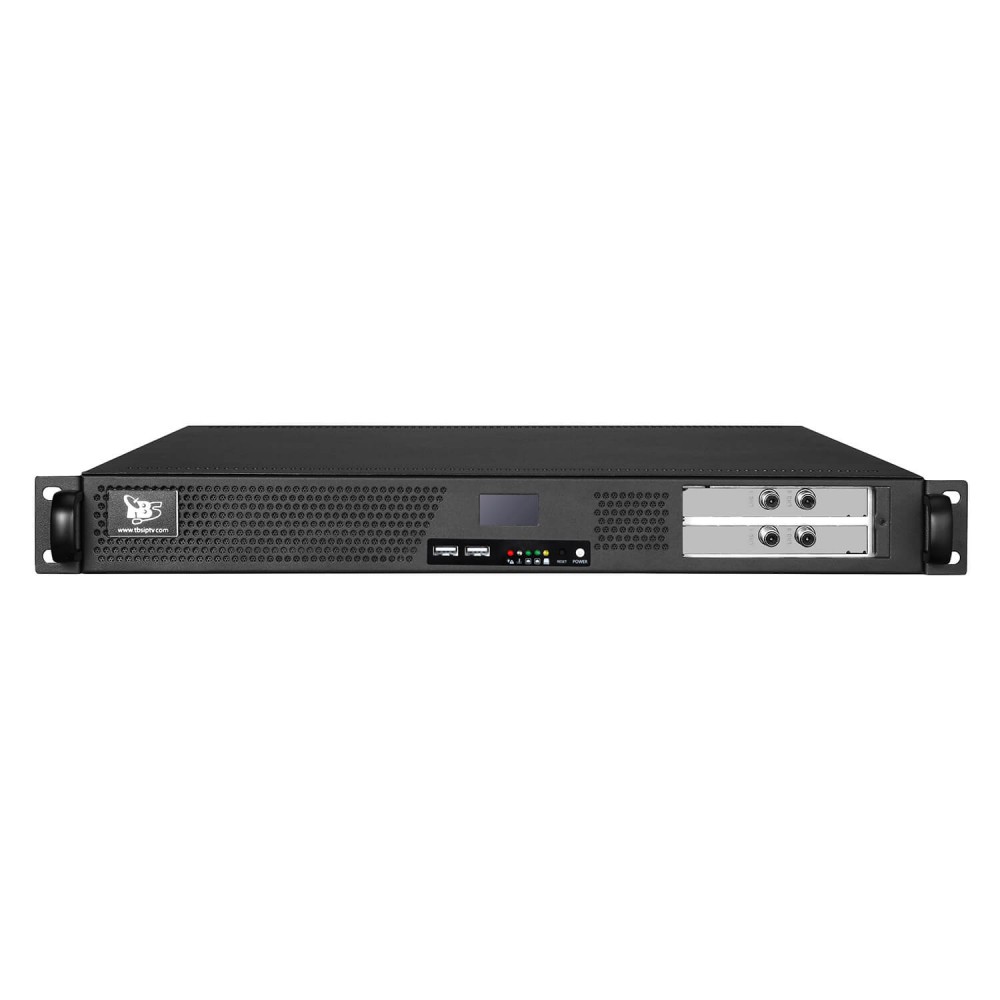

    TBS8510-6205-6104 DVB-T2 H.265 AC3 to DVB-T H.264 AAC modulator

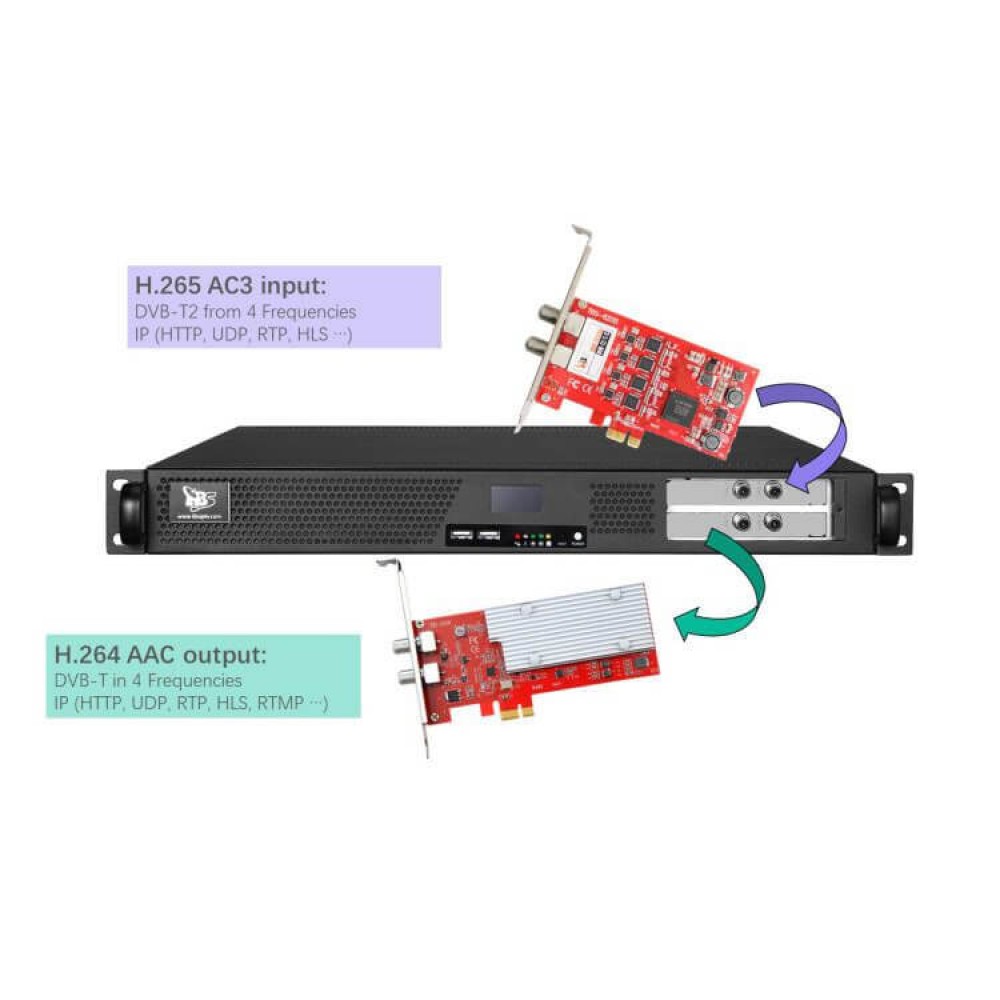

    The DVB-T2 H.265 AC3 to DVB-C H.264 AAC modulator is combined by a TBS8510 Video transcoder, a TBS6205 DVB-T2 Quad Tuner PCIe Card and a TBS6104 DVB-T Quad Mods modulator PCIe card. It supports to generate around 30 HD DVB-T channels.

    Why we need to use this modulator?

    Nowadays, more DVB-T2 signal is adopted, especially in EU countries. These kind of DVB-T2 channels are mostly in H.265/HEVC video format and in AC3 audio format.

    However, there are still many villages are still with old DVB-T/C system, and not every family has TV sets supporting HEVC and AC3. In the case, TBS DVB-T2 H.265 AC3 to DVB-T H.264 AAC modulator will help to solve the problem.

    Key Features

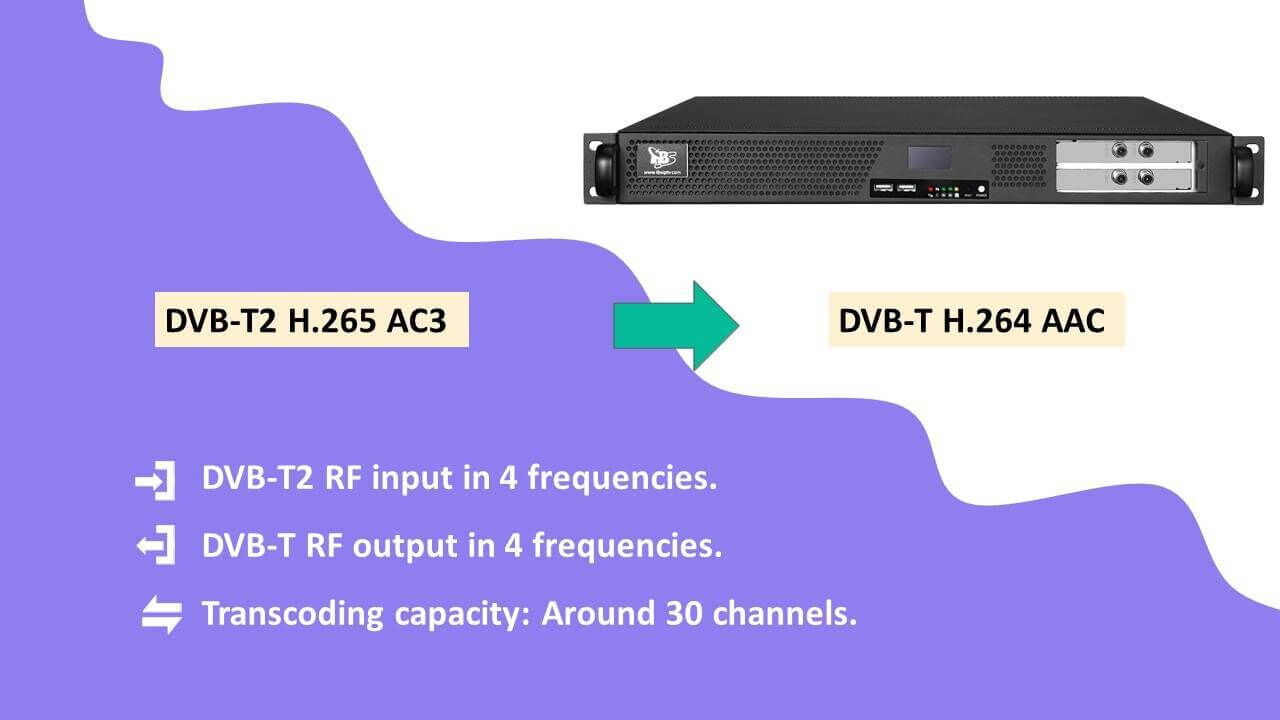

    • Change DVB-T2 H.265 AC3 channels to DVB-T H.264 AAC channels.

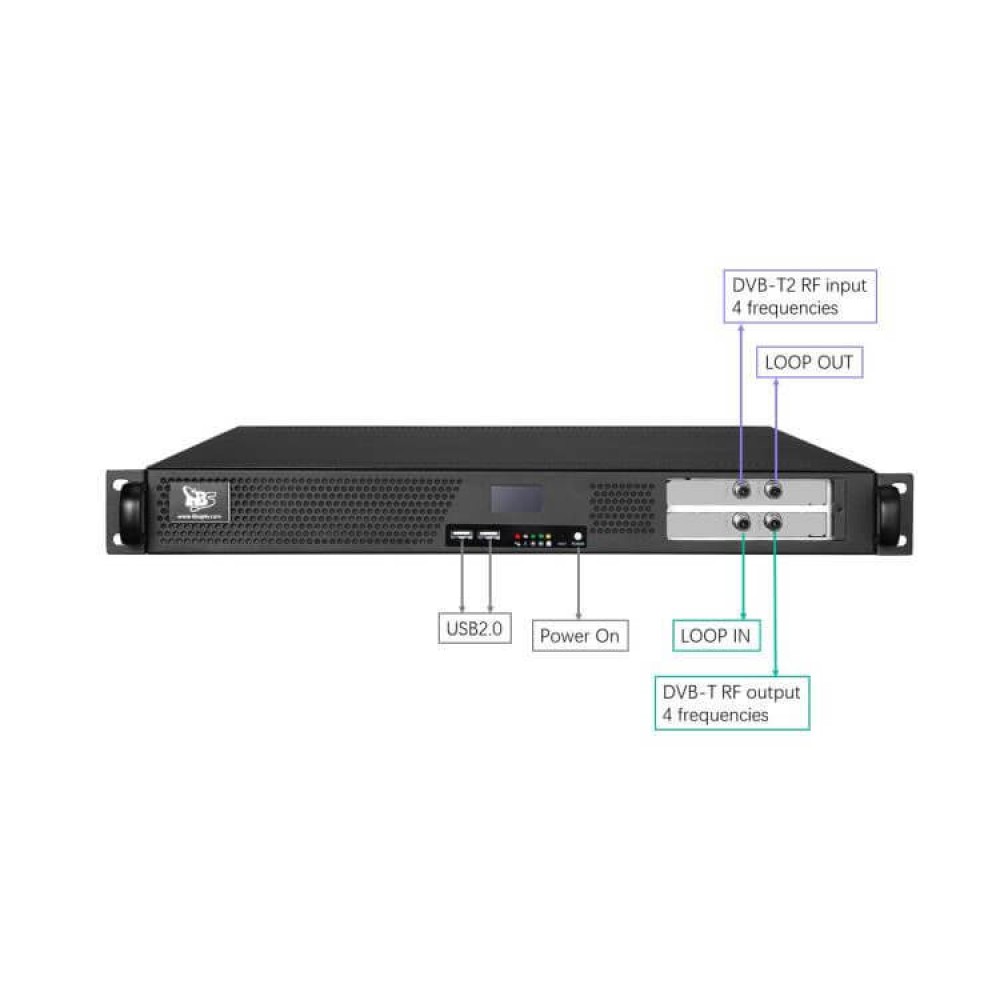

    • DVB-T2 input: RF input in 4 frequencies. (Bandwidth: 6, 7, 8 MHz)
    • DVB-T output: RF output in 4 frequencies. (50 ~ 950 MHz)
    • Transcoding capacity: Around 30 channels.
