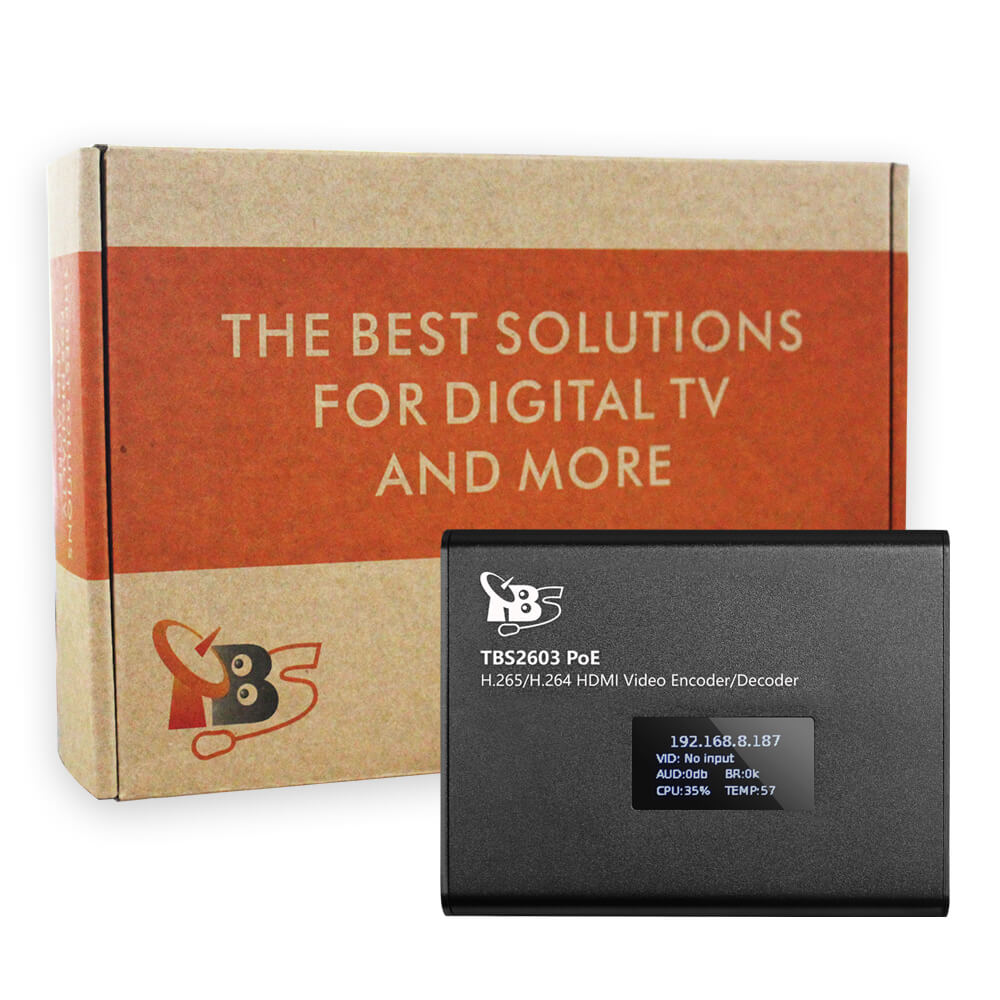

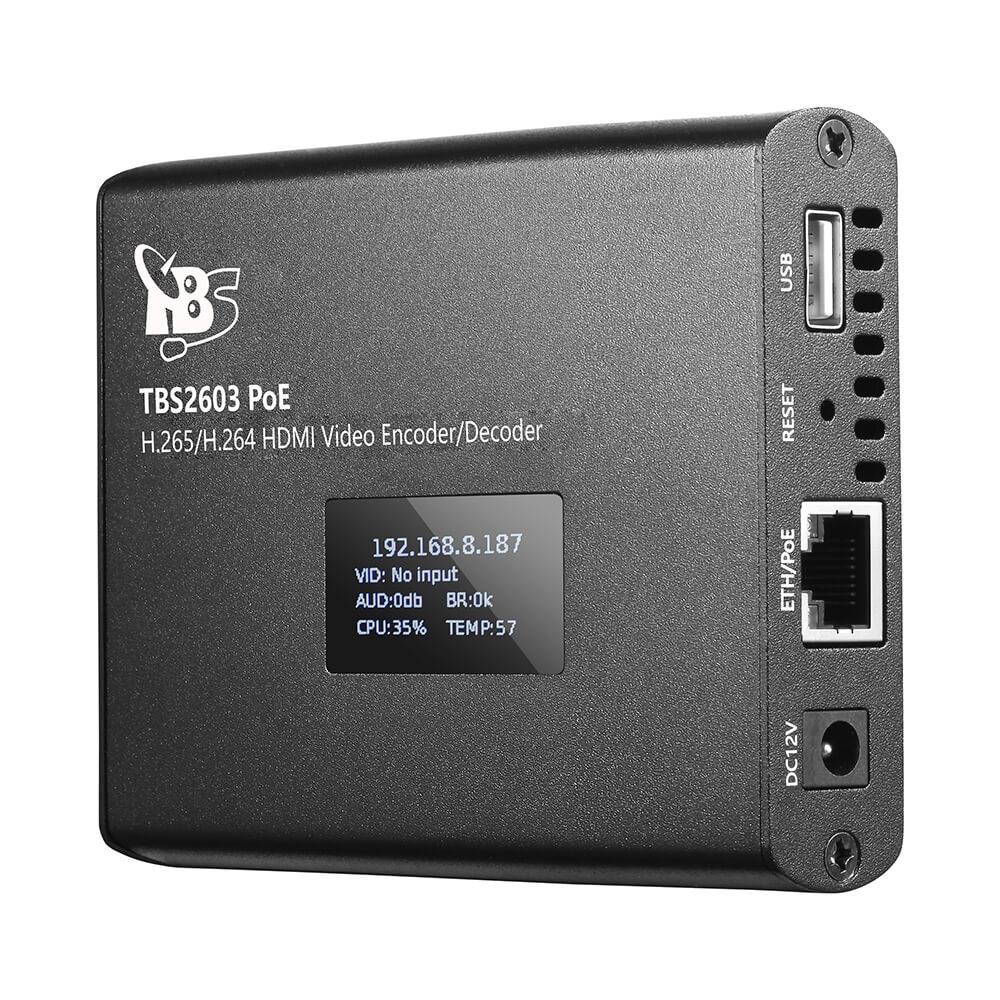

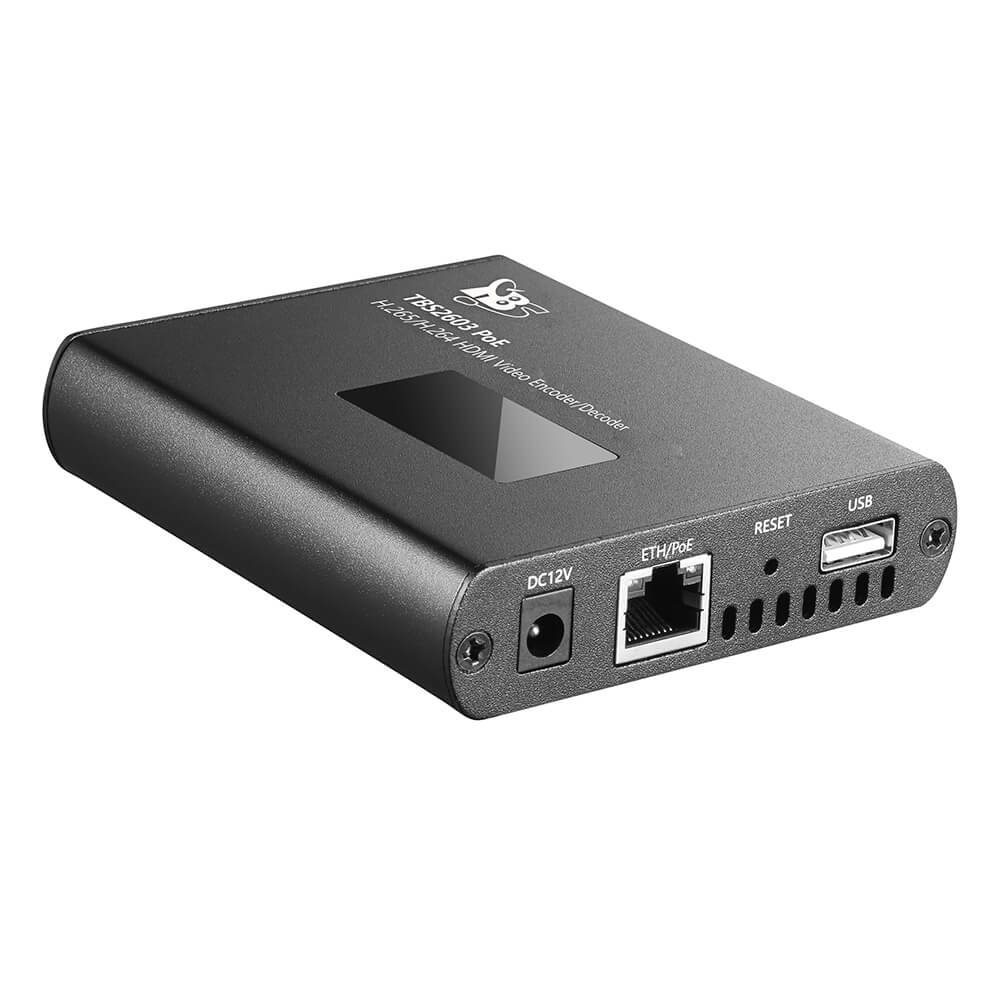

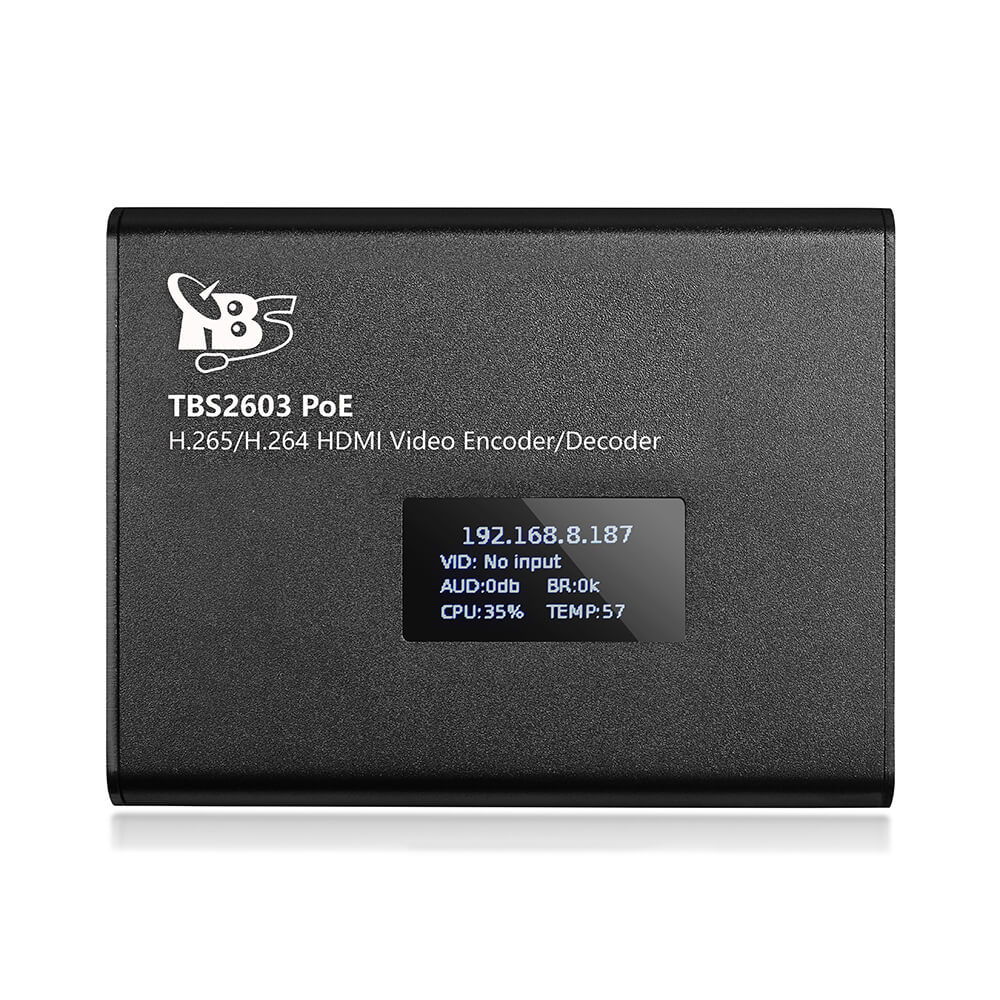

    TBS2603 PoE NDI®|HX Supported H.265/H.264 Video Encoder / Decoder

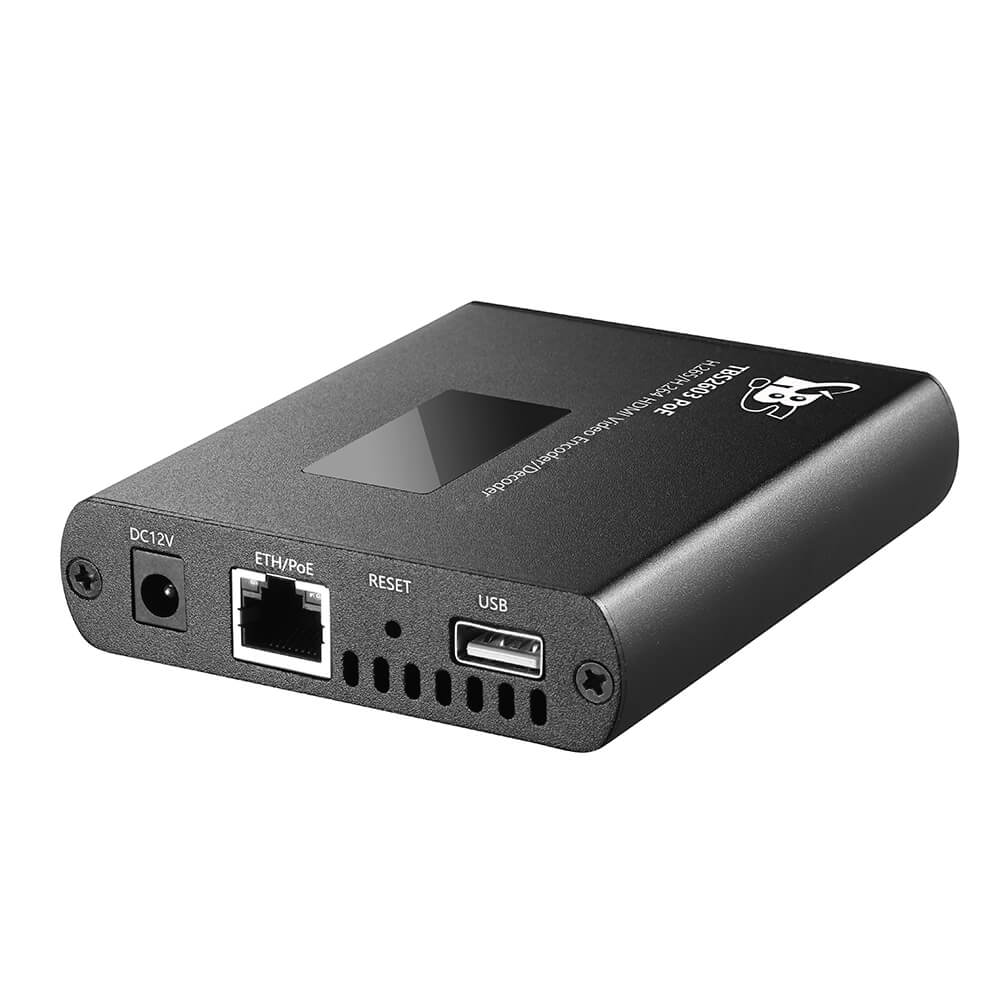

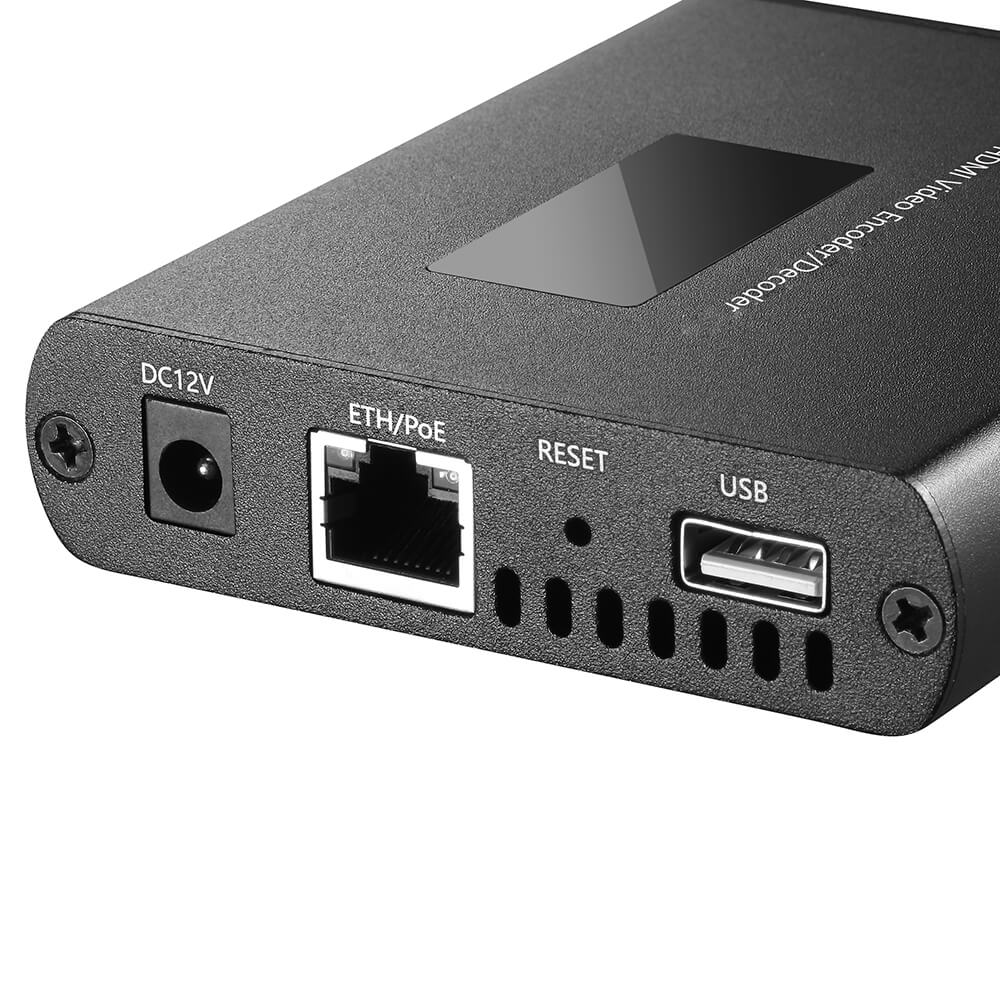

    TBS2603 PoE is a NDI®|HX supported H.264/H.265 video Encoder, a professional HD video Encoder/ Decoder, and a HDMI/USB video recorder. With PoE(Power over Ethernet)support, it will receive electrical power as well as the data from a standard Ethernet cable, which made the installation simpler than normal encoders and no need power supply anymore. What's more, PoE injectors and switches will not damage any equipment, IEEE802.3af/at/bt compliant PoE technology is safe.

    As an encoder, TBS2603 PoE allows to send your video source through the local network, over Ethernet in normal protocol of HTTP/HLS/RTSP/RTP/UDP/RTMP/RTMPS, or in NDI®|HX streams for use with other NDI®|HX compatible systems.

    As a decoder, TBS2603 PoE supports video source from HDMI video, IP streams or NDI®|HX streams. It supports "H.265 Main Profile, Level 4.1 & H.264 Baseline/Main/High Profile Level 4.2" decode. Up to H.265 Main 1920x1080@60fps decode.

    TBS2603 PoE NDI®|HX use a high efficiency, low bandwidth form of NDI®, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI®|HX compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.

    Features

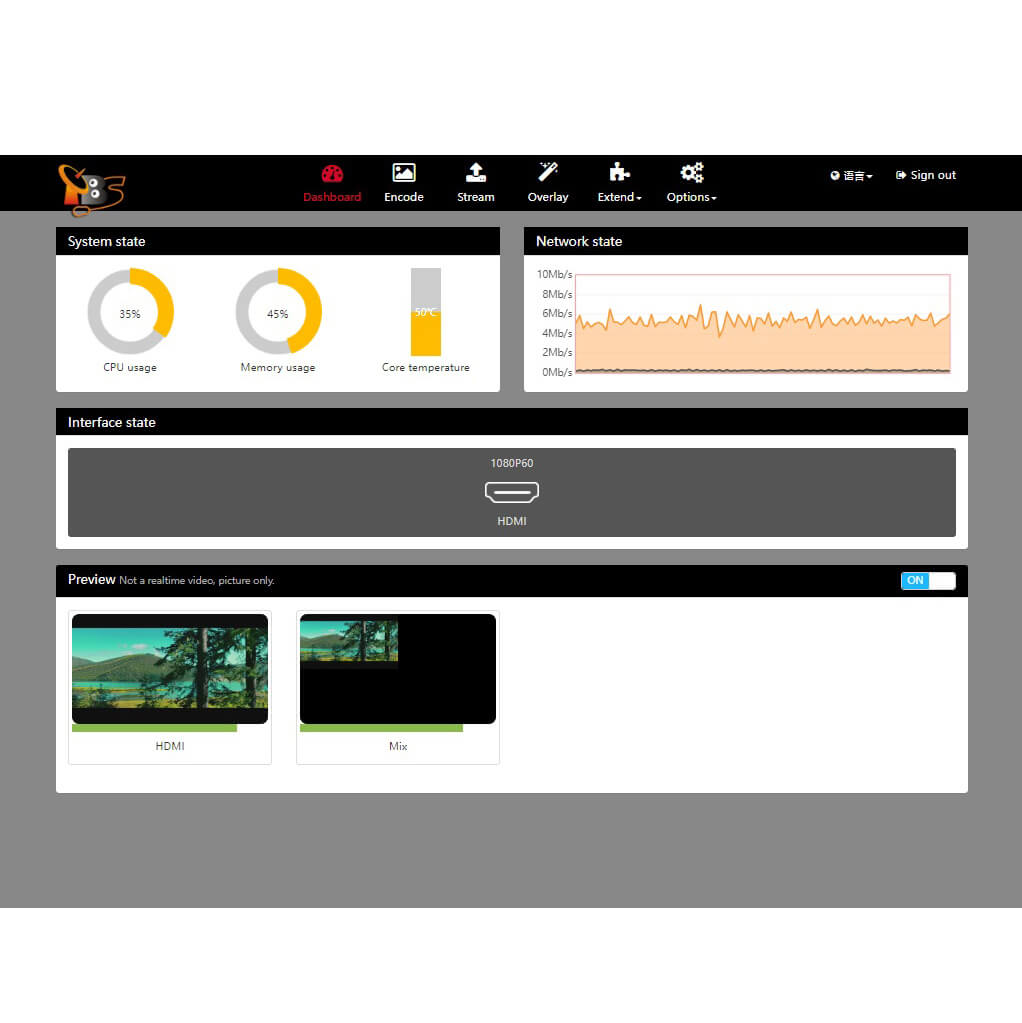

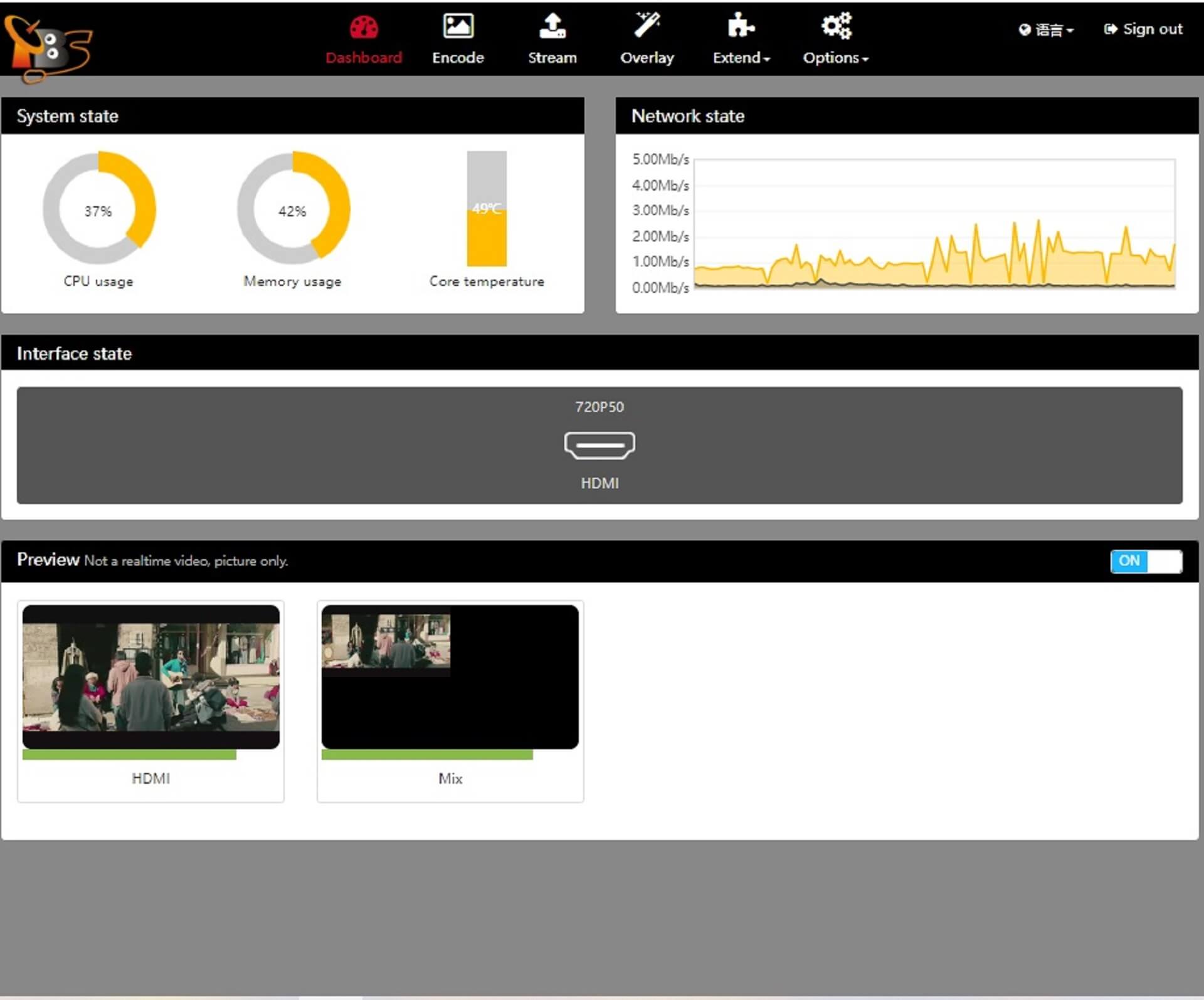

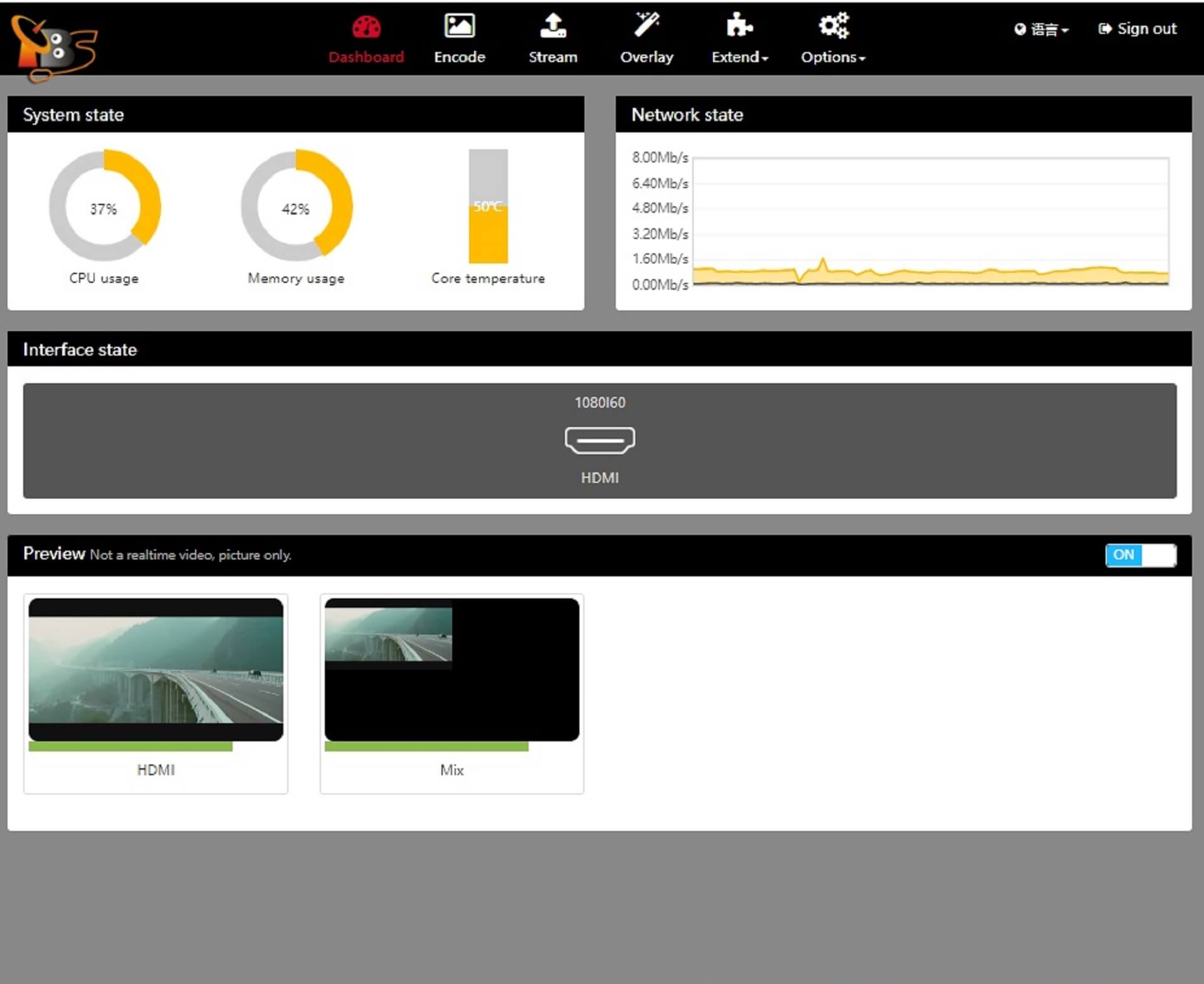

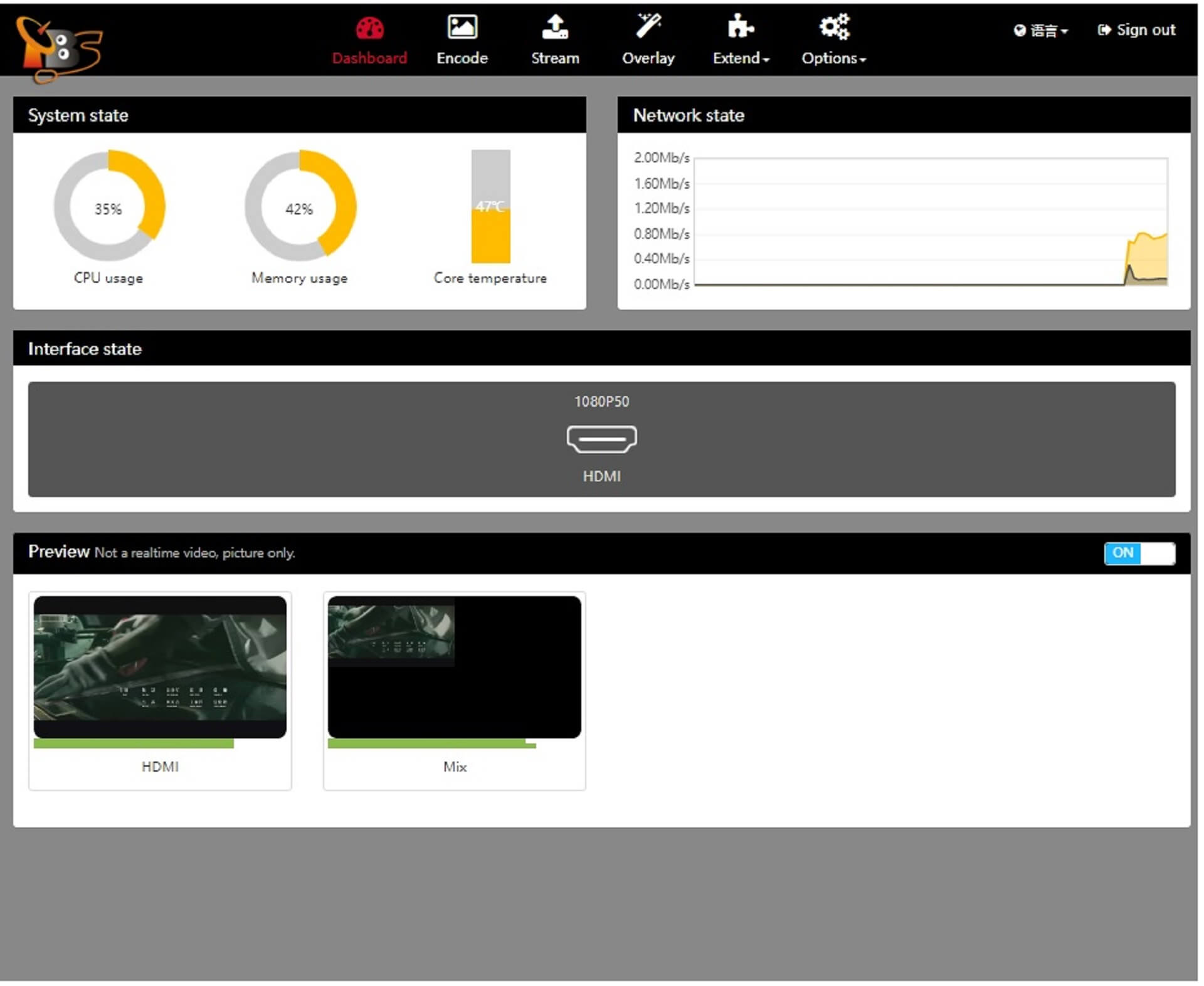

    • Visual input (Preview)
    • HDMI video input, UVC Camera input or NDI®|HX streams input.
    • NDI®|HX streams output, HDMI video out, or USB output for recording

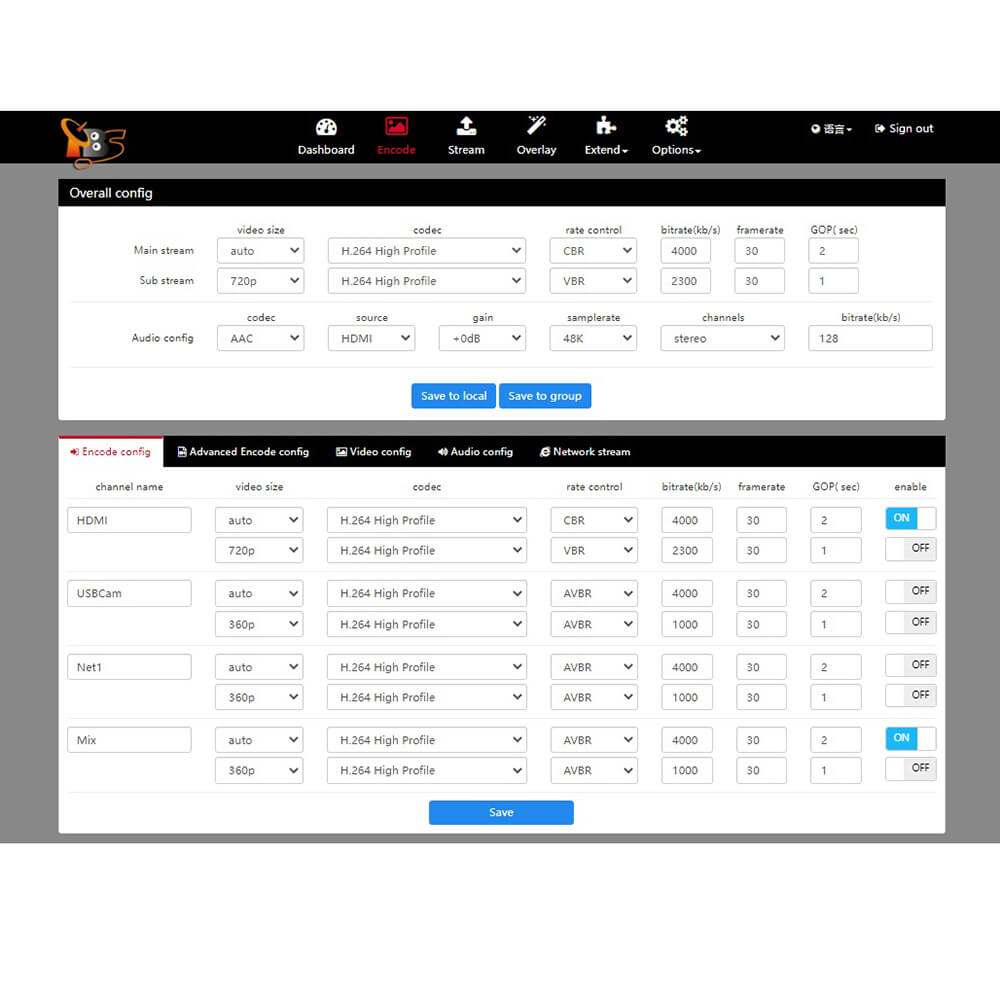

    • H.264/H.265 Encode & Decode, up to 1920x1080P_H.265@60fps Encode. And H.265 Main Profile, Level 4.1 Decode
    • HDMI-embedded & Line-in Audio input
    • AAC, MP3, MP2, PCMA audio encoding
    • MP4/TS/FLV/MKV/MOV format recording
    • Bitrate is adjustable 500kbit/s ~ 20Mbit/s

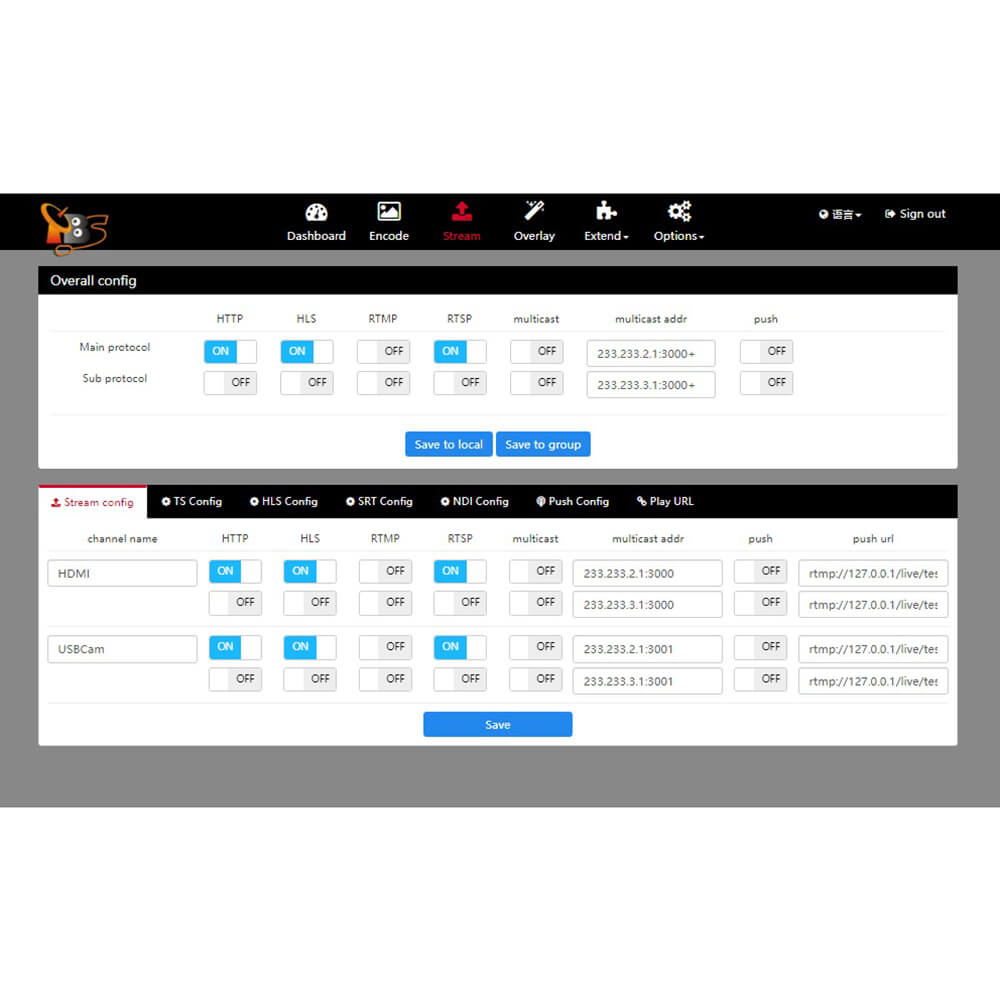

    • Support HTTP, HLS(m3u8), SRT, RTP/UDP Unicast, Multicast, RTSP, RTMP/RTMPS, ONVIF
    • Support NDI | HX2 based on NDI 5.x

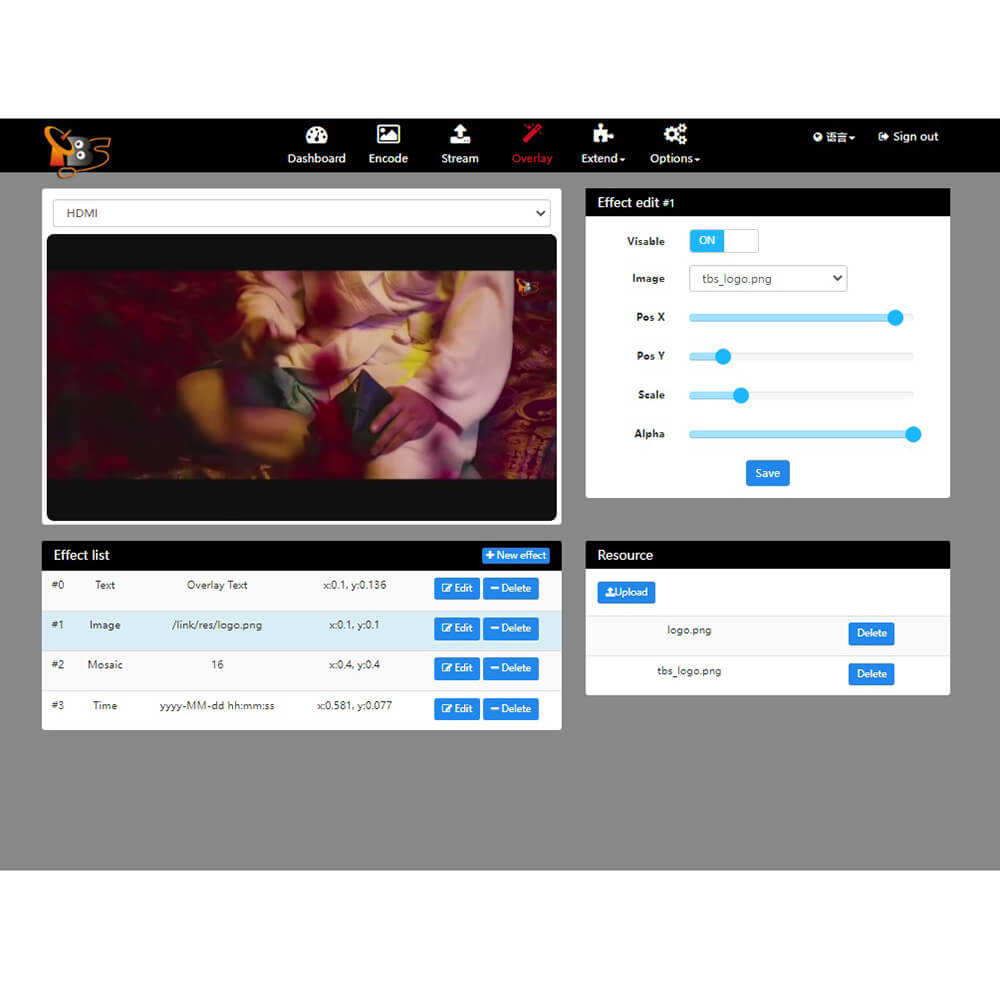

    • Support inserting Logo, Text, Mosaics and Time Display to the video
    • Support output displayed video resolution and frame rate setting (max 1920x1080P@60hz)

    Applications:

    • NDI Decoding
    • IPTV
    • Live broadcasting to Social Media

    UPC: 688209394474
