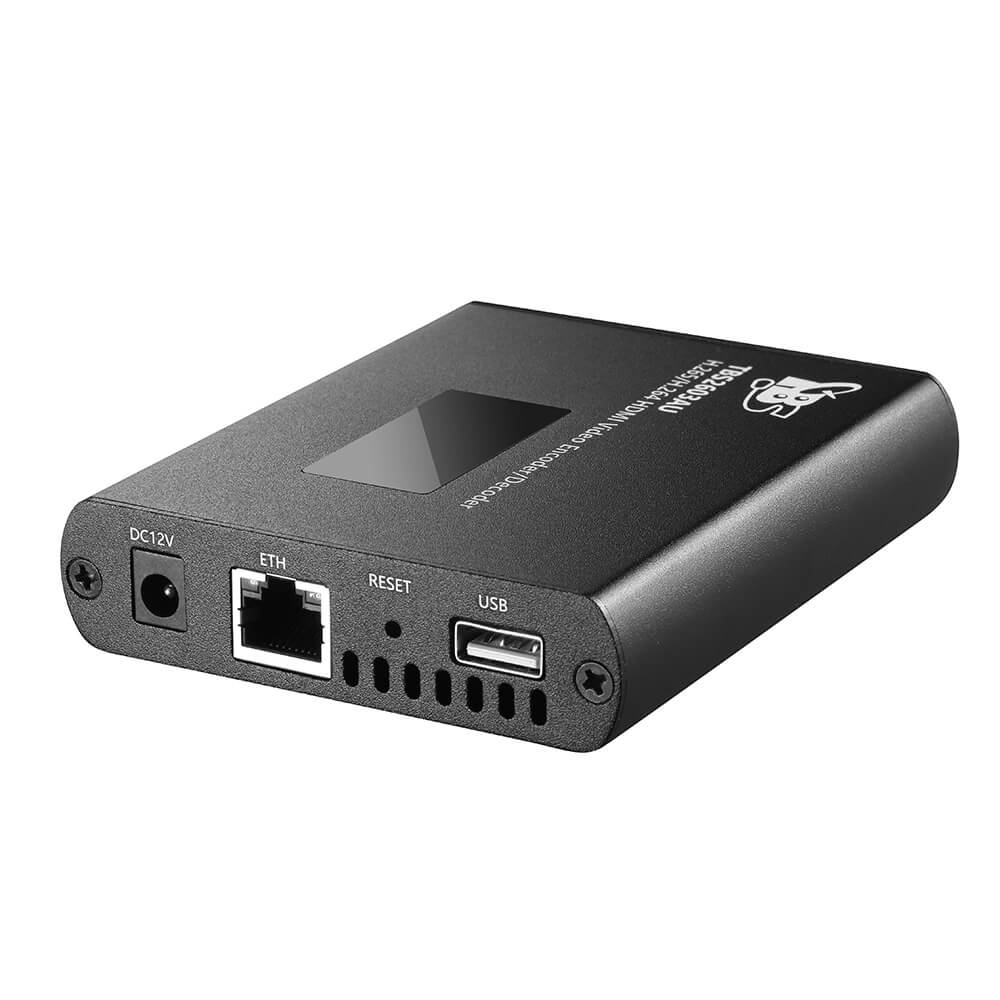

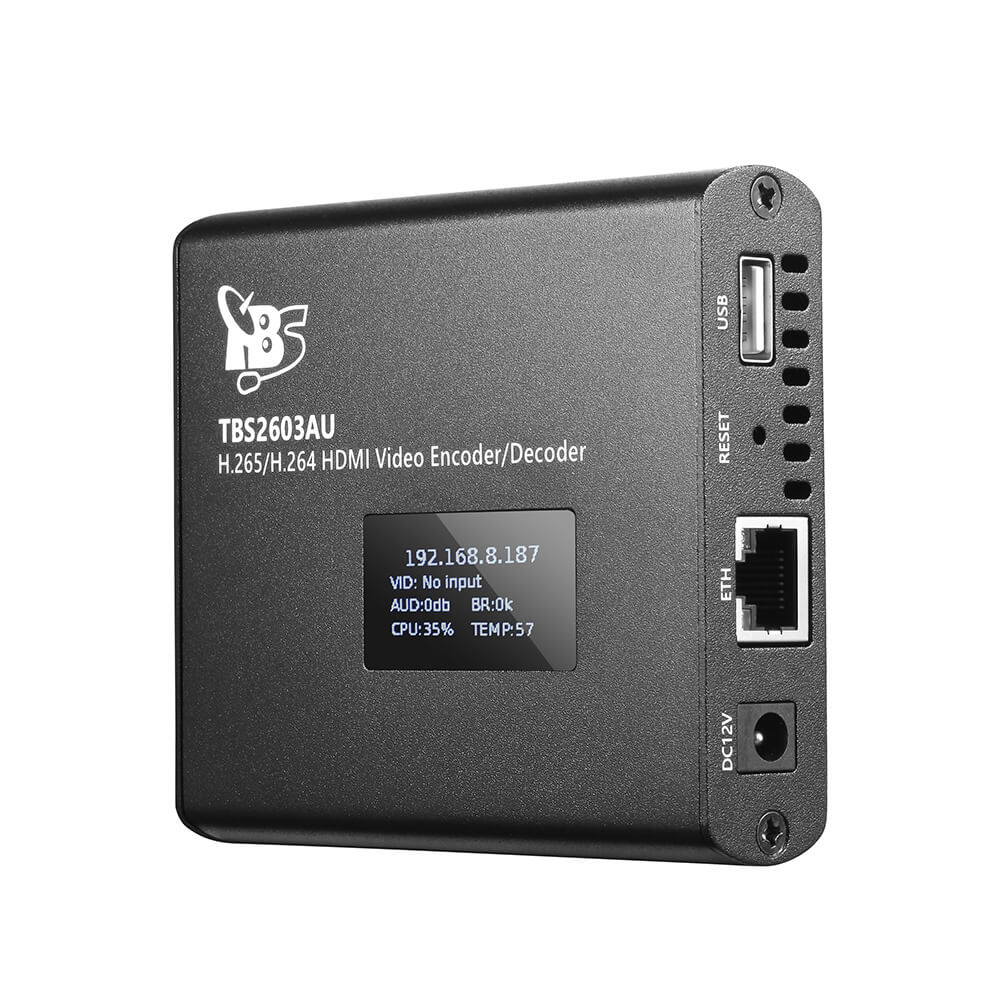

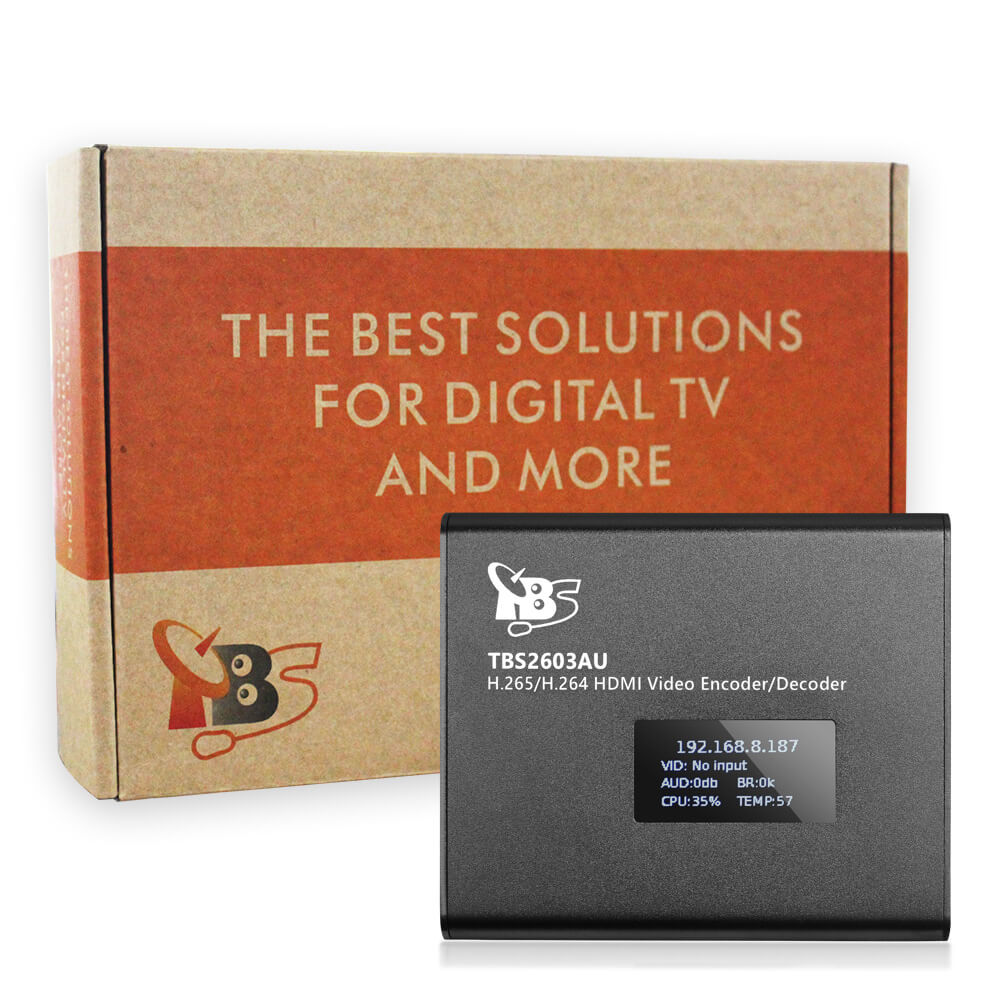

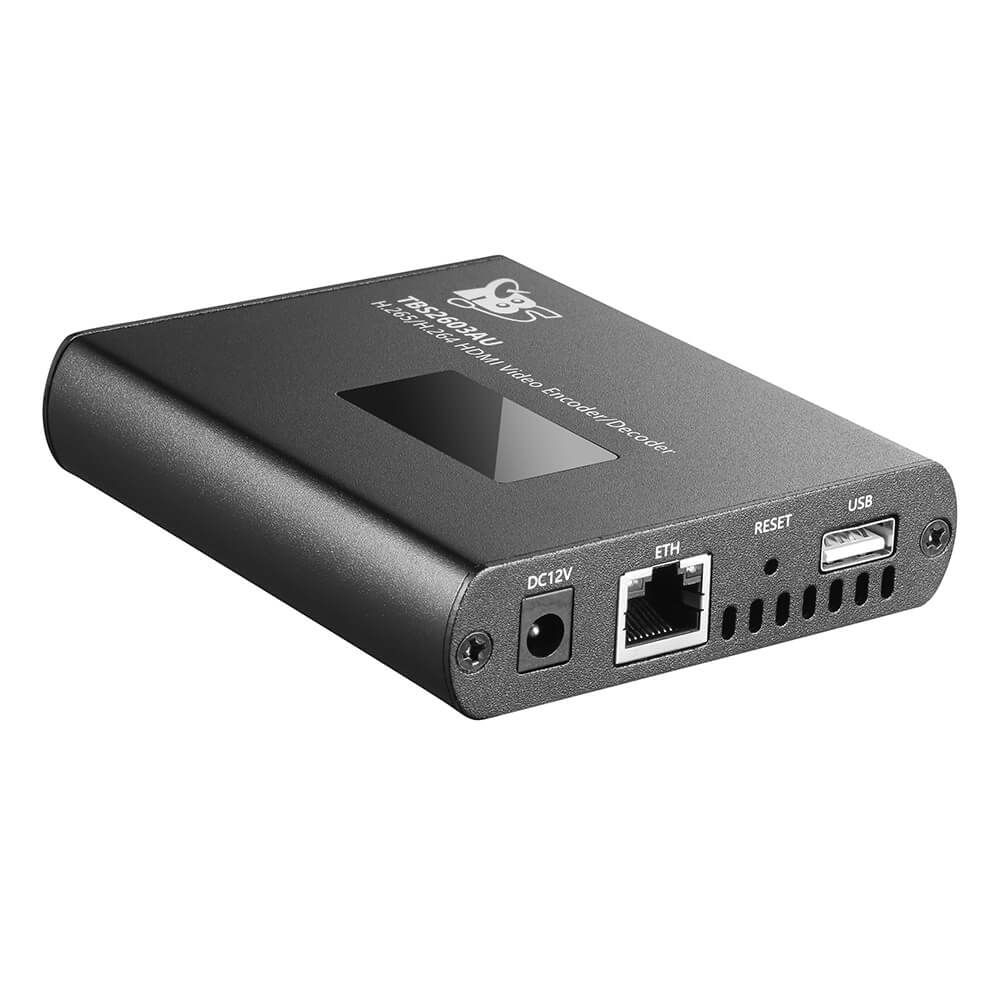

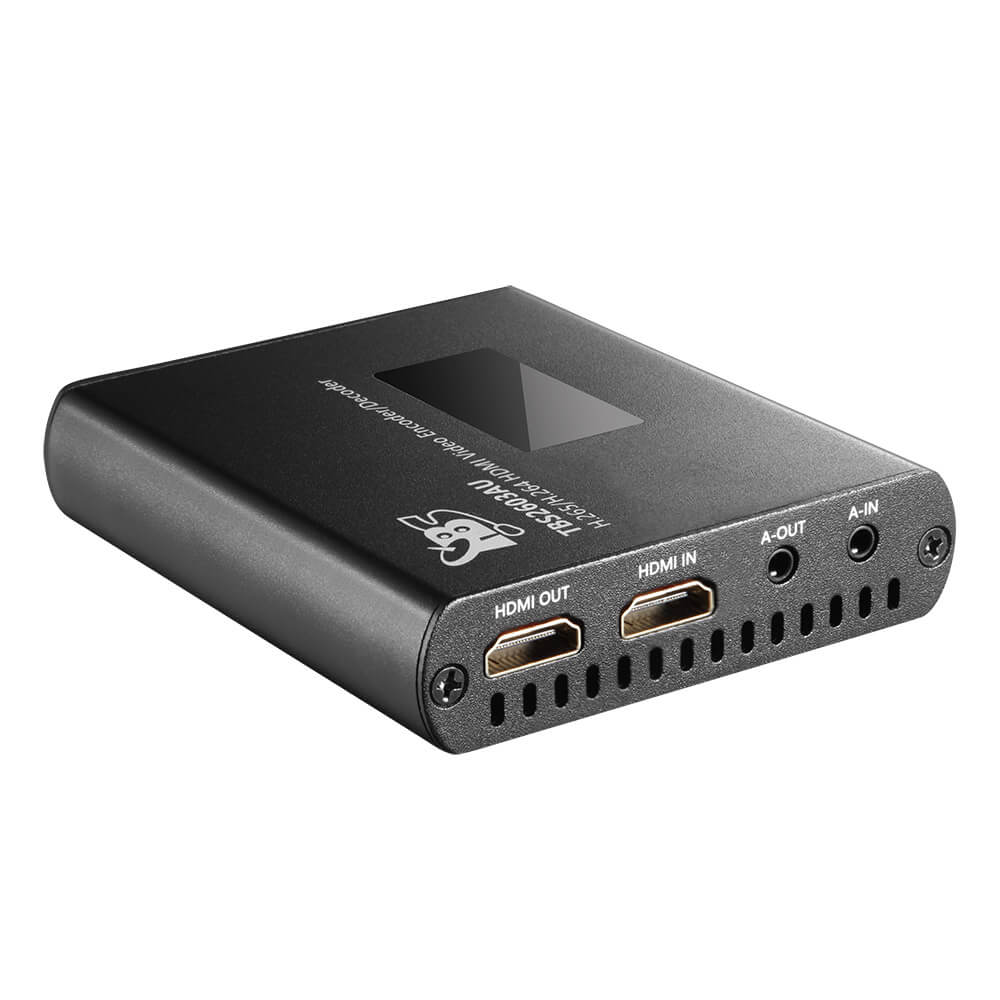

    TBS2603au NDI®|HX2 supported H.265/H.264 HDMI Video Encoder & Decoder

    TBS2603au

    NDI®|HX2 supported H.265/H.264 HDMI Video Encoder & Decoder

    TBS2603au is a NDI®|HX2 supported H.264/H.265 HDMI video Encoder, a professional HD video Encoder/ Decoder, and a HDMI/USB video recorder.

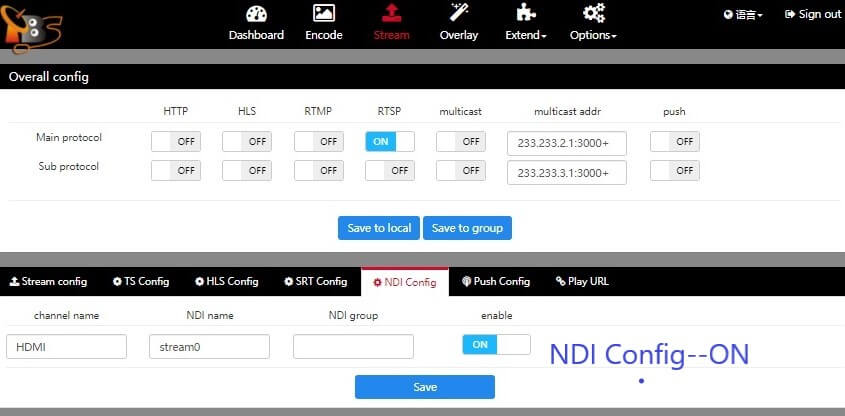

    As an Encoder, TBS2603au allows to send your video source through the local network, over Ethernet in normal protocol of HTTP/HLS/RTSP/RTP/UDP/RTMP/RTMPS/SRT, or in NDI®|HX2 streams for use with other NDI®|HX2 compatible systems.


    As a Decoder, TBS2603au supports video source from HDMI video, IP streams or NDI®|HX2 streams.
    It supports "H.265 Main Profile, Level 4.1 & H.264 Baseline/Main/High Profile Level 4.2" decode. Up to H.265 Main 1920x1080@60fps decode.

    NDI®|HX2 products use a high efficiency, low bandwidth form of NDI® to deliver full resolution, full frame rate video over bandwidth-restricted local and wide area networks with the option to use 100 Megabit Ethernet or Wi-fi technology.

    Features:

    • Visual input (Preview)
    • HDMI video input, UVC Camera input or NDI®|HX2 streams input.
    • NDI®|HX2 streams output, HDMI video out
    • H.264/H.265 Encode & Decode, up to 1920x1080P_H.265@60fps Encode. And H.265 Main Profile, Level 4.1 Decode
    • HDMI-embedded & Line-in Audio input
    • MP3, MP2, PCMA audio encoding
    • Support video recording via USB, in the format of MP4/TS/FLV/MKV/MOV
    • Bit rate is adjustable 500kbit/s -20Mbit/s

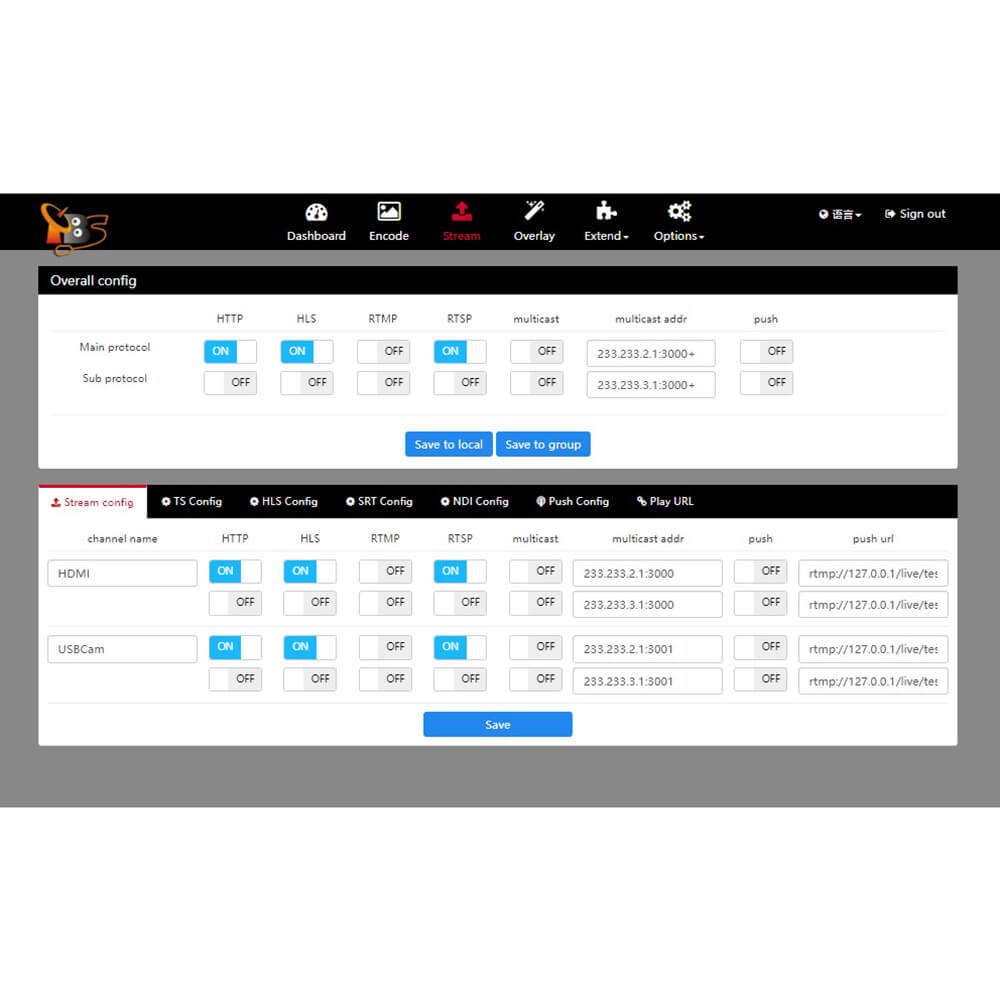

    • Support HTTP, HLS(m3u8), RTP/UDP Unicast, Multicast, RTSP, RTMP/RTMPS, ONVIF, SRT

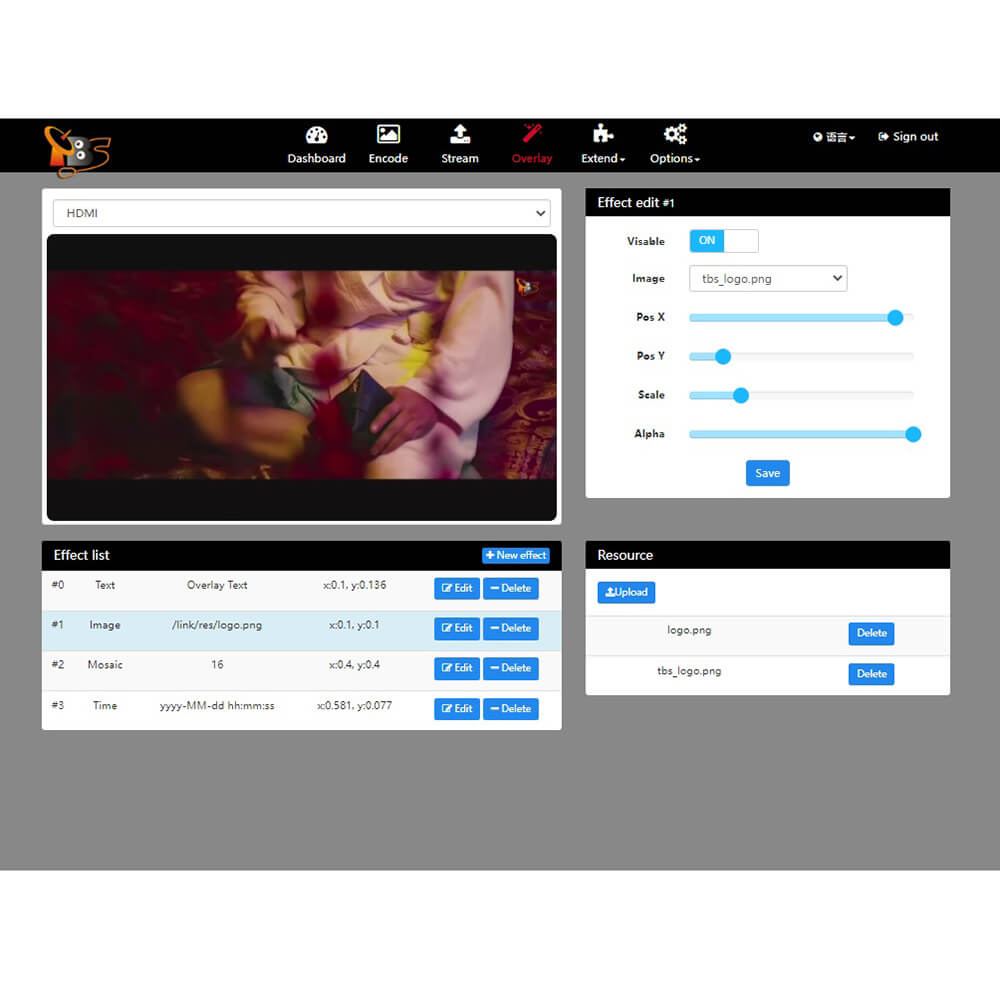

    • Support inserting Logo, Text, Mosaics and Time Display to the video
    • Support output displayed video resolution and frame rate setting (max 1920x1080P@60hz)
    • Support HDCP and HD blue-ray

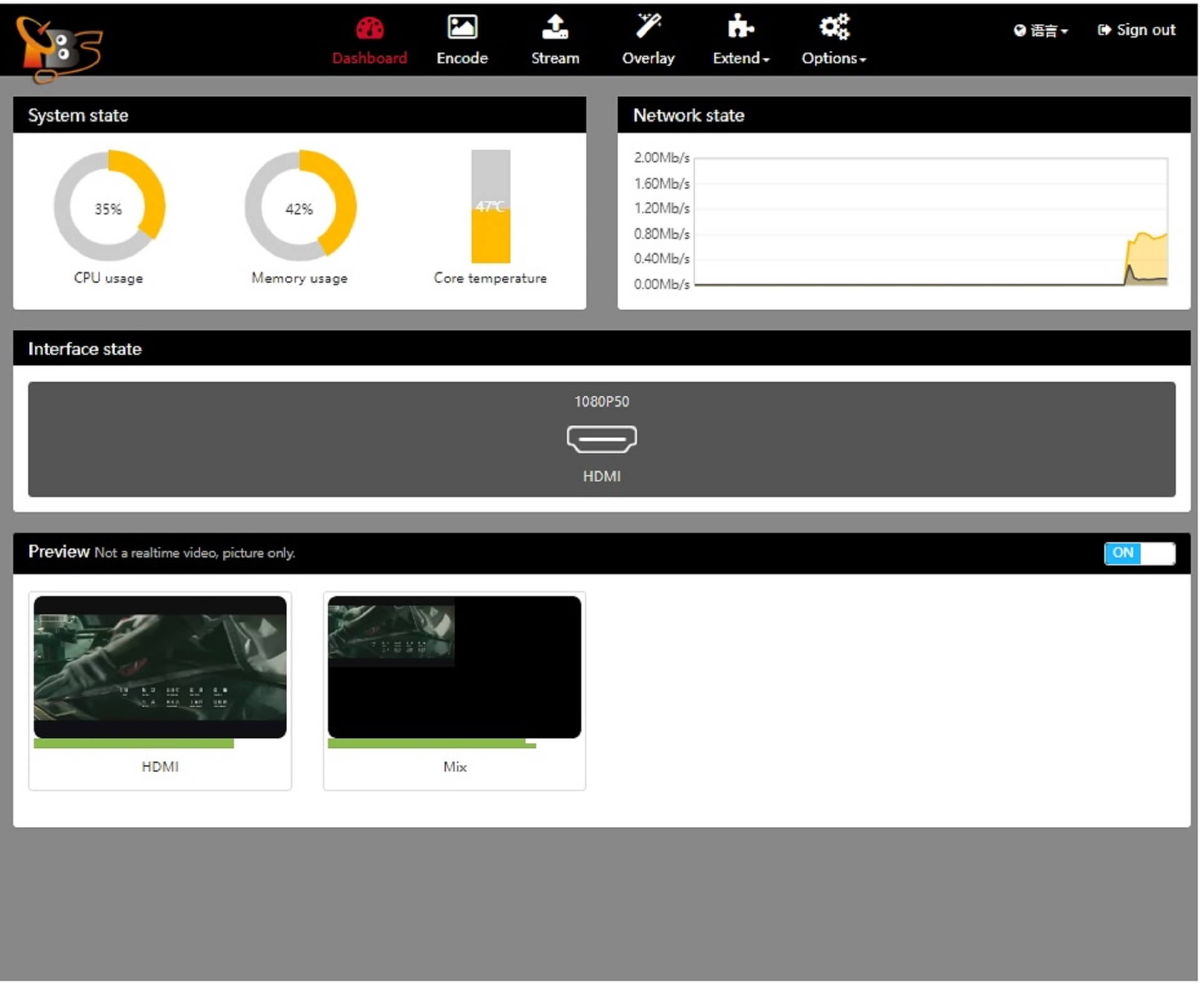

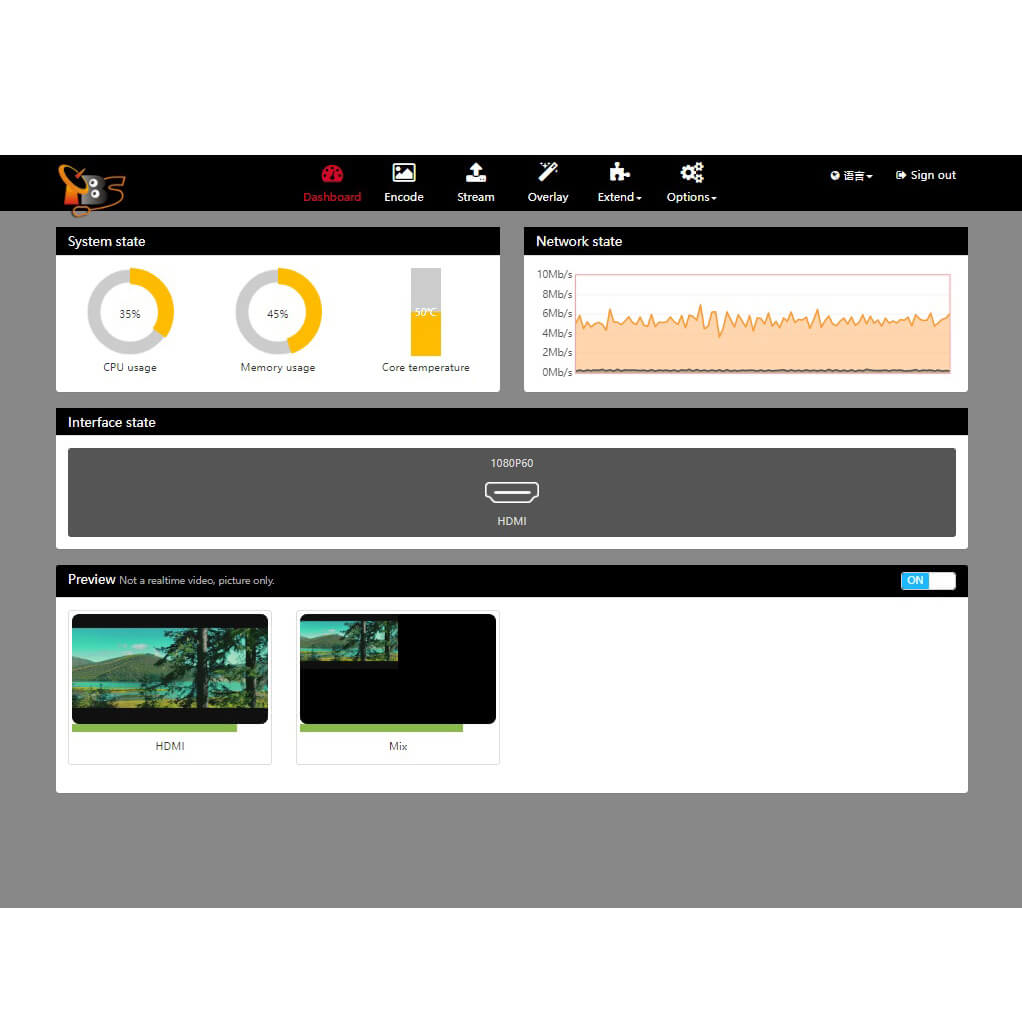

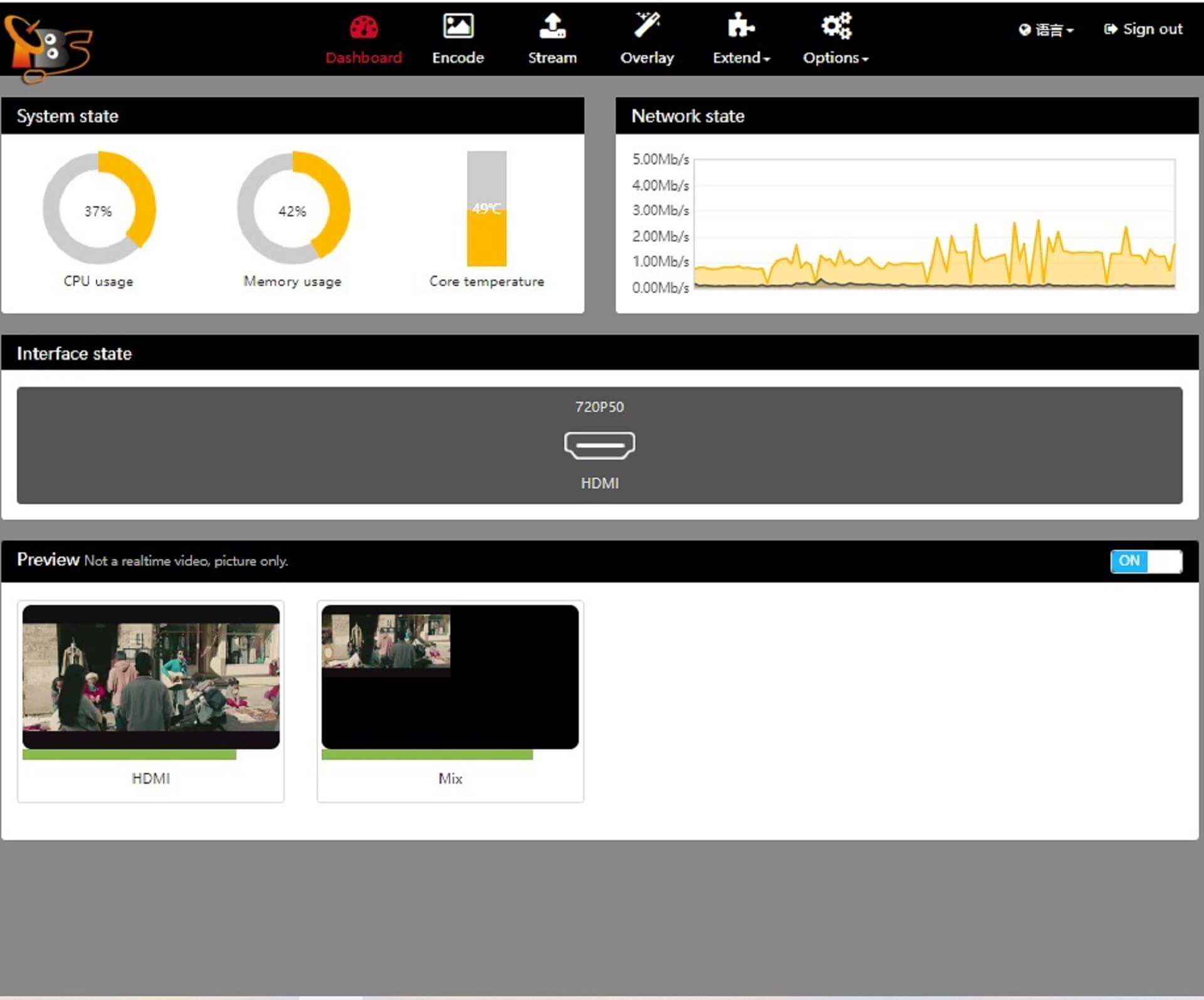

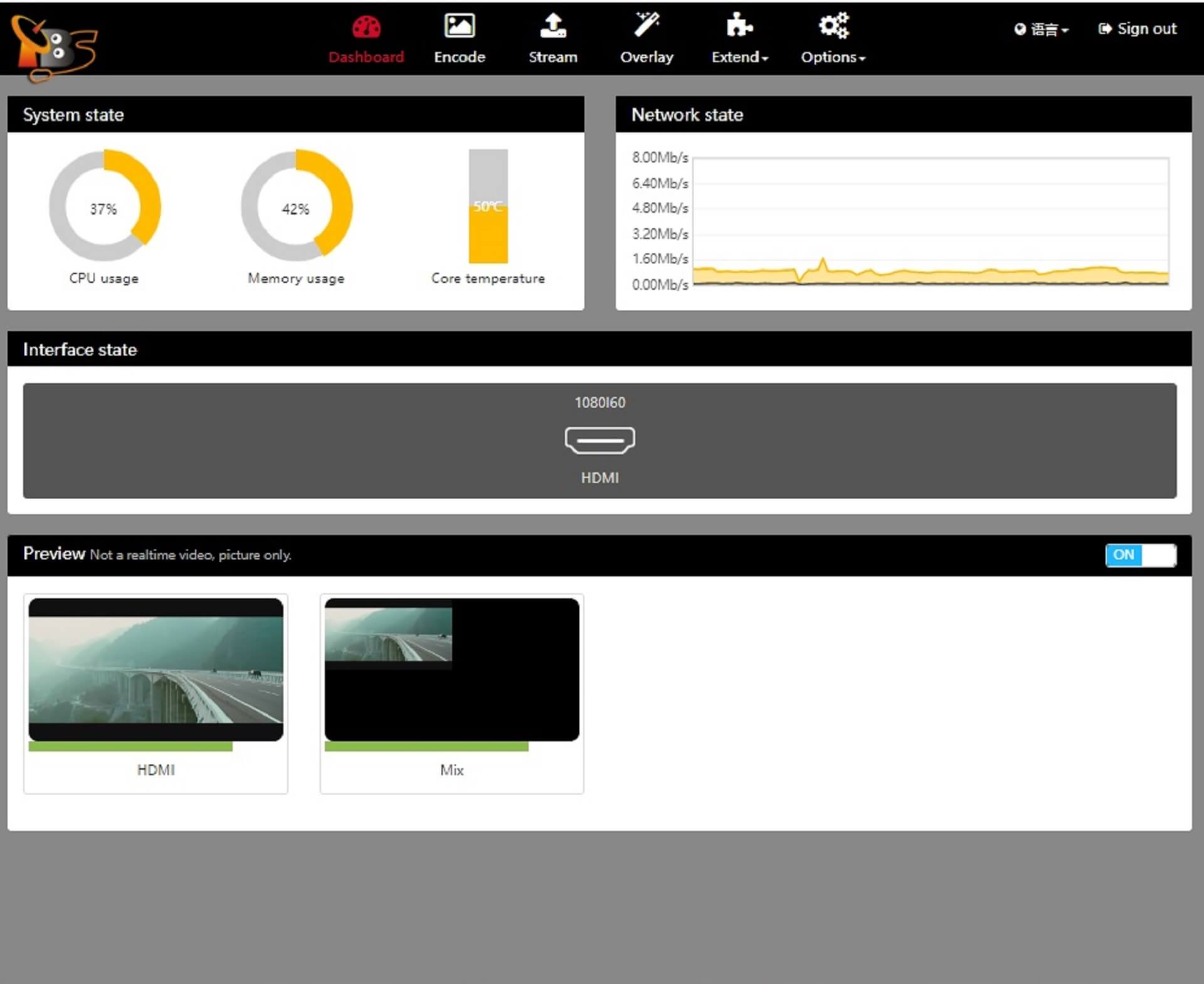

    • Flexible and friendly webpage control
    • Support ROI (Region of Interest), up to 8 regions
    • H5 Player
    • Video Rotator: 0 degree/90 degrees/180 degrees/270 degrees
    • Stable and effective, support 7 x 24h working time

    Application:

    As HDMI encoder



    As HDMI Decoder

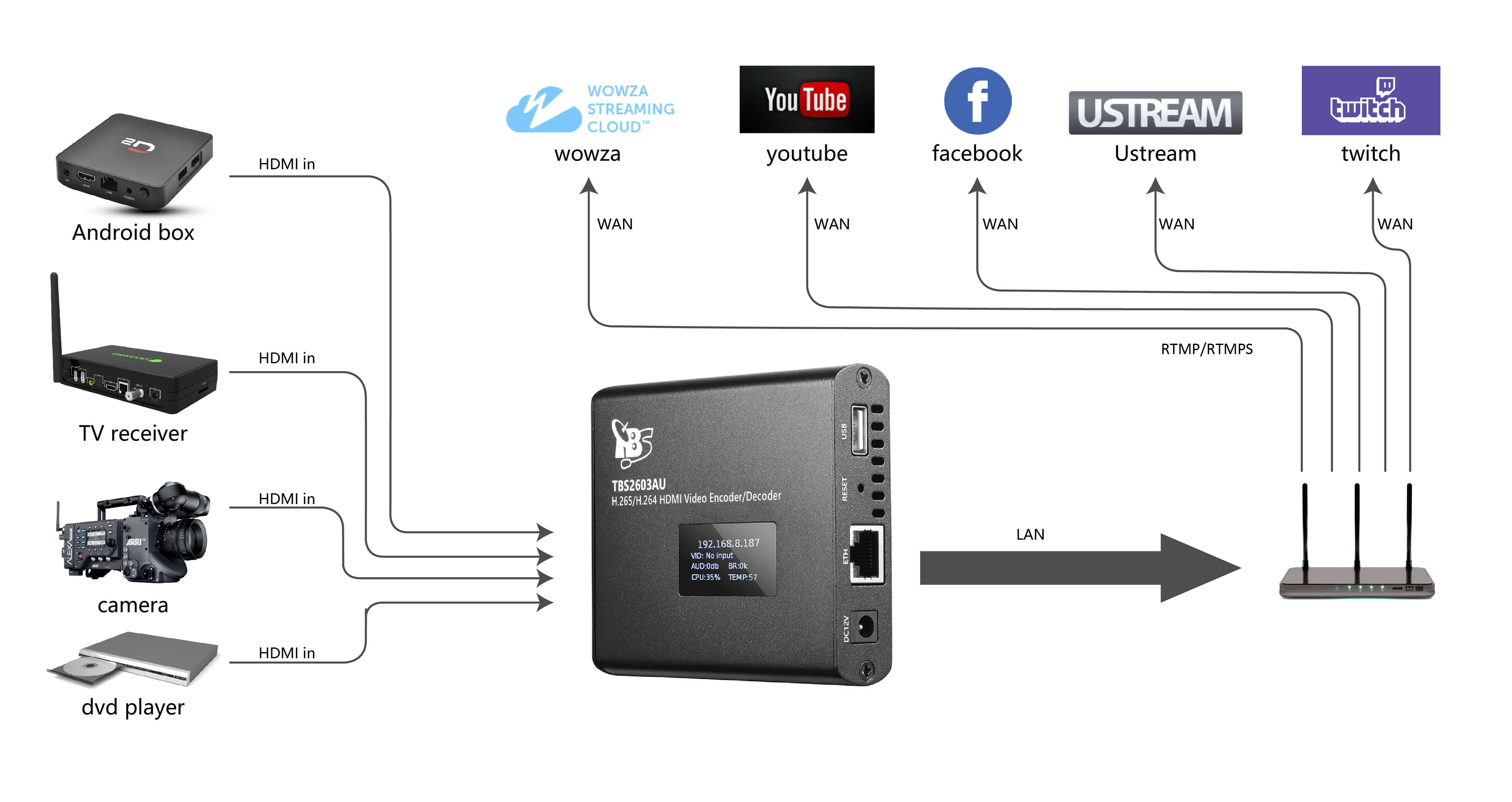

    Live streaming to social media



    Specification

    Model Number TBS2603au
    Video Input 1x HDMI 1.4, NDI®|HX2 streams, 1x USB2.0 from UVC Camera
    Audio Input HDMI-embedded, Line-in (Jack 3.5mm)

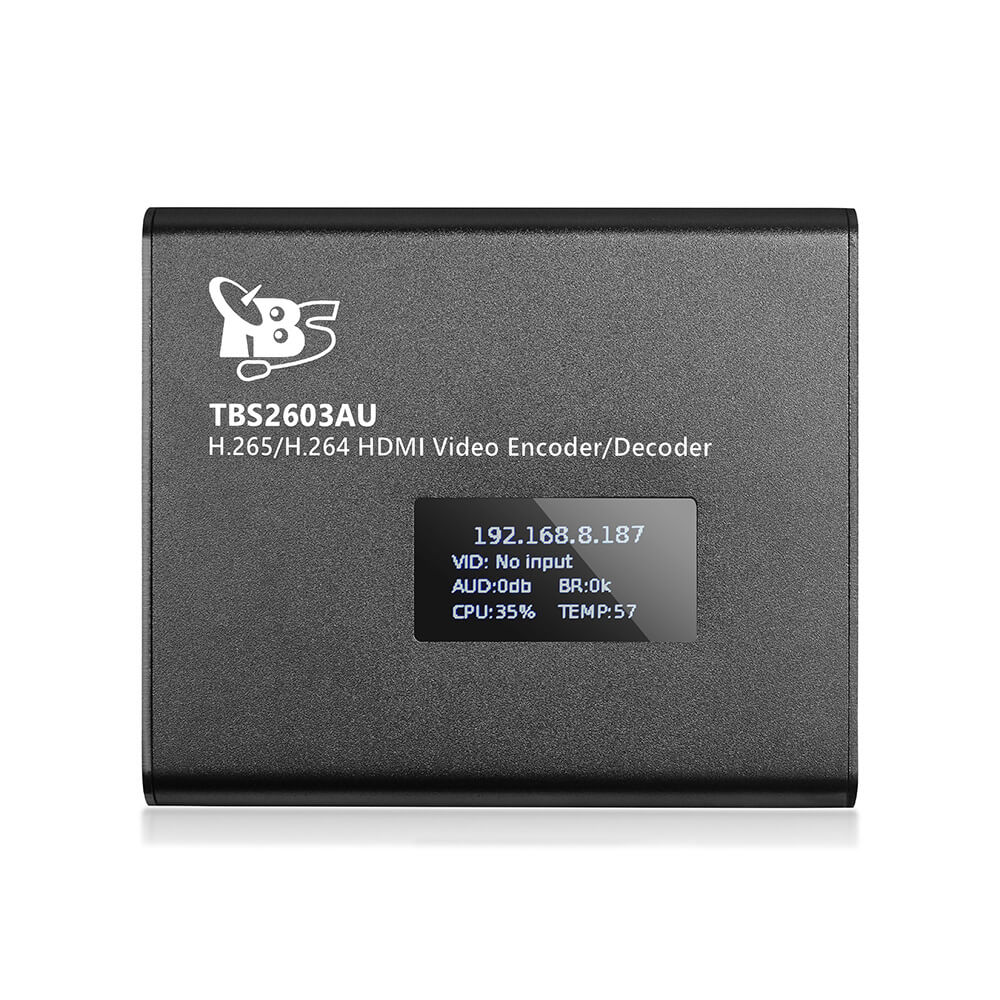

    OLED display IP, input video resolution, CPU utilization, Core temperature

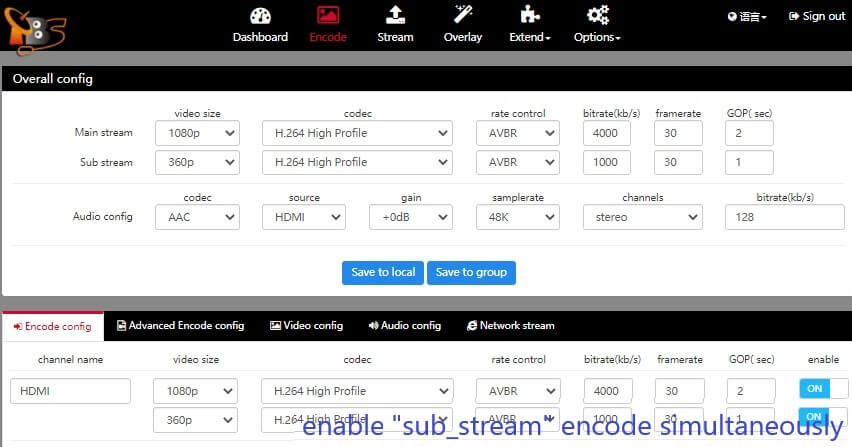

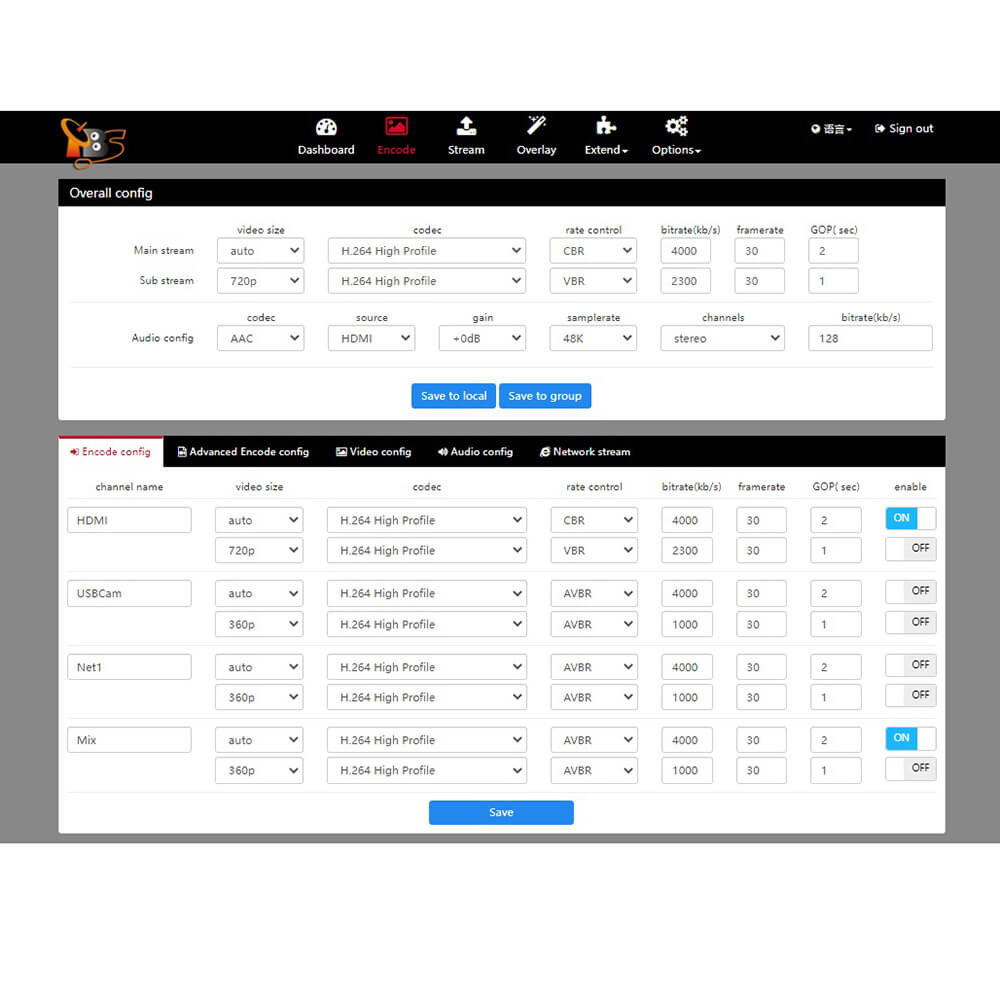

    Encode
    Video Input Resolution 1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ;
    720x576;640x480, and etc.
    Video Output Resolution 1920x1080P@60fps; 1680x1050; 1280x720; 1024x576; 850x480;
    720x576; 720x480; 640x480; 480x360; 360x240; auto; customized and etc.
    Video Encode H264 base line, H264 Main, H264 High, H265 Main
    Video Bit Rate 0.5Mbps-20Mbps
    Bit Rate Control CBR, VBR, AVBR, FIXQP
    Protocol NDI®|HX2 HTTP, HLS, RTSP, RTP/UDP Unicast/Multicast, RTMP(RTMPS), SRT
    Audio Encode MP3, MPEG2, PCMA
    Audio Sampling rate 16K, 32K, 44.1K, 48K
    Channel Stereo (R + L) or Mono (R/L)
    Audio Sampling precision 16 bit
    Audio Bit Rate 32Kb/s ~ 256Kb/s
    Network Stream IN
    Video H264, H265
    Audio MPEG2, MP3
    Protocol NDI®|HX2 stream,HTTP,HLS,RTSP,RTP,UDP,RTMP(pull)
    Decode
    Video codec H.265 Main Profile, Level 4.1； H.264 Baseline/Main/High Profile Level 4.2
    Audio codec Mpeg2, MP3
    Source HDMI in decode; Network stream decode, NDI | HX decode
    Record
    USB record To USB flash disk or USB hard disk
    Format *.MP4; *.TS, *.FLV, *.MKV, *.MOV
    System
    Ethernet / RJ45 1000 Base-T Ethernet interface
    Supported System Windows XP/VISTA/SERVER/WIN7/WIN10 ; Linux; MAC OS
    Control WebUI
    General Spec.
    Dimension 100 * 60 * 31.5mm
    Power Consumption Less than 6W

    NDI® is a registered trademark of Newtek
