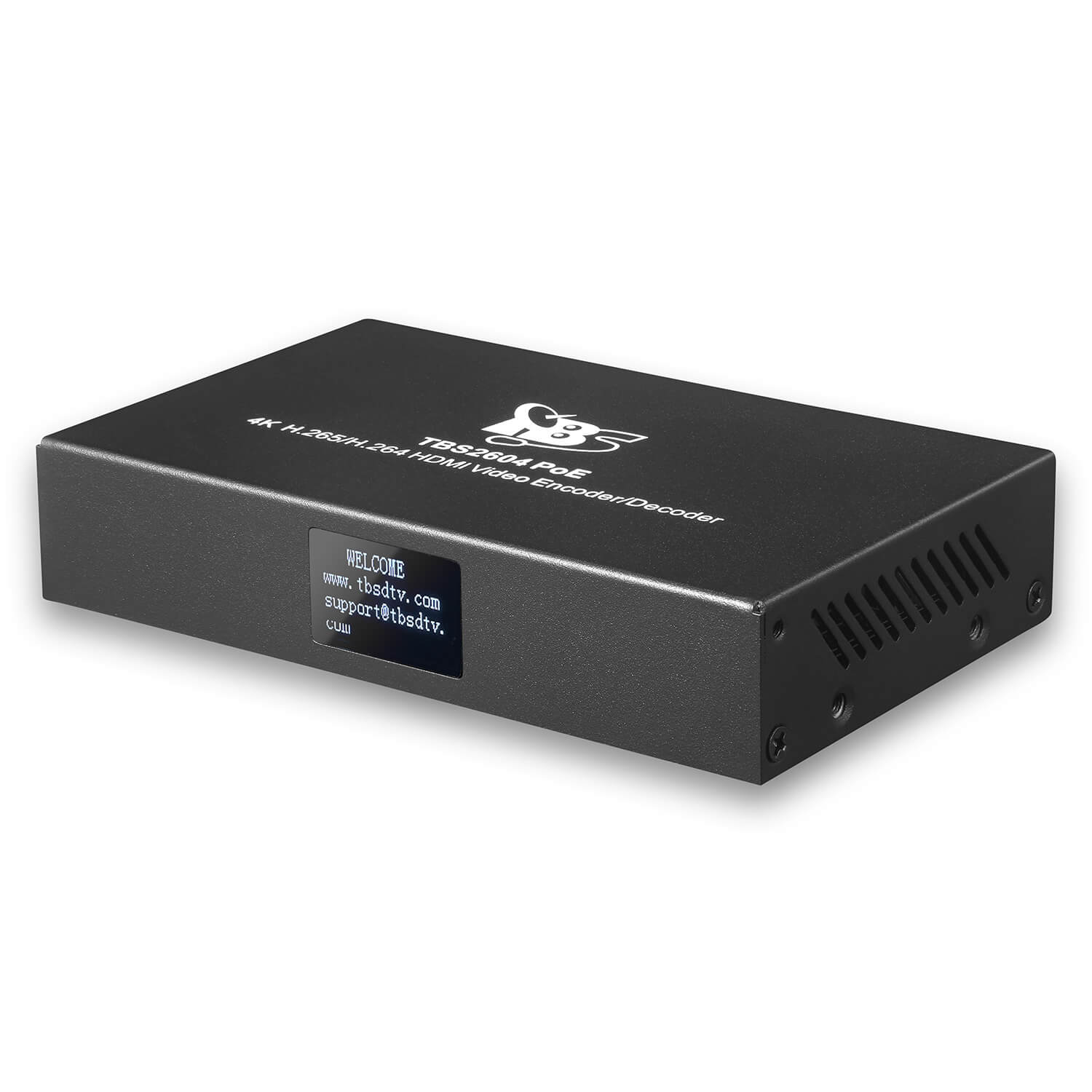

    TBS2604 PoE NDI®|HX Supported 4K@30FPS H.265/H.264 Video Encoder / Decoder

    TBS2604 PoE is a professional 4K@30FPS H.264/H.265 HDMI video encoder with NDI®|HX support. It functions as both a high-performance video encoder/decoder and an HDMI/USB video recorder. With Power over Ethernet (PoE) support, it receives both power and data through a single standard Ethernet cable, simplifying installation and eliminating the need for a separate power supply. Additionally, PoE technology is IEEE802.3af/at/bt compliant, ensuring safe and reliable operation without risk of damaging connected equipment.

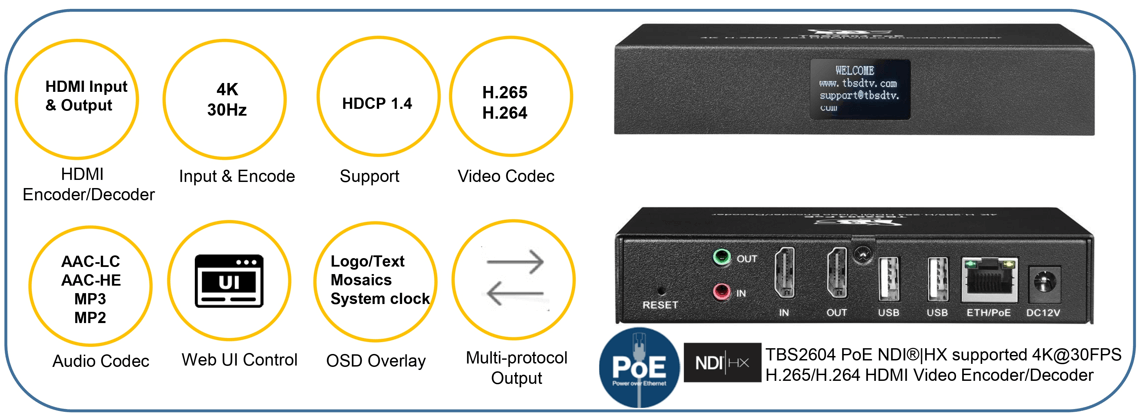

    TBS2604 PoE

    As an encoder, the TBS2604 PoE enables you to stream your video source over a local network via standard Ethernet protocols such as HTTP/ HLS/ SRT/ RTSP/ RTP/ UDP/ RTMP/ RTMPS, or as NDI®|HX streams for seamless integration with other NDI®|HX compatible systems.

    As a decoder, the TBS2604 PoE supports video input from HDMI, IP streams, and NDI®|HX streams. It offers H.265 Main Profile, Level 4.1 decoding, as well as H.264 Baseline/Main/High Profile, Level 4.1 decoding, with support for up to H.265 Main 3840x2160@30fps.

    With NDI®|HX, the TBS2604 PoE delivers high-efficiency, low-bandwidth video streaming over local networks, making your HDMI sources instantly available to other NDI®|HX compatible systems. It seamlessly connects cameras and other devices to live production systems, video applications, and streaming platforms.

    TBS2604 PoE

    Features:

    • Visual input (Preview)
    • HDMI video input, UVC Camera input or NDI®|HX streams input.
    • NDI®|HX streams output, HDMI video out, or USB output for recording
    • H.264/H.265 encode & decode: up to 3840x2160 H.265 @ 30fps encode, and H.265 Main Profile, Level 4.1 decode
    • HDMI-embedded & Line-in Audio input
    • AAC, MP3, MPEG2, PCMA audio encoding
    • MP4/TS/FLV/MKV/MOV format recording
    • Bitrate is adjustable 300kbit/s -20Mbit/s
    • Support HTTP, HLS(m3u8), SRT, UDP/RTP Unicast, Multicast, RTSP, RTMP/RTMPS, ONVIF
    • Support NDI®|HX2 based on NDI 5.x
    • Support inserting logos, text, mosaics, and system clock into the video
    • Decoding output resolution and frame rate are adjustable (up to 4K@30hz)

    Applications:

    • NDI Decoding
      TBS2604 PoE
    • IPTV
      TBS2604 PoE
    • Live Broadcasting to Social Media
      TBS2604 PoE

    Specification:

    Model NO. TBS2604PoE
    Product Name NDI®|HX Supported 4K@30FPS H.265/H.264 Video Encoder/Decoder

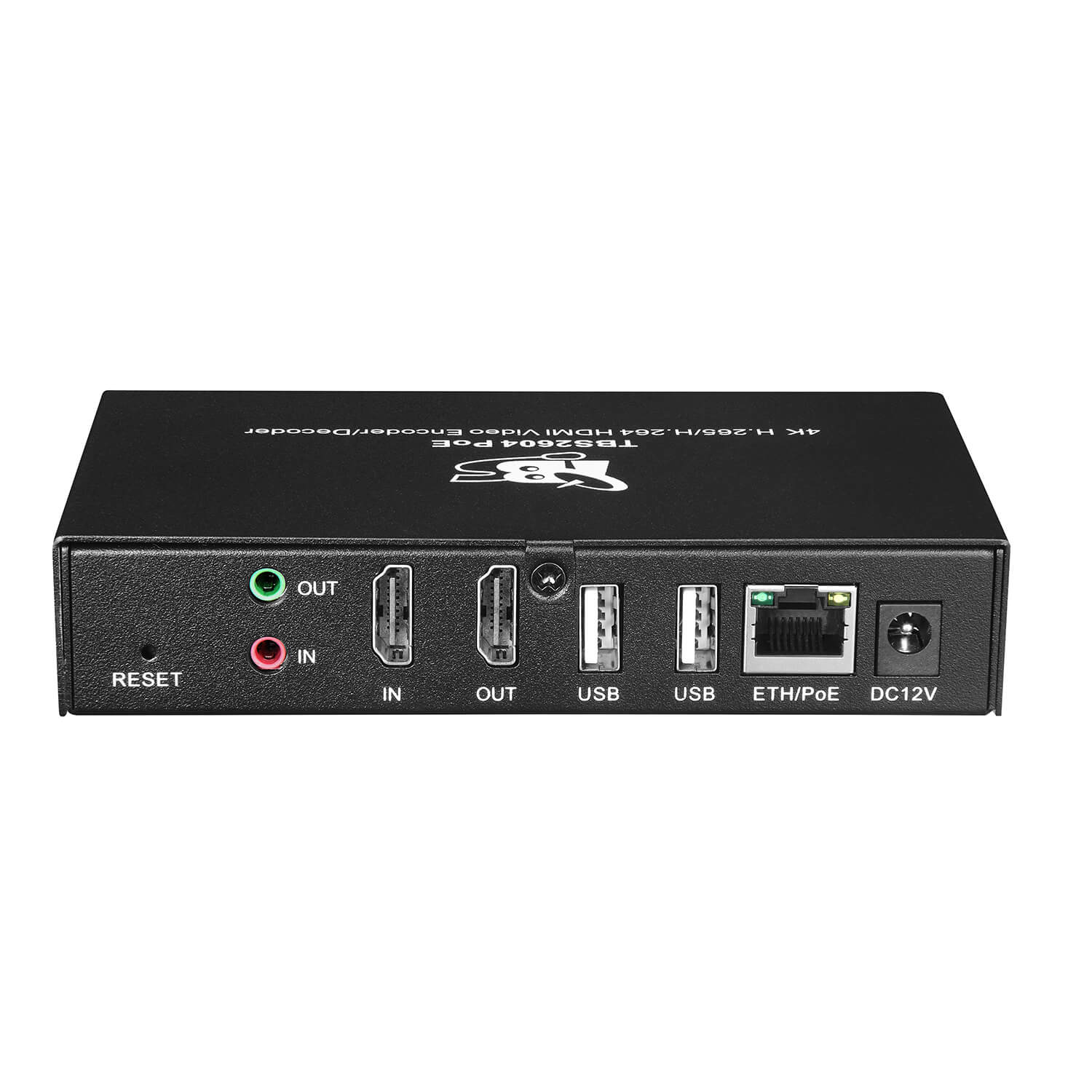

    Interface 1x HDMI 1.4a, supports up to 4K@30HZ input
    1x HDMI Out, supports up to 4K@30HZ output
    2x USB 2.0 ports for UVC camera, recording, etc.
    1x Line In
    1x Line Out
    HDCP HDCP 1.4

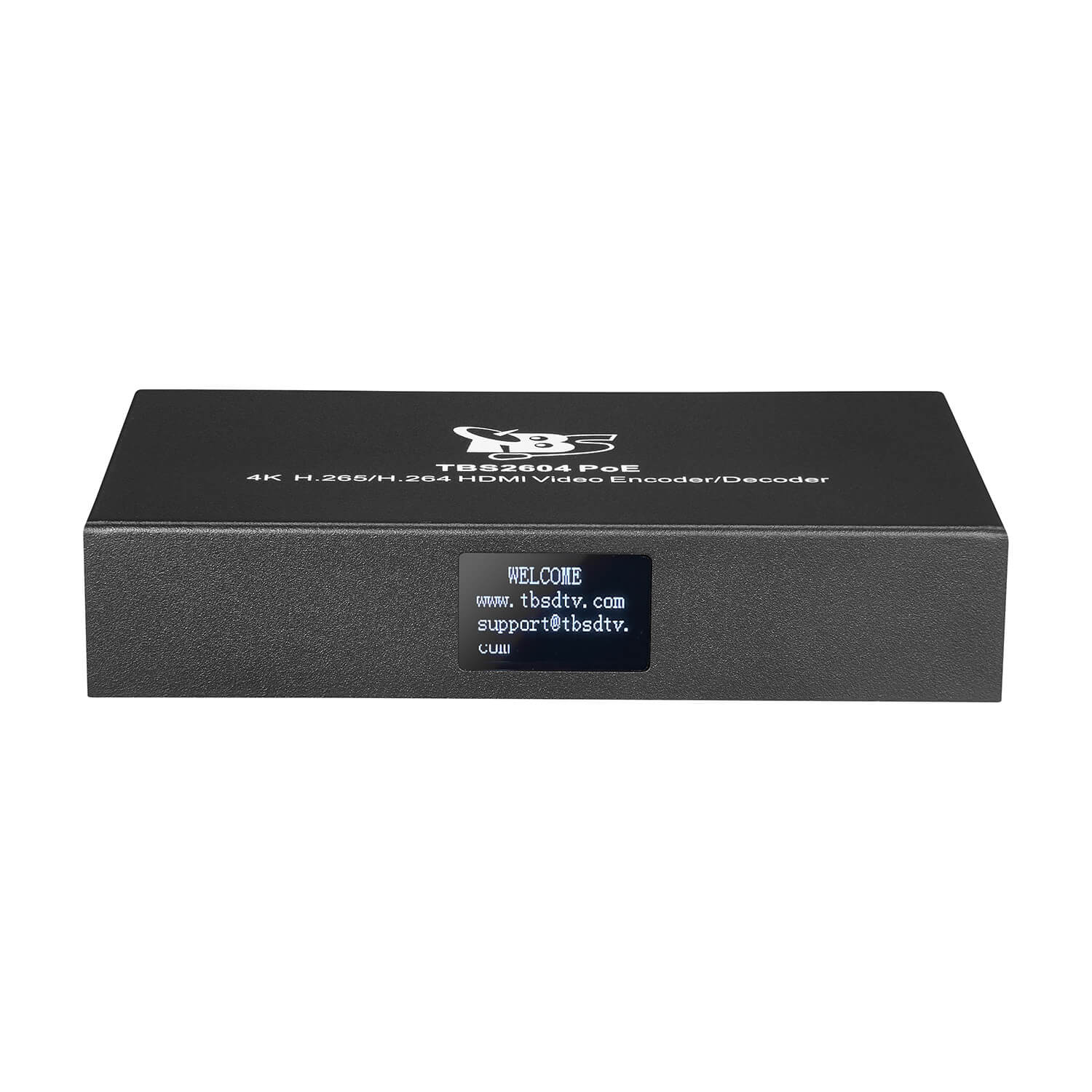

    OLED Display IP information, HDMI input information, CPU utilization, memory utilization, etc.
    Encode
    Video Input Resolution 3840x2160P_30HZ, 1920x1080P_60/50/30/25/24HZ, 1920x1080I_60/50HZ, 1280x720P_50/60HZ,
    720x576, 720x576, 640x480, 360p, etc.
    Video Output 3840x2160P@30FPS, 1920x1080P@60/50/30/25/24FPS,
    720P@60/50/30/25FPS
    1024x576, 850x480,720x576, 720x480, 640x480, 480x360, 360x240 or customized
    Video Codec H.264, H.265
    Profile H264:Baseline, Main, High; H265: Main
    Level H.264: Level 4.1; H.265: Level: 4.1
    Chroma Sampling 4:2:0
    Frame Rate 5-60 FPS
    GOP 1-3 seconds (Key Interval: 5~180 FPS)
    Bitrate Control CBR, VBR, AVBR, FIXQP
    Video Bitrate 0.3-20 Mbps
    GOP Structure IPPP
    De-interlace Supported, force to do "de-interlacing" when I (interlace) input
    Audio Codec AAC_LC/AAC_HE, MP3,MPEG2, PCMA
    Audio Re-sampling Rate 16K,32K,44.1K,48K
    Audio Sampling Precision 16 bit
    Audio Bitrate 32-256 Kbps
    Output Protocols NDI®|HX2, HTTP, HLS(M3U8), RTSP,
    SRT (Caller, Listener, Rendezvous), UDP/RTP Unicast & Multicast,
    RTMP pull, RTMP/RTMPS push, ONVIF
    Decode
    Possible Input Streams HTTP, HLS M3U8, RTSP, UDP, SRT, RTMP pull/push, NDI®|HX2
    Supports up to 4x network streams input
    Video Codec H.265 Main Profile, Level 4.1
    H.264 Baseline/Main/High Profile, Level 4.1
    Audio Codec AAC LC/HE, MP3, MP2
    GOP Structure Of Network Stream IPPP, IBBP (Progressive), does not support to decode IBBP interlace stream
    Extended Features
    OSD Overlay Supports inserting logo, text and system clock into the video.
    Record Supports recording to *.mp4;*.ts,*.flv,*.mkv,*.mov format
    ROI (Region Of Interest) Supports up to 8 Regions
    Video Mix Supports up to 9 Grids (3x3)
    System
    Control web GUI
    Ethernet 100M RJ.45, PoE IEEE802.3af supported.
    Recommended Browser Google Chrome, Fire Fox, Microsoft Edge, Safari, etc.
    General Specification
    Dimension 136mm x 82mm x 27mm
    Net Weight 360 g
    Gross Weight 760 g
    Power Consumption 6 Watt
    Working Environment Operating temperature: 0°C to 60 °C
    Storage temperature: -20°C to 70 °C
    Relative humidity: 5% to 90% (non-condensing)

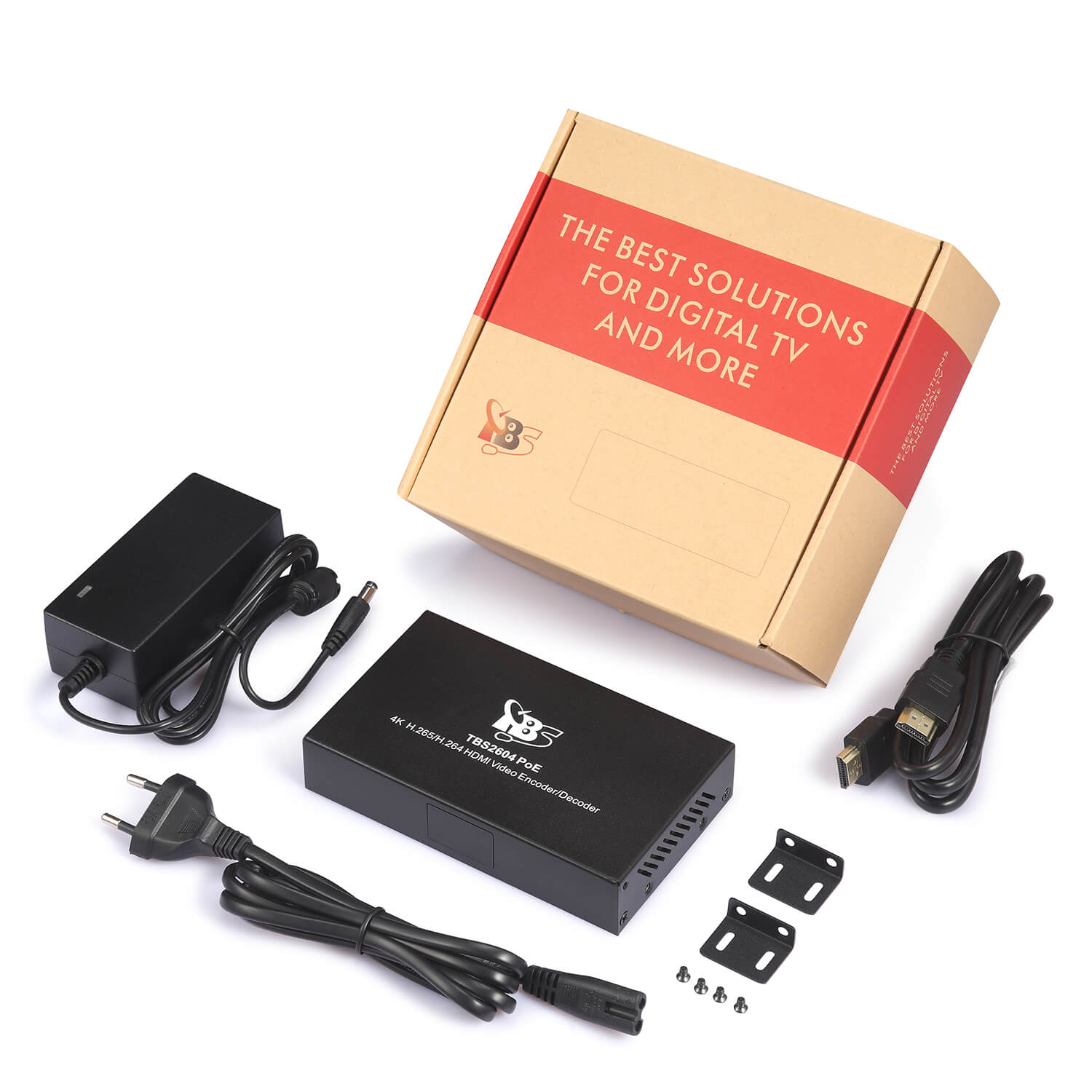

    Package Contents 1x TBS2604PoE 4K@30FPS HDMI video encoder/decoder
    1x DC 12V/2A power adapter
    1x HDMI cable
    1 pair of rack mounting ears
