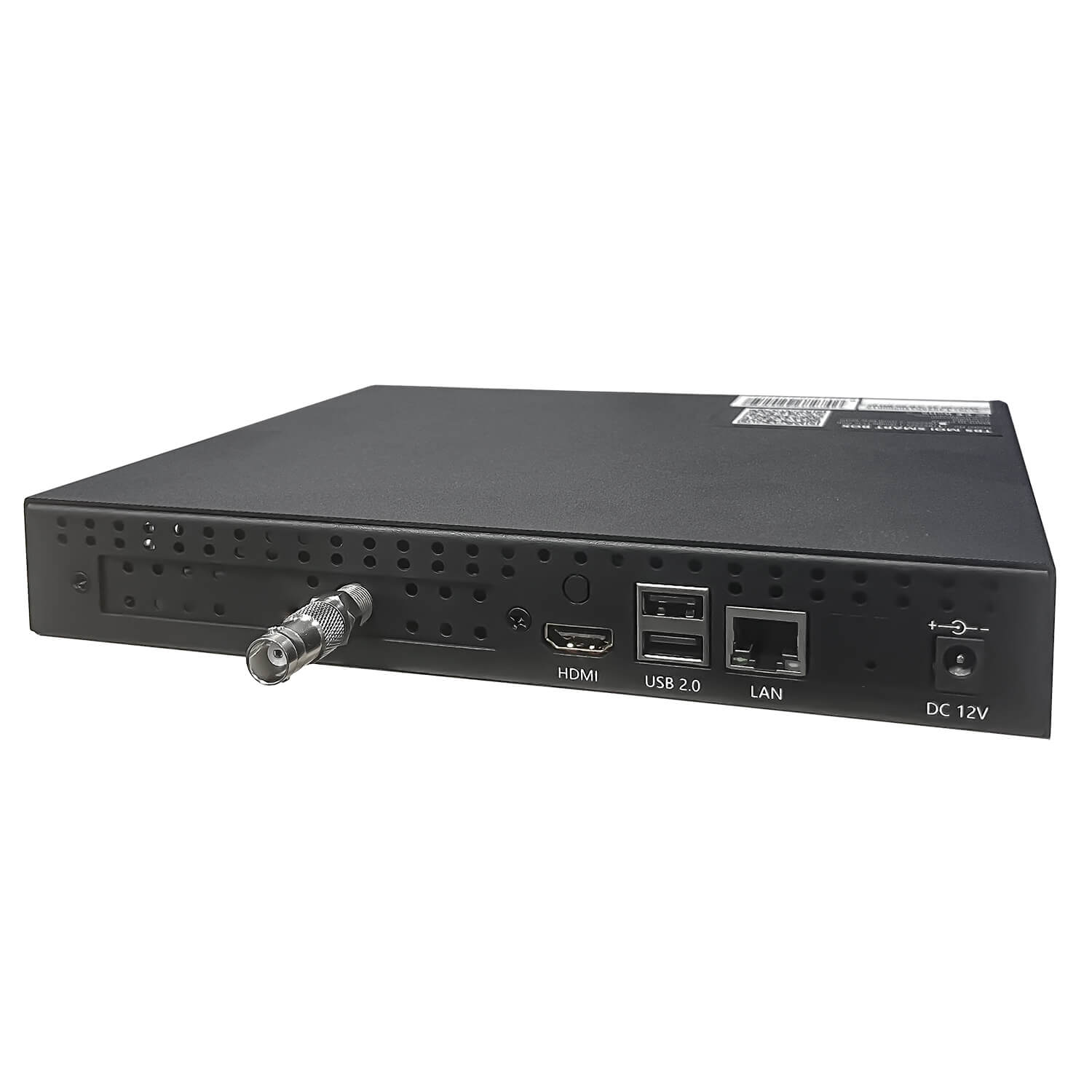

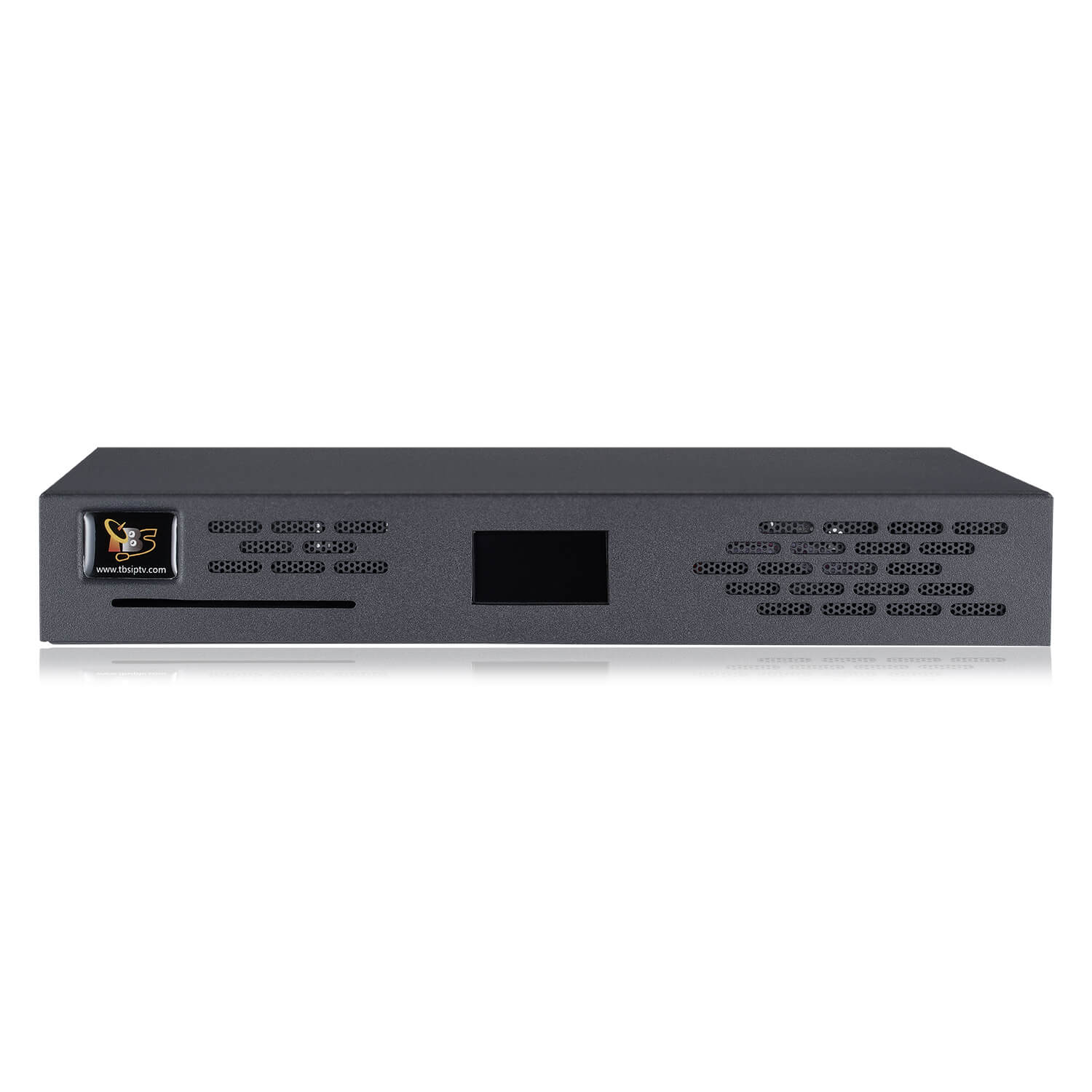

    TBS260B pro IP to ASI converter

    The IP to ASI Converter is an advanced signal conversion solution designed for broadcasters, cable operators, and other professional video applications. With robust hardware and intuitive software, this device seamlessly converts multiple IP stream protocols into ASI output for efficient signal distribution.

    · Multi-protocol IP Stream Support:
    HTTP, UDP, RTP, HLS, SRT, SPTS, and MPTS.
    · Output:
    1 ASI output port.
    · Hardware Highlights:
    Powered by Quad-core 64-bit ARM SoC @ 2.0GHz.
    · Kylone IP Streaming System:
    User-friendly interface for IP stream management and ASI output configuration.

    Specifications

    Basic server spec:
    Processor Quad-core 64-bit ARM SoC @ 2.0GHz
    RAM 4GB LPDDR4
    Flash 16GB eMMC
    LAN 1Gb onboard Ethernet
    USB2.0 2 * USB2.0 port
    HDMI 1 * HDMI2.0 Out
    UART 1 x LCD Display
    PSU 12V/3A external
    Input & Output:
    IP Streams HTTP, UDP, RTP, HLS, SRT, SPTS, MPTS
    ASI output TS stream
    ASI output rate Up to 140Mbps
    Managing system Kylone streaming system
    IGMP Support V1, V2, V3
    Common information:
    Working Environment
    • Operating temperature: 0 ~ 40 deg C
    • Storage temperature: –20 ~ 70 deg C
    • Relative Humidity: 5% ~ 90% non-condensing
    Dimensions(chassis) 230 * 180 * 34mm
