Model |
TBS2614 |
Input |

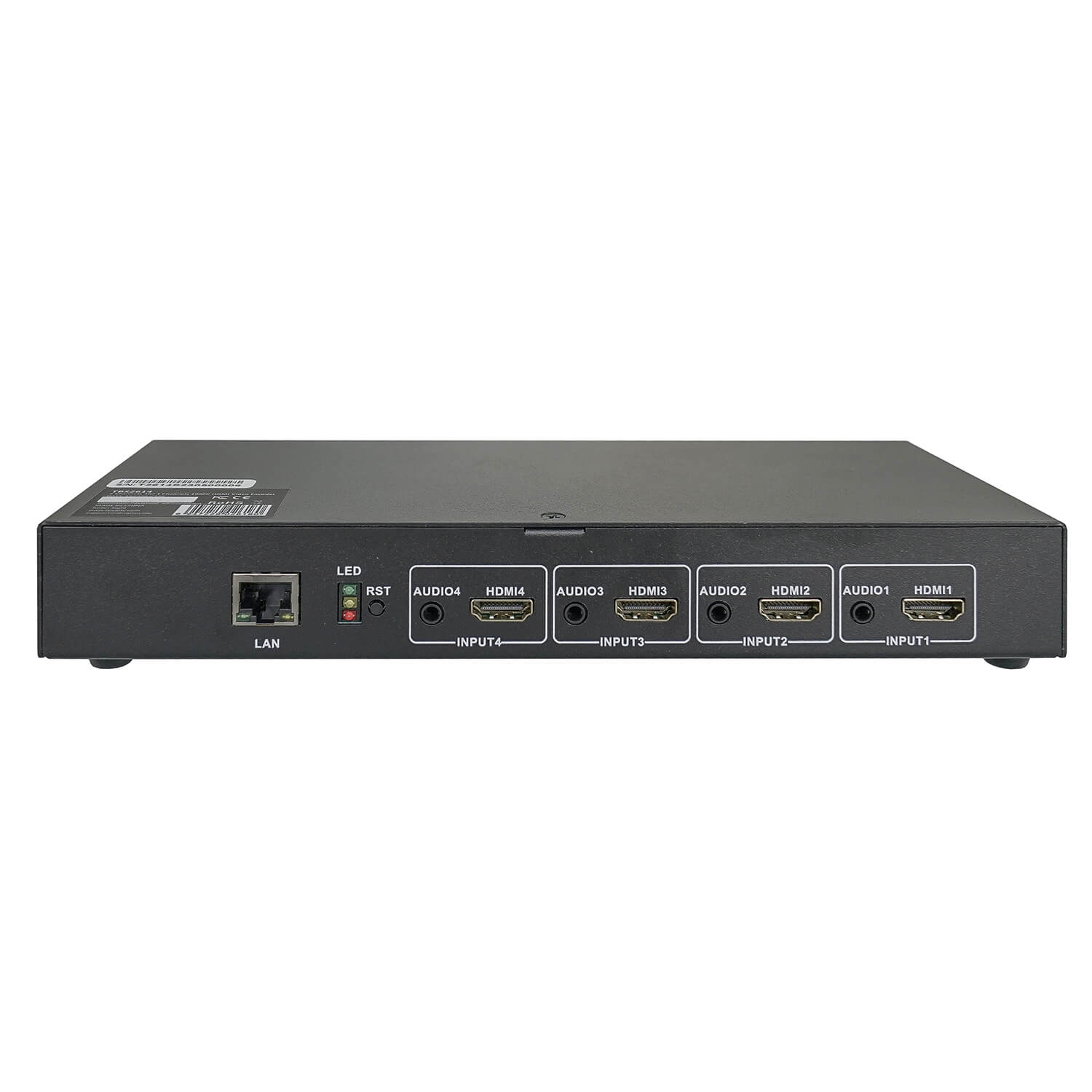

4 xHDMI input, 4 Channel line in audio, HDCP supported |
Output |
1 x RJ45 100M (management port), 1 x RJ45 1Gbps (data port) |
Video |
Input resolution |
3840x2160p_30hz, 1920x1080p_60hz, 1920x1080p_50hz, 1920x1080i_60hz, 1920x1080i_50hz, 720p, 720x576i, 720x576p, 640x480i, and ect. |
Codec |
H.265 / H.264 |
Profile |
- H.265 Main profile
- H.264 Baseline profile
- H.264 Main profile
- H.264 High profile
|
Encoded size |
3840x2160,1920x1080,1680x1056,1280x720,1024x576,960x540, 850x480, 720x576, 720x540, 720x480, 640x480, 640x320, and ect. |
aspect ratio |
16:9, 4:3 |
Color setting |
Brightness, Contrast, Saturation |
Bitrate control |
CBR, VBR |
Bite rate |
16Kbps ~ 12Mbps |
Video frame rate |
5 - 60 fps (1080p and low: 5 ~ 60fps; 4k: maximum is 30fps) |
OSD |
Text, Image |
Audio |
Input selection |
HDMI embedded: 4 channel HDMI embedded audio Line in: 4 channel 3.5mm Jack independent audio support audio gain |
Audio coding |
AAC(LC/HE), MP3, G.711 |
Audio bit rate |
24Kb/s ~ 320Kb/s |
IP Output |
1 RJ 100M / 1000M adaptive Ethernet port |
System |
Protocols |
HTTP, HLS, RTSP, RTMP/RTMPS, RTP/UDP unicast & multicast, SRT (Caller mode, Listener mode), Onvif |
Configuration management |
Web User interface, remote upgrade, multi-one management platform |
|
Power supply |
0.8kg |
power consumption |
12W |
Size |
100mm x 250mm x 35mm |
Operating temperature |
-20℃ ~ 60℃ |
Working humidity |
< 90%, Non-condensing |
Weight |
0.8KG |
Our company reserves the right to adjust the product parameters, if you have any questions, please contact us to check |
