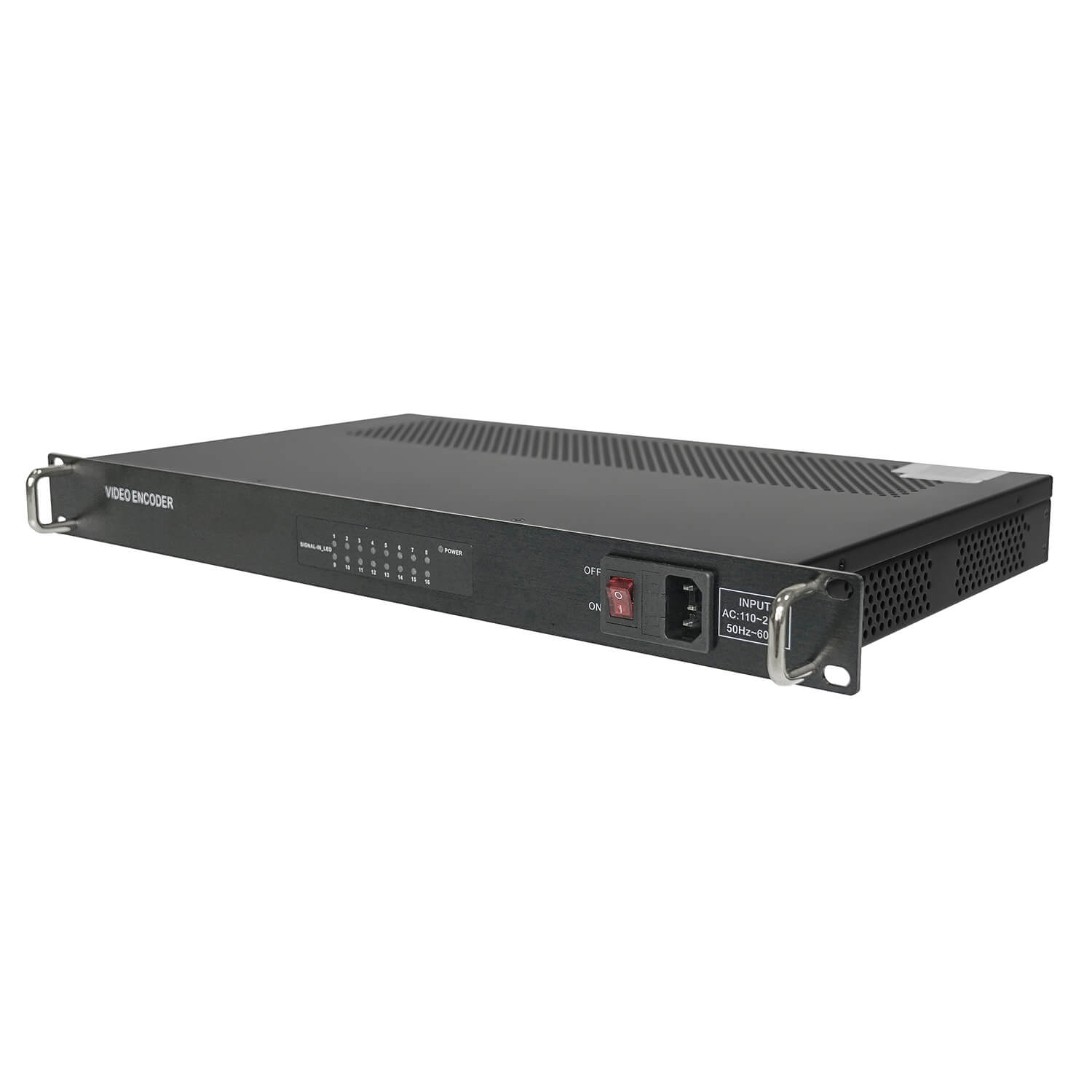

    TBS2616 8 Channels 4K /16 Channels 1080P HDMI Video Encoder

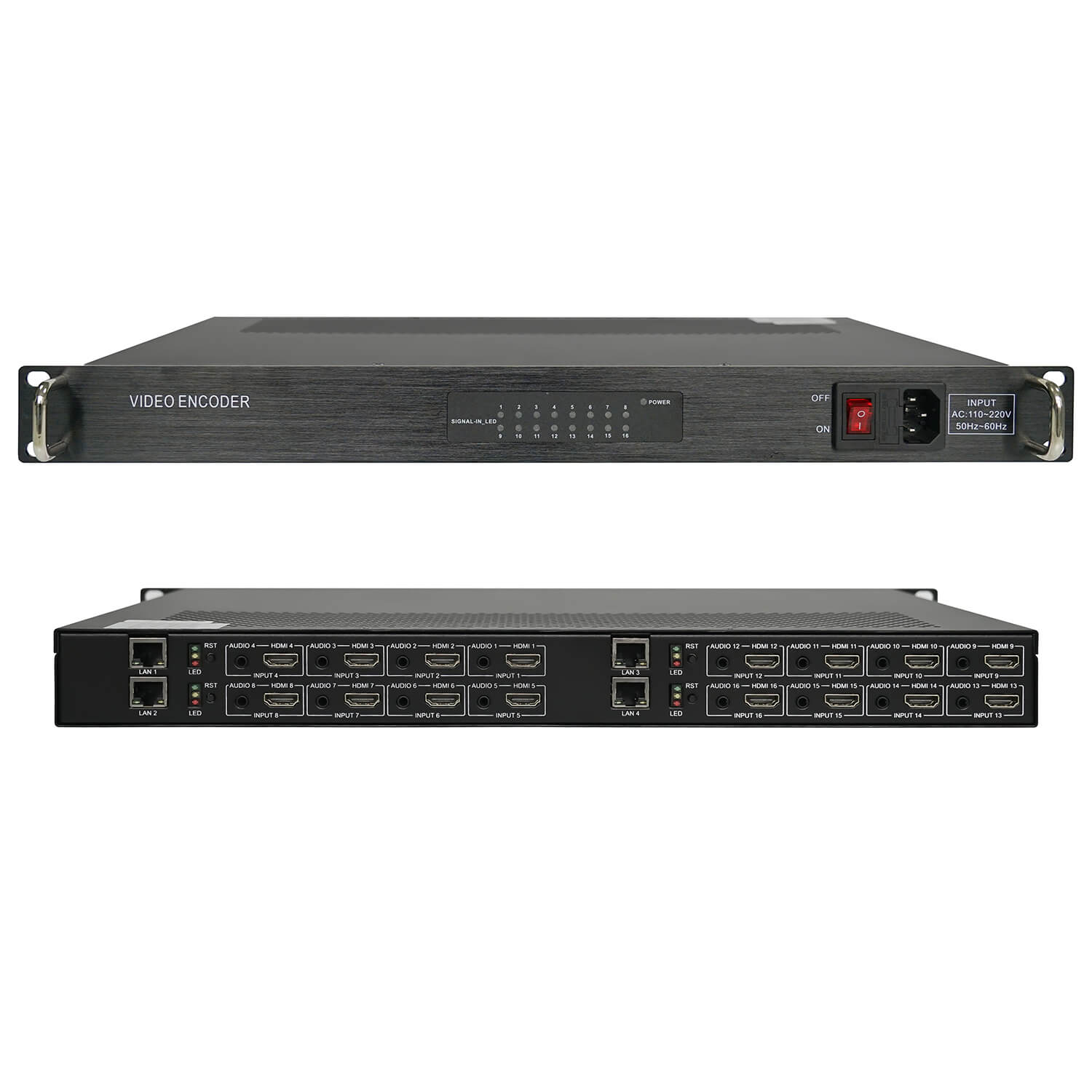

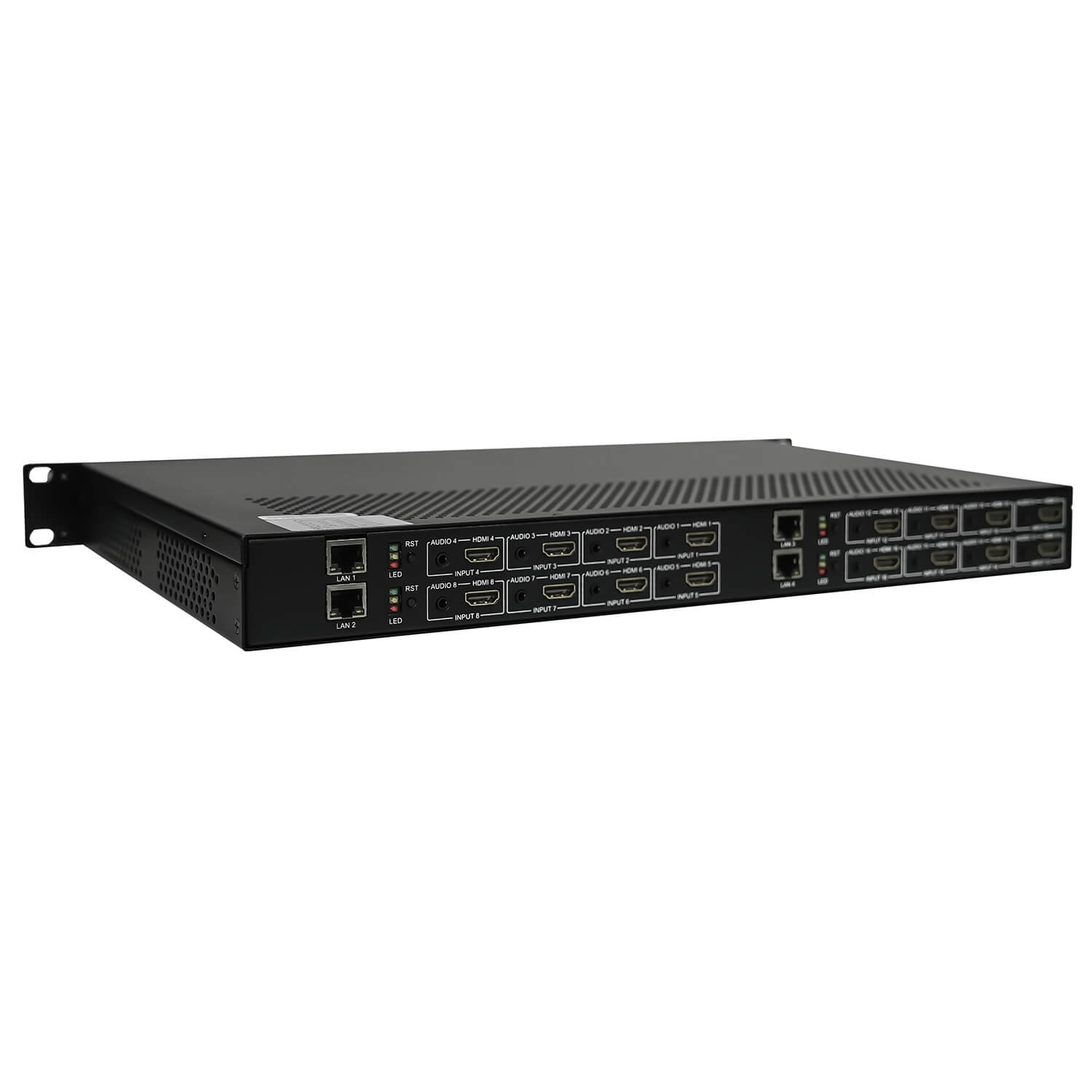

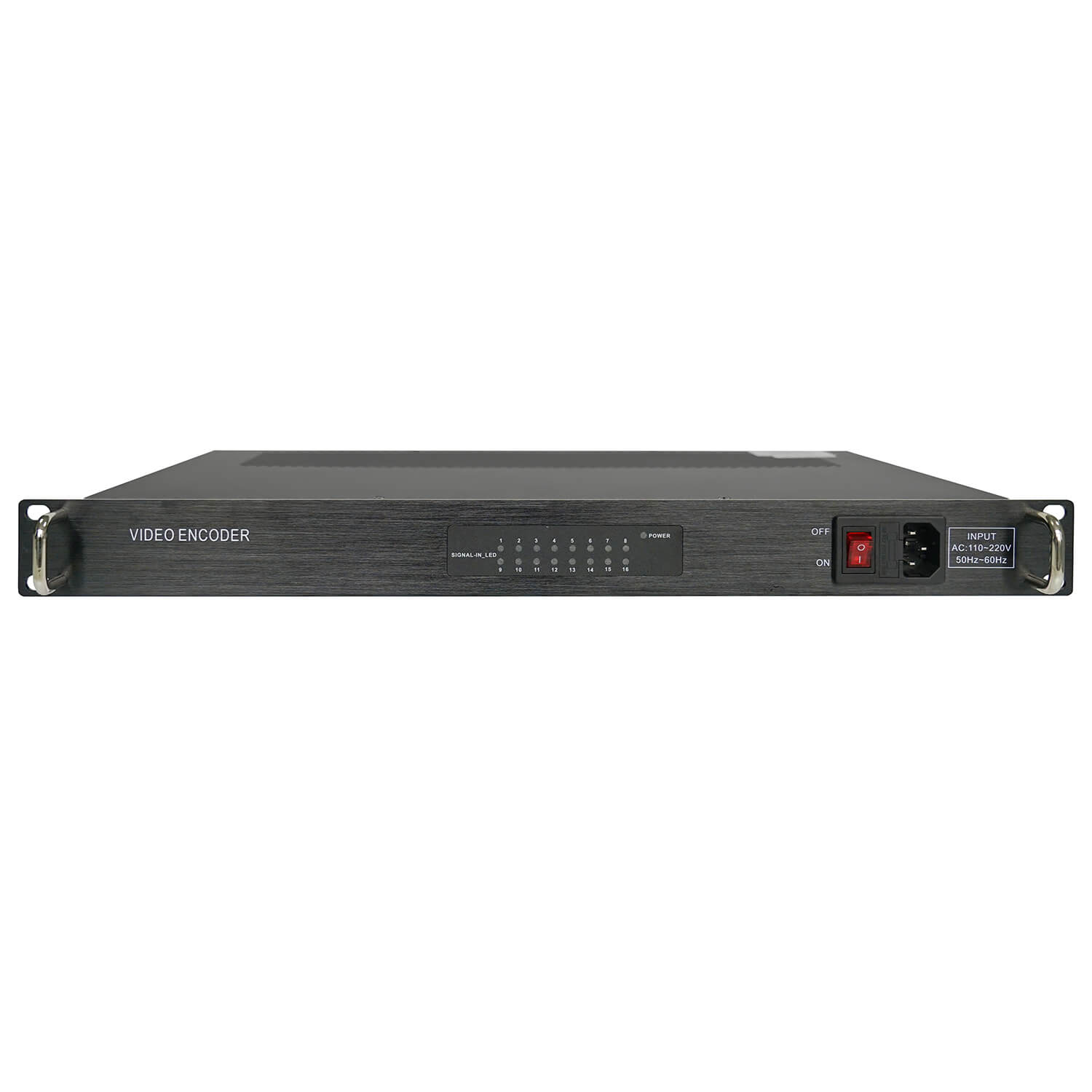

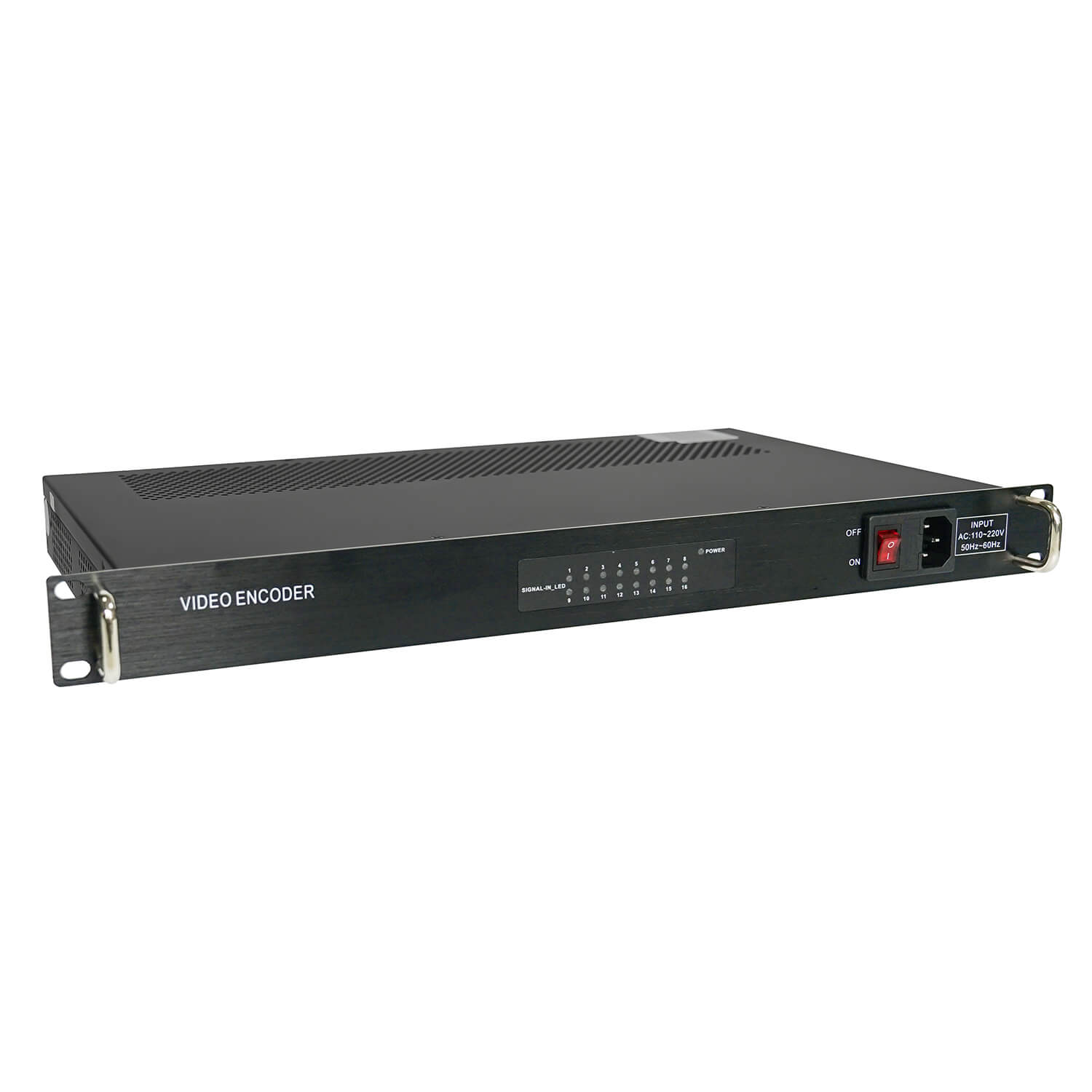

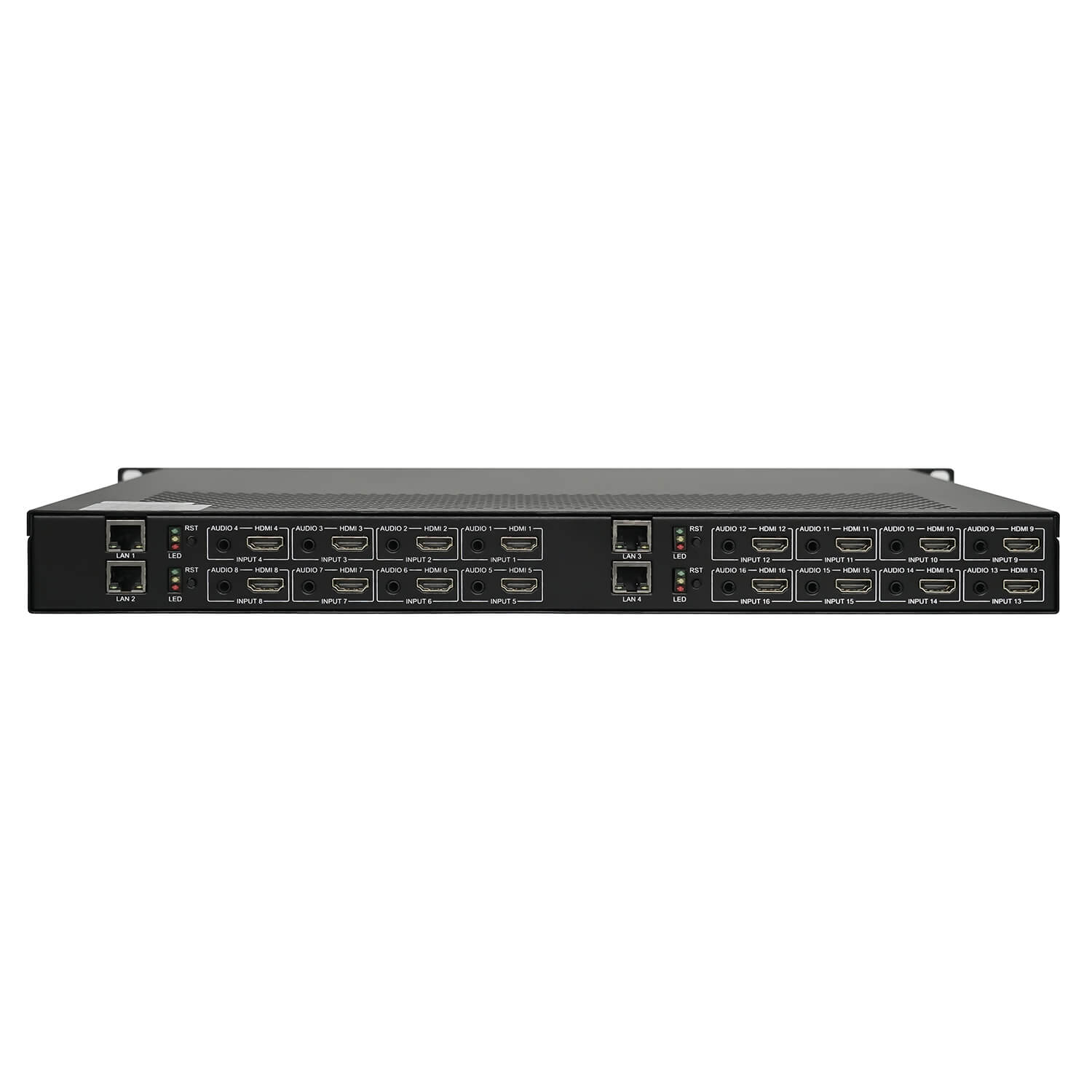

    TBS2616 HDMI video encoder is a professional high-definition video encoder, which not only supports 8 channels 4K or 16 channels H.265 encoding, but also supports multiprotocol output, each channel supports simultaneous output of HTTP/HLS/RTSP/UDP/RTP/SRT/RTMP(RTMPS) protocols, which is ideal for customers who need to use different protocols output.

    The product can be applied to education, health care, IPTV, conference, distance education, news interview, banking, transportation, and other industries.

    Application

    • Digital TV Broadcasting System
    • IPTV & OTT system
    • Digital Signage Project
    • Remote Video Conference
    • Live Streaming
    • Head-end system of Digital TV branch network

    Key Features

    • 3840x2160/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i resolutions
    • Support H265 main profile; /H.264 baseline profile / main profile/ high profile
    • Support multiple devices display on a computer at the same time

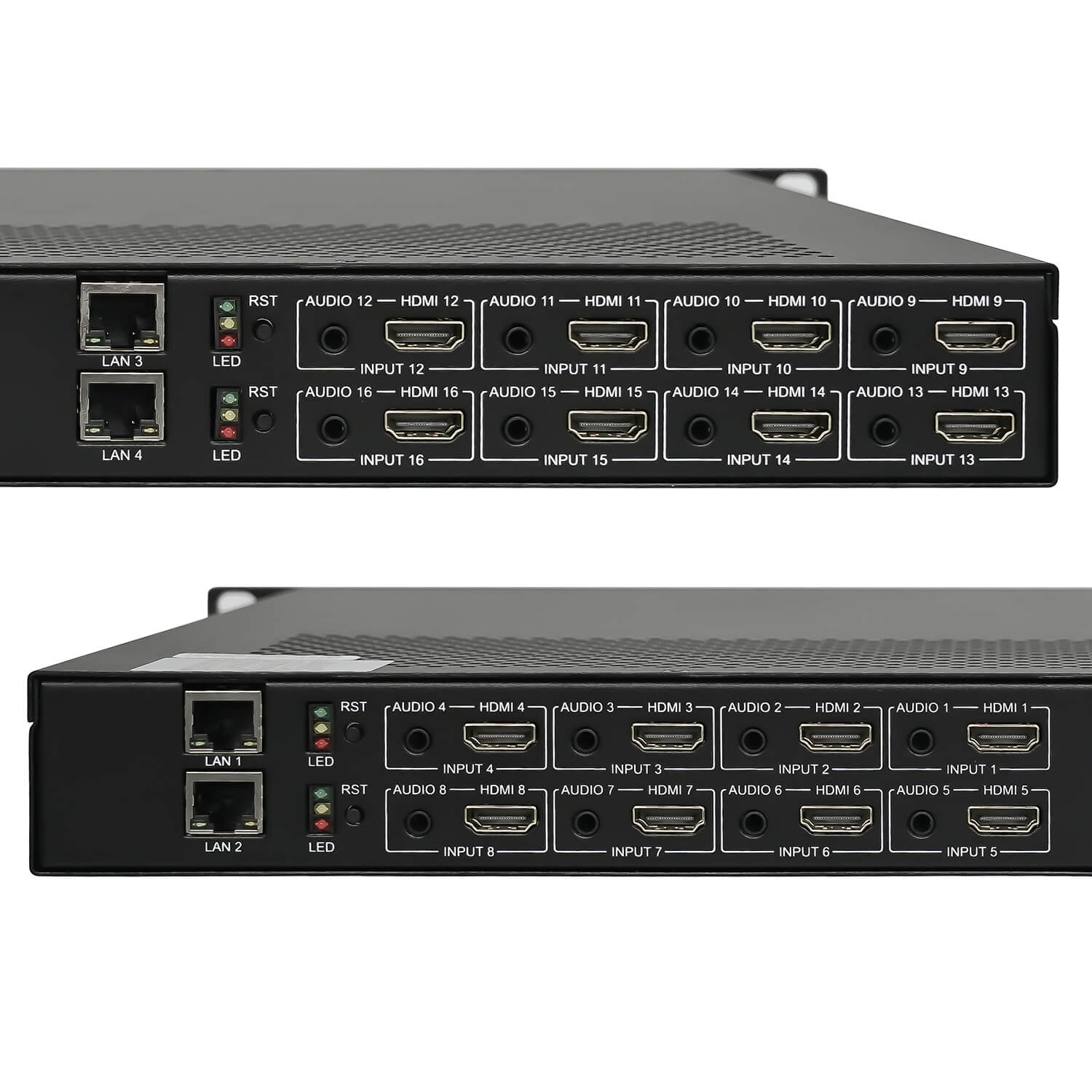

    • Supports dual ethernet ports 1000M/100M
    • Support HTTP/HLS/RTSP/SRT/RTMP(RTMPS)/RTP&UDP unicast and multicast protocol. Support DHCP/, ONVIF protocol, support HD Blue-ray
    • Support Main TS stream and the sub-TS stream use in different network protocols for transmission (multi-rate multi-protocol support)
    • Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
    • Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
    • Support streaming add watermark (OSD), XY axis, the font can be set;
    • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
    • Support build-in or external methods, support left and right sound channel, Support audio gain, be able to turn volume individually
    • Support coding without video signal;
    • Complete the setting effect immediately, don’t need to restart
    • Support one-key recovery of the default configuration
    • Support set-top box decoder
    • Low power consumption design
