    TBS2640V2 – 16-Channel HDMI/SDI Independent Video Encoder for Uninterrupted Digital Content Delivery

    Overview:

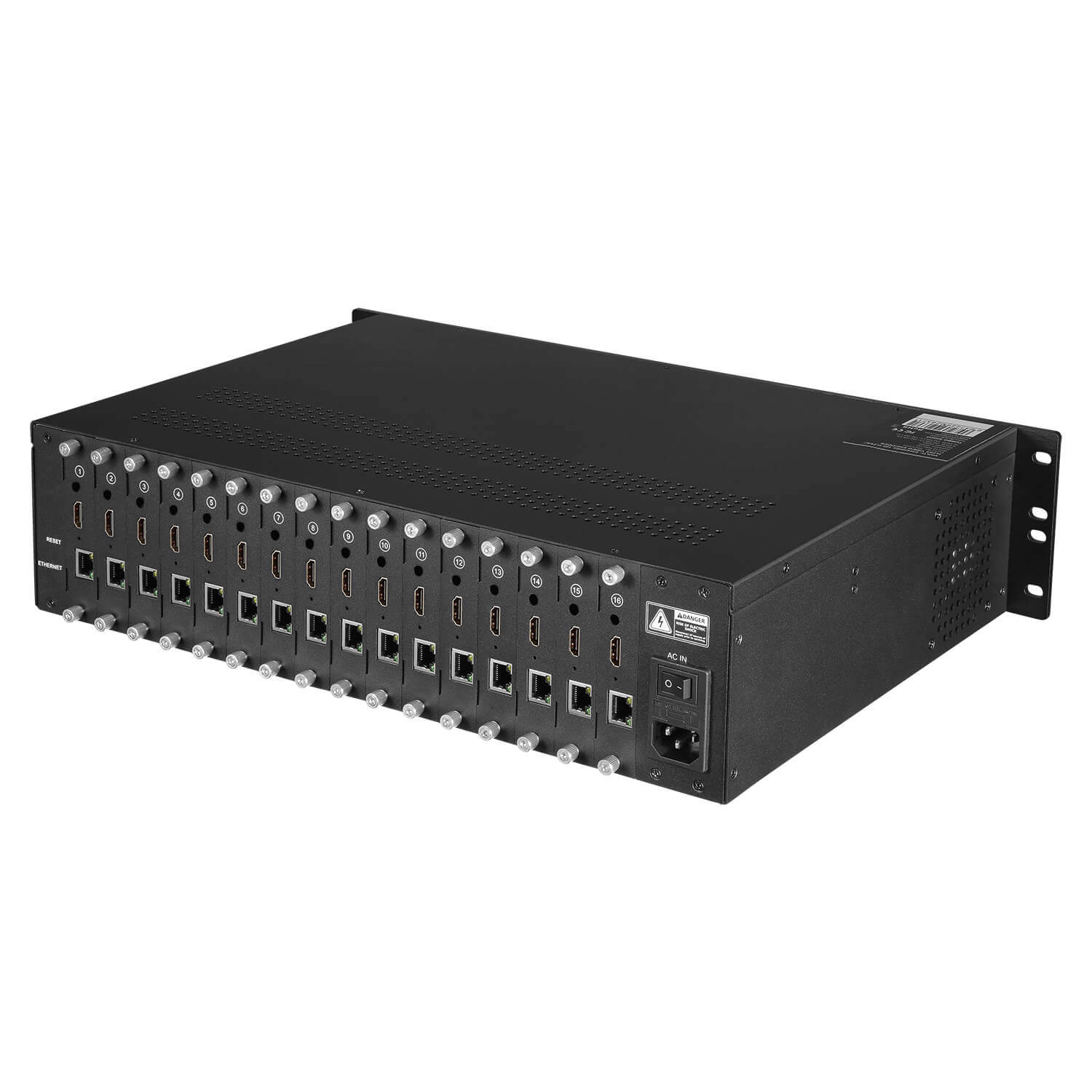

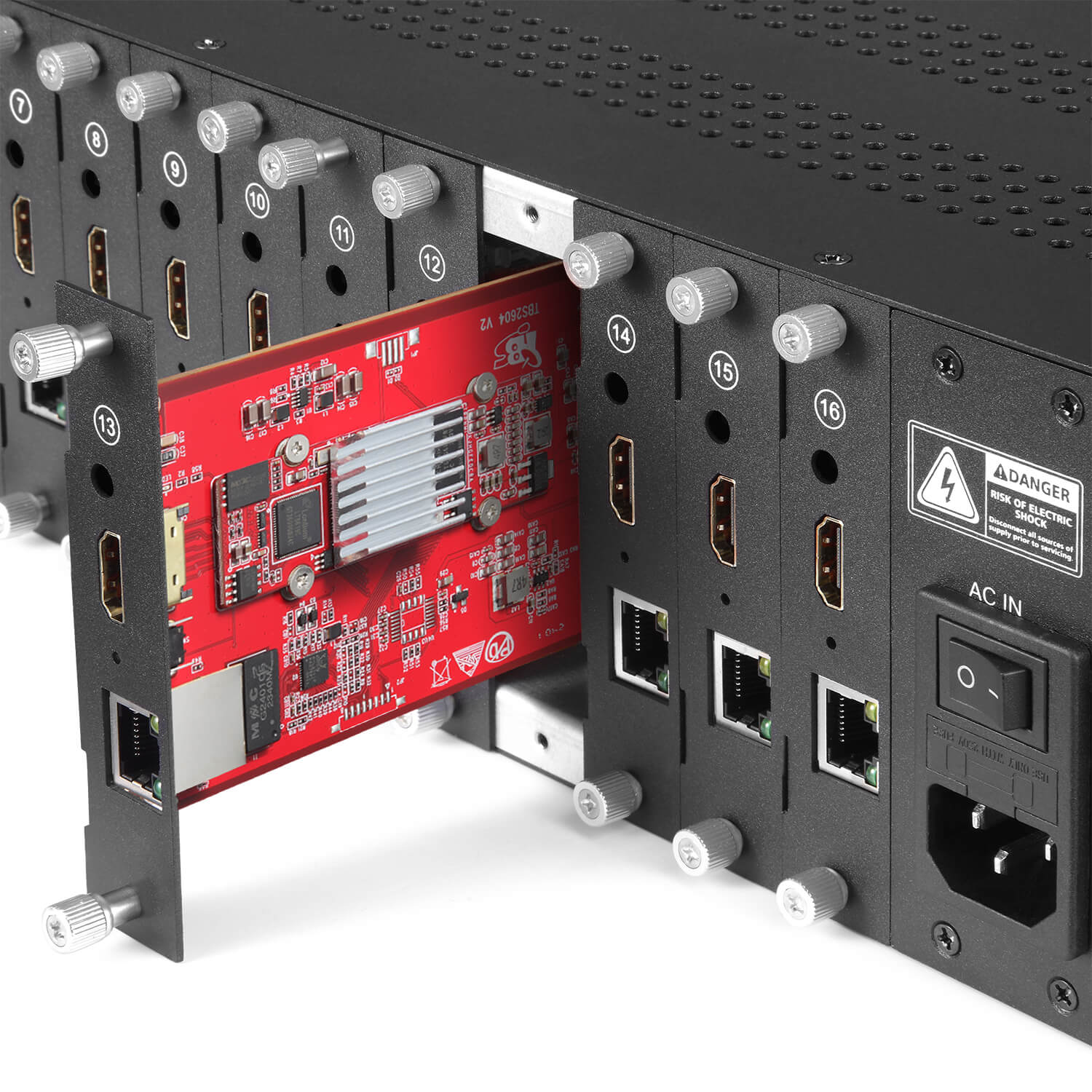

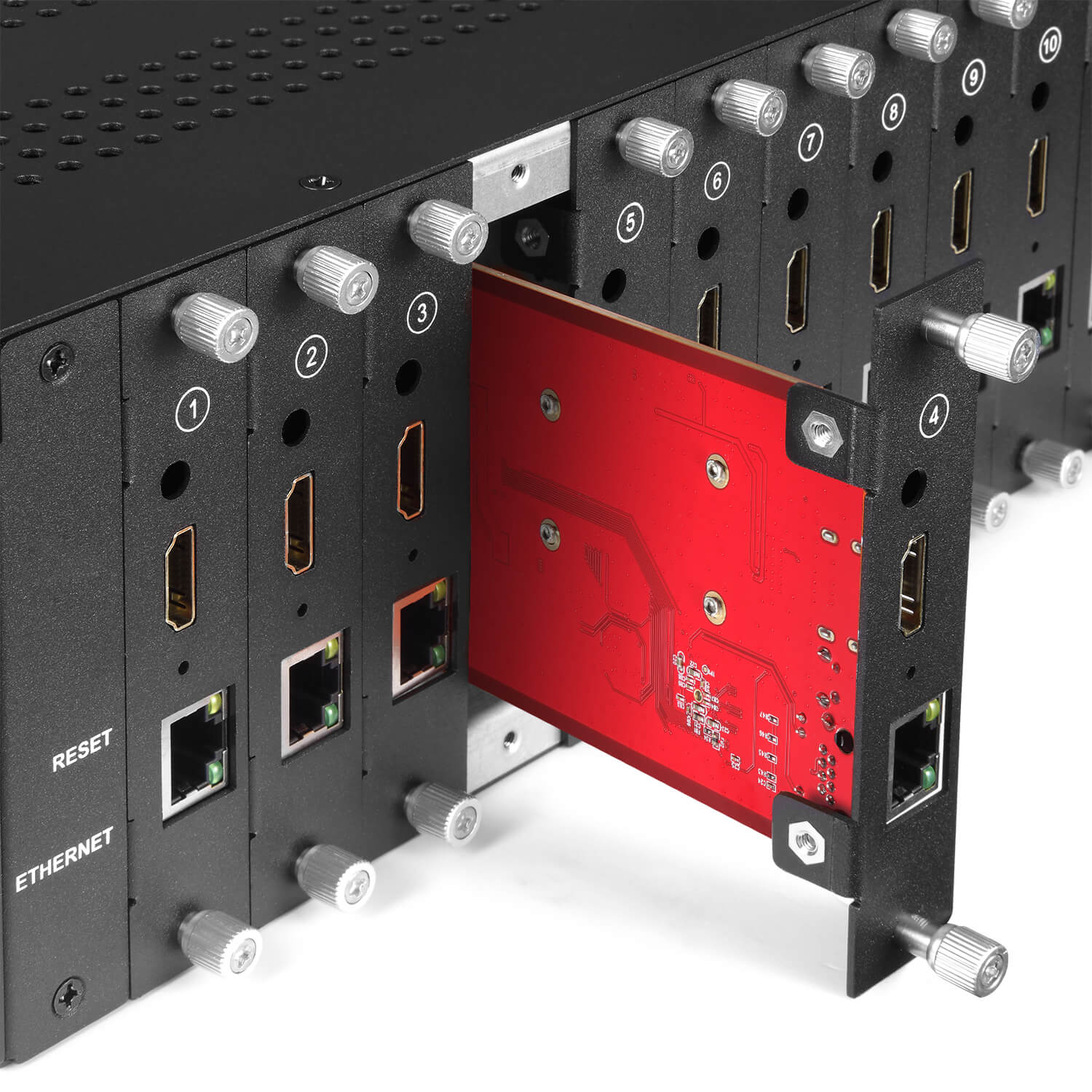

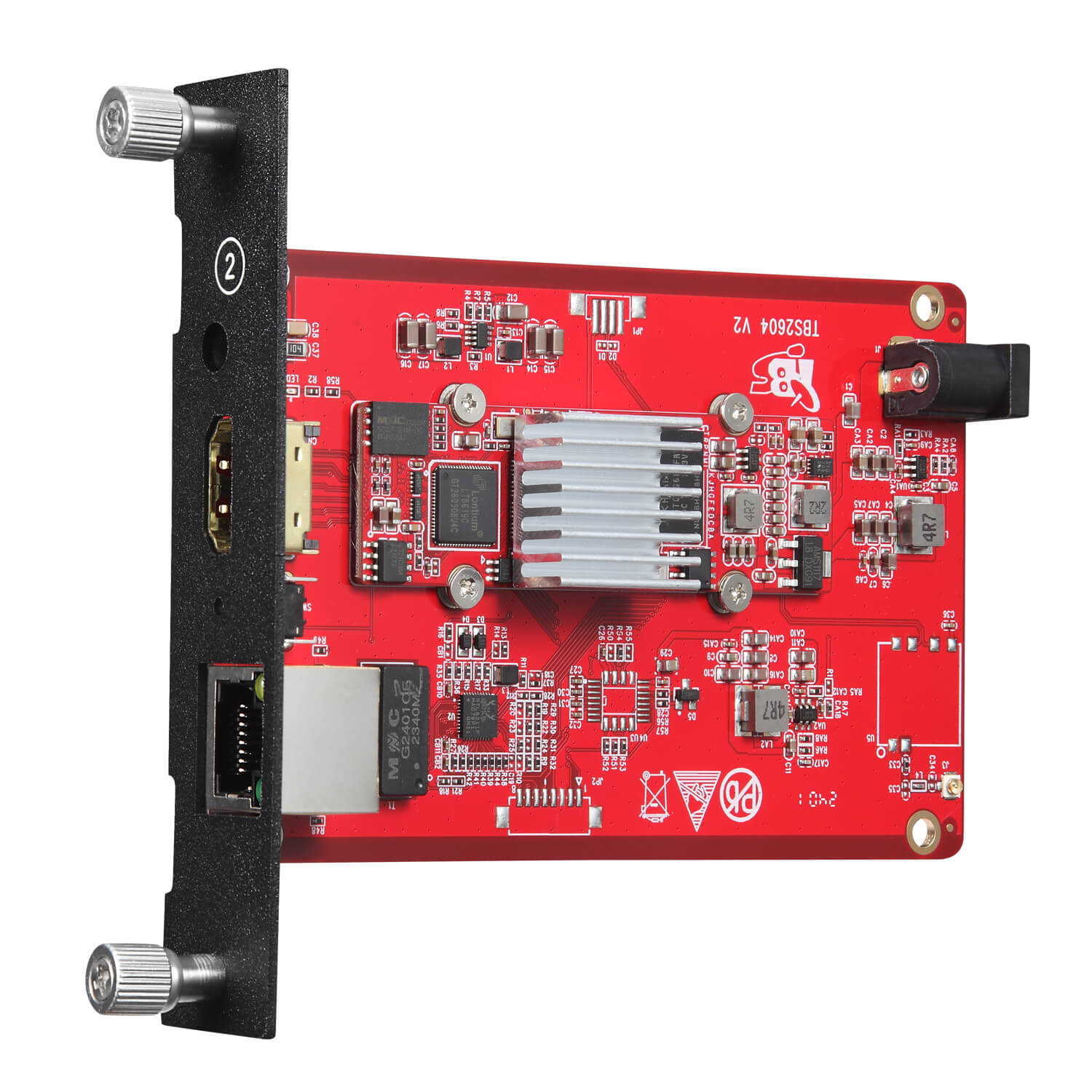

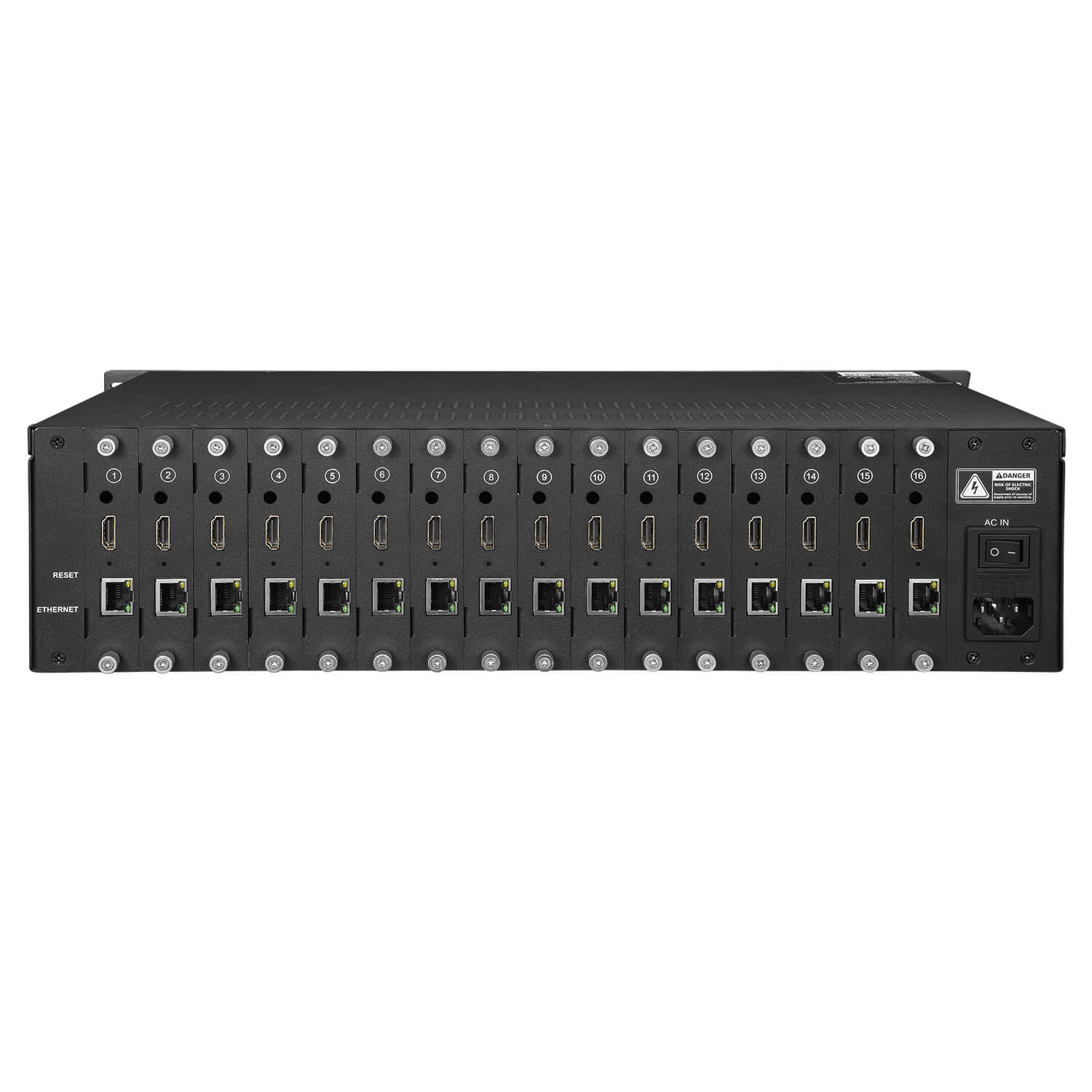

    The TBS2640V2 Video Encoder is a cutting-edge solution designed for professional video distribution, supporting up to 16 independent HDMI or SDI inputs. Built with 16 separate boards, each input operates autonomously, ensuring that if one input fails, the remaining channels continue streaming without interruption. This innovative design guarantees maximum reliability and stability for critical digital content delivery.

    For HDMI inputs, the encoder supports up to 3840x2160p at 30Hz video input and output, enabling high-resolution 4K streaming. When using SDI inputs, the TBS2640V2 supports up to 1920x1080p at 60Hz for smooth Full HD video encoding and output.

    The TBS2640V2 supports both H.264 and H.265 encoding, providing high-quality, efficient compression for a wide range of streaming needs. With flexible output protocols including HTTP, HLS (m3u8), RTSP, SRT (caller & listener), UDP (unicast & multicast), and RTMP/RTMPS, this encoder seamlessly integrates into diverse broadcasting and streaming environments. Whether for live events, IPTV systems, or content distribution networks, the TBS2640V2 delivers uncompromising performance and reliability.

    Model Name TBS2640V2 HDMI Video Encoder TBS2640V2 SDI Video Encoder
    Input 8/16 x HDMI 1.4 (HDCP 1.4 supported) 16x SDI (BNC Female)
    Loop Out xxxx SDI Loop out
    Video
    Video Input 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, 1280x720p_60/50hz, 720x576p, 720x480p etc. SD-SDI (SMPTE 259): 480i, 576i
    HD-SDI (SMPTE 292): 1920x1080i_60/50hz, 1920x1080p_30/25/24hz, 720p_60/50hz
    3G-SDI (SMPTE 242): 1920x1080p_60/50hz Level A & Level B
    Video Encode Size 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto
    Video Output 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps etc. 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 720x576p@30fps, 640x480p@30fps etc.
    Video Codec H.264, H.265
    Profile H.264: Baseline, Main, High
    H.265: Main
    Level H264: Level 4.2; H265: Level 4.1
    Bitrate Control CBR, VBR, EVBR
    Frame Rate 5 ~ 60fps
    Key Interval (GOP) 5 ~ 180fps
    GOP Structure IPPP
    Bitrate 300 ~ 20000Kbps
    Color depth 8 bit
    Chroma subsampling 4:2:0
    De-interlace Supported, force to do de-interlace when i (interlace) input
    Audio
    Audio Input HDMI embedded SDI embedded: Supports up to 4 stereo audio tracks (8 mono audio channels): channel 1-2, 3-4, 5-6, 7-8
    Line in (Jack 3.5mm)
    Audio Codec AAC-LC, AAC-HE, MP2
    Audio Bitrate 24/32/44.1/48/64/96/128/160/192/256Kbps
    Audio Resample 48, 44.1, 32(Khz)
    System
    Control web GUI
    Recommended Browser Windows or Linux OS Google Chrome, Firefox, Microsoft Edge etc.
    Ethernet / RJ45 1000M Base-T Ethernet Interface
    Protocols HTTP, HLS (m3u8), RTSP, SRT caller & listener, RTP/UDP unicast & multicast, RTMP/RTMPS
    General Spec.
    Power Consumption less than 90 Watt

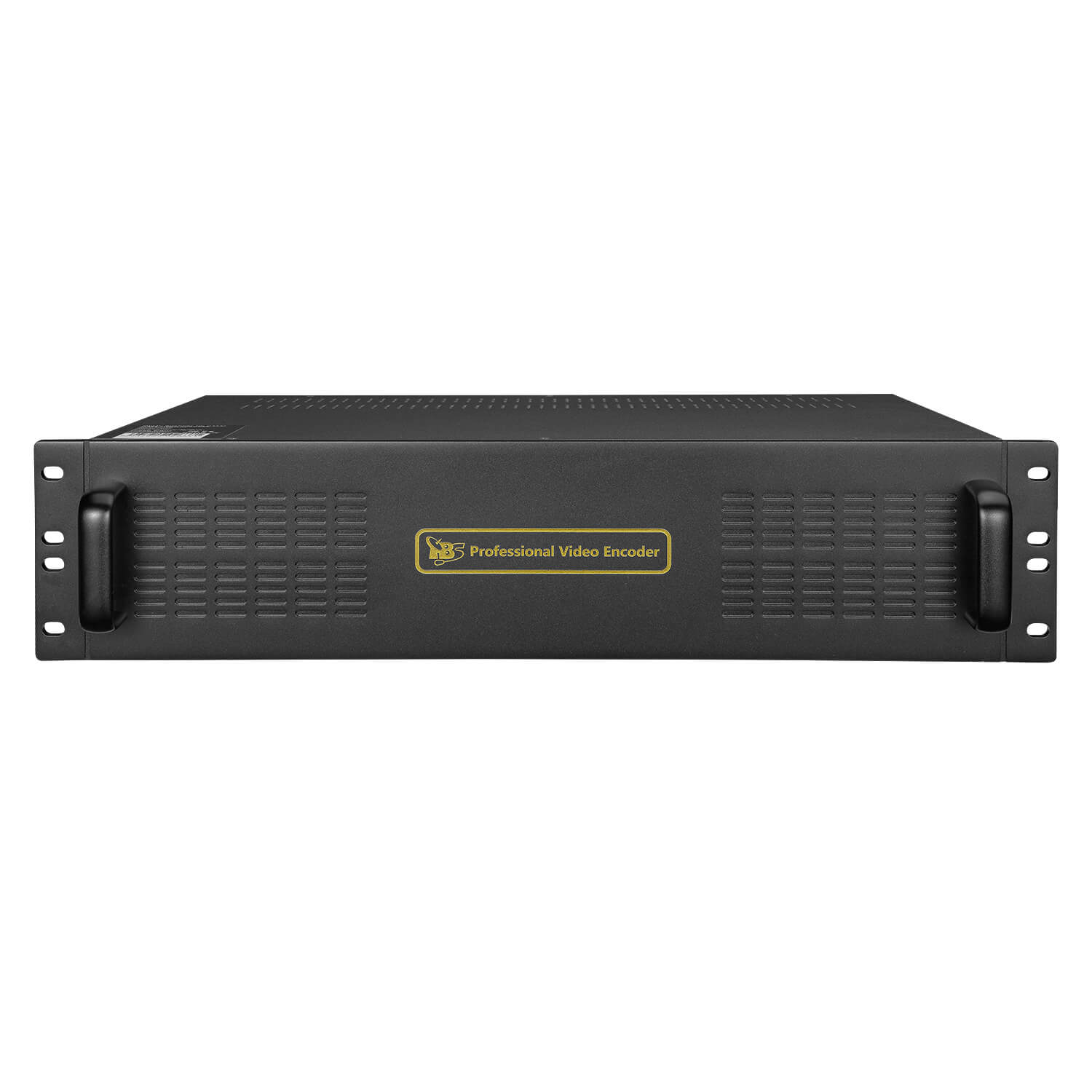

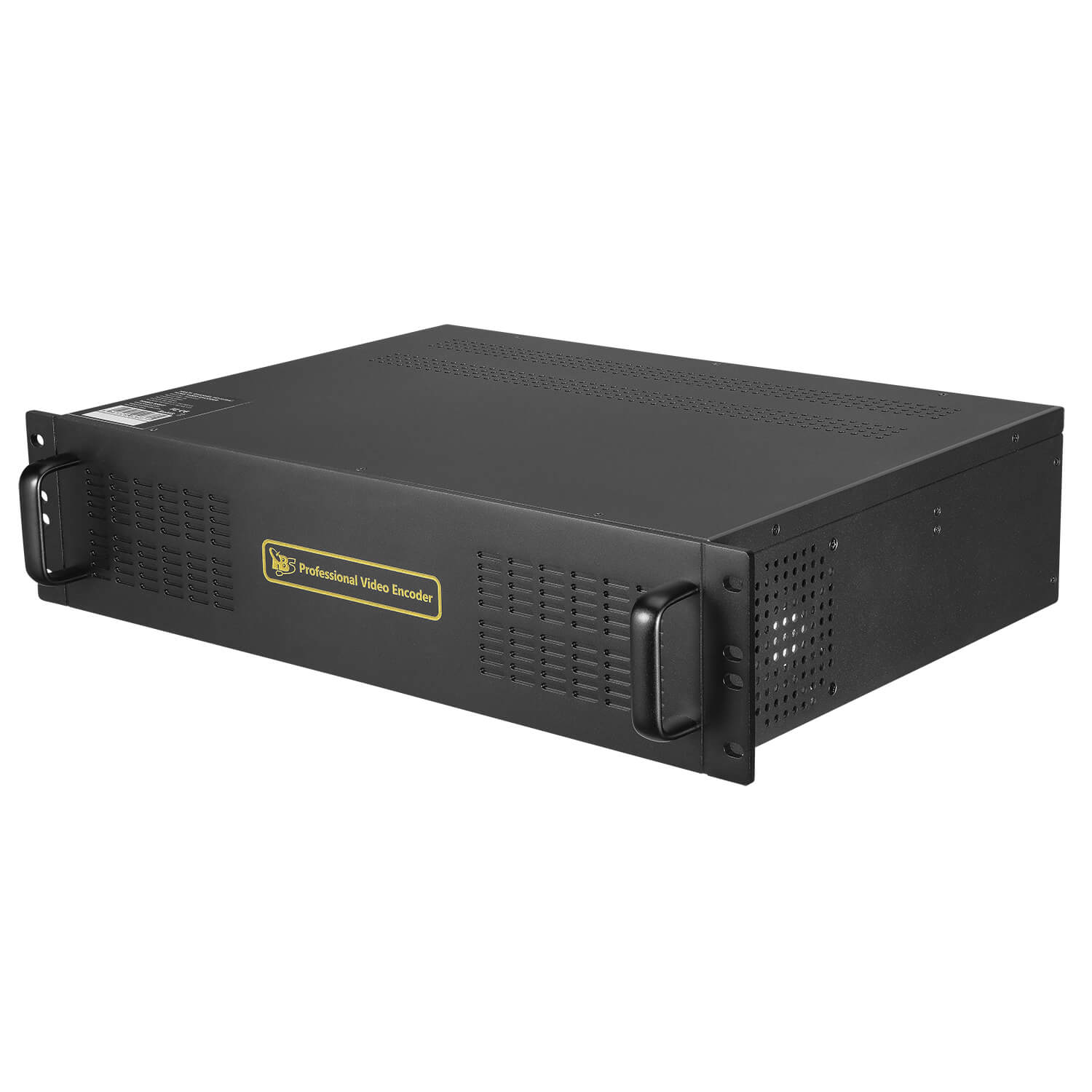

    Dimension 2U Rack
    Working Environment Operating temperature: 0 to 60 °C
    Storage temperature: –20 to 70 °C
    Relative Humidity: 5% to 90% (non-condensing)
    Package Contents 1x TBS2640V2 HDMI encoder 1x TBS2640V2 SDI encoder
    8/16pcs HDMI cables 8/16pcs SDI cables
    1x AC Power Cable 1x AC Power Cable
